Creating Kitchen layout, Hatching of Architectural elements and sectional view of an Industrial Building in AutoCad

Q.1

AIM:

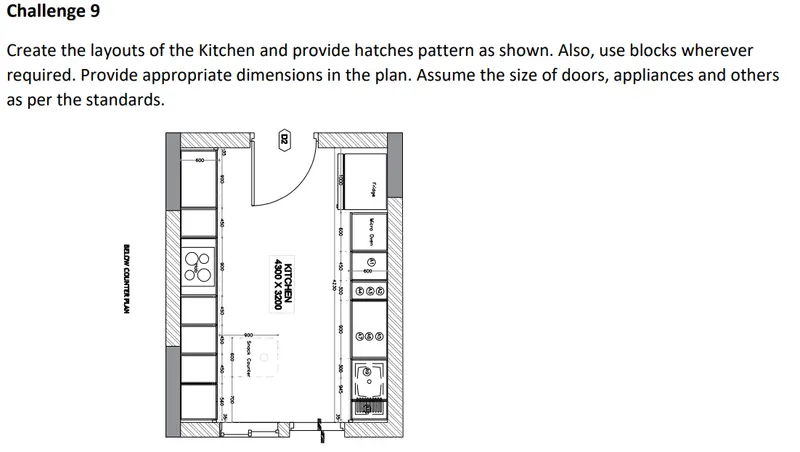

To create kitchen layout and also use proper dimension technique to kitchen layout

STEP 1

• Open Auto Cad
• All units are in mm
• Limits are also set

STEP 2

• In command prompt type rec and enter dimension 4734 X 3688
• Take offset of distance 230mm
• Using circle command draw the door
• In command prompt type offset to the hozizontal distance of 350,450,900,50,450 and 560
• In command prompt type offset to the vertical distance of 600
• Trim the extra lines and erase
• Copy command used to copy similar object

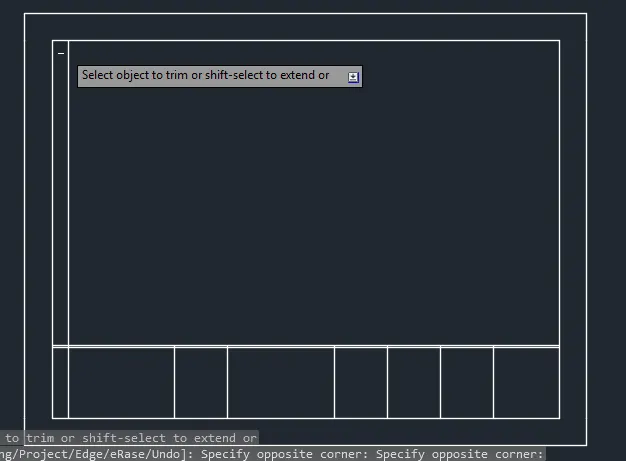

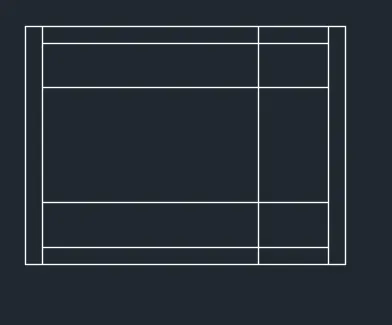

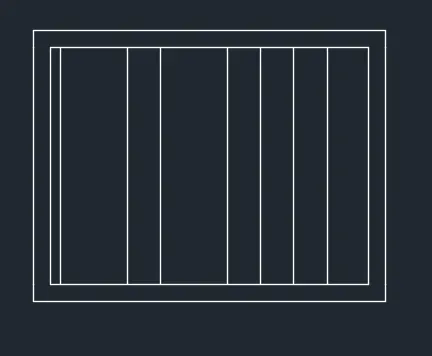

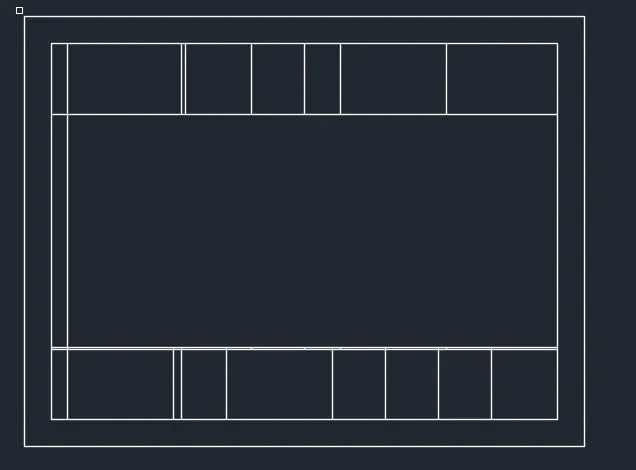

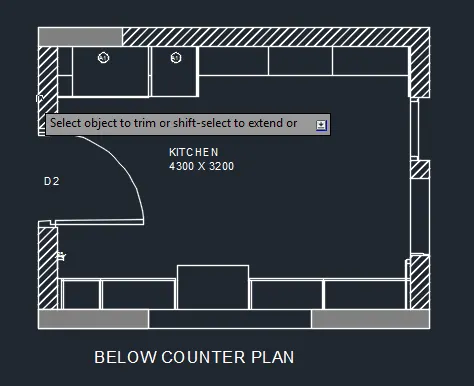

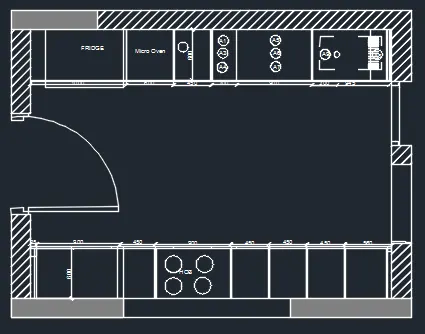

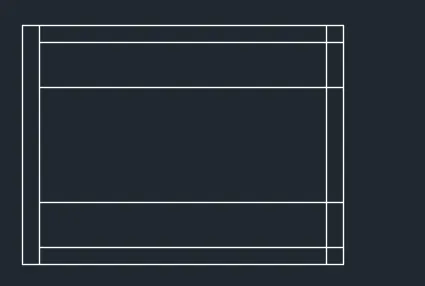

• Step by step drawing is shown below
•
•
•
•
•
•

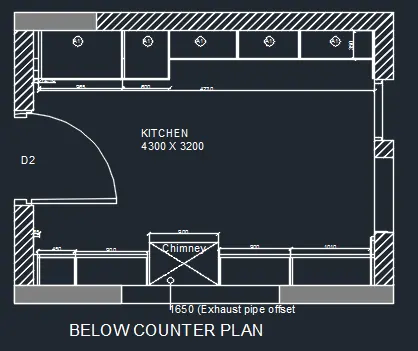

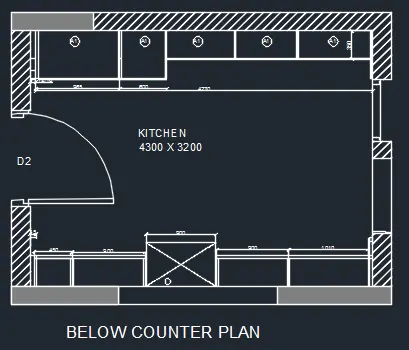

• this final below counter plan dwg is
•

Similarly for above counter plan

FINAL

FINAL RESULT

Q.2

AIM:

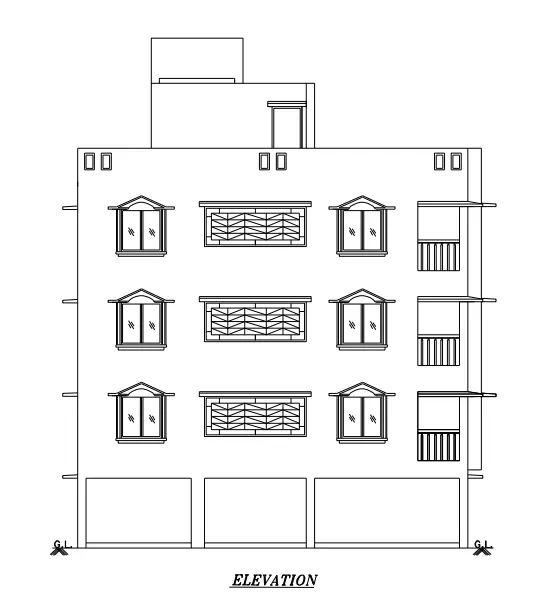

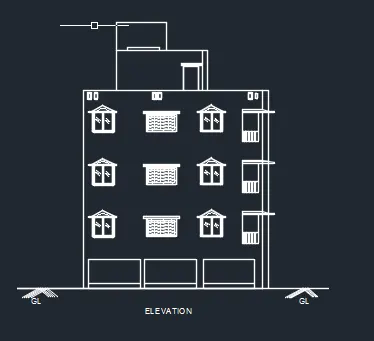

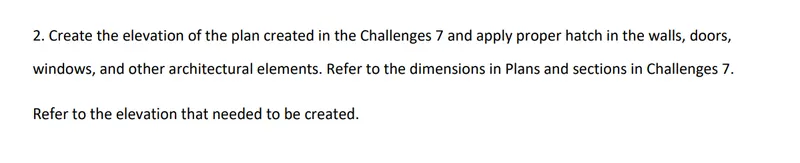

To create the elevation of the given Plan

Procedure:

• In the command prompt type L to draw the lines
• In the command prompt type Rec to draw the rectangle
• In the command prompt type arc to draw the arc
• At last window is created

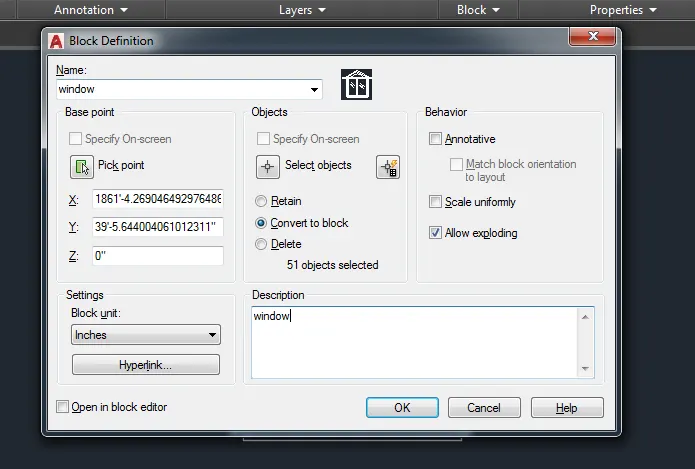

• Now we will create Block and name as window

• In command prompt type L to draw line
• In the command prompt type Rec to draw the rectangle

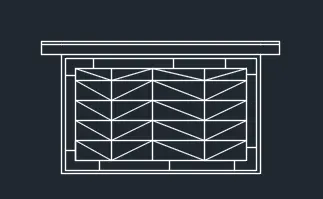

• Now we will create Block and name as brick design window
•

• In command prompt type L to draw line
• In the command prompt type Rec to draw the rectangle
• Now we will create Block and name as side chajjha
•

FINAL RESULT

Q.3

AIM:

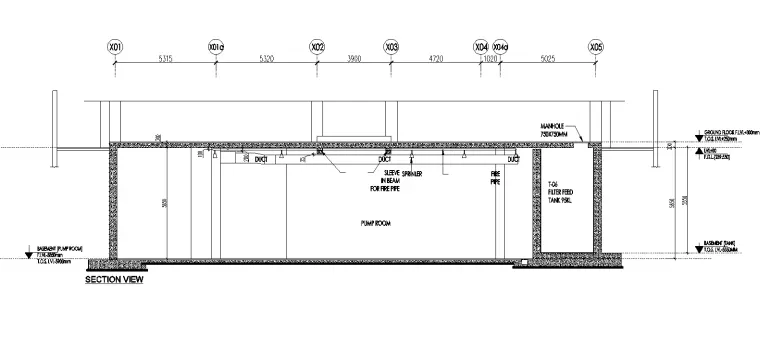

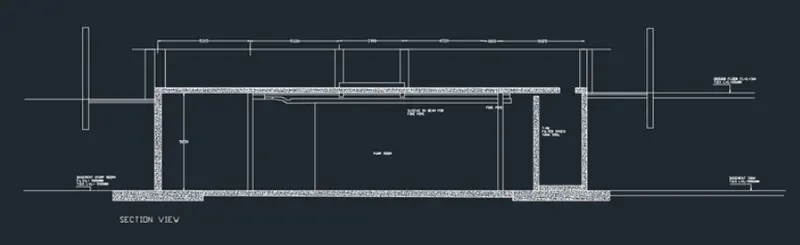

TO create the section view of the industrial building

Procedure:

• In command prompt type L to draw line
• In the command prompt type Rec to draw the rectangle
• In the Ribbon bar > Hatch >AR.Conc
• In command prompt type LT to get the dotted lines
• In command prompt typeC to draw the circle
• In command prompt type Mt to draft the text
• In command prompt type type dim to draft the dimensions
• Trim and erase command are used to delete the extra or unwanted maretial

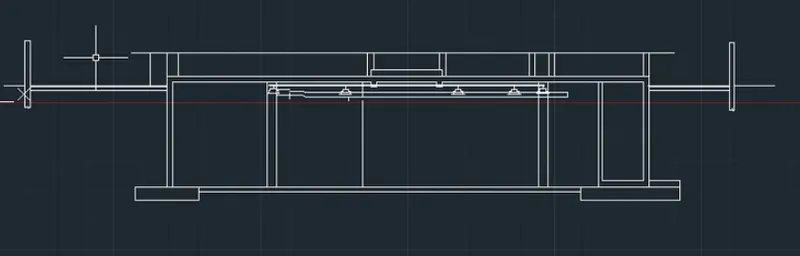

• All this step are used to create following drawing

FINAL RESULT
