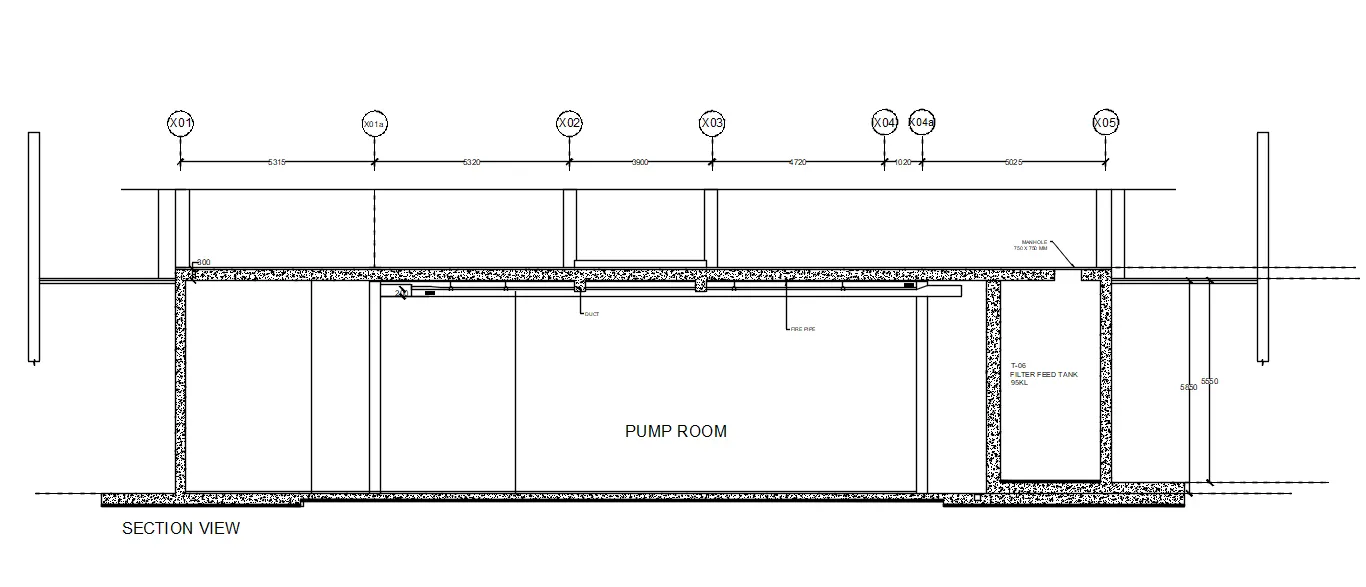

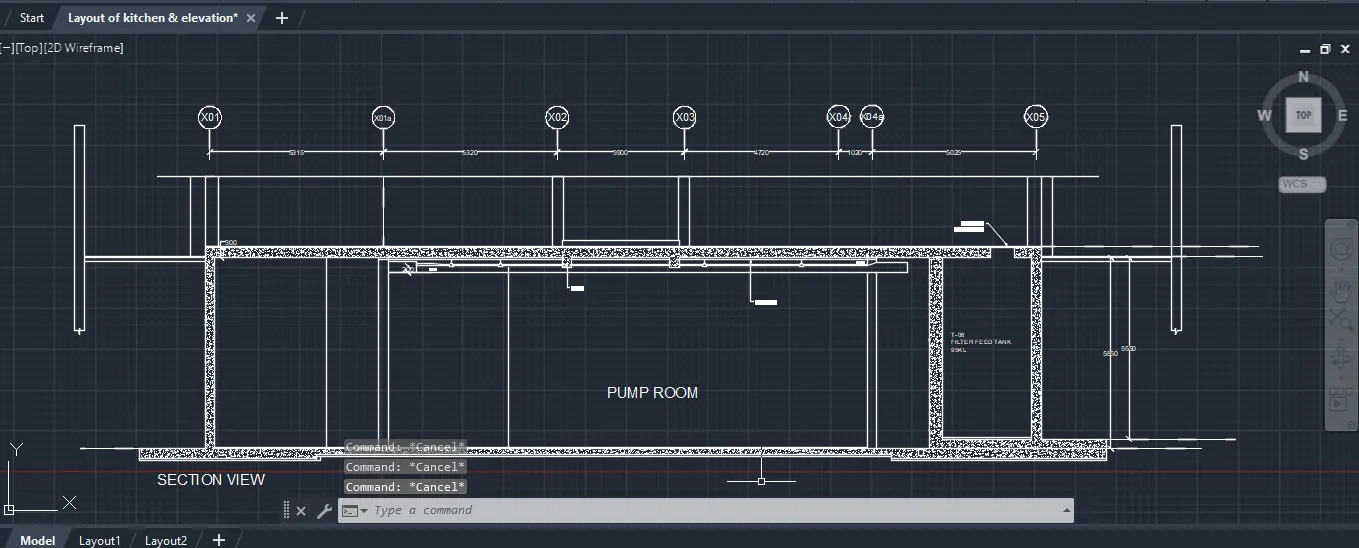

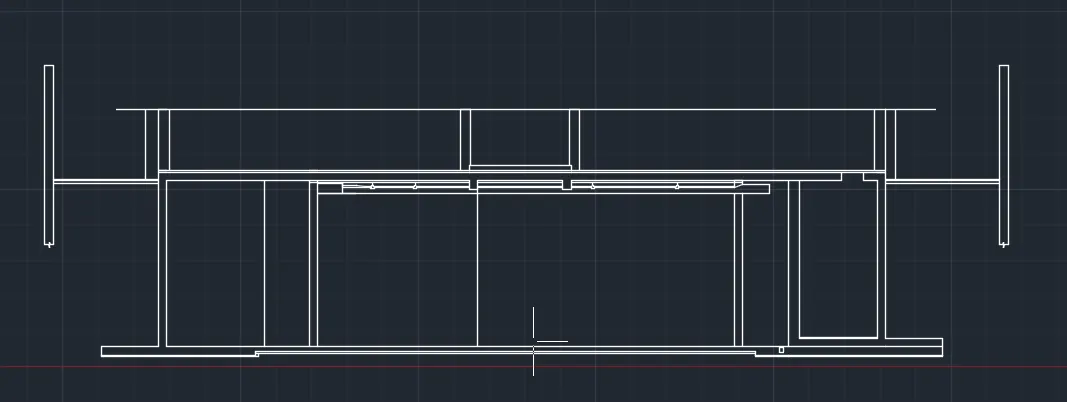

Creating Kitchen layout, Hatching of Architectural elements and sectional view of an Industrial Building in AutoCad

RRehan Altaf Shaikh21 Oct 2023

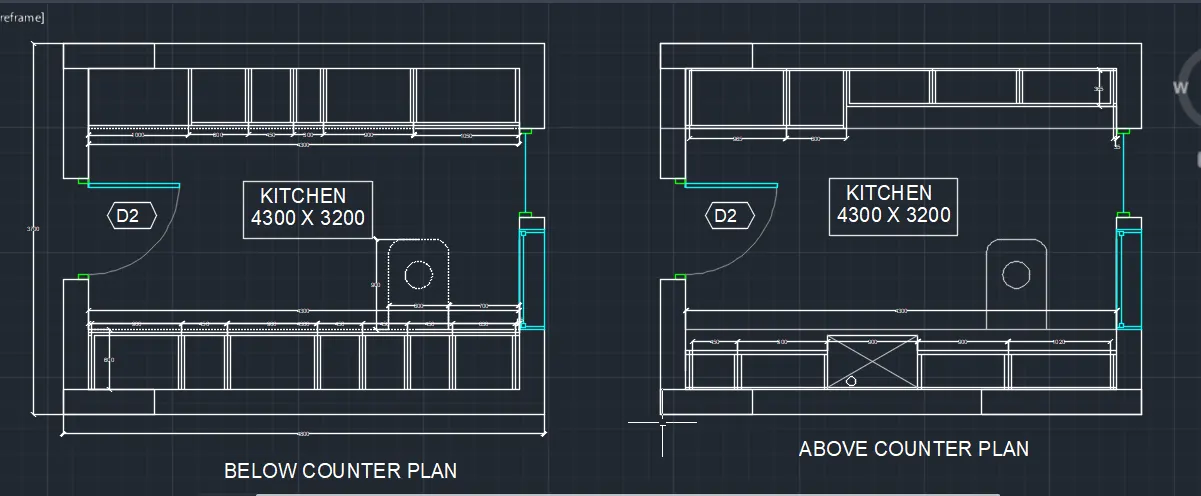

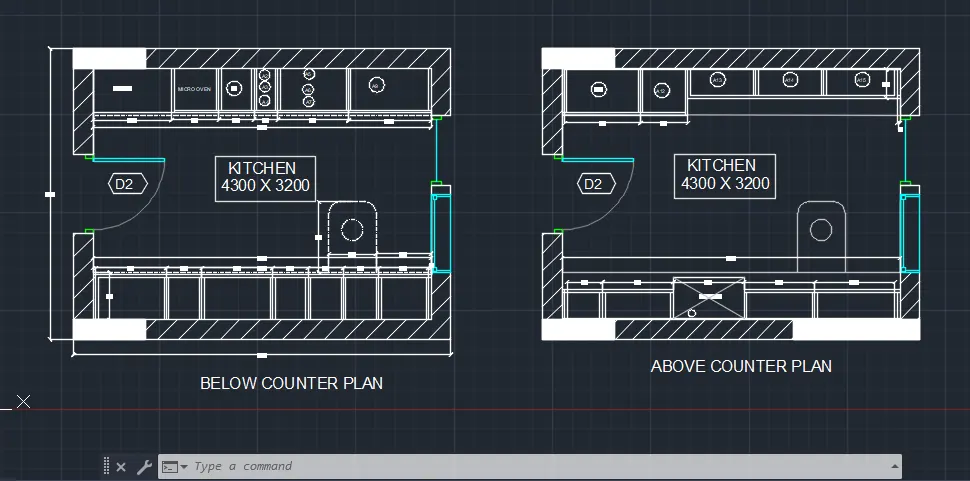

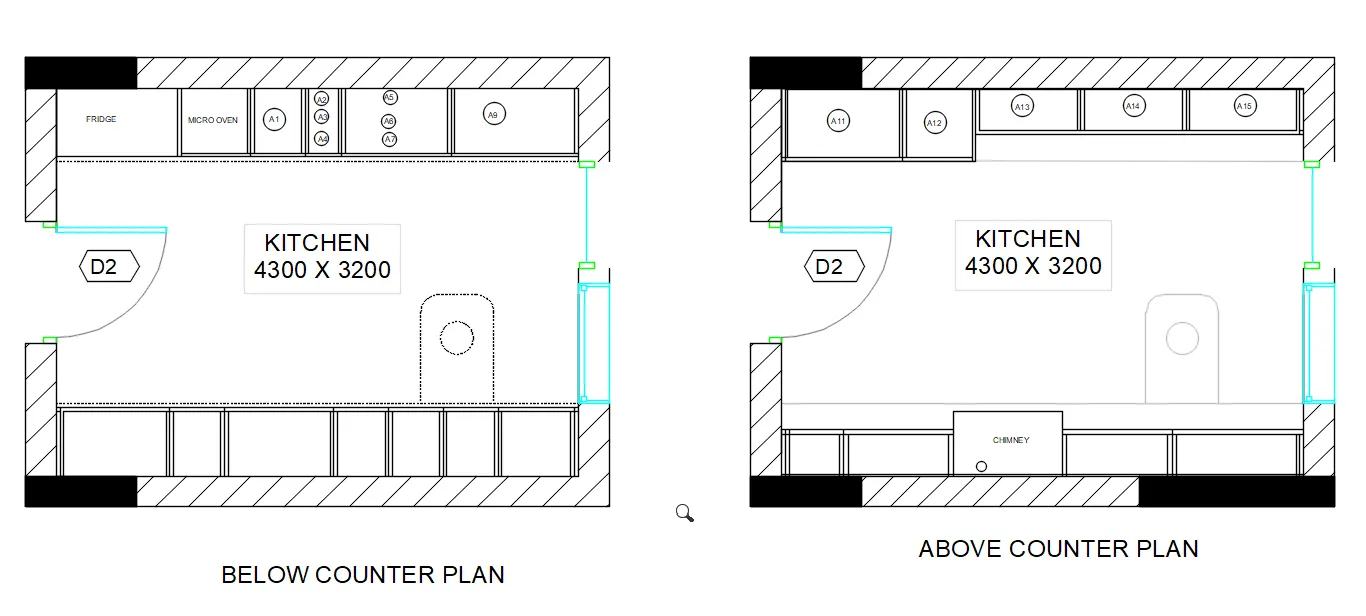

1. LAYOUT OF THE KITCHEN

https://web.autocad.com/acad/me/sid/shares/drawings/16939e9c-6a87-4ac5-9560-ad8d55f8dc90/editor

Aim:

To Create the Kitchen Layout and to Also, use proper dimension techniques to dimension the kitchen layout. Also, insert text wherever required. All dimensions are in mm.

Procedure:

step 1:

Units are set to mm.
limits and limax are also set .
zoom comand is also used

Step 2:

In the command prompt type rec and the dimensions are 4734 x 3688 mm
In the command prompt type offset and offset it to the distance of 230mm
Using arc and lines the door is drawn
In the command prompt type hatch to hatch the model
In the command prompt type rec > dimensions , to do the fridge
In the command prompt type offset and offset it to the desired distace to get the Micro Oven
In the command prompt type trim to trim the extras
In the command prompt type offset and offset it to the horizontal distance of 350,450,900,450,450 and 560
In the command prompt type offset and offset it to the vertical distance of 600.
In the command prompt type trim to trim the extras.
In the command prompt type line type and load the dotted lines.
In the command prompt type text to text the given annotations.
In the command prompt type dimensions to given the dimensions to your plan.
In the command prompt even the leader command is used to name the dimensions .
