Creating Kitchen layout, Hatching of Architectural elements and sectional view of an Industrial Building in AutoCad

Aim:

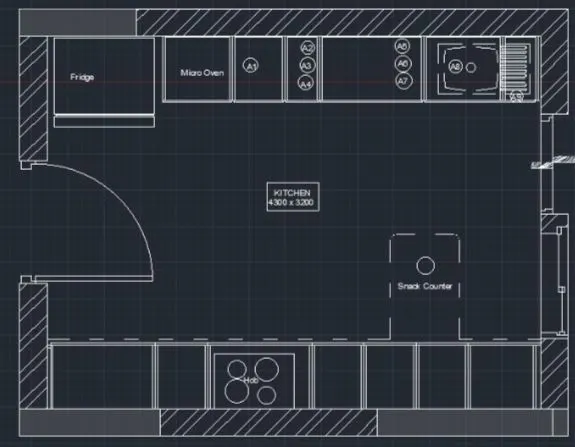

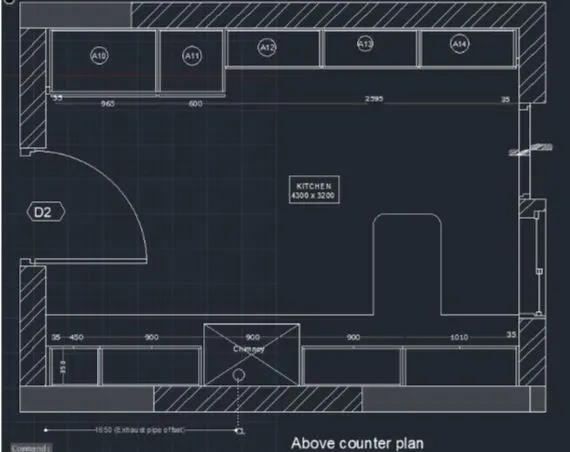

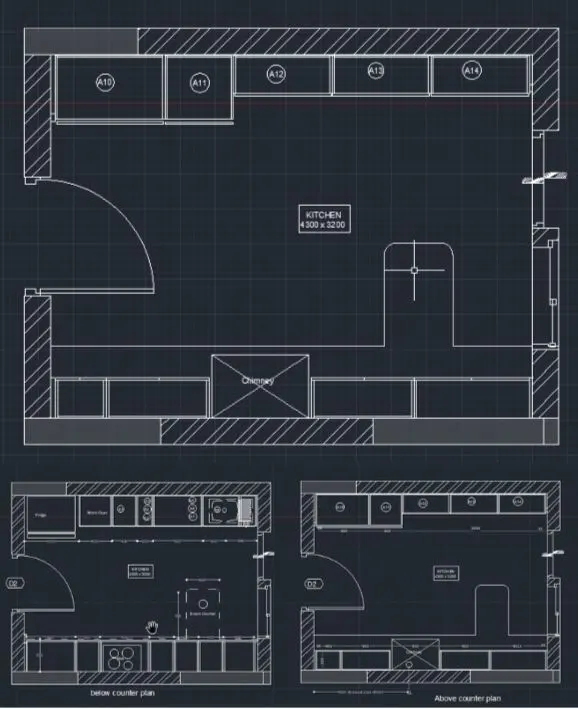

To Create the Kitchen Layout and to Also, use proper dimension techniques to dimension the kitchen layout. Also, insert text wherever required. All dimensions are in mm.

Procedure:

step 1:

• units are set to mm
• limits and limax are also set
• zoom comand is also used

Step 2:

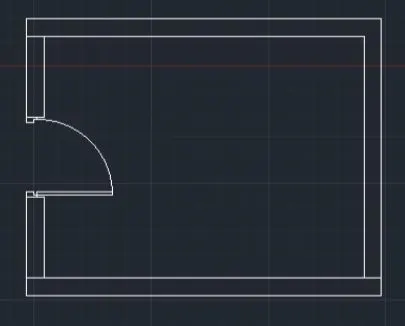

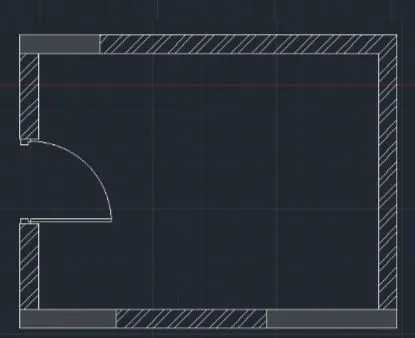

• In the command prompt type rec and the dimensions are 4734 x 3688 mm
• In the command prompt type offset and offset it to the distance of 230mm
• Using arc and lines the door is drawn
• In the command prompt type hatch to hatch the model
• In the command prompt type rec > dimensions, to do the fridge
• In the command prompt type offset and offset and offset it to the desired distace to get the Micro Oven
• In the command prompt type trim to trim the extras
• In the command prompt type offset and 350,450,900,450,450 and 560
• In command prompt type offset and offset it to the vertical distance of 600 In the command prompt type trim to trim the extras
• In the command prompt type line type and load the dotted lines
• In the command prompt type text to text the given annotations

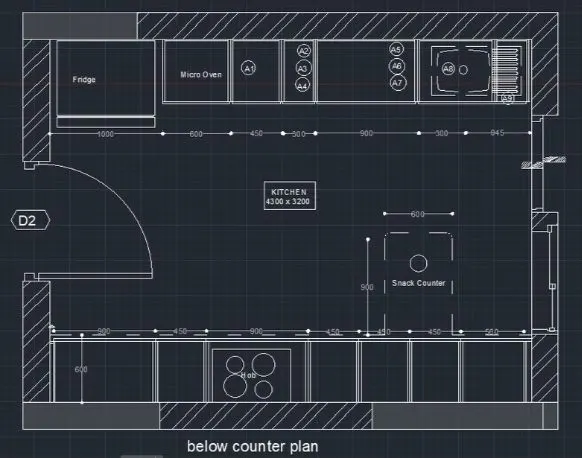

• In the command prompt type dimensions to given the dimensions to your plan
• In the command prompt even the leader command is used to name the dimensions

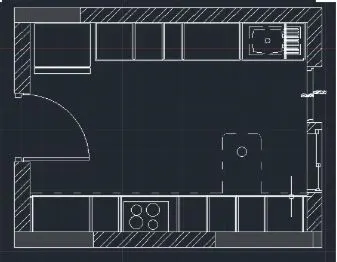

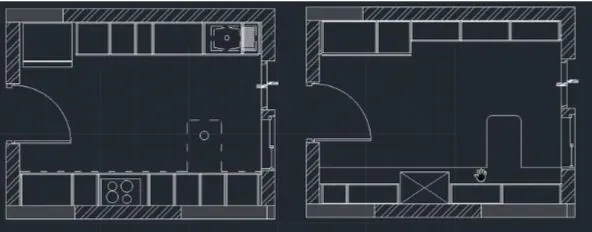

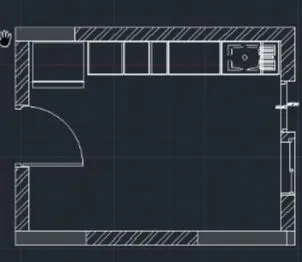

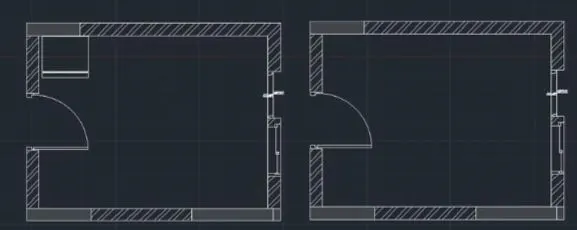

Final Result:

2)

AIM:

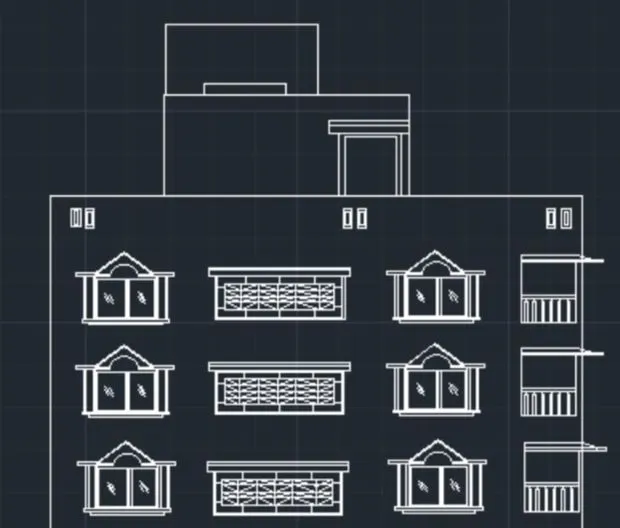

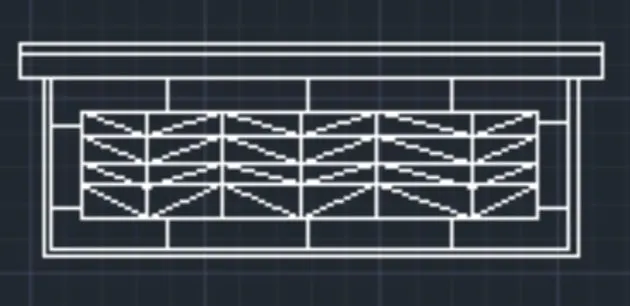

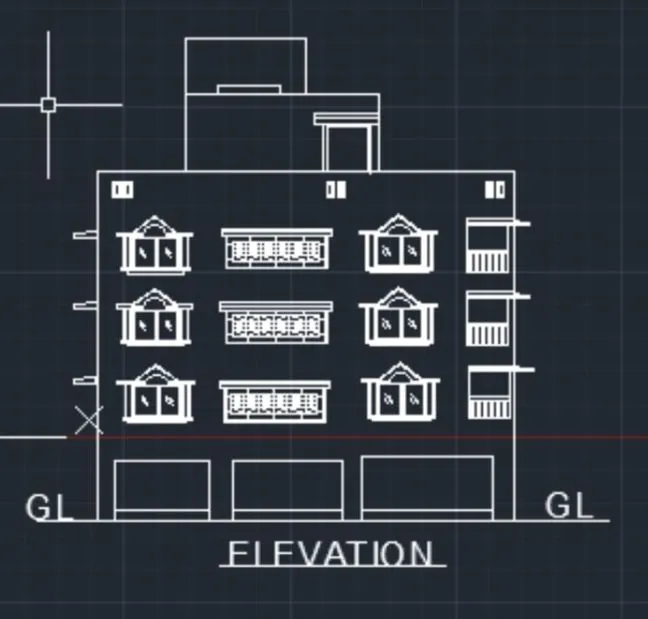

To create the elevation of the plan with hatch

PROCEDURE:

• In the command prompt type I to draw the lines
• In the command prompt type rec to draw the rectangle
• In the command prompt type arc to draw the arc

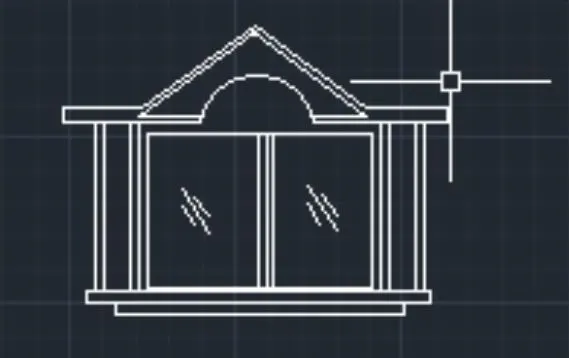

• Therefore, the window is created

• In the command prompt type I to draw the lines
• In the command prompt type rec to draw the rectangle

• In the command prompt type I to draw the lines.
• In the command prompt type rec to draw the rectangle

• In the command prompt type rec to draw the rectangles

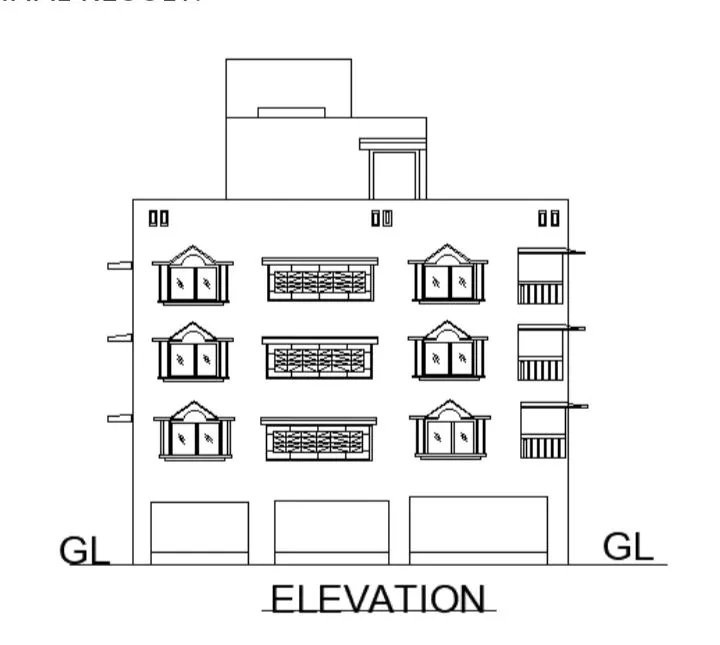

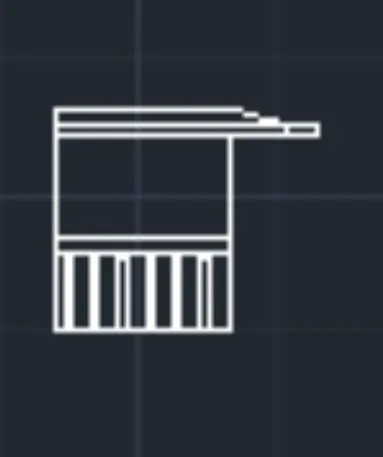

 Final Result:

 3)

AIM:

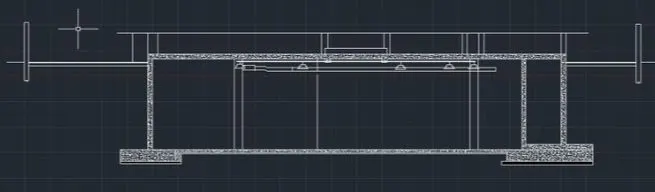

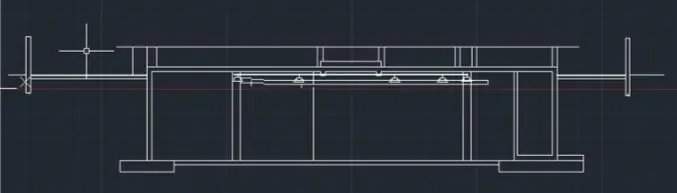

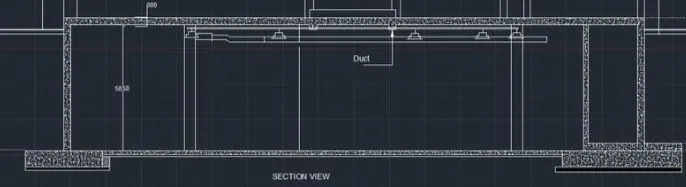

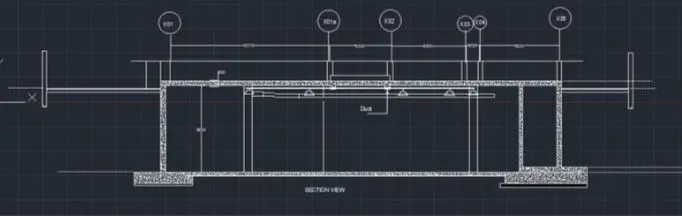

To create the section view of an industrial building.

PROCEDURE:

• In the command prompt type I to draw the lines.
• In the Ribbon bar > Hatch > AR.CONC.
• In the command prompt type rec to draw the rectangle.

• In the ribbon bar>hatch>AR-Conc

• In the command prompt type LT to get the dotted lines
• In the command prompt type c to draw the circle
• In the command prompt type Mt to draft the text
• In the command prompt type dim to draft the dimmensions

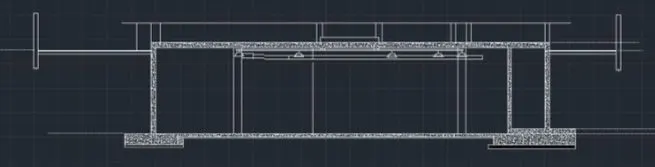

Result:
