Creating Kitchen layout, Hatching of Architectural elements and sectional view of an Industrial Building in AutoCad

1) AIM:

To create the kitchen layout and to also, use proper dimension techniques to dimension the kitchen layout. Also, insert text wherever required.

PROCEDURE:

1. Units are set to MM
2. Limits and limax are also set
3. Zoom command is also used

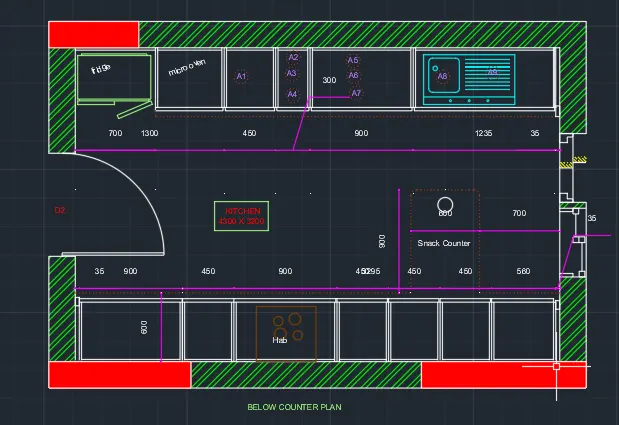

STEPS FOR DRAWING BELOW COUNTER PLAN:

• Open Autocad and enter UN(units command) in command box and make the type as decimal
• Select line command and draw a line of 4300 in X direction and a line of 3200 in Y direction and complete the rectangle
• Offset 230 towards all sides of the rectangle out side the figure.
• Fillet all the offset edges
• Offset of 600 from top of the room to draw the kitchen platform and datta
• Give the offset as follows from left side 90 as first offset 90mm as first offset, 1000 mm for fridge, 600 for micro-oven, 450 for A1 part, 300 for A2/A3/A4,900 for A5/A6/A7, and 300 ,945 and 350 offsets.
• Offset 12 mm to both sides in each corner of the room
• Offset 600 mm from bottom in middle of kitchen to draw platform.

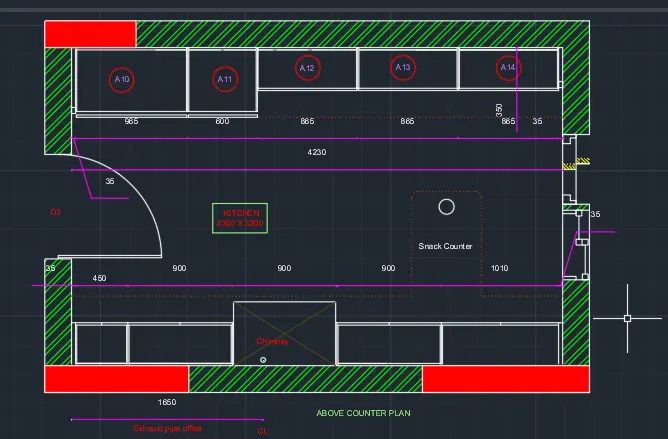

• Now enter offset asfollows- 900,450,900,450,450,450,560,35. steps for drawing above counter plan.
• Open autocad and enter UN ( units command ) in command box and make the type as decimal.
• Select line command and draw a line of 4300 in X direction and a line of 3200 in Y direction and complete the rectangle
• Offset 230 towardsall sides of the rectangle outside the figure.
• Fillet all te offset edges.
• Offset of 600 fromtop of the room to draw the kitchen platform ink and otta.
• Give the offset as follows from left side 35 as first offset and again the offset as 965,600,2595.
• Offset 12 mm to both sides in each corner of the room.
• Offset 350 mm from bottom in middle of kitchen to draw platform.
• Now enter offset as follows-35,450,900,900,900,1010,35.

HATCHING OF OBJECTS:

1. Click home tab-draw panel-hatch.
2. On the properties panel hatch type list, select the type of hatch y=that you want to use.
3. On the pattern panel, click a hatch pattern or fill.
4. On the boundaries panel, specify the how the pattern boundary is selected.
5. Pick points. inserts the hatch or fill with in a closed area that is bounded by one or more objects.
6. Select boundary objects. insert the hatch or fill with in a closed object.
7. The selection method is retained until you change it.
8. Click an area or object to be hatched.
9. On the ribbon, make any adjustments as needed:
10. On the properties panel, you can change the hatch type and colors or modify the transparency level, angle, or scale for the hatch.
11. On the expanded options panel, you can change the draw order to specify whether the hatch and its boundary are displayed in front of or behind other objects.
12. Press enter to apply the hatch and exit the command.
13. Hatch the brick wall with hatch type as ANS132 and hatch other part as solid and grey colour

RESULT:

2)AIM:

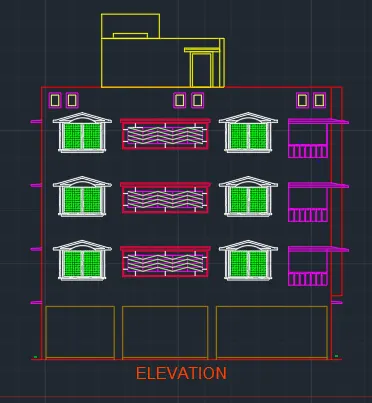

To create elevation and hatching the structural and non-structural elements of the building walls, columns etc.

PROCEDURE:

• Select line command and extend the lines from the plan in the downward manner to create projections.
• Offset 150 mm from the ground level.
• Offset 2450 for ground floor.
• Offset 2850 for second floor
• Offset 2850 for third floor
• Offset 2500 from terrace level for mumty.
• Offset 450 from mumty for parapet wall of mumty
• Offset 600 and offset 1200 for O.T.H
• For drawing of staircase offset 1250 for tread and offset 143.75 for rise of staircase.
• offset 125 below floor level for slab
• Draw the sunshade and windows as per the sizes considered and standards
• Draw the railing of staircase in dash manner from the layers and change the layer to ACADIS003W100
• Give the dimensions by dim linner or dim continue command.
• Select the multi line text for naming of the section.

HATCHING OF OBJECTS:

1. Click home tab-draw panel-hatch
2. On the properties panel hatch type list, select the type of hatch that you want to use.
3. On the pattern panel, click a hatch pattern or fill
4. On the boundaries panel, specify the how the pattern boundary is selected:
5. Pick points. inserts the hatch or fill with in a closed area that is bounded by one more objects.
6. Select boundary objects. inserts the hatch or fill with in a closed object
7. The selectin method is retained until you change it.
8. Click an area or object to be hatched.
9. On the ribbon, make any adjustments as needed.
10. Hatch the brick wall with hatch type as ANS132 and hatch other part as solid and different colours.

RESULT:

3) AIM:

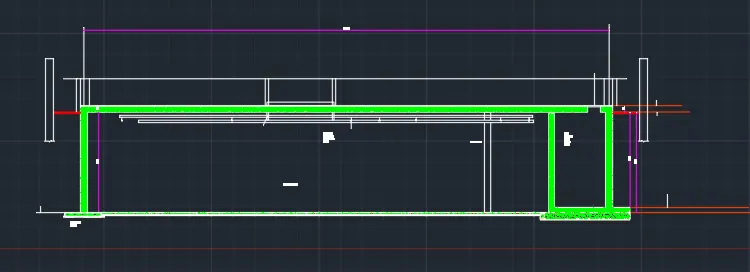

To create the section view of an industrial building.

PROCEDURE:

1. In the command prompt type L to draw the lines.
2. In the ribbon bar > hatch > ar. conc
3. In the command prompt type rec to draw the rectangle
4. In the command prompt type LT to get the dotted lines.
5. In the command prompt type MT to draft the text
6. In the command prompt type C to draw the circle
7. In the command prompt type dim to draft the dimensions.

RESULT:
