Creating Kitchen layout, Hatching of Architectural elements and sectional view of an Industrial Building in AutoCad
Aim: To Create the Kitchen Layout and to Also, use proper dimension techniques to dimension the kitchen layout. Also, insert text where ever is required.
All dimensions are in mm.
Procedure:
step 1:
* units are set to mm
* limits and limax are also set
* zoom comand is also used

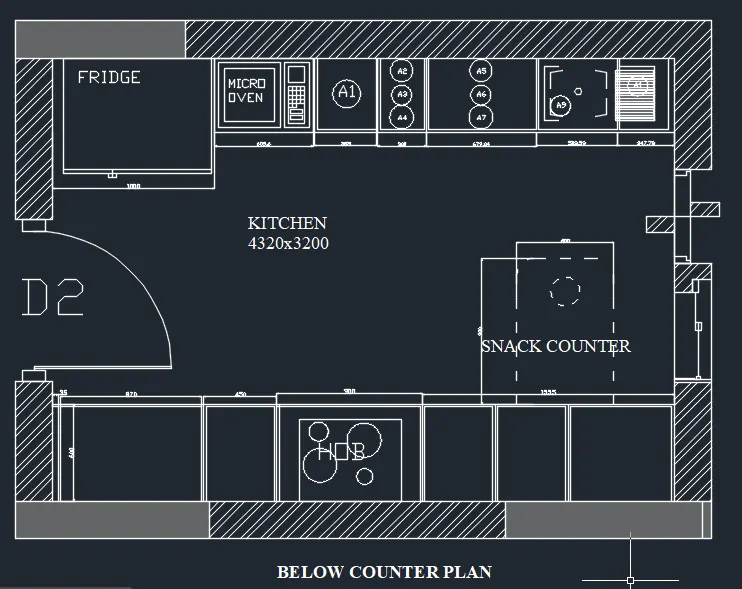

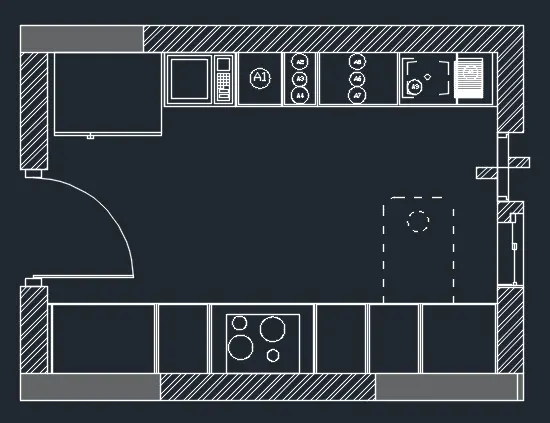

Steps for drawing Below Counter Plan
*Open Auto Cad and enter UN (units command) in command box and make the type as decimal.

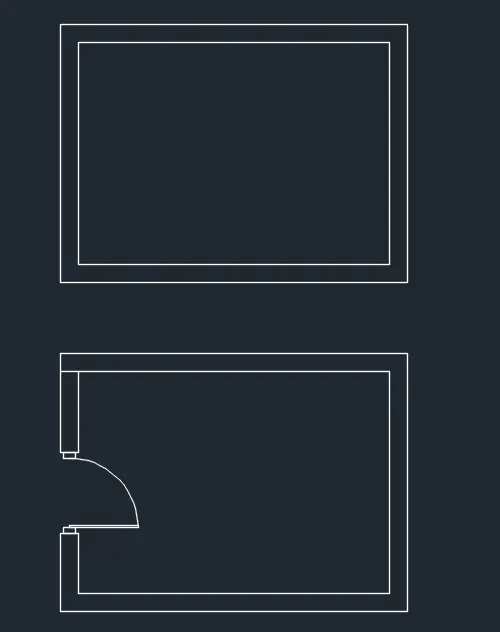

*Select line command and draw a line of 4300 in X direction and a line of 3200 in Y direction and complete the rectangle.
*Offset 230 towards all sides of the rectangle outside the figure.
* Fillet all the offset edges.
*Offset of 600 from top of the room to drqw the kitchen platform and otta.
*Give the offset as follows from left side 90 as first offset -90mm as first offset,1000mm for fridge ,600 for micro-oven ,450 for A1 part ,300 for A2/A3/A4,900 for A5,A6,A7, and 300,945 and 35offsets.
*Offset 12mm to both sides in each corner of the room.
*Offset 600mm from bottom in middle of kitchen to draw platform.
*Now enter offset as follows-900,450,900,450,450,450,560,35.

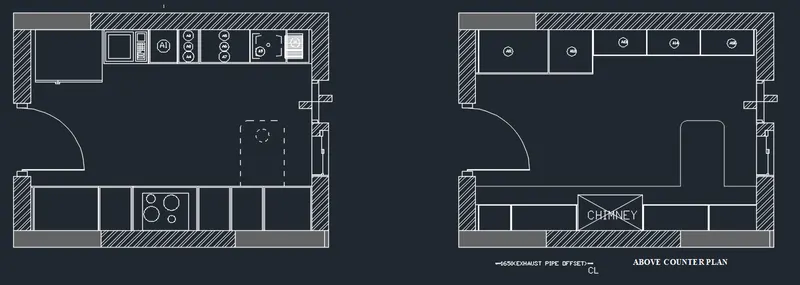

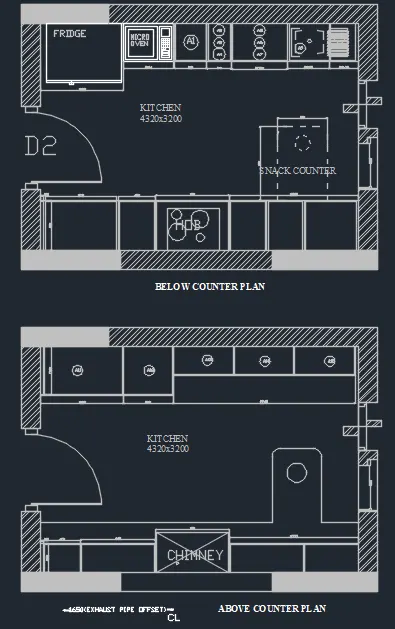

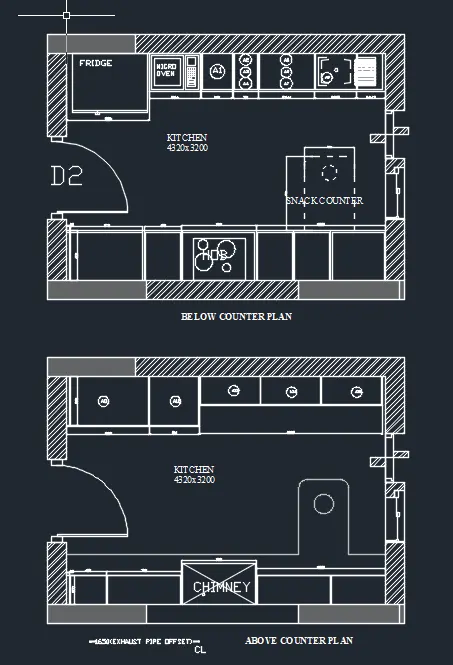

Steps for drawing Above Counter Plan
*Open Auto Cad and enter UN (units command) in command box and make the type as decimal.
* Select line command and draw a line of 4300 in X direction and a line of 3200 in Y direction and complete the rectangle.
* Offset 230 towards all sides of the rectangle outside the figure.Fillet all the offset edges.*Offset of 600 from top of the room to draw the kitchen platform ink and otta.
*Give the offset as follows from left side 35 as first offset and again the offset as 965, 600, 2595.
* Offset 12 mm to both sides in each corner of the room.
*Offset 350 mm from bottom in middle of kitchen to draw platform.
*Now enter offset as follows-35, 450, 900, 900, 900, 1010, 35.Hatching of objects
*Click Home tab-Draw panel-Hatch
*On the Properties panel Hatch Type list, select the type of hatch that you want to use.
*On the Pattern panel, click a hatch pattern or fill.
* On the Boundaries panel, specify the how the pattern boundary is selected:
*Pick Points. Inserts the hatch or fill within a closed area that is bounded by one or more objects.
* Select Boundary Objects. Inserts the hatch or fill within a closed object.
* The selection method is retained until you change it.
* Click an area or object to be hatched.On the ribbon, make any adjustments as needed:
* On the Properties panel, you can change the hatch type and colors or modify the transparency level, angle, or scale for the hatch.
* On the expanded Options panel, you can change the draw order to specify whether the hatch and its boundary are displayed in front of or behind other objects.
* Press Enter to apply the hatch and exit the command.Hatch the brick wall with hatch type as ANS132 and hatch other part as solid and grey colour.
RESULT:
2)

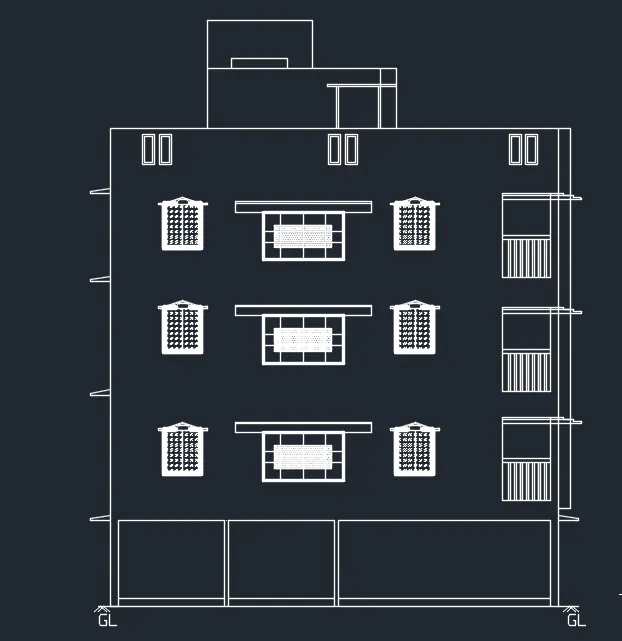

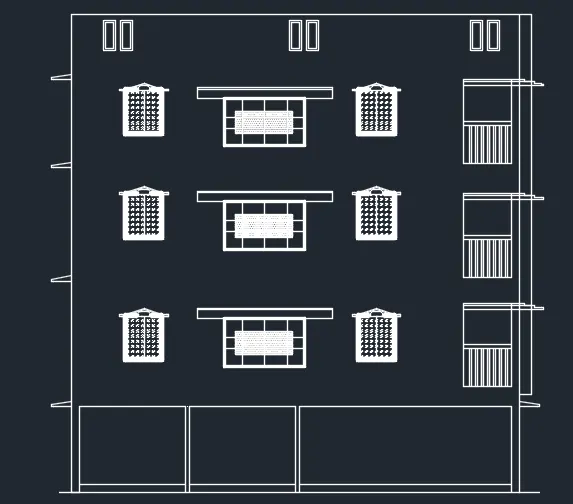

AIM: TO CREATE ELEVATION AND HATCHING THE STRCTURAL AND NON-STRUCTURAL ELEMENTS OF THE BUILDING LIKE WALLS, COLUMNS ETC.
PROCEDURE:
STEPS FOR DRAWING SECTION
*Select line command and extend the lines from the plan in the downward manner to create projections.
*Offset 150mm from the ground level..
* Offset 2450 for ground floor.
* Offset 2850 for second floor.
* Offset 2850 for second floor.
* Offset 2850 for third floor.
* Offset 1000 for parapet wall.
* Offset 2500 from terrace level for mumty.
* Offset 450 from mumty for parapet wall of mumty.
*Offset 600 and offset 1200 for O.T.H.
* For drawing of staircase offset 1250 for tread and offset 143.75 for rse of staircase.
* Offset 125 below floor level for slab.
* Draw the chajjas and windows as per the sizes considered and standards.
*Draw the railing of staircase in dash manner from the layers and change the layer to ACADIS003W100.
* Give the dimensions by dim linear or dim continue command.
* Select the multiline text for naming of the section.
Hatching of objects
* Click Home tab-Draw panel-Hatch.
* On the Properties panel Hatch Type list, select the type of hatch that you want to use.
*On the Pattern panel, click a hatch pattern or fill.
* On the Boundaries panel, specify the how the pattern boundary is selected:
* Pick Points. Inserts the hatch or fill within a closed area that is bounded by one or more objects.
* Select Boundary Objects. Inserts the hatch or fill within a closed object.
* The selection method is retained until you change it.
* Click an area or object to be hatched.
* On the ribbon, make any adjustments as needed:
* On the Properties panel. you can change the hatch type and colors or modify the transparency level,angle, or scale for the hatch.
* On the expanded Options panel.you can change the draw order to specify whether the hatch and its boundary are displayed in front behind other objects.
* Press Enter to apply the hatch and exit the command.
*Hatch the brick wall with hatch type as brick and hatch other part of concrete as air conc.
RESULT:

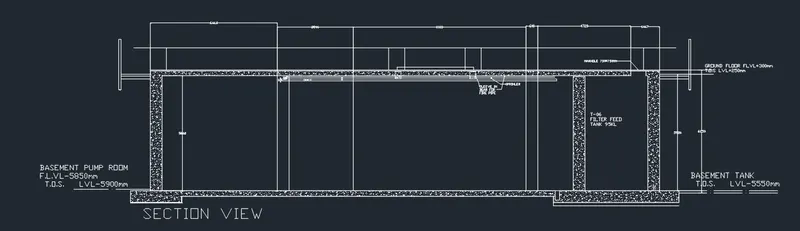

AIM: To create the section view of an industrial building.
PROCEDURE:
* In the command prompt type I to draw the lines.
* In the Ribbon bar > Hatch > AR.CONC.
* In the command prompt type rec to draw the rectangle.
* In the command prompt type LT to get the dotted line.
* In the command prompt type Mt to draft the text
*In the command prompt type c to draw the circle
* In the command prompt type dim to draft the dimensions
RESULT:
