Creating Conceptual mass in REVIT and Creation of Sinusoidal curve and a Parametric stadium using Dynamo

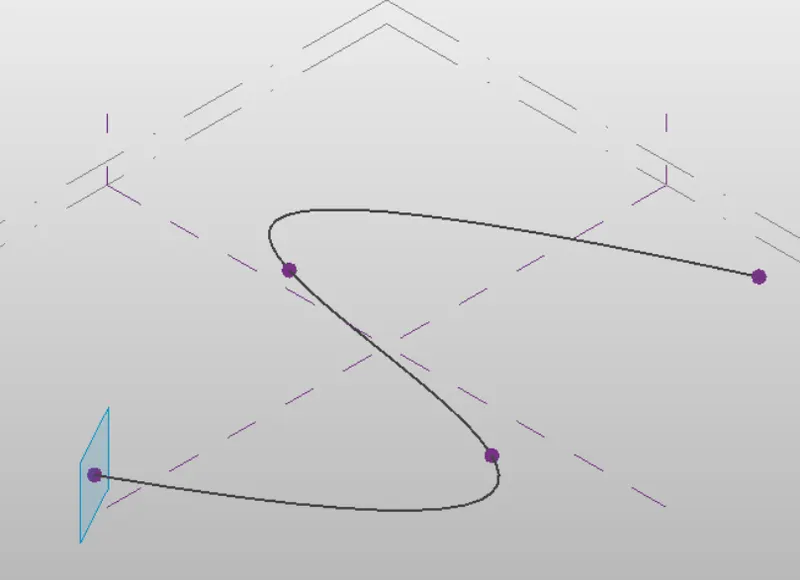

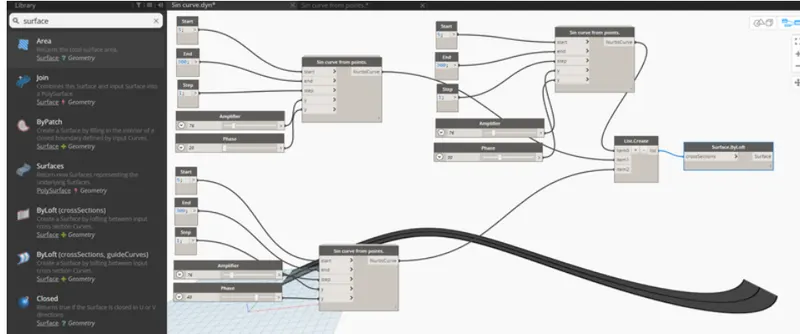

1) Using Dynamo create a set of sinusoidal points and create a curve and create a surface out of the curve.

A)

AIM;

To create a set of sinusoidal points and create a curve and create a surface out of the curve.

Procedure:

initailly open the revit software and go to the mangae tool

in manage tab select the dynamo

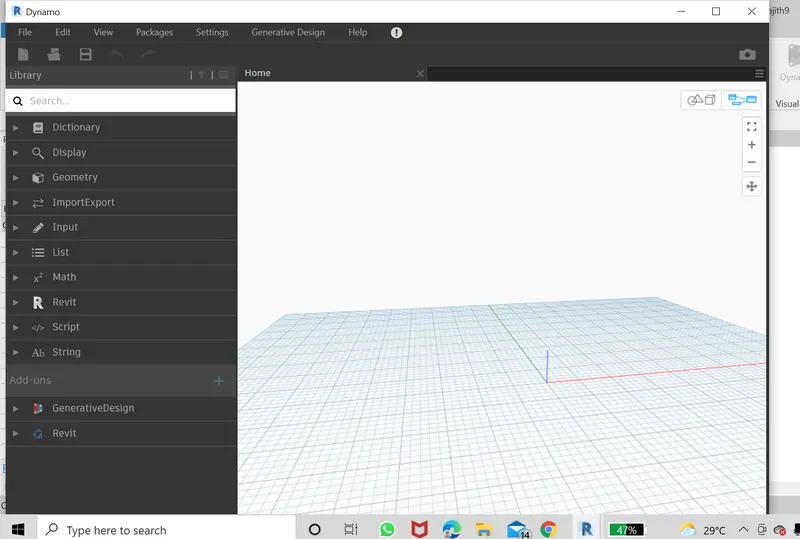

The dynamo window opens and go to the new tab.

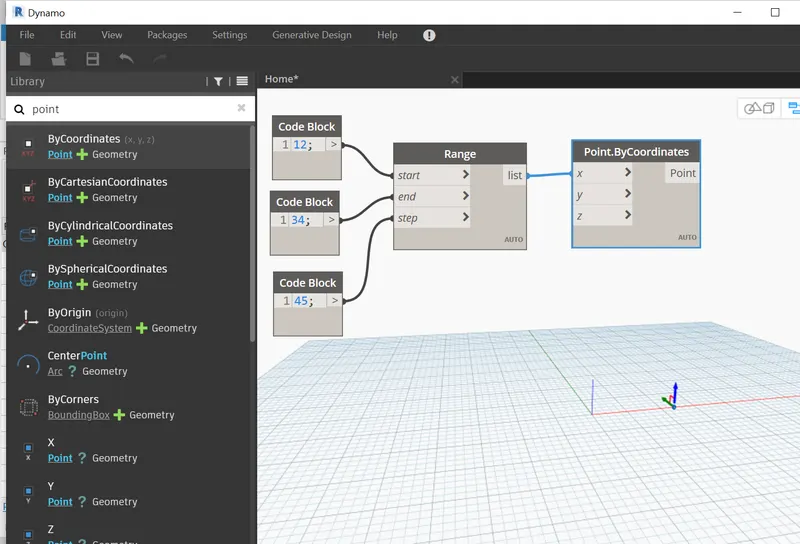

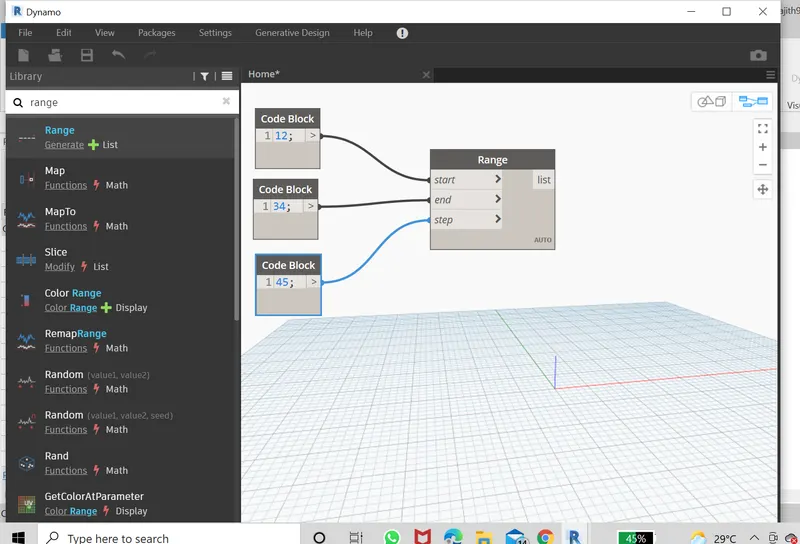

Now start the process by insterting the 3 interg slide

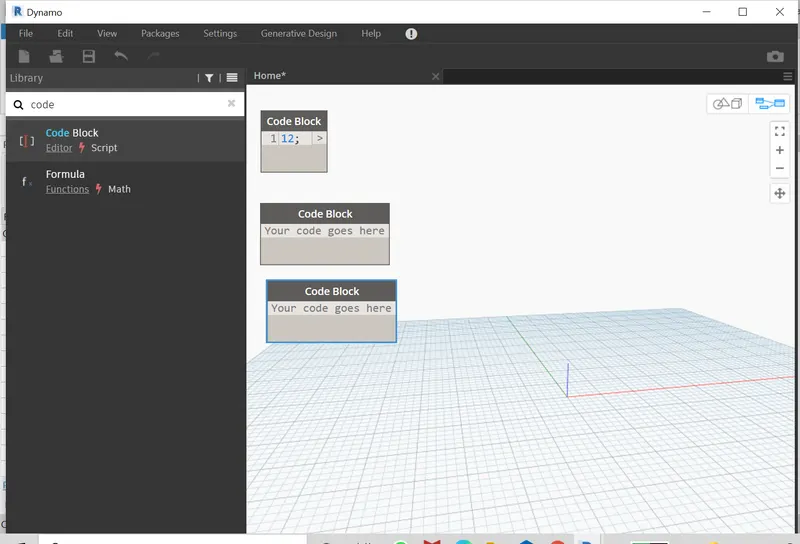

this can be done by typing code block

1)one code block is named start

2)secound one value

3)3rd one step

Now search point by coordinates in search box

and connect the range block to start....

2) Create a conceptual layout of floor plan in dynamo . Using the tools available in dynamo link the lines to appropriate model elements in Revit by choosing the wall types and wall parameters. Make use of the sliders to slide through the height of the wall and length of the wall.

A)

AIM ;

To create the conceptual layout of floor plan in dynamo

procedure ;

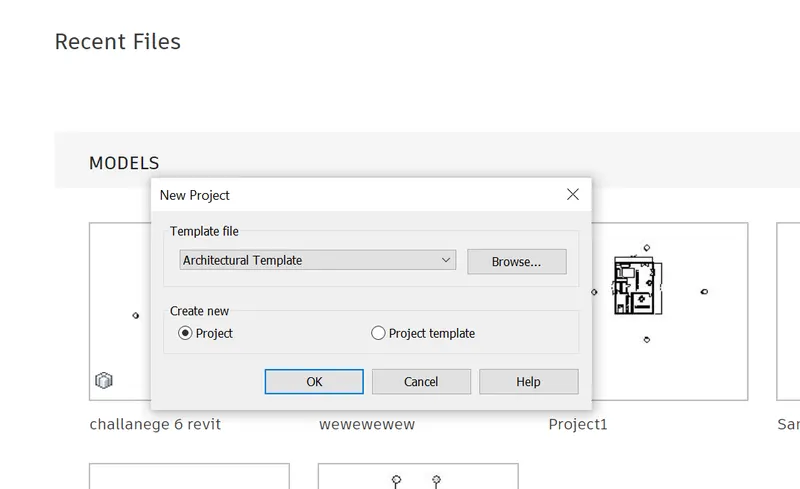

open the new architeture template

go to the manage and open the dynamo

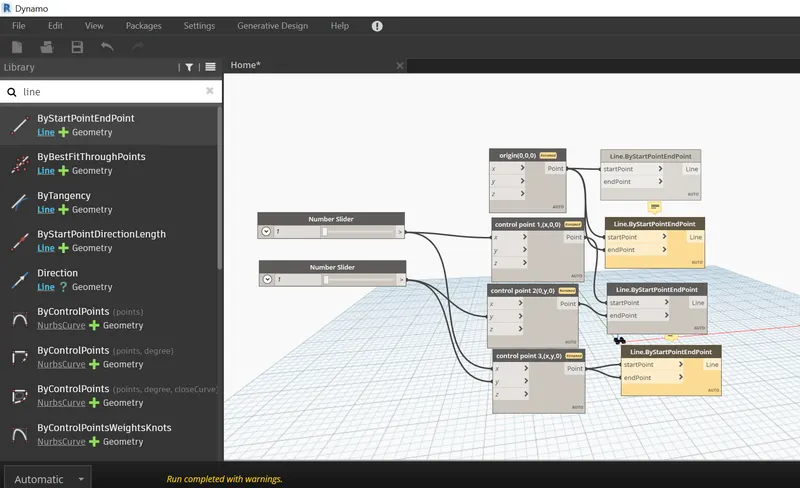

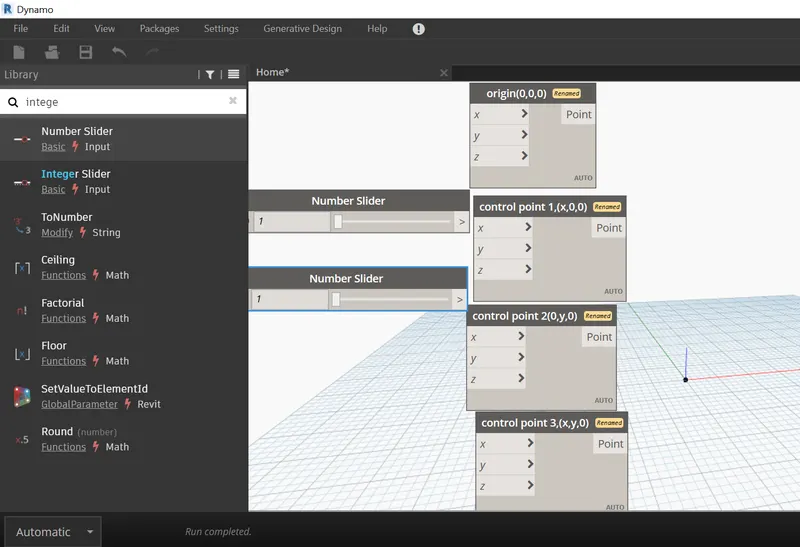

in order to create a wall we need to create four control points

for this go to points by coordinates

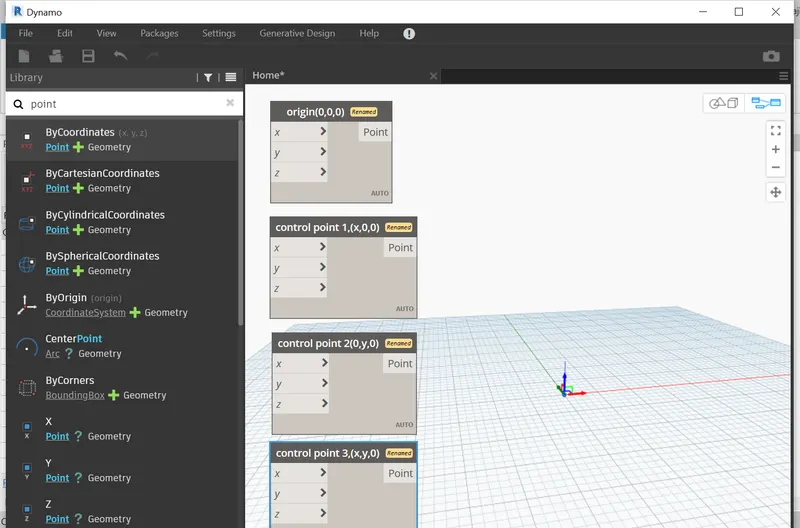

1st one is named as origin(0,0), and rest is named as contol point x(0,0)

Now provide to integer slides

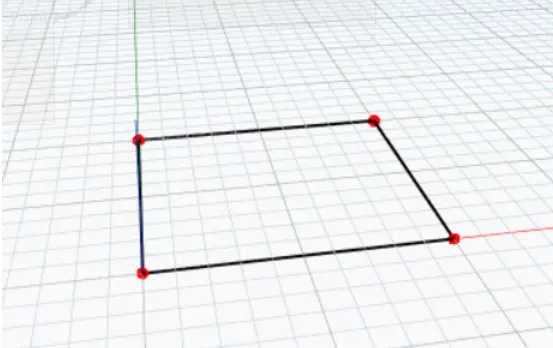

Now we have to connect the these points by a line.

so,for this search line by strat and end pointand instert 4 points.

the input for this blocks are the points created previously.

3) Create an array of model elements in Revit. Use dynamo to vary the properties of model elements by using the slider or code block

A)

AIM;

To array of model elements in Revit.

Procedure ;

open a new architecture template in revit software

in that go to architecture colown

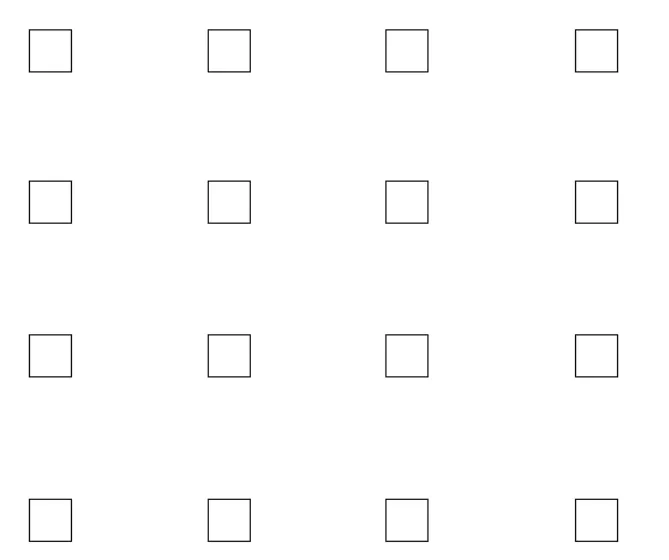

similarly 16 columns are created

The properties of the model elements are varied using dynamo

now open dynamo

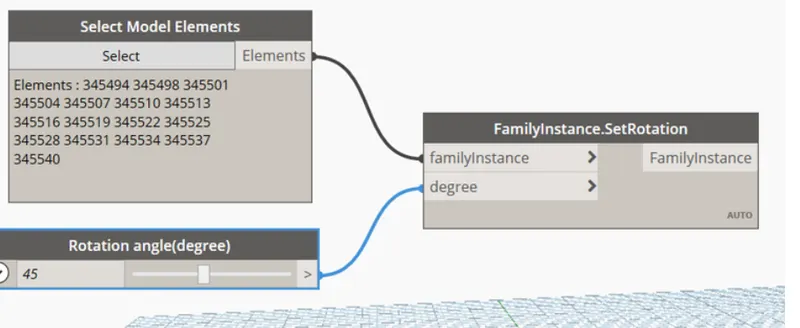

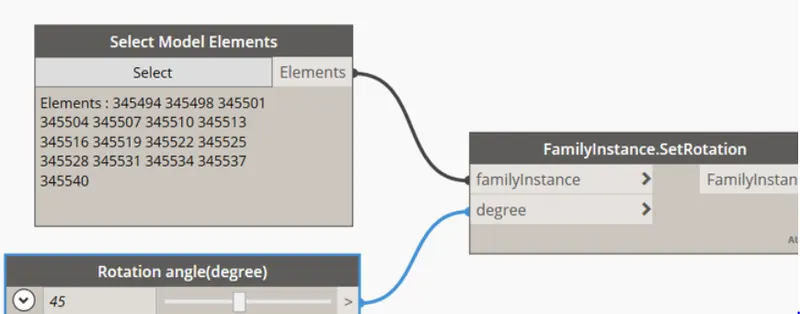

in that search panel of liberary slect screach model elements

the integer slider is renames as rotation angle

4) Create a conceptual mass in Revit and develop a parametric column by dividing the surfaces and apply the concepts similar to used in parametric walkway modelling. Use triangular bent or square shaped panels to add finish to the parametric column

A)

AIM;

To conceptual mass in Revit and develop a parametric column by dividing the surfaces

procedure;

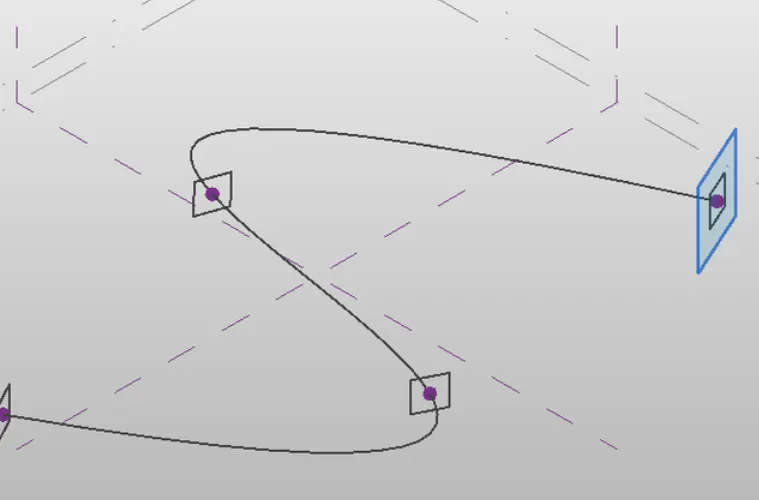

open revit software and under the families open anew tab->conceptual mass->mass

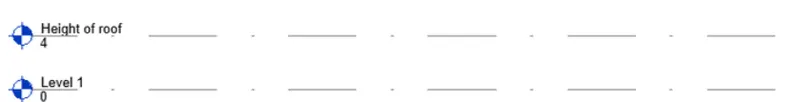

now go to elevation view and create a level at 3.6m and name it

5) Use Dynamo to work on developing a Parametric Stadium. List your parameters and use the visual programming approach to complete the modelling, You can use the concepts discussed in parametric high rise tower in class for reference.

A)

AIM;

To developing a Parametric Stadium.

Proceduer ;

Intially open the new arcitecture template in revit

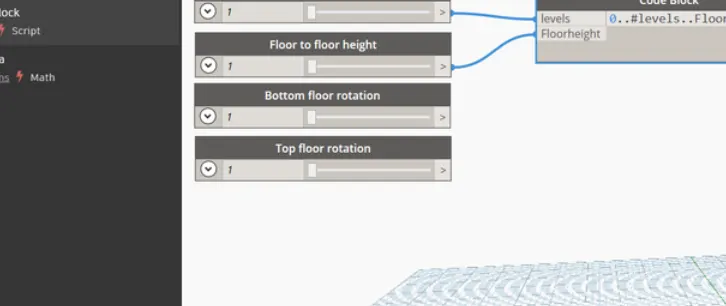

basic parametrer to design the high risk stucture is created in input in dynamo

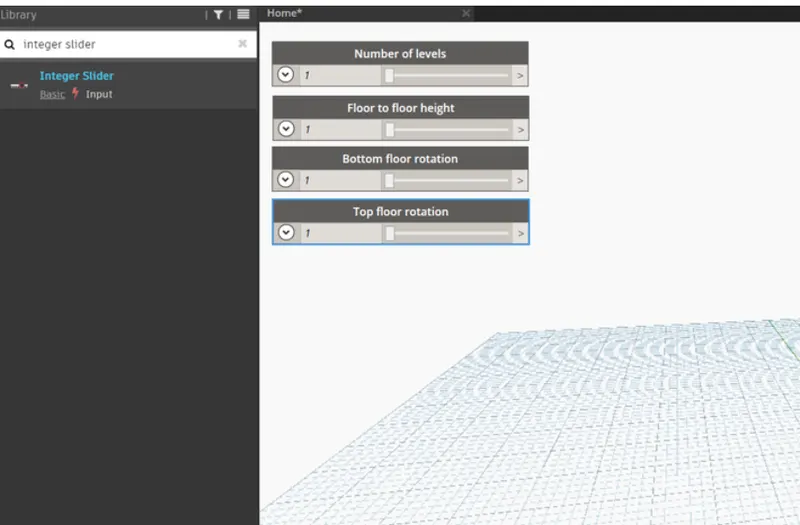

four integer slides is taken from the libery function
