Creating Conceptual mass in REVIT and Creation of Sinusoidal curve and a Parametric stadium using Dynamo

Q1) Ans:-

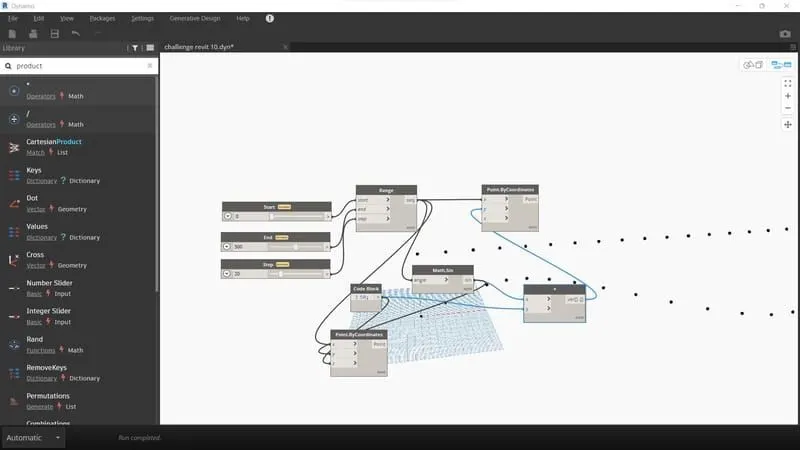

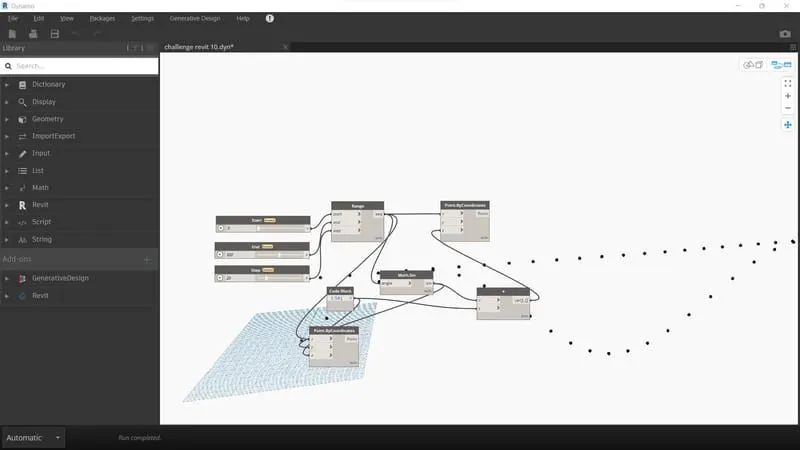

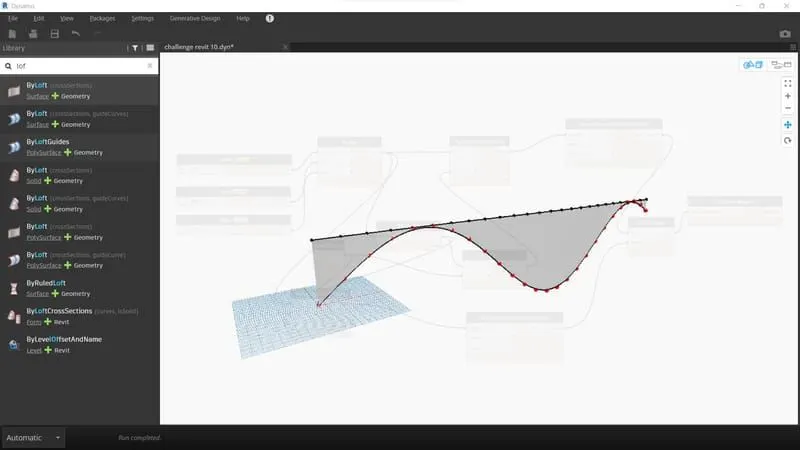

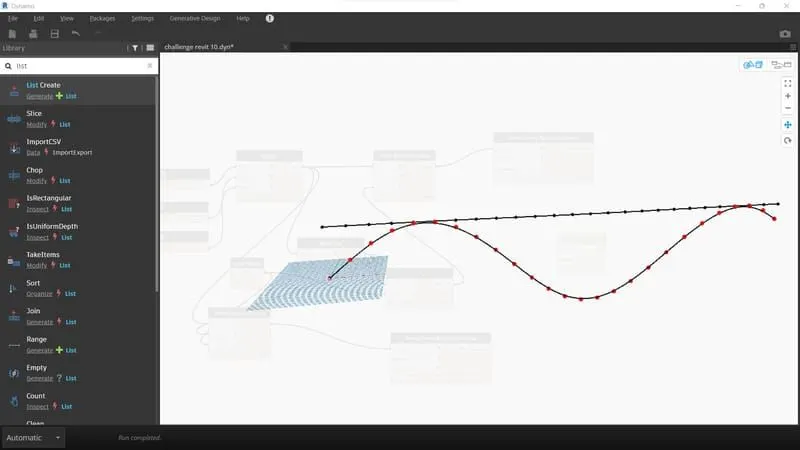

Aim:- To create a sinusoidal points curve and surface using dynamo

Procedure:-

* Go to select new template>select architecture template> press ok

* Go to the manage tab and select Dynamo

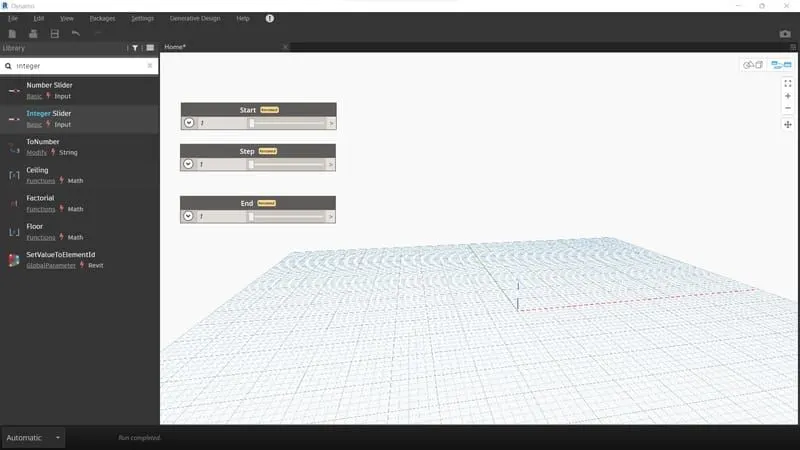

* open integer slider

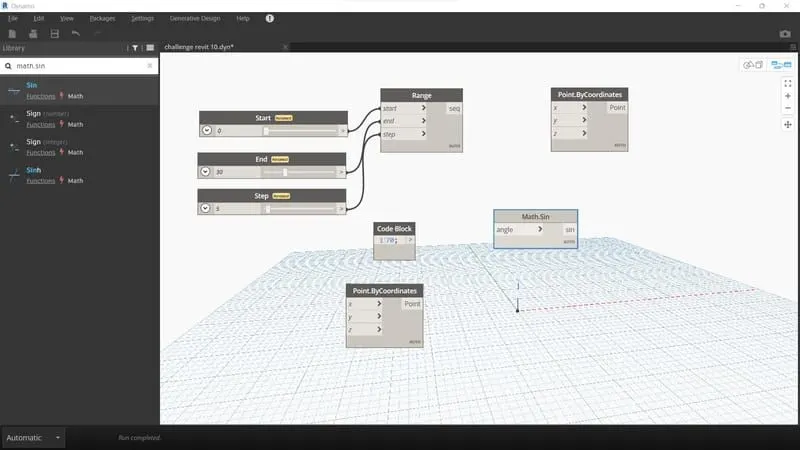

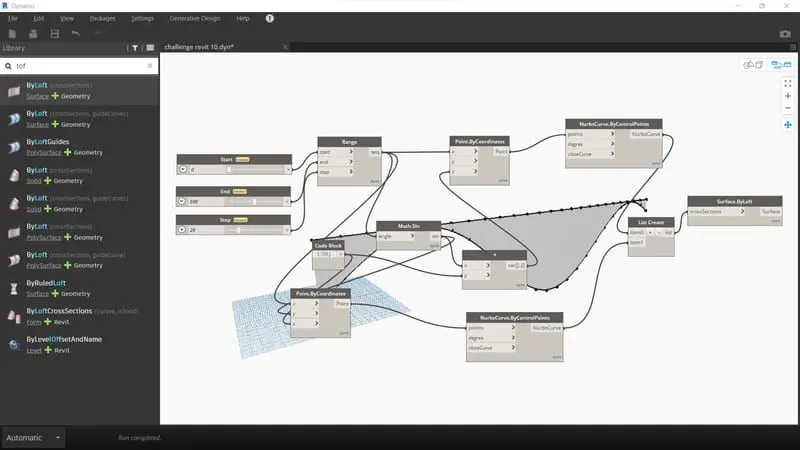

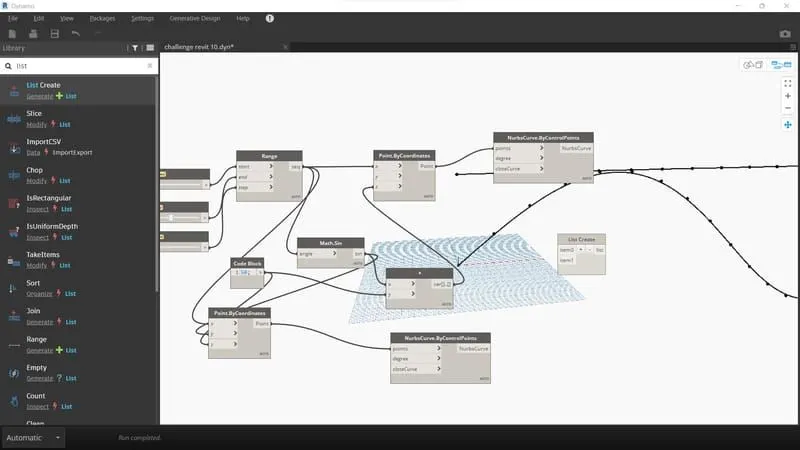

* Add code block and math. sin for parametric point

* Used product

* Add NURBS curve by control point for curve and list creatre

* Add surace by loft option and link item

Q2) Ans:-

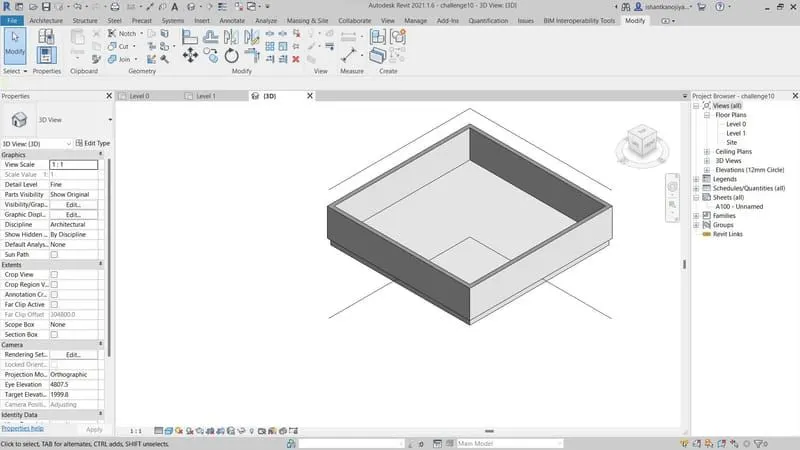

Aim:- To create a floor plan and use wall properties (like heigh,type etc) using dynamo

Procedure:-

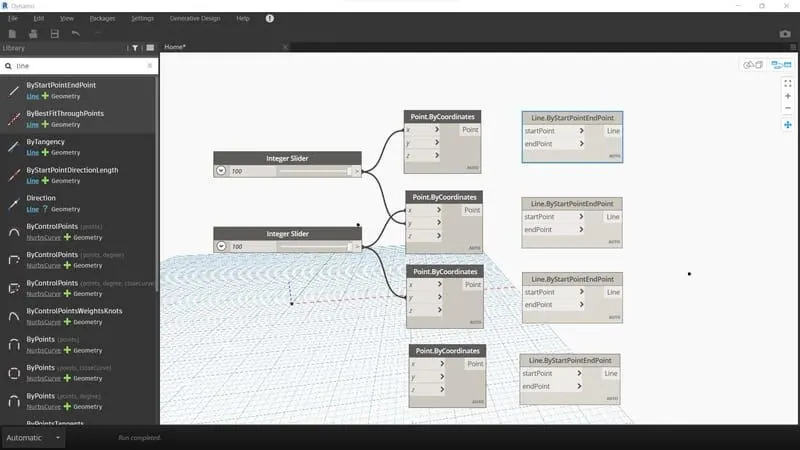

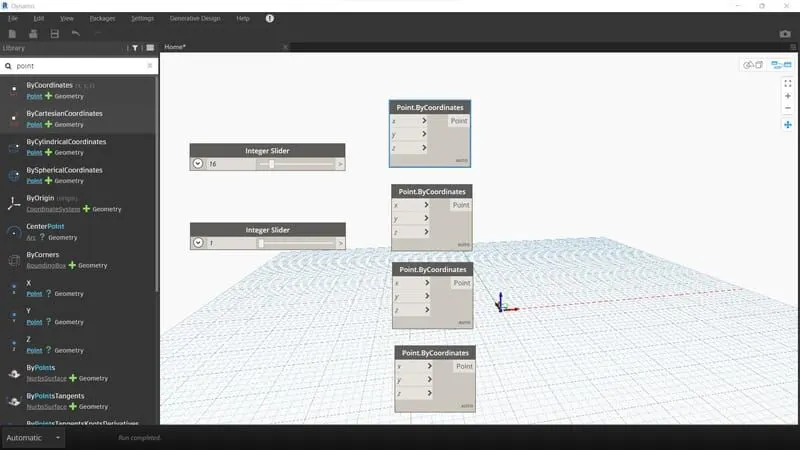

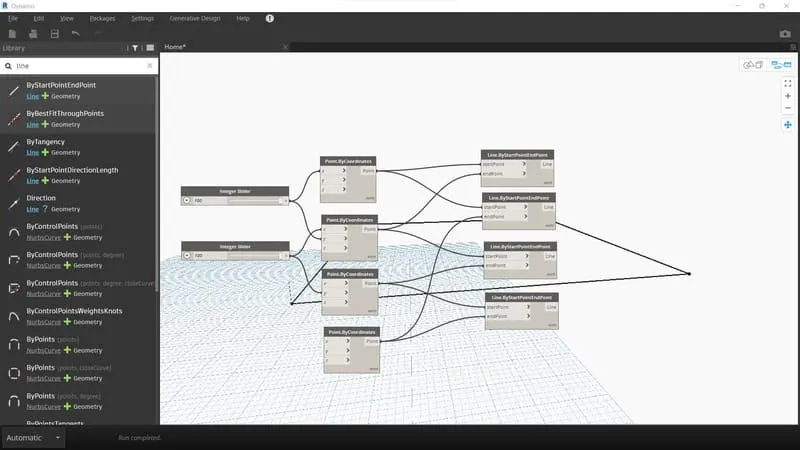

* First, open dynamo and add integer slider

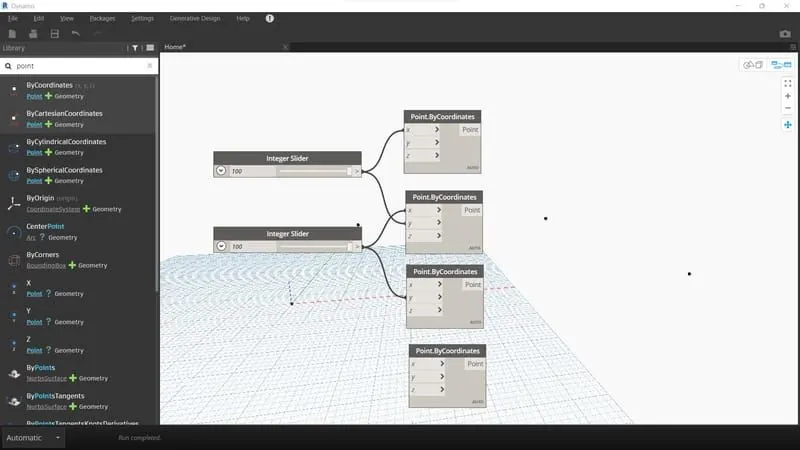

*Then add share by coordinates 4 times

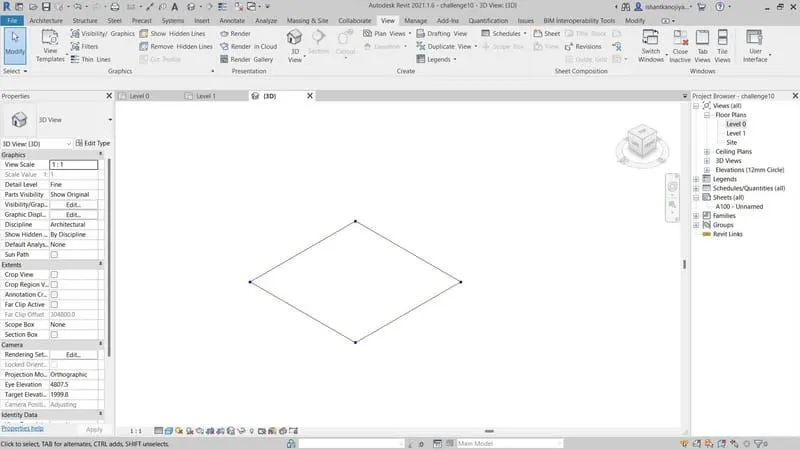

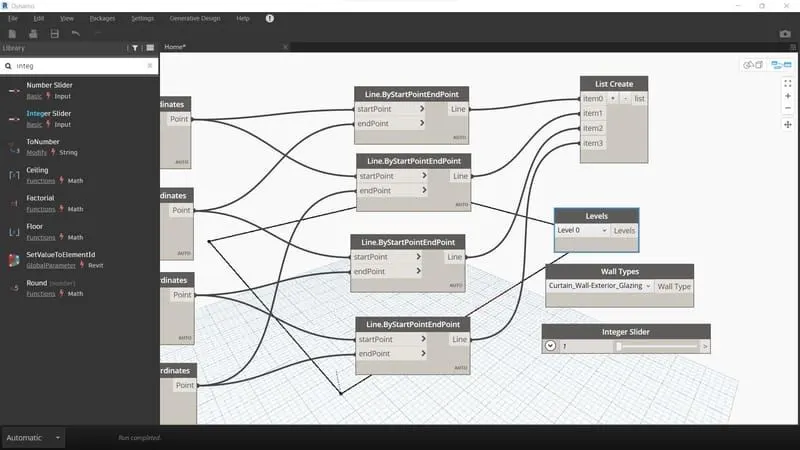

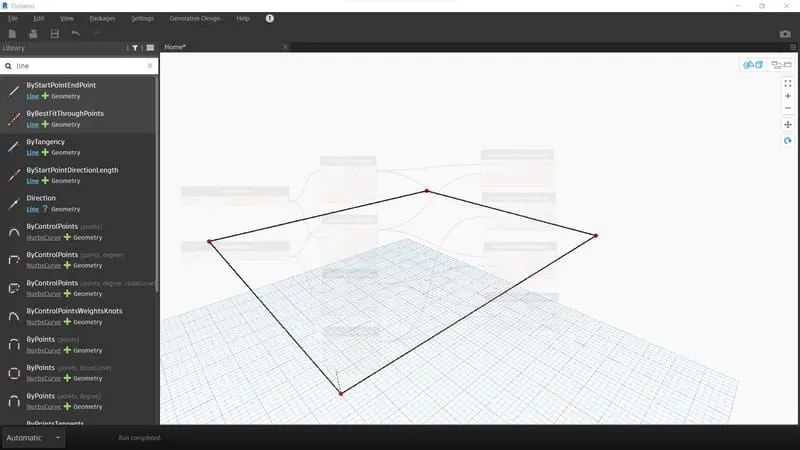

* Add line by start and end point 4 times

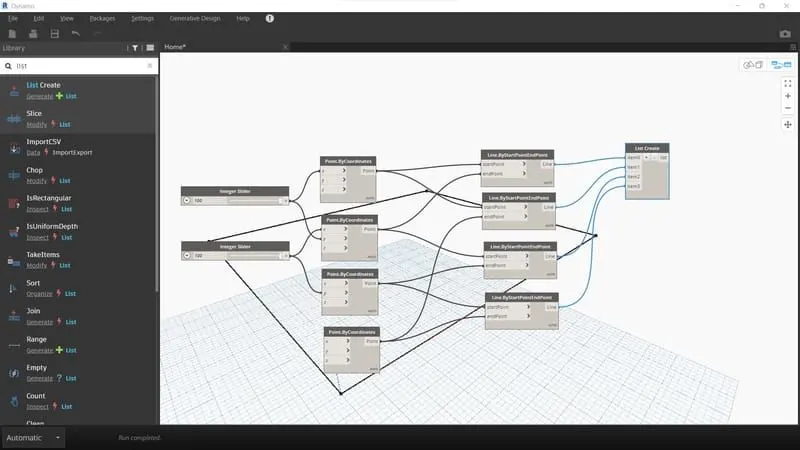

* Add list create their is 4 item no

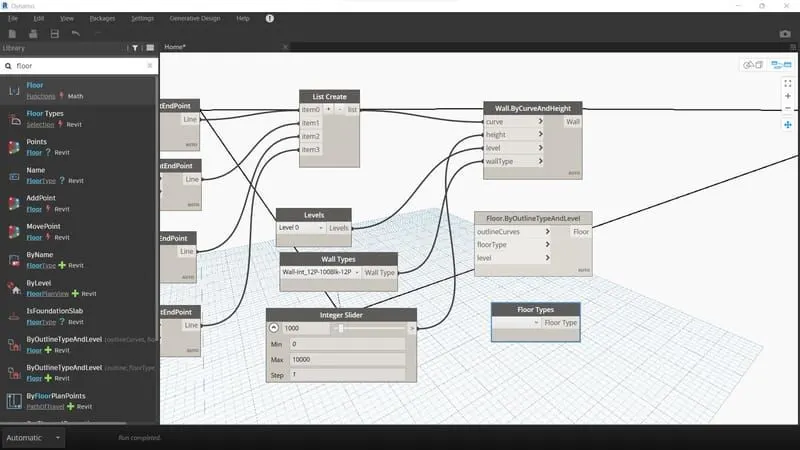

* Add levels, wall types and integer slider

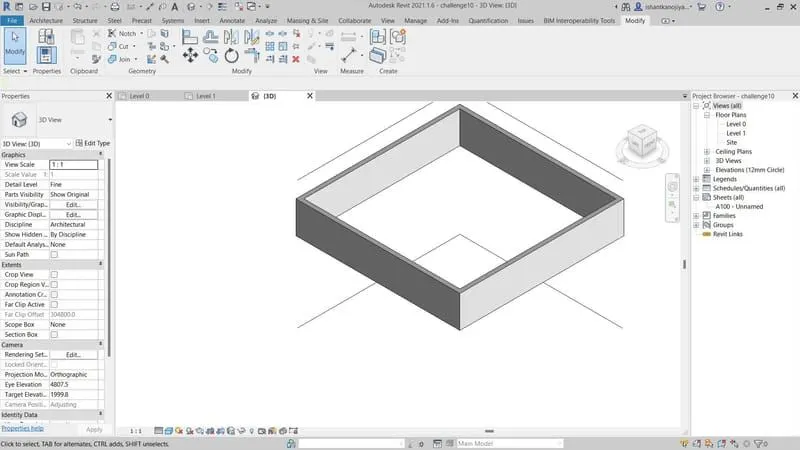

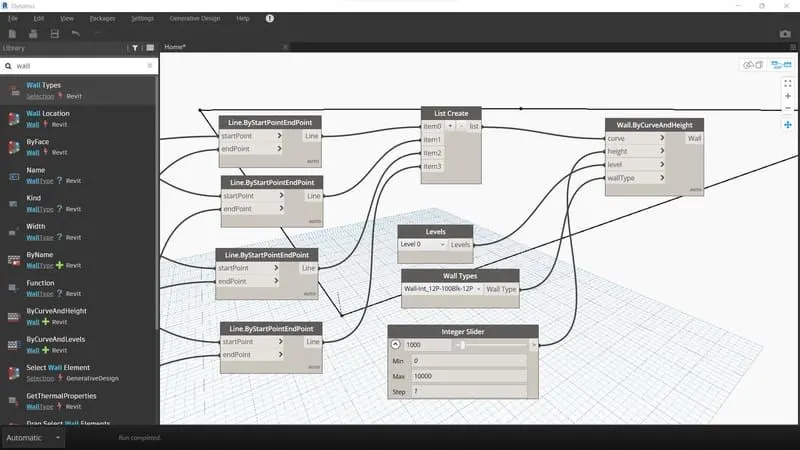

* Add wall by curve and height option

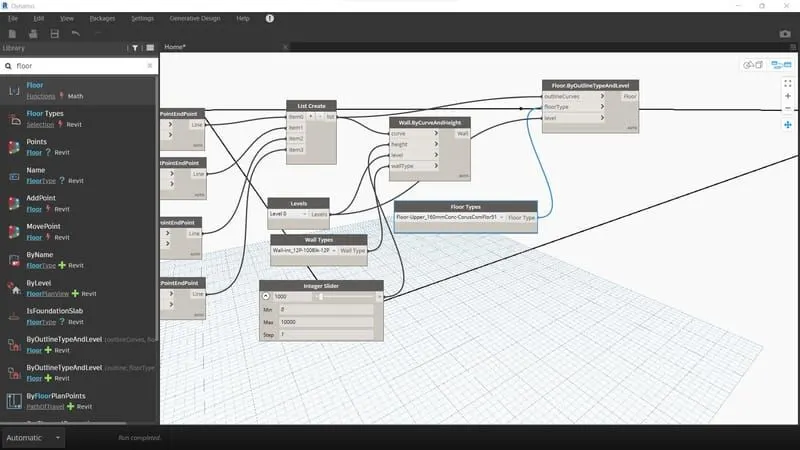

* Add floor type and outline type and level

Q3) Ans:-

Aim:- To create an array elements and change the property using slider or code block

Procedure:-

*Open the architectural tempelate

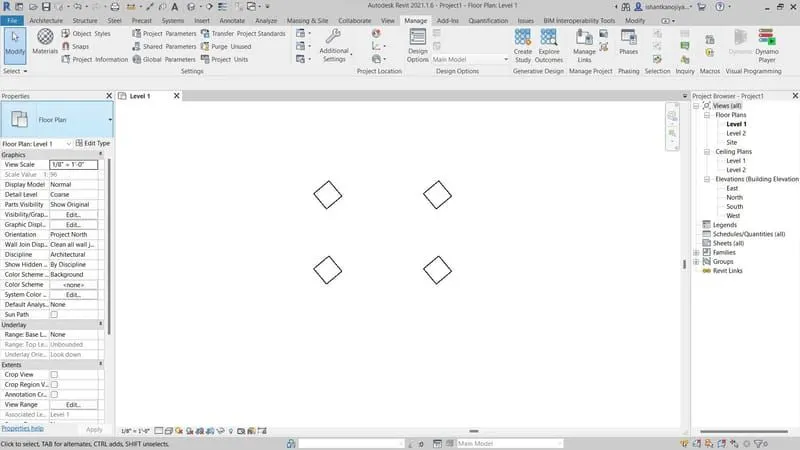

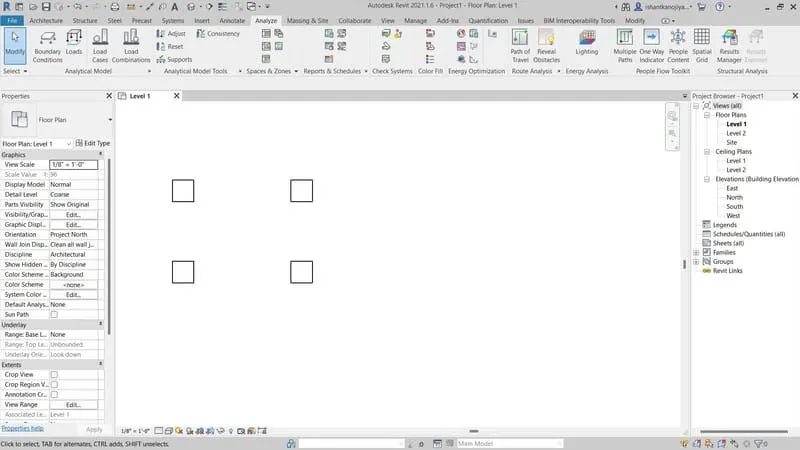

*Create 4 columns and then open dynamo

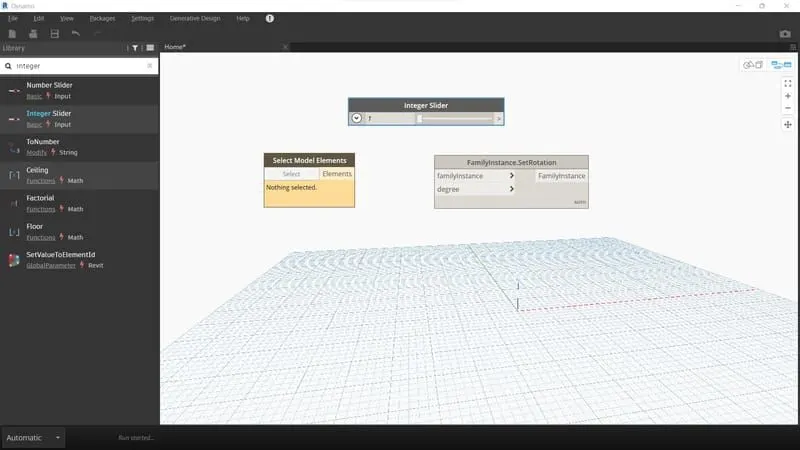

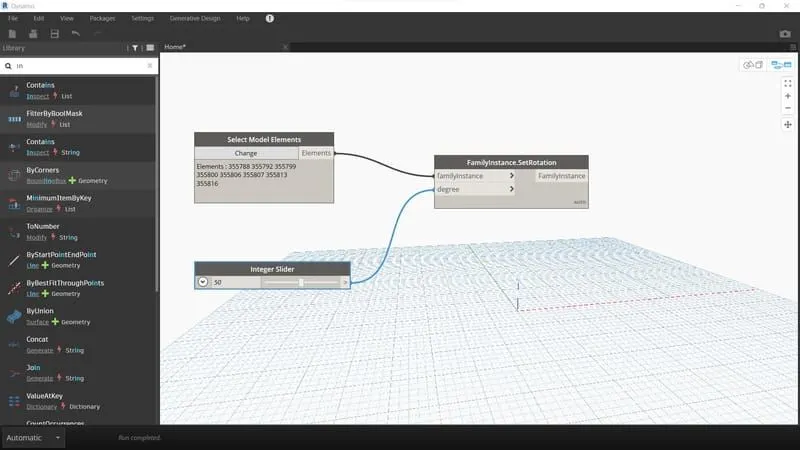

* Add to select model element and set rotation and integer slider

* Select elements

* this is how we use the array option in dynamo

Q4) Ans:-

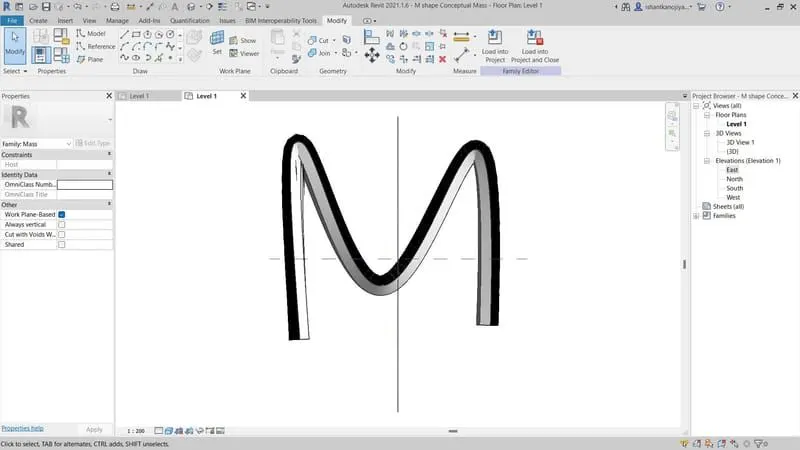

Aim:- To create conceptual mass and develop parametric columns or assign conceptual mass

Procedure :-

* First,, we create the conceptual mass

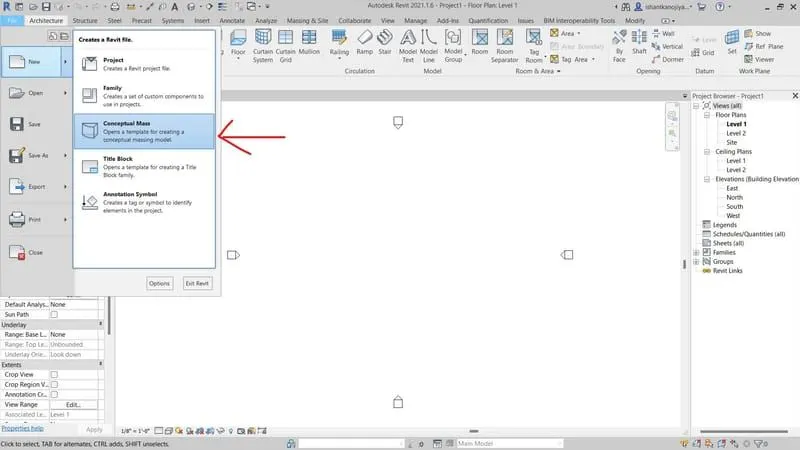

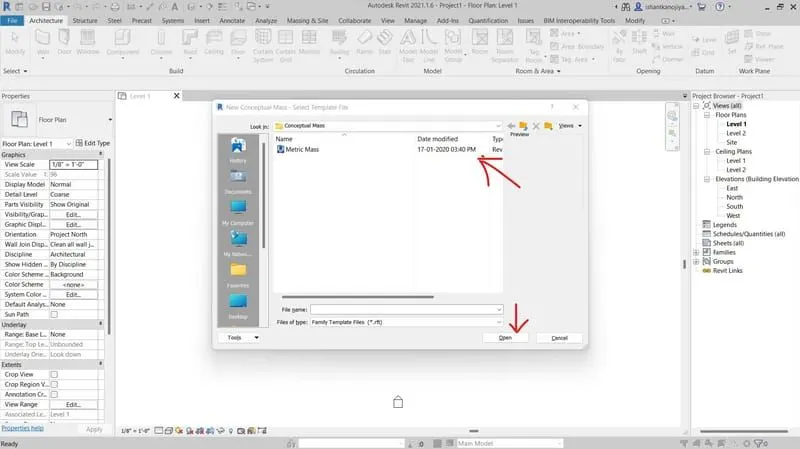

*Go to new select > select conceptual mass

*Select metric mass file in conceptual mass folder and open

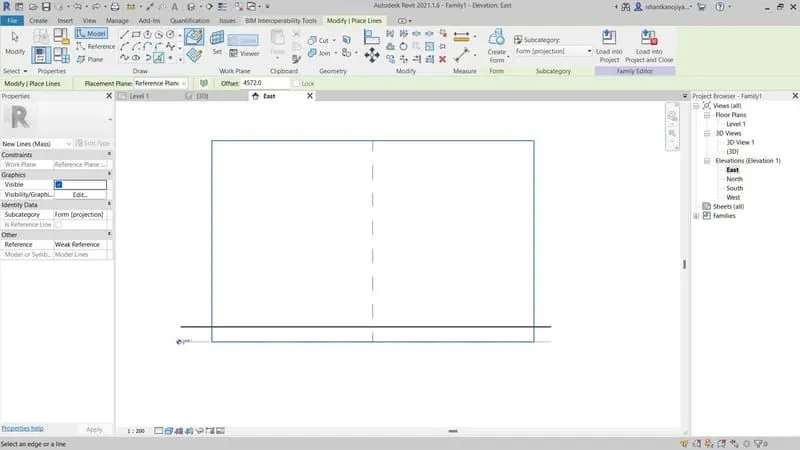

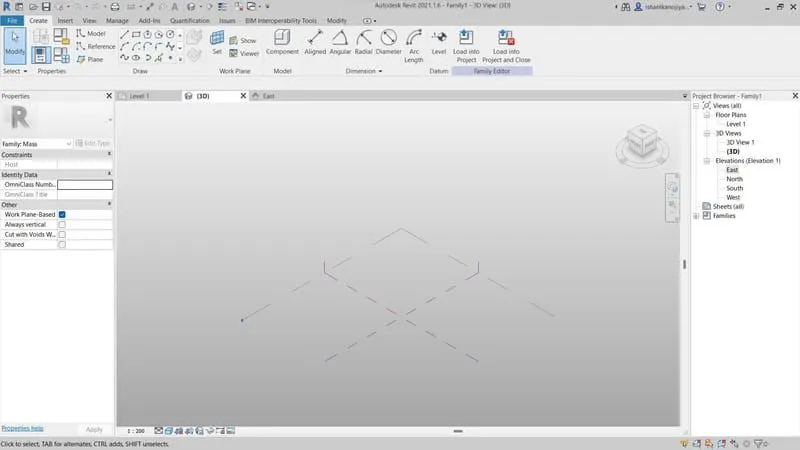

* then go to levels and create and adjust new levels

* select pick line and affect 12'

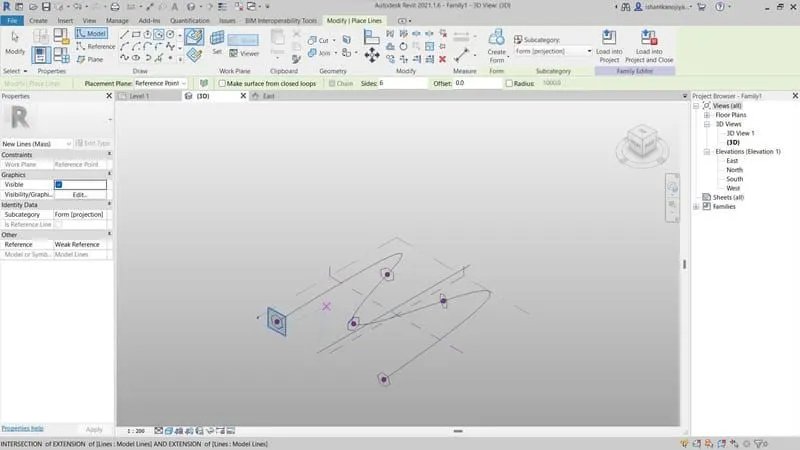

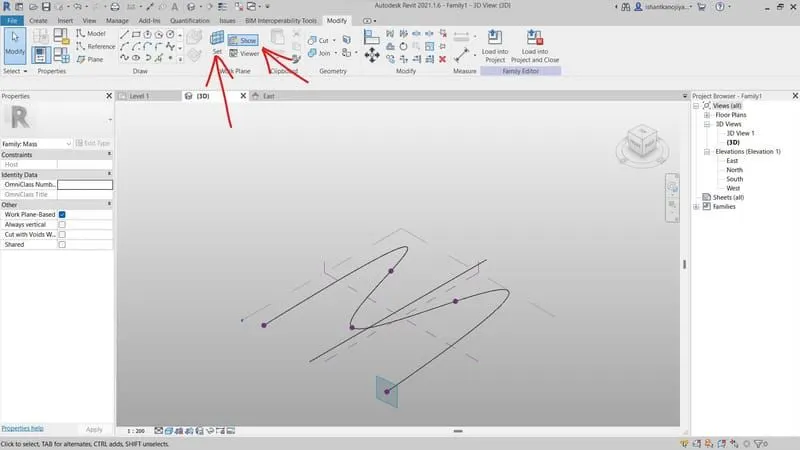

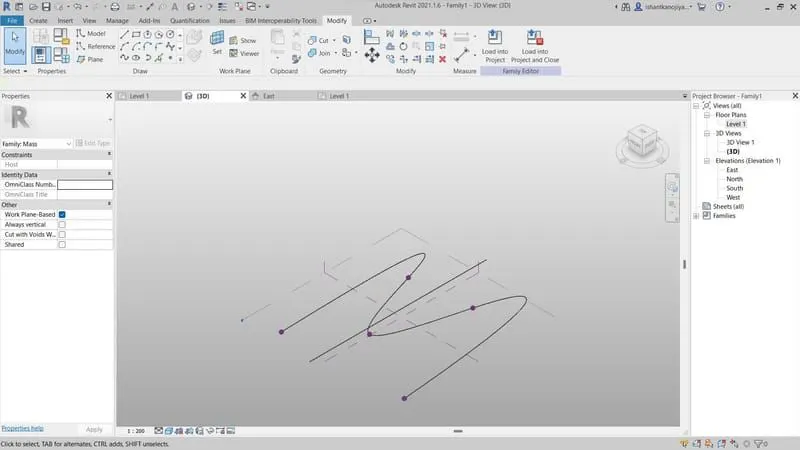

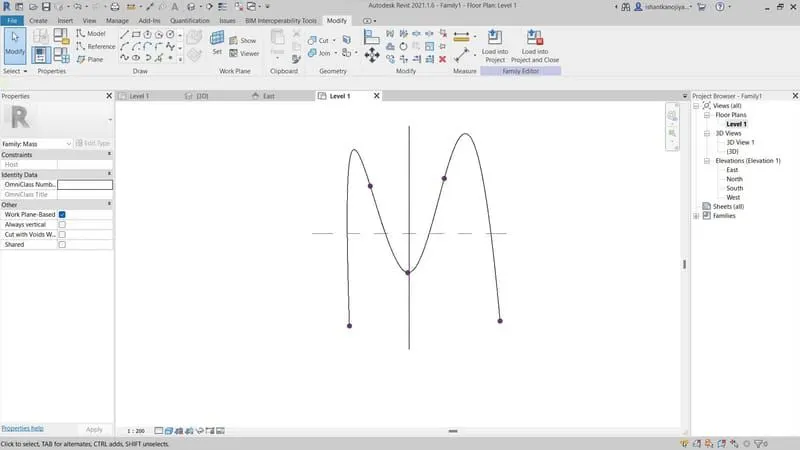

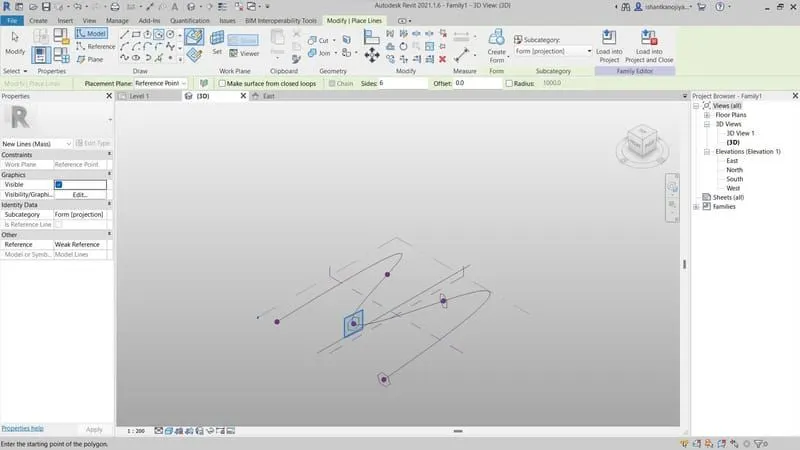

* then go to create tool bar and select spiline through point and create a geometry

* Now set the plane into the points

* Goto Modify toolbar and select set option

* Then select plane at the proper angle

* Select circumscribed polygenic at 12' on the set plan

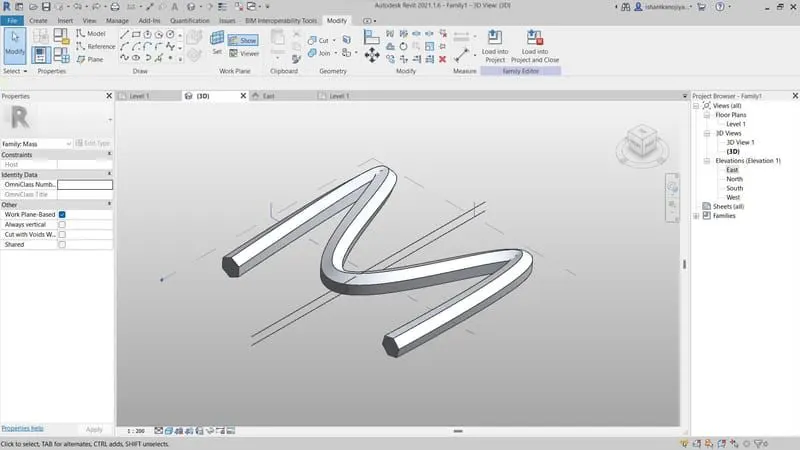

* Then create the geometry as a form option

* Firstly select Geometry and Goto modify> select create form

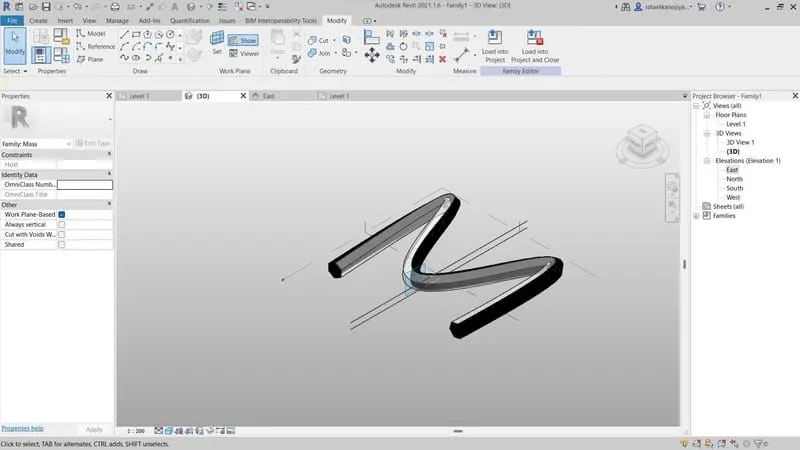

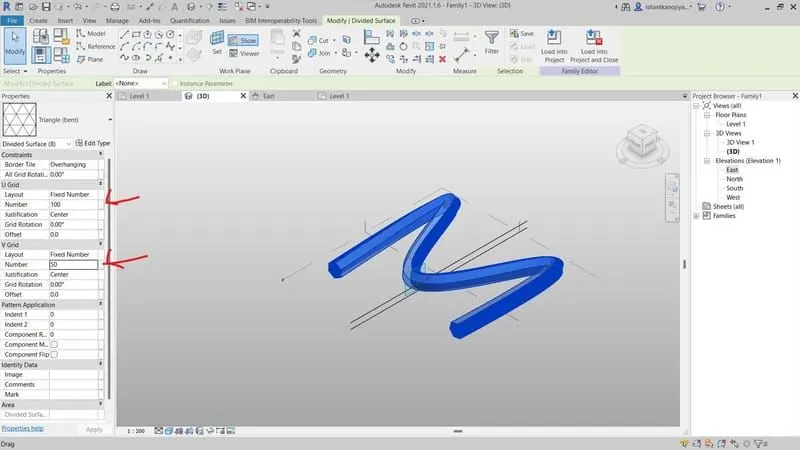

* Then apply triangular bent property

* Adjust u and v grid for smoothing of plan

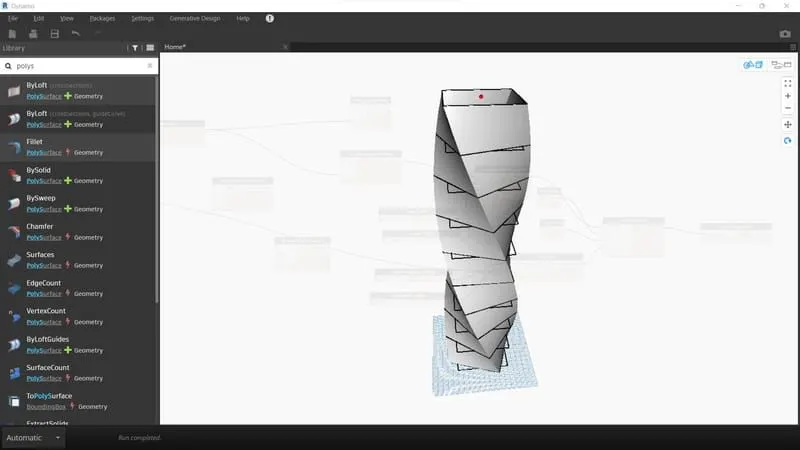

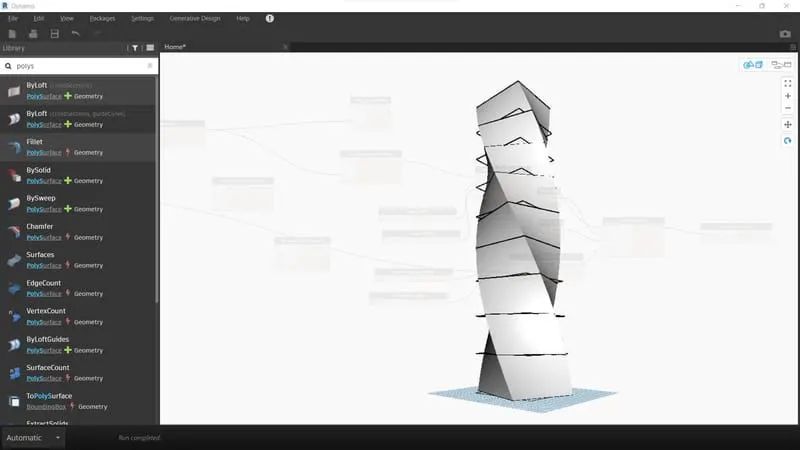

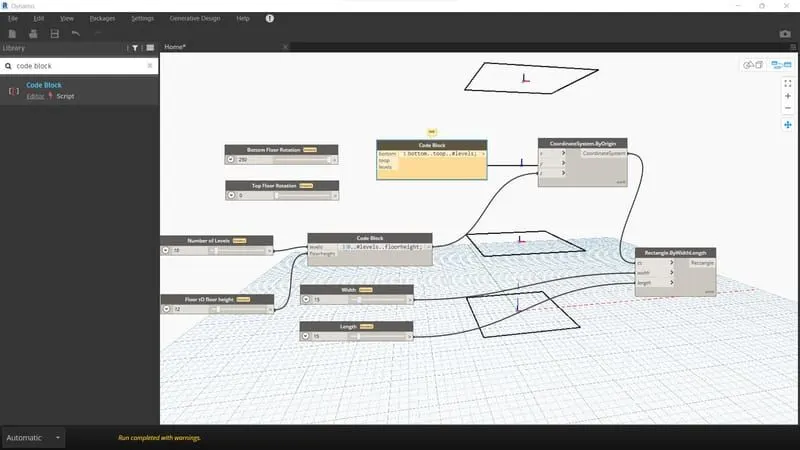

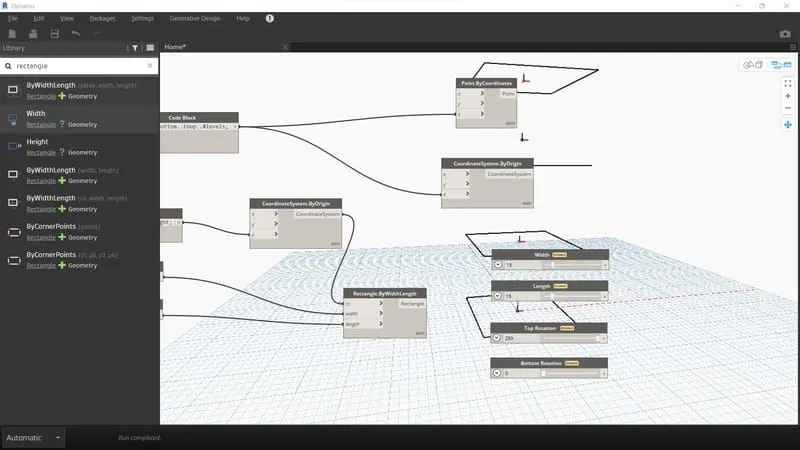

Aim:- To create a parmetric stadium using Dynamo

Procedure:-

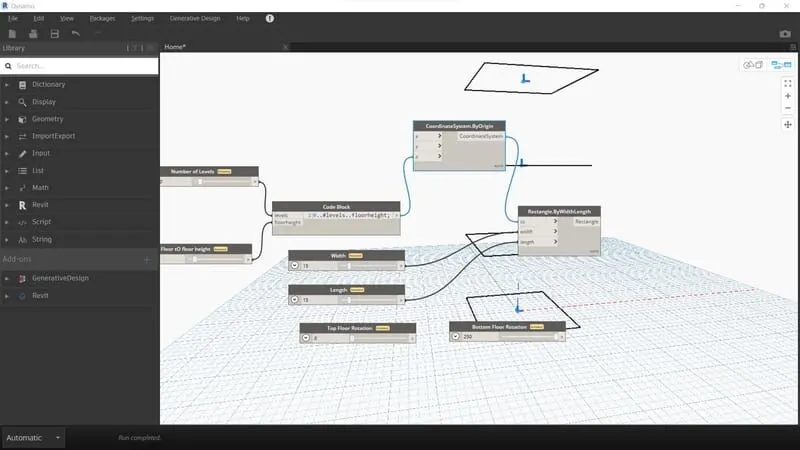

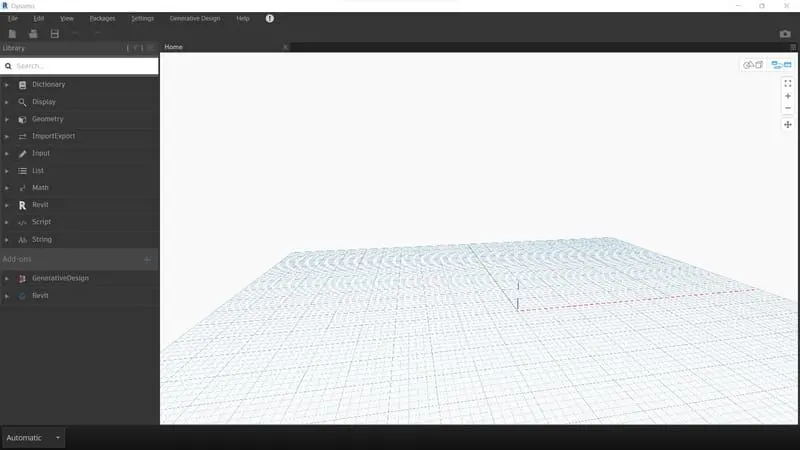

* Open a new file in Dynamo

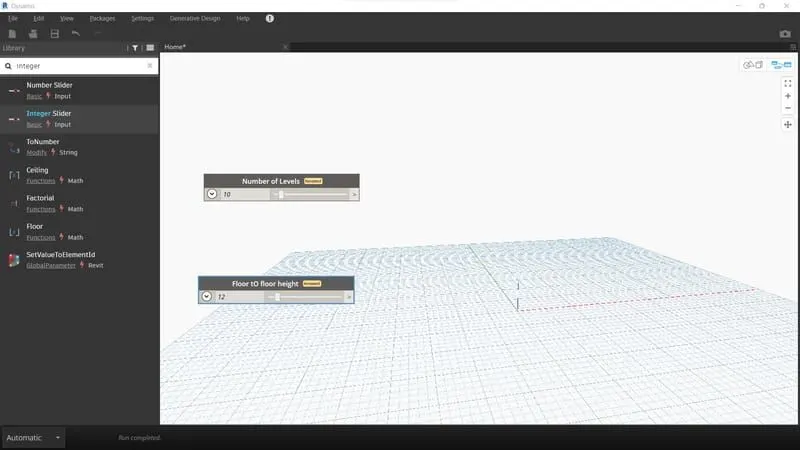

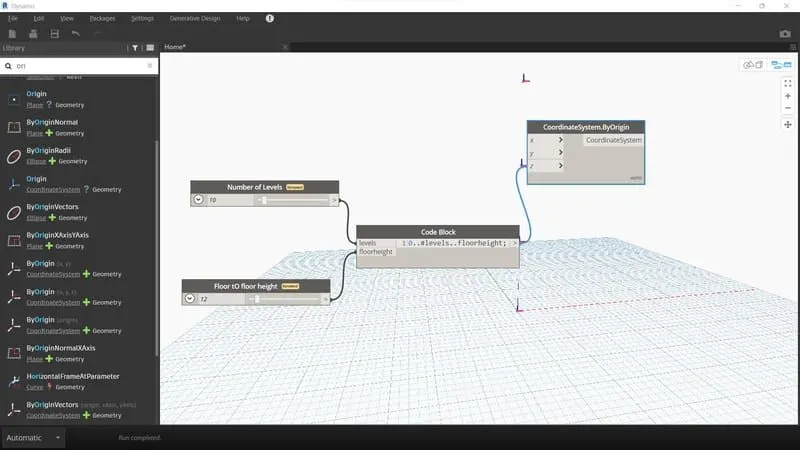

* Add 2 integer slider

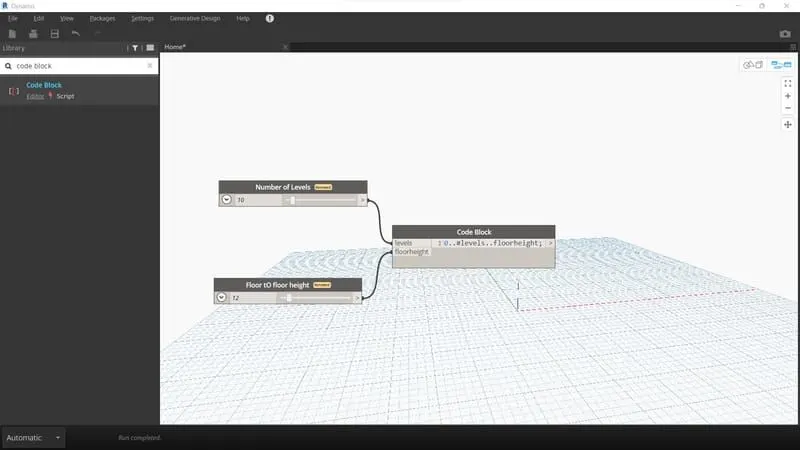

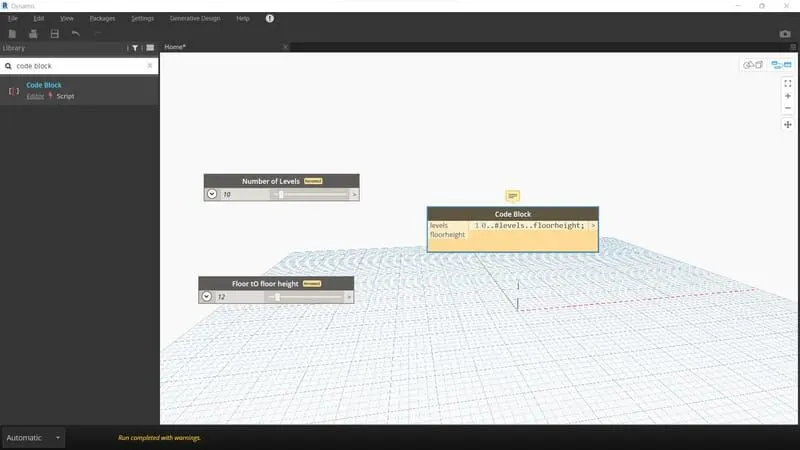

* Add code block

(0..#levels...floorheight;)

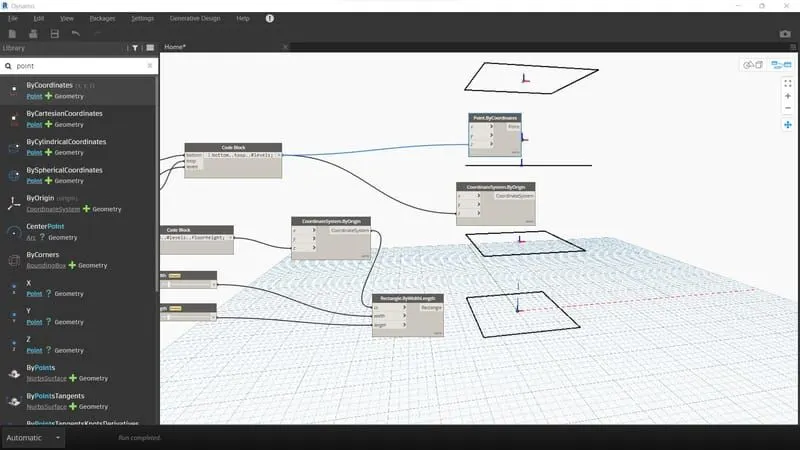

* Add coordinates system by origin

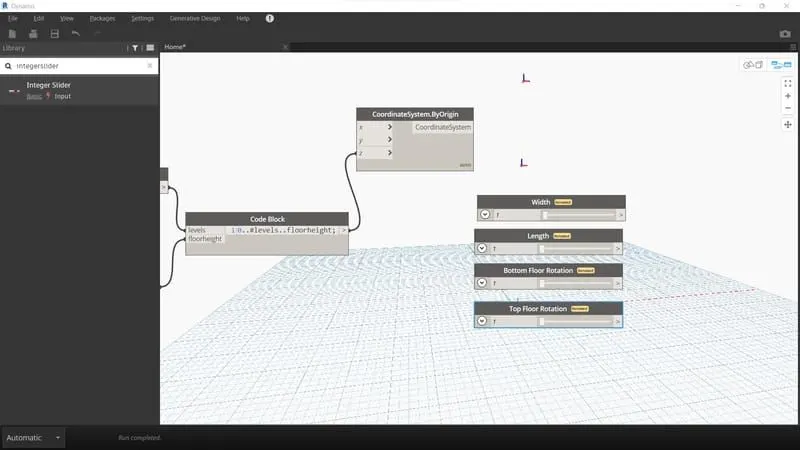

* Add integerslider for width,length,Bottom floor rotation and Top floor rotation

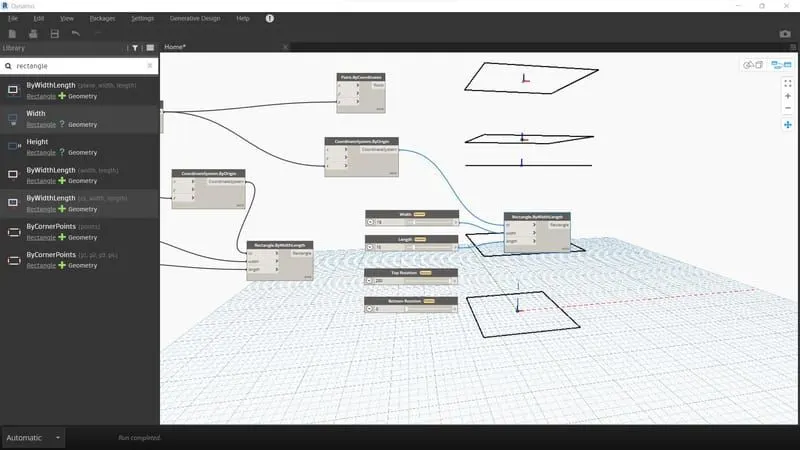

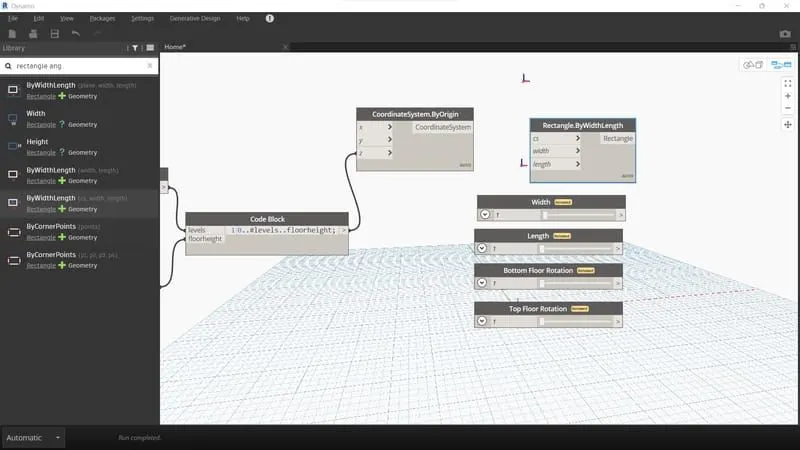

* Add Rectangle by width length

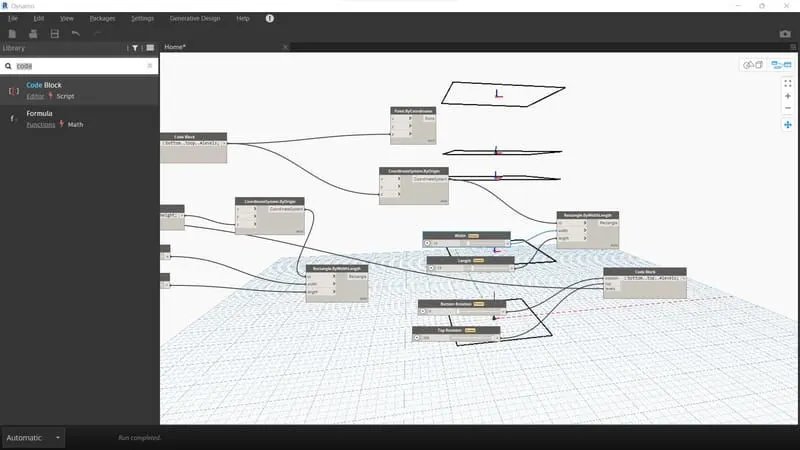

* Add code block for floor rotation

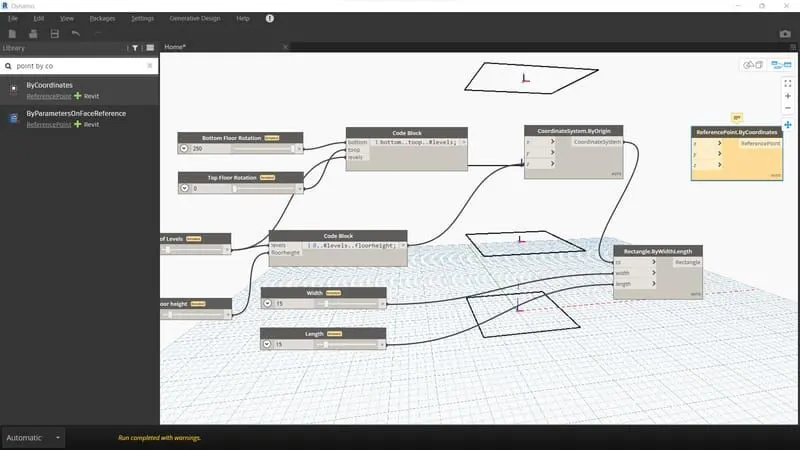

* Add point by coordinates system and origin coordinates system

* Add 4 integar slider for length width top rotation and bottom rotation

* Add rectangle

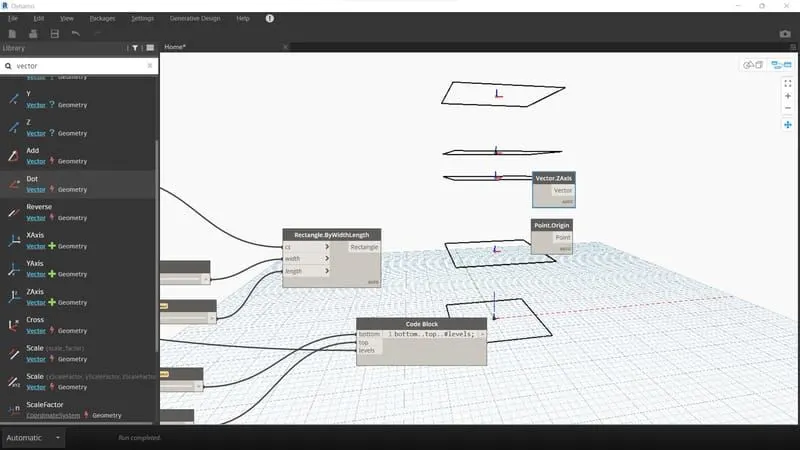

* Add point by origin and vector z-axis

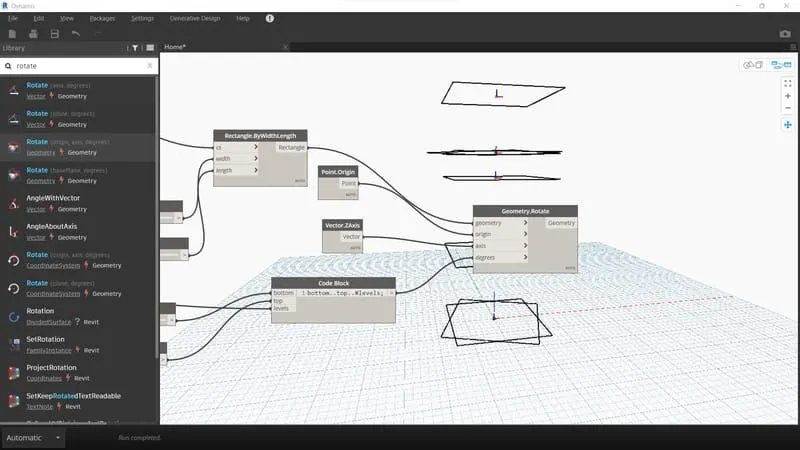

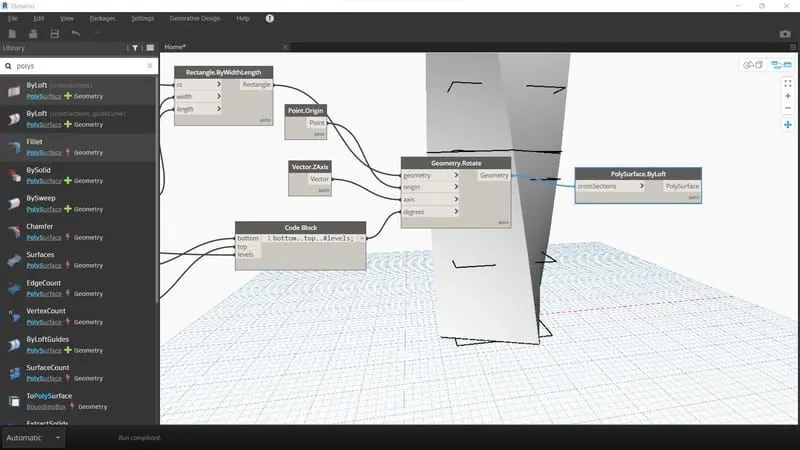

* Add geometry Rotation

* Add poly surface by loft
