Creating Conceptual mass in REVIT and Creation of Sinusoidal curve and a Parametric stadium using Dynamo

AIM:To Creating the Conceptual mass in REVIT and Creation of Sinusoidal curve and a Parametric stadium using Dynamo.

INTRODUCTION:

Create the Coneptual mass and parametric structure using dynamo in revit by using the code blocks,integer numbers,wall by its curve,Number slides,Geometery.

PROCEDURE:

1ANS:

• Start revit with new file.
• Select the dynamo in mange tab.
• Open the new in dynamo to create the sinusodial curve.
• Select the integer slide for start,end,list.
• Then select the range then link to interger slide of start,end,list to range.

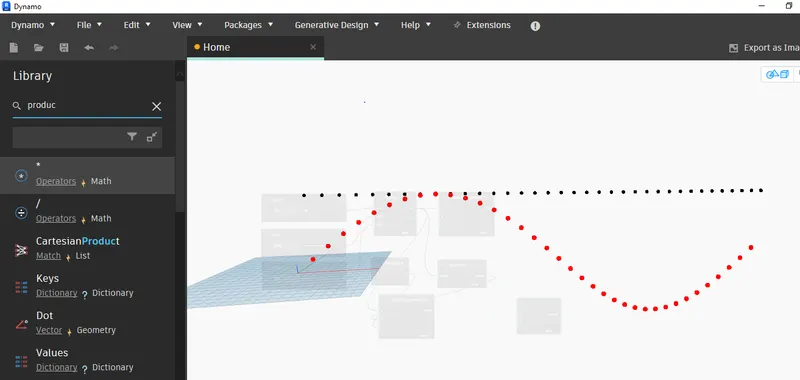

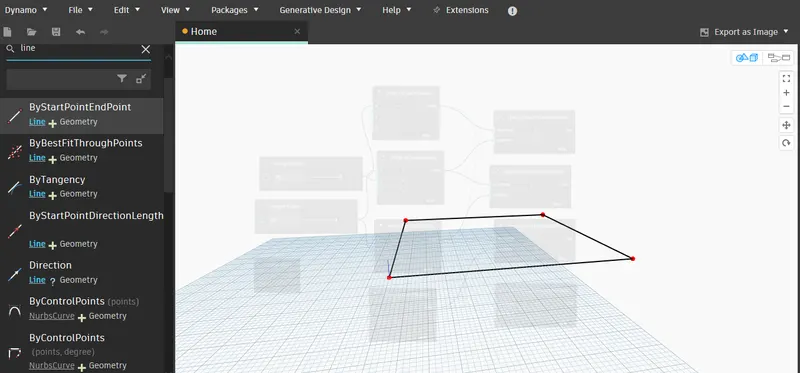

• Then select the point by coordinates link to code blocks.
• Then the product then link to point cordinates.
• Then select the math.in sin

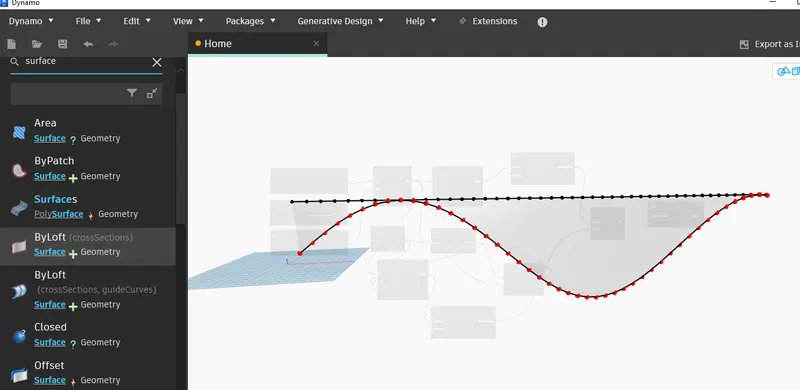

• Then selct nuubs by curve for link of points.
• Then select the surface by loop.

2ANS:

• Start revit with new file.
• Select the dynamo in mange tab

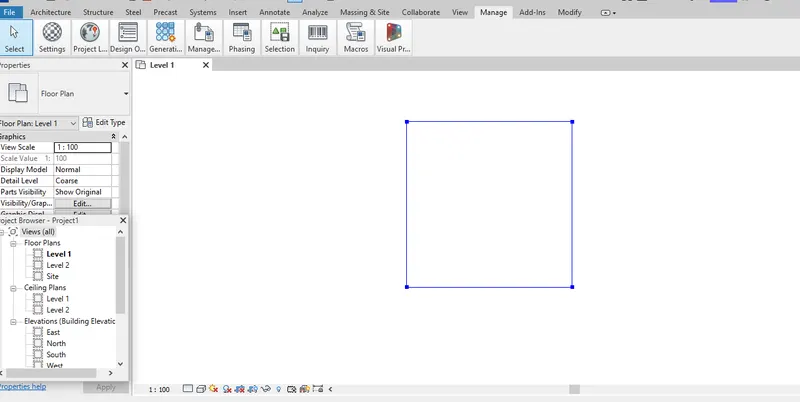

• Select the integer slide and points by cordinates for form of rectangle.
• Then select the List for to formationof 3d view.

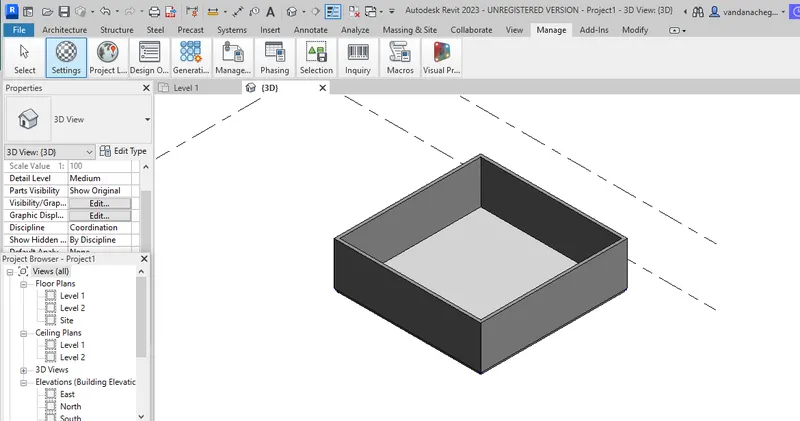

• Then select the type of wall,height of the wall,level and these all points to wall by curve.
• Then selct the type of wall need.
• Then select the floor,link to interger slide to formation of floor in revit.

3ANS:

• Start revit with new file.
• Select the dynamo in mange tab.

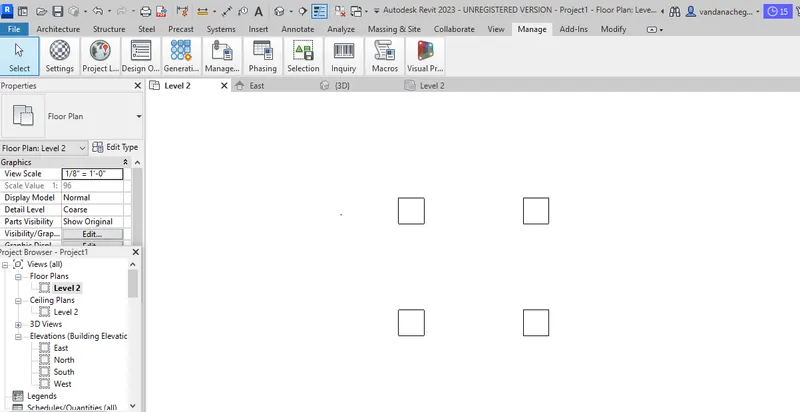

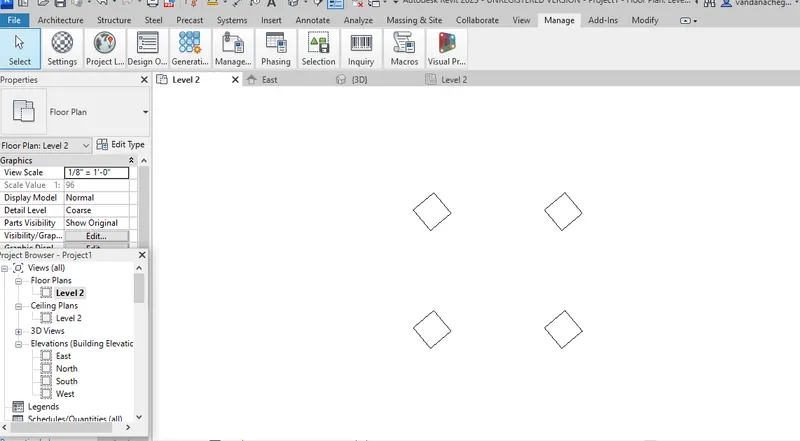

• Before the dynamo in revit draw the columns.

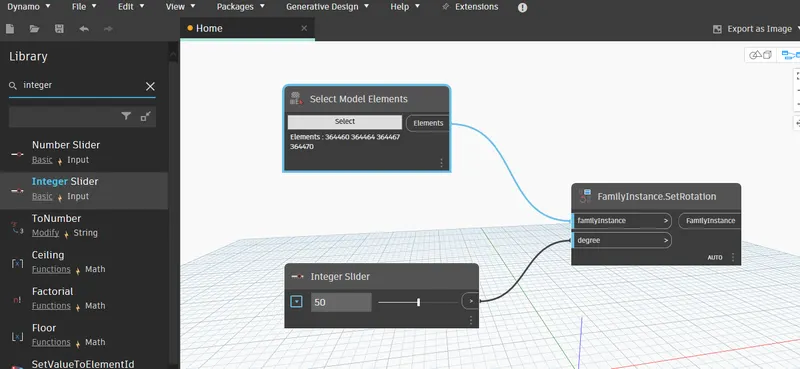

• In dyanamo select the selelct model,set rotation,Integer slide.
• Then the select the select models columns in revit.
• Then angle in set rotation

4ANS:

• Start the revit.
• OPen the family then select the metric .
• Then select the floor plan and select the elvation then adjust the levels@12'.

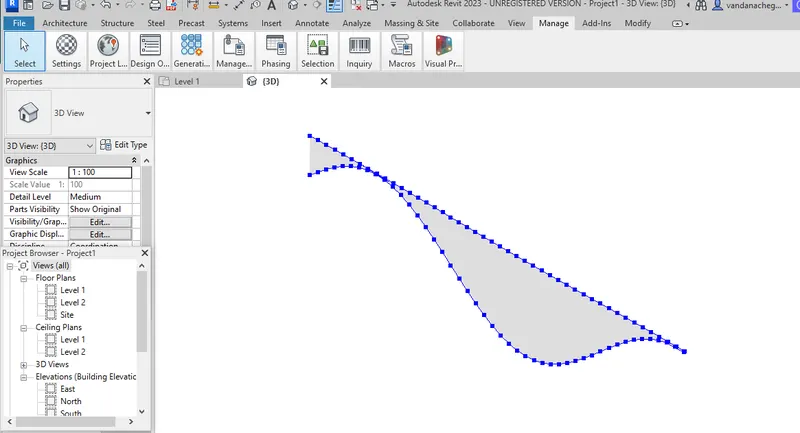

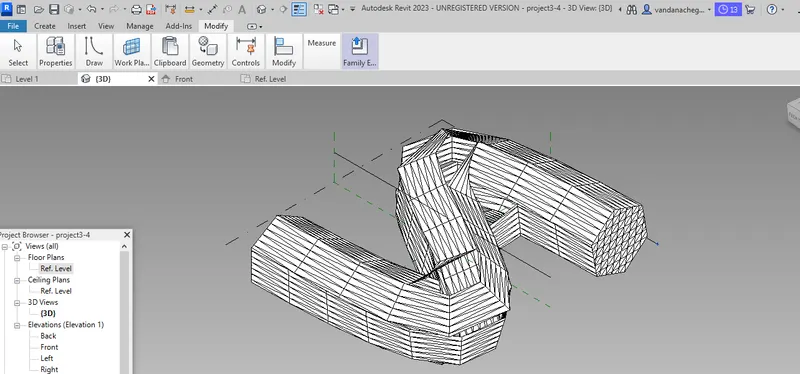

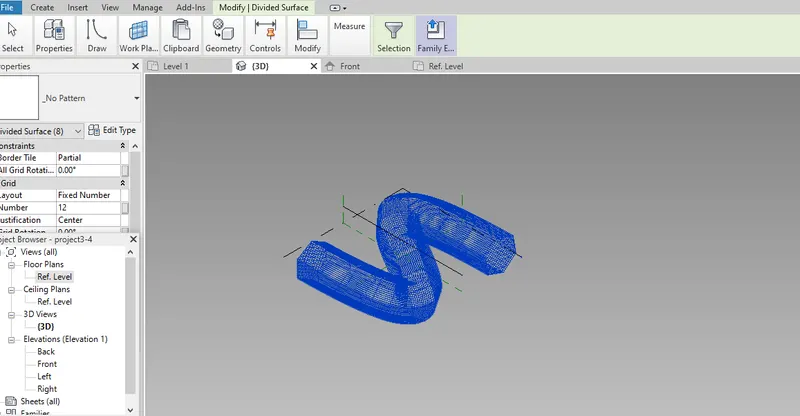

• Then select create the modle line and spline draw the curve,then select the set in work place then polygon on points.
• Then the select the spline and select the polygon.
• Select the fillter then select the selection and form then select the triangular.

5ANS:

• Start revit with new file.
• Select the dynamo in mange tab
• Select the integer slide and points by cordinates for form of rectangle.

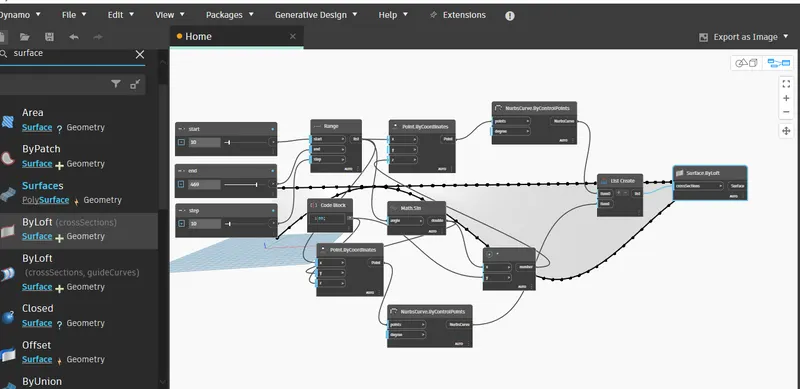

• then select the code block to assign the floor and levels.

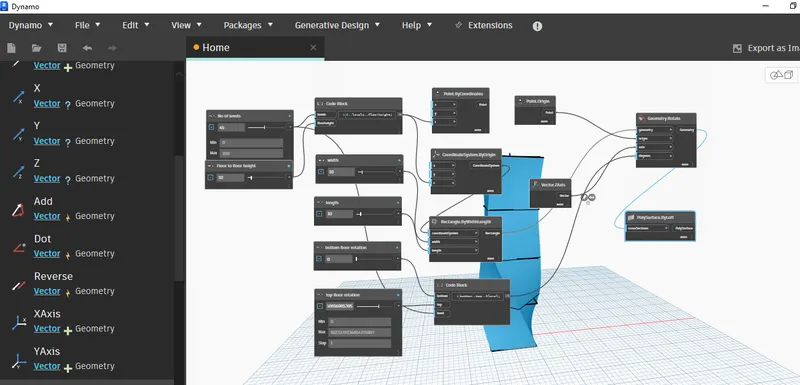

• Then again select the integer slide for length,width,bottom and top rotation.
• then select the points by coordinates and orgin ordinates.
• Then assign the geometery for length and width.

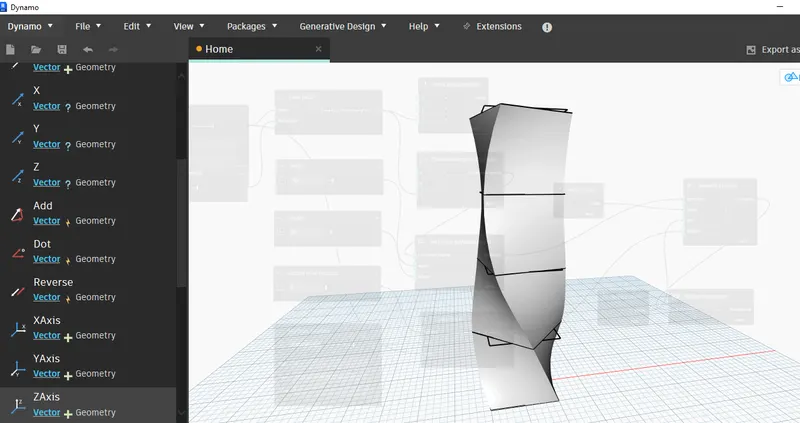

• tHEN SEELCT POINTS,VECTOR Z to geometRY

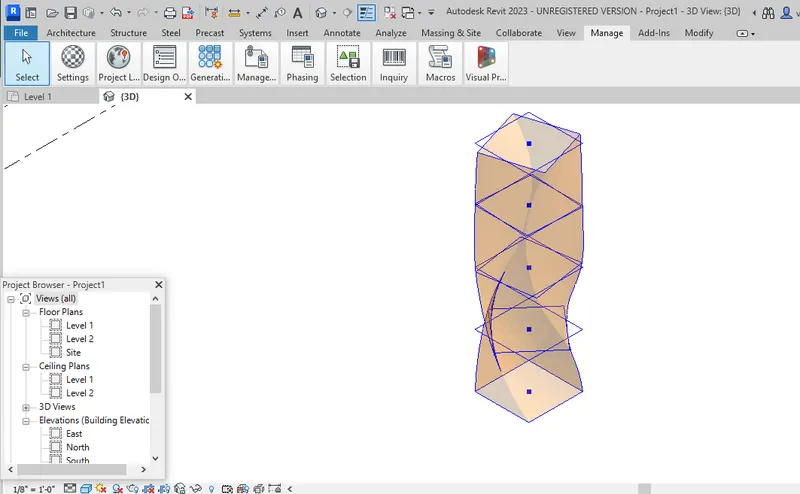

• Then select surface by loft.
