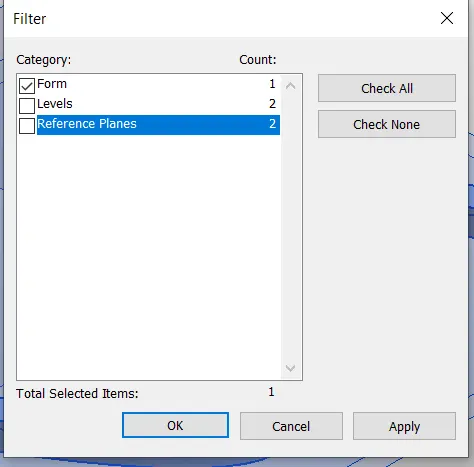

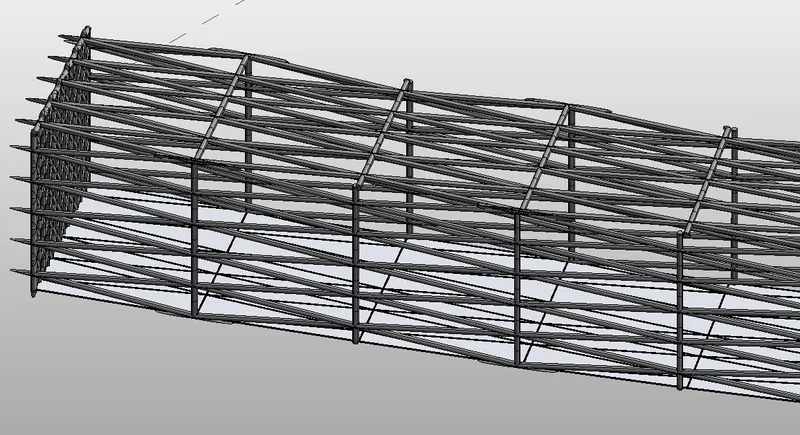

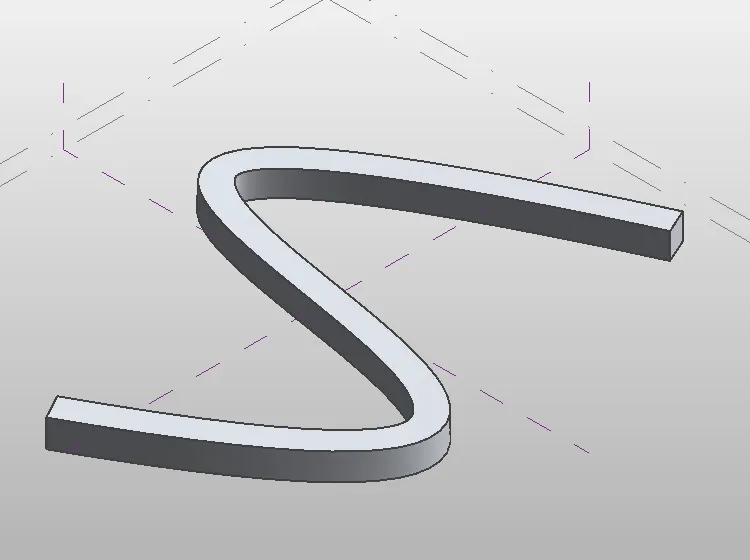

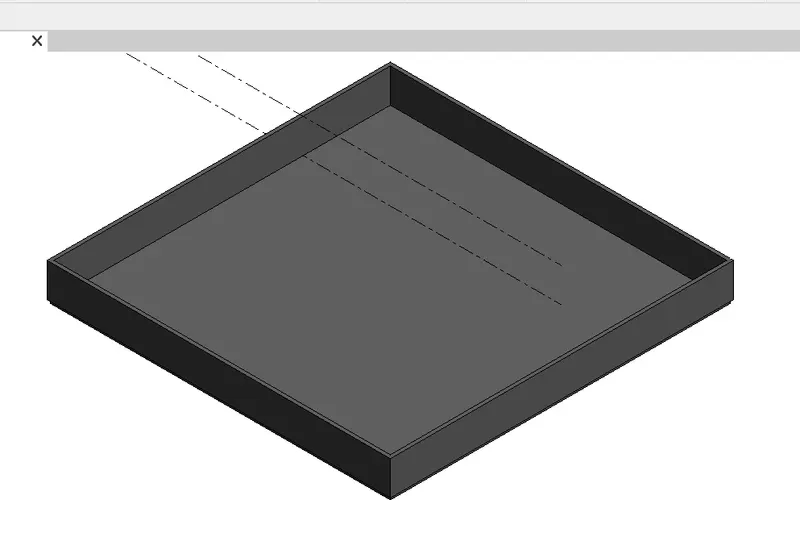

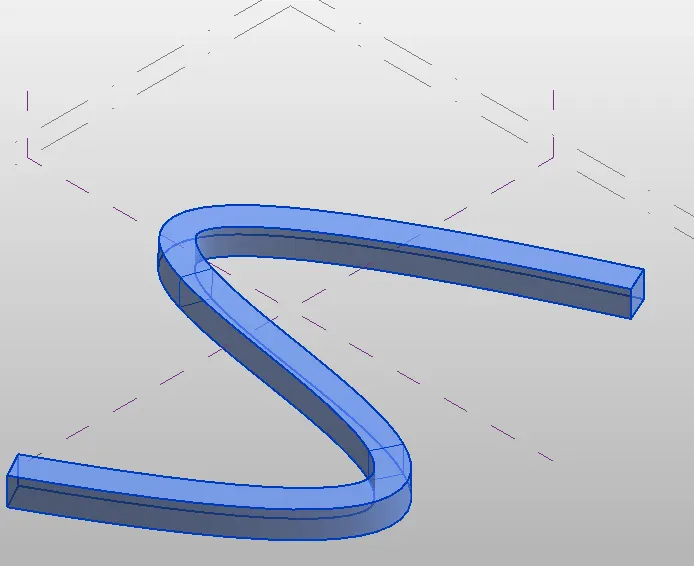

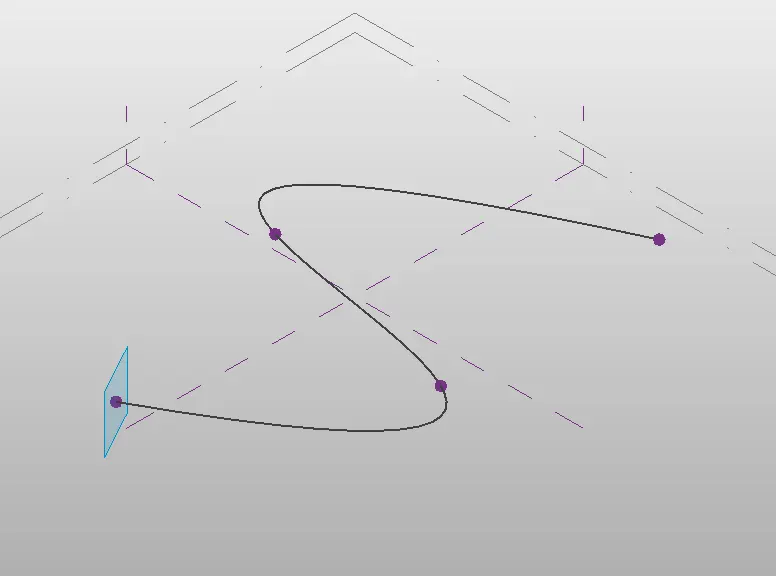

Creating Conceptual mass in REVIT and Creation of Sinusoidal curve and a Parametric stadium using Dynamo

Question 1: (a)   What is the mode of failure or damage of the beams in the figure above? Are the damages repairable? Elaborate Ans. This crack will be formed due to the flexural failure of a beam. The flexural strength, known as modulus of rupture, bend strength, or fracture strength, is a material property,…

INTRODUCTION TO AUTODESK NAVISWORK- Autodesk Navisworks Manage software (commonly referred to as Navis) offers design and construction professionals a comprehensive project review solution, providing advanced tools for interference analysis, 5D analysis and spatial coordination. Autodesk Navisworks Manage software is a…

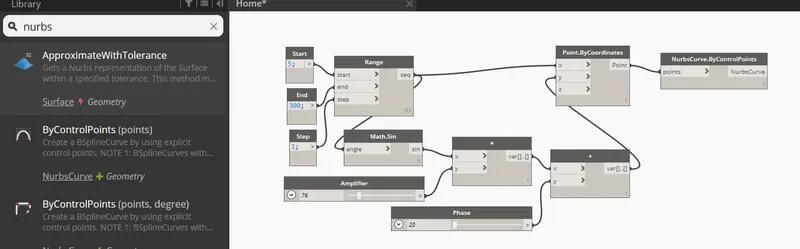

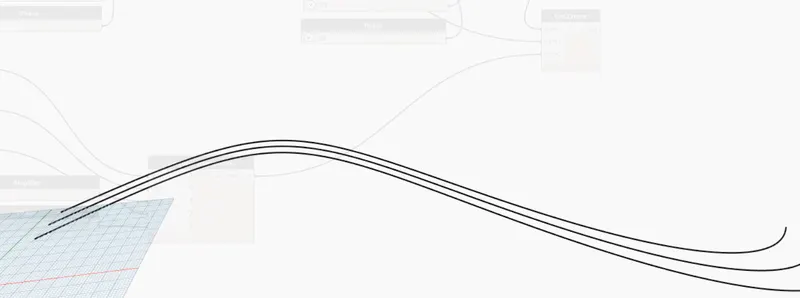

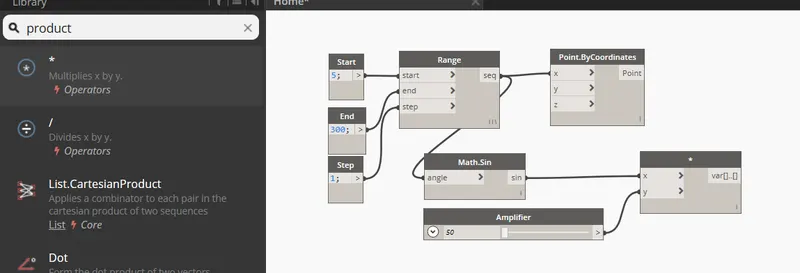

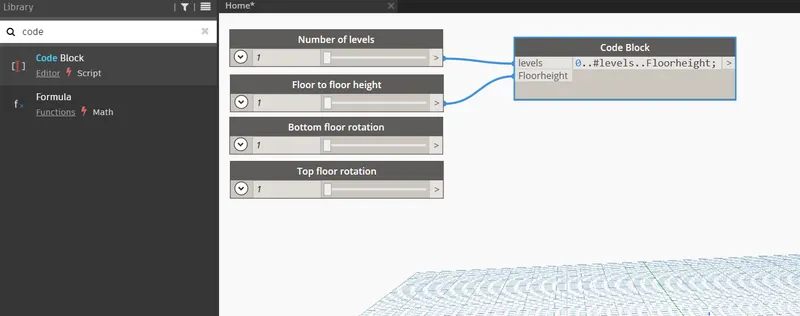

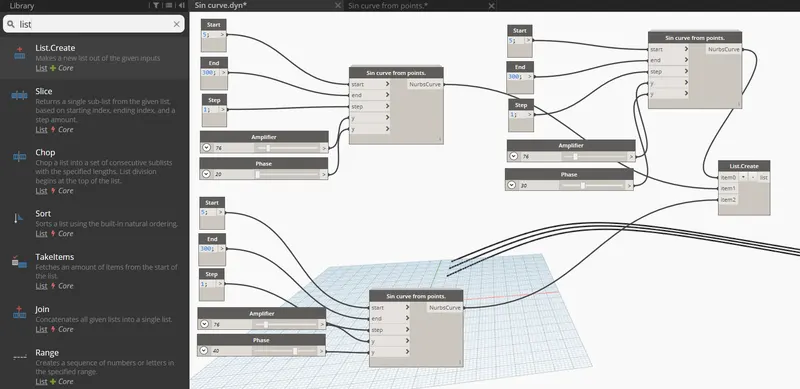

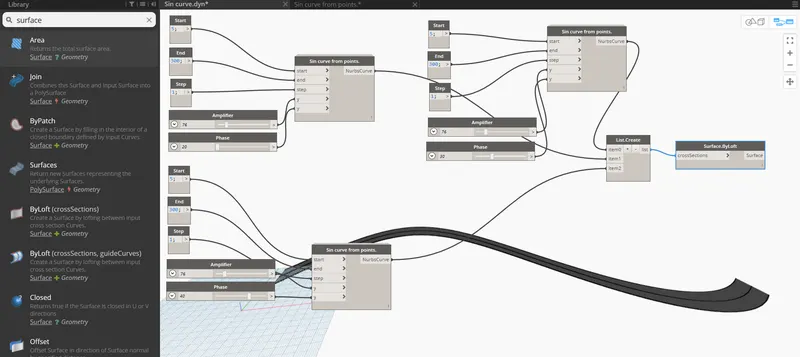

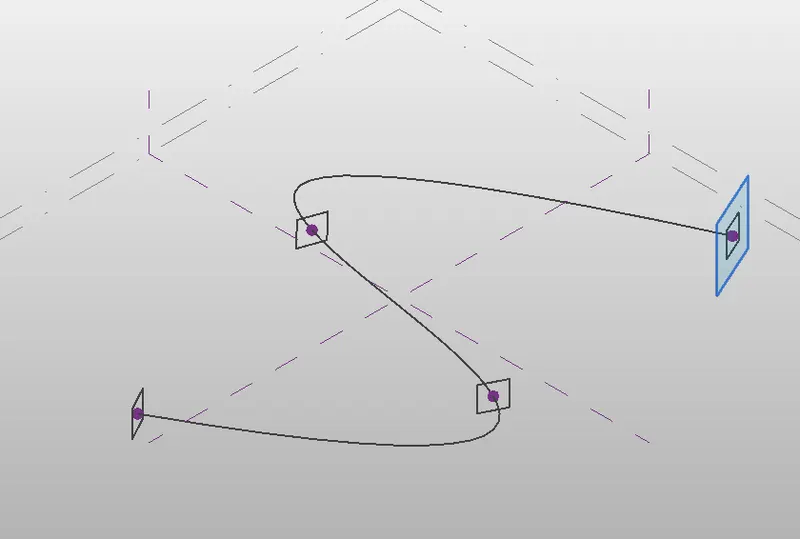

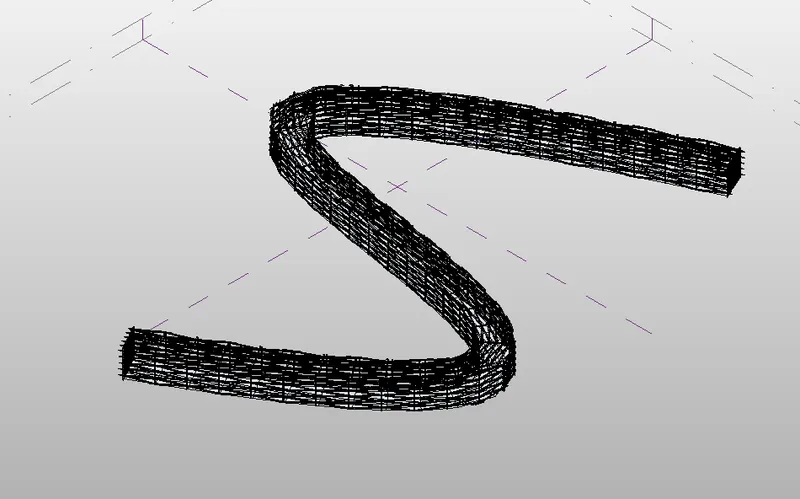

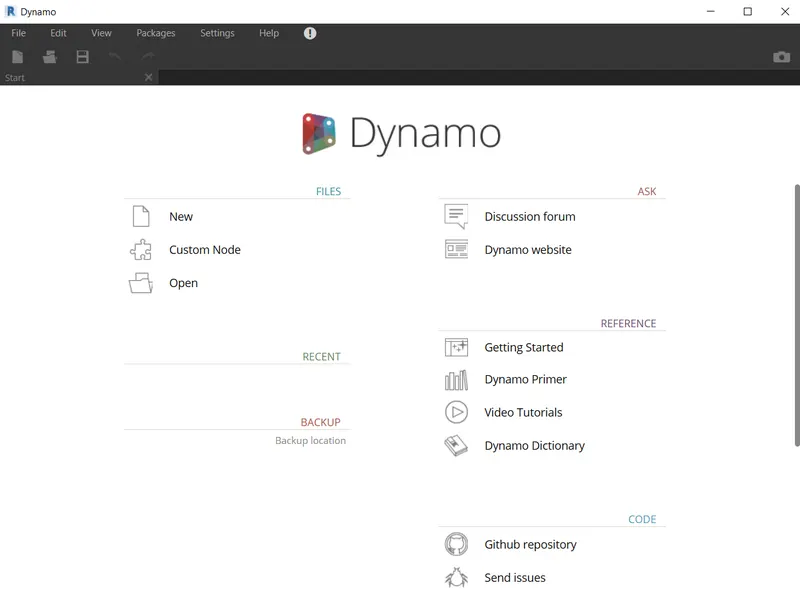

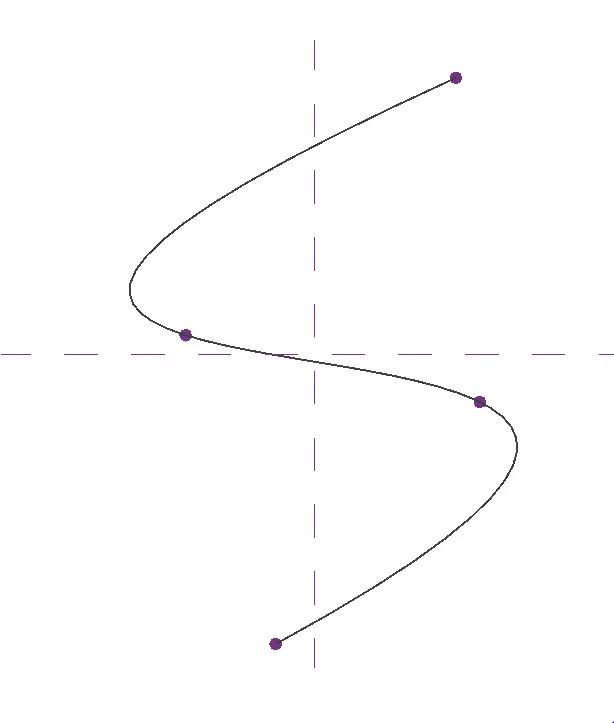

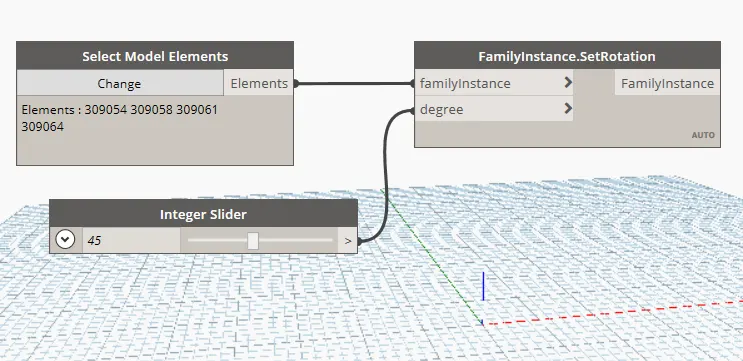

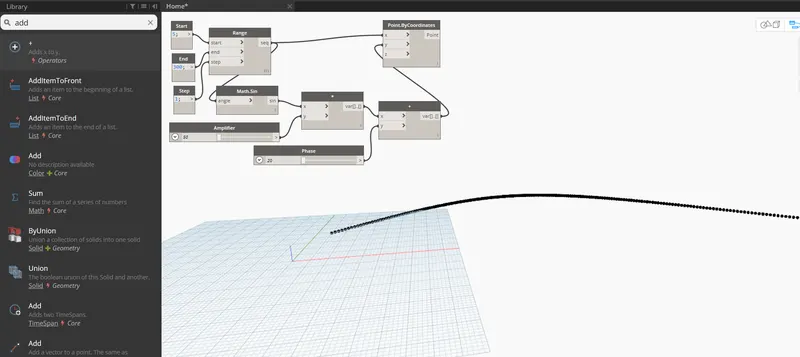

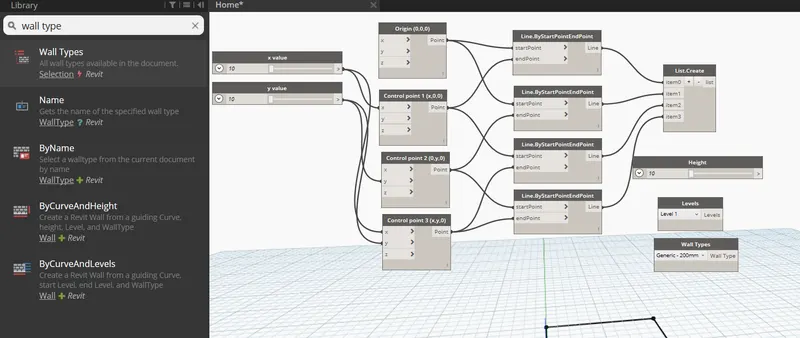

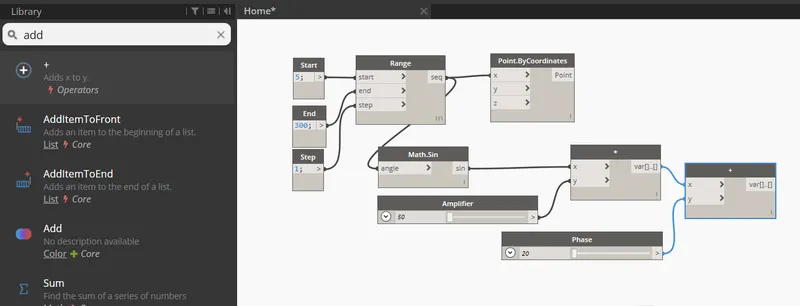

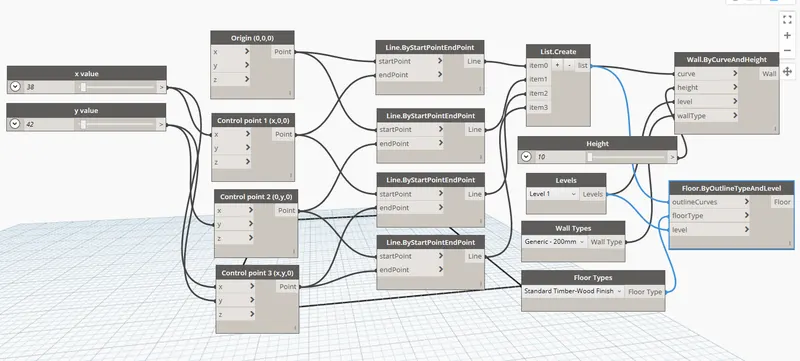

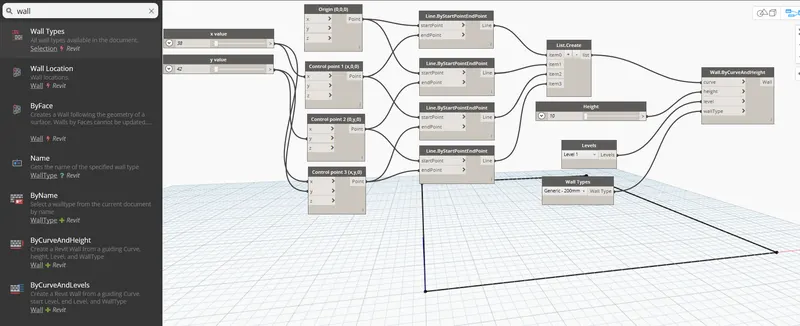

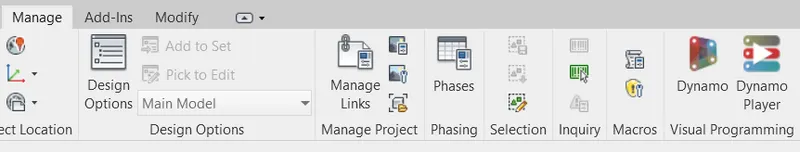

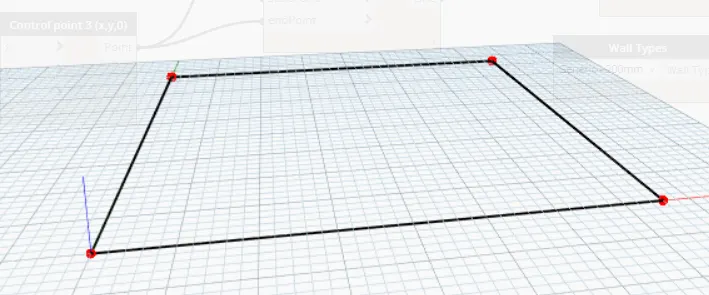

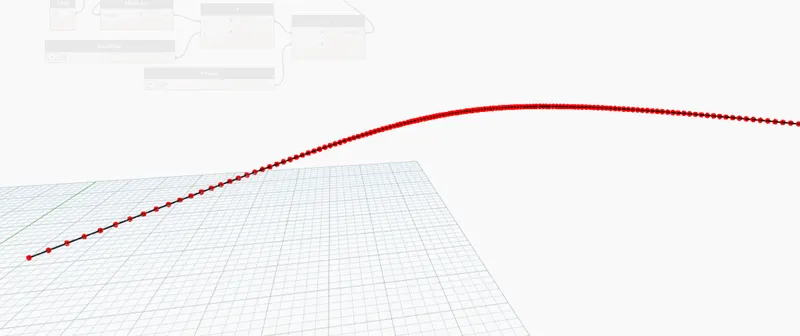

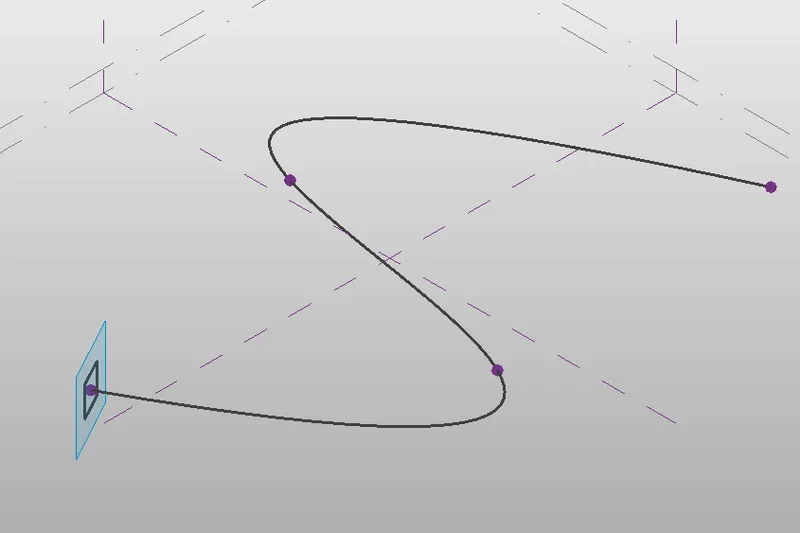

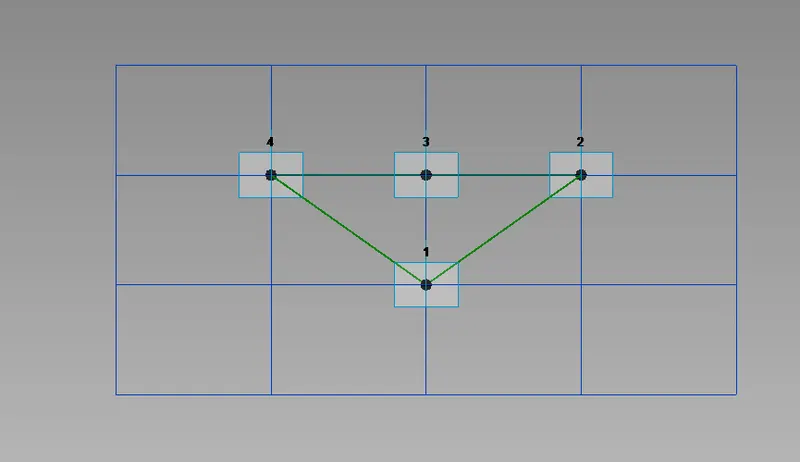

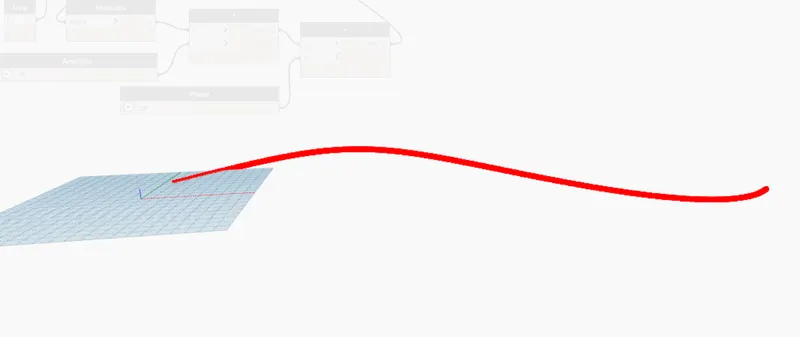

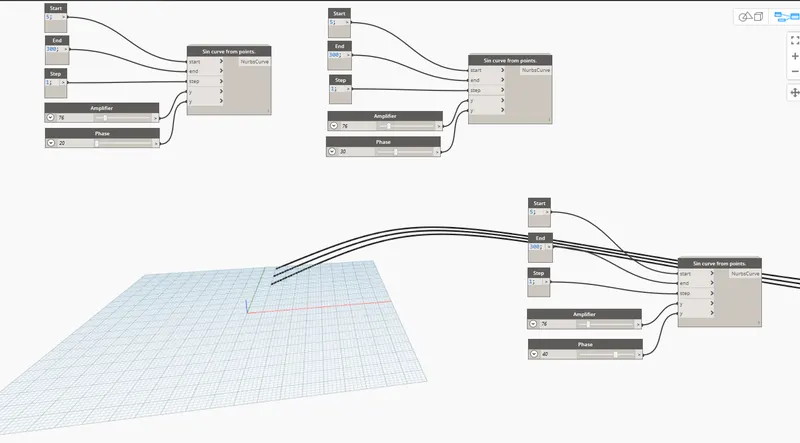

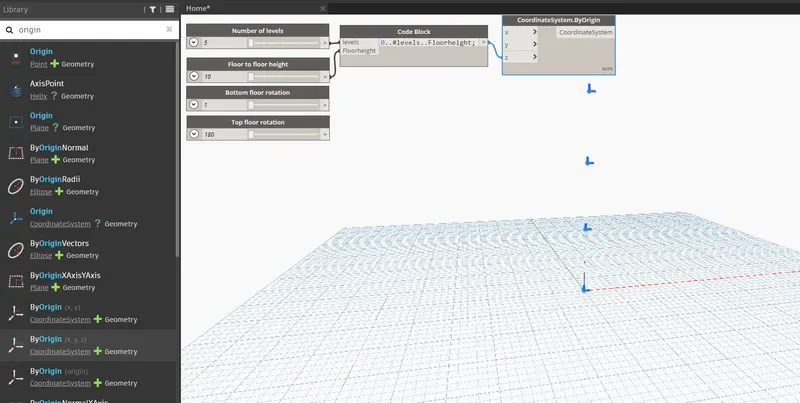

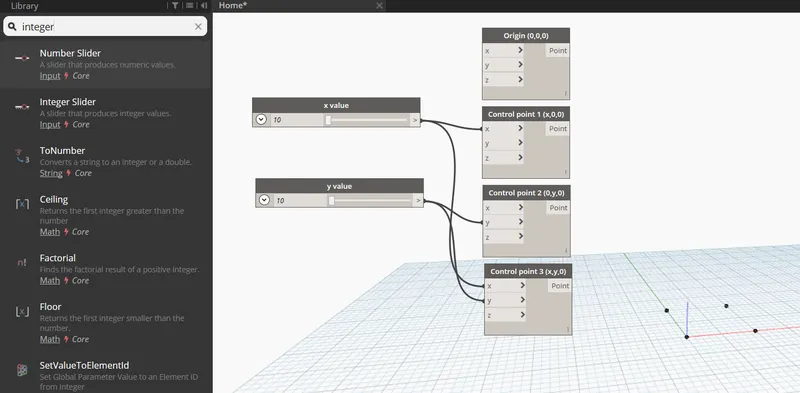

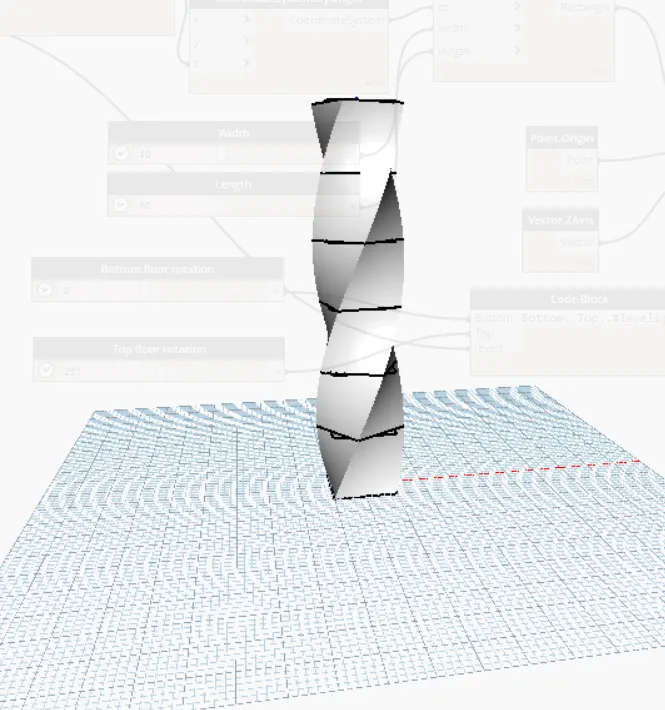

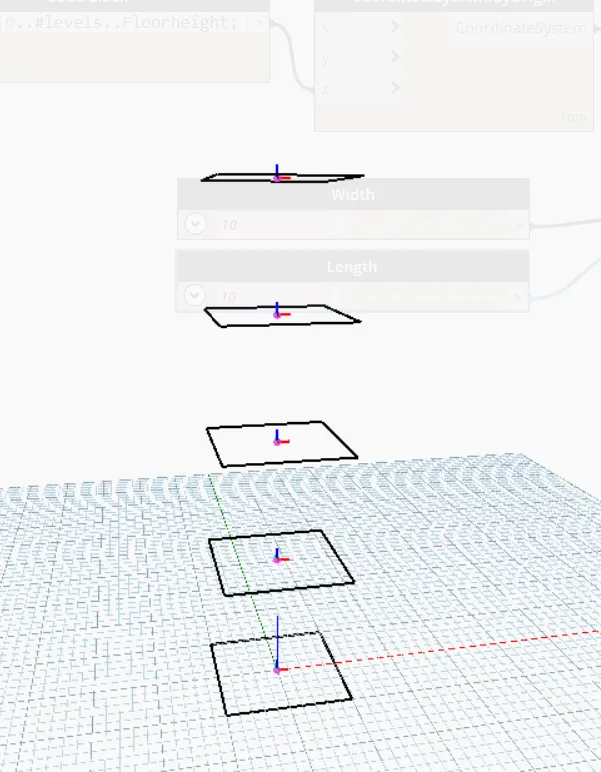

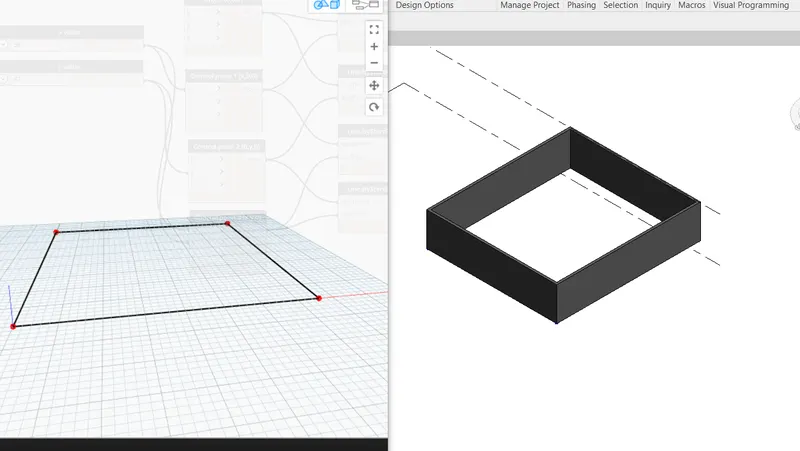

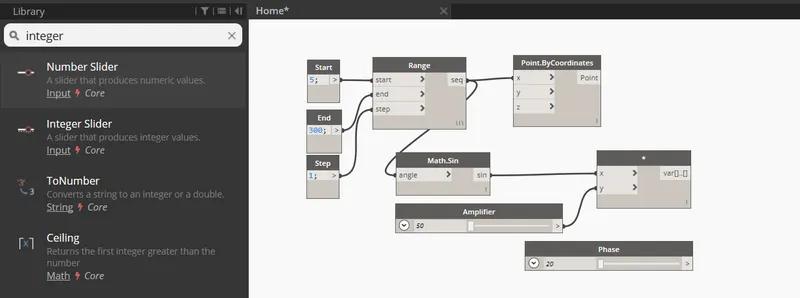

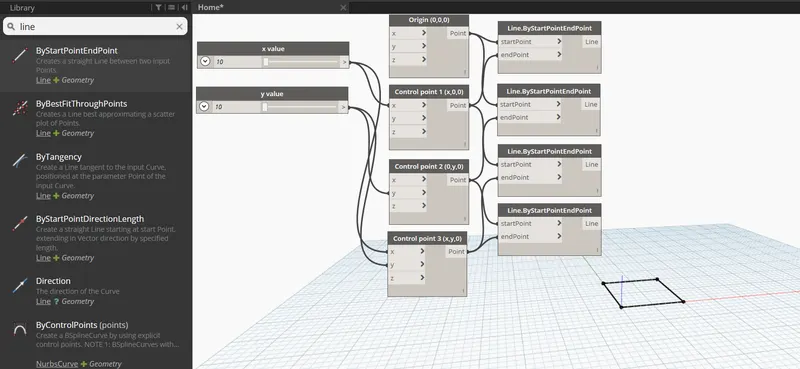

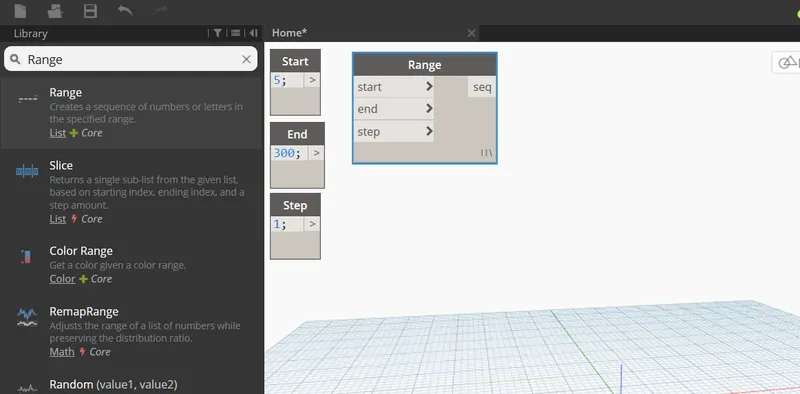

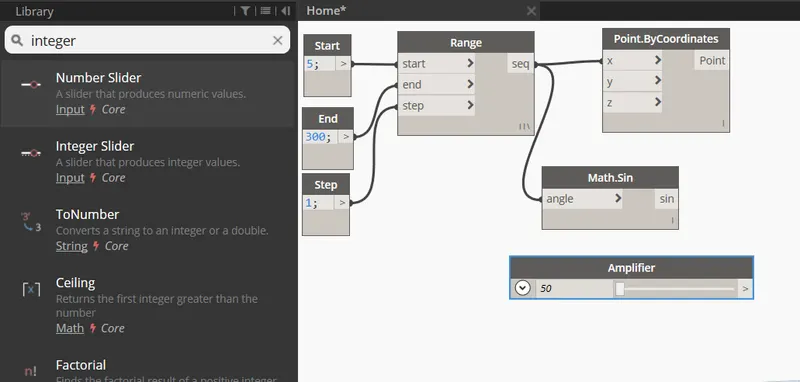

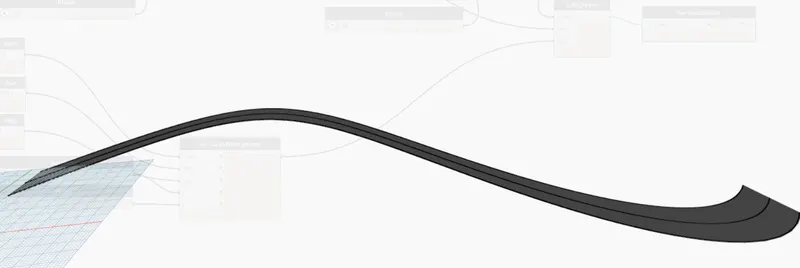

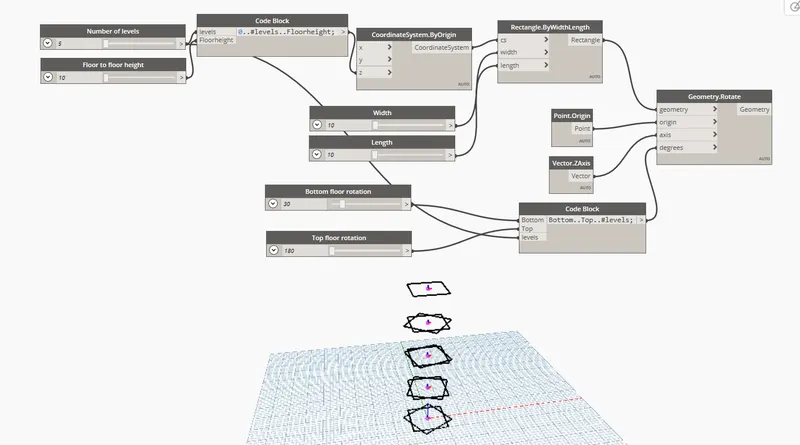

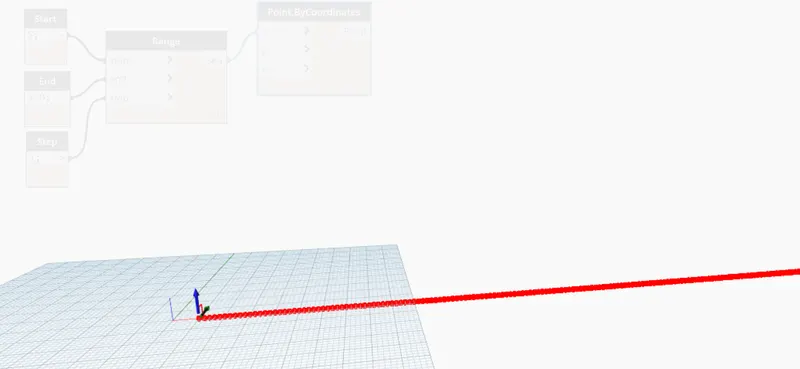

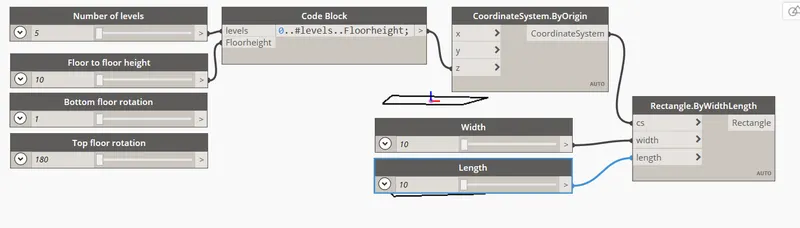

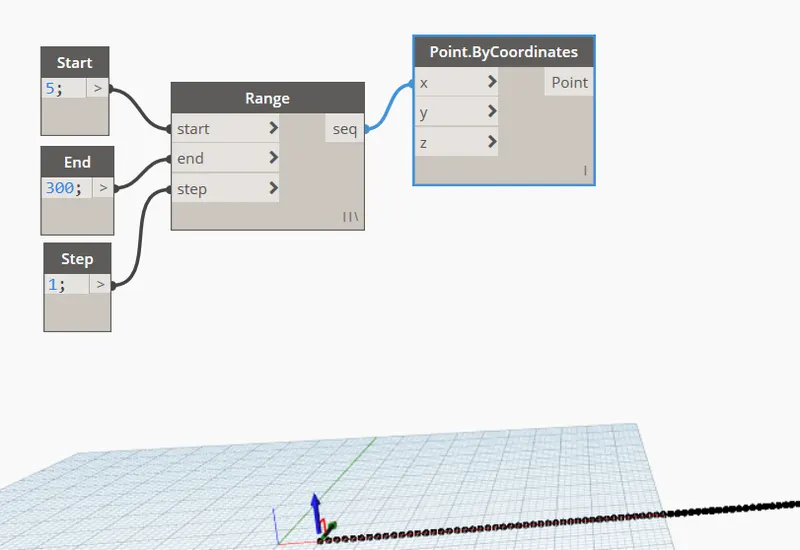

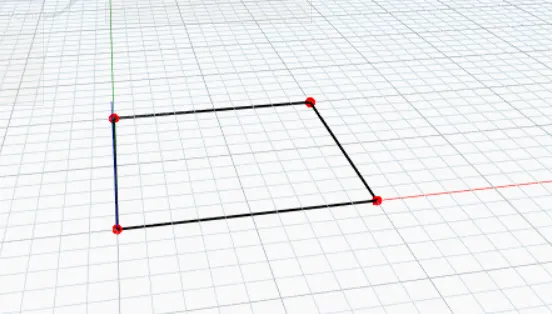

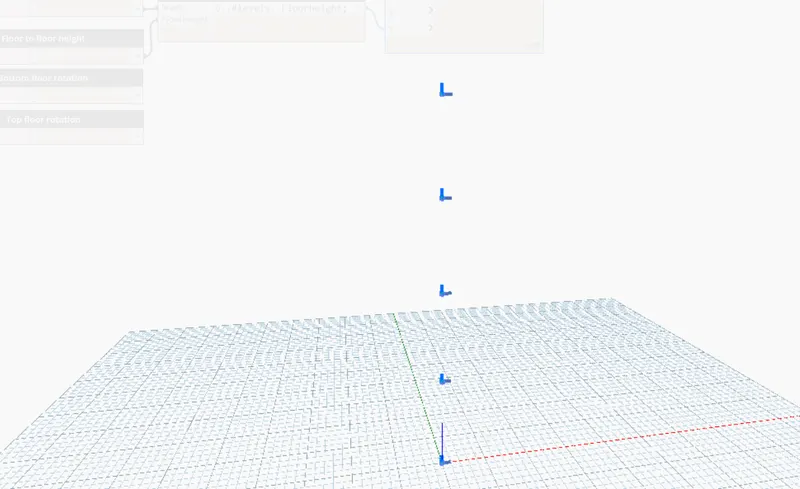

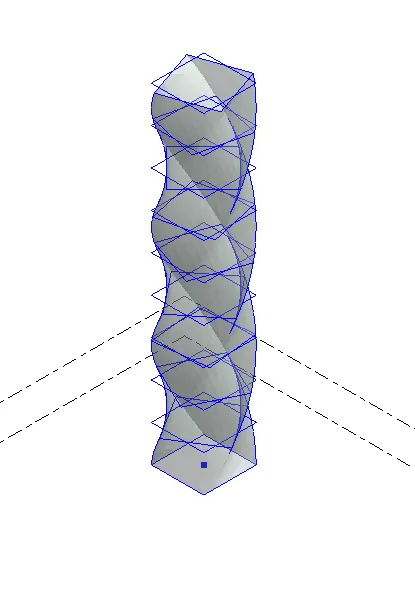

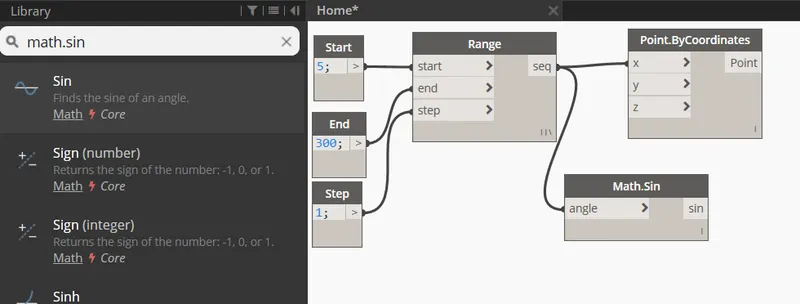

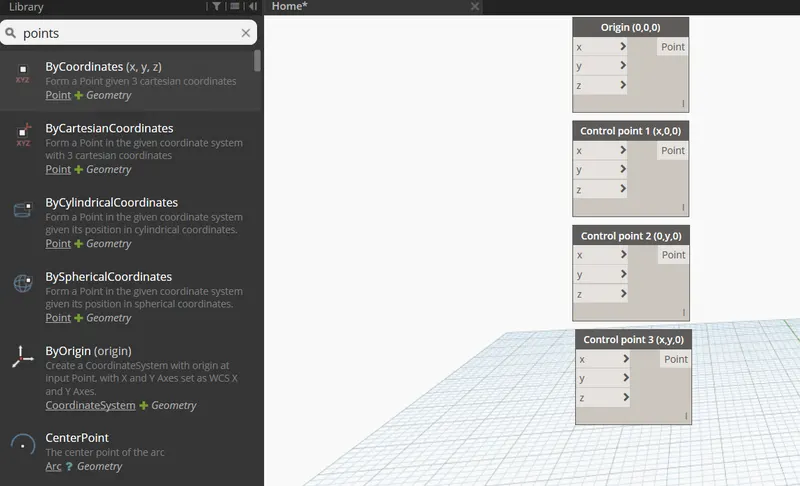

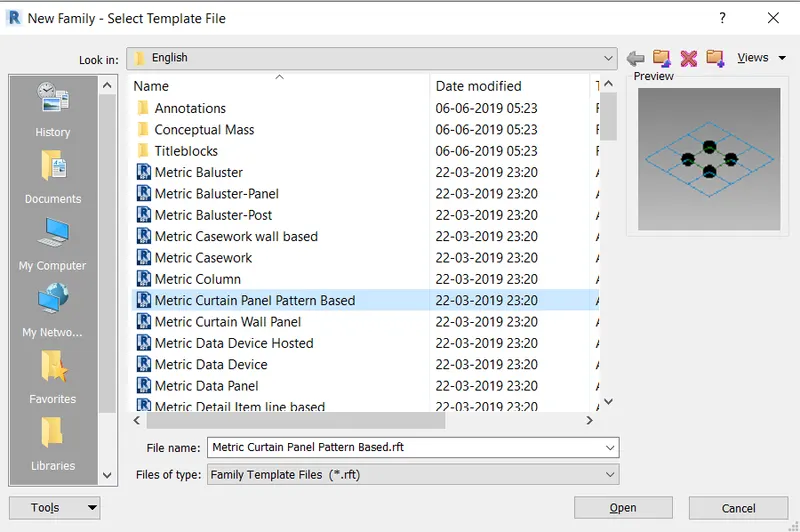

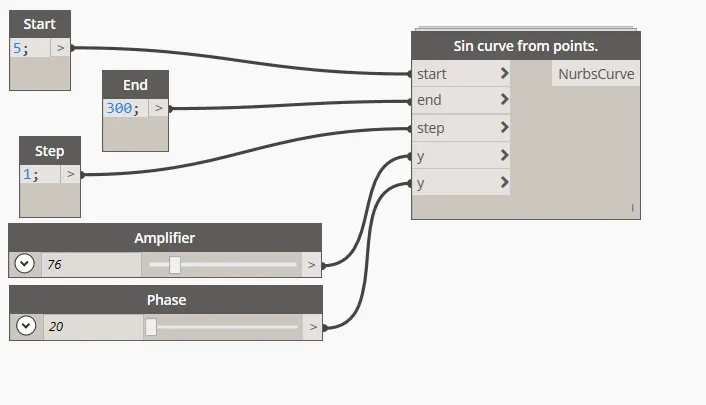

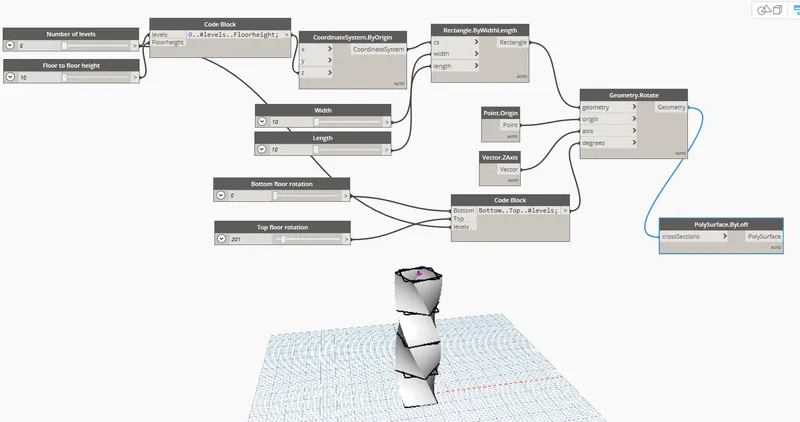

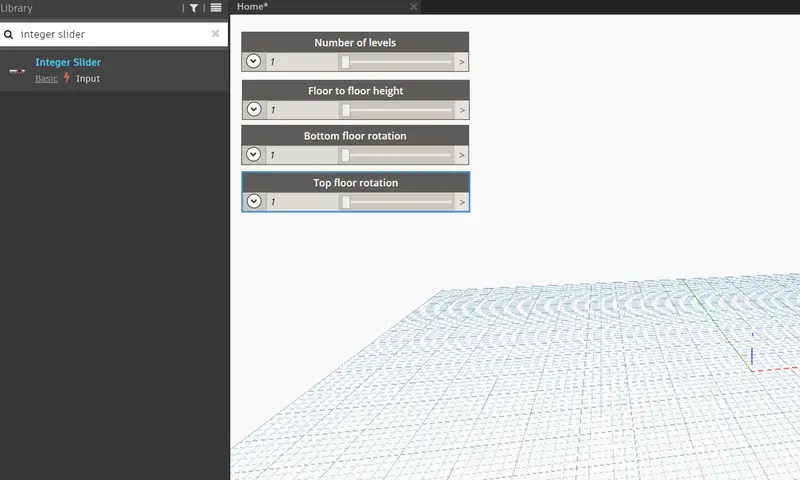

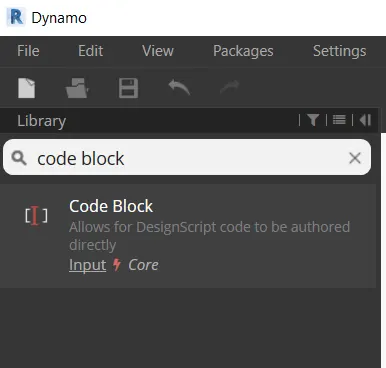

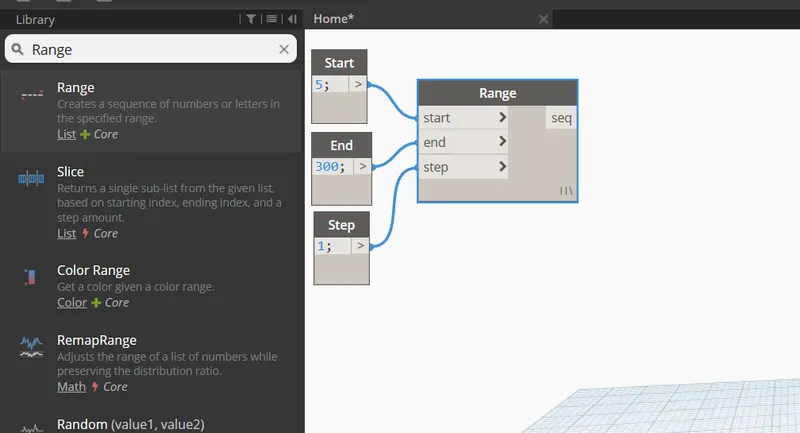

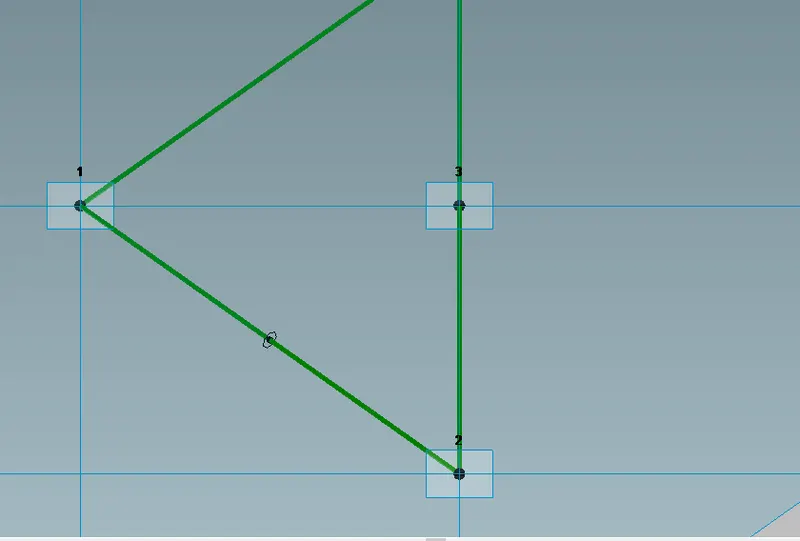

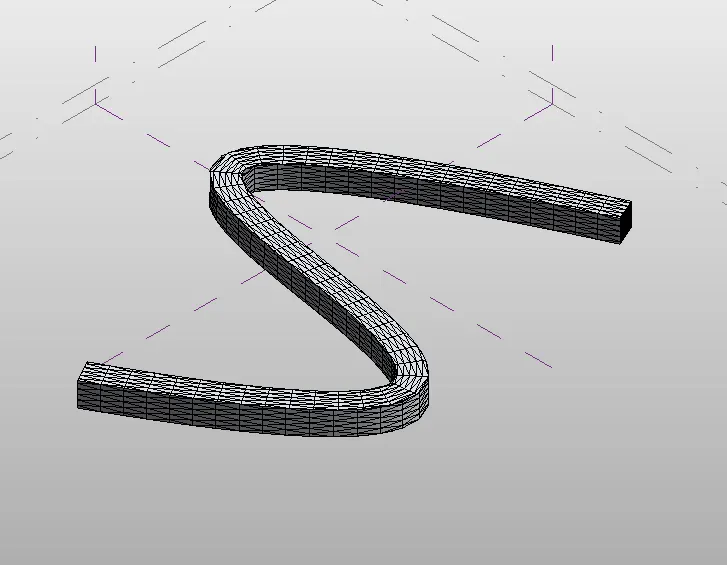

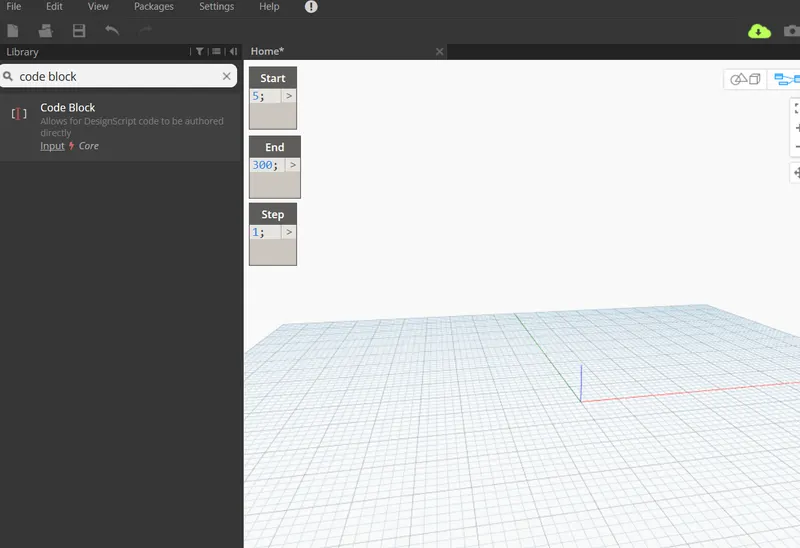

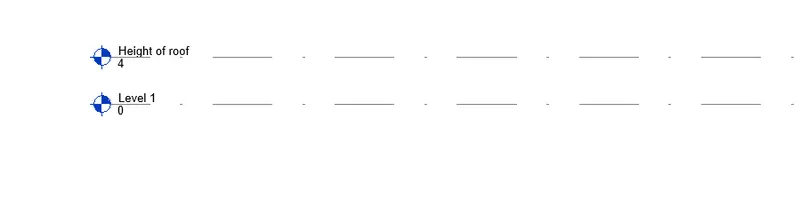

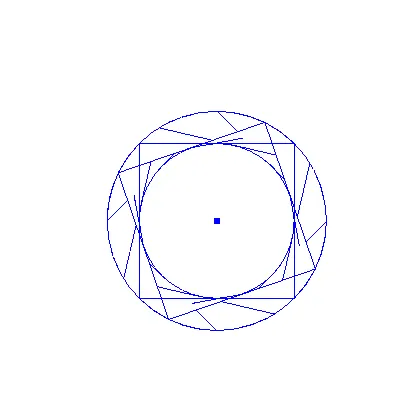

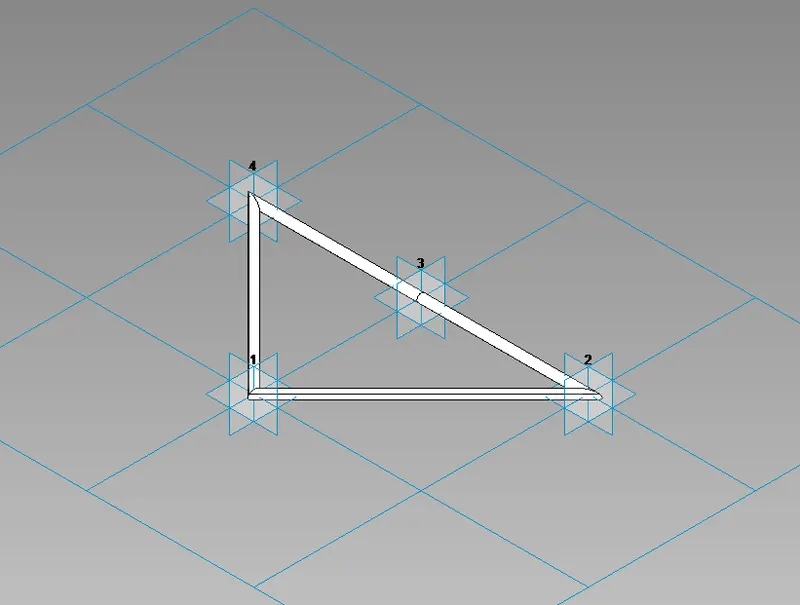

Creating Conceptual mass in REVIT and Creation of Sinusoidal curve and a Parametric stadium using Dynamo Introduction: Dynamo is an open source visual programming language for Revit, written by designers and construction professionals. Its a programminglanguage that allows you to type lines of code;  while also creating…

  1. Select the type of structure you want to build from one of the three below:        a. Multi-Unit Residential Apartment        b. Office Buildings        c. School The type of Structure Selected is Multi-Unit Residential Apartment.   2.Assume reasonable…

Based on the project saved from Week 3, proceed from the First Floor Level. Model a Ceiling from the architecture tab above the walls at the first-floor level   Open a ceiling plan view. Click Architecture tab Build panel (Ceiling). In the Type Selector, select a ceiling type. Place a ceiling. Click Modify / Place…

AIM OF THE PROJECT- Creating a 3D rendered model for a Residential Building in AutoCad.   INTRODUCTION- COMMANDS USED FOR DRAWING THE 3D RENDERED VIEW OF BUILDING ARE AS FOLLOWS. -         Extrude- Location: Draw > Modeling > Extrude This AutoCAD 3D Extrude command allows…

Creating 3D Isometric view of various structural elements in AutoCAD        AIM:- To create a 3D isometric view of the given building with plan and elevation.    INTRODUCTION:-  An isometric drawing is a 3D representation of an object, room, building or…

Creating various 3D Models like Furniture, Footing, Girder, Column drop with panel and Gable Wall in AutoCad AIM: To create 3D model and view of: Furniture element Isolated footing AASTHO type girder Drop column with panel A wall Commands used: Extrude. Offset. UCS. Box. Union. Subtract. Move. 3d orbit. Loft. Sweep.…

AIM: To Create a layout of the plan and section A of the project in challenges 7 . PROCEDURE:  In the command prompt type units > mm> decimal In the command prompt type limax >100,100 In the command prompt type limits>0,0 In the command prompt type layout > template>Tutorial arch .m  In the…

Q1. Create the layouts of the Kitchen and provide hatches pattern as shown. Also, use blocks wherever required. Provide appropriate dimensions in the plan. Assume the size of doors, appliances and others as per the standards.     Aim: To Create the Kitchen Layout and to Also, use proper dimension techniques…

Aim: To create: Template, inserting text and attributes Doors of warehouse and placing it in blocks Electrical legend and making it blocks Different types of door for residential project Drawing bars, making it as block and making it as a table as bar bending schedule.   Commands used:  Block. Insert. Attributes.…

Aim: To draw 1. Architectural drawing of a residential building: Plan of a residential building. Elevation of a residential building. Section of a residential building. 2. Structural drawing: Column plan layout of the building. Footing plan layout of the building. Beam plan layout of the building. Commands used: Line…

TASK: Create the geometries from P1 to P2 using all the coordinates system methods. You need to use the Line tool to create the geometries. Where required you need to use the circle tool. Please read the drawings and find out the missing dimensions before working on the sketches. Note: Use the Imperial Template and the…

Sketch a G+1 floor residential plan, according to Vastu shastra, and list down the names of the structural drawings required to be provided to the site for construction. Also, assume the sizes of the structural elements (Column, Beam, Slab, etc.,) and accordingly calculate the individual corresponding loads from the members…

Part 1. AIM: To Calculate the Concrete Mix Design for M35 grade concrete with fly ash & M50 grade concrete without Fly ash INTRODUCTION: Concrete mix design is the method of finding the precise proportion of cement, sand and aggregates for concrete to achieve the target strength in structures, therefore concrete…
