Creating Conceptual mass in REVIT and Creation of Sinusoidal curve and a Parametric stadium using Dynamo

1)

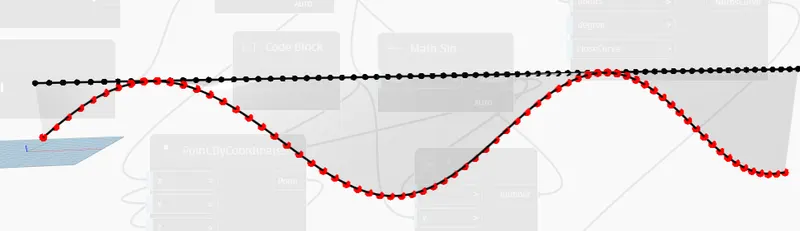

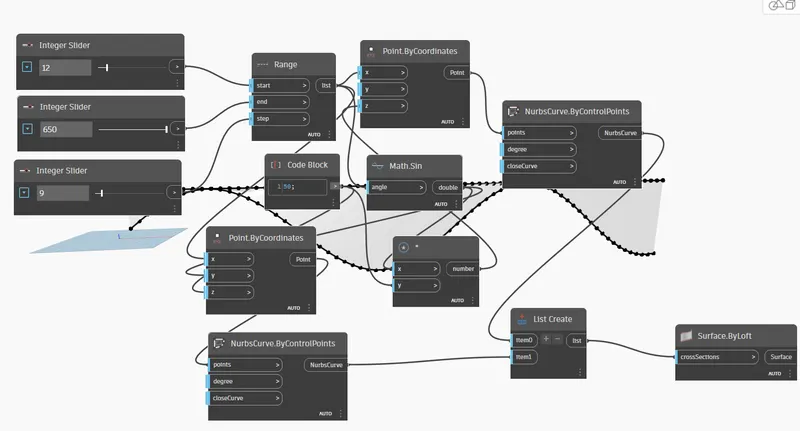

AIM: USING DYNAMO CREAT A SET OF SINUSOIDAL POINTS AND CREAT CURVE AND CREAT A SURFACE OF THE CURVE

PROCEDURE: CREATE POINTS BY POINT BY CO-ORDINATE LINES AFTER CURVE ROTATION SURFACE

RESULT : AS PER GIVEN QUETION SURFACE IS DRAWEN NY DYNAMO

2)

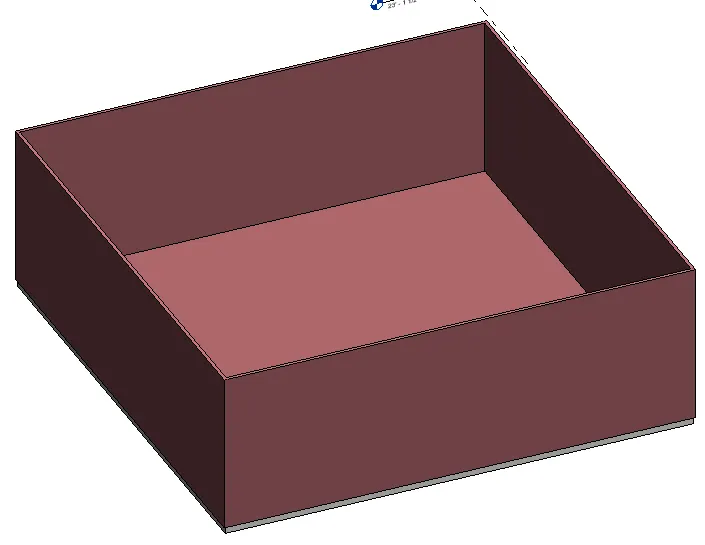

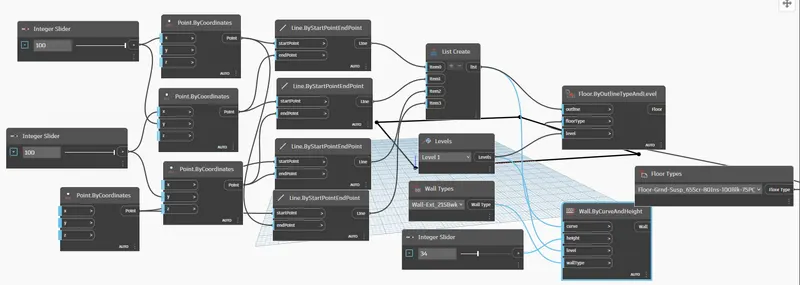

AIM:CHANGE THE WALL HEIGHT WALL TYPE BY INTEGER SLIDER

PROCEDURE: FIRST TAKE POINTS ,LINE WALL FLOOR

RESULT: AS PER DRAWING CHANGE THE HT OF WALL BY SLIDER

3)

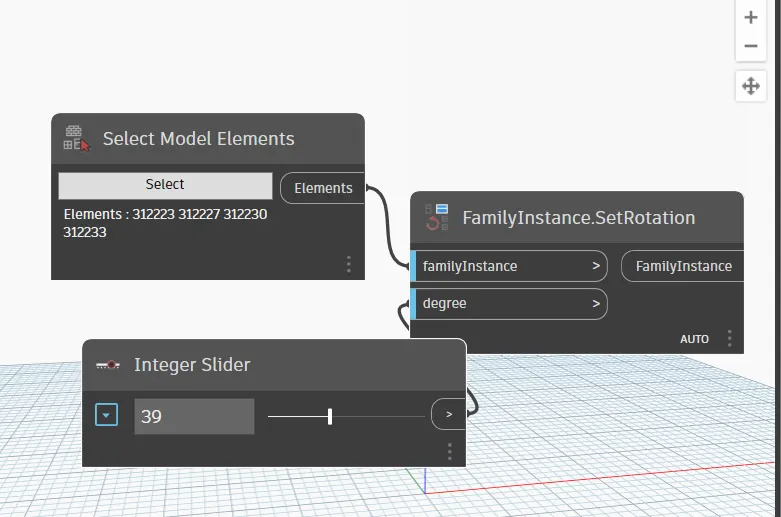

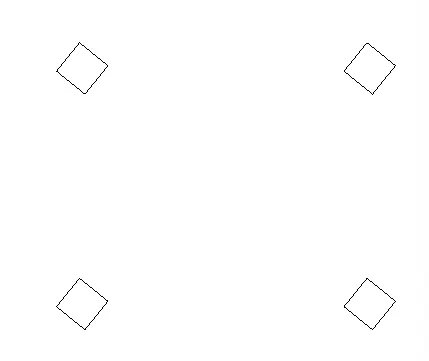

AIM:CREATE ATRRAY MODEL AND ROTATE

RESULT : CREATED ARRAY MODEL AND ROTETED BY DYNAMO

4)

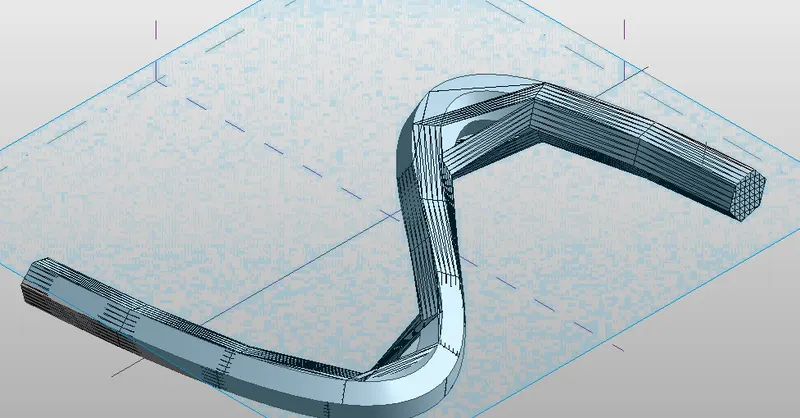

AIM:CREATED A CONSEPTUAL MASS AND ADD TRIANGULAR BENT TO SQUARE SHAPE

ANS: THE PARAMETRIC VIEW IS CREATED

5)

AIM:

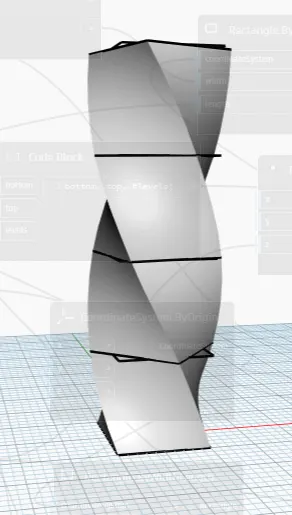

USING DYNAMO DEVELOP PARAMETRIC STADIUM

ANS : CREATED PARAMETRIC STADIUM BY DYNAMO
