Creating Conceptual mass in REVIT and Creation of Sinusoidal curve and a Parametric stadium using Dynamo
1)
Aim :-

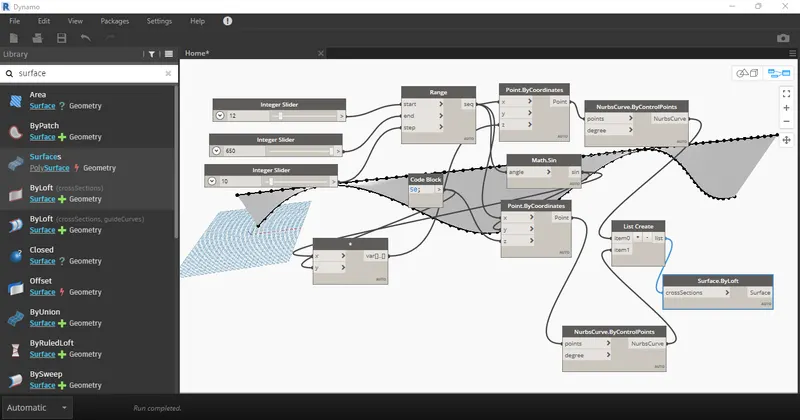

Using Dynamo create a set of sinusoidal points and create a curve and create a surface out of the curve.
Procedure :-
* Open revit software inthe manage tab open dynamo.
* In the search tab, search integer slider click on that.
* Copy integer slider than paste 2 times(1-start,2-end,3-step).
* In the integer slider set sinusoidal values.
* In the search tab, search range click on that.
* Integer slider linked to range.
* In the search tab, search bycoordinates(x,y,z) click on that.
* In the search tab, search code block click on that.
* In the search tab, search math.sin click on that.
* Range linked through point.bycoordinates.
* In the code block enter the value.
* Range linked through another point.bycoordinates.
* In the search tab, search product click multiplication.
* Code block connect to point.bycoordinates.
* Math.sin connect to point.bycoordinates.
* Math.sin connect to product.
* Code block connect to product.
* Product variant connect to point.bycoordinates.
* In the search tab, search nurbs bycontrol points click on that.
* In the search tab, search listcreate click on that.
* Copy nurbs bycontrol points than paste.
* Point.bycoordinates connect to nurbs bycontrol points.
* Another Point.bycoordinates connect to another nurbs bycontrol points.
* Nurbs bycontrol points connect to list create,another nurbs bycontrol points connect to list create.
* In the search tab, search surface byloft(cross section) click on that.
* List create connect to surface byloft.

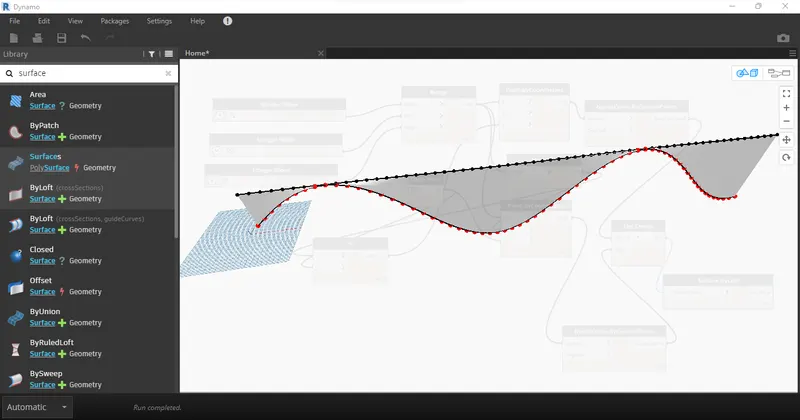

* Finally created the sinusoidal points and create a curve and create a surface out of the curve.
Result :-
Complete using Dynamo create a set of sinusoidal points and create a curve and create a surface out of the curve.\
2)
Aim :-
Create a conceptual layout of floor plan in dynamo . Using the tools available in dynamo link the lines to appropriate model elements in Revit by choosing the wall types and wall parameters. Make use of the sliders to slide through the height of the wall and length of the wall.
Procedure :-
* Open revit software inthe manage tab open dynamo.
* In the search tab, search integer slider click on that.
* Copy integer slider than paste.
* Assign the values.
* In the search tab, search bycoordinates(x,y,z) click on that.
* Copy bycoordinates(x,y,z) paste 3times.
* First integer slider connect to first point.bycoordinates-x.
* First integer slider connect to second point.bycoordinates-y.
* Second integer slider connect to second point.bycoordinates-x.
* Second integer slider connect to third point.bycoordinates-y.

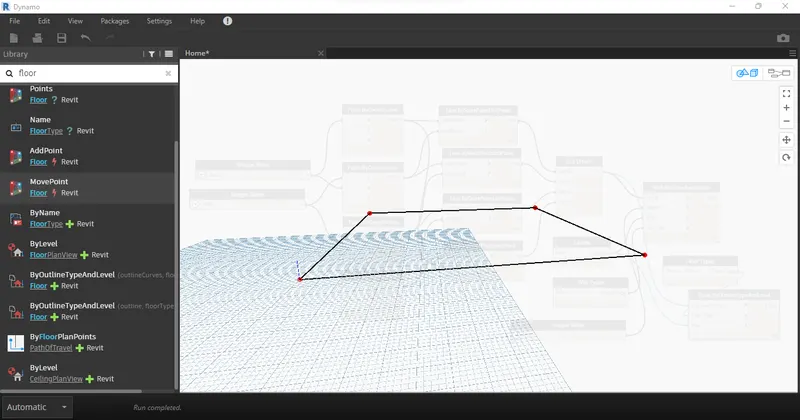

* In the search tab, search line bystartpointendpoint click on that.
* Copy line bystartpointendpoint paste 3times.
* Point.ByCoordinates connects to Line.ByStartPointEndPoint it connect a form a rectangle or square.
* In the search tab, search listcreate click on that.
* In the list create add items.
* In the search tab, search levels click on that.
* In the search tab, search wall types click on that.
* In the search tab, search integer slider click on that.
* Select level as level1,select any wall type,set integer slider value.
* In the search tab, search wall bycurveandheight click on that.
* List create,levels,walltypes,integerslider connect to wall bycurveandheight.
* In the search tab, search floor types click on that.
* In the search tab, search Floor.ByOutlineTypeAndLevel click on that.
* List create, floor type,level connect to Floor.ByOutlineTypeAndLevel.

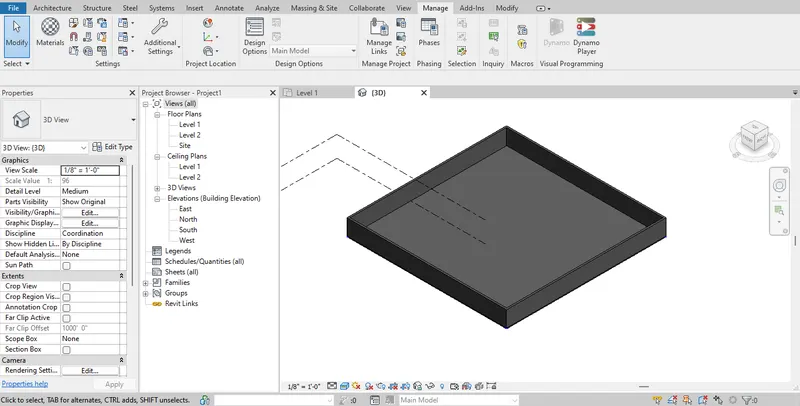

* Finally,creates walls with flooring.
\
Result :-
Complete to create a conceptual layout of floor plan in dynamo . Using the tools available in dynamo link the lines to appropriate model elements in Revit by choosing the wall types and wall parameters. Make use of the sliders to slide through the height of the wall and length of the wall.
3)
Aim :-

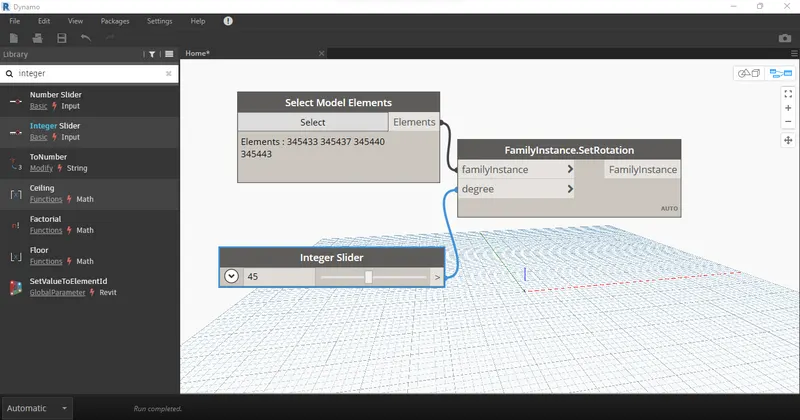

Create an array of model elements in Revit. Use dynamo to vary the properties of model elements by using the slider or code block.
Procedure :-
* Open the revit software.

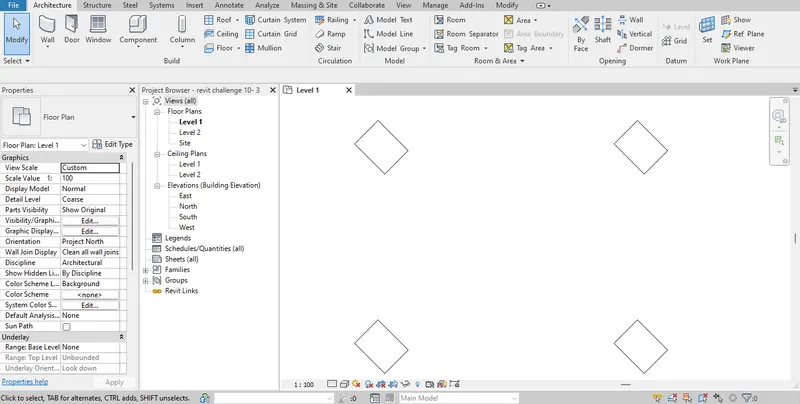

* Provide 4-colums.
* Then goto dynamo.
* In the search tab, search Select Model Element(Multiple) click on that.
* In the search tab, search Familyinstance.SetRotation click on that.
* In the search tab, search integer slider click on that.
* In Select Model Element(Multiple) click on select goto revit software select all the components.
* Goto dynamo set the integer slider value.
* Select Model Element(Multiple), integer slider connect to Familyinstance.SetRotation.
* Goto revit components rotates.
Result :-
Complete create an array of model elements in Revit. Use dynamo to vary the properties of model elements by using the slider or code block.
4)
Aim:-

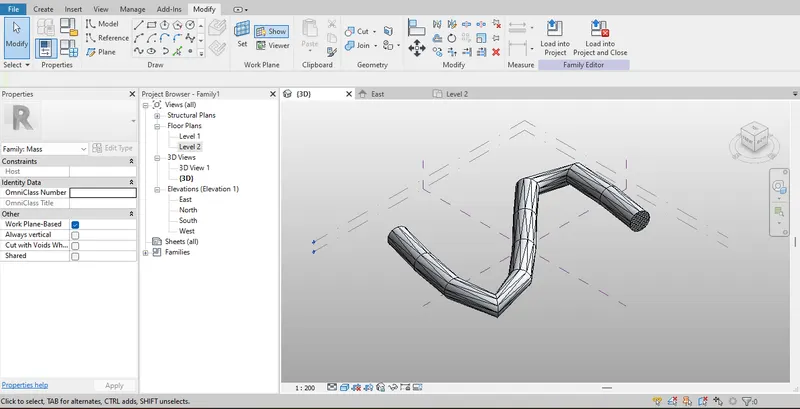

Create a conceptual mass in Revit and develop a parametric column by dividing the surfaces and apply the concepts similar to used in parametric walkway modelling. Use triangular bent or square shaped panels to add finish to the parametric column.
Procedure :-
* Open the revit software in the file tab click on new open conceptual mass.
* Goto any elevation create one more level at the elevation height.
* Goto floor level.
* In the create tab, click on model take spline option then draw any spline shaped curve.
* Goto 3d view in the modify tab click on set then placed spline shaped points.
* Next choose any shape placed on spline shaped points give the height of elevation level.
* Click the curve press control select gieven shapes then dropdown the create form click on solid view.
* Next drag and select all the components click filter option select form option only then click on OK.
* Again drag and select the components click on devide option then choose triangular bent property.
Result :-
Complete to create a conceptual mass in Revit and develop a parametric column by dividing the surfaces and apply the concepts similar to used in parametric walkway modelling. Use triangular bent or square shaped panels to add finish to the parametric column.
5)
Aim :-

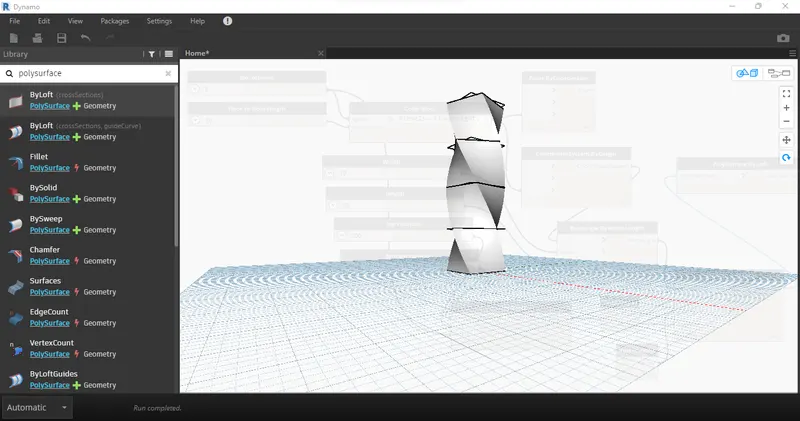

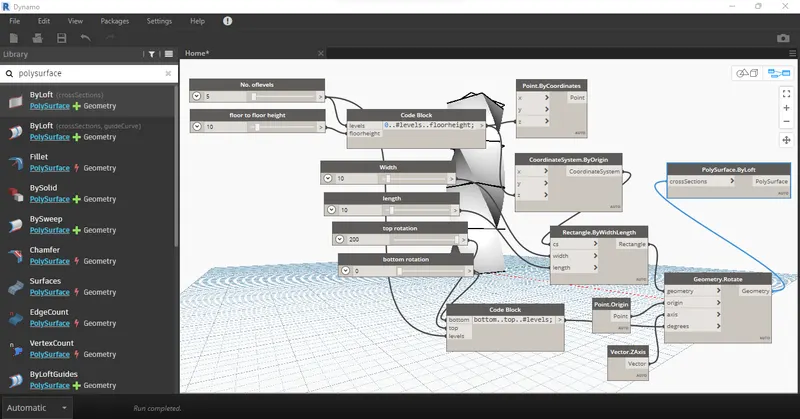

Use Dynamo to work on developing a Parametric Stadium. List your parameters and use the visual programming approach to complete the modelling, You can use the concepts discussed in parametric high rise tower in class for reference.
Procedure :-
* Open revit software inthe manage tab open dynamo.
* In the search tab, search integer slider click on that.
* Copy integer slider than paste.
* Rename the integer slider as no.of levels.
* Rename the another integer slider as floor to floor height.
* Provide floor to floor height and no.of levels values.
* In the search tab, search code block click on that.
* In the code block type 0..#levels..floorheight; press enter.
* In the search tab, search coordinatesystem.byorigin click on that.
* In the search tab, search point.bycoordinates click on that.
* Code block connect to coordinatesystem.byorigin(z).
* Code block connect to point.bycoordinates(z).
* In the search tab, search integer slider click on that.
* Copy integer slider than paste 3times.
* Integer slider rename as width,length,bottom floor rotation,top floor rotation respectively.
* In the search tab, search rectangle bywidthlength click on that.
* Coordinatesystem.byorigin connect to rectangle bywidthlength.
* Provide the width and length values.
* Width and length connects to rectangle bywidthlength.
* Provide the top floor rotation angle and bottom floor rotation angle values.
* In the search tab, search code block click on that.
* In the code block type bottom..top..#levels; press enter.
* Levels,bottom floor rotation and top floor rotation connect to code block.
* In the search tab, search vector.ZAxis click on that.
* In the search tab, search Point.Origin click on that.
* In the search tab, search geometry.rotate click on that.
* Rectangle bywidthlength,vector.ZAxis,Point.Origin,code block connect to geometry.rotate.
* In the search tab, search polysurface byloft(cross section) click on that.
* Geometry.rotate connect to polysurface byloft(cross section).
Result :-
Complete to use Dynamo to work on developing a Parametric Stadium. List your parameters and use the visual programming approach to complete the modelling, You can use the concepts discussed in parametric high rise tower in class for reference.
