Creating Bar Bending schedule, Different Door types, and Creation of standard drawing templates using AutoCad

CHALLENGE WEEK - 8

AutoCADD Essential

Question no.1:

• AIM:

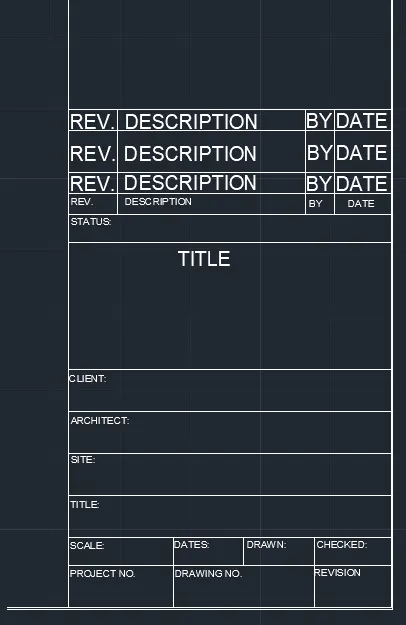

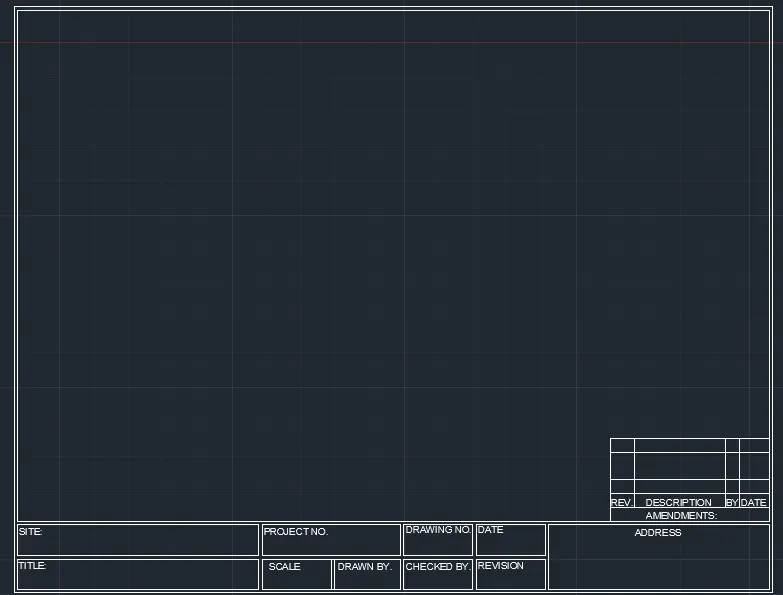

• To create a template and a title block.
• To use text and dimensions.

• Procedure:

• Select the line tool.
• The title block is drawn with line tool.
• The title block is drawn with required spacing for the all the titles and texts.
• The title block and templates are drawn to fit in MCA paper size.
• The Texts are given as given in standard industry templates.
• The created template along with title block is shown below

• RESULT:

• Thus the doors with different designs are created for the residential building.
• The drawing contains the texts of required sizes.

Question no.2:

• AIM:

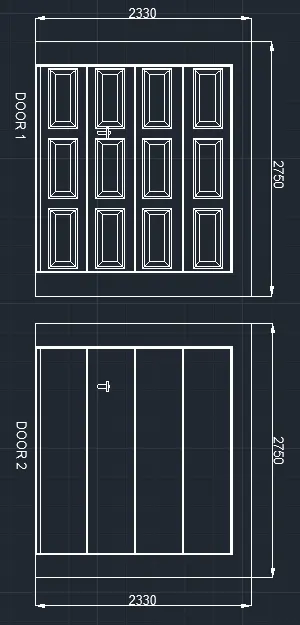

• To create the doors type for warehouse.
• To use text and dimensions.

• Procedure:

• Select the line tool.
• Here 2 doors are drawn.
• The doors are drawn using rectangle tools.
• The door D1 has some designs.
• The designs are drawn by block.
• First a single design block is made.
• And then the same blok is copied to other places.
• The the doot lock is drawn and made as block.
• The door 2 hefre has a outframe similar to D1.
• As the door 1 outterpanel is made as a block.
• The same block is used for the door 2.
• Then the door lock block is used and the door 2 is done.
• Hence the required doors for the warehouse is created.

• RESULT:

• Hence the required doors for the warehouse is created.
• The drawing contains the texts of required sizes.

Question no.3:

• AIM:

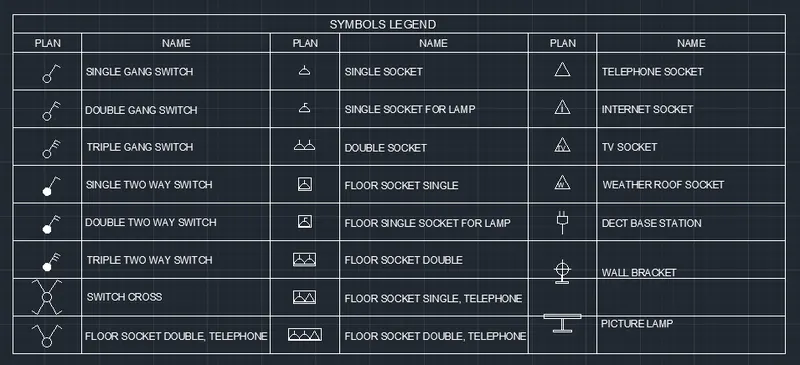

• To create each symbol as a block with the name given in the legend.
• To use text and proper symbols.

• Procedure:

• Initially each symbol as shown in the input is drawn clearly.
• Then each symbol is made as separate blocks and saved with proper names.
• Then the create blocks are set as input into the tabular column.
• The tabular column is created as per the guided requirement.
• Then the required descriptions for respective blocks as per input is enterd in the the table.
• Thus the required tabular column with symbols and their respective descriptions are entered.

• RESULT:

• Hence the required legend is created with proper symbools.
• And proper descriptions fpr the symbols.

Question no.4:

• AIM:

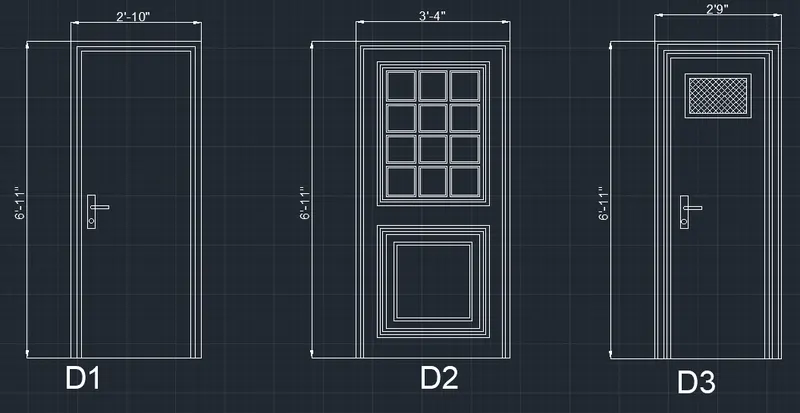

• To create the door type for residential building as a block.
• To use text and dimensions.

• Procedure:

• Select the line tool.
• The door to be drawn has designs.
• The door panel is drawn using rectangle tool.
• A total of 6 type of doors are drawn.
• Each door has a each type of designs on the panel.
• The door D1 has simple design panel.
• Rectangle is used maximum to create the door and made as block.
• The door lock is drawn using rectangle and circle tool.
• And the door lock is made as block.
• The door 2 ahs some rectangle design. one of the rectangle design was drawn and made as block.
• And are coppied to the respective positions.
• The bottom panel of D1 is of a rectangle and its offsets
• The door D3 is done by choosing the D1 door block
• And the required size of the design in the panel is drawn by using the rectangle tool.
• And the innter part of the design is hatched.

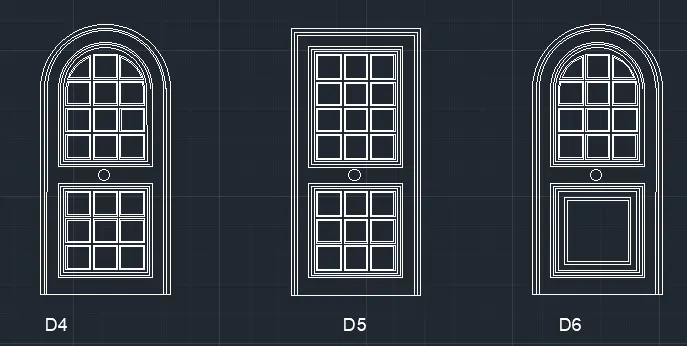

• Then the door D4 is of different type.
• Where the doors bottom is drawn using rectangle and then the top is drawn using rectangle and fillet is used for each rectangle.
• Including designs and the panel.
• Each box in the design is drawn using rectangle and offset is done.
• The the door D5 is drawn by using block of the door 1 and then then the required design is drawn with rectangle and its blocks.
• The door D6 is drawn using block of D4 and then some alterations are done by block editor.

• RESULT:

• The template along with title block is successfully created.
• The drawing contains the texts of required sizes.

Question no.5:

• AIM:

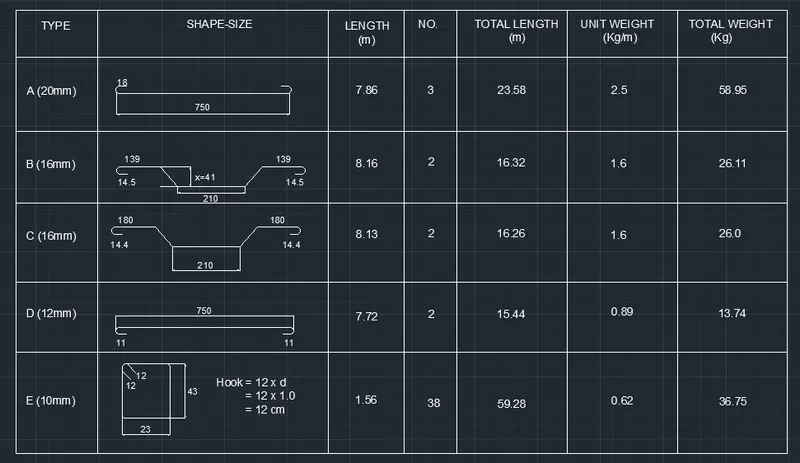

• To create each shape as a blockend.
• To use text and proper symbols.

• Procedure:

• The given shapes are drawn in autocadd initially.
• Then the corresponding dimentions of the shapes are marked.
• And then the shapes are made as blocks and given with proper names.
• Then these symbols are made input to the tabular colum.
• The tabular colum is created as per the requirement.
• Then the respective descriptions are entered into the tabular column.
• The description headings are also added to the tabular column.
• Thus created tabular column is shown below.

• RESULT:

• Hence the shapes are made as block and enterd in the tabular column.
• And proper descriptions for the symbols.
