Creating Bar Bending schedule, Different Door types, and Creation of standard drawing templates using AutoCad

Aim - To create Template inserting text and attributes.

Procedure -

A) Custom 1

Steps -

• Create a rectangle of 66.63mm and 158mm
• Divide the line into two columns
• Take offset of 5,10,5,5,8,30,15,15,20,20,10,15 for horizontal line
• Using Multiline text type rev,description ,by date,date on first box by text height 2.5 and style as Times New Roman
• Again use multiline text and type the required text in caps with text height 1.5 and style as Times New Roman
• Now create the block using block command and give the name as Custom 1 title block and then select the pick point and select the point in table and then select object and then select the whole table including the text

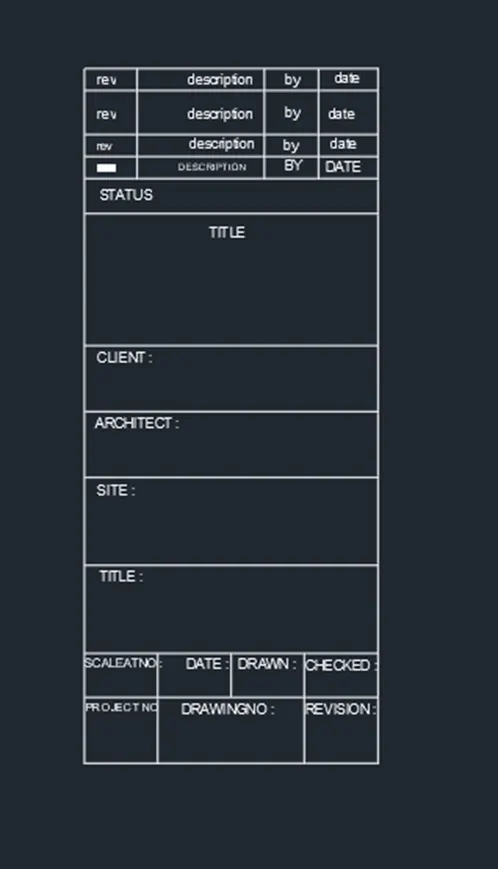

Result - Custom 1 title block -

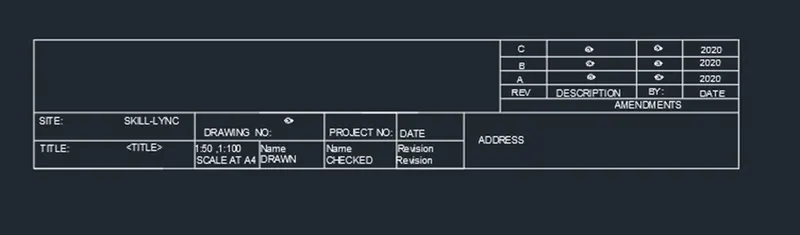

B) Custom 2

Steps -

• Draw a rectangle of 252mm and 46mm
• Using line command divide the rows and column
• using Multiline text insert the following height 2.5
• Create a small rectangle at right corner and explode it and create rows and column
• using Attributes create the text inside it
• Command box of Attribute definition dialogue box is appear
• Create attribute similarly for the rest of text
• Now create the block using block command with name Custom 2 title block then select the whole title block and make it block
• After creating it as block we can see that all attributes will change to their default value.

Result - Custom 2 title block -

Aim - To create doors for warehouses and placing it in block

Procedure -

Steps -

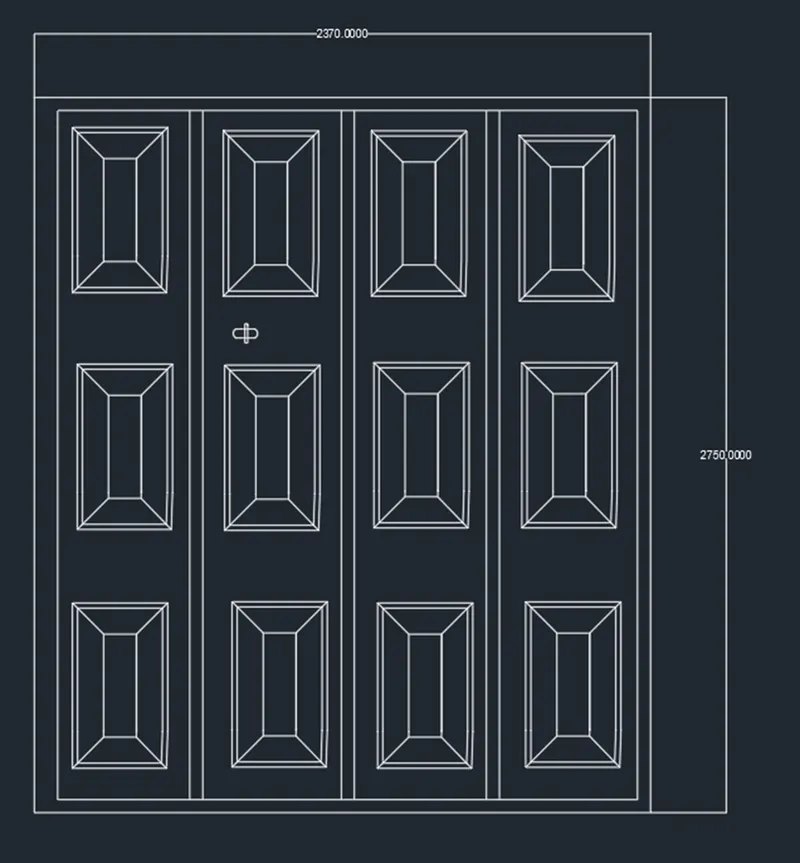

A) Door 1 - 2330mmx2750mm

• Create a rectangle of size 2330mmx2750mm
• Offset 50mm as frame and 90mm for left side and explode the rectangle
• Using divide command divide the top line segment into 4 segments
• From the division point draw line vertically to divide it into shutter
• Offset 25mm on bothe sides for thickness and delete the centre line
• Now create rectangle to show panel
• Offset 20mm from first rectangle and offset 100mm from second rectangle
• Draw line joining the corners of outside and inside rectangle
• Create the panel as block
• Array the panel taking rectangular array,row 3 distance between them 900mm and column 4 distance between them 567mm
• Create the block by rectangular command and fillet the corners with radius 5mm
• Layer is created and all the objects are kept in different layers
• Create the blocks using block command and give the names as door 1 , select corner point ,select objaect,select the full object
• Select scale uniformily and allow exploding

Result -

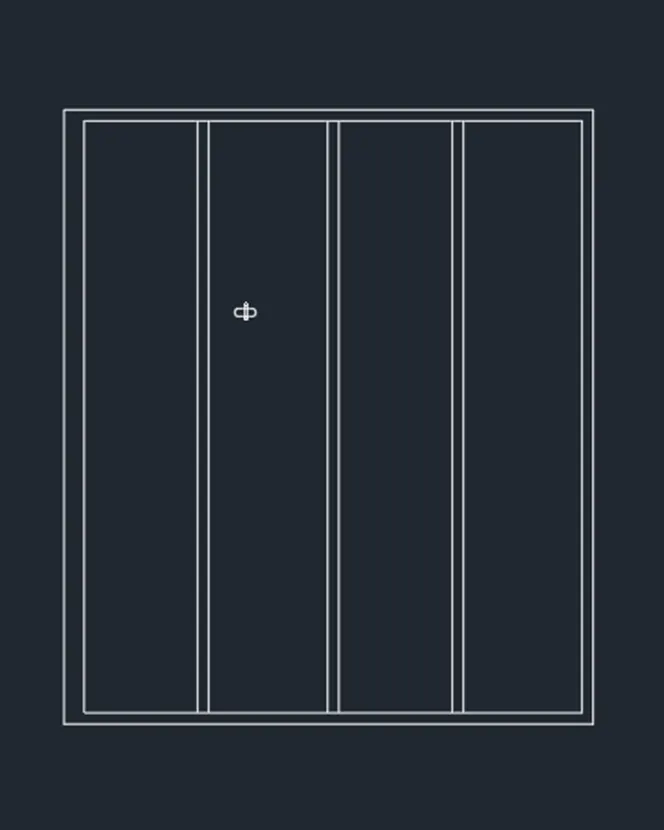

B) door 2 - 2330mmx2750mm

• Create a rectangle of size 2330mmx2750mm
• Offset 50mm as frame and 90mm for the left side and explode the rectangle
• By divide command divide the top line into 4 segments
• From the division point draw line vertically to divide it into shutters
• Offset 25mm on both sides for thickness and delete the centre line
• Layer is created and all the object are kept in different layers
• Create the blocks using block command and give the anme as door 2 ,select cornar point,select object,select the full object
• Select scale unifromly and allow exploding

Result -

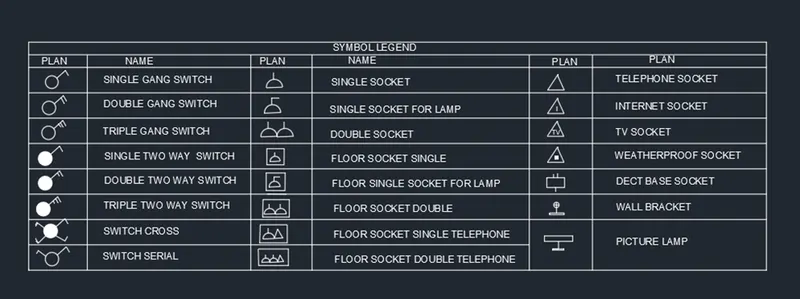

Aim - To create Legend

Step 1 - Creating symbols -

1) Single gang switch - Draw a circle of radius 64mm and with line draw an incline line vertical line and horizontal line perpendicular to the inclined line

2) Double gang switch - Draw a circle and draw two horizontal lines and vertical incline line

3) Triple gang switch - Draw circle, one vertical line and three horizontal line

4) Single two way switch - Draw same as single gang switch and with donut command give internal dia as zero and for external dia give 64mm

5) Double two way switch - Draw same as double gang switch and create donut

6) Triple two way switch - Draw same as triple gang create donut

7) Switch cross - Create a circle and donut inside and with line command draw an incline vertical and perpendicular horizontal and mirror the line in both direction

8) Switch serial - Cppy the switch cross and delete two bottom lines,remove the donut also

9) Single socket - Create a circle and divide it into half portion and draw line at top

10) Single socket for lamp - From single socket draw a horizontal line perpendicular to vertical line

11) Double socket - Draw a single socket and copy it to create and place it

12) Floor socket single - Draw a rectangle surrounding to single socket

13) Floor single socket for lamp - draw a rectangle surrounding to single socket for lamp

14) Floor socket double - Create two single socket and palce a rectangle surrounding to it

15) Floor socket single telephone - Draw a single socket triangle and surrounded by rectangle

16) Floor socket double telephone - draw 2 single socket and a triangle surrounded by rectangle

17) telephone socket - Draw a triangle

18) Internat socket - Insert text "i" in triangle

19) Tv socket - Insert text "TV" in triangle

20) Weatherproof socket - Insert text "W" in triangle

21) Dect base section - Draw a rectangle,delete the bottom grip point,select add vertex and then pull the vertex to create a bend and with lines draw lines

22) Wall bracket - With rectangle draw base ,create a circle and draw line connecting to recatngle and circle .draw a cross line inside the circle

23) Picture lamp - draw two rectangle connected by lines

step 2 - Creating them as block -

• give command B and give name as single gang switch,pick a point ,select object,tick scale uniformly and allow exploding option
• Similarly,define each one of them as block giving the respective names
• Step 3 - cretaing and arranging them in layers -
• First craete a rectangular table having 10 rowa and 6 columns
• Place each of blocks in the respective rows and columns
• To enter text with block from insert tab,select field,select object and finally select block
• Place the text in respective rows give text height as 100
• Similarly palce all the titles inside the legend

Result -

Aim - To draw the doors of residential project and create it as a block

Procedure -

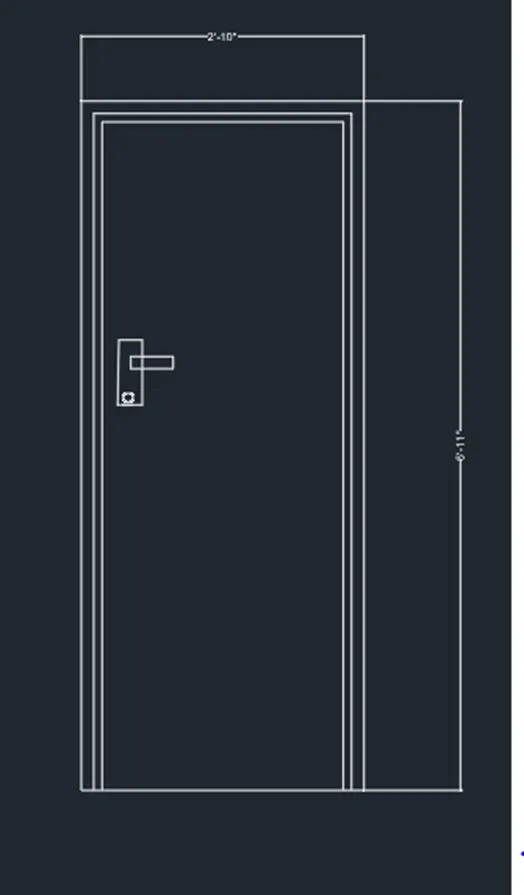

1) D1 - 2'10" X 6'11"

• Draw the rectangle with dimension as 2'10" x 6'11"
• Draw offset 1.5" for frame then 1" for shutter
• Draw lock by two rectangle perpendicular to each other and fillet the corners withe radius 0.1" circle
• Write the etxt by muktiline text "D1"
• Create it as a block "B" give name as type D1 pick a corner point,select the object and then block is created

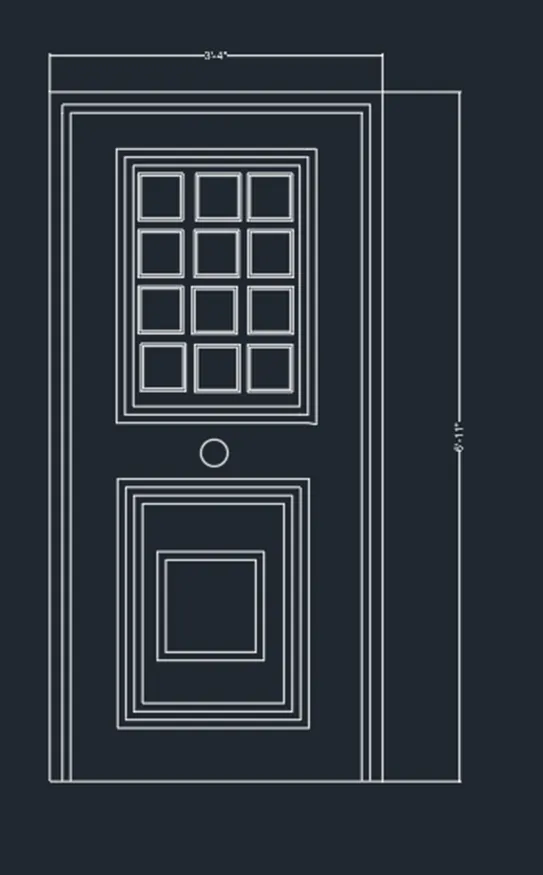

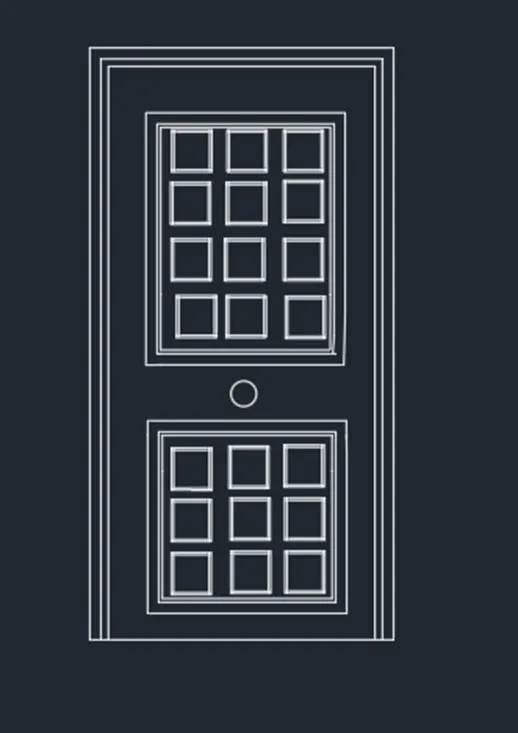

• 2) D2 - 3'4" x 6'11"
• Draw a rectangle with dimension as 3'4" x 6'11"
• Draw offset of 1.5" for frame then 1" for shutter
• Draw recatngle for panel 1'11" and 2'9" then offset 1"two times
• draw rectangle of 5.4" x 5.7" and offset 0.3"
• Copy the 3 rectangle to 4 rows
• for the second panel draw a rectangle 1'11" x 2'6" and offset 1" for 3 times
• Draw another rectangle inside it of 1'0.8" x 1'1.10" and offset 1"
• Draw lock by circle in between two panels
• Write the text by multiline text"D2"
• Create it as block "B" give name as "type D2" pick a corner point and select object

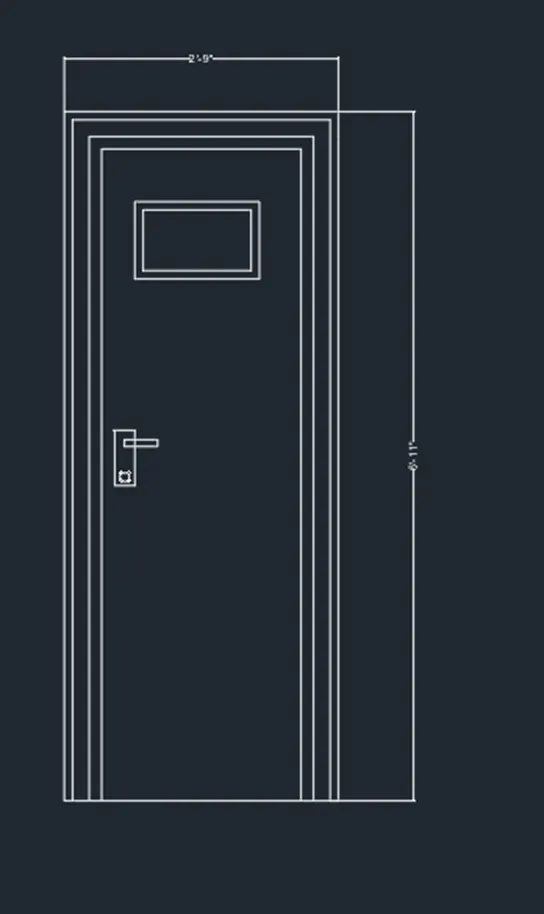

• 3) D3 - 2'9" x 6'11"
• Draw a rectagnle of 2'9" x 6'11"
• Offset 1" for thickness ,2" offset for frame and offset 1.5" as shutter thickness
• Draw a rectangle at top of ventilator 1'3" x 9.3" and give offset 1" for thickness
• hatch the rectangle
• Create it as block and give name as type D3 then pick point seelect the object ,tick scale unifromly and explode all
• 4) D4 - 3'9" x 8'7"
• Draw a recatngle of 3'9" x 8'7"
• Explode it and create arc with 2 points method with both points as the endpoint
• Offset the arc and the line with 1.5" and then offset 1"
• Offset 8" from arc and rectangle for panel and divide it into two parts
• take 1" offset 2 times to show thickness
• Craete the rectangle inside the panel
• make it as block,name it as D4 pick a point and select object tick the unifrom scale and explode all
• 5) D5 - 3'5" x 6'8"
• Draw a recatngle of 3'5" x 6'8"
• Offset 1.5" for frame and 1" as shutter thickness
• Create another rectangle with offset 4.4"
• Create another rectange on bottom 2'2.9" x 2'2.6"
• Offset 1" two times for both the rectangle
• Create the recatngle insid efor panels with offset 0.5"
• Create it as block give name as type D5 ,pick point and select the object then tick scale uniformly and explode all

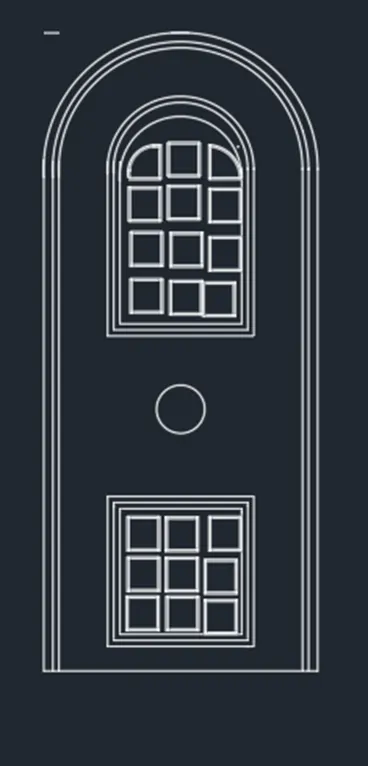

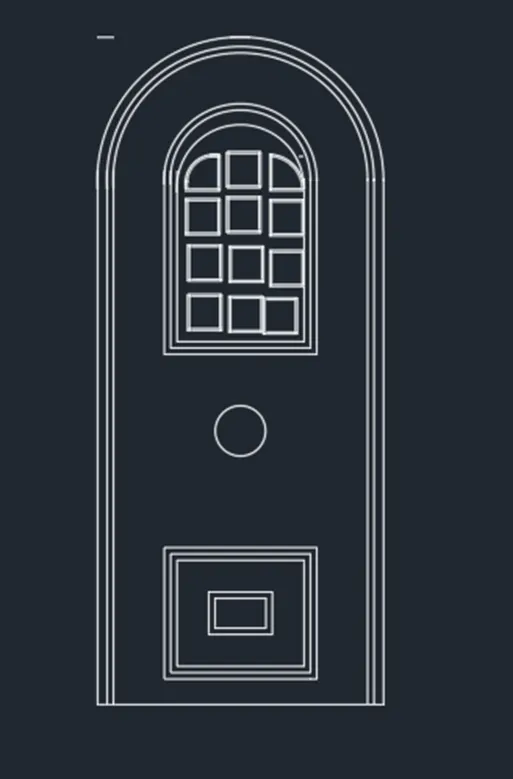

• 6) D6 - 3'9" x 8'9"
• draw a rectangle of 3'9" x 8'9"
• Explode it and cfaete an arc with 2 point method with both point as the endpoint
• Offset the arc and the line with 1.5" and the 1" for frame
• Offset 8" from arc and rectangle for panel divide it into two parts
• take offset 8" from arc and rectangle for panel and divide it into two parts
• take 1" offset two times to show the thickness on top figure abd bottom rectangle
• Craete rectangle inside the top panel ,3 rows and 4 columns
• For bottom panel offset the rectangle by 1" for 3 times and 3.3" and again 1"
• Make it as block,anme as type D6 ,pick a point and select the object tick the dialogue box of uniform scale and explode all

Result - The doors are created and are made into block

D1 -

D2 -

D3 -

D4 -

D5 -

D6 -

Aim - To craete bar bending schedule and insert it as block

Procedure -

1) Drawing each shape

A - 20mm

• Draw a line of 750 cm for straight bar
• Create arc for bend create on one side and mirror it on another side

B - 16mm

• Draw a line of 300mm for straight bar
• draw vertical line 41cm and extend the horizontal line and draw aline inclined at 45 degree from base of vertical line upto horizontal line
• Trim off the extra lines using trim command
• Copy the same on other side
• Draw a horizontal line of 139cm and copy it on other side
• Draw bend with arc and mirror the same on other side

C - 16mm

• Draw a line of 210cm
• Create arc for bend create on one side and mirror it on another side
• draw vertical line 41cm and extend the horizontal line and draw aline inclined at 45 degree from base of vertical line upto horizontal line
• Trim off the extra lines using trim command
• Copy the same on other side
• Draw a horizontal line of 180cm and copy it on other side
• Draw bend with arc and mirror the same on other side

D -12mm

• Draw a line of 750cm for straight bar
• Draw an arc downward
• copy it on another side

E - 10mm

• Draw a rectangle of 23cm and 43cm
• Fillet the corner with fillet radius 5cm
• Draw two lines of 120cm

2) Creating each of them as block

• Command B give name as A pick a point ,select object,select delete,tick scale uniformly and explode all
• Similarly create 5 blocks A,B,C,D,E and insert each of bar as block

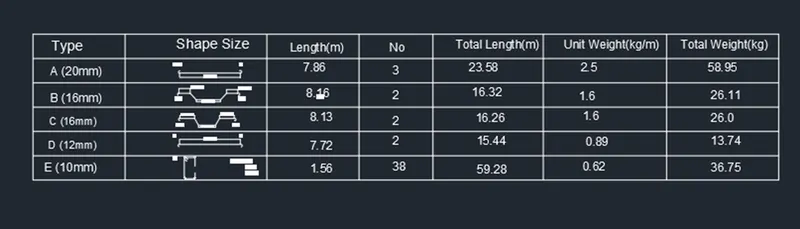

3) Inserting it in table -

• Create a table with rectangle and divide it into 6 rows and 7 columns
• withe multiline text enter type,shape size,length no.total length,unit weight,total weight
• By insert command insert each of the block in respective columns

Result -
