Creating Bar Bending schedule, Different Door types, and Creation of standard drawing templates using AutoCad
1)

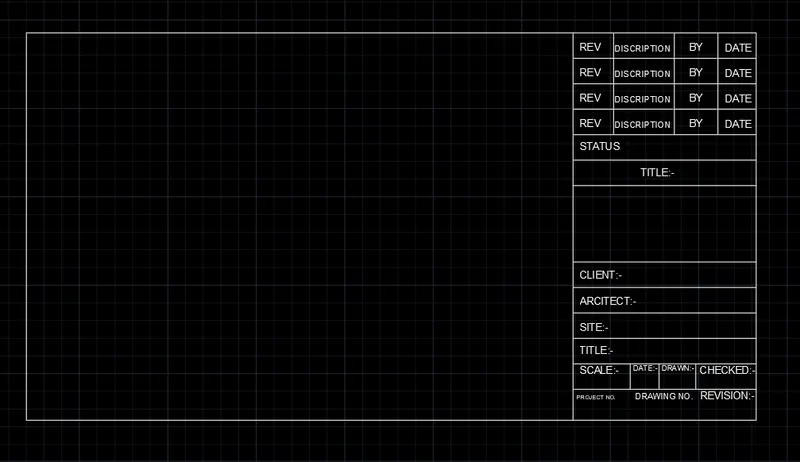

AIM :
TO CREATE THE TEMPLATES BY USING AUTOCAD TOOL
IN THIS TAMPLATE
NAME OF THE PROJECT
CLIET NAME
CONRACTOR NAME
TYPE OF DRAWING
DRAWING TEMPLATE NUMBER
NUMBER OF THE REVISION
DRAWN BY
CHECKED BY
RECHECKED BY ETC.. ARE MENTIONED
PROCEDURE :
OPEN AUTOCAD
CHANGE UNITS AS YOUR REQURED
TYPE UN IN COMMAND BOX AND PRESS ENTER
CHANGE UNITS TYPE TO DECIMAL AND PRECISION TO 0.00 AND INSRTION SCALE TO MILLIMETERS
NEXT TYPE D IN COMMAND BOX AND PRESS ENTER
CHANGE DIMSTYLE AS BASED ON UNITS
COMMAND USED IN THIS
UNITS COMMAND
DIMSTYLE COMMAND
LINE COMMAND
TRIME COMMAND
REC COMMAND
DIM COMMAND
OFFSET COMMAND
CIRCLE COMMAND
BLOCK COMMAND
BEDIT COMMAND
INSERT COMMAND
ATTRIBUTE COMMAND
TEXT COMMAND
IN ABOVE THE DRAWING ALL THE LINES ARE DRAWN BY USEING THE LINE COMMAND IN THE BELOW COMMAND SECTION.
ALL THE TEXTS IN THE ABOVE DRAWING ARE DRAWN BY LINE COMMAND.
DIM COMMAND IS USED TO GIVE ALL THE DIMENSIONS TO THE DRAWING.
TRIM COMAND IS USED TO REMOVE UNWANTED OBJECTS FROM THE ABOVE DRAWING.
REC COMMAND IS USED TO DRAW THE TABLES.
OFFSET COMMAND IS USED TO CREAT ANOTHER OBJECT WITH THE SAME DIMENSIONS OF SAME OBJECT.
AFTER CAREATING THE TEMPLATES ALL THE TEMPLATES ARE CREATED AS BLOCKS BY USING BLOCK COMMAND.
ALL THE BLOCKS ARE SAVED BY GIVING DIFFERENT NAMES TO DIFFENRENT BLOCK.
AND THE CREATED BLOCKS ARE EDITED BY USEING THE COMMAND BEDIT.
THE TEXT INSIDE THE BLOCK ARE EDITED BY USEING ATTRIBUTES.
THEN THE CREATED BLOCKS ARE SAVED IN INSERT TOOL AND WE CAN INSET THE CREATED BLOCKS IN THE DRAWING BY USING INSET COMMAND.
2)
3)COMMAND USED
UNITS COMMAND
DIMSTYLE COMMAND
LINE COMMAND
TRIME COMMAND
REC COMMAND
DIM COMMAND
OFFSET COMMAND
CIRCLE COMMAND
BLOCK COMMAND
TEXT COMMAND
4)COMMAND USED
UNITS COMMAND
DIMSTYLE COMMAND
LINE COMMAND
TRIME COMMAND
REC COMMAND
DIM COMMAND
OFFSET COMMAND
CIRCLE COMMAND
INSERT COMMAND
TEXT COMMAND

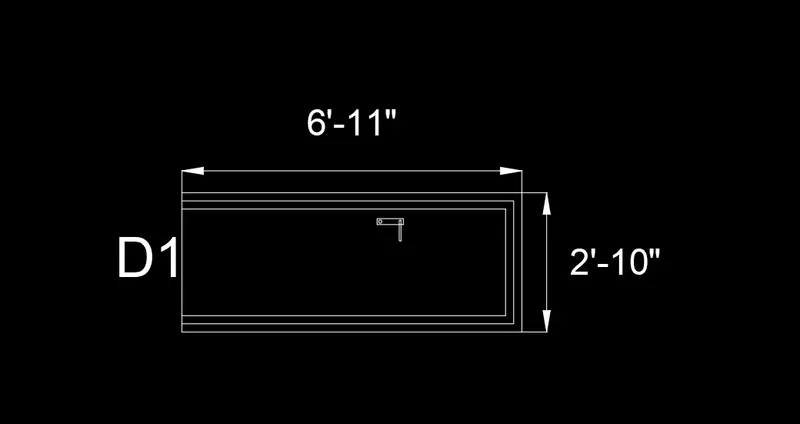

D1

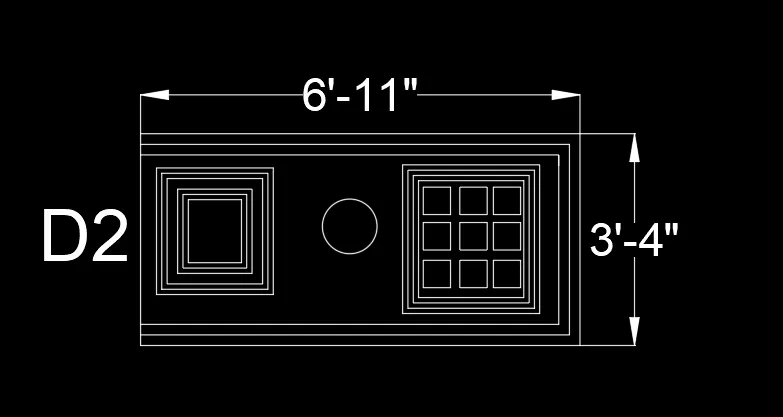

D2

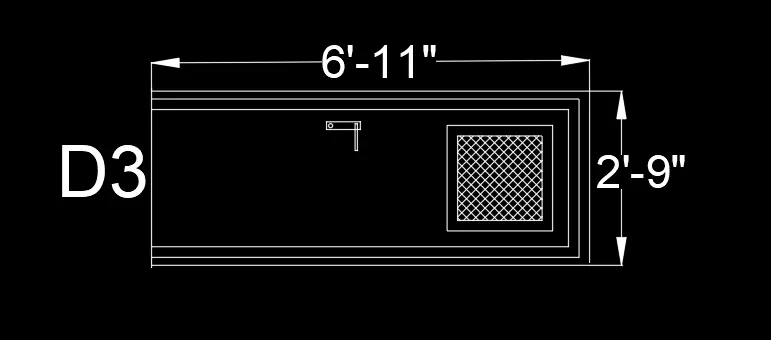

D3

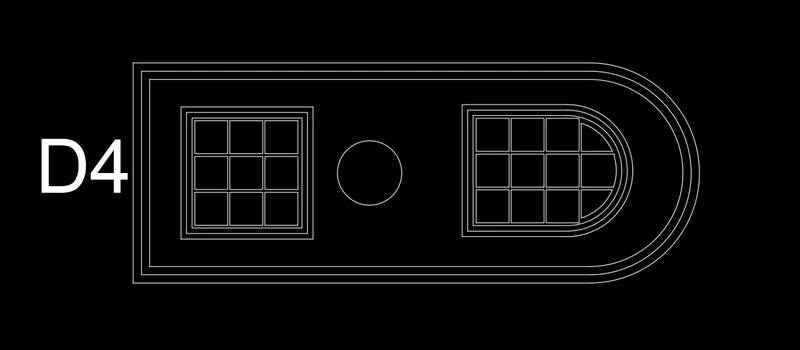

D4

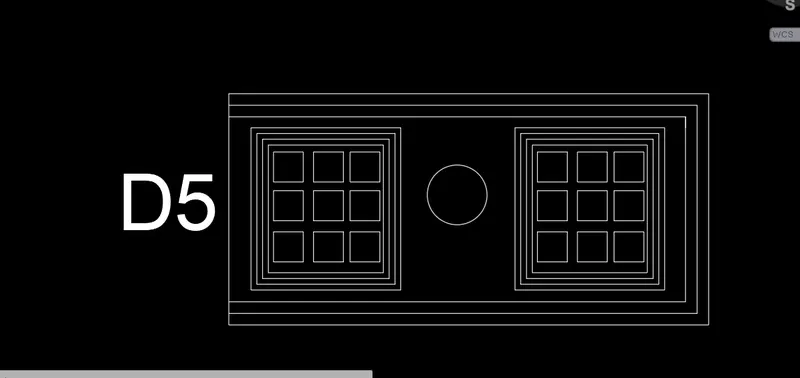

D5

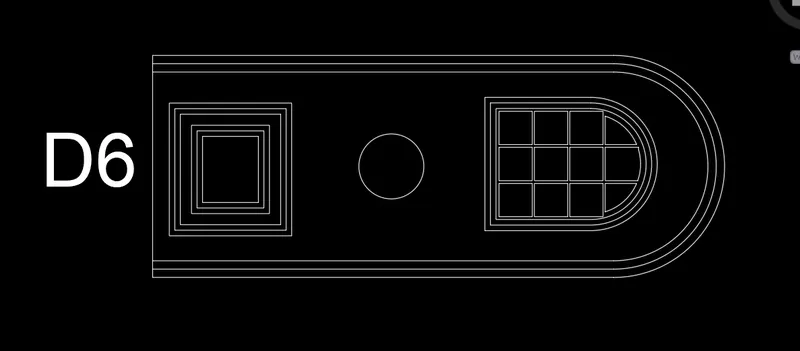

D6
5)COMMAND USED
UNITS COMMAND
DIMSTYLE COMMAND
LINE COMMAND
TRIME COMMAND
REC COMMAND
DIM COMMAND
OFFSET COMMAND
CIRCLE COMMAND
ATTRIBUTE COMMAND
TEXT COMMAND
