Creating Bar Bending schedule, Different Door types, and Creation of standard drawing templates using AutoCad

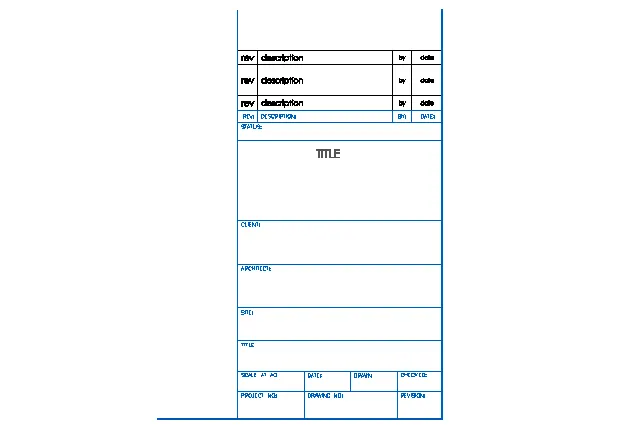

1. Create the templates as shown in Figures. Take the size of the title block as per industry standards or you can assume it as per the size of the paper. Use text and attributes wherever required. After creating the title block you need to save it as a block with names: Custom1_titleblock and Custom2_titleblock, respectively.

2. Create the doors type for warehouse as shown in the Figure. You need to create each door type as per standard size or given dimensions. Create the blocks of this door type after creating them.

3. Create each symbol as a block with the name given in the legend. After creating the blocks arrange them in the legend as shown in the Figure.

4. Create the door type for residential building as a block. Save the name of the blocks as type. Use given dimensions or assume dimensions as per industry standards.

5. Create each shape as a block as shown in the Figure. Save the block and insert them on the table as shown in the Figure.

Click here for the attachment

Aim: To create:-

1. Template, inserting text and attributes
2. Doors of warehouse and placing it in blocks
3. Electrical legend and making it blocks
4. Different types of door for residential project
5. Drawing bars, making it as block and making it as a table as bar bending schedule.

Commands used:-

1. Block.
2. Insert.
3. Attributes.
4. Field.
5. Rectangle.
6. Line
7. Text.
8. Array.
9. Mirror.
10. Copy.
11. Offset.

1)

Aim: Creating templates, inserting text and attributes

• Custom 1_ title block
• Custom 2_ title block

Procedure:-

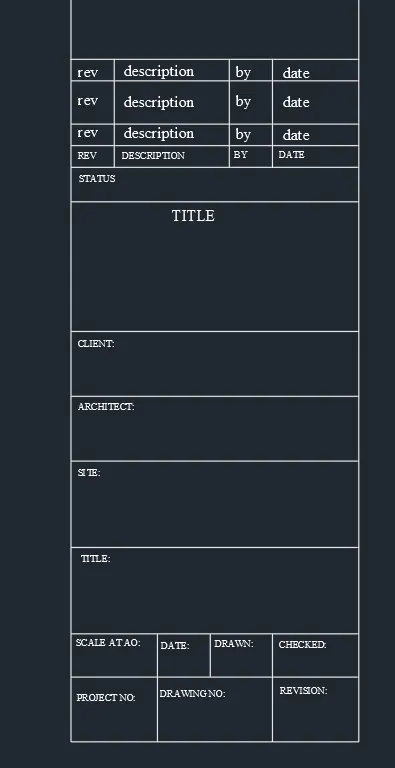

Custom 1_ title block:

• Create a rectangle of size 66.63mm and 158 mm
• Divide it with line for the text box into columns
• For rows, take offset of 5,10,5,5,8,30,15,15,20,20,10,15 mm.
• By multiline text, type rev, description, by, date on the first row by text height 2.5 and style - Times New Roman.
• As it is repeated in the other two rows, take array give column as 1, rows as 3, spacing between rows as 7.
• Again, use multiline text and type the required text in caps with text height 1.5 and style as Times New Romans.

Creating block:

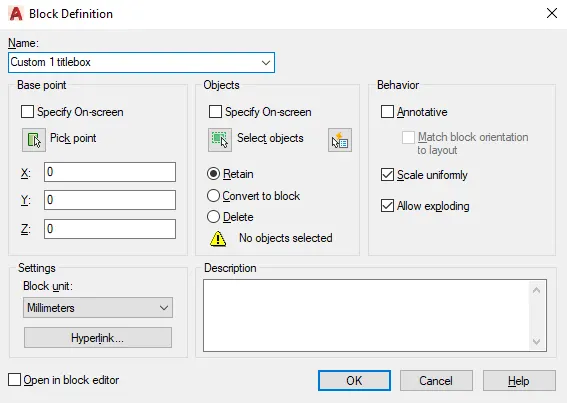

Command "B" - a dialogue box for block definition appears; enter the name "Custom1_ title block"; choose Pick Point and a point in the table; choose the object; and finally, choose the entire table, including the text.Give scale consistently and tick to permit explosion.Decide to convert to blocks.

.

Due to our decision to keep the object, it will remain the same as the drawing in its entirety.

For the objects that we have chosen, a block is created.Go to insert, choose the object, and insert it if we want to use the block.

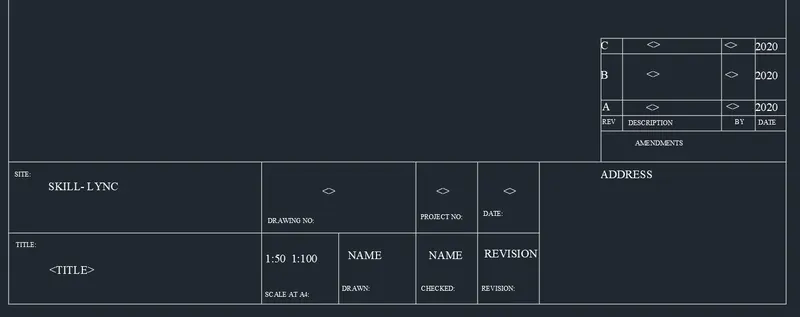

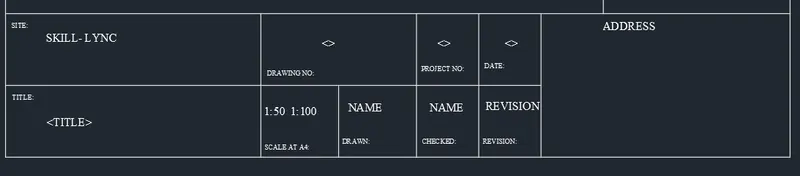

Custom 2_ title block:

Identify the 252 and 46 mm rectangle. Divide the into the necessary rows and columns using lines.

Insert the following using multiline text: height 2.5.

Create a small rectangle with an explosion in the right corner, then add rows and columns.

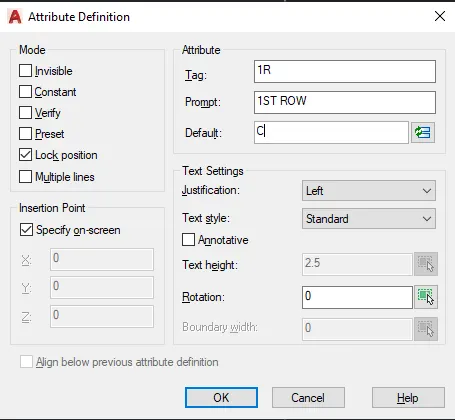

Create the text inside it using the attributes.A dialogue box with attribute definitions appears when you type "ATT."

Before creating the block, add the tagline "tag we are giving, visible."

Question: Tell us what information you need us to enter.

default: the value displayed in the drawing after it has been made into a block.

For instance: The text that will be displayed is in the first-row, first column, "C." Toggle "ATT"

Place the tag line on the place we need to hear 1st row 1st column of the box created.Create attributes similarly for the rest of the text.The attributes created are:

After selecting the entire title block, create a block with the command "B" and the name Custom2_titleblock.We can see that once it is created as a block, all attributes take on their default values.

Result:-

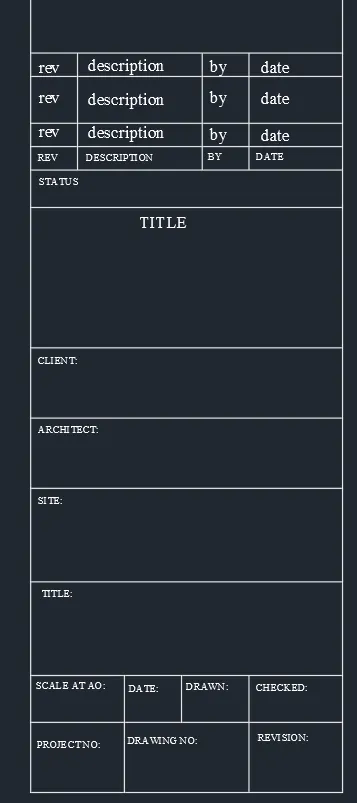

i) The Custom_1 title block is created:

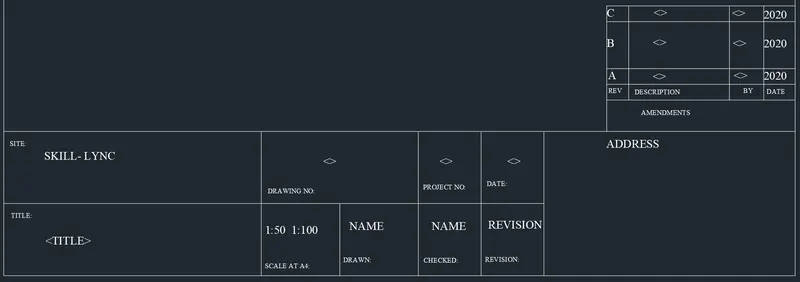

ii) The Custom2_tiltleblock is created:

2).

Aim: Creating doors for warehouse and placing it in blocks:

1. Door 1 - 2330 x 2750 mm
2. Door 2 - 2330 x2750 mm

Procedure:-

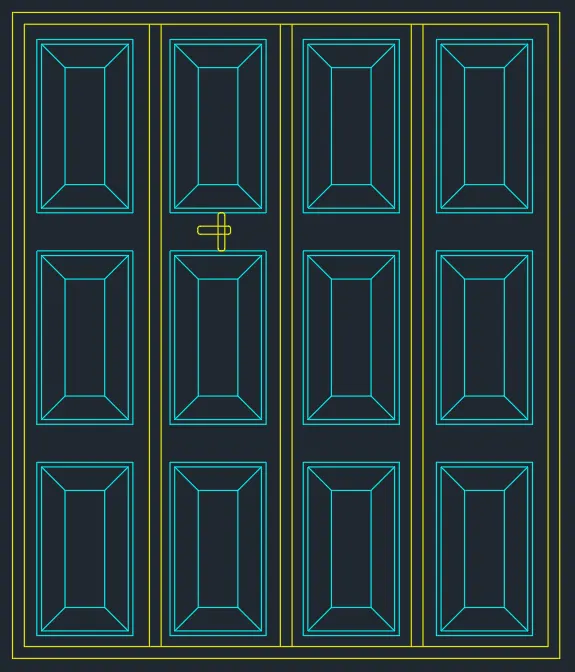

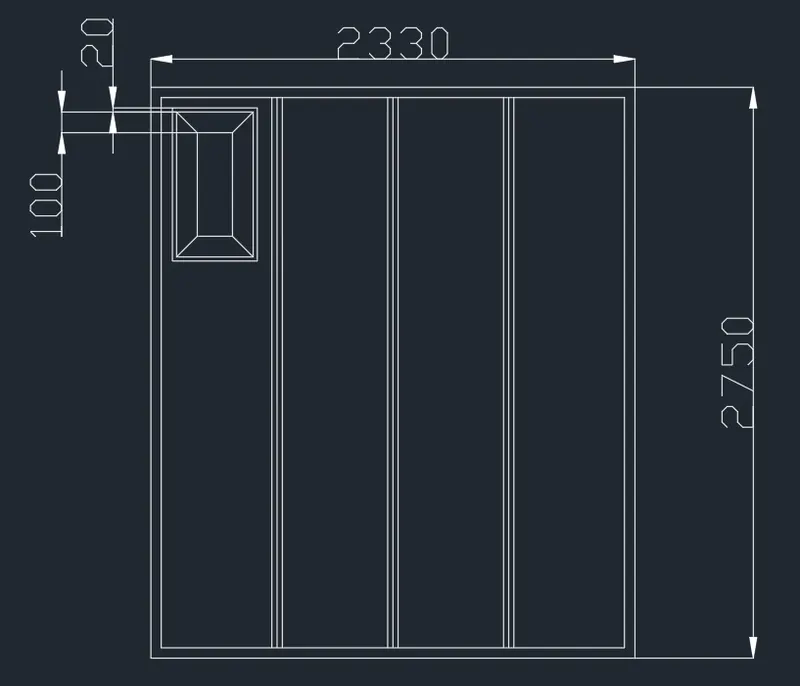

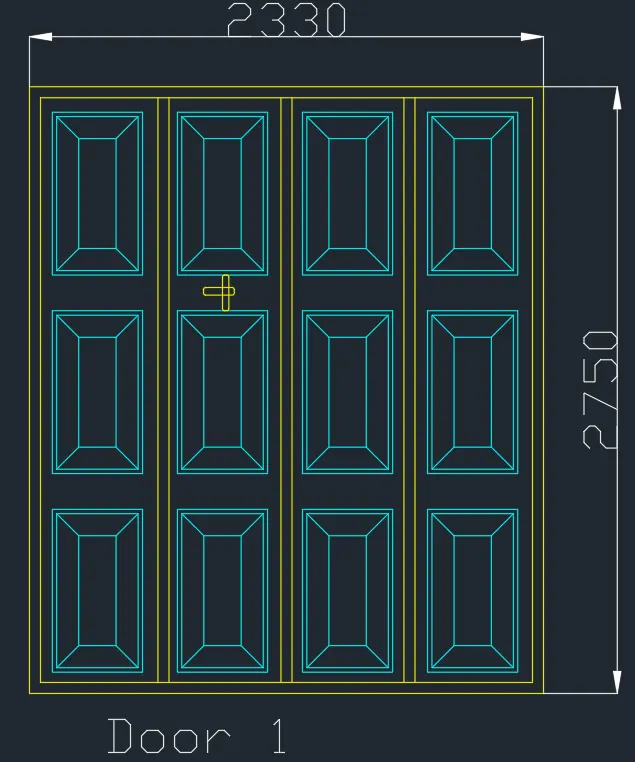

Door 1 -2330x2750mm:

Create a rectangle of size 2330x2750mm.

Offset 50mm as a frame. 90mm for the left side.Explode the rectangle.

Divide the top line into 4 segments using the "DIV" function.Draw vertical lines from the division point to the endpoints of the shutters.

Remove the centre line and offset the thickness by 25mm on both sides.

To display the panels, make a rectangle.offset the second rectangle by 100mm from the first by 20mm, respectively.Connect the corners of the outside and inside rectangles with lines.

Create the panel as a block, so that it is easy to copy.Create lock by rectangle command, and fillet the corners with radius 5mm.

By using the copy all the frames are copied.

Layer is created and all the objects are kept in different layers.

Creating block:

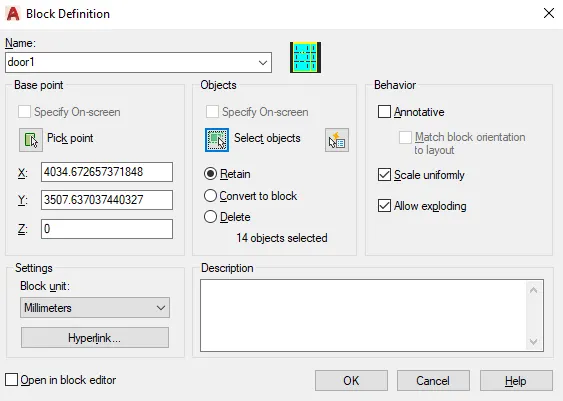

Command "B" - give name as door 1 - pick point- select corner point- select object - select the full object - ok.Select scale uniformly and allow exploding.

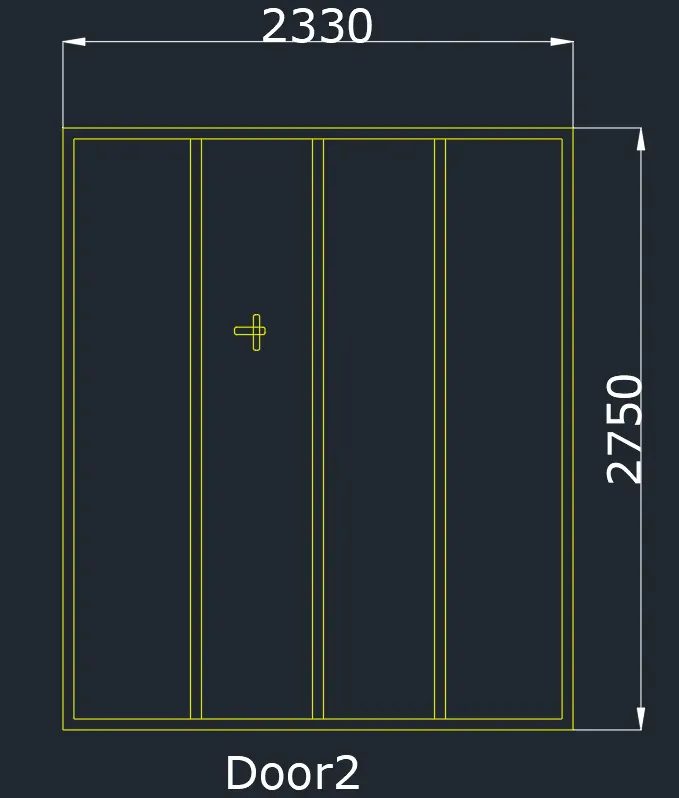

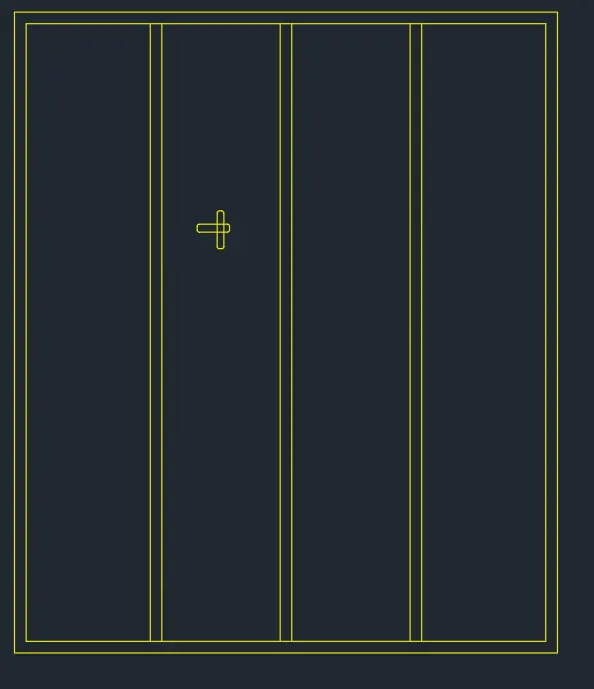

Door 2 -2330 x2750mm:

Create a rectangle of size 2330x2750mm.Offset 50mm as a frame. 90mm for the left side.Explode the rectangle.

By divide "DIV" divide the top line into 4 segments.From the division point, draw lines vertically to divide it into shutters.To make the points visible, Command "DDPTYPE" select the style of point

Offset 25mm on both sides for the thickness, delete the centre line.Create lock by rectangle drawn on opposite sides and fillet the corners with radius 5mm.

Make layers and insert lock, frame in different layers

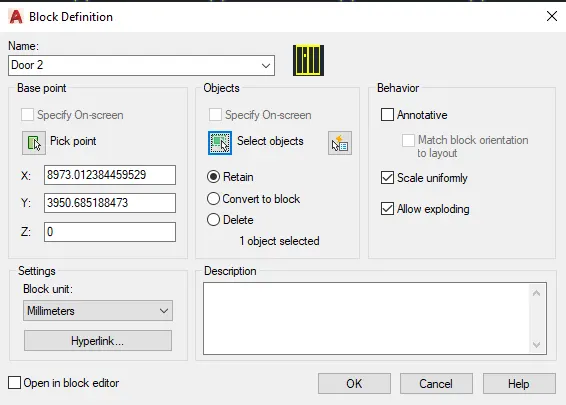

Create it as a block "B" - pick a corner point - select the whole door -tick the box of scale uniformly- explode.

Result: The doors block was created.

1. Door 1:

2. Door 2:

3).

Aim: To create electrical legend

1. Create each electrical symbol
2. Creating them as block
3. Arranging them in legends

Procedure:

Creating electrical symbols

Single gang switch: Draw a circle of radius 64mm and with line draw an inclined line vertical and horizontal line perpendicular to the inclined as required.

Double gang switch: Draw circle and draw two horizontal lines and a vertical incline line.

Triple gang switch: Draw circle, 1 vertical incline line and three horizontal lines.

Draw a single two-way switch in the same way as a single gang switch, but instead of using the donout command, set the internal diameter to zero and the external diameter to the value you want.

Double two way switch: Draw same as double gang switch and create donout .

Triple two-way switch: Draw same as triple gang switch and create donout.

Create a circle and donout inside it. Then, using the line command, draw a perpendicular horizontal and an inclined vertical. Line in both directions should be mirrored.

Switch serial: Copy the switch cross and delete two bottom lines, remove the donout also.

Single socket: Create a circle, divide it into half and draw a line at the top.

Single socket for lamp: From the single socket, draw a horizontal line perpendicular to vertical.

Double socket: Draw the single socket and copy it to create same and place it using snap on.

Floor socket single: Draw a rectangle surrounding single socket.

Floor single socket for lamp: Draw a rectangle surrounding single socket for lamp

Floor socket double: Create two single socket and place a rectangle surrounding it.

Floor socket single telephone: Draw a single socket, a triangle and surrounded by a rectangle.

Floor socket double, telephone: draw 2 single socket and a triangle surrounded by a rectangle.

Telephone socket: Draw a triangle

Internet socket: Insert text "i" in the triangle.

Tv socket: Insert text “TV' in the triangle.

Weatherproof socket: Insert text "w" in the triangle.

.

base section of a duct Draw a rectangle, then choose the bottom grip point, add vertex, and pull the vertex to bend it before drawing the lines with a pen.

Wall bracket: Draw a rectangle for the base, a circle for the middle, a line joining the two, and a cross line inside the circle.

Picture lamp: draw two rectangles connected by a line.

Creating them as block:

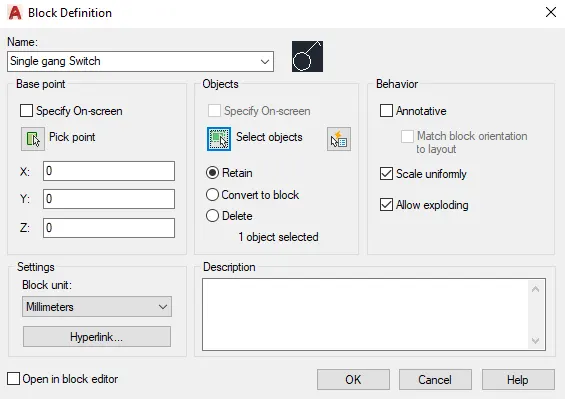

Command "B" give name as single gang switch - pick a point - select object (created single gang switch) - tick scale uniformly and allow exploding options.

Define each of them similarly as a block and give them their appropriate names.Repeat the process with the remaining symbols.

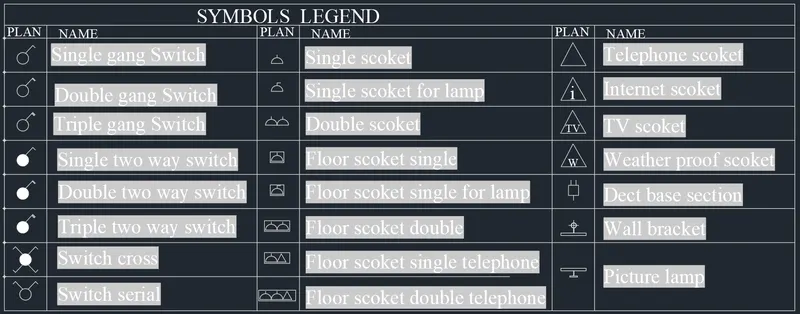

Making and arranging a layered hem

First, make a rectangular table with 6 columns and 10 rows.

Put each block in its appropriate row and column.

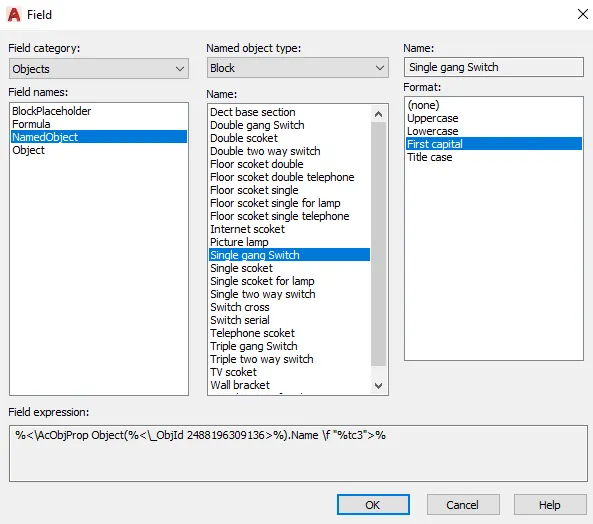

To enter text using a block from the insert tab, first select the field, then the object, and finally the block.

For instance: a single gang switch choosing from the field. - In the format, choose uppercase.

Place the text in the respective rows give text heiht to 150.Similarly place all the title inside the legends.

Result:

4)

Aim:- To draw the doors of residential project and create it as block.

1. D1
2. D2
3. D3
4. D4
5. D5
6. D6

Procedure :-

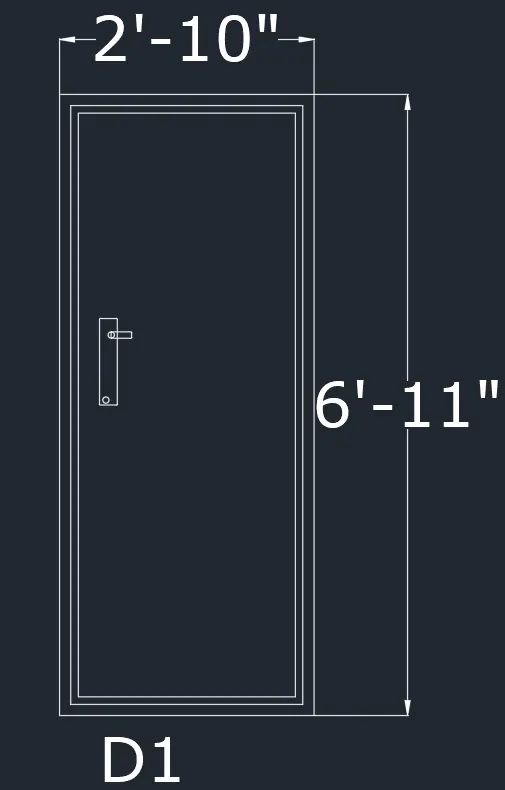

1). D1 - 2'10" x 6'11" :

Draw rectangle with dimension 2'10" and 6'11".Draw offset 1.5" for frame.Draw offset 1" for shutter.

Draw lock by two rectangles perpendicular to each other and fillet the corners with radius 0.1"and circle.Write text by multiline text "D1".

Create it as block "B"- give name as "type-D1" -pick a corner point- select the object. then block is created.

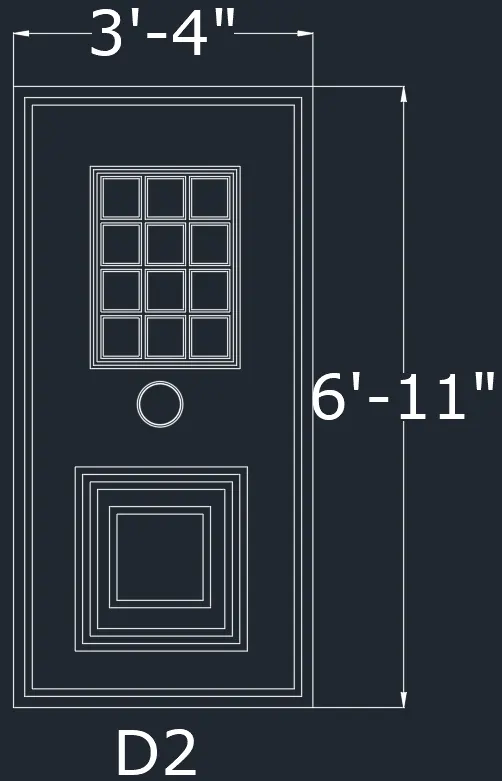

2). D2 - 3'4" x 6'11" :

Draw rectangle with dimension 3'4" and 6'11".Draw offset 1.5" for frame.Draw offset 1" for shutter.

Draw rectangle for panel 1'11" and 2'9.1", then offset 1" two times.Draw a rectangle 5.4" x 5.7", offset 0.3".

Copy it with copy command "co" - select mode - select the rectangle- select array-enter no: of array as 3 -place it as required.Copy the 3 rectangles to 4 rows.

For the second panel draw a rectangle of 1'11" x 2'0.6". Offset 1" 3 timesDraw another rectangle inside this of 1'0.8" x 1' 1.2" and offset 1".

Draw lock by circle in between the two panels.Write text by multiline text "D2".

Create it as block "B"- give name as "type-D2" -pick a corner point- select the object, then block is created.

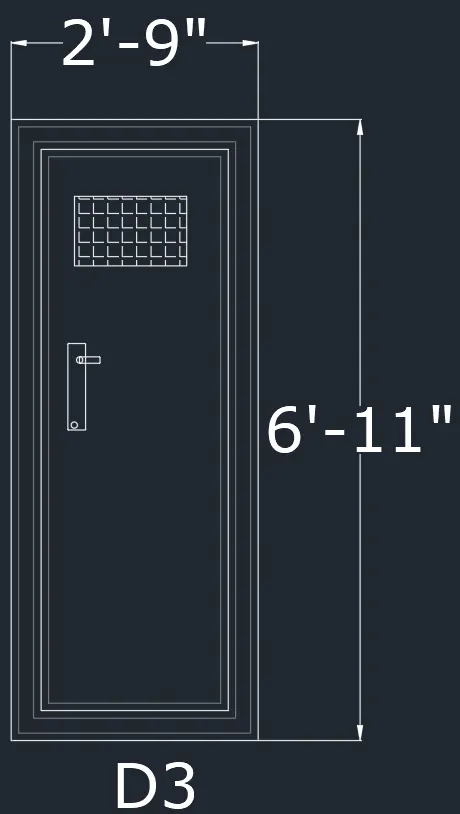

3). D3 -2'9" x 6'11" :-

Draw a rectangle of 2'9" x 6'11".

Offset 1" for thickness ,2"offset for frame, 1" thickness. Offset 1.5" as shutter thickness.

Draw a rectangle at the top for ventilation 1'3" x 9.3", give offset 1" for thickness.Hatch inside the rectangle.

Create lock by rectangle two of them, perpendicular to each other and a circle.

Create it as a block Command "B" - give name as type d3 -pick point- select object -tick scale uniformly and explode all.

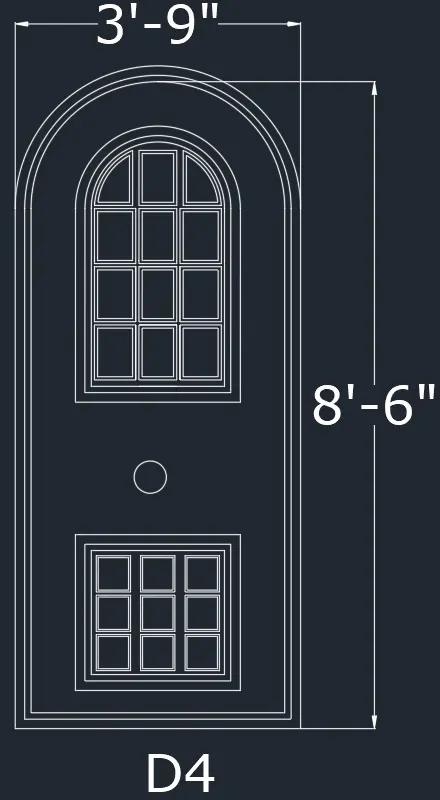

4). D4 - 3'9" x 8'7" :-

Draw a 3'9" x 6'10" rectangle with the letter "REC" in it.Explode it to make a 2-point arc with both points serving as endpoints.The arc and the line should be offset by 1.5" and then by 1".

For the panel, subtract 8" from the arc and rectangle, then divide it in half.To display the thickness on the top figure and bottom rectangle, multiply 1" offset by 2 times.Inside the panel, draw rectangles.

Construct a circle for the lock.

Make it a block, give it the type D4 designation, then choose a point, click the object, and check the boxes for uniform scale and all explosions.

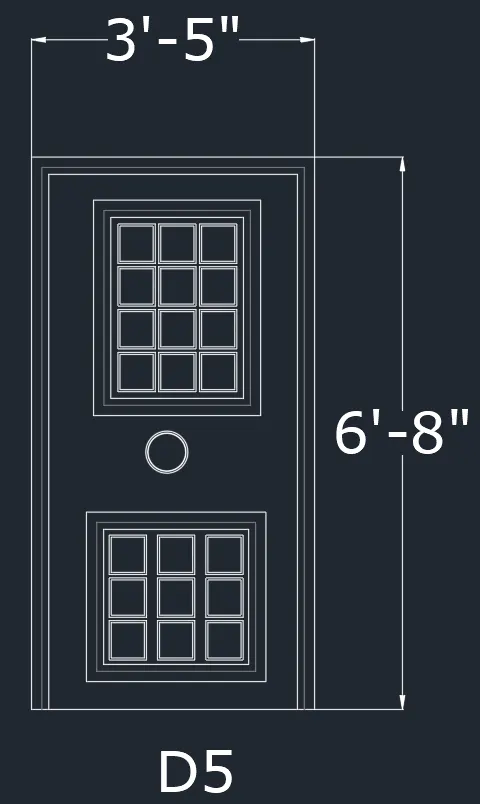

5). D5 - 3'5" x 6'8" :-

Draw a rectangle of 3'5" x 6'8".Offset 1.5" for frame.Offset 1" as shutter thickness.Create another rectangle inside with offset 4.4".

Create another rectangle on the bottom 2'2.9" x 2'2.6".Offset 1" two times for both rectangles.

Create rectangle inside for panels with offset 0.5".Copy it for 3 columns and 4 rows.Similarly copy it in bottom rectangle for 3 rows and 3 columns.

Create it as a block Command "B" - give name as type D5 -pick point- select object -tick scale uniformly and explode all.

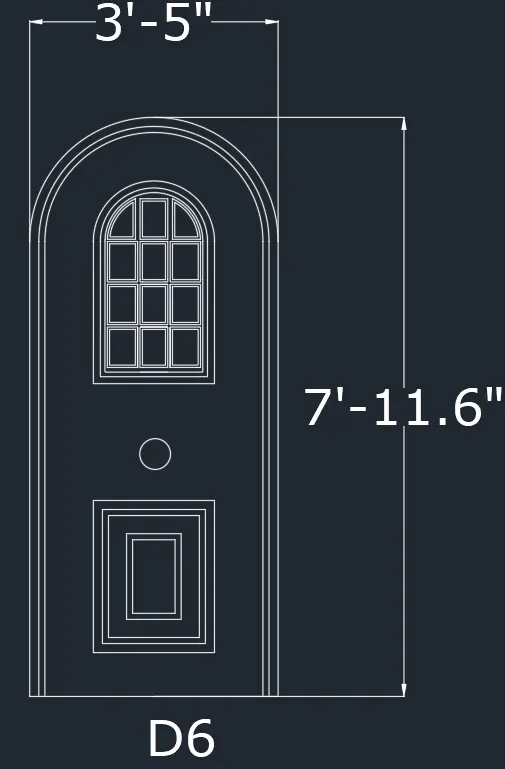

6). D6 - 3'5" x 7' 11.6" :-

Draw the "REC" rectangle, which should be 3'5" by 7'11.6.Explode it to make a 2-point arc with both points serving as endpoints.Adjust the arc and line's offset by 1.5" before adding 1" for the frame.

For the panel, subtract 8" from the arc and rectangle, then divide it in half.To display the thickness on the top figure and bottom rectangle, multiply 1" offset by 2 times.Inside the top panel, draw rectangles with three rows and four columns.

Rectangles in the bottom panel should be offset by 1" three times, 3.3 times, and once more.Construct a circle for the lock.

Make it a block, give it the type D6 designation, choose a point, click the object, check the box for uniform scale, and then explode everything.

Result :- The doors are created and are made into blocks.

5)

Aim: To create bar bending schedule and insert it as block.

1. Drawing each shape.
2. Creating it as block.
3. Inserting it in table as Bar bending schedule.

Procedure :-

1).Drawing each shape:

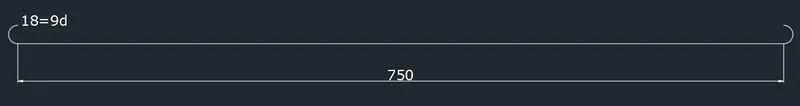

A -20mm :-

Draw a line of 750cm for straight bar.Create arc for the bend. Create on one side and mirror it on another side.

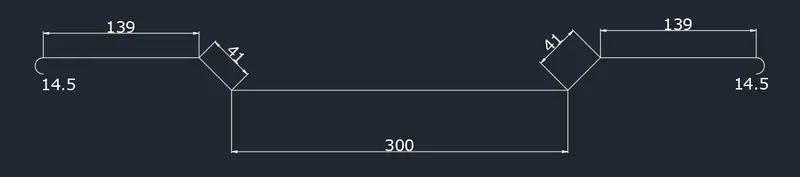

B-16mm :-

Draw a 300mm line for a straight bar.Draw a 41 cm vertical line, a horizontal line that extends from the base of the vertical line up to the horizontal line, and a line inclined at a 45 degree angle.

Remove the undesirable lines.On the other side, duplicate the first.Draw a 139 cm horizontal line and duplicate it on the other side.Draw a bend with an arc, then mirror it on the opposite side.

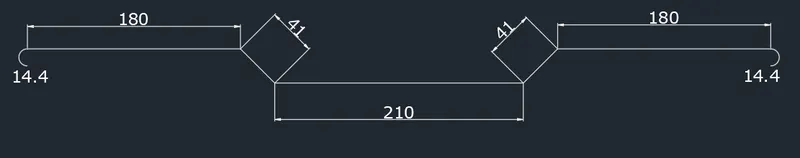

C -16mm :-

Draw a line of 210cm .Draw vertical line of 41cm and extend a horizontal line and draw a line inclined at 45 degree from the base of vertical line up to horizontal line.

Trim off the unwanted lines.Copy the same on the other side.Draw a horizontal line of 180cm and copy it on other side.Draw bend with arc and mirror the same on other side.

D -12mm :-

Draw a line of 750cm for straight bar.Draw an arc downwards.Mirror it on the other side.

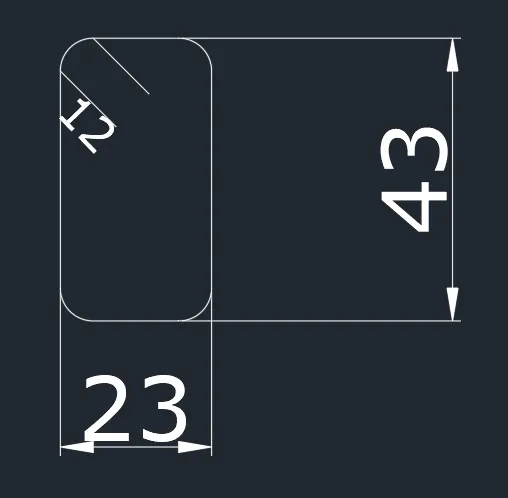

E- 10mm :-

Draw a rectangle of 23cm and 43 cm.Fillet the corner with fillet radius 5cm.Draw two line of 120cm.

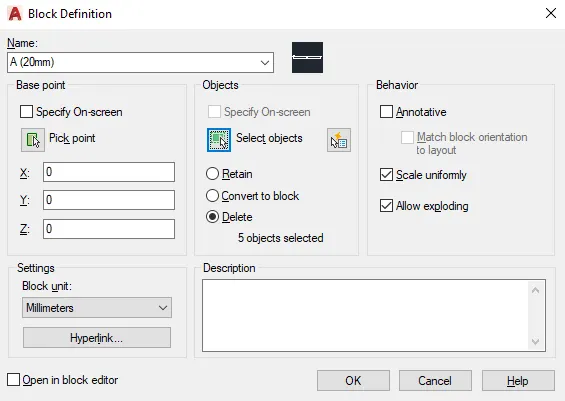

utilising the command "B" and giving the name "A" to create each of them as a block - Choose a point, then choose the object, then choose delete. - Tick the boxes for uniform scaling and all explosions.

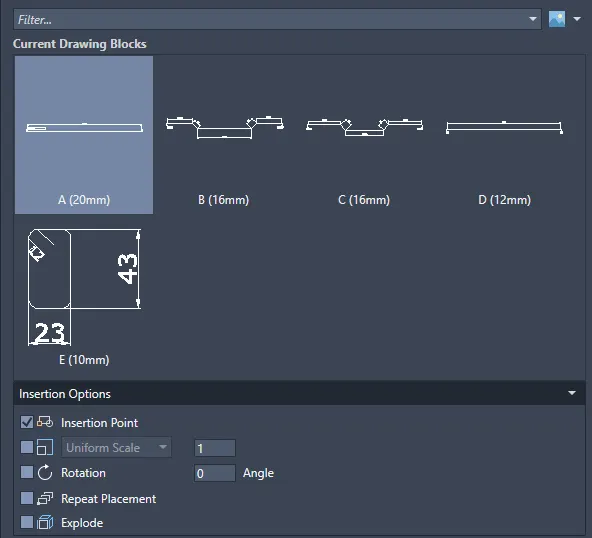

Similarly create 5 blocks: A,B,C,D,E and insert each of the bars as blocks.

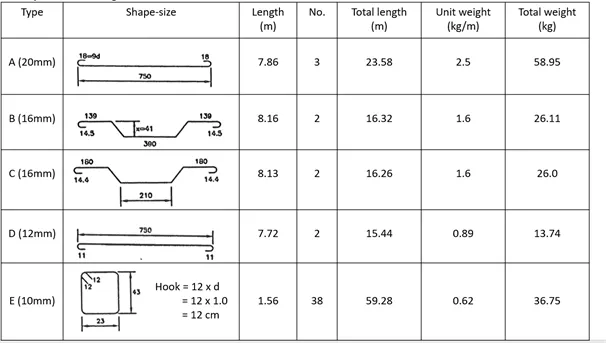

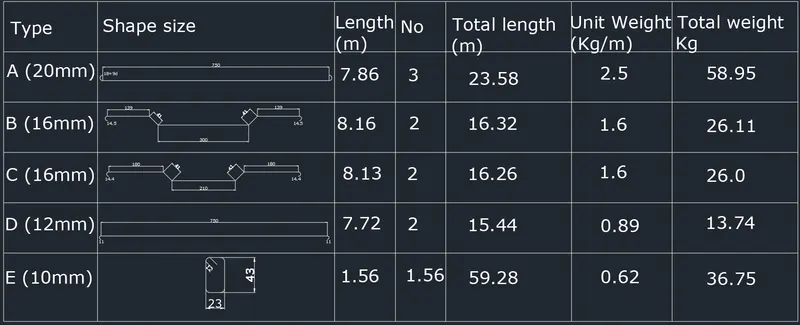

Inserting blocks in the table :-

Using a rectangle as a base, make a table with six rows and seven columns.Enter type, shape, size, length, no, total length, unit weight, total weight, and all other text using multiline text.Each block is inserted into its appropriate column using the command "I."

Result :-

RESULT :-

Text and attribute entries are made into a drawn template.

Drawn warehouse doors are stacked in blocks.

Blocks of electrical legend have been created.

For a residential project, various door types are illustrated and arranged in blocks.

As part of the bar bending schedule, bars are drawn, made into blocks, and placed in a table.
