Creating Kitchen layout, Hatching of Architectural elements and sectional view of an Industrial Building in AutoCad

Create the layouts of the Kitchen and provide hatches pattern as shown. Also, use blocks wherever required. Provide appropriate dimensions in the plan. Assume the size of doors, appliances and others as per the standards.

2. Create the elevation of the plan created in the Challenges 7 and apply proper hatch in the walls, doors, windows, and other architectural elements. Refer to the dimensions in Plans and sections in Challenges 7.

_{Refer to the elevation that needed to be created.}

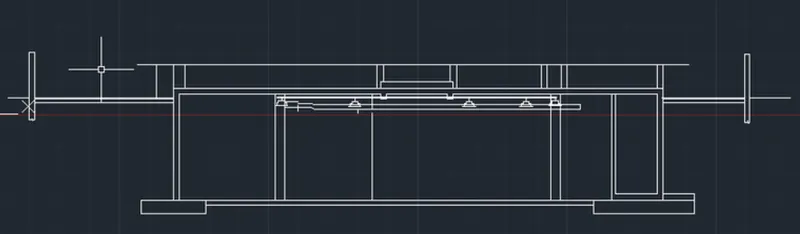

_{3. Create the section view of an industrial building as shown in Figure. Provide appropriate hatches and dimensions wherever required. Also, provide annotations to the drawing.}

_{Click here for the attachment}

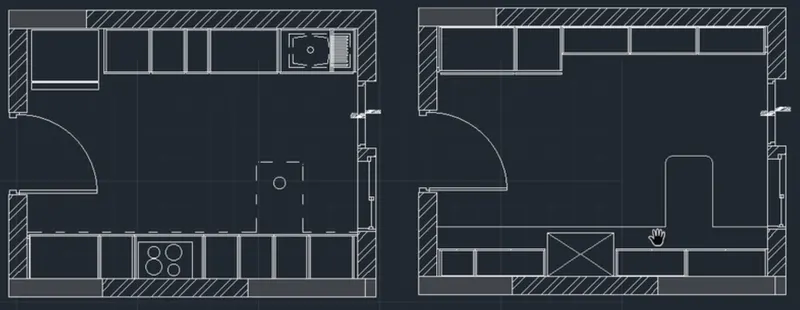

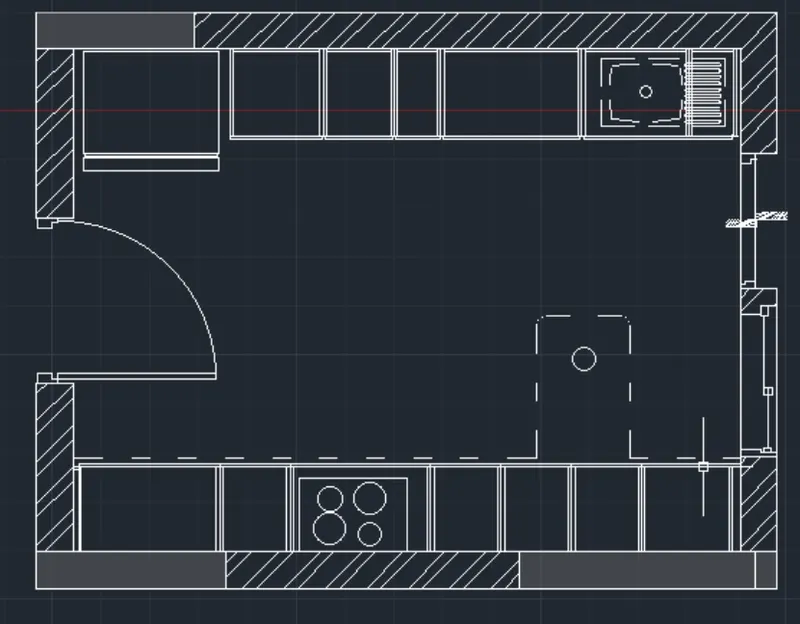

1. *Create the layouts of the Kitchen and provide hatches pattern as shown. Also, use blocks wherever required. Provide appropriate dimensions in the plan. Assume the size of doors, appliances and others as per the standards *

1. Aim :-

• To Create the Kitchen Layout and to Also, use proper dimension techniques to dimension the kitchen layout. Also, insert text wherever required.
• All dimensions are in mm.

Procedure :-

step 1:

• units are set to mm
• limits and limax are also set
• zoom comand is also used

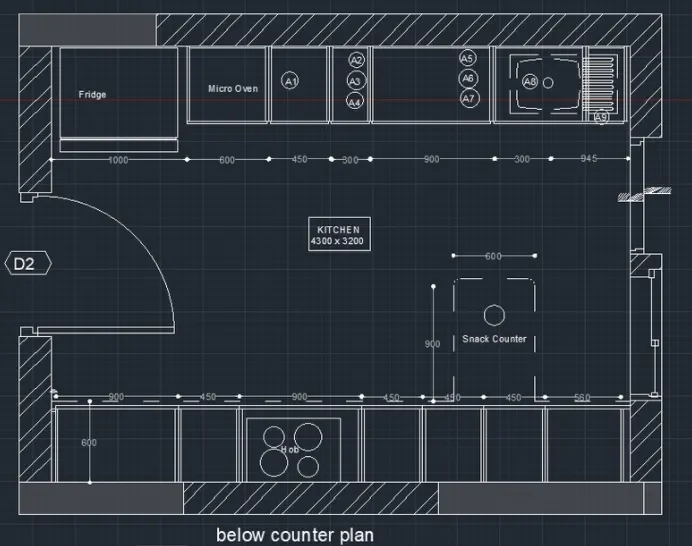

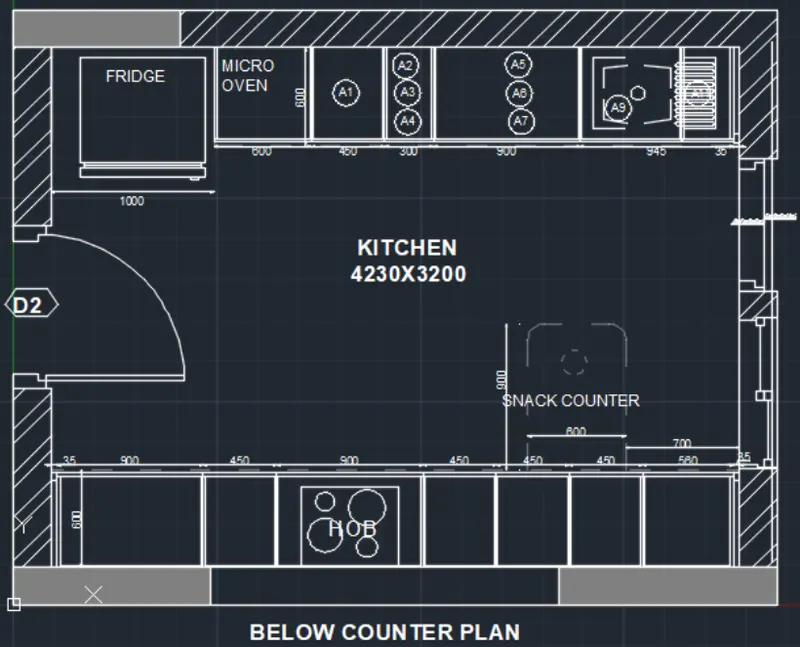

Steps for drawing Below Counter Plan

• Open Auto Cad and enter UN (units command) in command box and make the type as decimal.

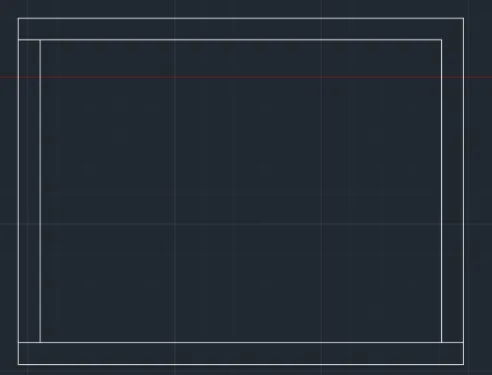

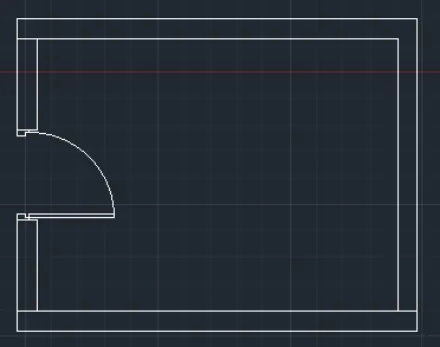

• Select line command and draw a line of 4300 in X direction and a line of 3200 in Y direction and complete the rectangle.
• Offset 230 towards all sides of the rectangle outside the figure.
• Fillet all the offset edges.

• Offset of 600 from top of the room to draw the kitchen platform and otta.
• Give the offset as follows from left side 90 as first offset- 90mm as first offset, 1000mm for fridge, 600 for micro-oven, 450 for A1 part, 300 for A2/A3/A4, 900 for A5/A6/A7, and 300, 945 and 35 offsets.
• Offset 12 mm to both sides in each corner of the room.
• Offset 600mm from bottom in middle oF kitchen to draw platform.
• Now enter offset as follows- 900, 450, 900, 450, 450, 450, 560, 35.

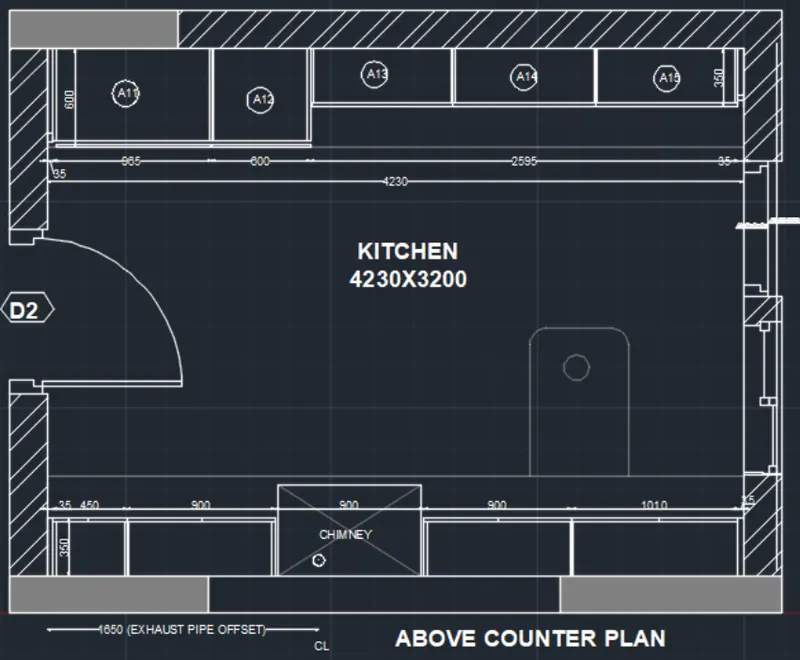

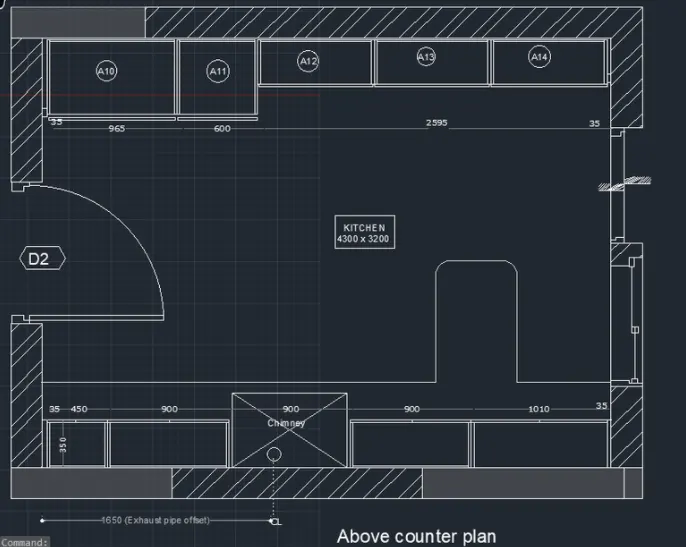

Steps for drawing Above Counter Plan

• Launch Auto Cad, type UN (units command) in the command box, and select decimal as the type.
• Draw a line with a length of 4300 in the X direction and a length of 3200 in the Y direction using the line command to finish the rectangle.
• Offset 230 towards all sides of the rectangle outside the figure.
• Fillet all the offset edges.
• Offset of 600 from top of the room to draw the kitchen platform ink and otta.
• Give the offset as follows from left side 35 as first offset and again the offset as 965, 600, 2595.
• Offset 12 mm to both sides in each corner of the room.
• Offset 350 mm from bottom in middle of kitchen to draw platform.
• Now enter offset as follows-35, 450, 900, 900, 900, 1010, 35.

Hatching of objects

• Draw panel—Home tab—Hatch: Click.
• Choose the type of hatch you want to use from the Hatch Type list on the Properties panel.
• Select a fill or hatch pattern from the Pattern panel.
• Indicate how the pattern boundary is chosen on the Boundaries panel:
• Choose Points. the fill or hatch is inserted inside of a closed space that is enclosed by one or more objects.
• Then choose Boundary Objects. the fill or hatch is inserted inside a closed object.
• Until you choose another, the current selection method is used.
• To hatch an area or object, click it.
• Make any necessary adjustments to the ribbon:
• You can change the hatch's type, colors, transparency level, angle, and scale using the Properties panel.
• On the expanded Options panel, you can change the draw order to specify whether the hatch and its boundary are displayed in front of or behind other objects.
• Press Enter to apply the hatch and exit the command.
• Hatch the brick wall with hatch type as ANS132 and hatch other part as solid and grey colour.

RESULT :

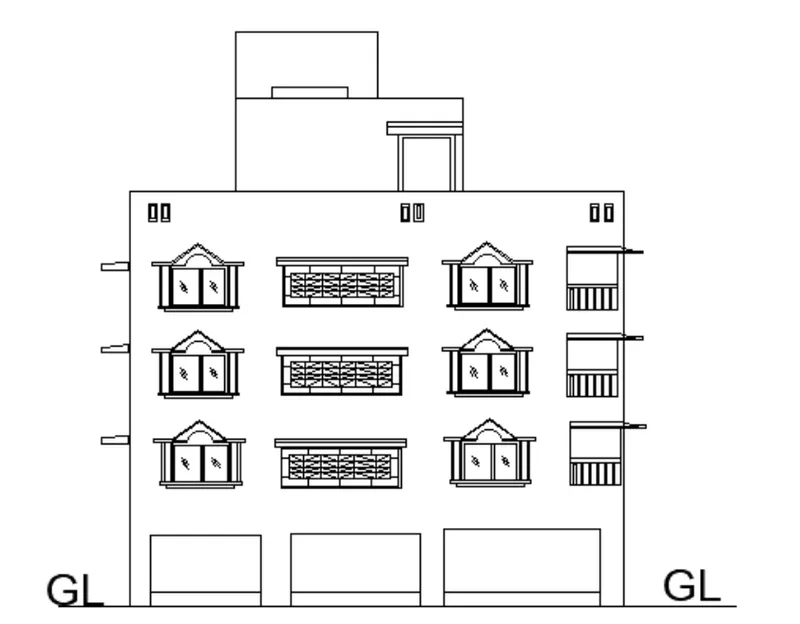

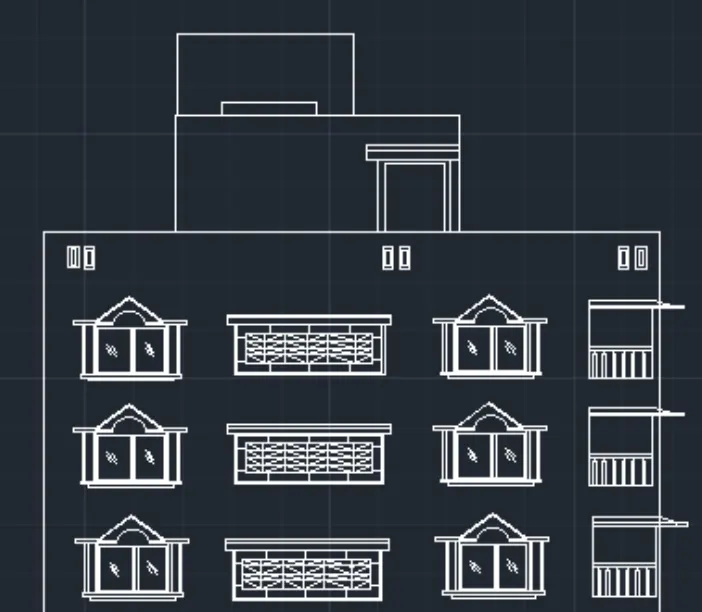

2. * Create the elevation of the plan created in the Challenges 7 and apply proper hatch in the walls, doors, windows, and other architectural elements. Refer to the dimensions in Plans and sections in Challenges 7 *

2. AIM :- TO CREATE ELEVATION AND HATCHING THE STRCTURAL AND NON-STRUCTURAL ELEMENTS OF THE BUILDING LIKE WALLS, COLUMNS ETC.

PROCEDURE :-

STEPS FOR DRAWING SECTION

• Select line command and extend the lines from the plan in the downward manner to create projections.
• Offset 150mm from the ground level..
• Offset 2450 for ground floor.
• Offset 2850 for second floor.
• Offset 2850 for second floor.
• Offset 2850 for third floor.
• Offset 1000 for parapet wall.
• Offset 2500 from terrace level for mumty.
• Offset 450 from mumty for parapet wall of mumty.
• Offset 600 and offset 1200 for O.T.H.
• For drawing of staircase offset 1250 for tread and offset 143.75 for rse of staircase.
• Offset 125 below floor level for slab.

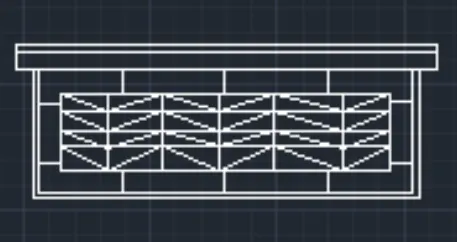

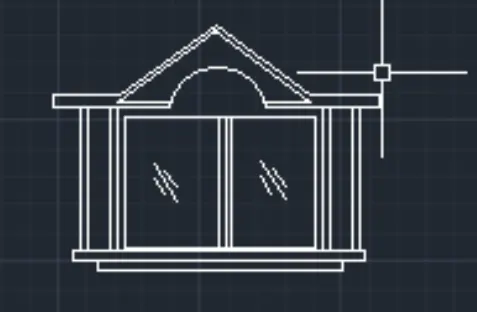

• Draw the chajjas and windows as per the sizes considered and standards.
• Draw the railing of staircase in dash manner from the layers and change the layer to ACADIS003W100.
• Give the dimensions by dim linear or dim continue command.
• Select the multiline text for naming of the section.

Hatching of objects

• Draw panel—Home tab—Hatch: Click.
• Choose the type of hatch you want to use from the Hatch Type list on the Properties panel.
• Select a fill or hatch pattern from the Pattern panel.
• Indicate how the pattern boundary is chosen on the Boundaries panel:
• Choose Points. the fill or hatch is inserted inside of a closed space that is enclosed by one or more objects.
• Then choose Boundary Objects. the fill or hatch is inserted inside a closed object.
• Until you choose another, the current selection method is used.
• To hatch an area or object, click it.
• Make any necessary adjustments to the ribbon:
• You can change the hatch's type, colors, transparency level, angle, and scale using the Properties panel.
• On the expanded Options panel. you can change the draw order to specify whether the hatch and its boundary are displayed in front behind other objects.
• Press Enter to apply the hatch and exit the command.
• Hatch the brick wall with hatch type as brick and hatch other part of concrete as air conc.

RESULT :-

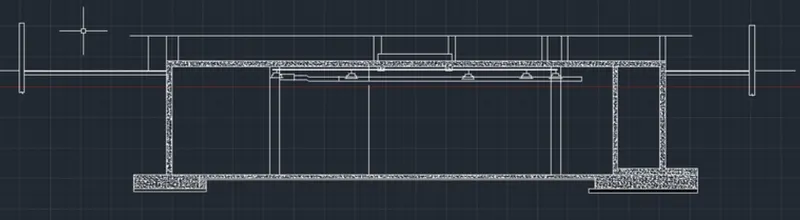

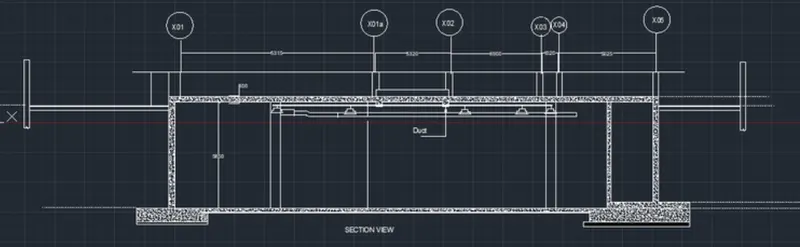

_{3. * Create the section view of an industrial building as shown in Figure. Provide appropriate hatches and dimensions wherever required. Also, provide annotations to the drawing *}

3. AIM :- To create the section view of an industrial building.

PROCEDURE :-

• In the command prompt type I to draw the lines.
• In the Ribbon bar > Hatch > AR.CONC.

• To draw the rectangle, type rec at the command prompt.
• To get the dotted line, type LT at the command prompt.

• In the command prompt type Mt to draft the text
• In the command prompt type c to draw the circle
• In the command prompt type dim to draft the dimensions.

RESULT :-
