Creation of Multiple viewports, Scaling the drawing and setting in Template in AutoCad

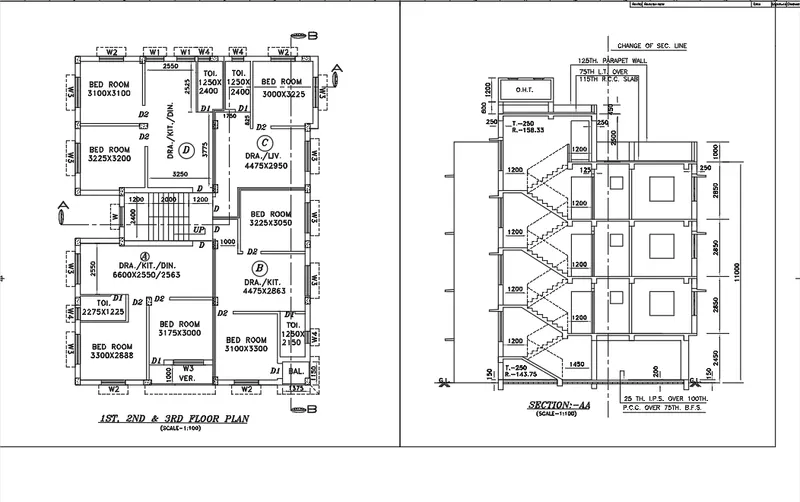

1. Create a layout of the Plan and Section A of the project in Challenges 7, using the template Tutorial-mArch.dwt in a scale as given in the Figure. Use the MV command to create the viewport of the size as shown in Figure. Also, use ATTEDIT command to edit the information in the title block. Use A1 size for the layout. Take a plot.

2. Create a layout of the Kitchen drawn in Challenge 9 as shown in Figure. Use the scale as shown in the Figure. Use A4 Size page for the layout. Take a plot.

3. Create a layout of the section created in Challenges 9.

Use scale as mentioned in the Figure. Use MV command create multiple viewports. Take a plot.

Click here for the attachment

1. Create a layout of the Plan and Section A of the project in Challenges 7, using the template Tutorial-mArch.dwt in a scale as given in the Figure. Use the MV command to create the viewport of the size as shown in Figure. Also, use the ATTEDIT command to edit the information in the title block. Use A1 size for the layout. Take a plot.

AIM S' :-

1. To create layout of plan and section, creating viewports, editing attributes and taking a plot.
2. To create a kitchen layout in A4 sheet and take a plot
3. To create Multiview ports for industrial section drawing, scaling it and taking a plot.

COMMANDS USED:

1. View
2. Layout.
3. Multiple View.
4. Model Space.
5. Paper Space.
6. Scale.
7. Xref.
8. Lock.
9. Pan.
10. Plot.

Aim :-

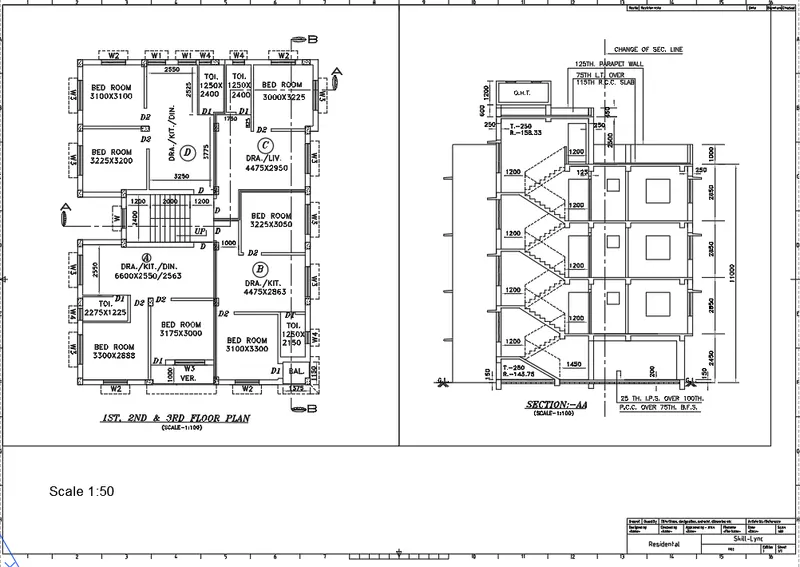

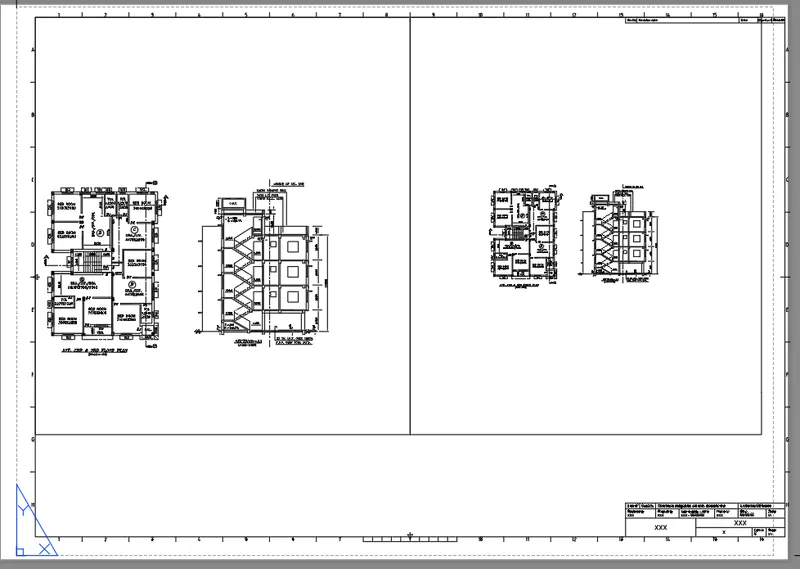

1. To create layout of plan and section using Template mArch.dwt.To create viewport using MV command of size 400x445 and 375x445 and setting the scale (1:50)
2. Editing Attributes in the template.Take a plot using A1 size.

Procedure :-

In the command prompt enter "XREF" and on the left corner attach the Dwg. Attach the drawing.

After attaching Left click on the attached drawing file. Bind the attached file and then explode the drawing file.

Right-click the layout tab to create a new layout by selecting it.Give the layout tab the new name "plan and section."Remove the viewport that is currently visible in the layout.

To create the template:

Use the "LAYOUT" command. Choose ISO A1 layout from the dialogue box, then rename the template (.dwt) to Layout of Plan and Section.

Type “MS" for the activation of model space.

To create viewport:

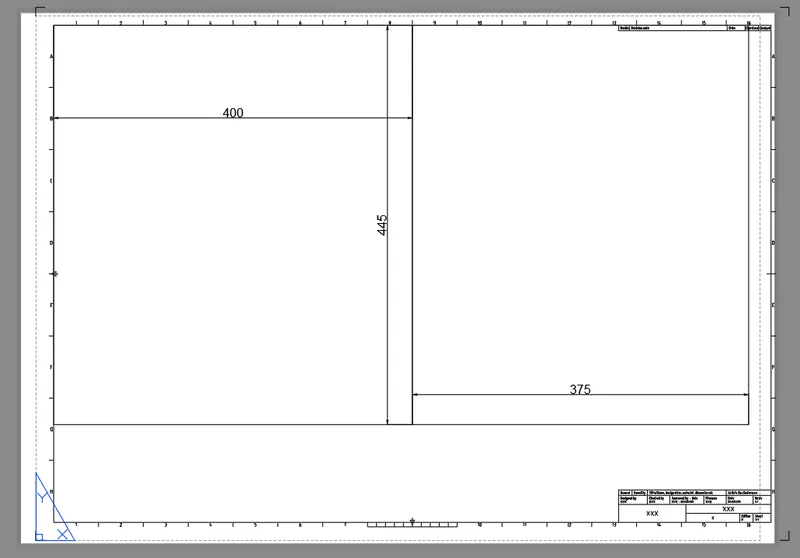

Draw a rectangle of size 400x455 and 375x445 for creating the viewport.

The drawing will appear in the viewport when you click on the rectangle using the command "MV" multiple view- select object option.Repeat the process with the second rectangle.

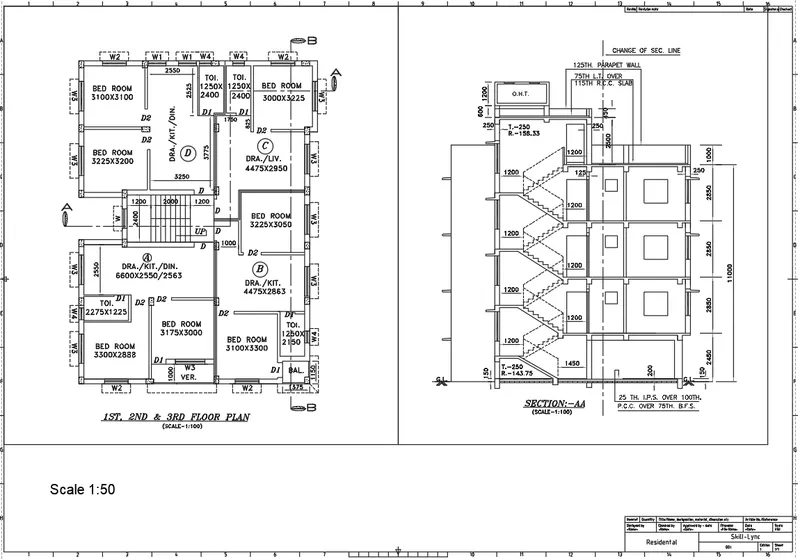

To set the drawing's viewport, type "MS" for model space and click.Lock the viewport after zooming in to a scale of 1:50 on the plan drawing by clicking on the first viewport. This prevents the scale from changing as you continue to zoom.

Similarly do it in second viewport zoom in the section view, making it a scale of 1:50 and lock.

Editing Attributes in the template:

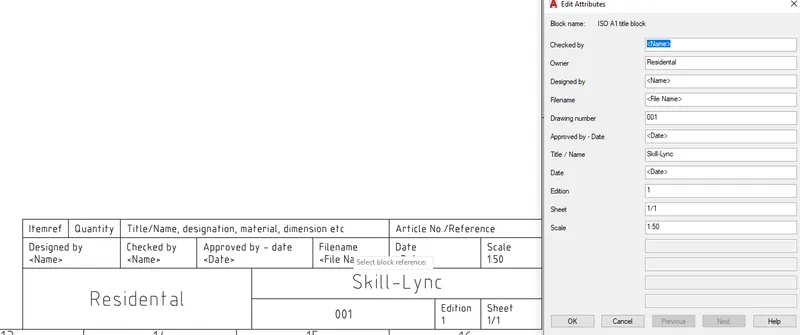

Go to paper space by typing "PS" and click on the block-shaped template there.Double-click the attribute text to edit it, or use the "ATTEDIT" command to bring up the attribute dialogue box.

Give the value as NAME, DATE, scale etc.

Enter the text by multiline text in paper space and with text height 20.

Taking plot using A1 sheet:

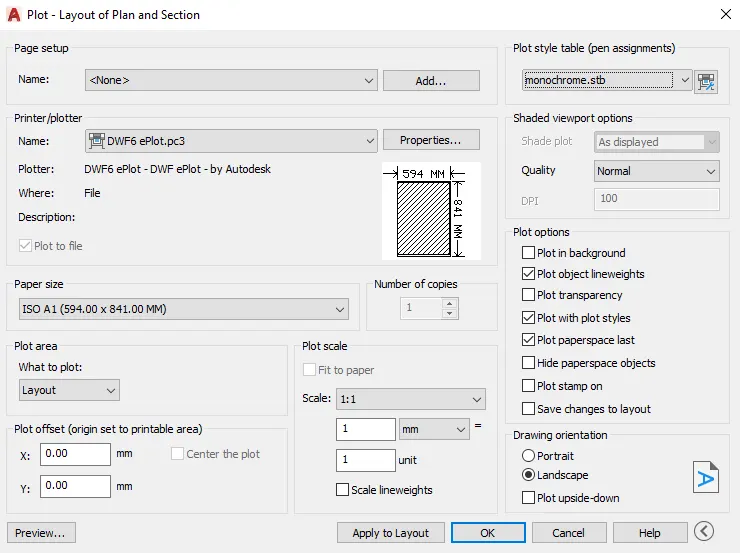

Use command "PLOT”, the dialogue box appears.Give the name as "DWG to PDF".Select the paper size as ISO A1 (594x841 mm).

Choose the plotting layout.1:1 scale and landscape orientation are both specified. Choose the "Monochrome" pen assignment to prevent any prints from appearing.

Result:

The m.Arch.dwt template is used to create the layout.The MV command is used to create a viewport with dimensions of 400x445 and 375x445mm and a scale of 1:50.The template's attributes are changed.A1 size is used to create the plot.

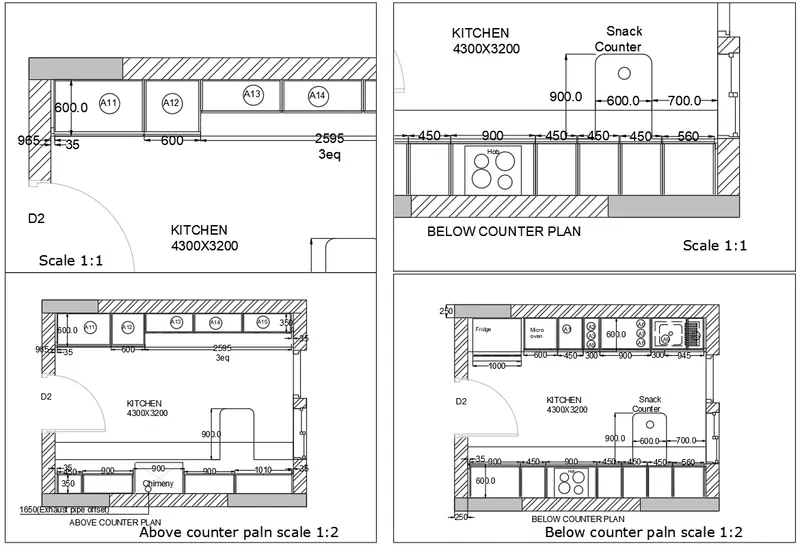

2. Create a layout of the Kitchen drawn in Challenge 9 as shown in Figure. Use the scale as shown in the Figure. Use A4 Size page for the layout. Take a plot.

2. Aim :- To take different view of kitchen for layout in model space,create the layout with four viewports, with A4 sheet,create a plot.

Procedure :-

In the command prompt enter "XREF" and on the left corner attach the Dwg.Attach the drawing .

After attaching Left click on the attached drawing file .Bind the attached file and then explode the drawing file.

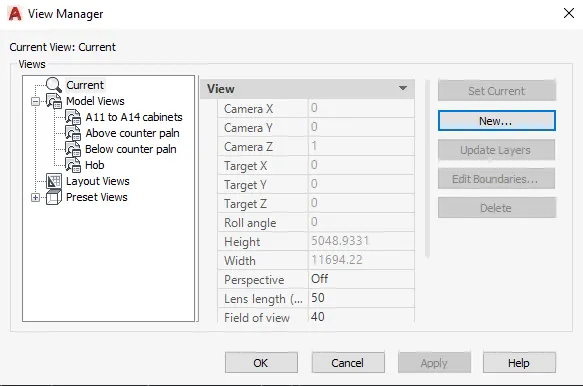

Consider various angles for the layout in the model space.To add new views, open the drawing and select "VIEW."The dialogue box for the view manager appears. To create a new view, click model and then new.

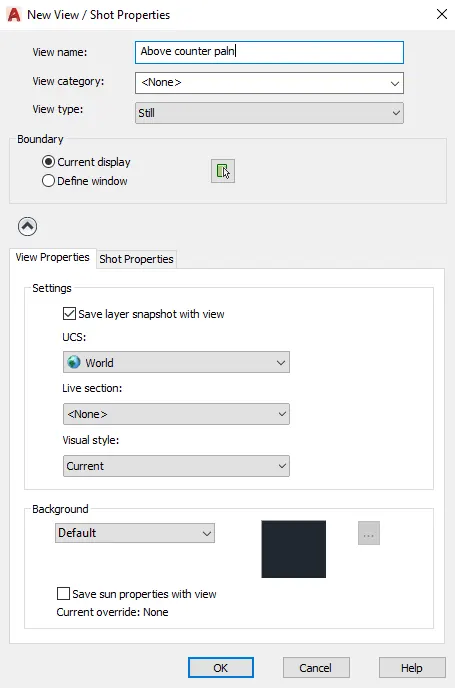

A new dialogue box for a new view appears; name it "above counter plan," choose "define window" for the boundary, and choose it using the drawing's window selection.

Click on OK and the view with name above counter plan and the selected drawing will be created.Similarly create views for below counter plan, hob , and A11 to A14 cabinets.

Create the layout using an A4 sheet and four viewports.Rename the layout to "kitchen layout" by opening the layout tab.Get rid of the current viewport

The A4 sheet is the standard.Create 4 viewports using the "MV" command and the window.

In the layout tab, enter the command "VIEW," choose the necessary view, click on the viewport where it should be displayed, and lock each viewport.

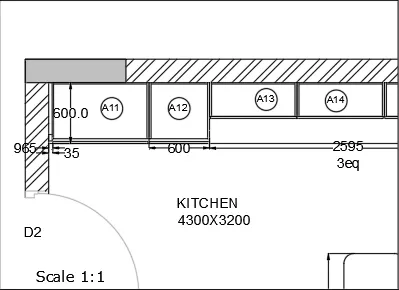

Select the A11 to A14 cabinet view in the first viewport, zoom and pan to fit in the viewport

Go to paper space, with Text command type SCALE 1:1.

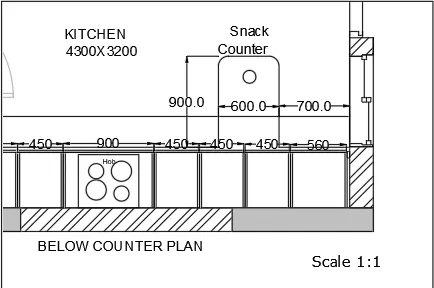

Key in "MS" and select the second viewport.Type "VIEW" into the command line and choose the view option snack counter.

To fit the view in the viewport, zoom in and pan out.Viewport locking.Enter SCALE 1:1 in paper space using the command "T."

Similarly in model space click on third viewport.Enter the view above counter plan.Zoom and pan the viewport, so that the drawing fit in it.

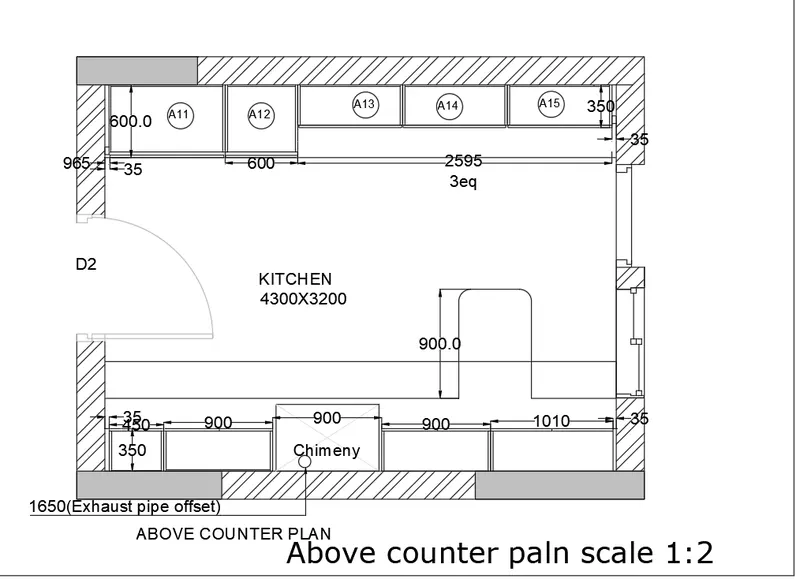

Lock the viewport.Go to paper space and with command "T" enter the text as ABOVE COUNTER PLAN and SCALE 1:2 with text height 3.5.

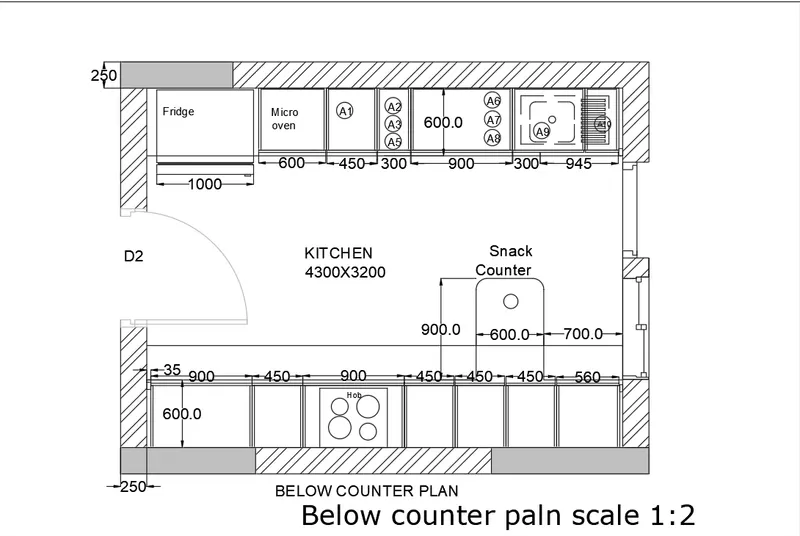

Similary in model space click on third viewport.Enter the view below counter plan.Zoom and pan the viewport, so that the drawing fit in it.

Lock the viewport.Go to paper space and with command "T" enter the text as BELOW COUNTER PLAN and SCALE 1:2with text height 3.5.

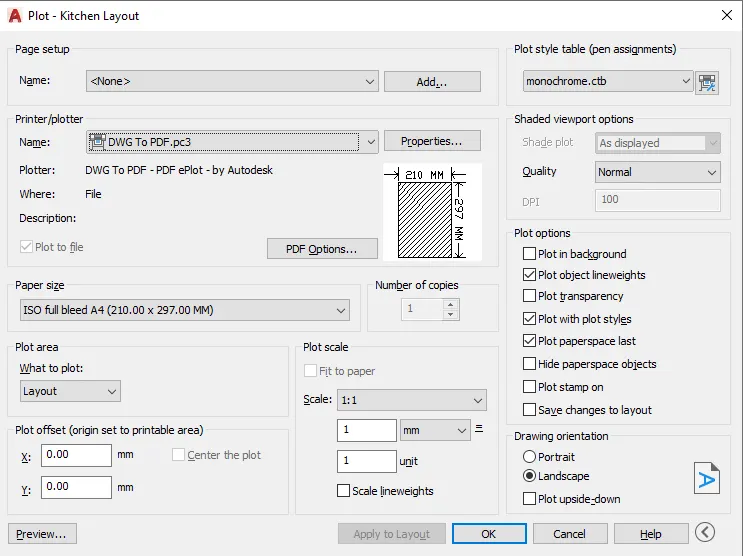

Creating a plotUse "PLOT" command, plot dialogue box appears.Paper size is selected as A4 and name is given as A4, printer name ad print to pdf

Select what to plot as layout, and select pen assignment as monochrome.Preview the print.Select ok to convert to pdf.

Result :-

A plot is created along with a layout with four viewports and an A4 sheet for a different view of the kitchen in the model space.

3. Create a layout of the section created in Challenges 9.

Use scale as mentioned in the Figure. Use MV command create multiple viewports. Take a plot

3. Aim :-

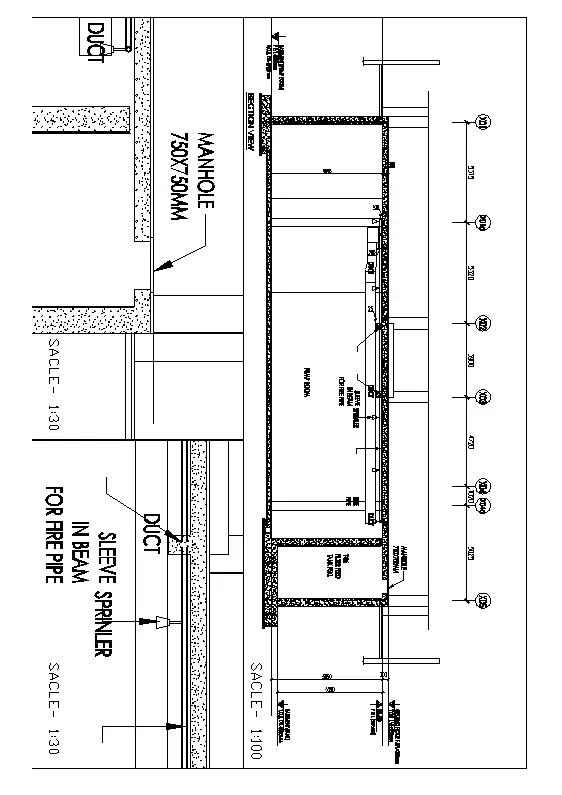

Create layout of the section of industrial building ,creating viewport by MV command(Multiview port) and scale 1:30 and 1:100 is given,to take a plot of the layout.

Procedure :-

In the command prompt enter "XREF" and on the left corner attach the Dwg. Attach the drawing.

After attaching Left click on the attached drawing file. Bind the attached file and then explode the drawing file.

Layout design for the industrial building's section:

Open the industrial building section drawing.Consider the layout tab.The tab should be renamed "Industrial Section."

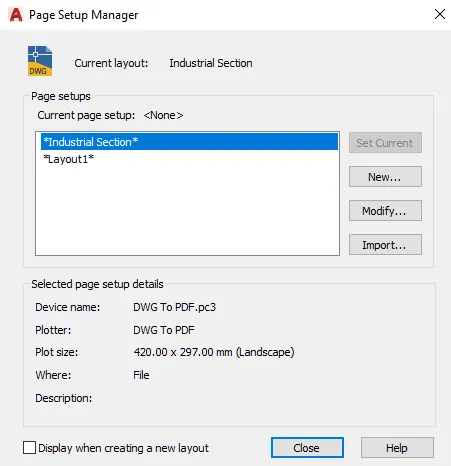

To access the page set up manager, right-click the tab.Click on new, enter a name, and a dialogue box for page setup appears.

Click on Modify.Give the paper size as A3 in page setup dialogue box.Make it current, the layout paper size changes to A3.

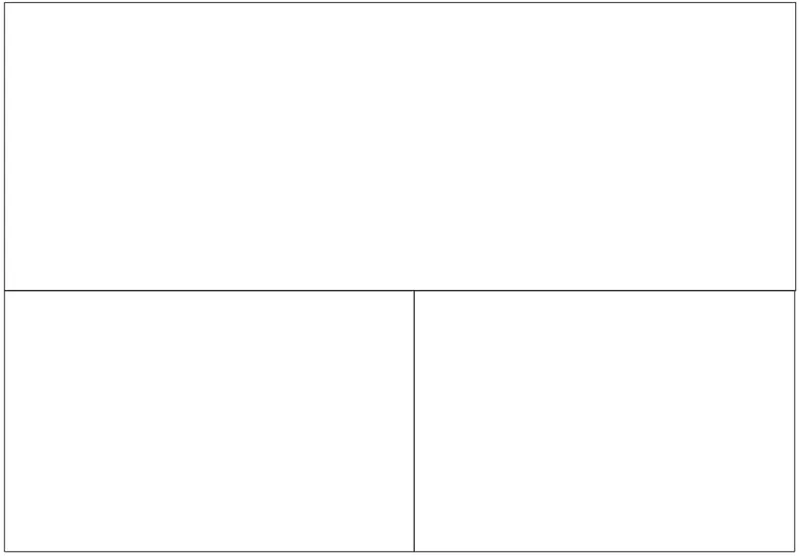

Use "MV" command and create 3 viewports accordingly.

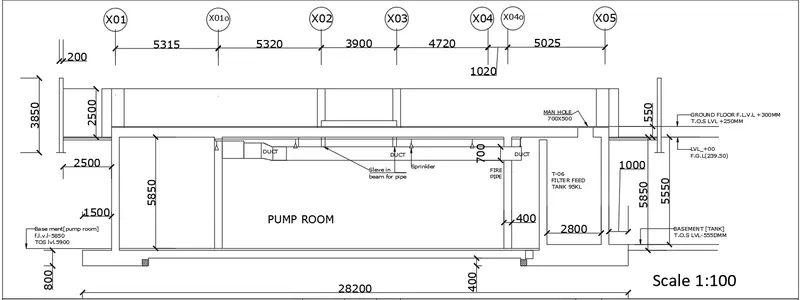

Click on the first viewport while using the command "MS" to access the model space.From the toolbar at the bottom or by selecting Properties from the context menu, change the scale to 1:100.

Fit the drawing inside the viewport using the pan command.By using the text command, enter SCALE1:100 with a 6 character text height, and lock the viewport.

Go to model view, and create views for the next two viewports.

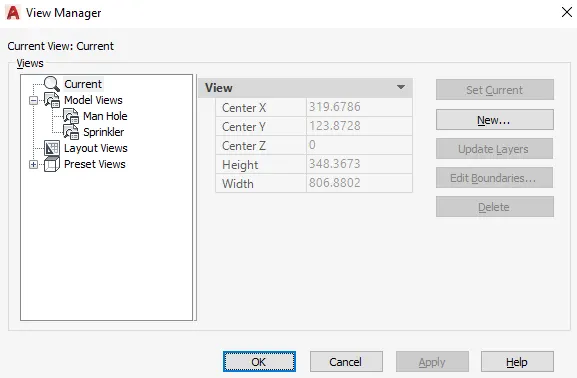

Command "VIEW" - the view manager dialogue box appears - create new - name it "manhole view" - select define window and choose the view we need to create, then press enter.similarly, make a sprinkler view called sprinkler view.

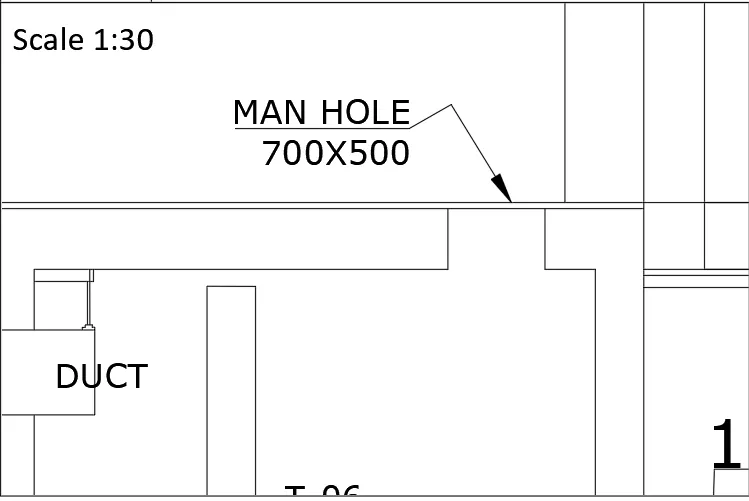

Go to the industrial section of the layout now, type "MS," and then click in the left model space.Use the "view" command now, choosing the manhole view, and then click "set current."

The view will then be shown on the model space.From the bottom toolbar, set the scale to 1:30.

By multiline text give the text as SCALE 1:30 with a text height of 6. Lock the viewport from the bottom toolbar lock symbol.

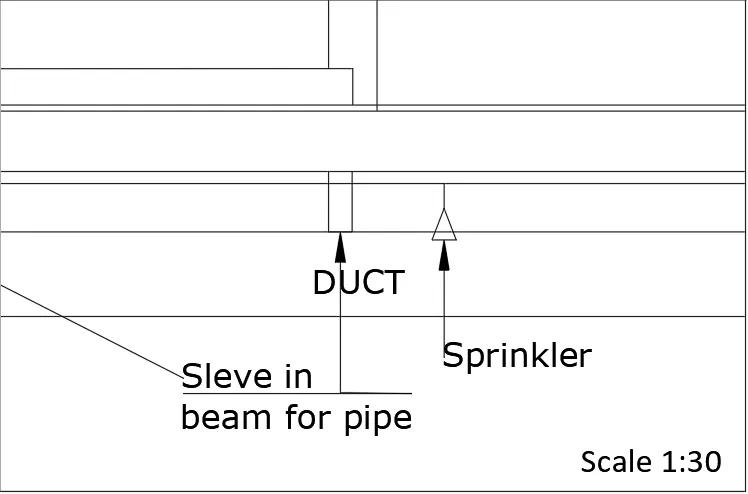

Type "MS" and click on the third viewport.Use command "VIEW" and select the sprinkler view and make it current.

Select the scale to 1:30 from the bottom toolbar. By multiline text insert the text as SCALE1: 30 with a text height of 6. Lock the viewport.

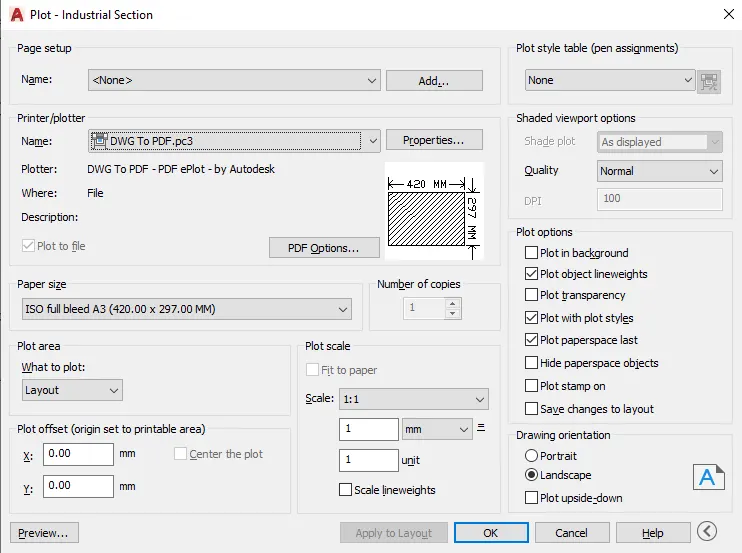

Take a plot of the viewport.Enter the command "PLOT".The dialogue box appears, select paper size as A3, what to plot as layout .Give pen assignments as monochrome

Result :-

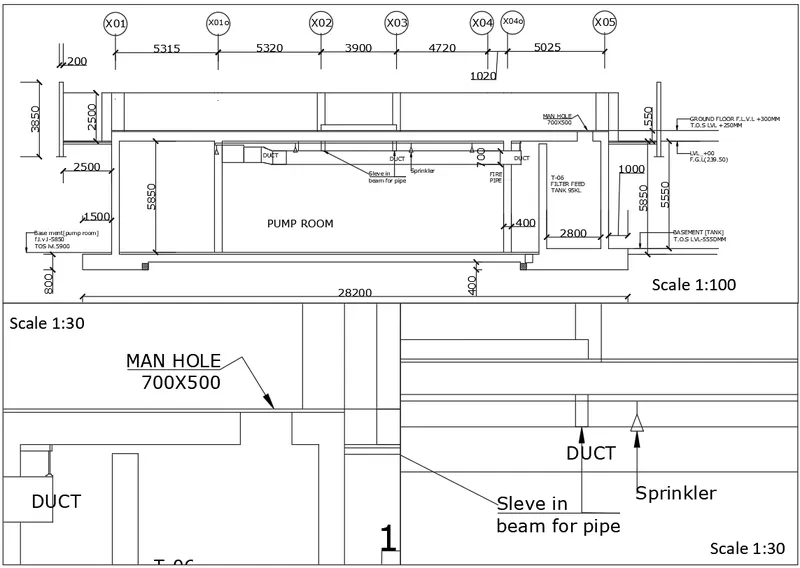

1. Layout of the industrial building's section is made, viewport is made using the MV command, and scales of 1:30 and 1:100 are specified.
2. Plot of the layout is taken.

RESULT :-

1. A plot is created, along with a plan and section layout, viewports, and attribute editing.
2. Kitchen layout in A4 sheet is created and plot is taken.
3. Multiview ports for industrial section drawing is created, scaling and plotting is done.
