Creating Bar Bending schedule, Different Door types, and Creation of standard drawing templates using AutoCad

CREATING BAR BENDING SCHEDULE, DIFFERENT DOOR TYPES AND CREATION OF STANDARD DRAWING TEMPLATES USING AUTOCAD

AIM:

To create:

• Template, inserting text and attributes
• Doors of warehouse and placing it in blocks
• Electrical legend and making it blocks
• Different types of door for residential project
• Drawing bars, making it as block and making it as a table as bar bending schedule

COMMANDS USED:

• Block
• Insert
• Attributes
• Field
• Rectangle
• Line
• Text
• Array
• Mirror
• Copy
• Offset

1.

AIM:

Creating templates, inserting text and attributes

• Custom1_titleblock
• Custom2_titleblock

PROCEDURE:

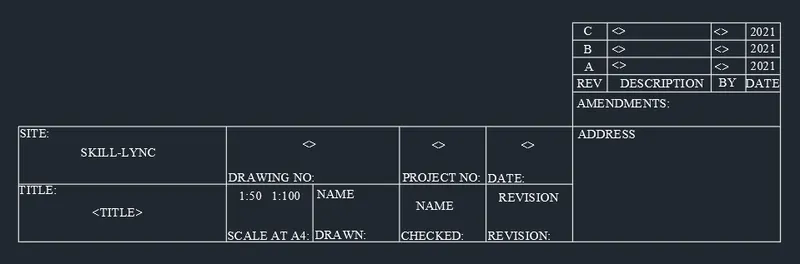

Custom1_titleblock:

• Create a rectangle and divide it with line for the text box into columns
• For rows take offset
• By multiline text, type rev, description, by, date on the first row by specified text height and style-times new roman
• As it is repeated in the other two row, use array command
• Again, use multiline text and type the required text in caps

Creating block:

• Command ‘B’ – block definition dialogue box appears – give name as ‘Custom1_titleblock’ – select pick point and select a point in the table – select the object – select the whole table including the text.
• Give scale uniformly and tick allow exploding, select convert to block option
• As we have selected retain the object it will be retain and same as the actual drawing and a block is created for the objects that we have selected.
• If we want to use the block goto insert select the object and insert it

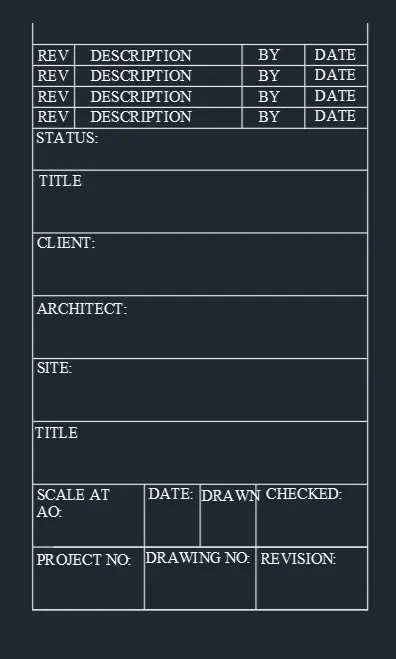

Custom2_titleblock:

• Drawing rectangle as required with lines divide the line to the required rows and columns
• With the use of multiline text insert as required
• Create a small rectangle at the right corner, explode it, create rows and columns
• By attributes, create tge text inside it. Command ‘ATT’ - attribute definition dialogue box appears
• Insert the tag line – tag we are giving, visible before creating the bock
• Place the tag line on the place we need to hear 1^st row 1^st column of the box created. Create attributes similarly for the rest of the text.
• Now create a block command ‘B’ with the name ‘Custom2_titleblock’, select the whole title block and make it as block. After creating it as block we can see that all attributes will change to their default values

RESULT:

• Custom1_titleblock is created:

• Custom2_titleblock is created:

2.

AIM:

Creating doors for warehouse and placing it in blocks:

• Door 1 – 2330 x 2750 mm
• Door 2 – 2330 x 2750 mm

PROCEDURE:

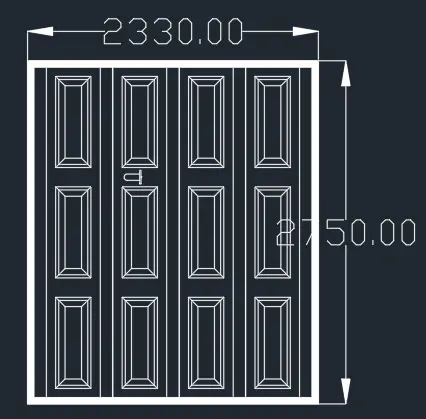

Door 1 – 2330 x 2750 mm:

• Create a rectangle of size 2330 x 2750 mm
• Offset 50 mm as a frame, 100 mm for the left side, explode the rectangle
• By divide ‘DIV’ divide the top line into 4 segments, from the division point, draw lines vertically to divide it into shutters
• Offset 25 mm on both sides for the thickness, delete the center line
• Create a rectangle to show the panels, offset 25 mm from the 1^st rectangle and offset 100 mm from the 2^nd Draw lines joining the corners of the outside and inside rectangle
• Create the panel as a block, so that it is easy to copy. Create lack by rectangle command, and fillet the corners with the radius 5 mm
• By using the copy all the frames are copied
• Layer is created and all the objects are kept in different layers

CREATING BLOCK:

• Command ‘B’ – give name as door 1 – pick point – select corner point – select object – select the full object – ok, select scale uniformly and allow exploding

DOOR 2 – 2330 X 2750 mm:

• Create a rectangle of size 2330 x 2750 mm
• Offset 50 mm as a frame, 100 mm for the left side, explode the rectangle
• By divide ‘DIV’ divide the top line into 4 segments, from the division point, draw lines vertically to divide it into shutters, to make the points visible, command ‘DDPTYPE’ select the style of point
• Offset 25 mm on both sides for the thickness, delete the center line
• Create lock by rectangle drawn on oppsite sides and fillet the corners with radius 5 mm
• Make layers and insert lock, frame in different layers

CREATING BLOCK:

• Command ‘B’ – give name as door 2 – pick point – select corner point – select object – select the full object – ok, select scale uniformly and allow exploding

RESULT:

The doors block was created

3.

AIM:

To create electrical legend

• Create each electrical symbol
• Creating them as block
• Arraying them in legends

PROCEDURE:

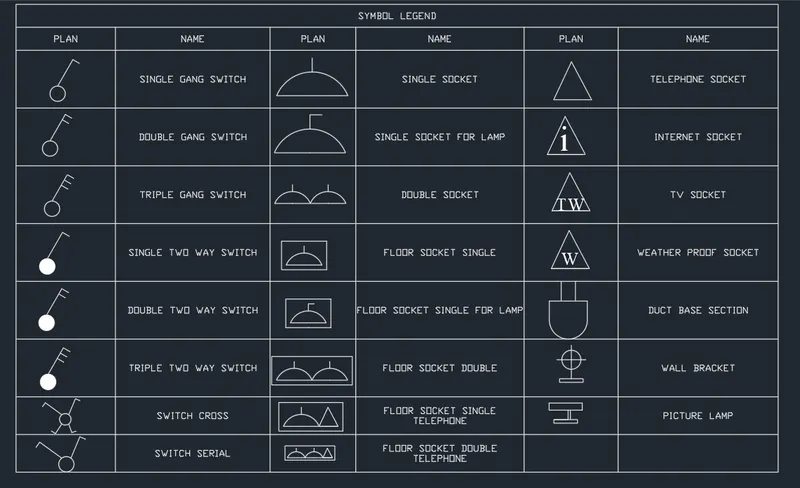

Creating electrical symbols:

• Single gang switch: draw a circle of radius 64 mm and with line draw an inclined line vertical and horizontal line perpendicular to the inclined as required
• Double gang switch: draw circle and draw two horizontal lines and vertical inclined line
• Triple gang switch: draw circle, 1 vertical line and three horizontal lines
• Single two – way switch: draw same as single gang switch and with donout command give internal dia as zero and for external diameter select it in the circle
• Double two way switch: draw same as double gang switch and create donout
• Triple two way switch: draw same as triple gang switch and create donout
• Switch cross: create a circle and donout inside and with line command draw an inclined vertical and perpendicular horizontal. Mirror the line in both directions
• Switch serial: copy the switch cross and delete two bottom lines, remove the donout also
• Single socket: create a circle, divide it into half and draw a line at the top
• Single socket for lamp: from the single socket, draw a horizontal line perpendicular to vertical
• Double socket: draw the single socket and copy it to create same and place it using snap on
• Floor socket single: draw a rectangle surrounding single socket
• Floor single socket for lamp: draw a rectangle surrounding single socket for lamp
• Floor socket double: create two single socket and place a rectangle surrounding it
• Floor socket single telephone: draw a single socket, a triangle and surrounded by a rectangle
• Floor socket double, telephone: draw 2 single socket and a triangle surrounded by a rectangle
• Telephone socket: draw a triangle
• Internet socket: insert text ‘I’ in the triangle
• TV socket: insert text ‘TV’ in the triangle
• Weatherproof socket: insert text ‘W’ in the triangle
• Duct base section: draw a rectangle – select the bottom grip point – select add vertex – then pull the vertex to create a bend, with line draw the lines
• Wall bracket: with rectangle draw the base, create a circle, draw a line connecting the rectangle and circle, draw a cross line inside the circle
• Picture lamp: draw two rectangles connected by a line

Creating a block:

• Command ‘B’ give name as single gang switch – pick a point – select object (created single gang switch) – tick scale uniformly and allow exploding options
• Similarly define each one of them as block giving the respective names, do the same procedure for the remaining symbols

Creating and arranging them in layers:

• First create a rectangular table having 10 rows and 6 columns
• Place each of the blocks in the respective rows and columns
• To enter text with the block from the insert tab – select field – select object – select block
• Place the text in the respective rows give text height as required, similarly place all the title inside the legends

RESULT:

4.

AIM:

To draw the doors of residential project and create it as block

• D1
• D2
• D3
• D4
• D5
• D6

PROCEDURE:

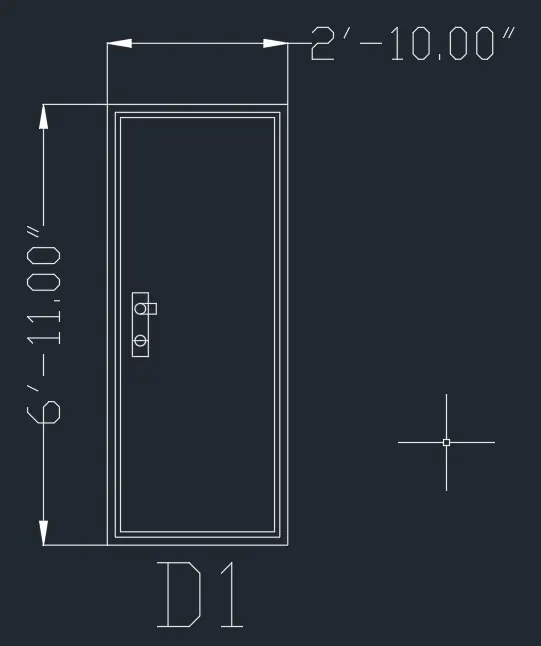

D1 – 2’-10” X 6’-11”:

• Draw rectangle with dimensions 2’-10” and 6’-11”, draw offset 1.5” for frame, draw offset 1” for shutter
• Draw lock by two rectangles perpendicular to each other and fillet the corners with radius 0.1” and circle, write text by multiline text ‘D1’
• Create it as block ‘B’ – give name as type – ‘D1’ – pick a corner point – select the object, then block is created

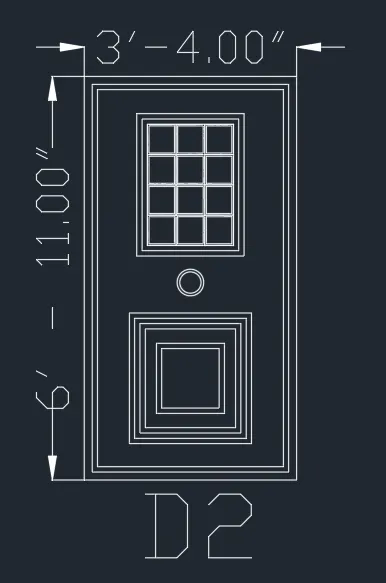

D2 – 3’-4” X 6’-11”:

• Draw rectangle with dimensions 3’-4” and 6’-11”, draw offset 1.5” for frame, draw offset 1” for shutter
• Draw rectangle for panel 1’-11” and 2’-9.1”, then offset 1” two times, draw a rectangle 5.4” x 5.7”, offset 0.3”
• Copy it with copy command ‘CO’ – select mode – select the rectangle – select array – enter no. of array as 3 – place it as required, copy the 3 rectangles to 4 rows
• For the second panel draw a rectangle of 1’-11” x 2’-0.6”, offset 1” 3 times draw another rectangle inside this of 1’-0.8” x 1’-1.2” and offset 1”
• Draw lock by circle in between two panels, write text by multiline text ‘D2’
• Create it as block ‘B’ – give name as type – ‘D2’ – pick a corner point – select the object, then block is created

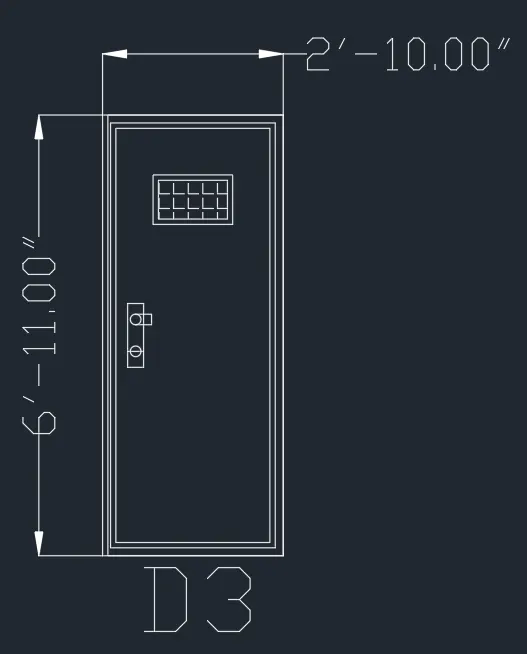

D3 – 2’-9” X 6’-11”:

• Draw rectangle with dimensions 2’-9” and 6’-11”
• Offset 1” for thickness, 2” offset for frame, 1” thickness, offset 1.5” as shutter thickness
• Draw rectangle at the top for ventilation 1’-3” x 9.3”, give offset 1” for thickness, hatch inside the rectangle
• Draw lock by rectangle two of them, perpendicular to each other and a circle
• Create it as block ‘B’ – give name as type – ‘D3’ – pick point – select the object – tick scale uniformly and explode all

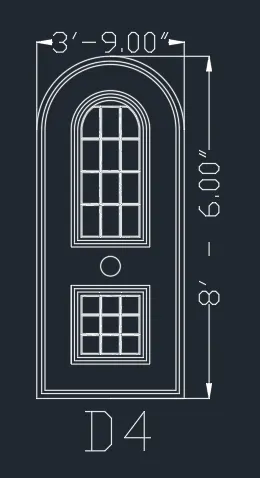

D4 – 3’-9” X 8’-7”:

• Draw rectangle ‘REC’ of dimension 3’-9” x 6’-10”, explode it and create an arc with 2 – point method with both point as the endpoints, offset the arc and the line with 1.5” and then 1”
• Offset 8” from arc and rectangle for panel and divide it into two, take 1” offset 2 times to show the thickness on top figure and bottom rectangle, create rectangle inside the panel
• For lock, create a circle
• Make it a block, name as type ‘D4’ – pick a point and select the object tick the dialogue box of uniform scale and explode all

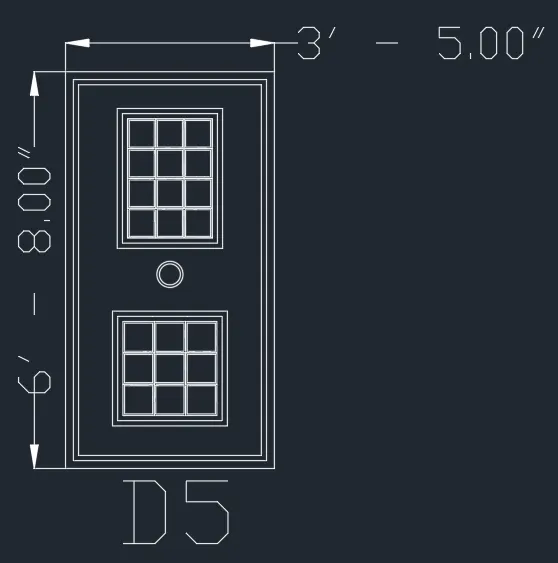

D5 – 3’-5” X 6’-8”:

• Draw a rectangle of 3’-5” x 6’-8”, offset 1.5” for frame, offset 1” as shutter thickness, create another rectangle inside with offset 4.4”
• Create another rectangle on the bottom 2’-2.9” x 2’-2.6”, offset 1” two times for both rectangles
• Create rectangle inside for panels with offset 0.5”. copy it for 3 columns and 4 rows, similarly copy it in bottom rectangle for 3 rows and 3 columns
• Create it as a block command ‘B’ – give name as type ‘D5’ – pick point – select object – tick scale uniformly and explode all

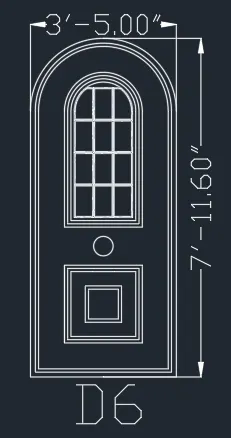

D6 – 3’-5” X 7’-11.6”:

• Draw rectangle ‘REC’ of dimension 3’-5” x 7’-11.6”, explode it and create an arc with 2 – point method with both point as the endpoints. Offset the arc and the line with 1.5” and then 1” for frame
• Offset 8” from arc and rectangle for panel and divide it into two, take 1” offset 2 times to show the thickness on top figure and bottom rectangle. Create rectangles inside the top panel, 3 row and 4 columns
• For bottom panel, offset the rectangle by 1” 3 time as and 3.3” and again 1”, for lock, create a circle
• Make it a block, name as type ‘D6’ – pick a point and select the object tick the dialogue box of uniform scale and explode all

RESULT:

The doors are created and are made into blocks

5.

AIM:

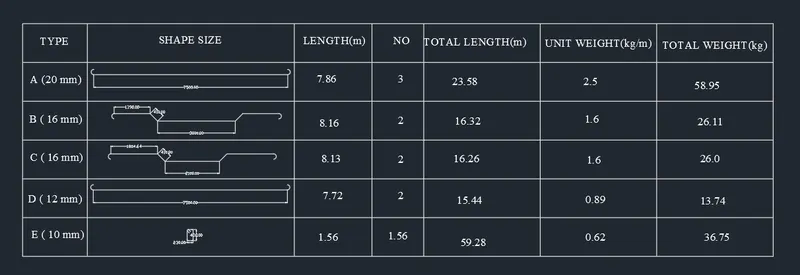

To create bar bending schedule and insert it as block

• Drawing each shape
• Creating it as block
• Inserting it in table as bar bending schedule

PROCEDURE:

Drawing each shape:

A - 20 mm:

• Draw a line of 750 cm for straight bar, create an arc for the bend. Create on one side and mirror it on another side

B – 16 mm:

• Draw line of 300 cm for straight bar, draw vertical line of 41 cm and extend a horizontal line and draw a line inclined at 45 degrees from the base of vertical line up to horizontal line
• Trim off the unwanted lines, copy the same on the other side. Draw a horizontal line of 139 cm and copy it on other side. Draw bend with arc and mirror the same on other side

C – 16 mm:

• Draw line of 210 cm. draw vertical line of 41 cm and extend a horizontal line and draw a line inclined at 45 degrees from the base of vertical line up to horizontal line
• Trim off the unwanted lines, copy the same on the other side. Draw a horizontal line of 180 cm and copy it on other side. Draw bend with arc and mirror the same on other side

D – 12 mm:

• Draw a line of 750 cm for straight bar, draw an arc downwards. Mirror it on the other side

E – 10 mm:

• Draw a rectangle of 23 cm and 43 cm. fillet the corner with fillet radius 5 cm. draw two line of 120 cm

Creating block:

• Creating each of them as block by using command ‘B’ – give name as A – pick a point – select the object – select delete – tick box of scale uniformly and explode all
• Similarly create 5 blocks: A, B, C, D, E and insert each of the bars as blocks

Inserting blocks in the table:

• Create a table with rectangle and divide it into 6 rows and 7 columns. With multiline text enter type shape size, length, no, total length, unit weight, total weight and all other text. By command ‘L’ insert each of the block in respective columns

RESULT:

RESULT:

• Template is drawn and text and attributes are inserted
• Doors of warehouse are drawn and placed it in blocks
• Electrical legends are created and it is made into blocks
• Different types of doors for residential project are drawn and are placed in blocks
• Bars are drawn and made it as blocks and inserted it in table as bar bending schedule
