Creating Bar Bending schedule, Different Door types, and Creation of standard drawing templates using AutoCad
Aim :
To create:
1. Template ,inserting text and attributes.
2. Doors of warehouse and placing it in blocks.
3. Electrical legend and making it blocks.
4. Different types of door for residential project.

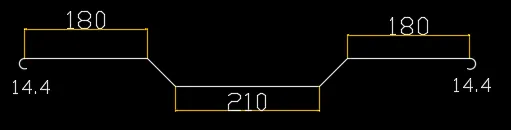

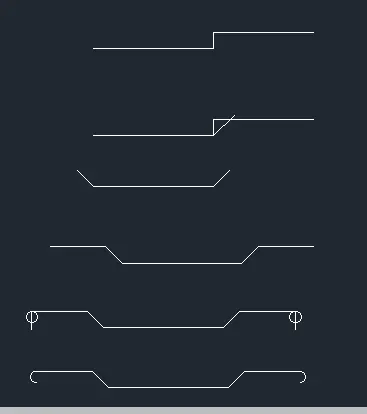

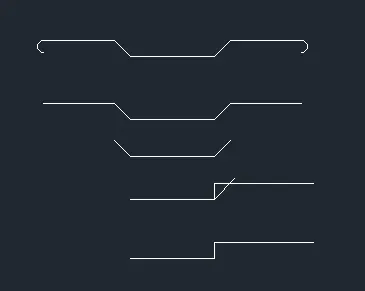

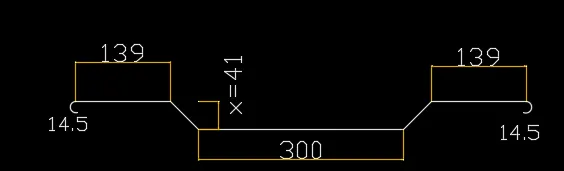

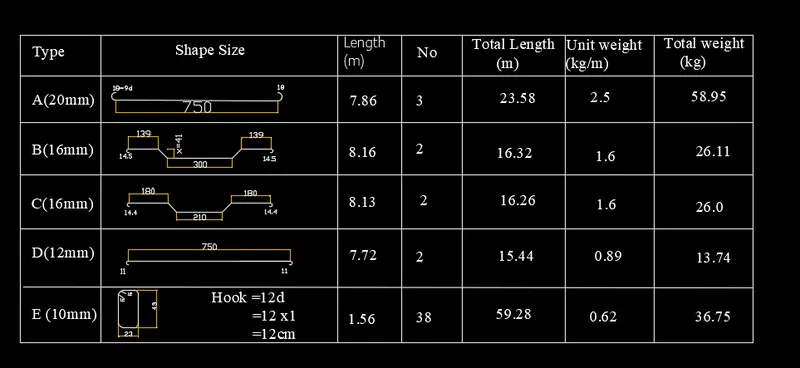

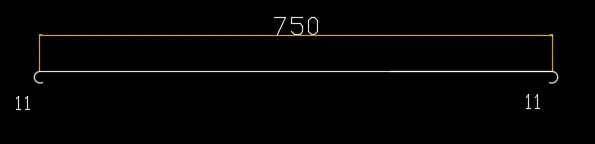

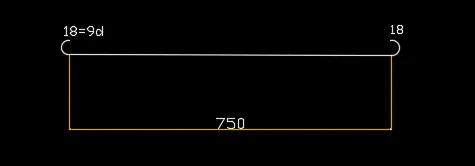

5. Drawing bars ,making it as block and making it as a table as bar bending shedule.
Commands used:

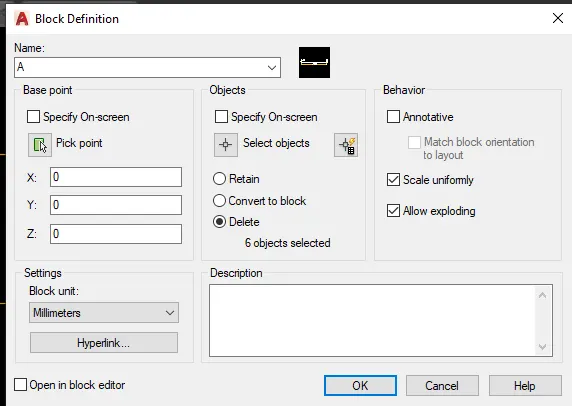

I) Block - To make different elements into a single entity for easiness for work. Command "B" . Block defenition dialogue box apperas .Create a name for block- specify the base point ( any point of the object)- select the object - the blockis created.
- We can pick a point or we can specify on screen or give the coordinates.
- After selecting objects there are options:
- Retain : the object will be retained as it is and block will be craeted.
- Covert to block: the object is convereted into block.
- Delete : The object will be deleted from the screen but block will be craeted , we can insert it whenever needed.
- We can give scale uniformly , so that the block will be scaled in same scale in X and Y.
- If we seelct allow exploding, the block can be exploded when required.

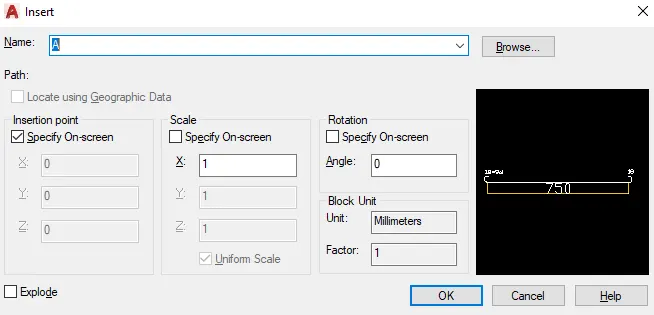

II) Insert - To insert a block. Command "I" - we can select the required block created and insert it.
III) Attributes- Command "ATT" - attribute define dialgue box appears - give tag line, prompt and default value - give the mode -constant ,lock etc.,alignment of text.
IV)Field- To create text along with block .(text and block are connected)From insert tab -click on field -click on object-select block- slect the name of the block to be appeared-select the text style and click on Ok.
V)Rectangle - Command "REC" - clcik on dimension in command propmt and give the width and height.
VI)Line - Command "L"
VII)Text - Command "T" - enter the text box , give the height and style , then type the required text.
VIII) Array - To repeat the objects in rows and columns ( rectangular array) .Command " AR" -select the object to be repeated - select rectangular- enter the number of rows, columns and spacing etc.
IX) Mirror- Command "MI"
X)Copy -Command "CO"
XI)Offset Command "O"
1. Create the templates as shown in Figures. Take the size of the title block as per industry standards or you can assume it as per the size of the paper. Use text and attributes wherever required. After creating the title block you need to save it as a block with names: Custom1_titleblock and Custom2_titleblock, respectively.
Aim :
Creating templates , inserting text and attributes
a. Custom 1_ titile block
b. Custom 2_ title block
Procedure:
a. Custom 1_ title block

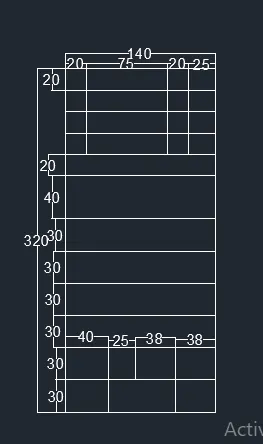

1) Make table:
- Create a rectangle of size 320mm and 140 mm.
- Divide it with line for the text box into columns (on top side) offset horizontally 20mm,75mm,20mm and (on bottom side) 40mm,25mm and 38mm. also trim unecessary line
- For rows, take offset vertically of 20mm(5times),40mm, 30mm(5times).
2) write text:
- By multiline text , type rev ,description , by ,date on the first row by text height 6 and style - Times New Roman.
- As it is repeated in the other two rows , take array give column as 1 , rowas as 3 ,
- Again use multiline text and type the required text in caps with text height 4 and style as Times New Romans
- Status:
- TITLE
- Client
- Architect
- Site
- Scale, date ,Drawn by:,Checked by:
- Project no: , Drawing no: , Revision:
These are the items we have to provide in the title block.

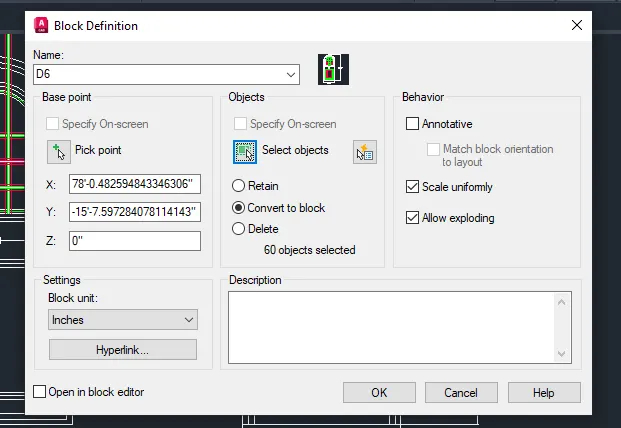

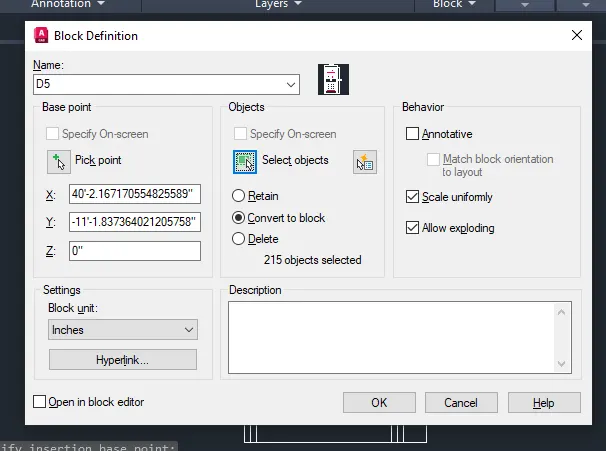

3) Creating block :

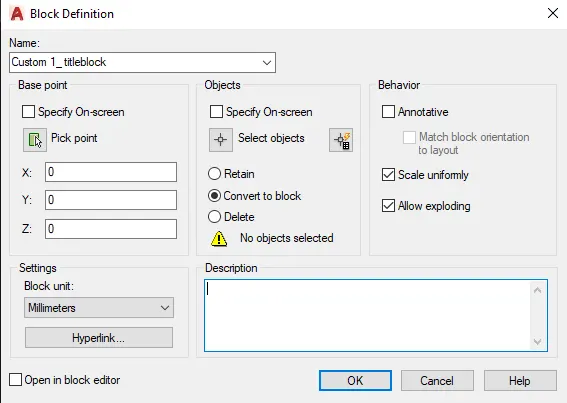

- Command "B" - block defenition dilaogue box appears- give name as "Custom1_ title block"- select pick point and select a point in the table (corner point)- select the object- select the whole table including the text
-Select convert to block option
-Give scale unifromly and tick allow exploding. And press ok.
As we have selected ,convert to block option , the object itself is converted to block and we do not have to insert it again.
RESULT:

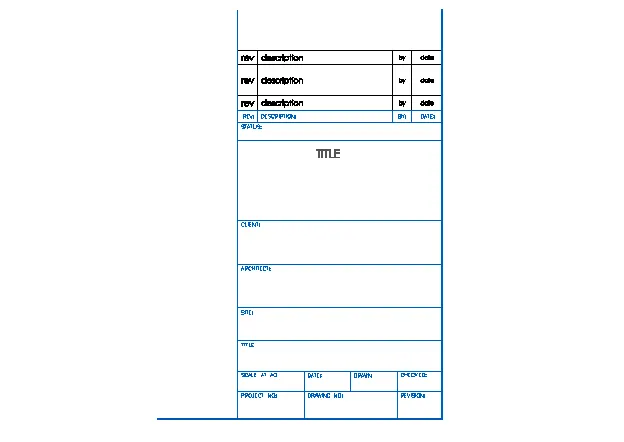

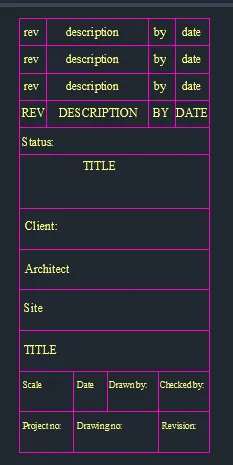

a. The Custom_1 title block is created :

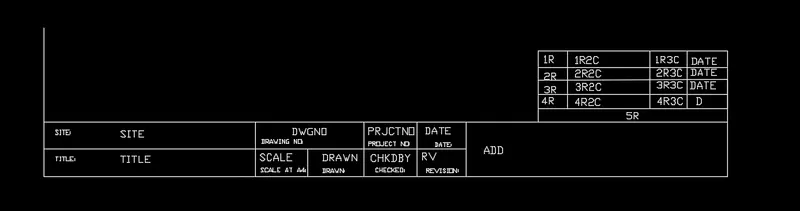

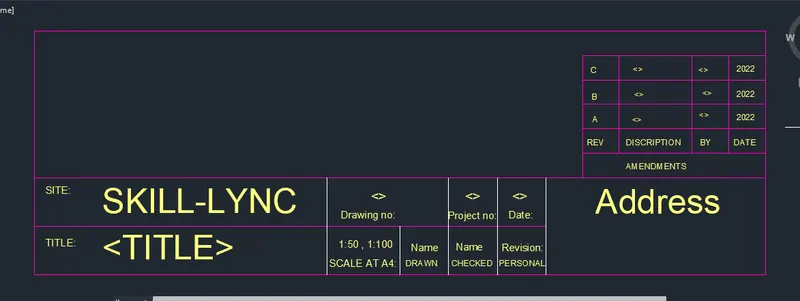

b. Custom2_titleblock:

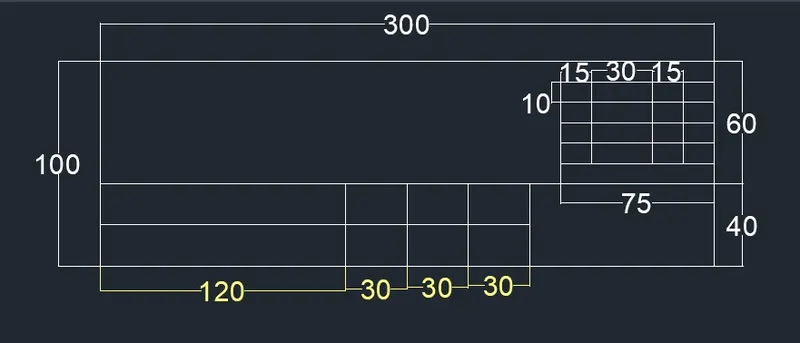

1) Make table:
- Draw rectangle of 300and 100 mm. Explode it ,create rows and columns.
- Divide it with line for the text box into columns (from left side) offset horizontally 15mm,15mm,300mm and ( from right side) 120mm,30mm and 30mm. also trim unecessary line
- For rows, take offset vertically of 20mm(5times),40mm, 30mm(5times).
- Divide it with line for the text box into columns (on top side) offset horizontally 20mm,75mm,20mm and (on bottom side) 40mm,25mm and 38mm. also trim unecessary line
- For rows, take offset vertically from bottom 20mm(2times),10mm (6times).also trim unecessary line.
2) write text by using attribute:
- write text in bottom table With the use of multiline text insert the following: height 2.5,3 and 10 used
Now write text in top table by using attribute,
By attributes , create the text inside it

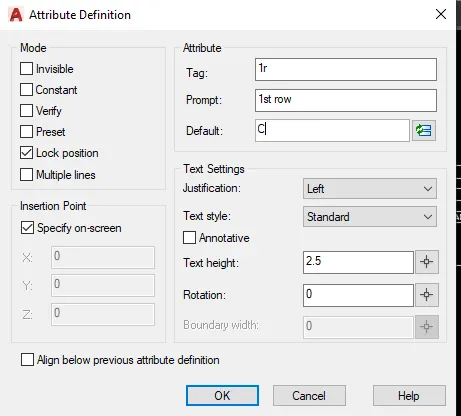

Command "ATT" - attribute defenition dilaogue box apperas .
Insert the tag line - tag we are giving ,visible before creating the block.
-prompt : Question we need to add what we need to enter
- default : the value shown in drawing after making it as a block.
- we have selected lock position here
For eg: In the first row 1st column "C" is the text to be diplayed. Command "ATT"
- tag: 1r
- prompt : 1r row
- default: C
- Place the tag line on the place we need to here 1st row 1st column of the box created.
- Create attributes similarly for the rest of the text.
- The attributes created are:
Now,
3) Create a block:

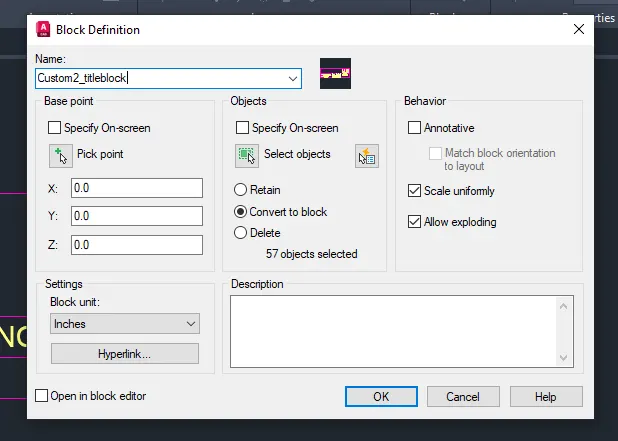

- Command "B" with name Custom2_titleblock , select the whole tilteblock and make it as a block
- After creting it as a block we can see that all arrtibutes will change to their default values. and we can edit block.

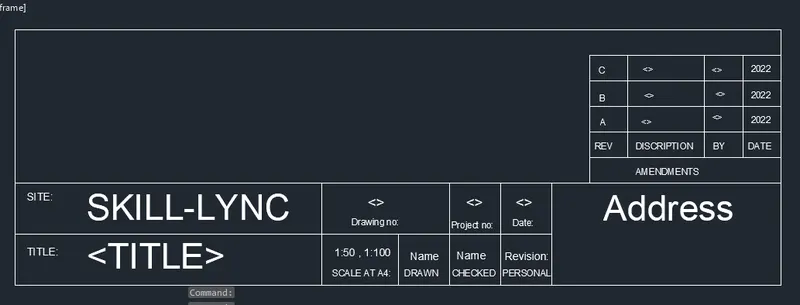

Result:

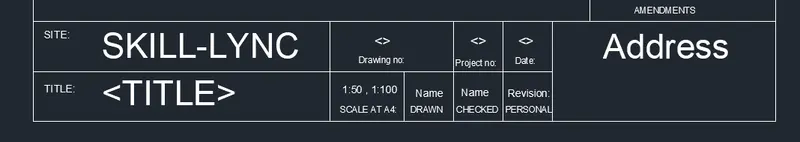

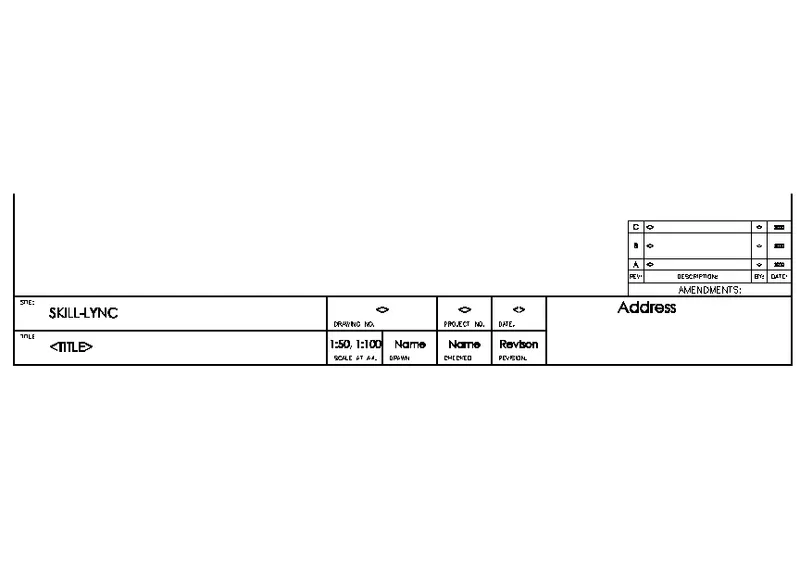

b. Custom2_tiltleblock is created:

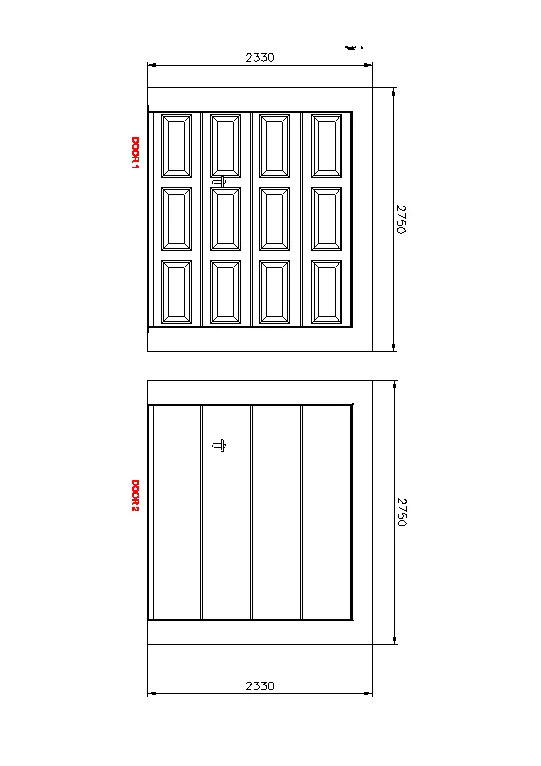

2. Create the doors type for warehouse as shown in the Figure. You need to create each door type as per standard size or given dimensions. Create the blocks of this door type after creating them.
Aim :
Creating doors for warehouse and placing it in blocks :
a. Door 1 - 2330 x 2750 mm
b. Door 2 - 2330 x2750 mm
Procedure:

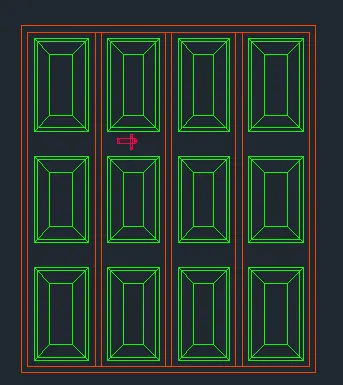

a. Door 1 -2330x2750mm

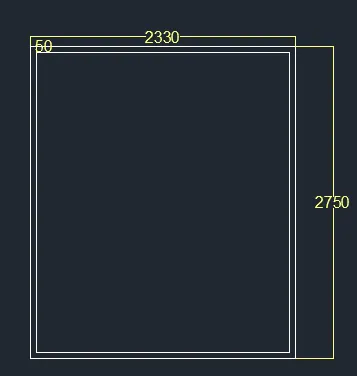

1) Create a door frame:
- Create a rectangle of size 2330x2750mm .
- Offset inside of rectangle 50mm as a frame.
- Explode the rectangle.
- By divide "DIV" divide the top line and bottom line into 4 segments.
- From the division point , draw lines verically to join this points and divide it into shutters.
- Offset 25mm on both sides for the thickness.
- delete the centre line.
2) Create a pannel:
- Create a rectangle having size is 733 x 428mm to show the panels.
- Offset 25mm from the 1st rectangle and offset 100mm from the 2nd rectangle.
- Draw lines joining the corners of the outside and inside rectangle.

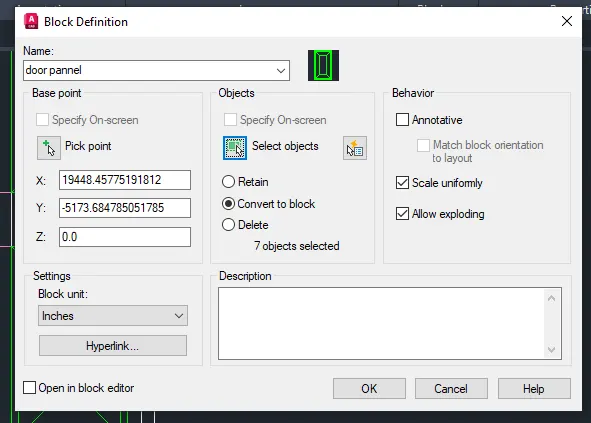

- Create the panel as a block , so that it is easy to copy .Then make a block by using block command.
- Give offset 50mm from inner side rectngle and Place this block in required position.
- Array the panels ,taking rectangular array ,rows 3 distance between : -908mm and columns 4 distnce : 561mm.

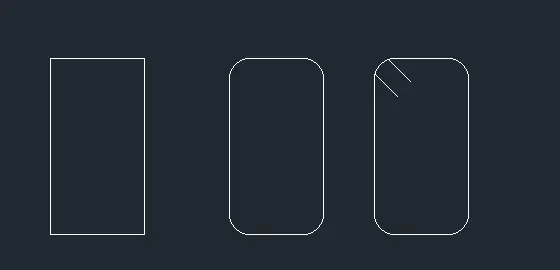

- Create lock by rectangle command , and fillet the corners with radius 5mm.
- Layer is created and all the objects are kept in different layers.

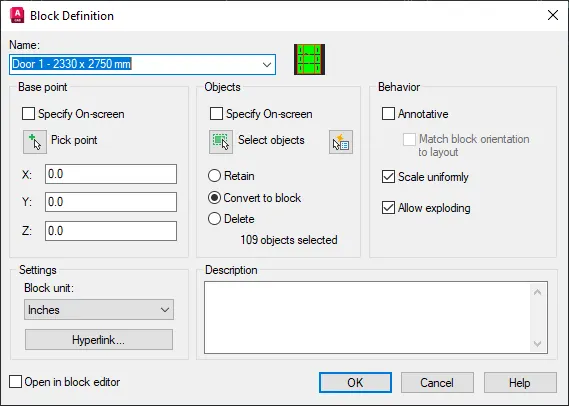

3) Creating block:
- Command "B" - give name as door 1 - pick point- select corner point- select object - select the full object - ok
- Select scale uniformly and allow exploding.
RESULT:
The door block were created.

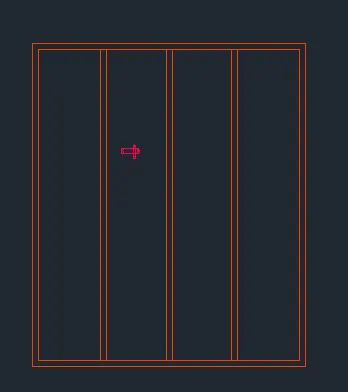

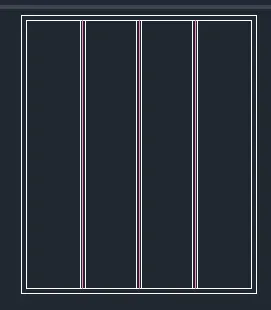

b. Door 2 -2330 x2750mm:
- Create a rectangle of size 2330x2750mm .
- Offset 50mm as a frame.
- Explode the rectangle.
- By divide "DIV" divide the top line into 4 segments.
- From the division point , draw lines verically to divide it into shutters.
- To make the points visible, Command "DDPTYPE" select the style of point
- Offset 25mm on both sides for the thickness, delete the centre line.
- Create lock by rectangle drawn on opposite sides and fillet the corners with radius 5mm.
- Make layers and insert lock,frame in different layers

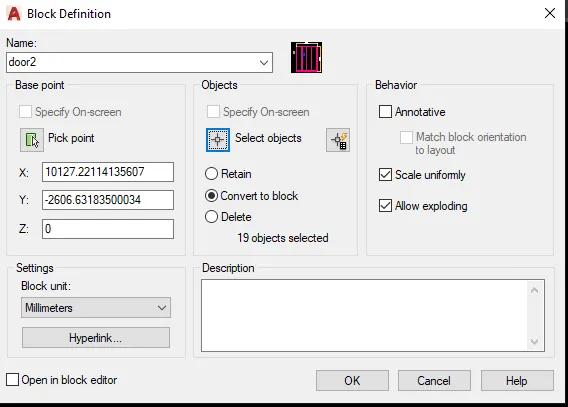

- Create it as a block "B" - pick a corner point - select the whole door -tick the box of scale uniformly- explode.
RESULT:
The door block were created.
3. Create each symbol as a block with the name given in the legend. After creating the blocks arrange them in the legend as shown in the Figure.
Aim : To create electrical legend
a. Create each electrical symbols
b. Creating them as block
c. Arranging them in legends
a. Create each electrical symbols:

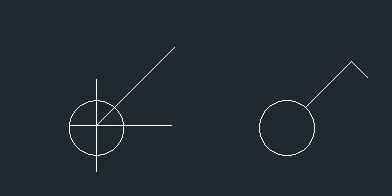

i. Single gang switch : Draw a circle of radius 60mm and with line draw an inclined line vertical and horizontal line perpendiculaR to the inclined as required.
ii. Double gang switch : Copy the Single gang switch and give offset from short inclined line having distance is 30mm.
iii. Triple gang switch : Draw circle of radius 60mm , 1 vertical incline line and three horizontal incline lines.
iv. Single two way switch : Copy single gang switch and with donout command give internal dia as zero and for external diameter select it in the circle.
v. Double two way switch : Draw same as double gang switch and create donout by using donout command.
vi. Triple two way switch : Similarly Draw same as triple gang switch and create donout by using donout command.
vii. Switch cross: Create a circle and donout inside and with line command draw an inclined vertical and perpendicular horizontal. Mirror the line in both direction.
viii. Switch serial : Copy the switch cross and delete two bottom lines, remove the donout also.
ix. Single socket : Create a circle having radius 60mm, divide it into half, trim uneccesary portion and draw a line at the top.
x. Single socket for lamp : From the single socket ,Copy it and draw a horizontal line perpendicular to vertical.
xi. Double socket : Draw the single socket and mirror it to create same select end point of socket.
xii. Floor socket single : Draw a rectangle 145 x 120mm surrounding single socket.
xiii. Floor single socket for lamp: Draw a rectangle surrounding single socket for lamp.
xiv. Floor socket double: Create two single socket and place a rectangle surrounding it.
xv. Floor socket single telephone: Draw a single socket,a traingale and surrounded by a rectangle.
xvi. Floor socket double, telephone: draw 2 single socket and a traingle surrounded by a rectangle.
xvii. Telephone socket : Draw a traingle.
xviii. Internet socket: Insert text "i" in the triangle.
xix. Tv socket : Insert text"TV' in the triangle.
xx. Weatherproof socket: Insert text "w" in the triangle.
xxi. Dect base section: Draw a rectangle - select the bottom grip point - select add vertex - then pull the vertext to create a bend ,with line draw the lines.
xxii. Wall bracket : With rectangle draw the base , create a circle, draw a line connecting the rectangle and circle, draw a cross line inside the circle.
xxiii. Picture lamp : draw two rectangles connected by a lines.
b. Creating them as block:

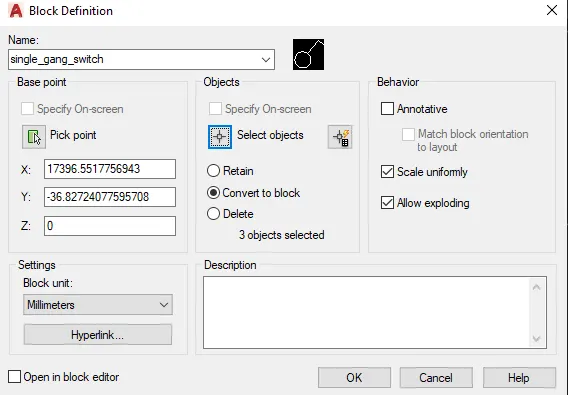

- Command "B" give name as single gang switch - pick a point - select object ( created single gang switch) - tick scale uniformly and allow exploding options.
- Similarly define each one of them as block giving the respective names.
-23 blocks will be created i. single _gang_ switch
ii. double_ gang_ switch
iii. triple_ gang_ switch
iv. single_twoway_switch
v. double_twoway_switch
vi. triple_twoway_switch
vii. switch_cross
viii. switch_serial
ix. single_socket
x. single_socket_forlamp
xi. double_socket
xii. Floor_ socket single
xiii. Floor_ single socket_ for lamp
xiv. Floor _socket double
xv. Floor _socket single_telephone
xvi. Floor _socket double_telephone
xvii. Telephone_ socket
xviii. Internet _socket
xix. Tv _socket
xx. Weatherproof_socket
xxi. Dect_ base section
xxii. Wall_ bracket
xxiii. Picture _lamp

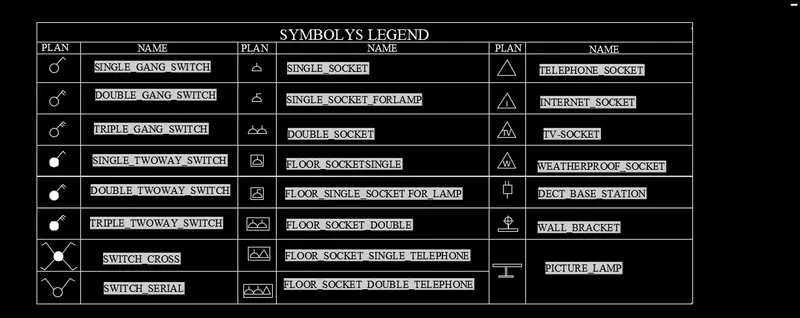

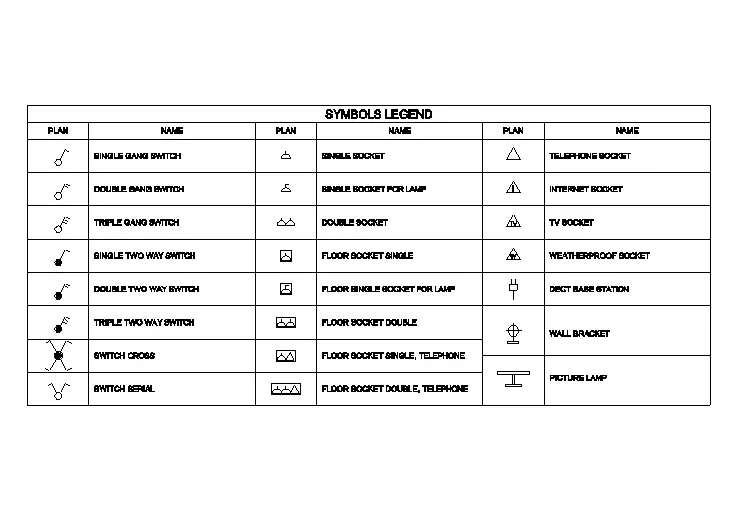

c. Creating and arranging hem in layers:
- First create a rectangular table having 10 rows and 6 columns.
- Place each of the blocks in the respective rows and columns.

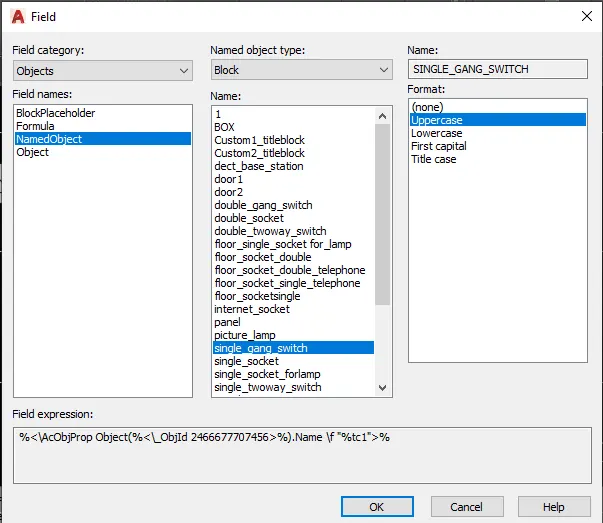

- To enter text with the block from the insert tab- select feild- seelct object -select block.
eg : for single gang switch - selct from the field.- select uppercase in format.
- Place the text in the respective rows give text heiht to 100.
- Similarly place all the title inside the legends.
Result:

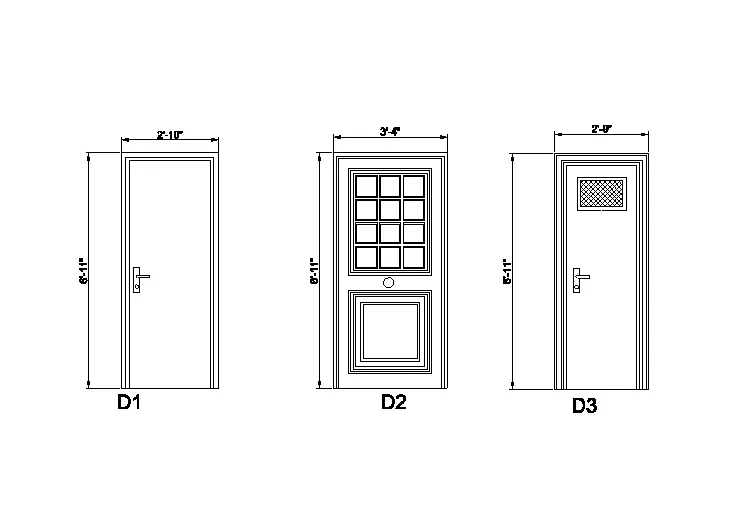

4. Create the door type for residential building as a block. Save the name of the blocks as type. Use given dimensions or assume dimensions as per industry standards.
AIM:
To draw the doors of residential project and create it as block.
a. D1 - 2'10" x 6'11"
b. D2 - 3'4" x 6'11"
c. D3 -2'9" x 6'11"
d. D4 - 3'9" x 8'0.9"

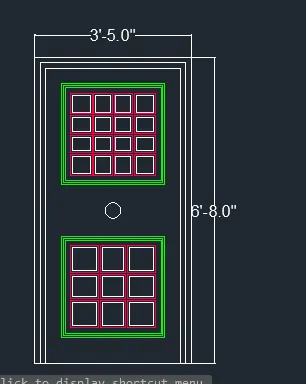

e. D5 - 3'5" x 6'8"

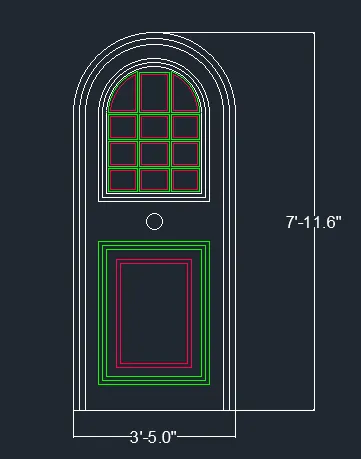

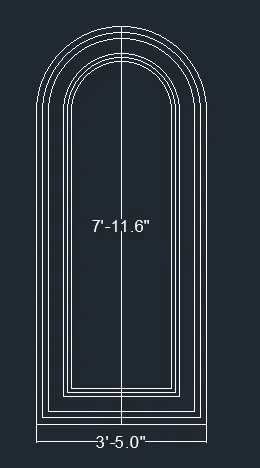

f. D6 - 3'5" x 7' 11.6"
Procedure:

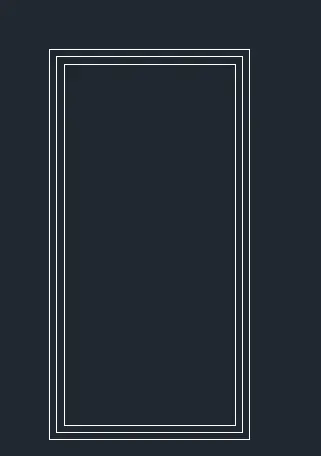

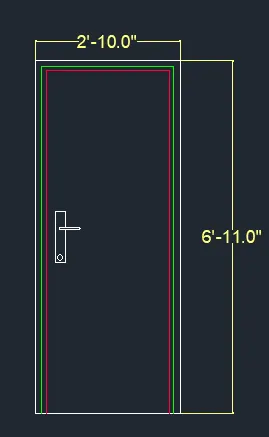

a. D1 - 2'10" x 6'11":
- Draw rectangle with dimension 2'10" and 6'11".
- Draw offset 1.5" for frame.
- Draw offset 1" for shutter.
- Draw lock by two rectangle perpendicular to each other and fillet the corners with radius 0.1"and circle.
- write text by multiline text "D1".

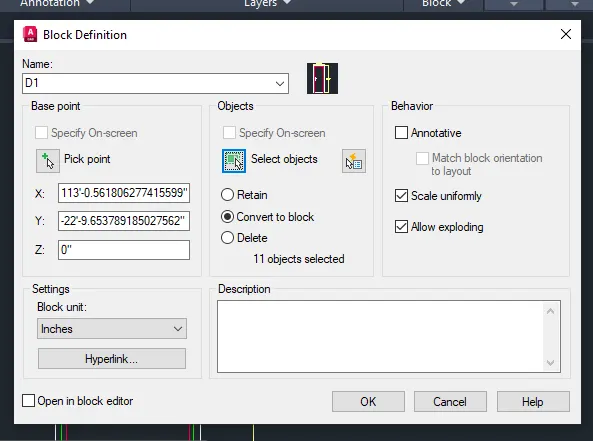

- Create it as block "B"- give name as "type-D1" -pick a corner point- select the object . then block is created.
Result:

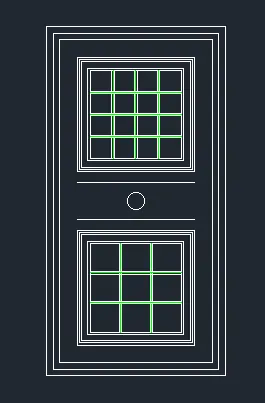

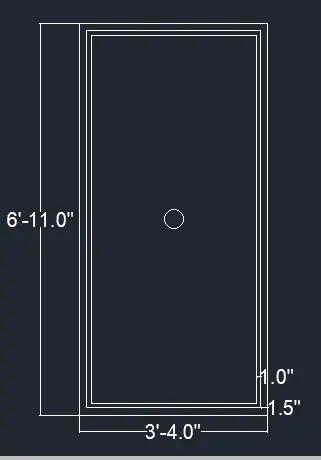

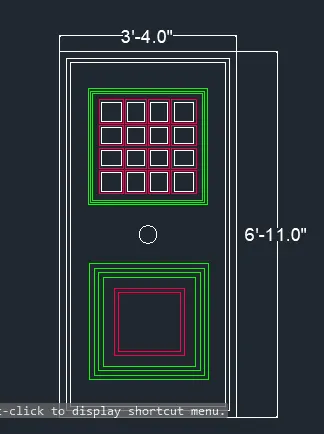

b. D2 - 3'4" x 6'11":
1) Draw door frame:
- Draw rectangle with dimension 3'4" and 6'11".
- Draw offset 2" inside for frame.
- Draw offset 1" inside for shutter.
- Draw lock by circle in between the two panels which is geometric centre of rectangle.
2) Draw door pannel:
- Offset 1.5" inner side of frame. Explode it.

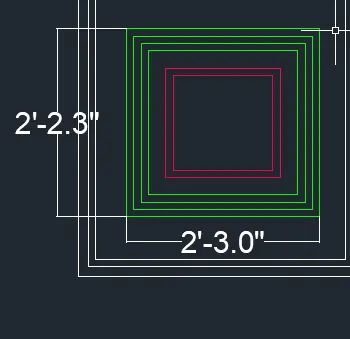

- Give offset vertically from top and bottom 2'- 2.3". Trim lines uneccessary.
- For top pannel design:
- Draw rectangle for panel design offset 1" three times in top.
- Top rectangle Explode it. divide Top and bottom line in 4 part. join this point and give offset 0.25" both side of line.

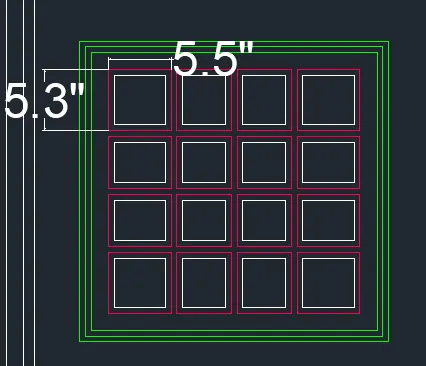

- Draw a rectangle 5.5" x 5.3" at top corner, offset 0.5" inside of rectangle.
- Copy it with copy command "co" - select mode - select the rectangle- select array-enter no: of array as 3 -place it as required.
- Copy the 3 rectangle to 4 rows.
- For the bottom panel design:
- Give offset 1.5" 4 times inside of bottom rectangle.
- Again Give offset 2.5" and 1.5"
- write text by multiline text "D2".

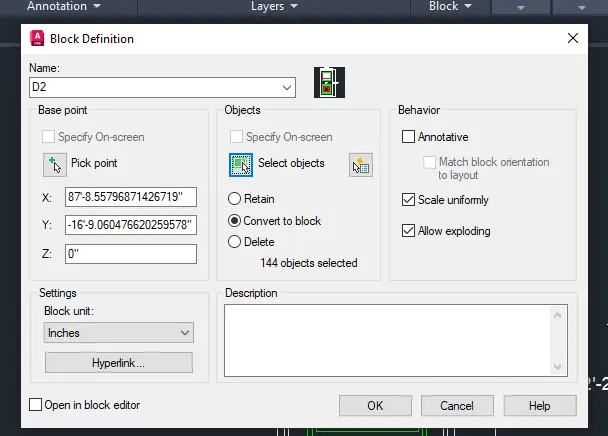

- Create it as block "B"- give name as "type-D2" -pick a corner point- select the object ,then block is created.
Result:

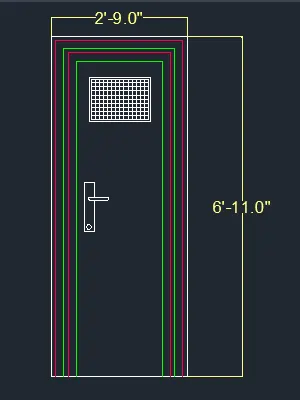

c. D3 -2'9" x 6'11"

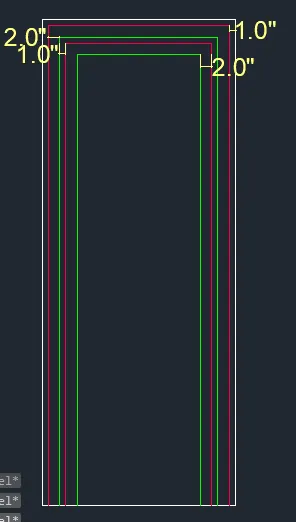

- Draw a rectangle of 2'9" x 6'11".
- Offset 1" for architrave thickness ,2"offset for frame , 1" thickness.
- Offset 2" as shutter thickness.
- Give offset At 4" from top and 2.9" from right side.

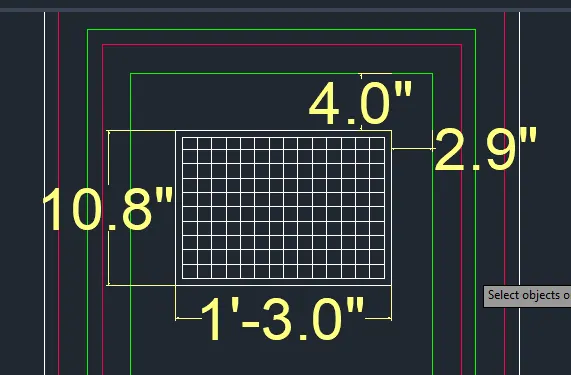

-Then Draw a rectangle at the top for ventilation 1'3" x 10.8", give offset 1" for thickness.

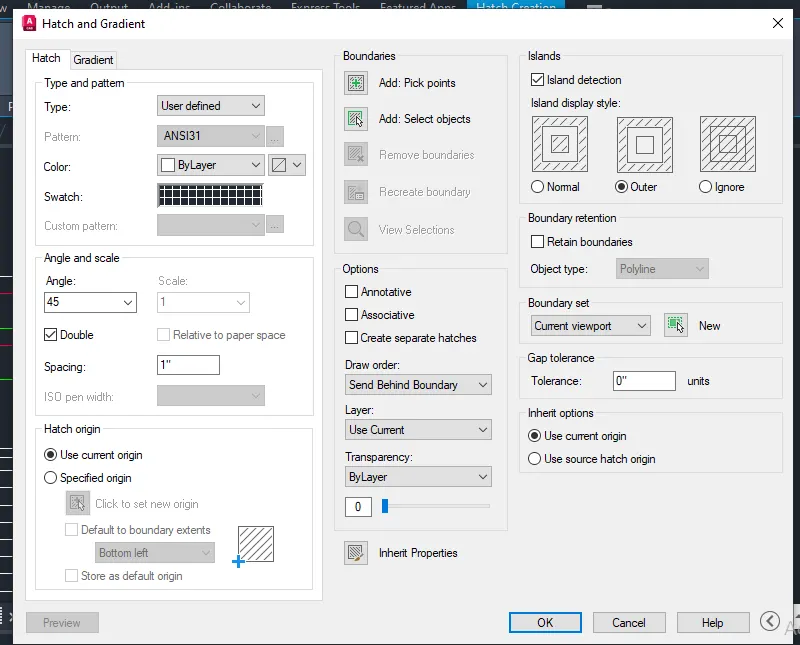

- Hatch inside the rectangle .
- Create lock by rectangle two of them , perpendicular to each other and a circle.

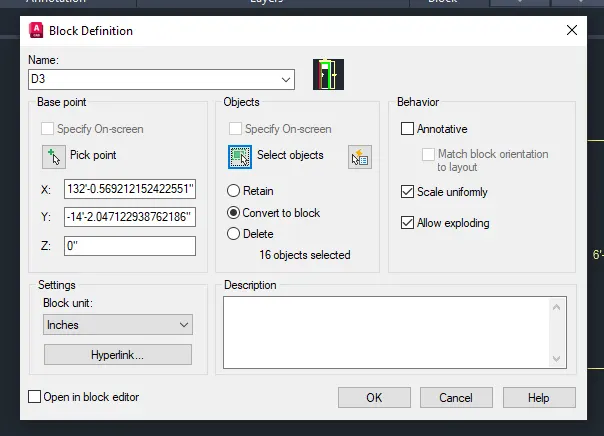

- Create it as a block Command "B" - give name as type d3 -pick point- select object -tick scale uniformly and explode all.
Result:

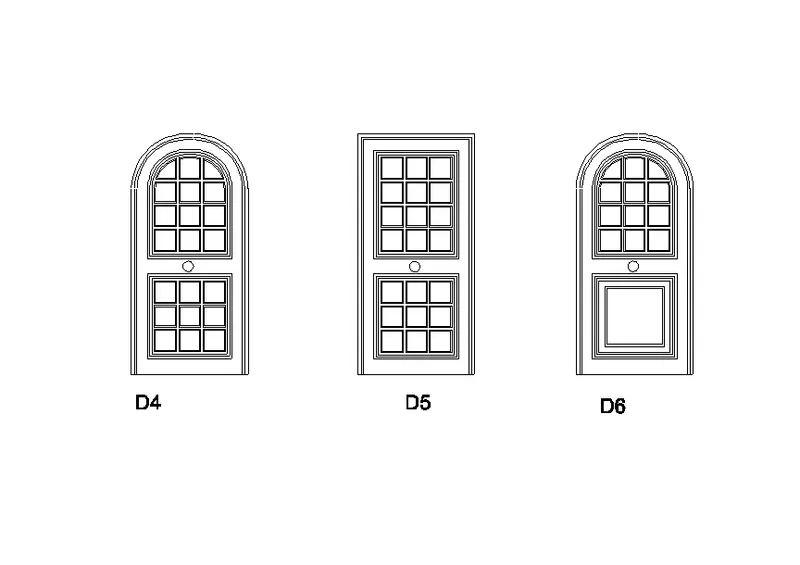

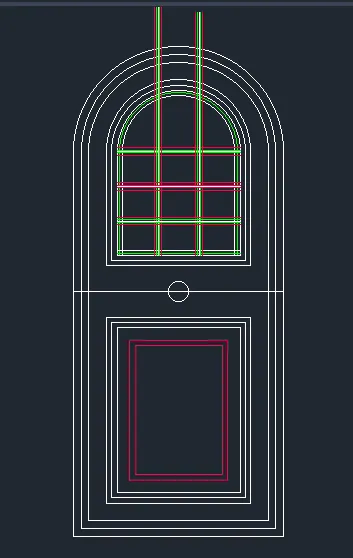

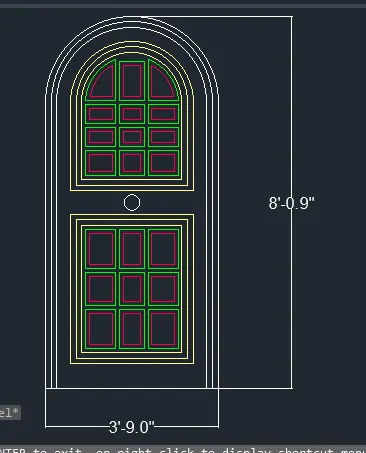

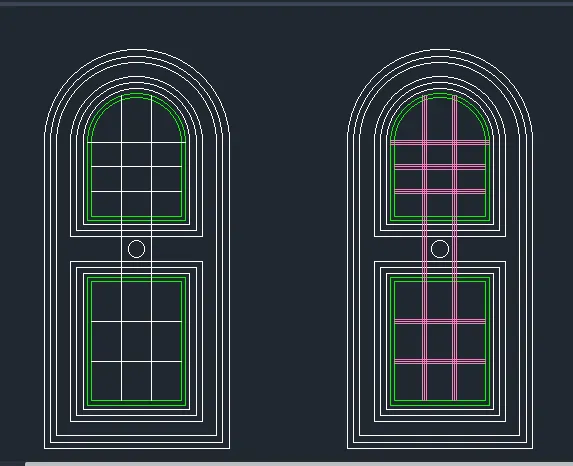

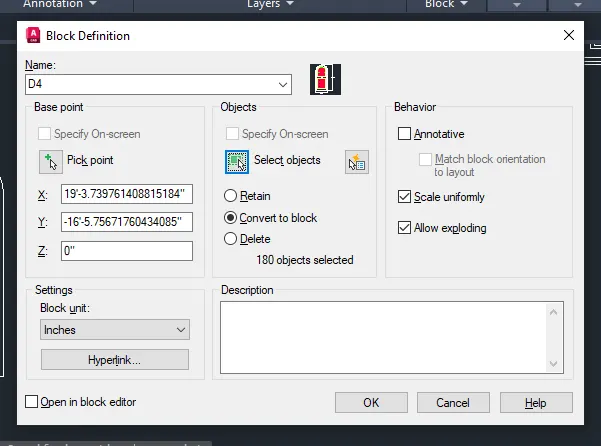

d. D4 - 3'9" x 8'0.9" :
1) For making frame:

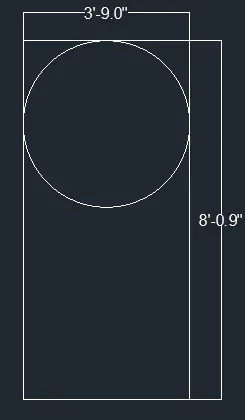

- Draw rectangle "REC" of dimension 3'9" x 8'0.9".
- Draw circle by using tan,tan,tan method.
- Trim uneccessary line and arc And join these rectangle and arc.
- Offset 1.5" (two times), 2.5" and again 1.5" for making pannel frame.
2) Draw pannels:
- Offset 3" from centere line both side. Trim lines which is not required.
- For top and bottom panel design:
- Take 1" offset 2 times to show the thickness on top figure and bottom rectangle.
- Explode inner side rectangle in bottom rectangle.
- Divide this in 3 portion horizontal and vertical then vertical lines extend by "ex" command.
- Give offset 0.5" on both side of inner line vertically and horizontally.
- Create rectangles inside the panel by joining this four point. Then offset in this rectangle 1"
- Copy this rectangle and place required place. Trim all lines.
- For lock, create a circle having radius 2".
- Make it a block ,name as type D4 - pick a point and select the object tick the dialgue box of uniform scale and explode all.
RESULT:
e. D5 - 3'5" x 6'8":
1) For making frame:
- Draw rectangle "REC" of dimension 3'5" x 6'8"
- Offset 1.5" for frame.
- Offset 1.5" as shutter thickness.
2) Draw door pannel:
- Offset 1.5" inner side of frame. Explode it.
- Give offset vertically from top and bottom 2'- 2.3". Trim lines uneccessary.
- For top pannel design:
- Draw rectangle for panel design offset 0.5" three times in top.
- Last inner rectangle (Top rectangle) Explode it. divide Top and bottom line in 4 part. join this point and give offset 0.25" both side of line.
- Draw a rectangle 5.5" x 5.3" at top corner, offset 0.5" inside of rectangle.
- Copy it with copy command "co" - select mode - select the rectangle- select array-enter no: of array as 3 -place it as required.
- Copy the 3 rectangle to 4 rows.
- For the bottom panel design:
- Give offset 0.5" 3 times inside of bottom rectangle.
- Top and bottom line in 3 part. Again Give offset 2.5" and 1.5".
- Draw a rectangle 7" x 7.3" at top corner, offset 0.5" inside of rectangle.
- Copy it with copy command "co" - select mode - select the rectangle- select array-enter no: of array as 3 -place it as required.
- Trim all lines.
- For lock, create a circle having radius 2".
- Create it as a block Command "B" - give name as type D5 -pick point- select object -tick scale uniformly and explode all.
RESULT:
f. D6 - 3'5" x 7' 11.6":
1) For making frame:
- Draw rectangle "REC" of dimension 3'5 x 7' 11.6".
- Draw circle by using tan,tan,tan method.
- Trim uneccessary line and arc And join these rectangle and arc.
- Offset 1.5" (two times), 3.5" and again 1" for making pannel frame.
2) Draw door pannel:
- Offset 5" from centere line both side. Trim lines which is not required.
- For top panel design:
- Take 0.5" offset 2 times to show the thickness on top figure.
- Explode inner side rectangle in rectangle.
- Divide this in 3 portion horizontal and vertical then vertical lines extend by "ex" command.
- Give offset 0.5" on both side of inner line vertically and horizontally.
- Create rectangles inside the panel by joining this four point. Then offset in this rectangle 1"
- Copy this rectangle and place required place. Trim all lines.
- For bottom panel design:
- Take 1" (2 times), 2.5" and 1" offset on bottom rectangle.
- For lock, create a circle having radius 2".
- Create it as a block Command "B" - give name as type D5 -pick point- select object -tick scale uniformly and explode all.
RESULT:
Result : The doors are created and are made into blocks
5. Create each shape as a block as shown in the Figure. Save the block and insert them on the table as shown in the Figure.
Aim : To create bar bending shedule and insert it as block.
a. Drawing each shape
b. Creating it as block
c. Inserting it in table as Bar bending shedule
Procedure:
a. Drawing each shape
A -20mm:
- Draw a line of 750cm for straight bar
- Create arc for the bend.Create on one side and mirror it on another side.
RESULT:
B-16mm:
- Draw line of 300mm for staight bar
- Draw vertical line of 41cm and extend a horizontal line and draw a line inclined at 45 degree from the base of vertical line upto horizontal line.
- Trim off the unwanted lines.
- Copy the same on the other side .
- Draw a horizontal line of 139cm and copy it on other side
- Draw bend with arc and mirror the same on other side.
RESULT:
C -16mm:
- Draw a line of 210cm
- Draw vertical line of 41cm and extend a horizontal line and draw a line inclined at 45 degree from the base of vertical line upto horizontal line.
- Trim off the unwanted lines.
- Copy the same on the other side .
- Draw a horizontal line of 180cm and copy it on other side
- Draw bend with arc and mirror the same on other side.
RESULT:
D -12mm:
- Draw a line of 750cm for straight bar
- Draw an arc downwards .
- Copy it on the other side.
RESULT:

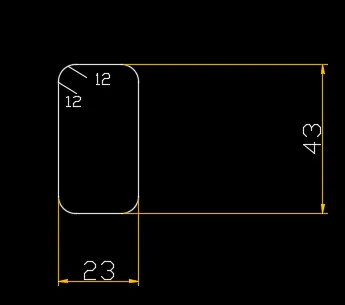

E- 10mm:
- Draw a rectangle of 23cm and 43 cm.
- Fillet the corner with fillet radius 5cm
- Draw two line of 120cm.
RESULT:
b. Creating each of them as block:
- Command -"B'- give name as A - pick a point- select the object - select delete - tick box of scale unifromly and explode all.
- Similarly create 5 blocks : A,B,C,D,E and insert each of the bars as blocks.
c. Inserting it in table:
- Ceate a table with rectangle and divide it into 6 rows and 7 columns.
- With multiline text enter type, shape size,length,no, total length,unit weight,total weight and all other text.
- By command "I" insert each of the block in respective columns.
RESULT:
- To create bar bending shedule and insert it as block.
RESULT:
1. Template is drawn and text and attributes are inserted.
2. Doors of warehouse are drawn and placed it in blocks.
3. Electrical legend are created and it is made into blocks
4. Different types of door for residential project are drawn and are placed in blocks
5. Bars are drawn and made it as blocks and inserted it in table as bar bending shedule.
