Creating Bar Bending schedule, Different Door types, and Creation of standard drawing templates using AutoCad

AIM : TO CREATE:

1. TEMPLET, INSERTING text and attributes
2. doors of warehouse and placing it in blocks
3. electrical lengend and marking it blocks
4. differt type of ddors for residetial projet
5. drawing bars, maeking it as blocks and marking it as a table as bar bending schedule.

commands using:

1. block.
2. insert.
3. attributes.
4. filed.
5. rexttangle.
6. line.
7. text.
8. array.
9. mirror.
10. copy.
11. offset.

custom 2 titel block:

RESULT:

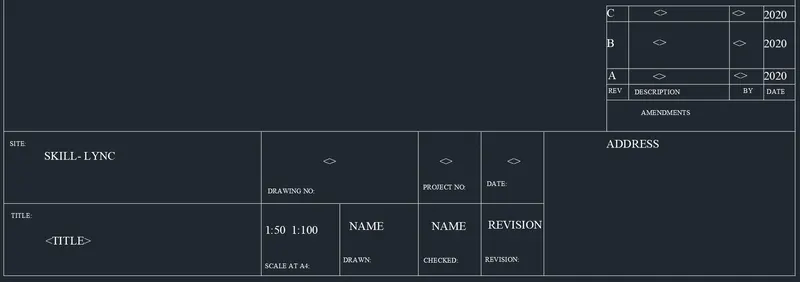

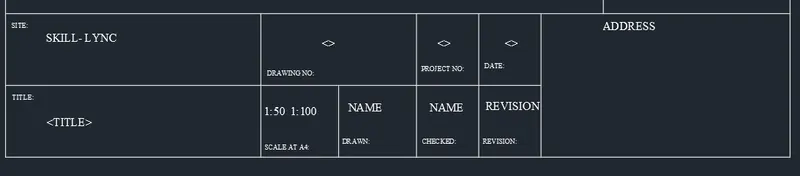

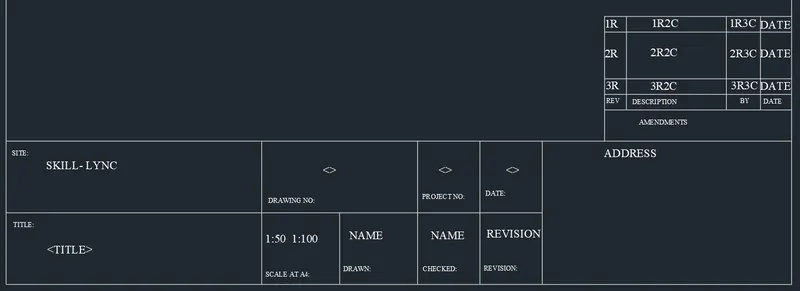

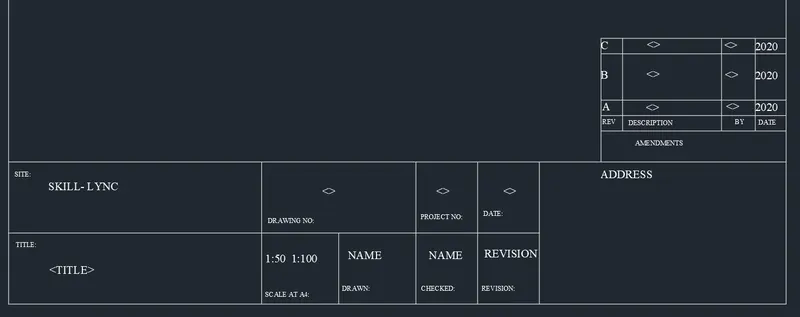

1. THE custom_1 titel blocls is created :

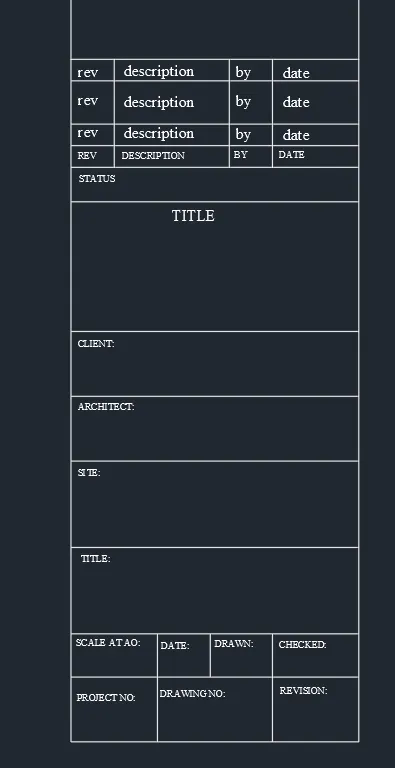

ii) the custom2_ titleblock is created:

2) AIM: Creating doors for warehouse and placing it in blocks;

• DOOR 1 - 2330 x 2750 mm
• DOOR 2 - 2330 x 2750 mm

PROCEDURE :

Door1- 2330 x 2750 mm:

create a rectangle of size 2330x 2750 mm

offset 50mm as a frome . 90mm for the left side . explaind the rectangle.
