Creating Bar Bending schedule, Different Door types, and Creation of standard drawing templates using AutoCad

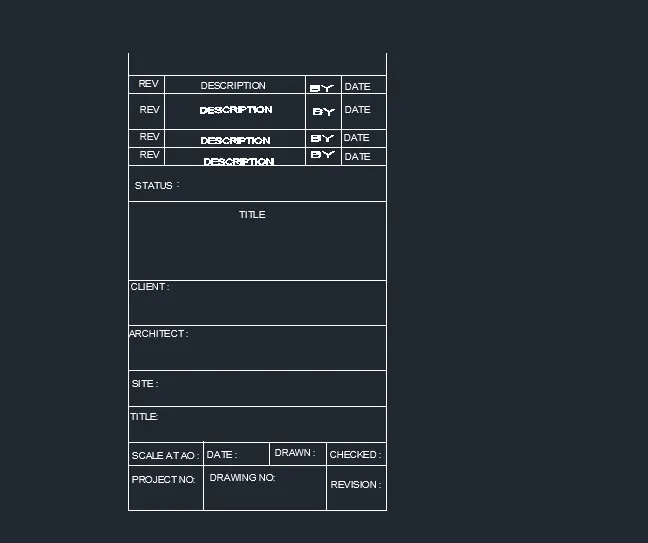

AIM : TO CREATE CUSTOM 1 TITLE BLOCK AND CUSTOM 2 TITLE BLOCK ATTRIBUTES AND BLOCK COMMAND WITH AUTOCAD .

ANSWER 1.

PROCEDURE :

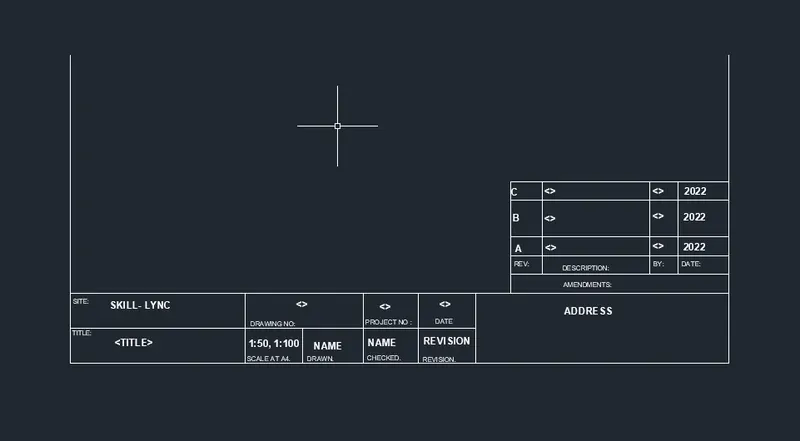

FOR CUSTOM 1 TITLE BLOCK :

1. USING COMMAND L, DRAW THE REQUIRED LINES .
2. IN RIBBON TAB ANNOTATE > MTLINE > ( TO CRAFT THE TEXT ).
3. GO TO CROPERTIES TAB TO CHANGE THE COLOUR .
4.

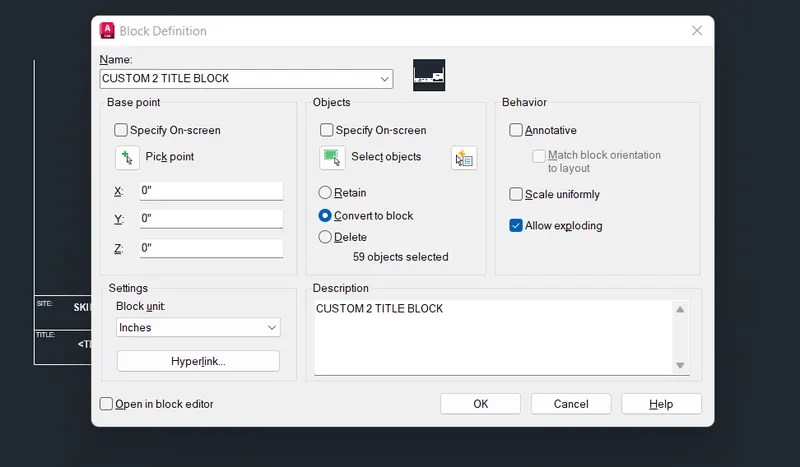

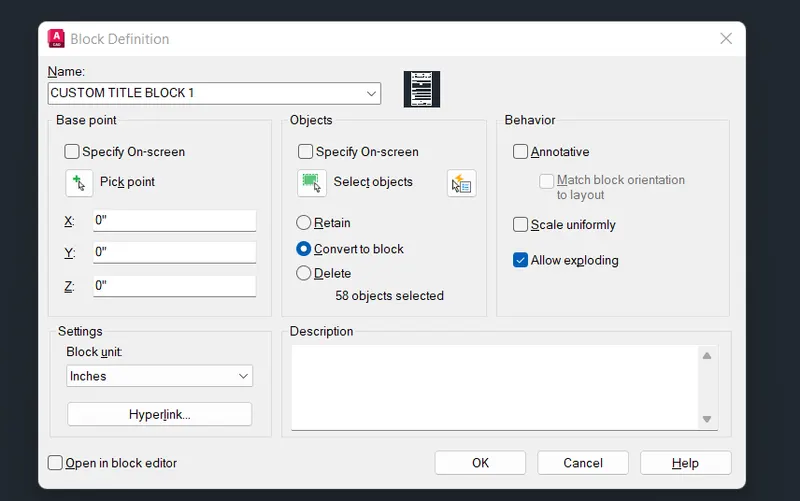

5. IN THE RIBBON BAR > BLOCK > CREATE BLOCK AND NAME IT CUSTOM 1 - TITLE BLOCK .THEREFORE THE BLOCK IS CREATED .
6.

FOR CUSTOM 2 TITLE BLOCK :

1. IN THE COMMAND PROMPT TYPE L TO DRAW THE LINES .
2. IN THE RIBBON > ANNOTATE > MLINE >( TO CRAFT THE TEXT )
3. GO TO PROPERTIES TAB TO CHANGE THE COLOUR .
4.
5. IN THE RECON BAR > BLOCK > CREATE BLOCK AND NAME IT , CUSTOM 2 TITLE BLOCK THEREFORE THE BLOCK IS CREATED .
6.

ANSWER 2 :

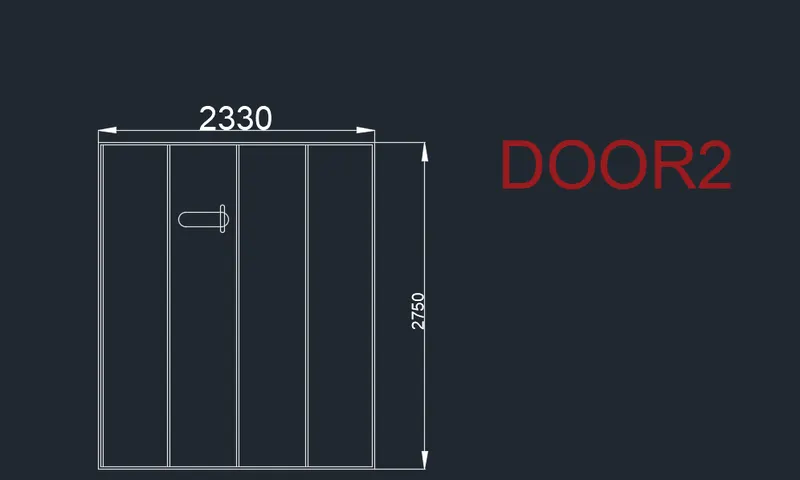

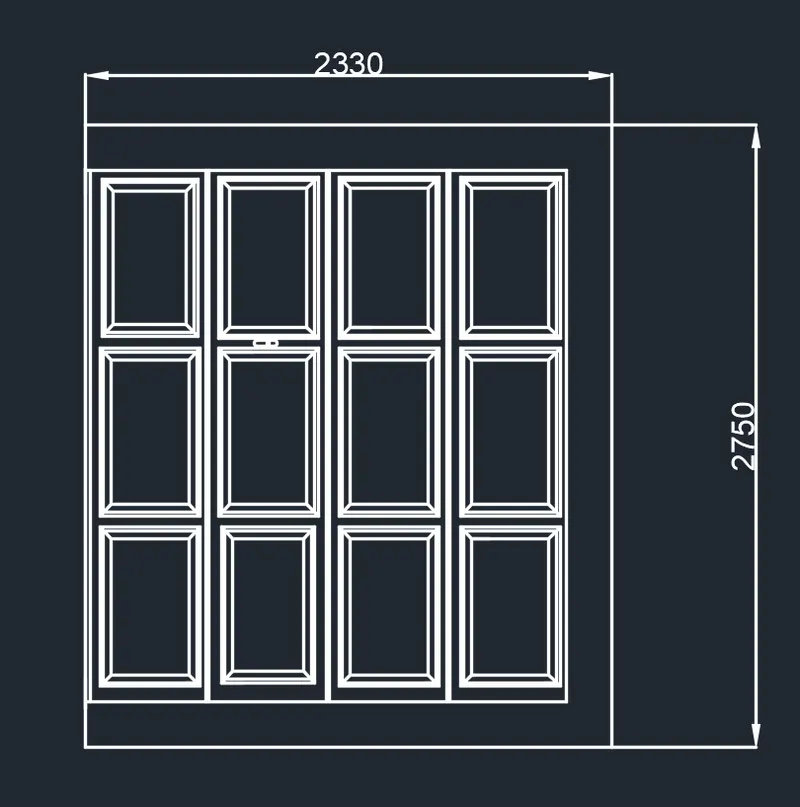

AIM : TO CREATE THE DOOR TYPE FOR WOREHOUSE TO ALSO CREATE THE BLOCK OF THIS DOOR . TYPE AFTER CREATING THEM USING AUTOCAD .

PROCEDURE :

1. IN THE COMMAND PROMPT TYPE THE UNITS MM .
2. IN THE COMMAND PROMPT TYPE THE LINE MAX 50,50.
3. IN THE COMMAND PROMPT TYPE THE LIMITS 0,0.
4. IN THE COMMAND PROMPT TYPE L DRAFT THE LINES .
5. IN THE COMMAND PROMPT TYPE REC TO DRAFT THE BOXES OR RECTANGLE .
6. IN THE COMMAND PROMPT TYPE FILLET TO GET THE CURVE EDGES .
7.
8.
9.

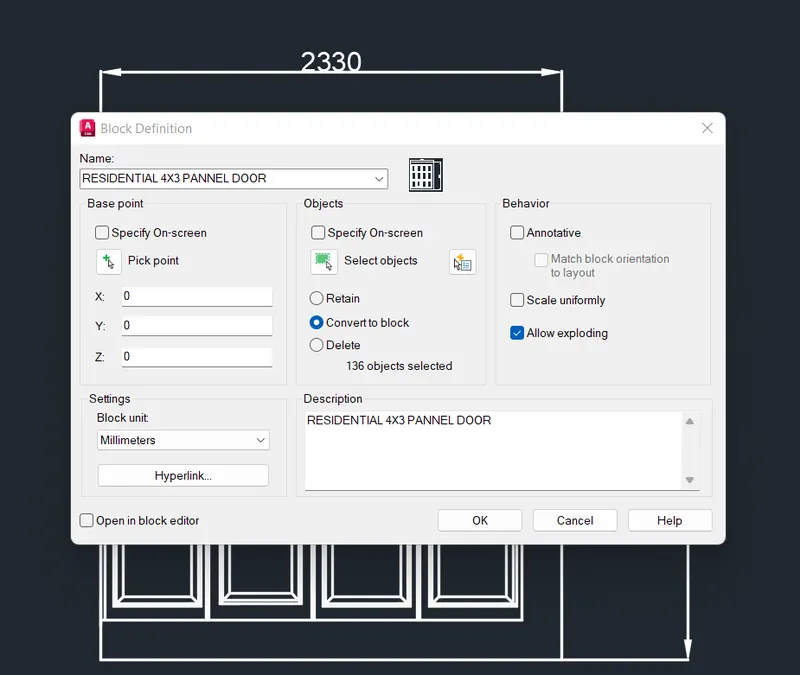

10. IN THE RIBBON BAR BLOCK CREATE BLOCK ( TO CREATE THE DOOR BLOCK )
11.
12. IN THE COMMAND PROMPT TYPE L TO DRAFT THE LINES .
13. IN THE COMMAND PROMPT TYPE REC DRAFT THE BOXES OR RECTANGLE .
14. IN THE RIBBON BAR DIMENSION TO GIVE THE DIMENSION OF THE DOOR .
15. IN THE RIBBON BAR ANNOTATION TEXT ( TO GIVE THE TEXT FOR THE DOOR .)
16.
17. IN THE RIBBON BAR BLOCK CREATE BLOCK ( TO CREATE THE DOOR BLOCK ).
18.

ANSWER 3 .

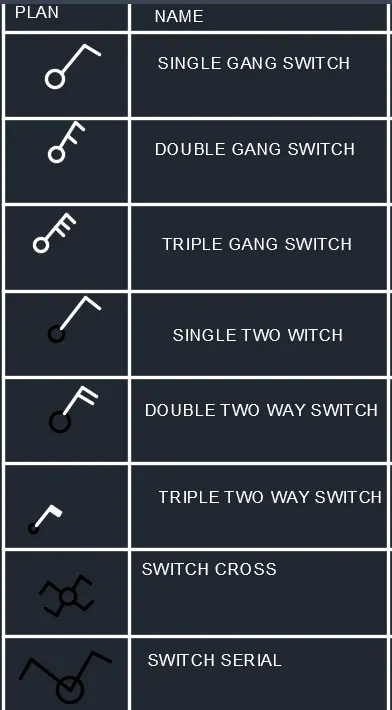

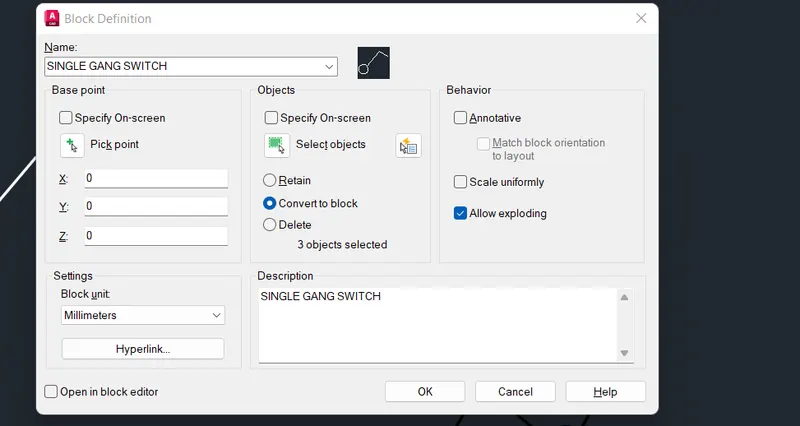

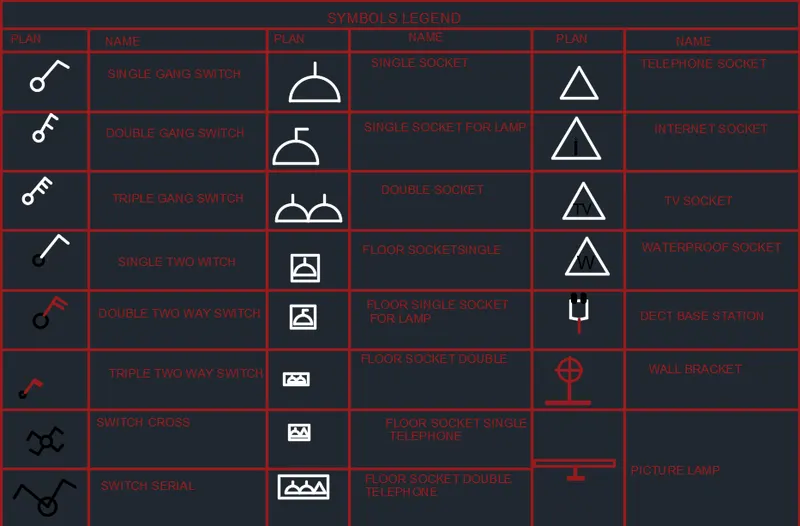

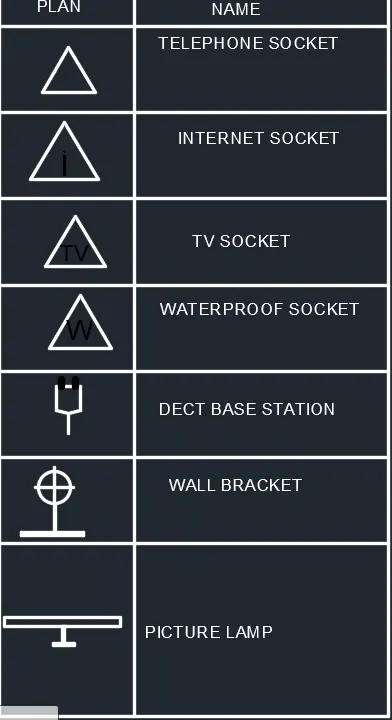

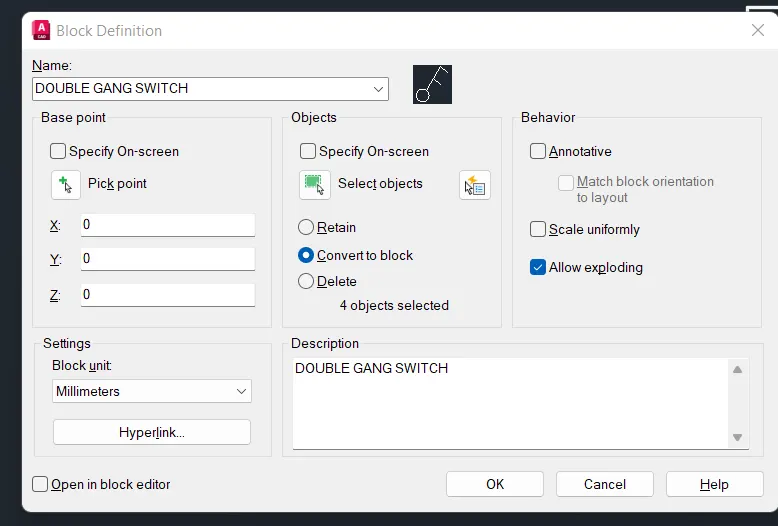

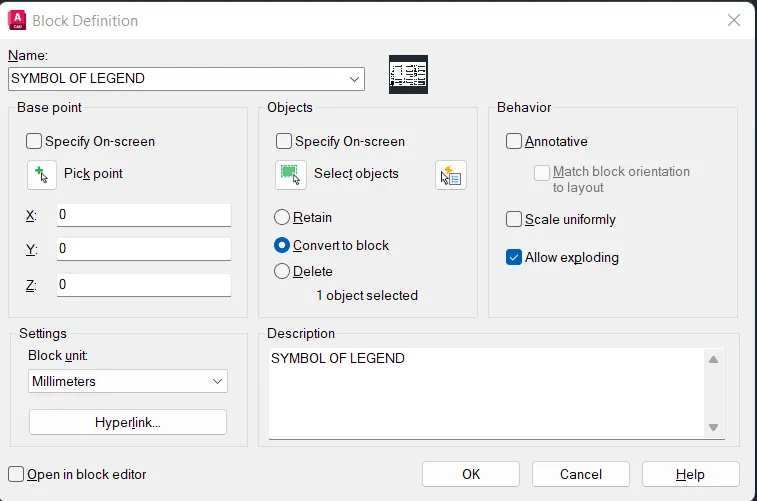

AIM : TO CREATE EACH SYMBOL AS A BLOCK WITH THE NAME AND THEN ARRANGE THEM IN THE LEGEND .

PROCEDURE :

• IN THE COMMAND PROMPT TYPE C TO GET THE CIRCLE .
• IN THE COMMAND PROMPT TYPE L TO GET THE LINES .
• IN THE RIBBON BAR > ANNOTATION > MULTILINE TEXT

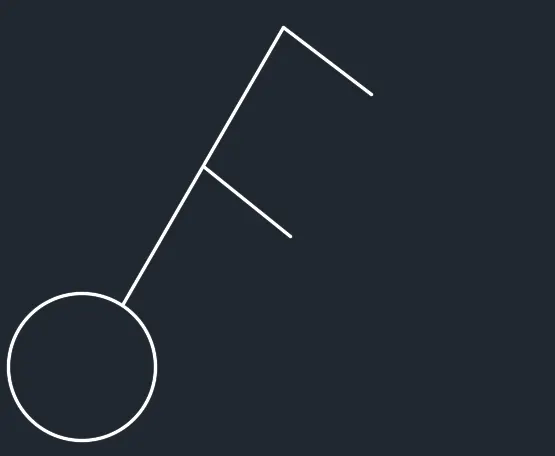

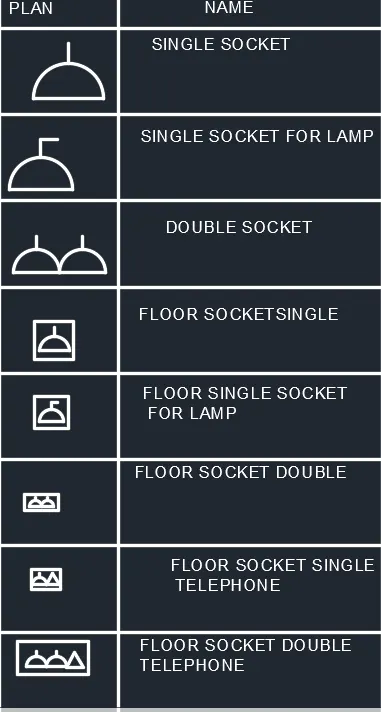

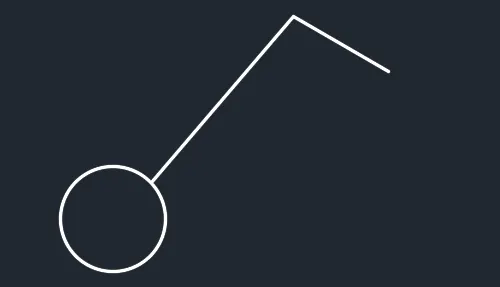

• USE THE CIRCLE AND LINE COMMAND TO DRAW THIS SINGLE GANG SWITCH .
•
•
•
•
• USED THE SAME PROCESS FOR OTHER OBJECT .
•
•
•

RESULT:

ANSWER 4:

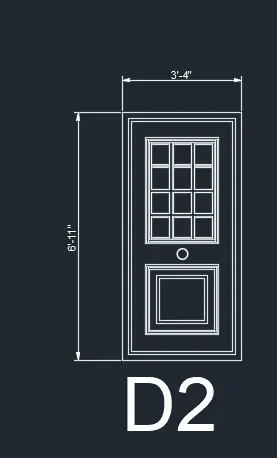

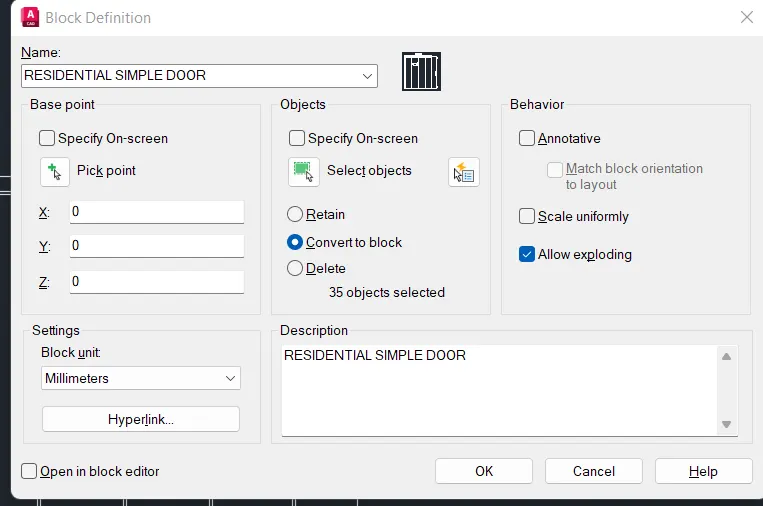

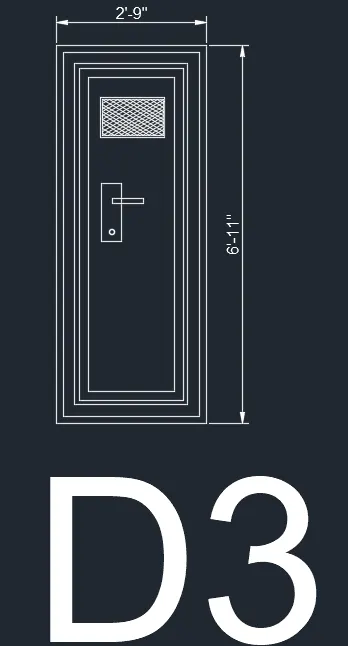

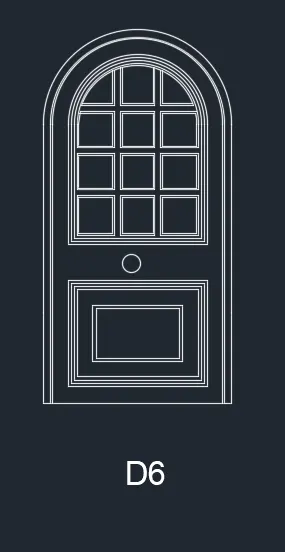

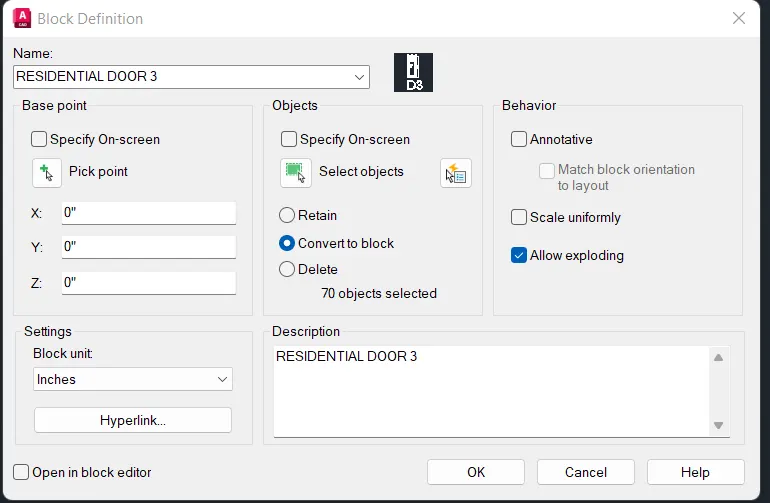

AIM : TO CREATE THE DOOR TYPE FOR A RESIDENTIAL BUILIDING AS A BLOCK . SAVE THE NAME OF THE BLOCKS AS TYPE .USE GIVEN DIMENSION OR ASSUME DIMENSIONS AS PER INDUSTRY STANDARD.

PROCEDURE :

• OPEN A NEW AUTOCAD FILE WITH ENGINEERING > INCHES> UNITS .
• COMMAND AND TOOLS USED IN THIS QUESTION ARE ,LINE (L) , CIRCLE (C) , MTEXT BLOCK (B) MIRROR (M) ARC ,INSERT (I) , FILLET , POLYLINE ,ROTATE ETC.

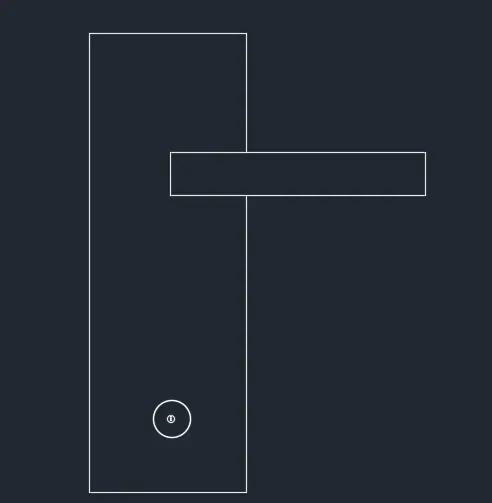

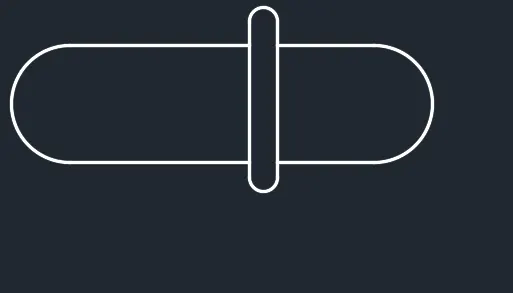

• DRAWN THIS HANDLE AND LOCK USING LINE , RECTANGLE , CIRCLE ,ARE FILLET COMMAND .

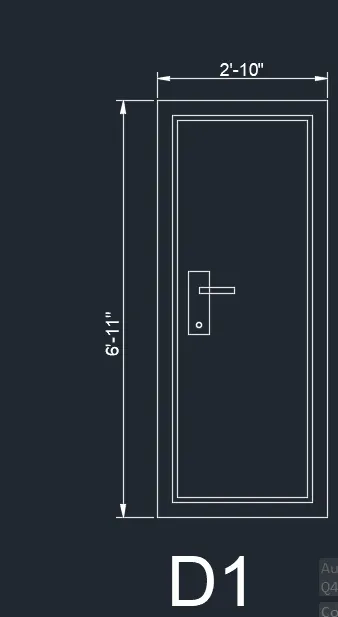

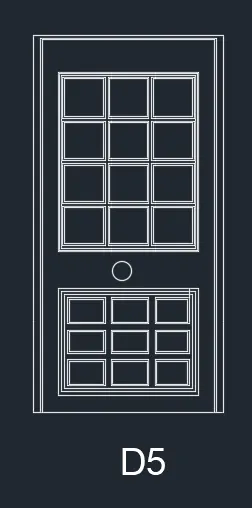

• DRAWN THIS DOOR DIMENSION AND TEXT ARE GIVEN .

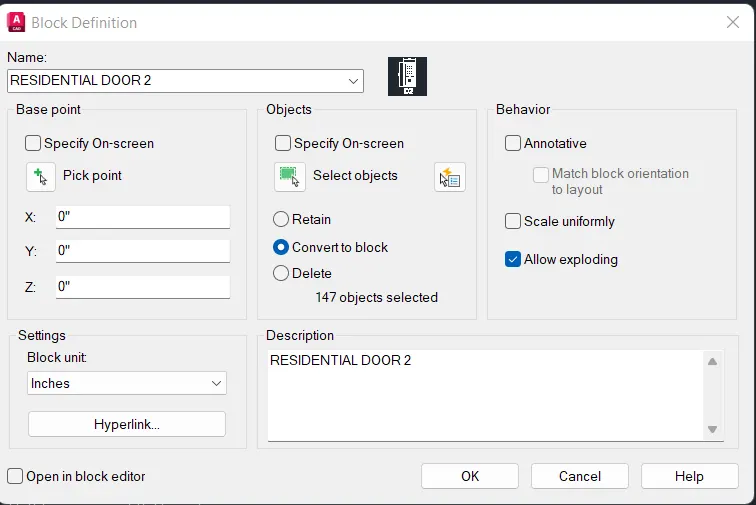

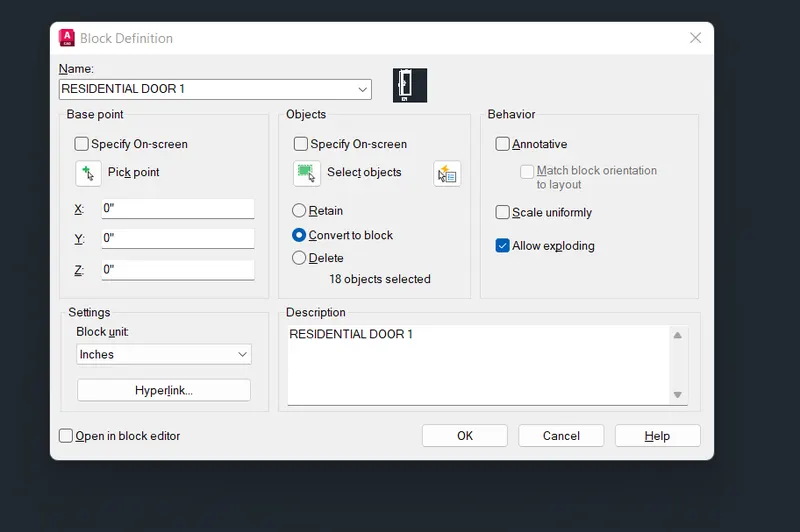

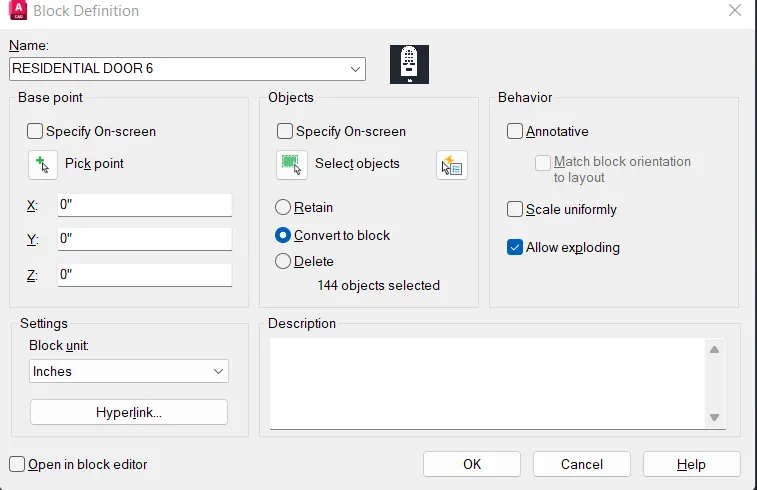

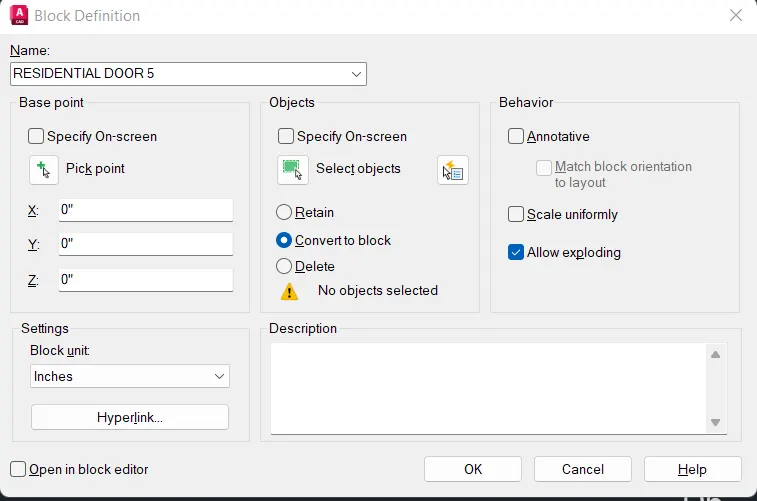

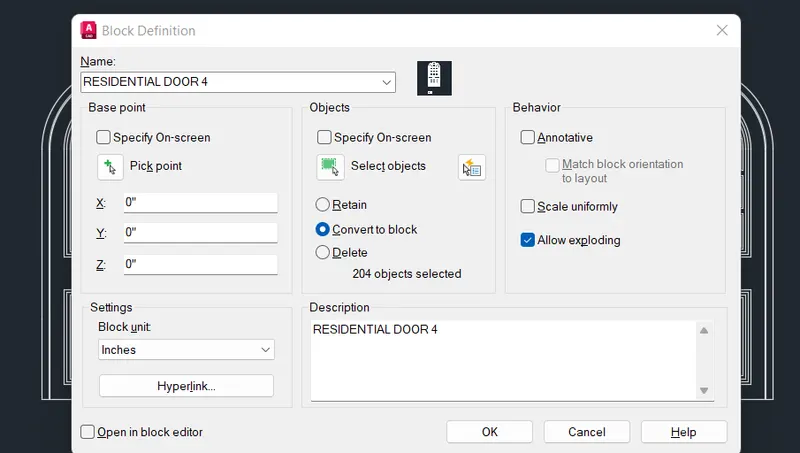

• SELECT THE DOOR, , GIVE COMMAND (B) AND MAKE A BLOCK .
•

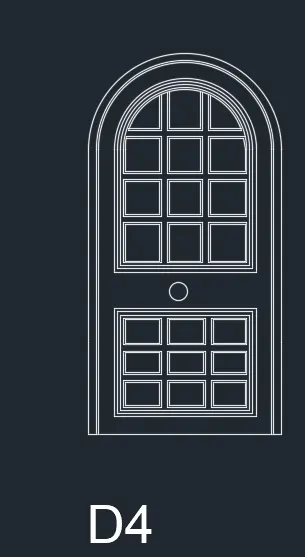

• USE THE SAME PROCESS TO MAKE OTHER'S DOORS .
•
•
•
•

•

•
•

ANSWER 5:

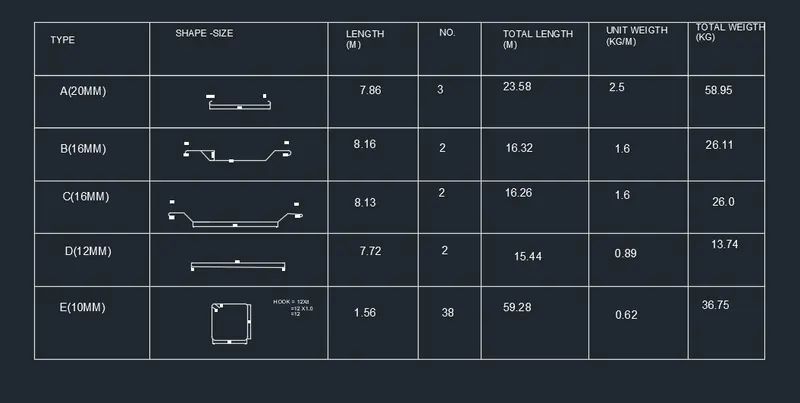

AIM : TO CREATE EACH SHAPE AS A BLOCK AND INSERT THEM INTO THE TABLE AS SHOWN IN THE FIG.

PROCEDURE :

• OPEN THE NEW FILE AS A DECIMAL ( MM) UNIT .

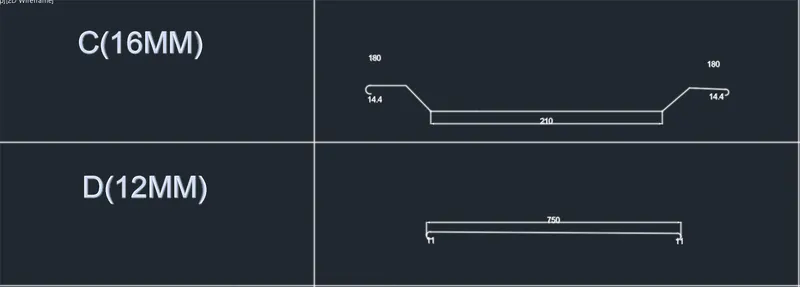

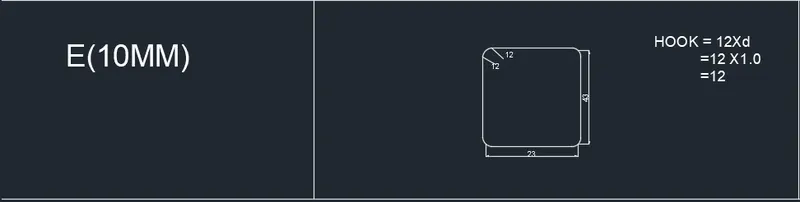

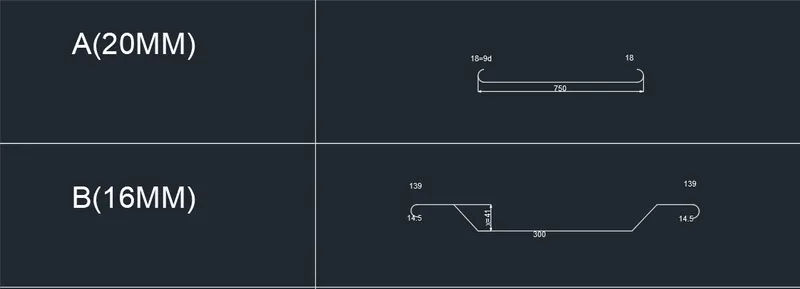

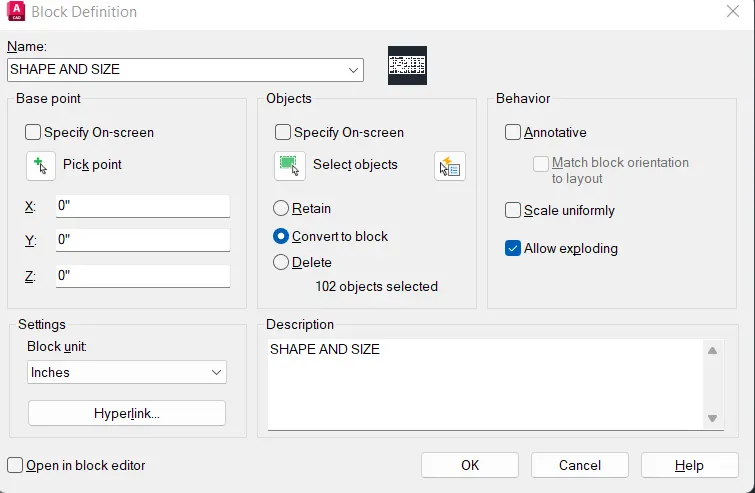

• LET'S FIRST DRAW THE "A" (20MM) AND B(16MM) TYPE BAR FOR THAT USE LINE ,POLYLINE COMMAND .
•
•
• RESULT:
