Creating Bar Bending schedule, Different Door types, and Creation of standard drawing templates using AutoCad

AIM: The main aim of these challenge is to make the bar bending schedule and the drawing of the door templates and making them to blocks.

INTRODUCTION: in this, i am gonna use the tools which have been discussed till now and the created drawing is converted into block using the block command.

PROCEDURE:

• first taking the new drawing sheet
• setting up the units as per the problem which might be inches or decimals

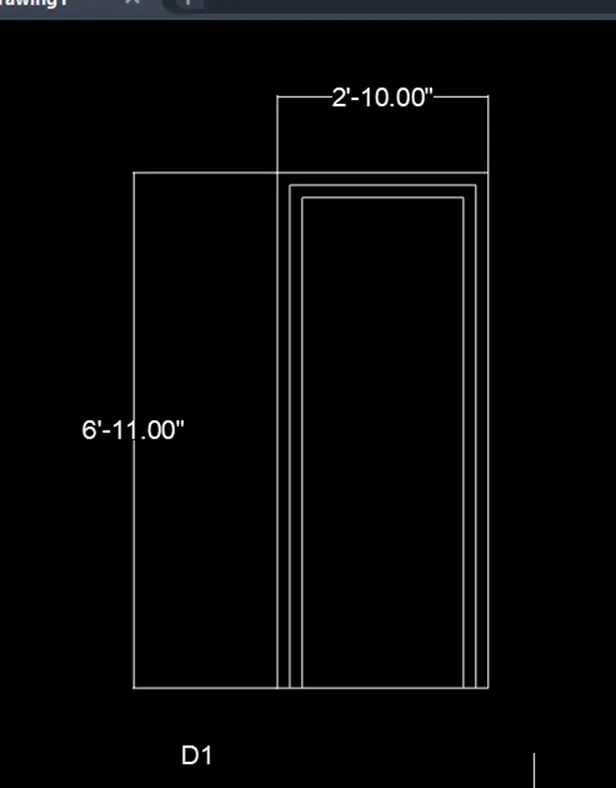

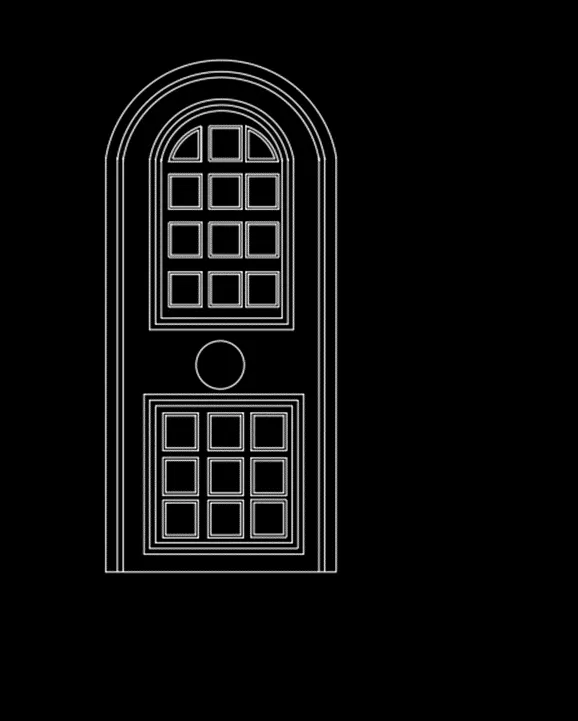

• creating the templates or doors etc, by using the tools like line,rectangle,offset,trim,dimensions,text,etc,.

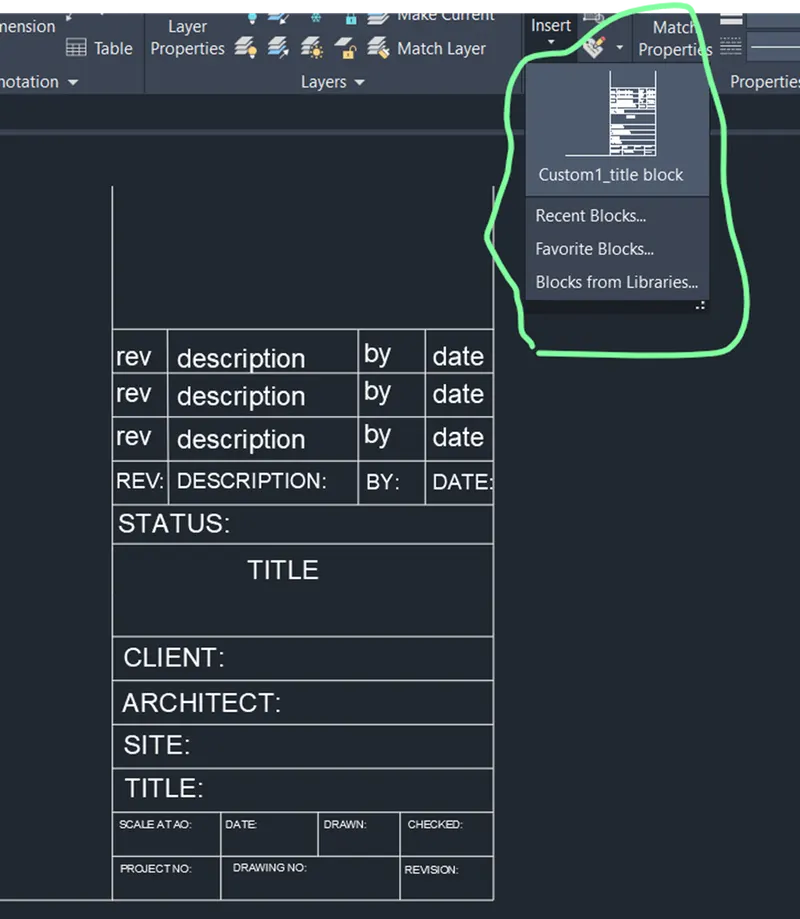

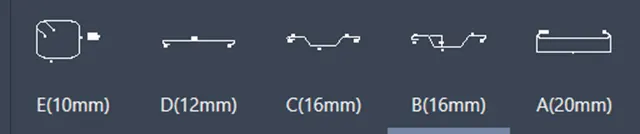

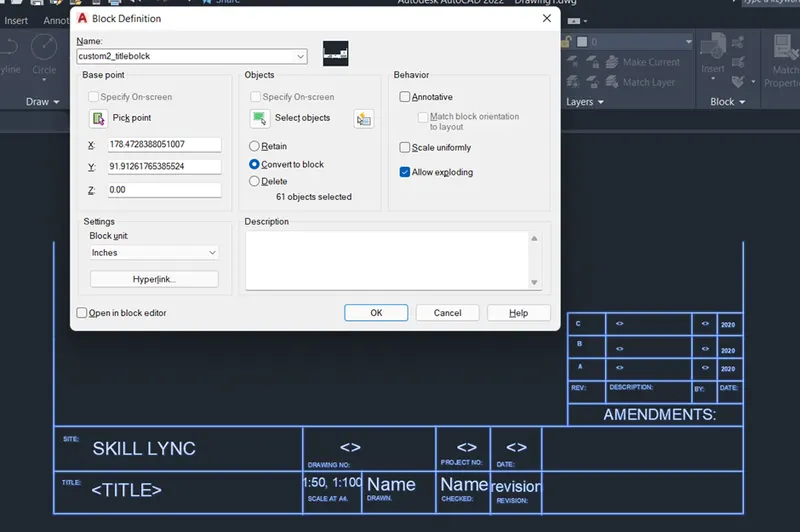

• after making the drawing which is converted to block using the block command

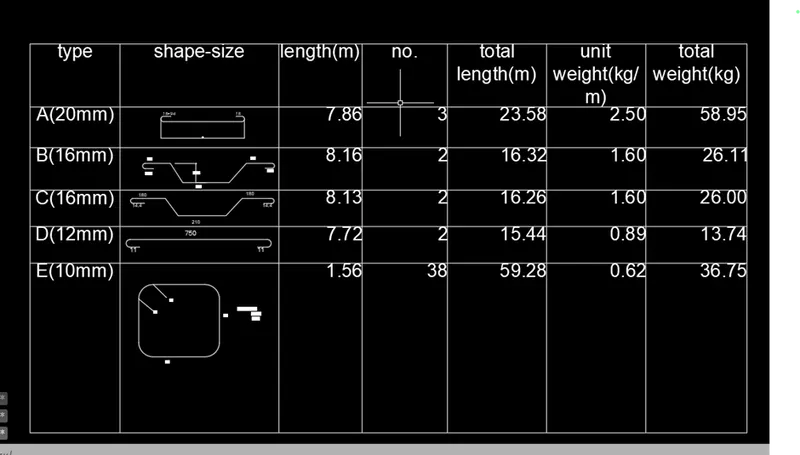

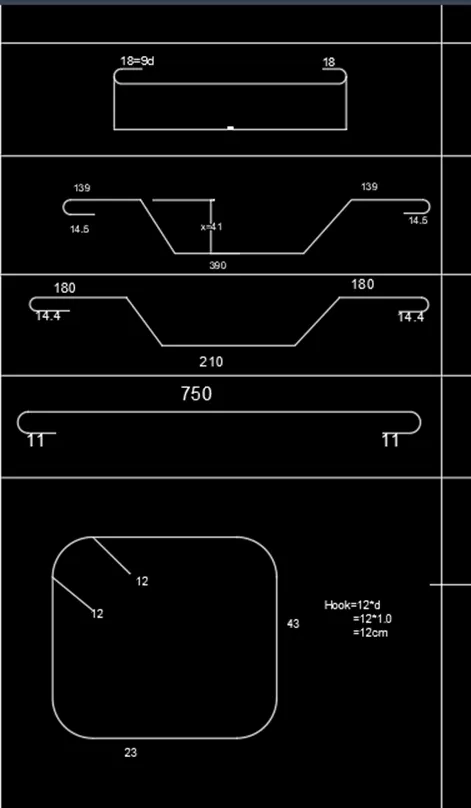

• finally, blocks are used to create the tables or schedules.

RESULT:

the following results have made by using the above procedure

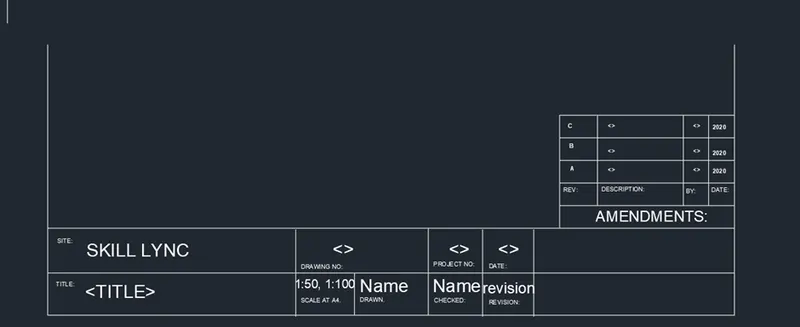

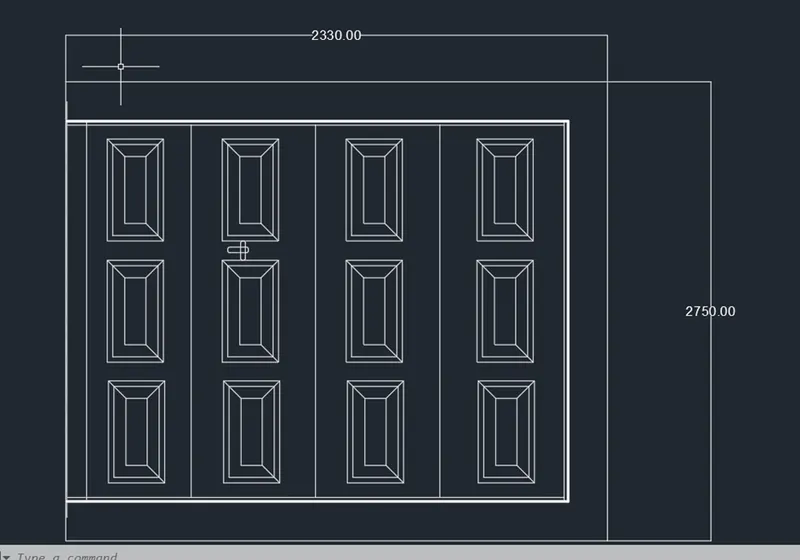

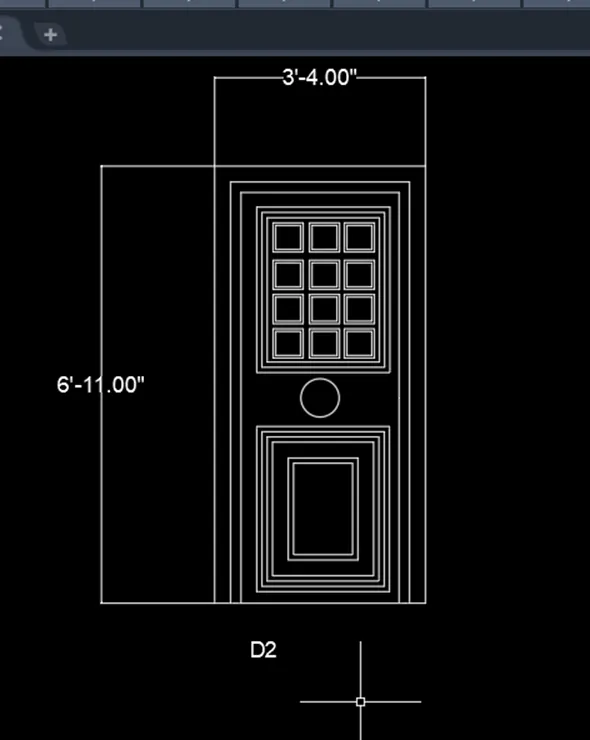

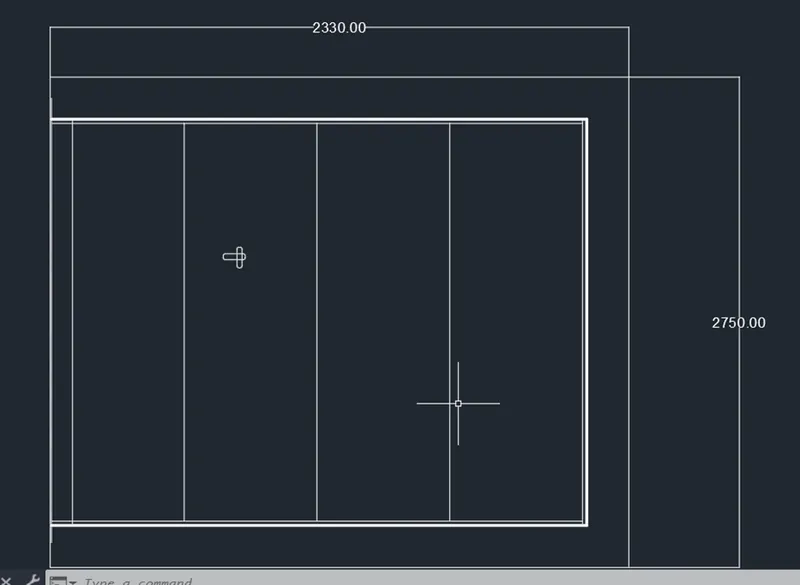

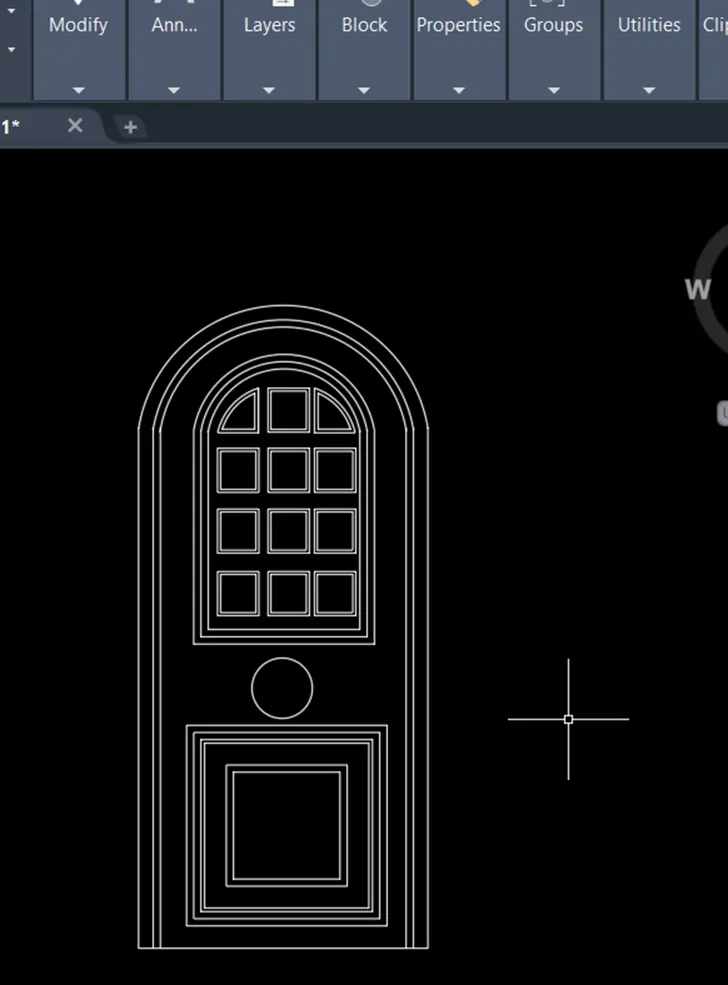

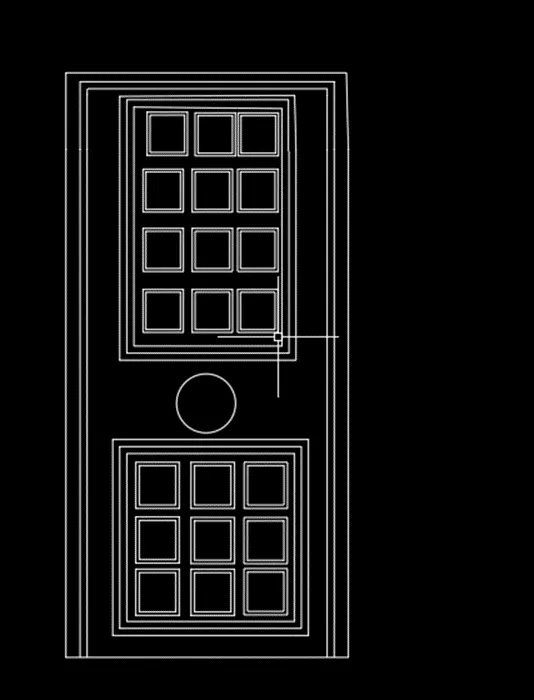

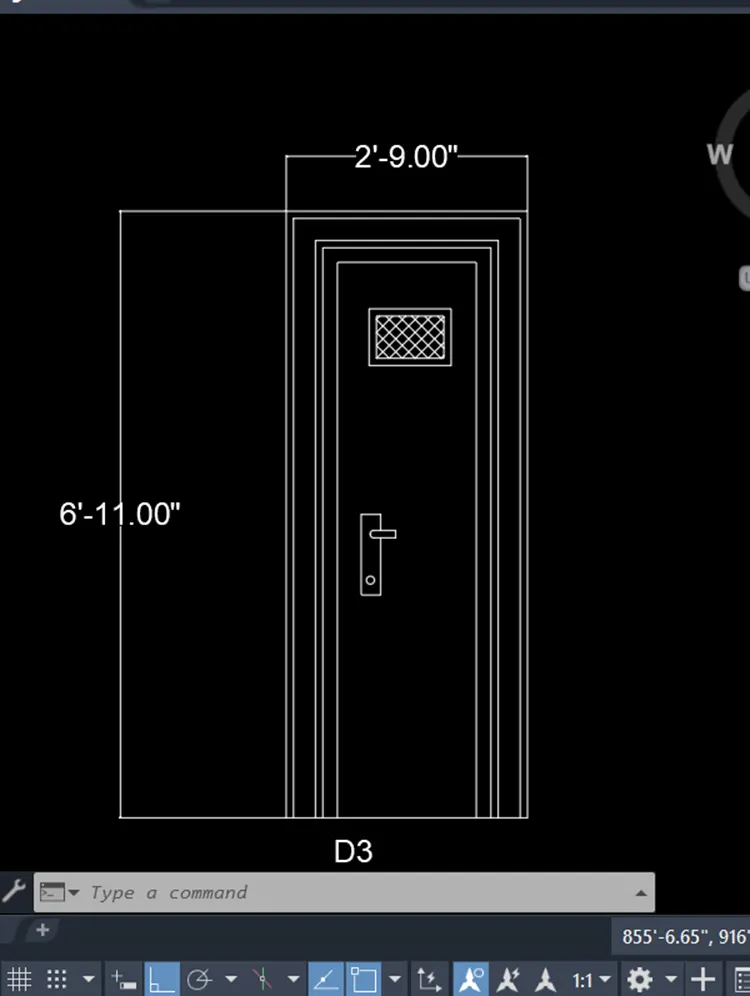

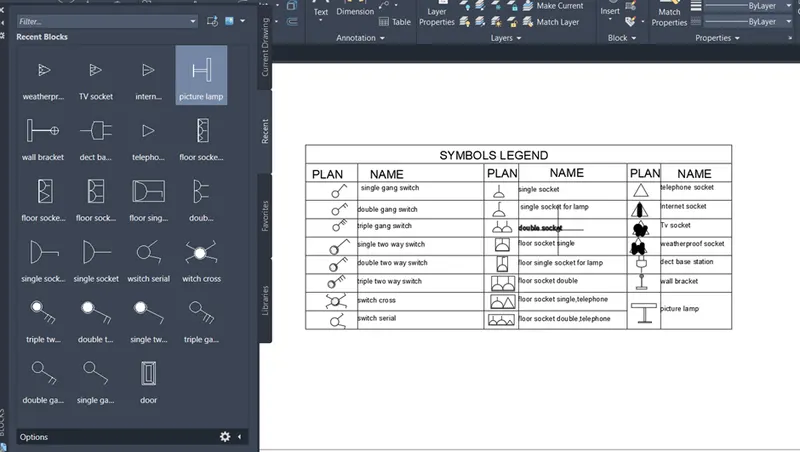

1)

2)

3)

4)

5)
