Creating Architectural and Structural model with 3D rendering using REVIT

1) Select the type of structure you want to build from one of the three below:
        a. Multi-Unit Residential Apartment
        b. Office Buildings
        c. School

2) Assume reasonable assumptions for geographic and location details for your project modeling. Based on assumptions and type of structure selected identify the modeling requirements from NBC

3) Using the structural model, include the following components based on the type of structure selected
        a. Foundation – Isolated / Wall/Matt Foundation
        b. Columns
        c. Beams Connected to Columns
        d. Roof Framing/ Truss
        e. Floor / Decks
        f. Floor Openings for Elevators and Stairs

4) Using the architectural model, include the following components based on the type of structure selected
        a. Wall Layout with appropriate material and finishing
        b. Exterior façade with fancy finish
        c. Interior partition walls to size rooms
        d. Components to add details to a room ( Desk, Chair, Lighting, Plumbing fixtures)
        e. Add components such as stairs Elevators
        f. Have at-least one side of the building with curtain walls and glass panels
        g. Include interior and exterior lighting fixtures
        h. Place proper topographic components from outside ( Trees, Parking, Plants) to add details to the model

5) Provide a set of drawings in an architectural and structural model to list the following details with categories and appropriate sheet templates included
        a. Floor Plans with Annotations
        b. Elevations
        c. Sections

6) Using the Rendering settings, Render images of the 3D model produced and include the rendered images to the drawing sheets
        a. Rendering from interior rooms
        b. Rendering from out showing topographic features
        c. Rendering through structural framing

7) Print the set of drawing sheets created and submit the drawings from the architecture and structure model

Q1. ) Select the type of structure you want to build from one of the three below:
        a. Multi-Unit Residential Apartment
        b. Office Buildings
        c. School.

 Ans :-

From the above the options of type of structure to build a building,

I must choose a residential apartment complex.



Q2.)   Assume reasonable assumptions for geographic and location details for your project modeling.

Based on assumptions and type of structure selected identify the modeling requirements from NBC.



Ans :-

the geographic and location information for my project modeling is based on the supposition that it will be a multi-unit apartment building.

NBC has chosen to identify the modeling requirements.

1.  As above mentioned by the building comes under the residential category and it can be suituated in center of

the city.

2.  The project is located in the highway nearest.

3.   The road width of this project is 60 Feet.

4.   The height, area limitation and safety measure are followed by the NBC.2005.

5.   The height of project is 42'.

6.    This project height in meter is 12.8 m and the road width is18.2m , the height of the building should not exceed 1.5 times the width of the road.

7.    In case of building height is not exceed, so it is suitable for construction.

Q3. ) Using the structural model, include the following components based on the type of structure selected
        a. Foundation – Isolated / Wall/Matt Foundation
        b. Columns
        c. Beams Connected to Columns
        d. Roof Framing/ Truss
        e. Floor / Decks
        f. Floor Openings for Elevators and Stairs.

 Ans :-

AIM:

Depending on the type of structure, the following elements should be included in the structural model: walls, windows, doors, foundations, beams, etc.

commands used :

• Architectural template.
• Structural template.
• Grids.
• Columns.
• Beams.
• Foundations.
• Stairs.
• Shafts.
• floors.

PROCEDURE:

1).  Open a architectural template in revit software and save it as residential building-arch001.

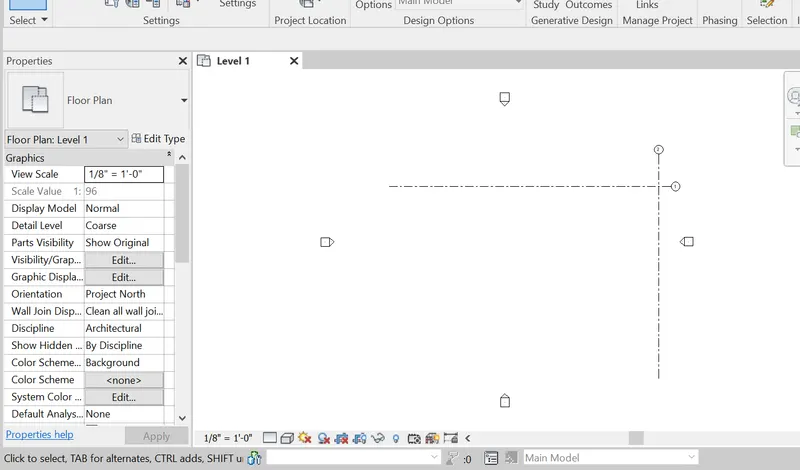

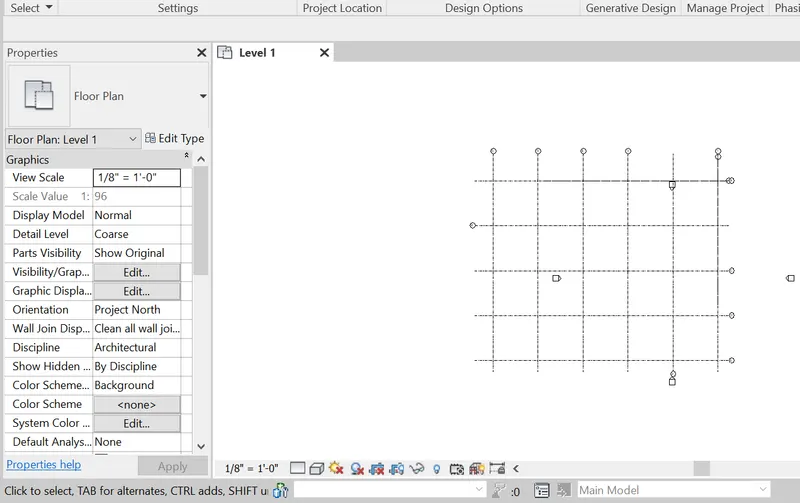

2).  Then draw the grid lines and specify coordinates as 0'0" for both horizontal and verital grids lines.

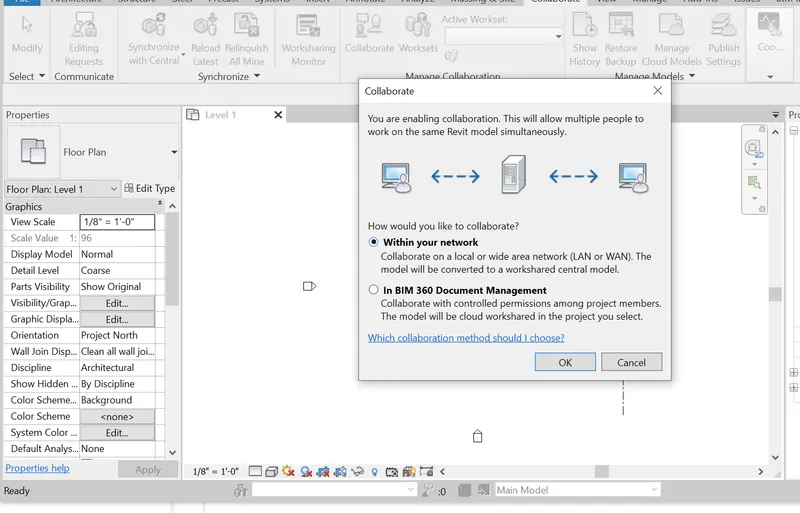

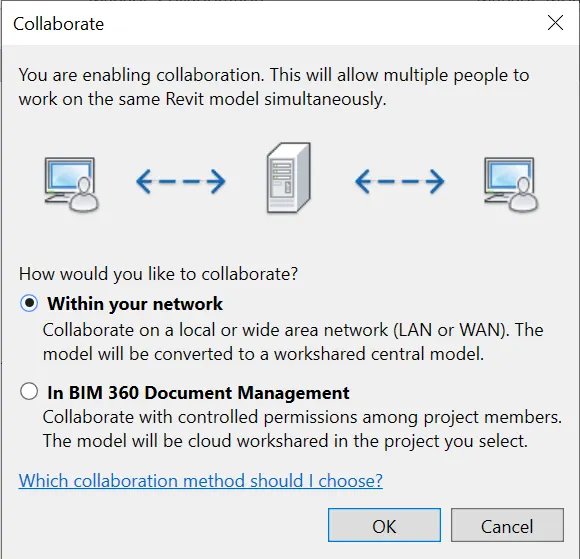

3).  Click the collaborate and save the project.

4).  A new structure template should then be opened and saved as residential building-structural 001.

5).  Repeat step 2 and 3 ,same proces and save the file.

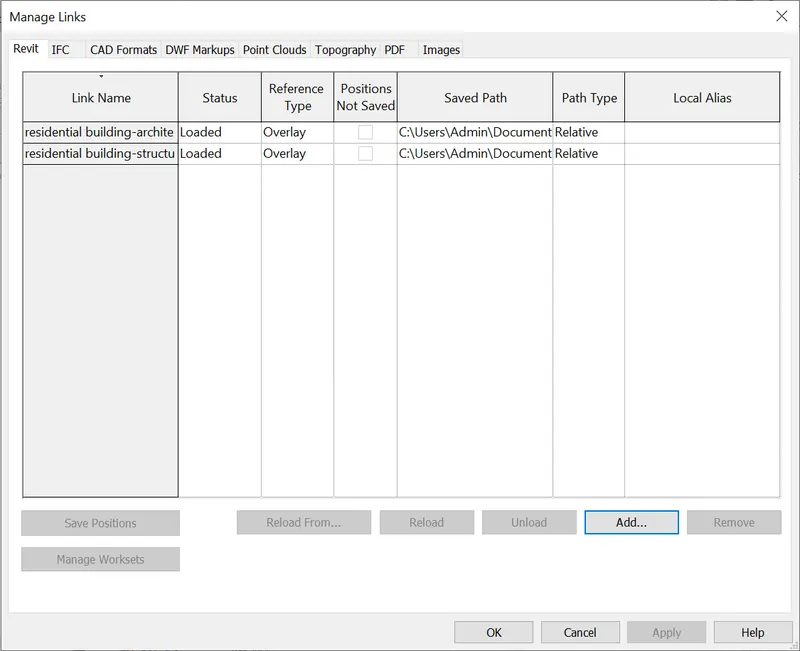

6).  by using the manage the links options, create a new architectural template and then add the architectural and structural links.

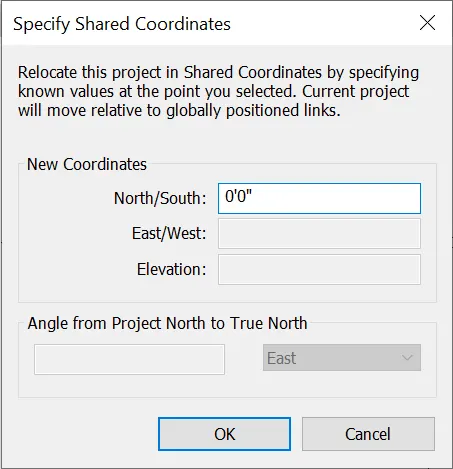

7).  Select the  acquired coordinates and set the links to the current coordinates.

8).  Now start drawing the structural components of the project in structural template.

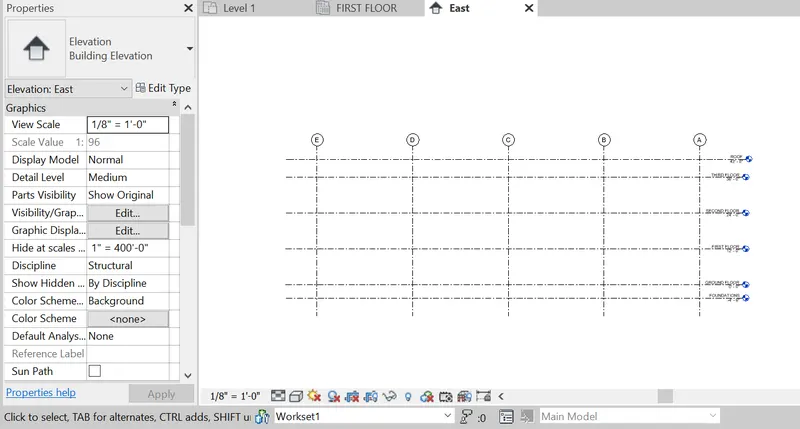

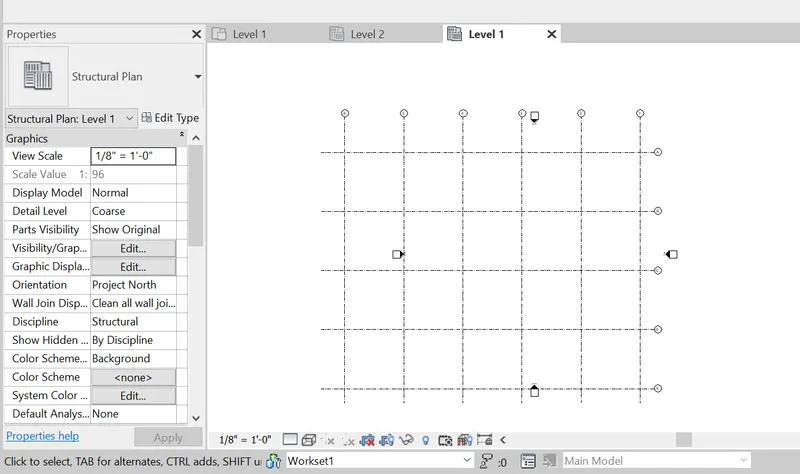

9).  Draw the vertical and horizontal grid lines, And also set the levels.

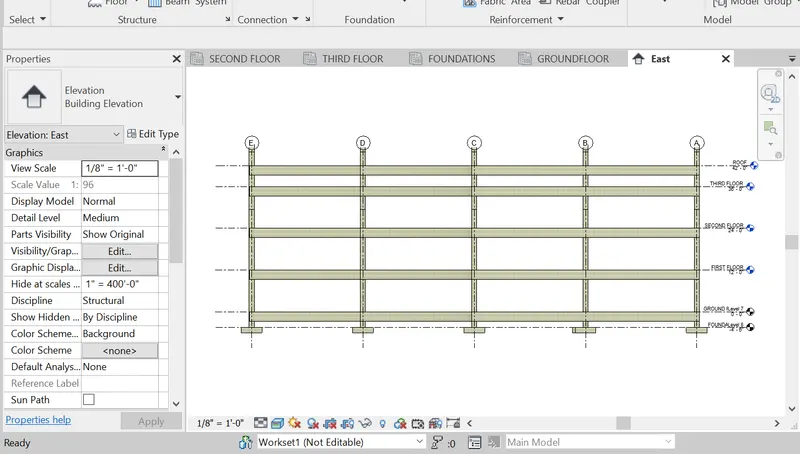

      foundations, ground floor, first floor, second floor, third floor and roof levels are created.

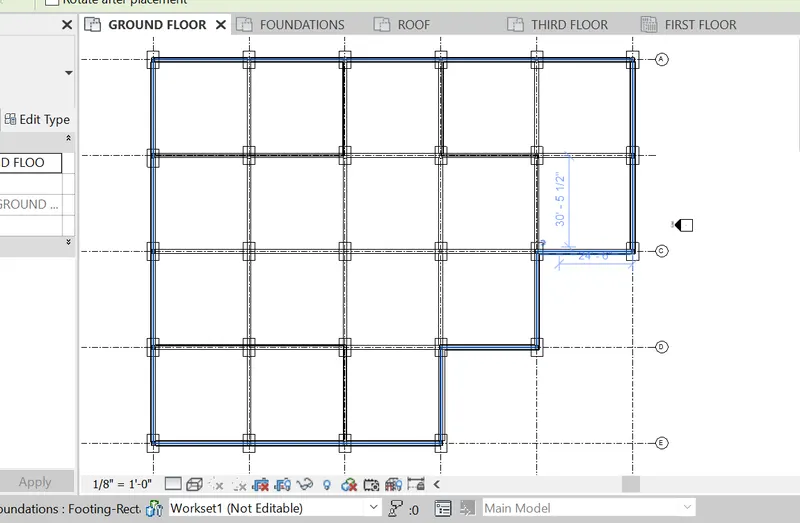

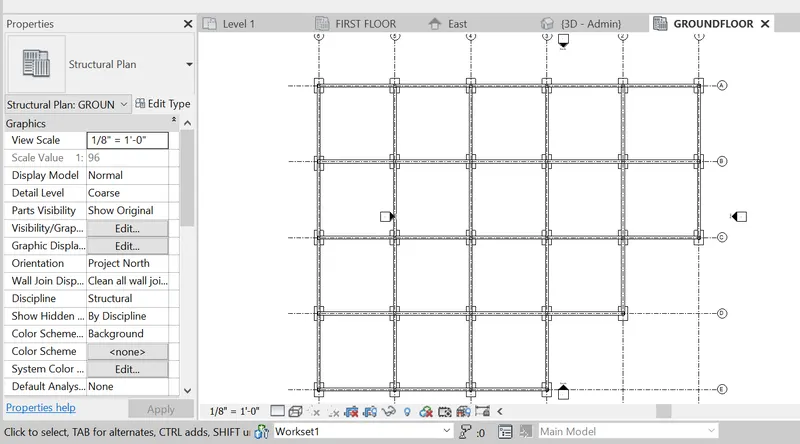

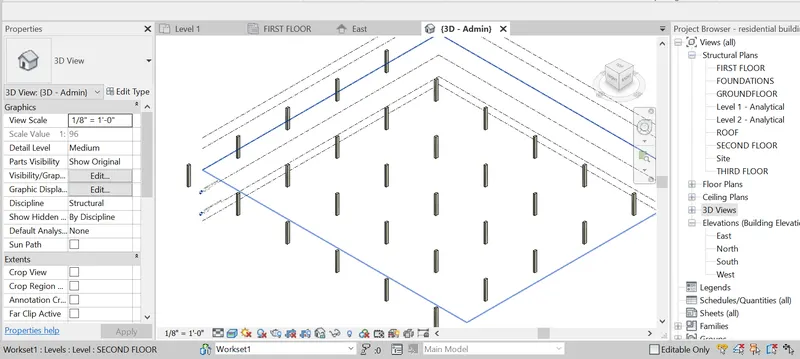

10). raw the columns at the grid intersection points by choosing the column option under the structural tab.

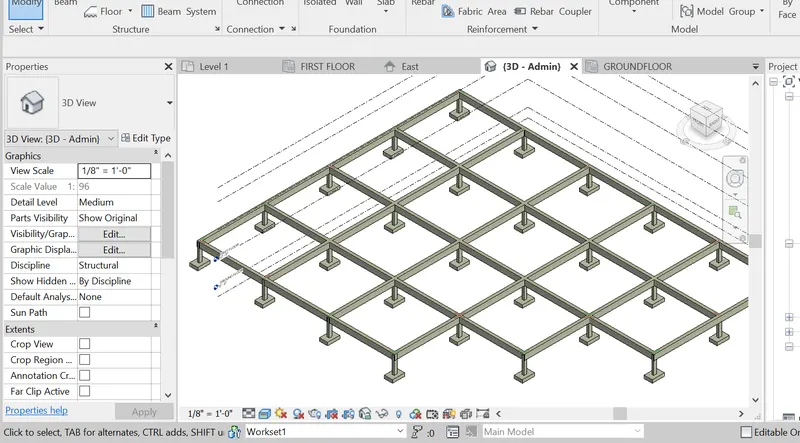

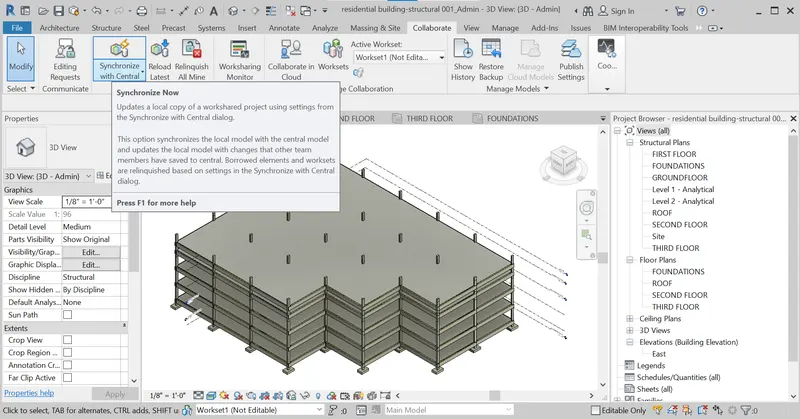

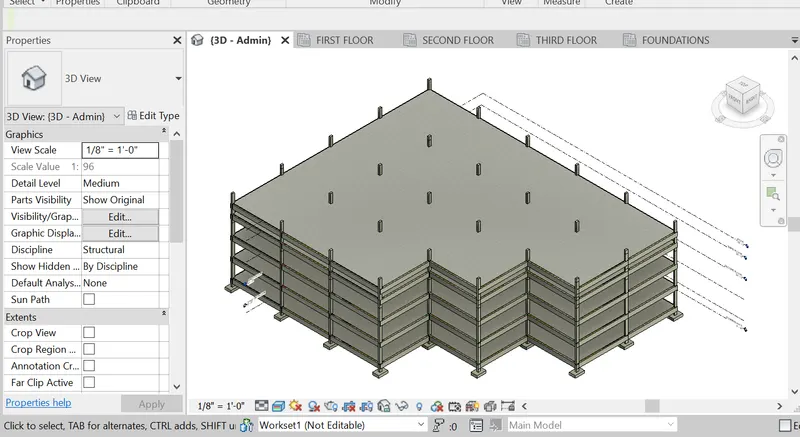

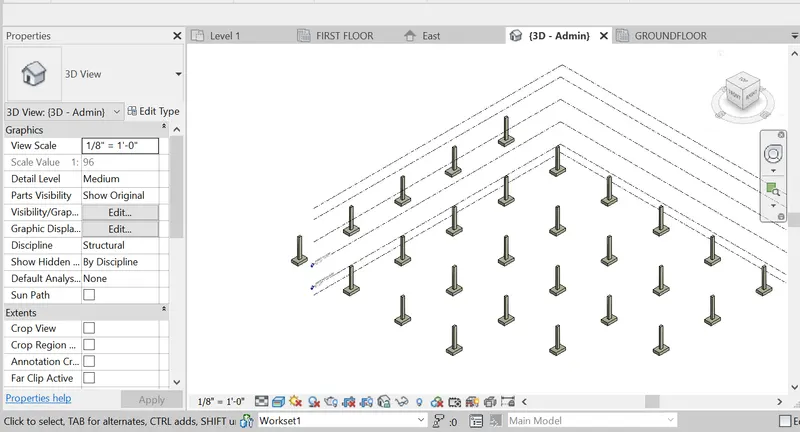

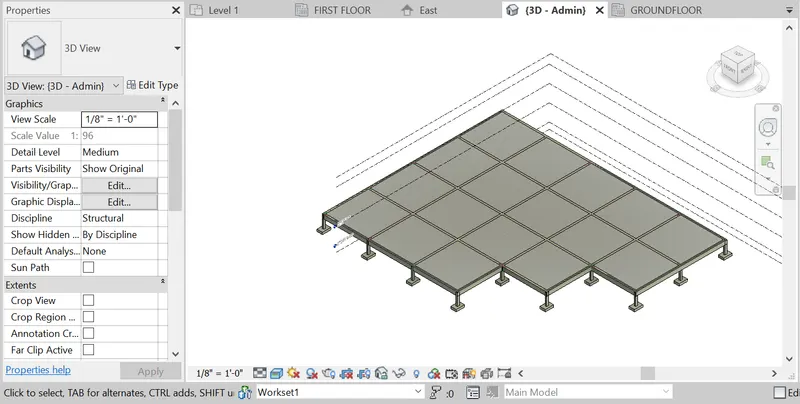

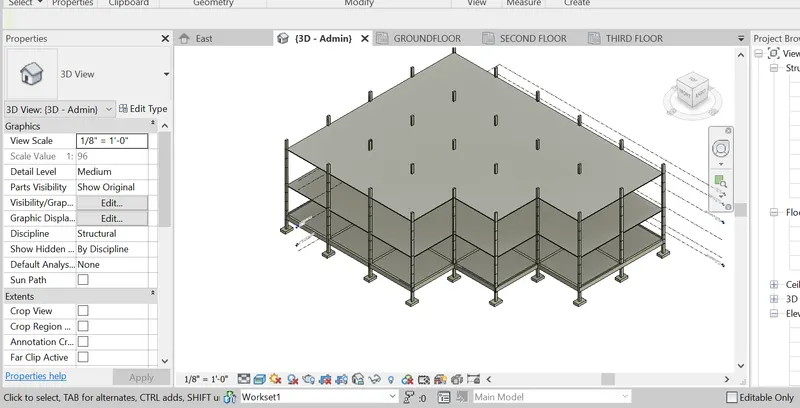

11).  Follow the same procedure again, draw the foundation, beam, and floor structural components, and               save the project to a central file.



RESULT:

In this project using structural model and save it as a collabrate as central file.





Q4. ) Using the architectural model, include the following components based on the type of structure selected
        a. Wall Layout with appropriate Material and finishing
        b. Exterior façade with fancy finish
        c. Interior partition walls to size rooms
        d. Components to add details to a room ( Desk, Chair, Lighting, Plumbing fixtures)
        e. Add components such as stairs Elevators
        f. Have at-least one side of the building with curtain walls and glass panels
        g. Include interior and exterior lighting fixtures
        h. Place proper topographic components from outside ( Trees, Parking, Plants) to add details to the model.

 Ans :-

AIM:Based on the kind of structure you chose earlier, add the following elements to your architectural model.

 command are used:

• Architecture.
• walls.
• Components.
• Load family.
• Ceiling.
• Floor.
• Doors.
• Windows.
• Staircase.
• Railings.

PROCEDURE:

 1.  Now go to the architectural template which has created before in this file.

 2.  Copy the grids which were created in the previous structure template and copy it.

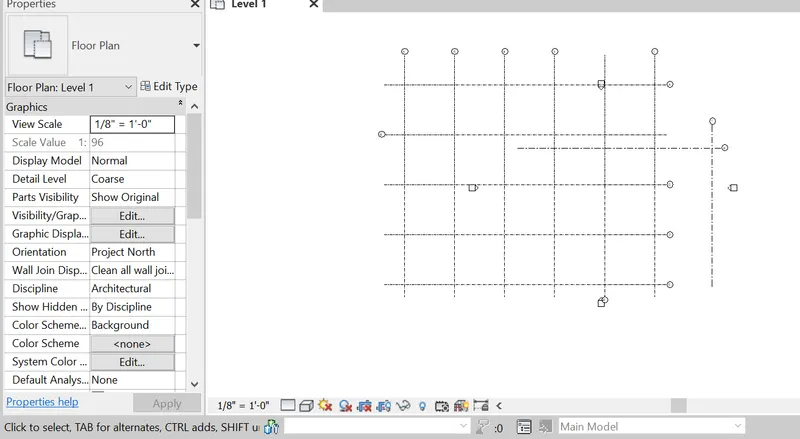

 3.  With the help of paste from clipboard option paste the grids in the architectural template.

4.   Select the grids and pin it .

 5.   click the elevation and create the levels required from architectural tab.

6.  Click virtual graphics setting and select custom in annotation off the grids.

7.  now , start create the exterior wall on grid lines .

8.  and then, floor tool add floor to all levels of projects.

9.  By the way same doing in walls also,

10.  Add stairs to all levels in it.

11.   To created the staircase add railing system in it.

12.   Add windows, doors to the walls.

13.  After that, load the load families with the project's necessary components and add them to the drawing         by adding them to the load family.

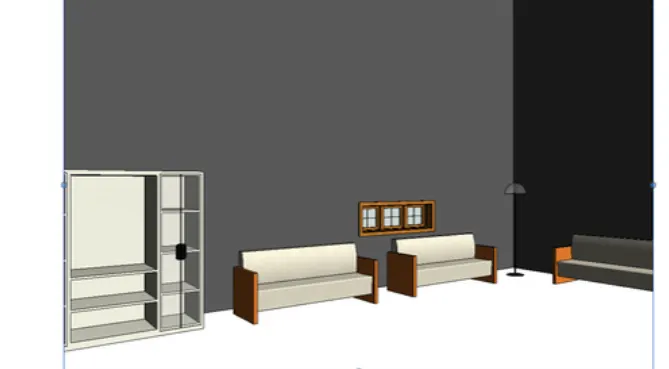

14.  set the camera in all rooms to view the pictures in realistics, of building.

15.  Save the project and changes will done in the architectural template will be save to be centralised files.



RESULT:

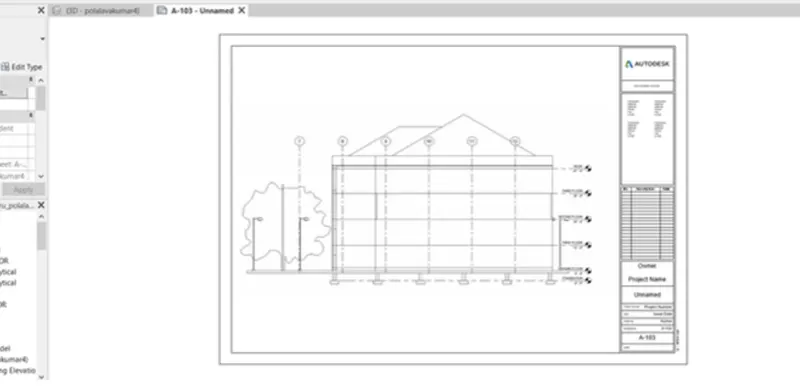

Q5. ) Provide a set of drawings in an architectural and structural model to list the following details with categories and appropriate sheet templates included
        a. Floor Plans with Annotations
        b. Elevations
        c. Sections.

 Ans :-

AIM :-

 To provide a set of drawings in an architectural and structural model listing the following details with categories and appropriate sheet templates: floor plans, elevations, and sections.

commands are used in :

• Insert.
• Sheets.
• Load families.
• Edit sheets.
• load image.
• view.

PROCEDURE;

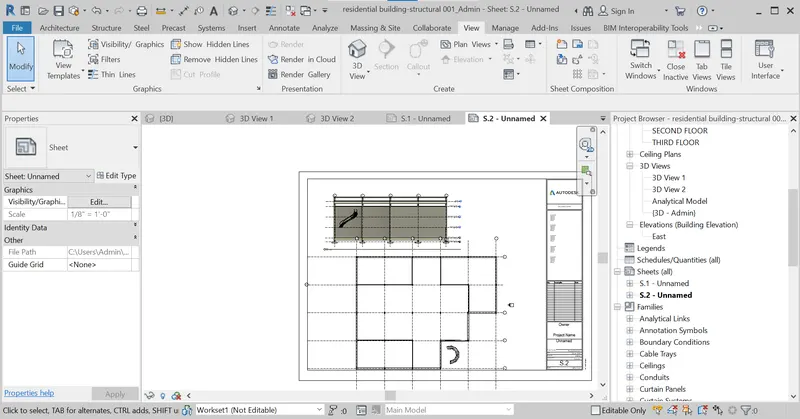

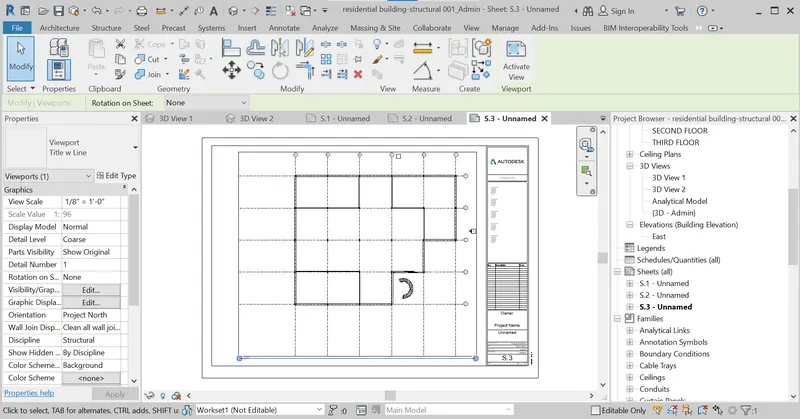

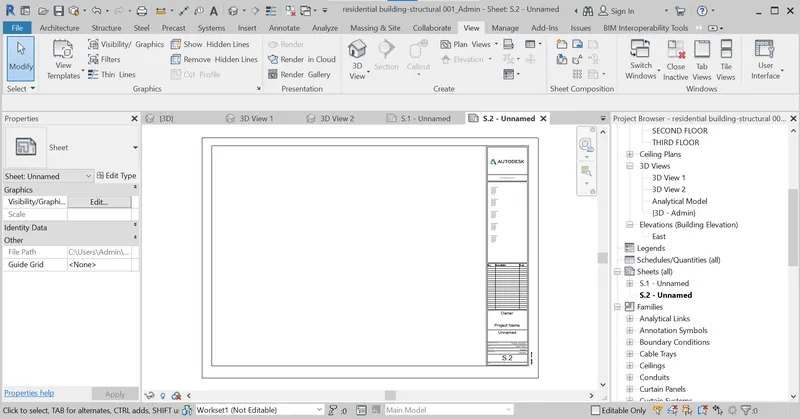

1.  open view tab and select sheet tool.

2.  Sheet dialog box will appear then,  press A1 metric  and click ok.

3.  rename the sheets by doubl clicking on the name and use appropriate names to the sheet.

4.  Go to the insert tab and select on load image option.

5. Then, add image into our sheets and then save it.

6. Repeat the same process and add the structural and architectural models into the sheets.

7.  Add the floor plans, elevation plans and sections also with the same steps into the sheets.



RESULT:

Finally, we produce the structural and architectural models' sheets, which include views of the floorplan, elevations, and sections.



Q6. ) Using the Rendering settings, Render images of the 3D model produced and include the rendered images to the drawing sheets

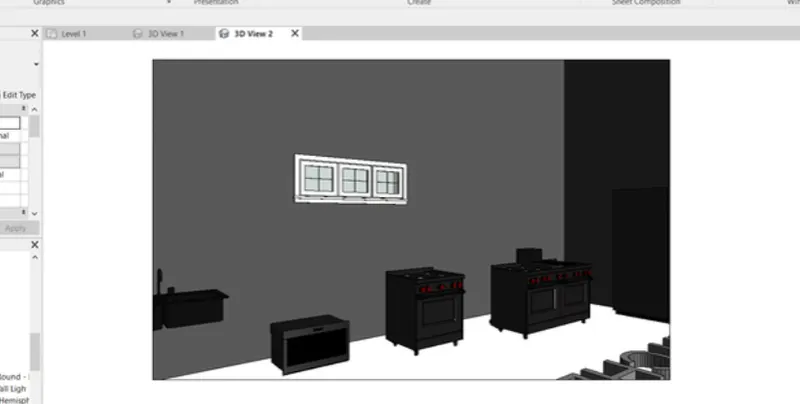

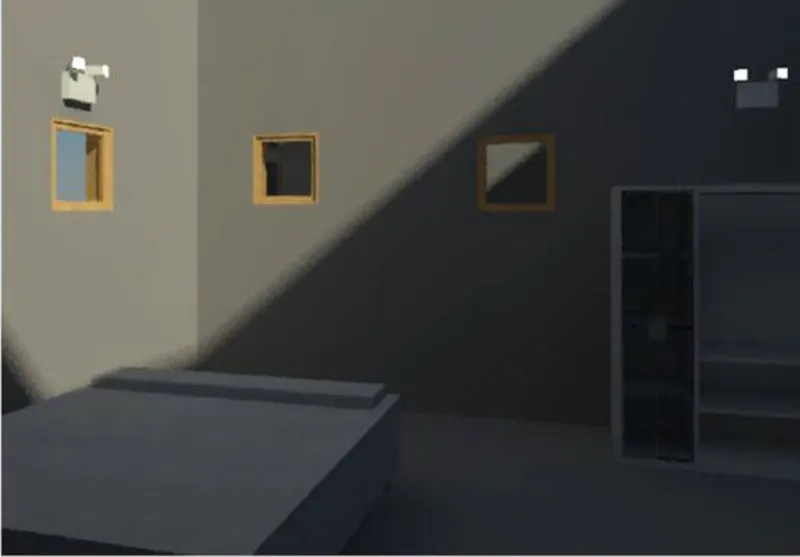

        a. Rendering from interior rooms
        b. Rendering from out showing topographic features
        c. Rendering through structural framing.

 Ans :-

AIM :-

 Utilizing the rendering options, render pictures of the created 3D model and add the pictures to the drawing sheets.

commands are in used:

• Render.
• Region.
• Style.
• Scheme.
• Sheet.

PROCEDURE:

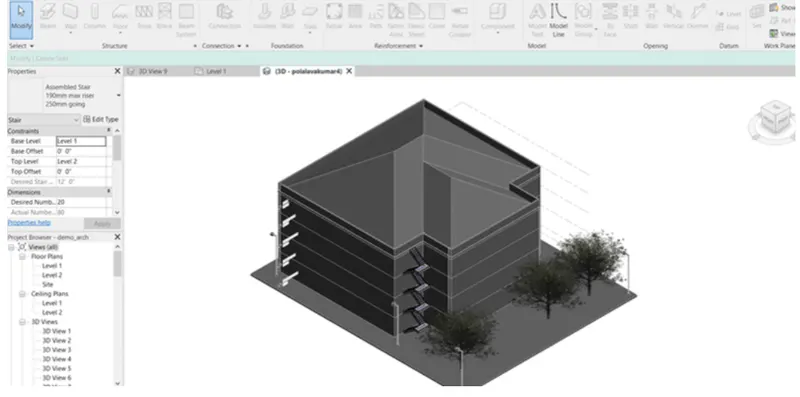

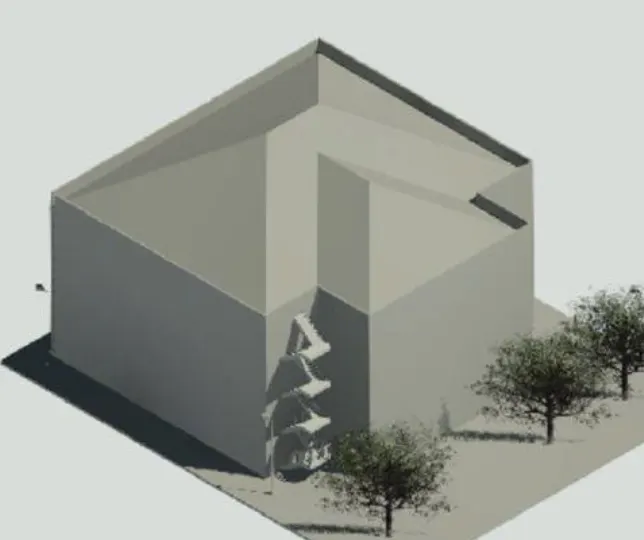

1).  Open 3D view and set the view to take the picture  where, we want to render the area.

2).  then, click view menu and click render option.

3).  Render dialog box are appears.

4).  select region option and crop the image in region.

5).  Then, we can change the style of render images , schemes, lighting options and finally, click render in it.

6). The render image will then appear more realistic than other images and can be used to present our                clients in a better light.

RESULT:





 Q7. ) Print the set of drawing sheets created and submit the drawings from the architecture and structure model.

 Ans :-

AIM:

To print the created set of drawing sheets and submit the architectural and structural model's drawings.

commands are in used:

• File.
• Print.
• Setup page.
• Select the plotter.
• Print.

PROCEDURE:

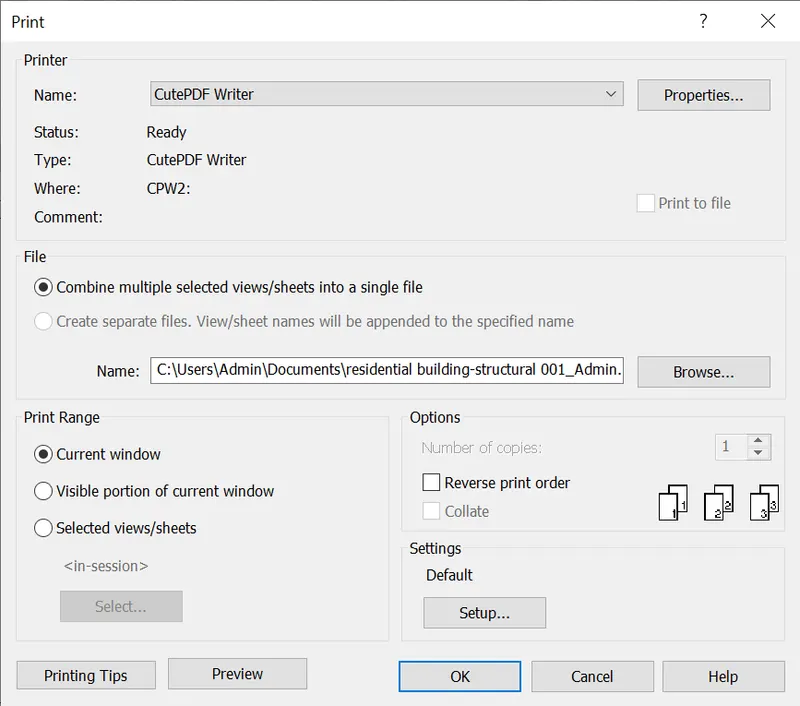

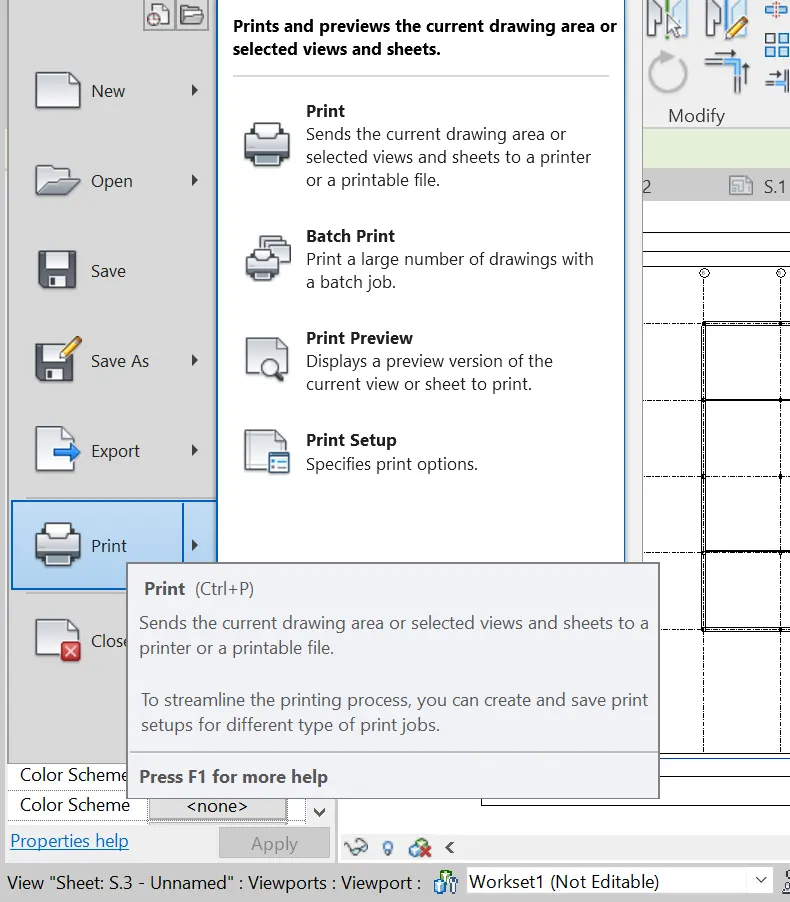

1.  Click the views and open file menu and click the print.

2.  Print dialog box is appear.

3.  Then, change the settings of sheets size ,texts styles page setup everything.

4.  Then click print and press ok.



RESULT:

Finally,  set of drawing sheets made from the architecture and structure model are submitted.
