Creating Architectural and Structural model with 3D rendering using REVIT

AIM:To Creating of Architectural and Structural model with 3D rendering using REVIT.

INTRODUCTION:Creating of Architectural and Structural model with 3D rendering by using of architectural and structural templeate in Revit.

PROCEDURE:

1ANS:MULTI UNIT RESIDENTIAL APARTMENT.

2ANS:Project information and geographical location and structure details are selected as per National Building code -2005.

3ANS:

Start Revit.
Select New Structuarl templeate.
Slelect the level tool in project properties tab, then select the levels tool in datum tab.
After select the level tool in datum tab then draw the required level.
Select the ground floor level,then selct the grids tool in datum draw the the grid.

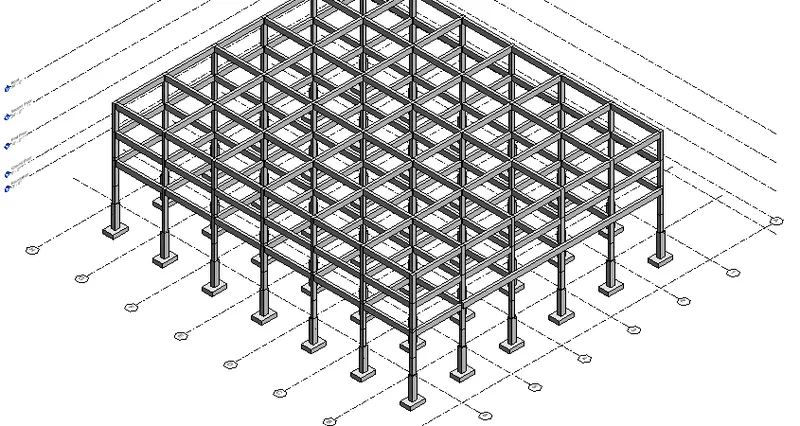

Select the isolated foundation from Structural tab then select the reuired grids to place for foundation.
Select the column from Structural tab then select the required grids to palce for columns .
Select the beams from Structural tab then select the required grids to palce for beams.
Select the floor from Structural tab then select the required grids to palce for floor.
Select the opening shaft from Structural tab then slect the floor where the shaft is required for stairs elevator.

4ANS:

Start Revit
Select the existing Architectural file.

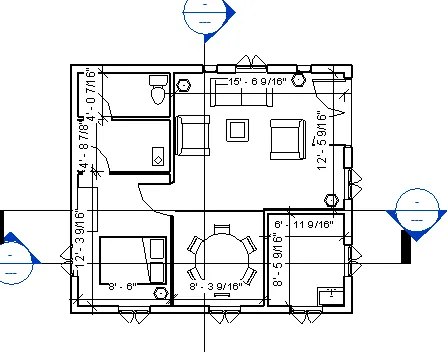

Slect the Ground floor then partion the rooms as per National Building code.
Select the place of components from Architrectural tab to place the furniture.
Slect the wall patterns flooring.
Slelect the annonate tab from dimensions annonate and text from rooms names labeled

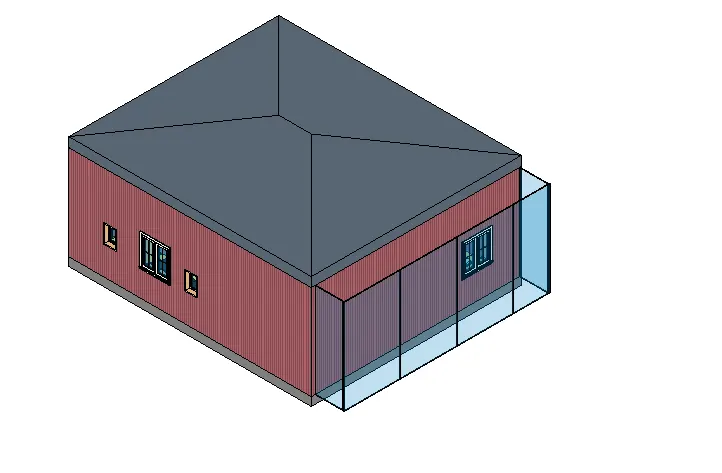

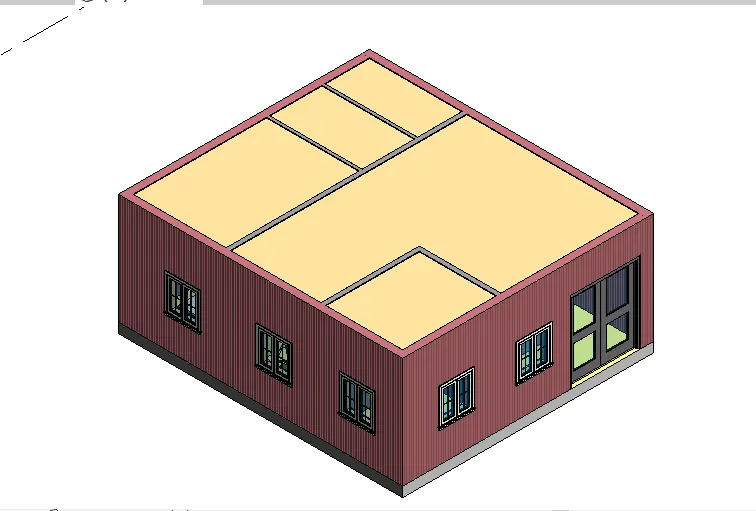

select the roof from architectural tab.
Slect the wall type by using the edit option project manger tab.

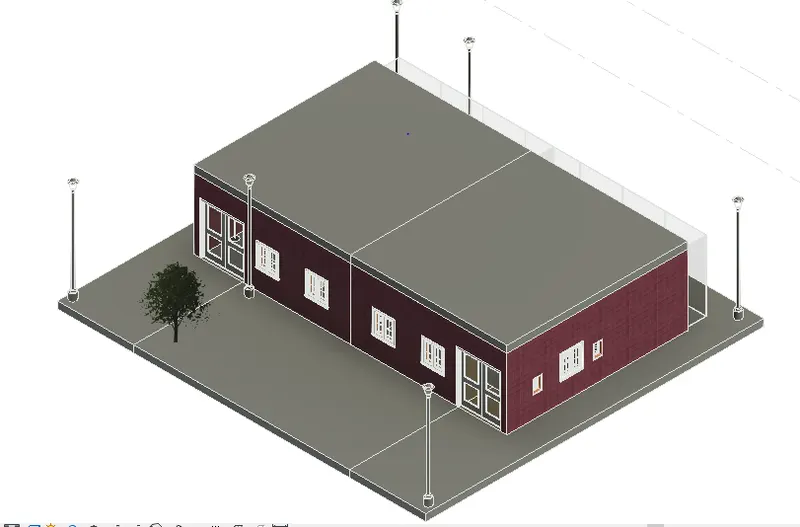

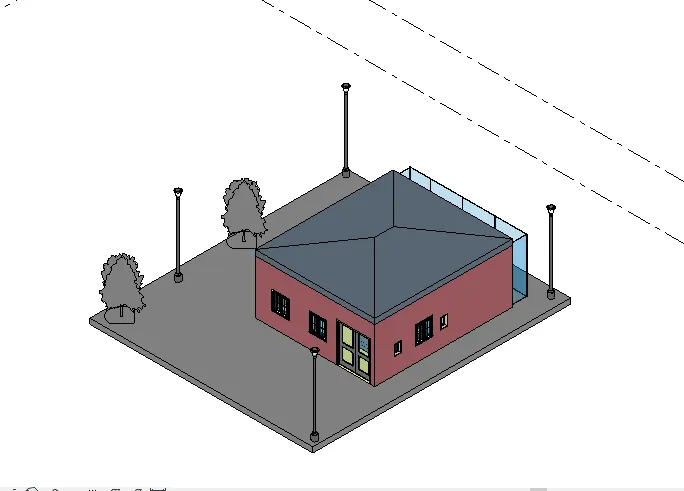

Select the topographical view from view tab.

5ANS:

6ANS:

Start Revit
Select the existing Architectural file.
Select the interior rooms from camer object.

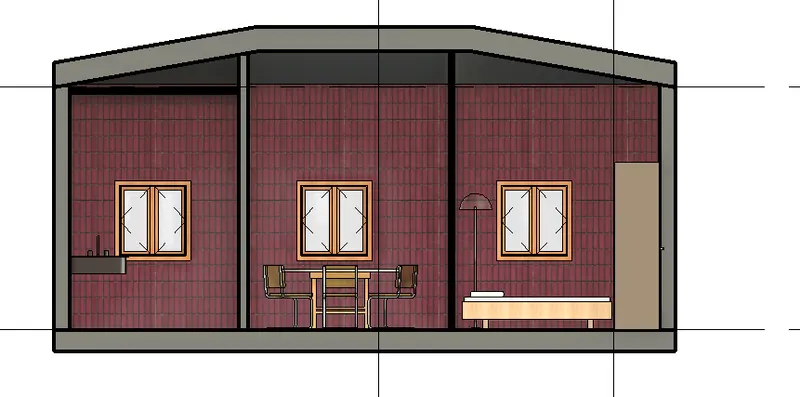

Section render from Presentation tool in View tab.
Select the render object selct the region then setup the adjust exspouser,lighting then render.

7ANS:

Start Revit
Select the existing Architectural file.
Select the interior rooms from camer object.
Section render from Presentation tool in View tab.
Select the render object selct the region then setup the adjust exspouser,lighting then render.

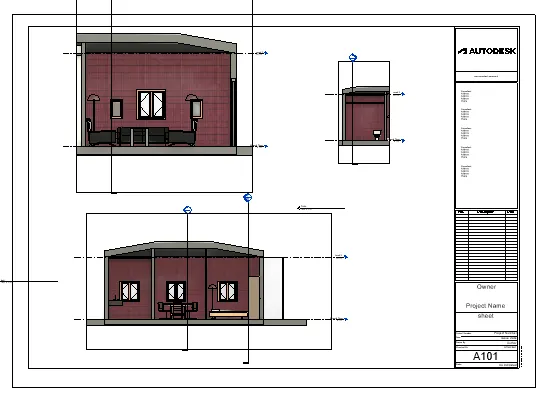

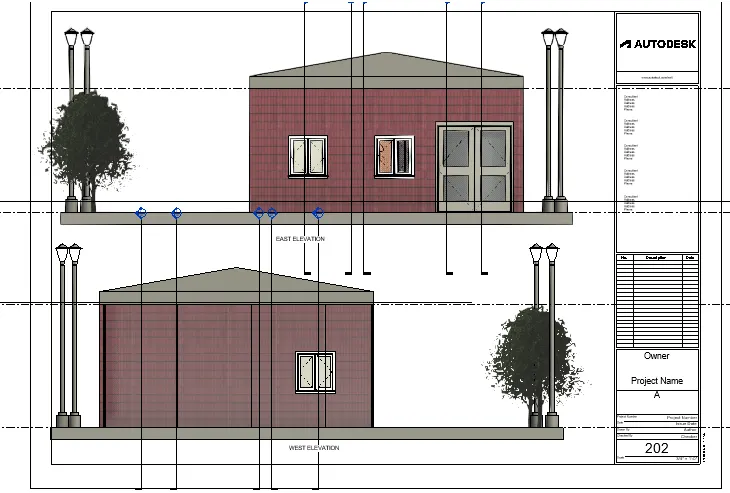

After the complete the render type P from print setting the .
By using print option set the reder picture as in the format of pdf an take prints as per required sheets.

RESULT:

To Complete the Creating of Architectural and Structural model with 3D rendering using REVIT.
