Creating Architectural and Structural model with 3D rendering using REVIT

1) Select the type of structure you want to build from one of the three below:
a. Multi-Unit Residential Apartment
b. Office Buildings
c. School

Ans) My project is to built the Multi-unit residential apartments from the given three options.

Ans 2) Assumptions for geographic and location details for your project modeling

• My building is constructed in the residential area, Meerpet, hyderabad.
• My building is constructed in the plain area(geographic)
• Infront of my building there is a road with the width of 30 feets.
• As per the NBC, the height limit will be given in NBC part V-1, (National building code).
• The size of the rooms also given in the NBC part V-1.

Ans 3)

AIM:- To include the following components based on the type of structure selected using the structural model.

PROCEDURE:-

Step:-1

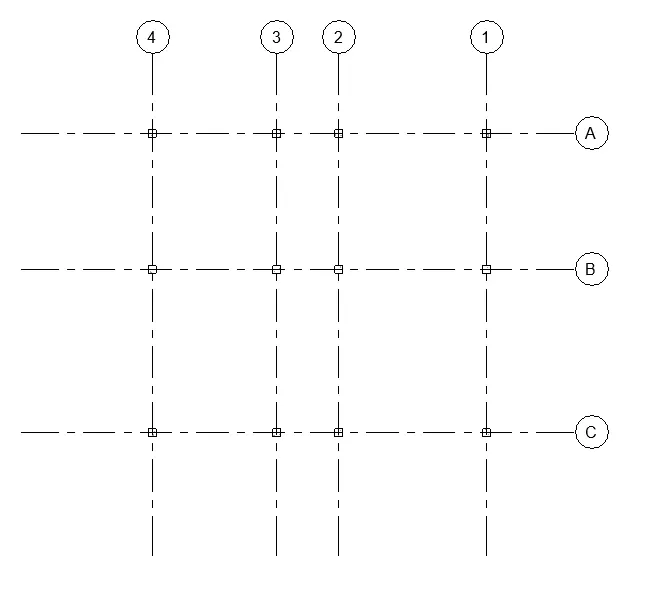

• First we draw the vertical and horizontal grids as shown below.
• Next we need to to add the columns with the size of 300m x 300mm, as shown in the below2 figure.

Step:-2

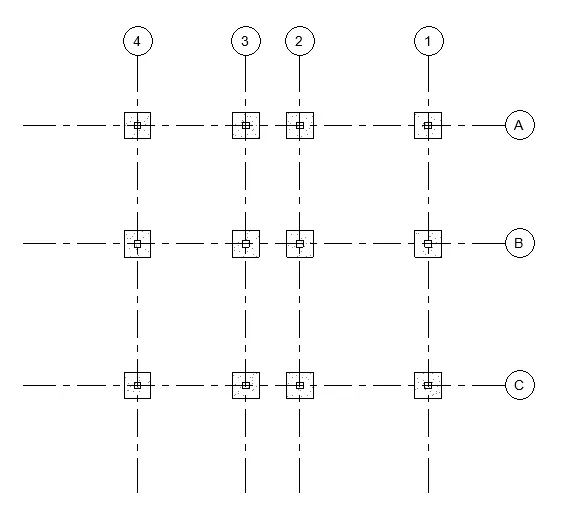

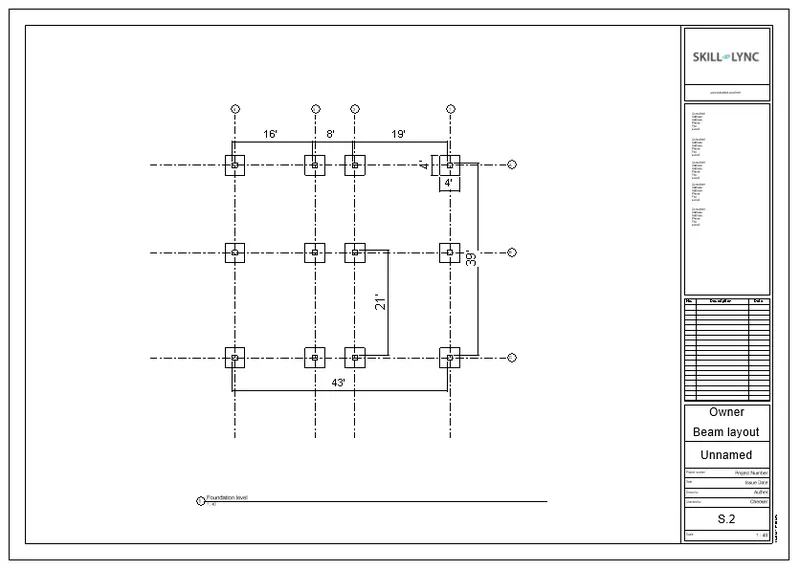

• Next we need to add the foundations with the size ofv 4' x 4', as shown below.

Step:-3

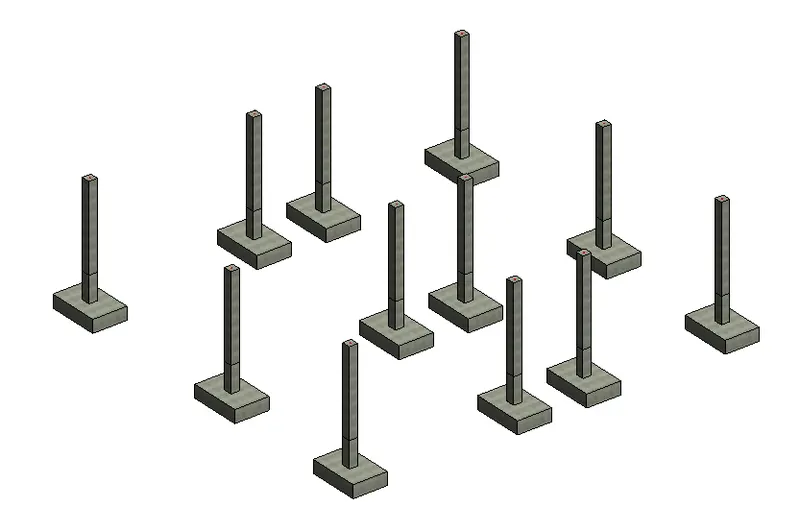

• Next we turn the foundations and columns to the 3D view, as shown below.

Step:-4

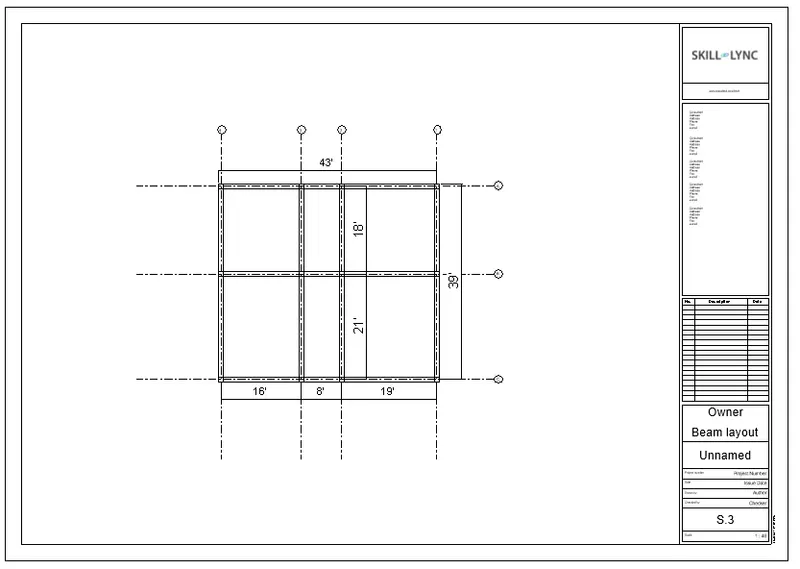

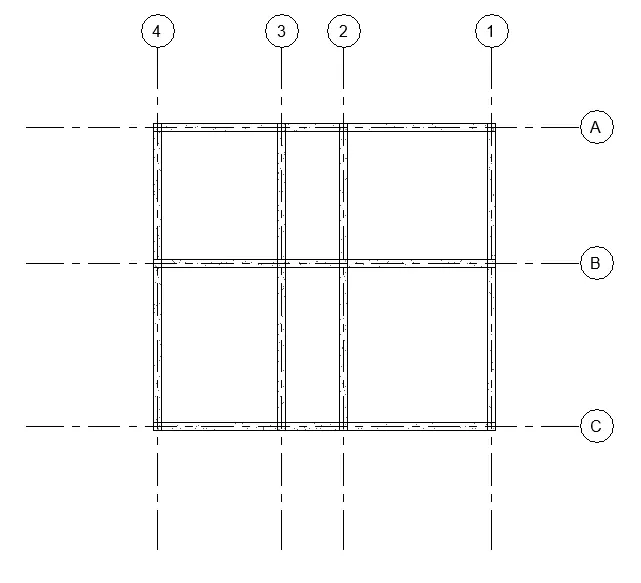

• Next we need to add the beams to the layout, as shown in the below figure.

Step:-5

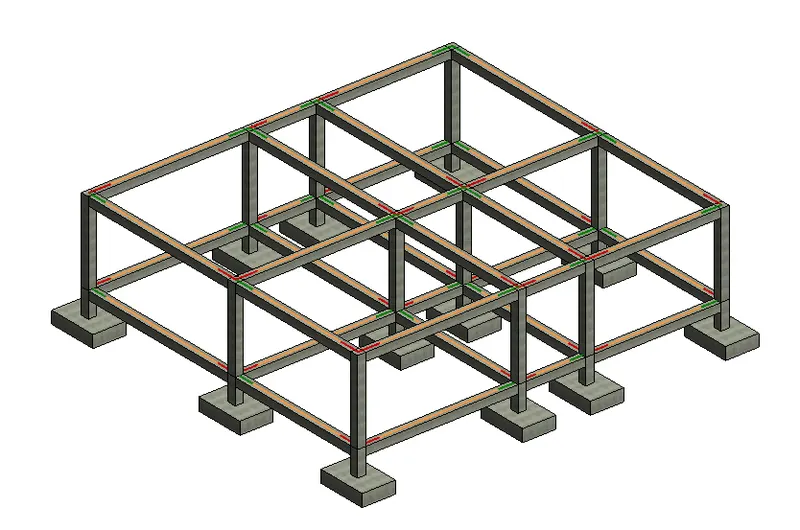

• Next we turn the layout to the 3D view, as shown below.

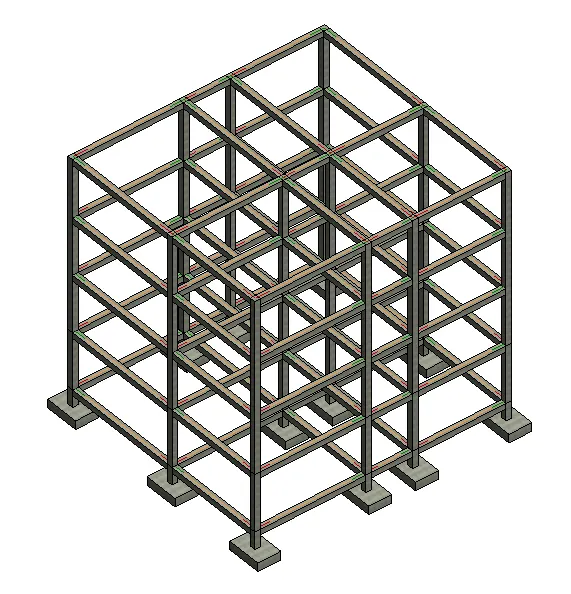

• Again add the beams and columns up to the fourth floor level, as shown below.

Step:-6

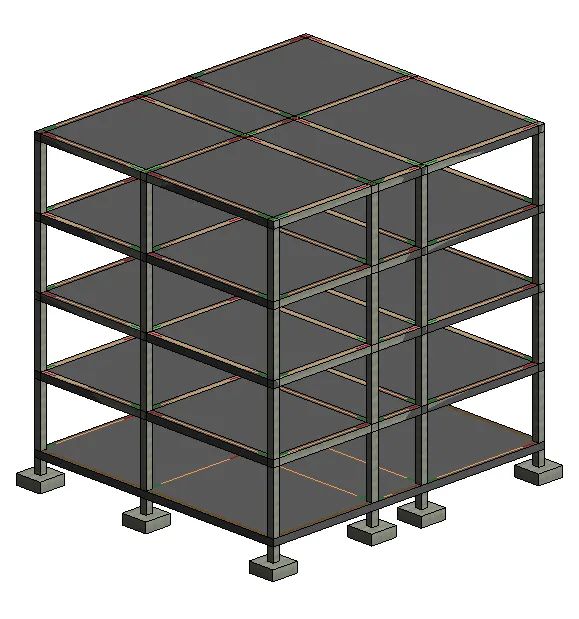

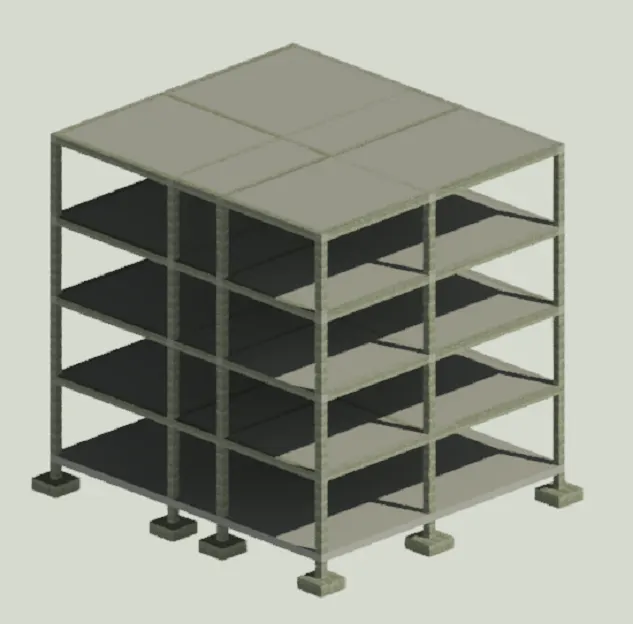

• Next we add the floors upto the fourth floor as shown in the below figure.

Step:-7

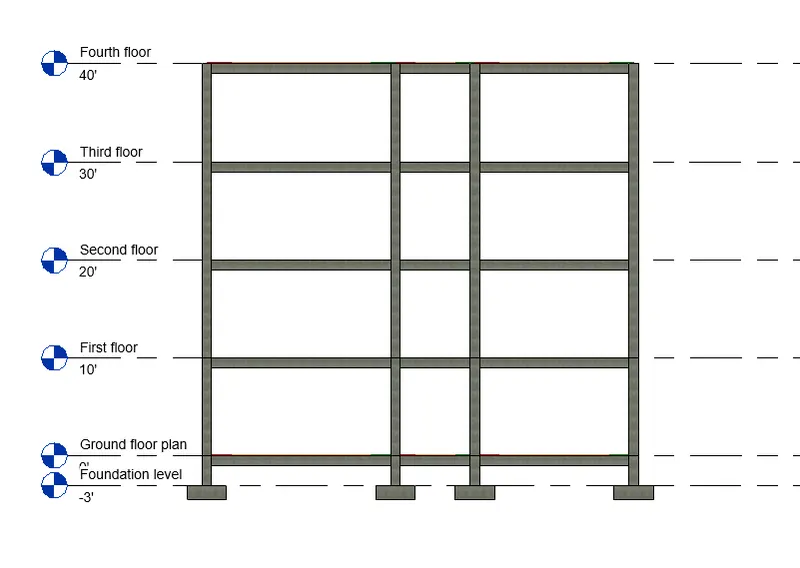

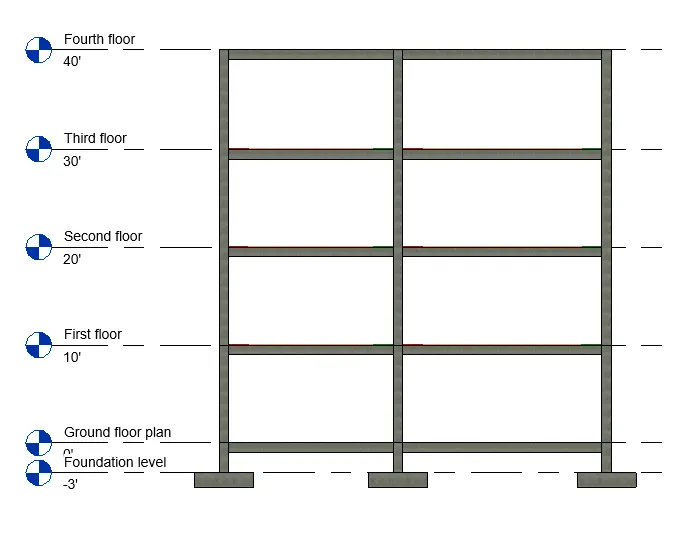

• Next we turn the 3D model to the side views, as shown in the below figure.

RESULT:-

• The given components are successfully included based on the type of structure using the structural model.

Ans 4)

AIM:- To include the given components based on the type of structure selected using the architectural model.

PROCEDURE:-

Step:-1

• We add the different materials to the wall and finishing has done, as shown below.

Step:-2

• Next we add the interior partition walls, as shown in the below figure.

Step:-3

• Next we render the bed room as shown below.

Step:-4

• Next we render the Living room as shown below.

Step:-5

• Next we render the kitchen room as shown below.

Step:-6

• Next we render the Entrance with exterior lights as shown below.

Step:-7

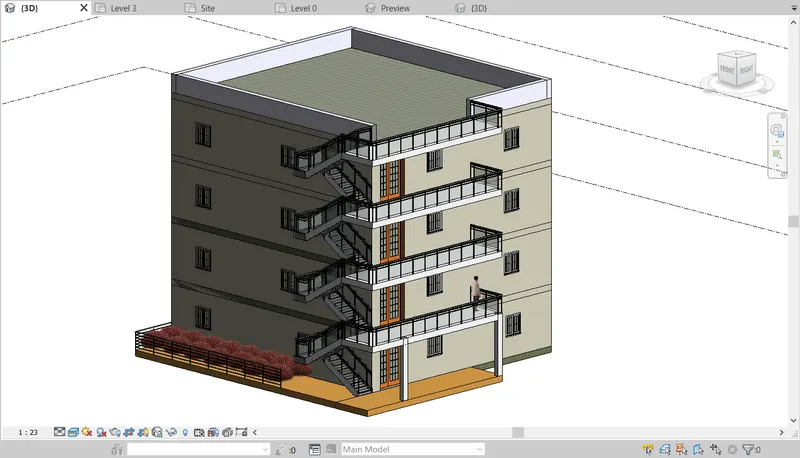

• Next we render the whole building, as shown in the below figure.

RESULT:-

• The given components are successfully included based on the type of structure using the architectural model.

Ans 5)

AIM:- To provide a set of drawings in an architectural and structural model to list the given details with categories and appropriate sheet templates included.

a. Floor Plans with Annotations
b. Elevations
c. Sections

PROCEDURE:-

Step:-1

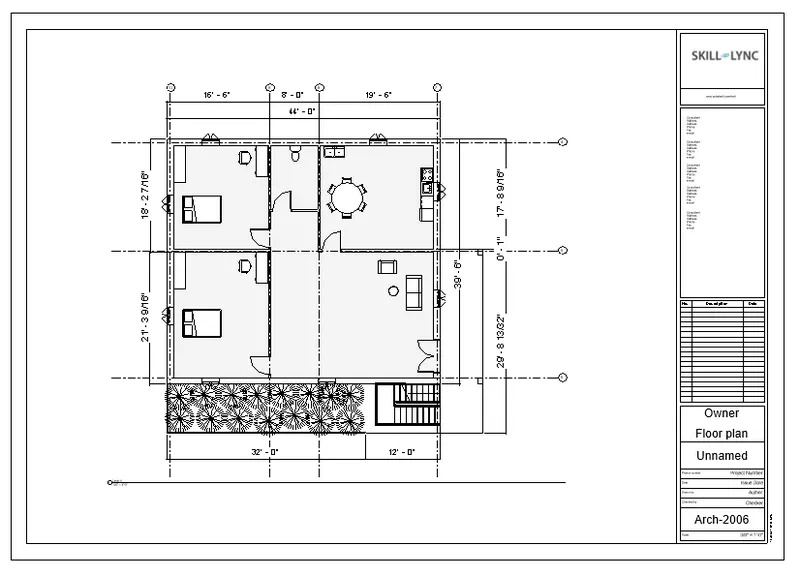

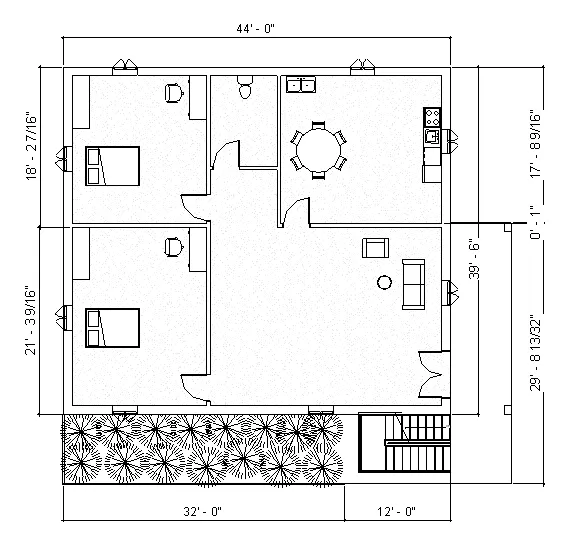

• First we add the ground floor plan in the sheet, as shown below.

Step:-2

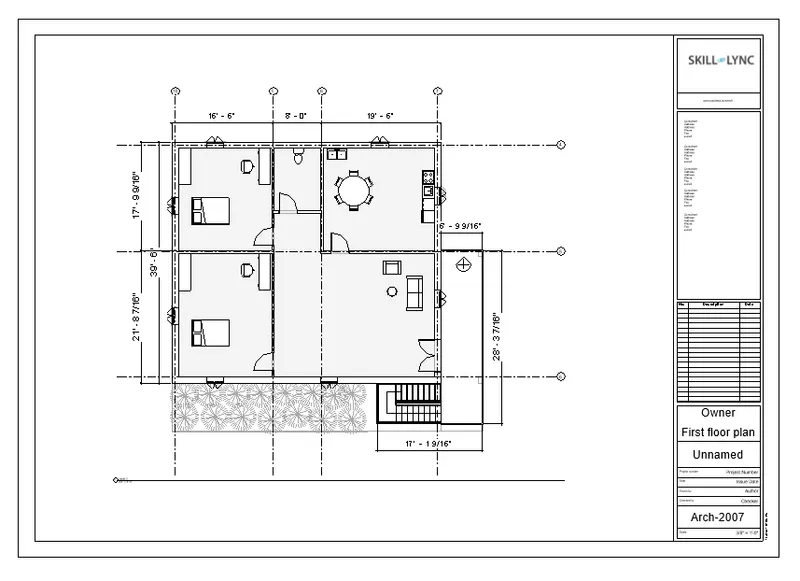

• Next we add the first floor plan in the sheet, as shown below.

Step:-3

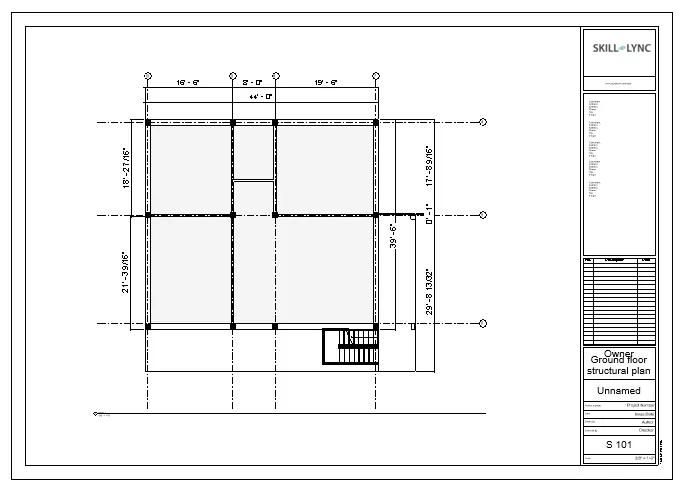

• Next we add the Ground floor structural plan in the sheet, as shown below.

Step:-4

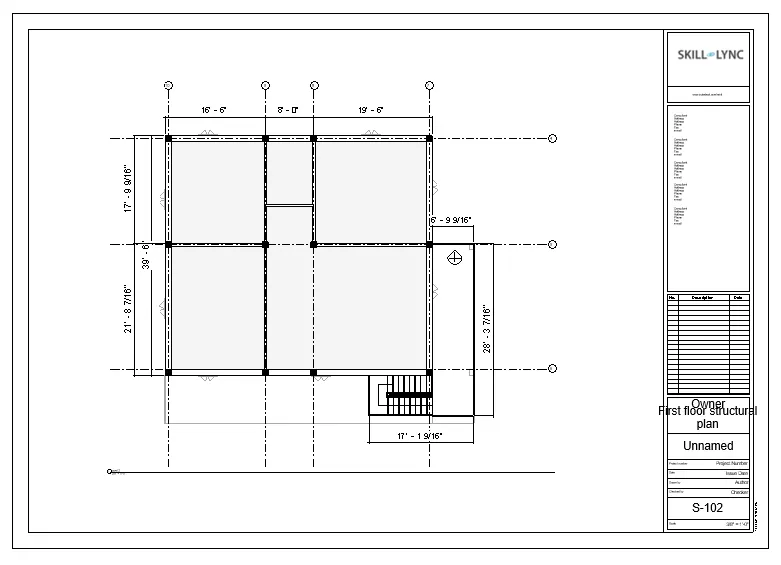

• Next we add the First floor structural plan in the sheet, as shown below.

Step:-5

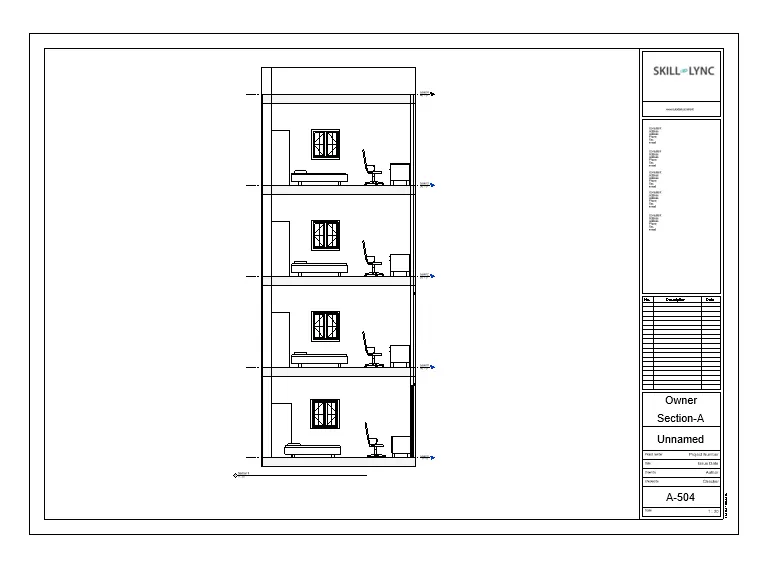

• Next we add the Section-A in the sheet A-504, as shown below.

Step:-6

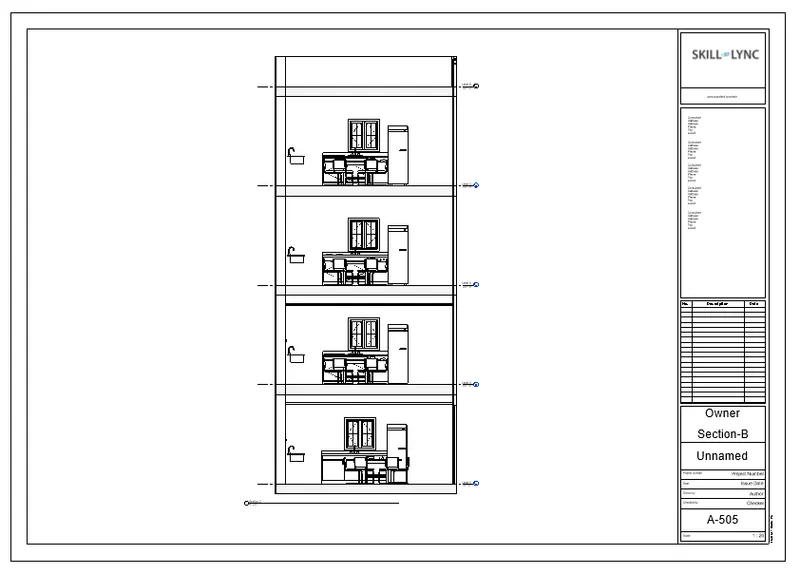

• Next we add the Section-B in the sheet A-505, as shown below.

Step:-7

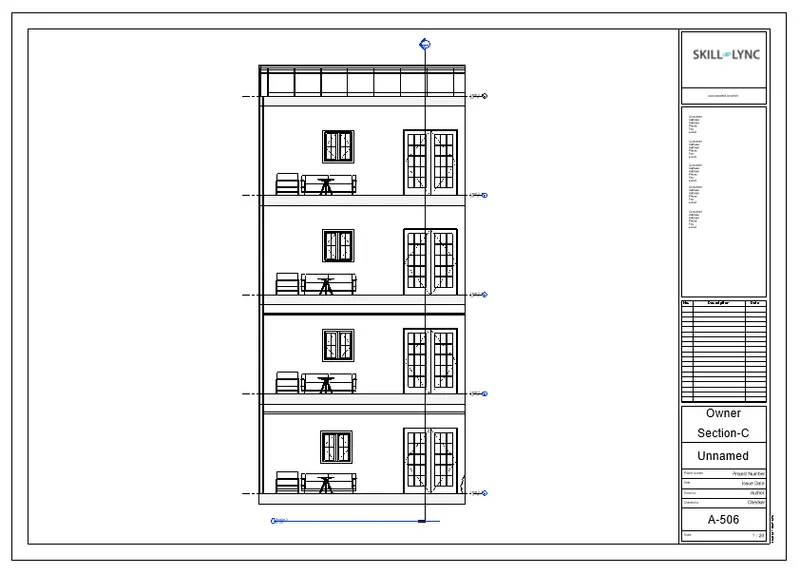

• Next we add the Section-C in the sheet A-506, as shown below.

Step:-8

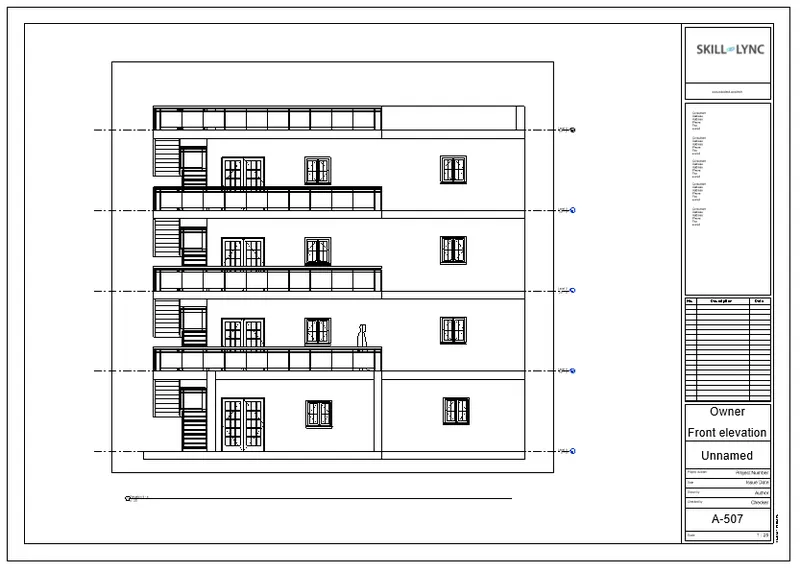

• Next we add the Front elevation in the sheet A-507, as shown below.

Step:-9

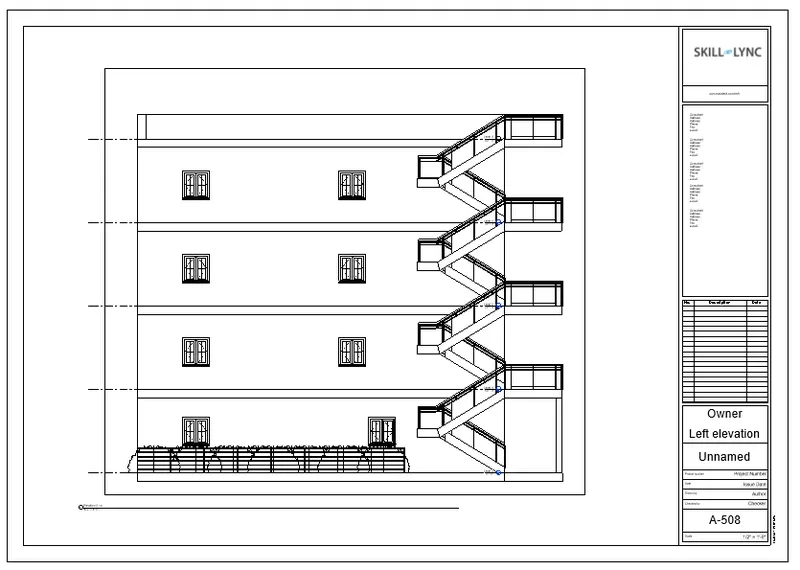

• Next we add the Left elevation in the sheet A-508, as shown below.

Step:-10

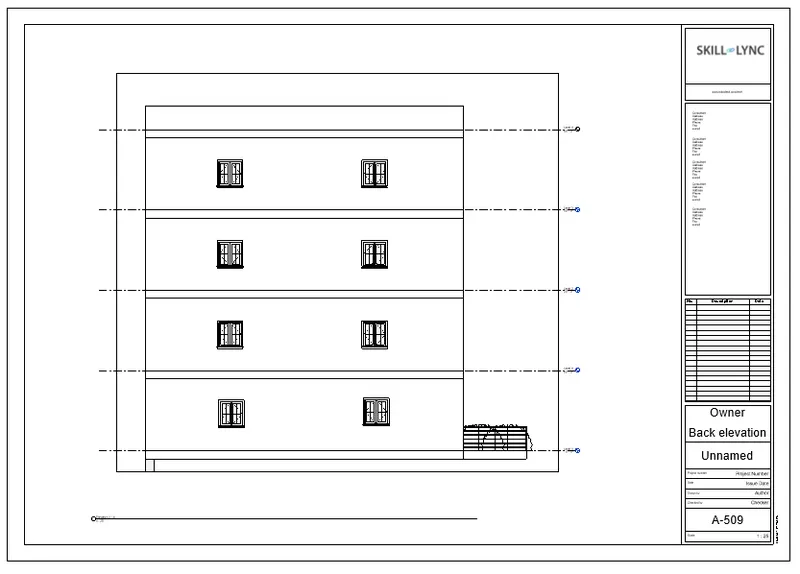

• Next we add the Back elevation in the sheet A-509, as shown below.

Step:-11

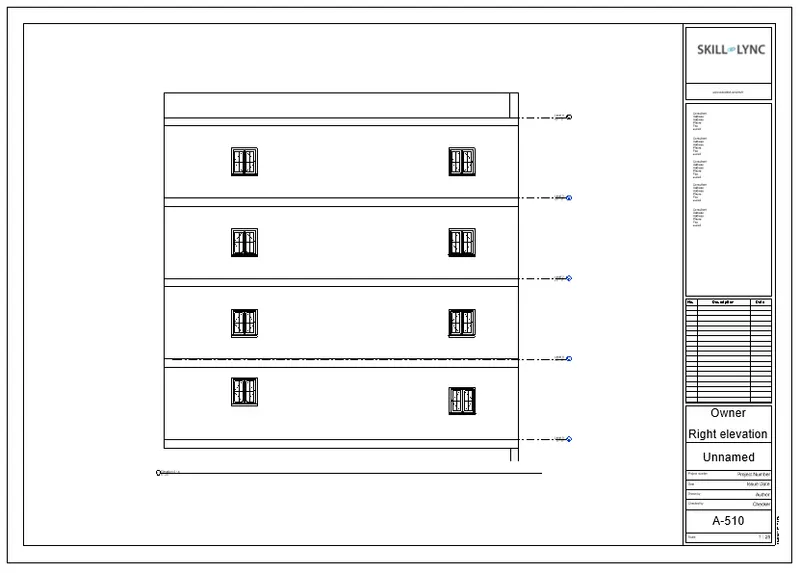

• Next we add the Right elevation in the sheet A-510, as shown below.

RESULT:-

• Provided a set of drawings in an architectural and structural model and listed the given details with categories and appropriate sheet templates included.

Ans 6)

AIM:- To render images of the 3D model produced and to include the rendered images to the drawing sheets using the rendering settings.

PROCEDURE:-

Step:-1

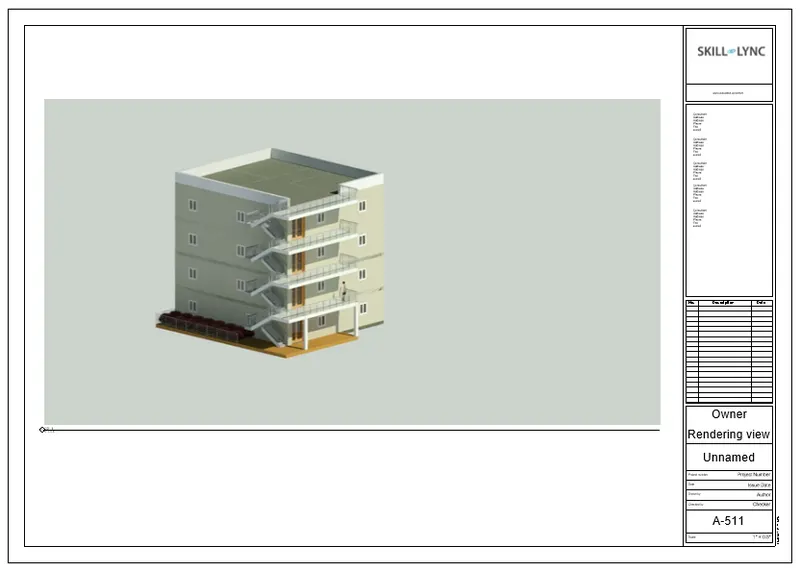

• First we add the rendering view of residential building in the sheet A-511, as shown below.

Step:-2

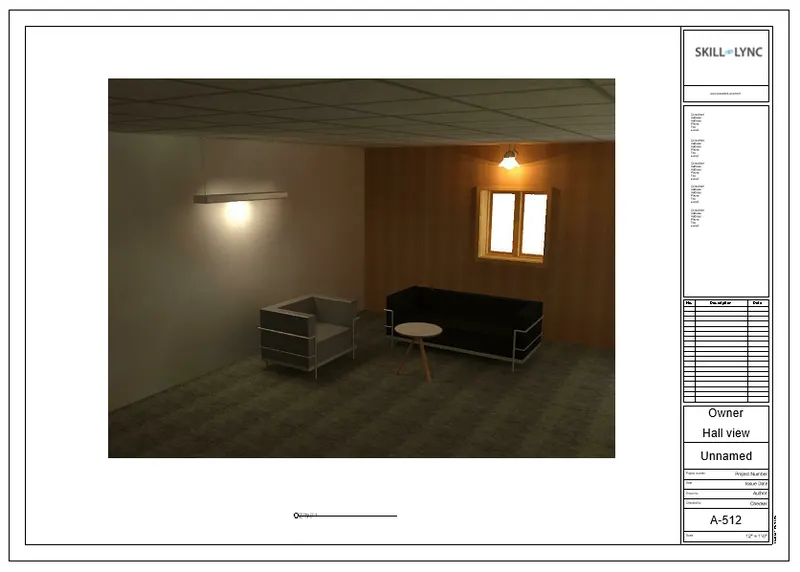

• Next we add the rendering view of Living room in the sheet A-512, as shown below.

Step:-3

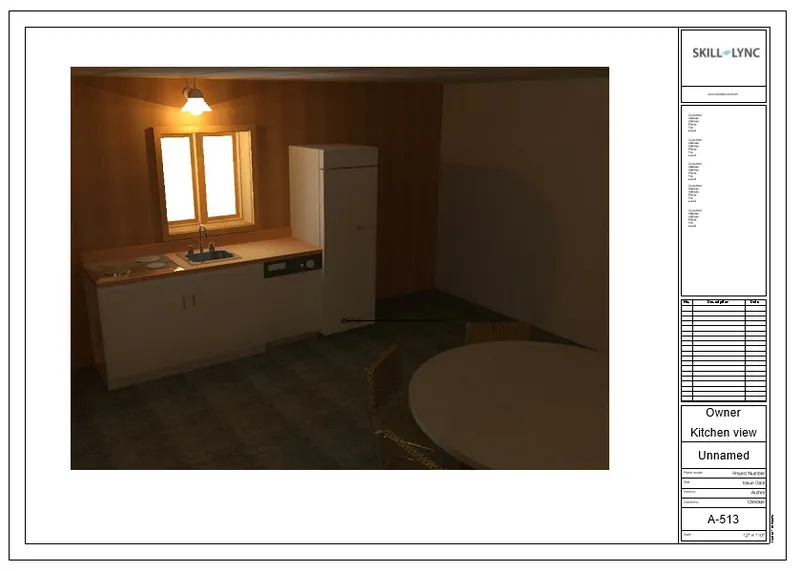

• Next we add the rendering view of Kitchen room in the sheet A-513, as shown below.

Step:-4

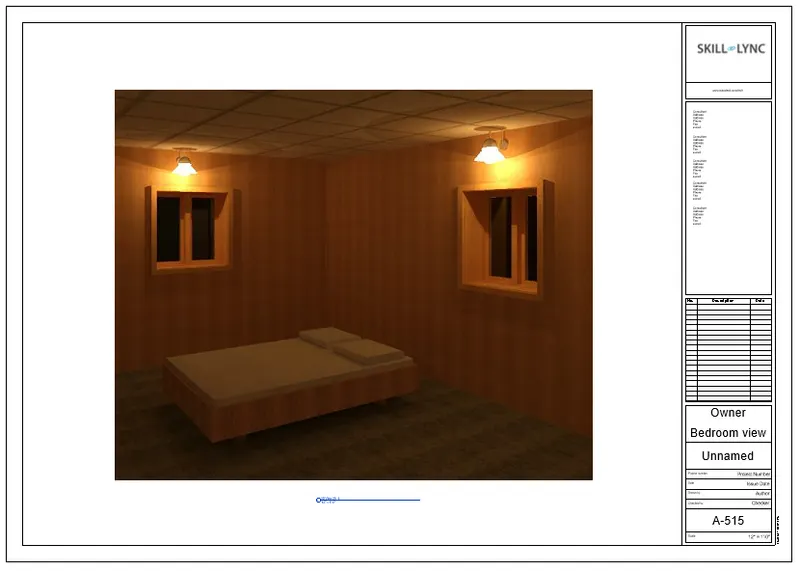

• Next we add the rendering view of Bed room in the sheet A-515, as shown below.

Step:-5

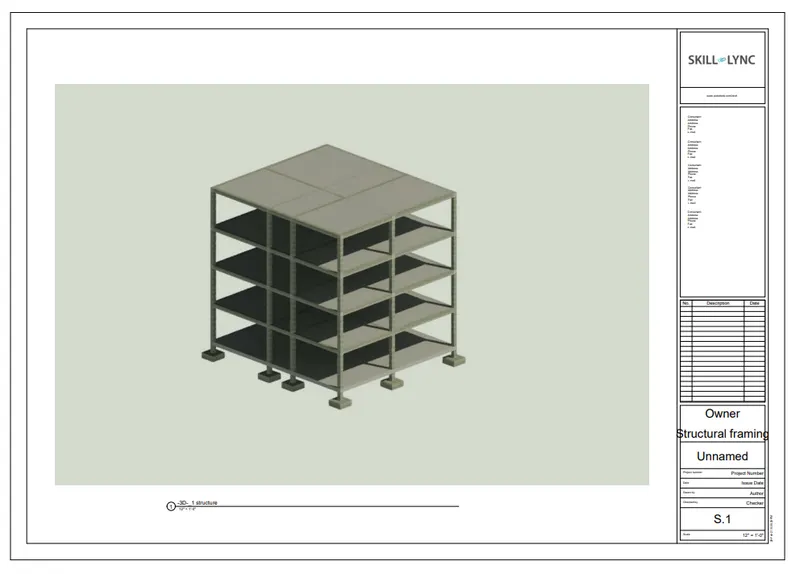

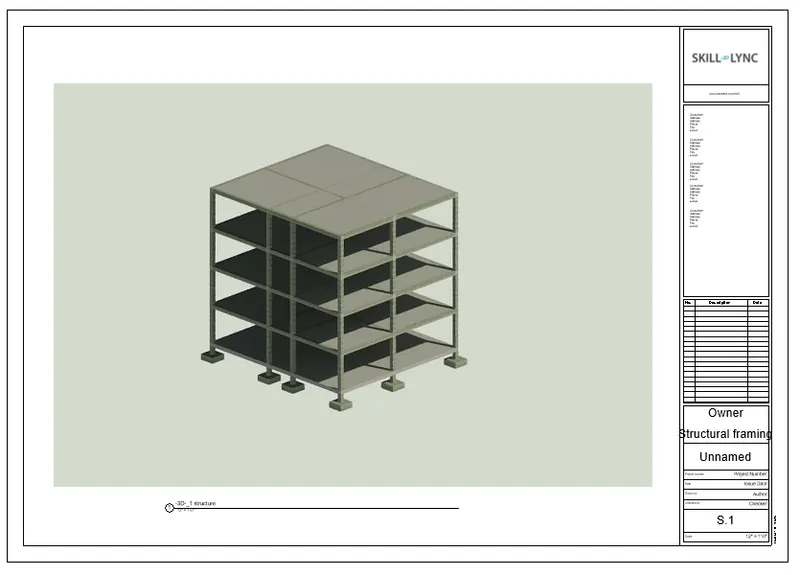

• Next we add the rendering view of Structural framing of a building in the sheet S-1, as shown below.

RESULT:-

• The all rendered images of the 3D model is successfully included in the drawing sheets.

Ans 7)

AIM:- To print the set of drawing sheets created and to submit the drawings from the architecture and structure model.

PROCEDURE:-

Step:-1

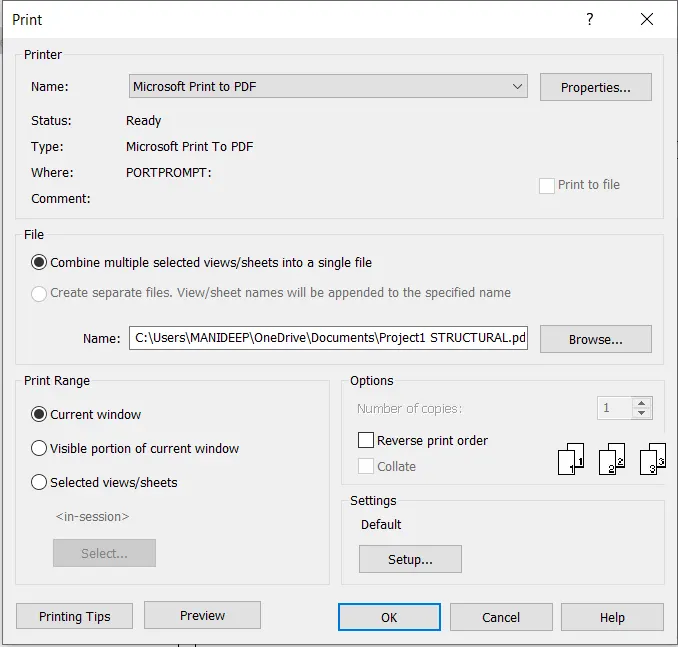

• First we use the print tool to print the drawings, as shown below.

Step:-2

• After printing the drawings, we open the printed drawings, as shown below.

RESULT:-

• The set of drawing sheets are printed successfully.
• And submited the drawings from the architecture and structure model.
