Challenge

3D Creation of Ceiling, Roof, Architectural plan, Structural plan, Sectional view, Elevation view and Camera specific view for a house plan using REVIT

Ans 1 )

   AIM:- To model a Ceiling from the architecture tab above the walls at the first-floor level.

PROCEDURE:-

    Step:-1

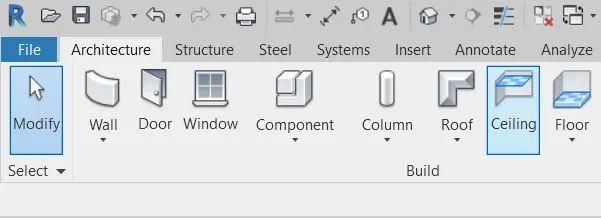

  • First we open the revit sofware, and select the ceiling option from the architecture toolbar.



    Step:-2

  • After selecting the ceiling option, then select the each room one by one.
  • Then the ceiling will be created, as shown in the below figure.



    Step:-3

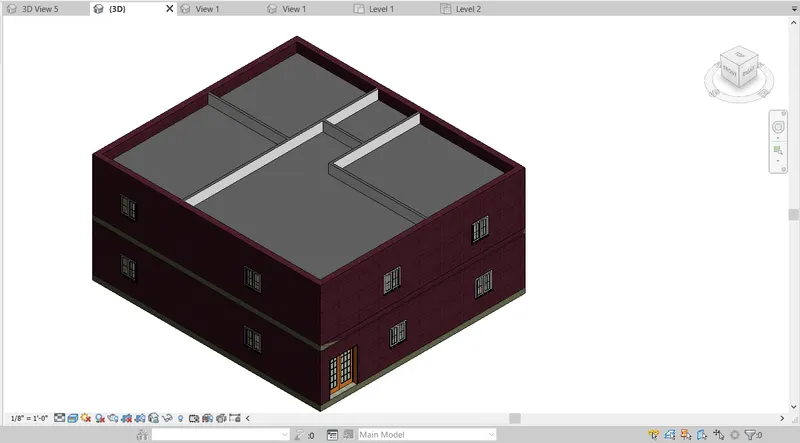

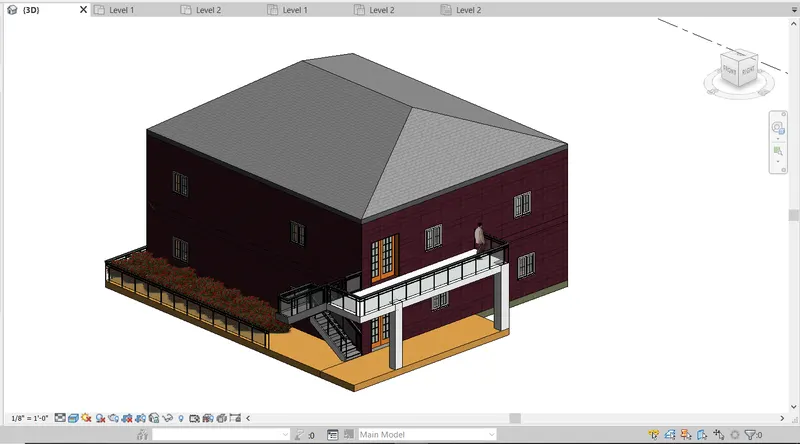

  • Here we can the ceiling in the three dimensional view as shown in the below figure.



    RESULT:-

  • The ceiling has been modeled successfully from the architecture tab above the walls at the first-floor level.



Ans 2 )

AIM:- To model a roof above the ceiling by selecting the footprints of the ceiling.

 PROCEDURE:-

    Step:-1

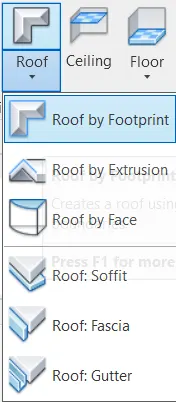

  • Open the architecture toolbar, and select the Roof by Footprint option as shown in the below figure.



    Step:-2

  • Next we select the roof and adjust the roof to 10 degrees by selecting it, as shown in the figure.



    Step:-3

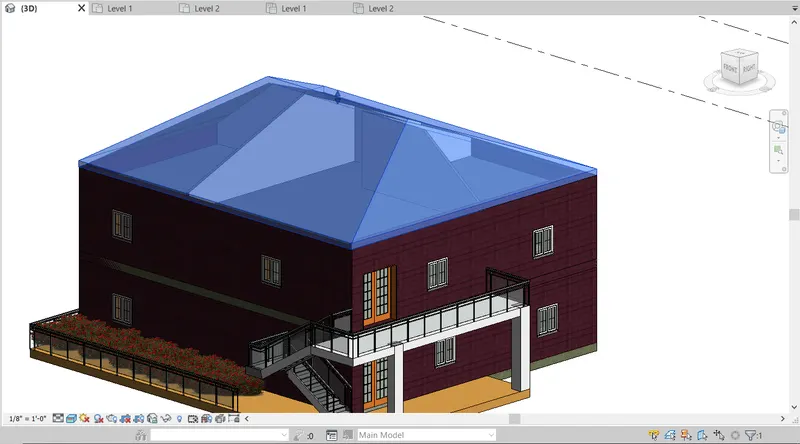

  • The roof has been created, as shown below.



    RESULT:-

  • The roof has been created successfully to the model in the revit in detailed manner.



Ans 3 )

  AIM:- To create plan views for ground floor level and first-floor level including all the walls, floors, and components.

                And to Separate them to architecture and structural plans.

PROCEDURE:-

    Step:-1

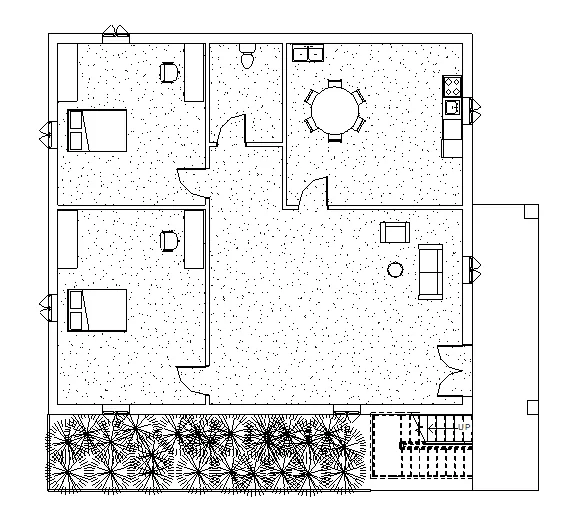

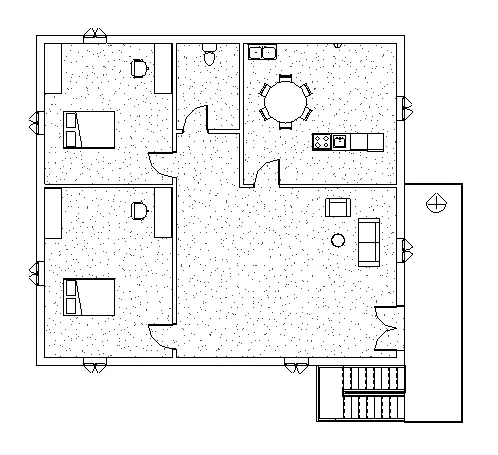

  • First we draw the architectural palns of first floor and second floor as shown below.



    Step:-2

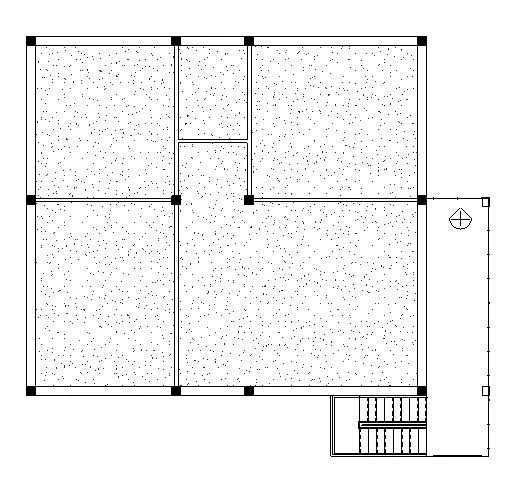

  • Next we draw the structural palns of the first floor and second floor as shown below.



    RESULT:-

  • Created plan views for ground floor level and first-floor level including all the walls, floors, and components.
  • And separated them to architecture and structural plans.





Ans 4 )

 AIM:- To add dimensions to all the walls and floors with reference to the longitudinal and transverse grids created in the project file.

PROCEDURE:-

    Step:-1

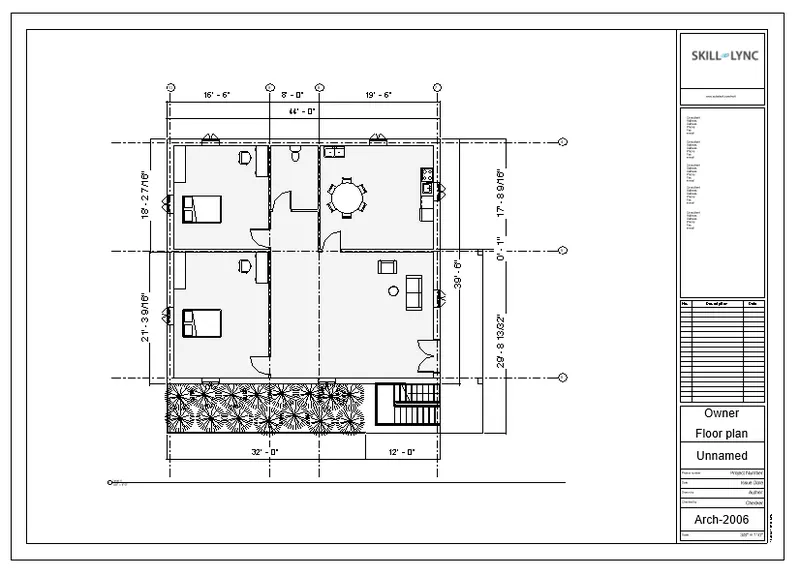

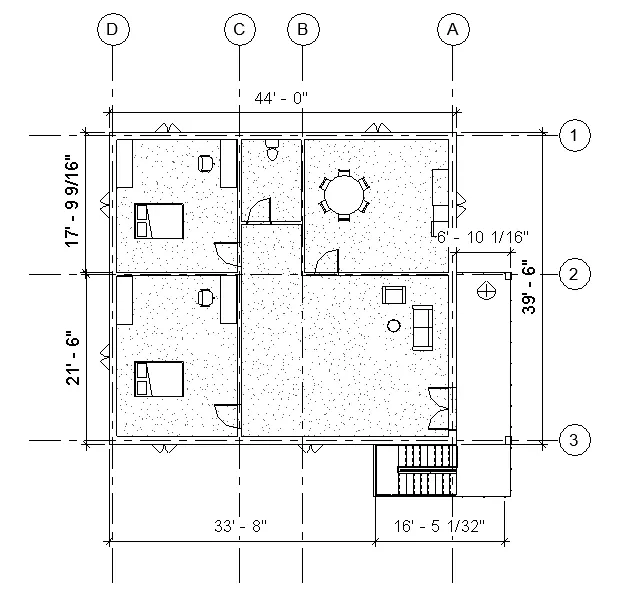

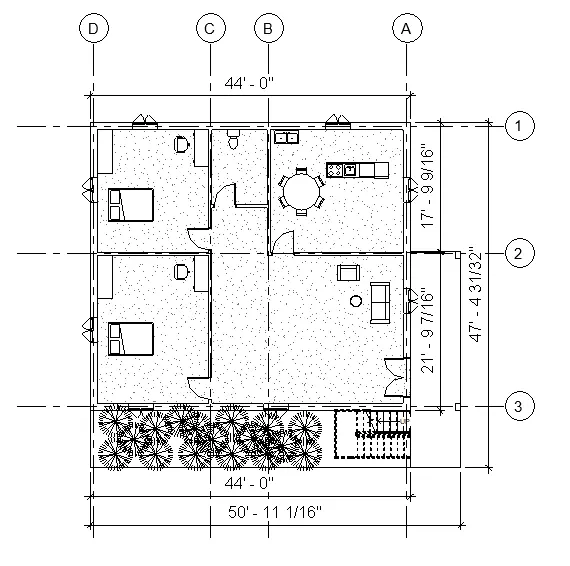

  • Here we drawn the longitudinal and transverse grids to the architectural floor plans as shown below.
  • And add the dimensions to the architectural plans as shown below.



    Step:-2

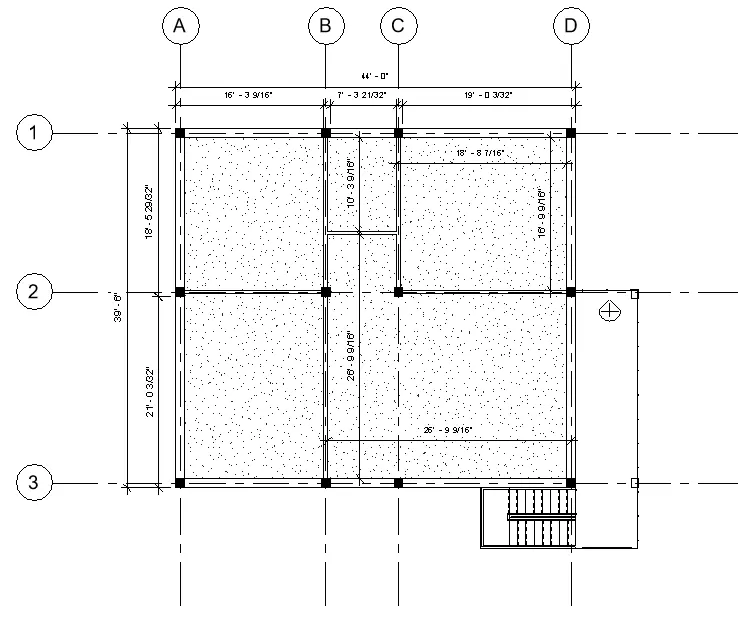

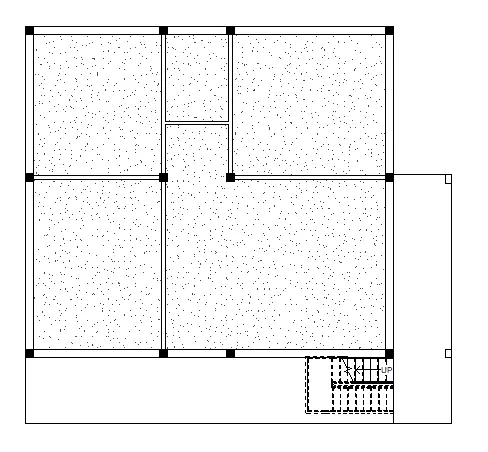

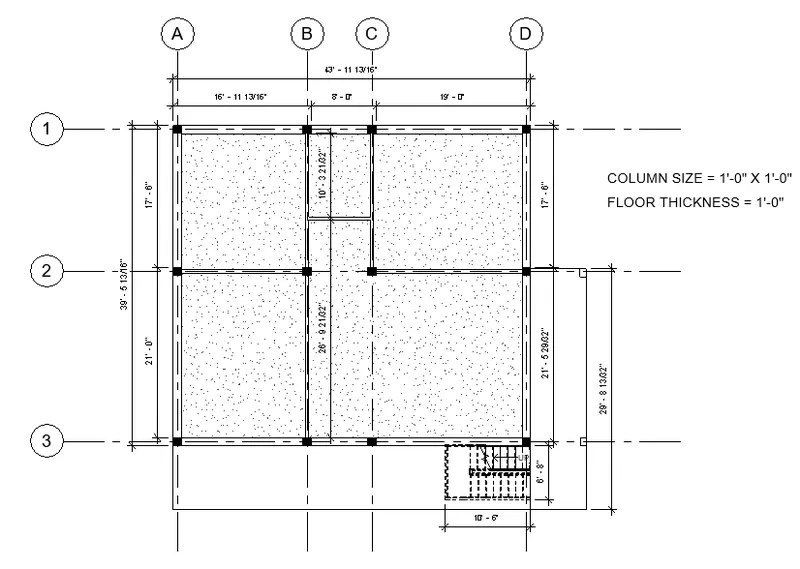

  • Next we draw the longitudinal and transverse grids to the Structural floor plans as shown below.
  • And add the dimensions to the Structural plans as shown below.



   RESULT:-

  • The dimensions are added to the structural floor plans and the architectural floor plans.
  • And the longitudinal and transverse grids are also created in the project file.





Ans 5 )

   AIM:- To create a sheet template from the view tab and adjust the parameters on the sheet to add appropriate views.

PROCEDURE:-

    Step:-1

  • First we click on the sheet option from the view toolbar, as shown below.
  • After clicking the sheet, Thhe new tab will be visible on the screen.

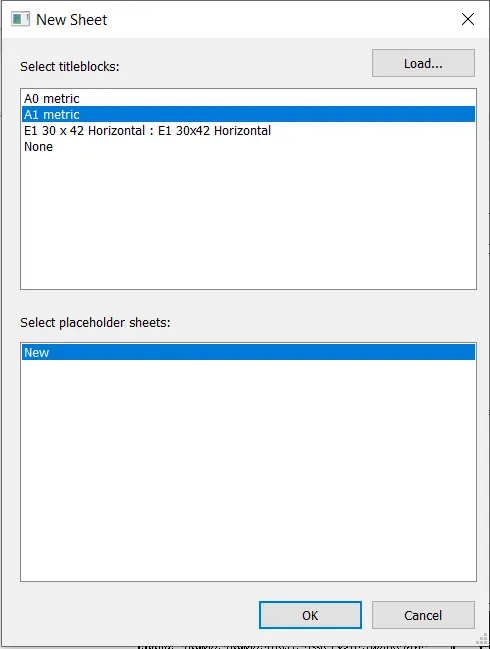

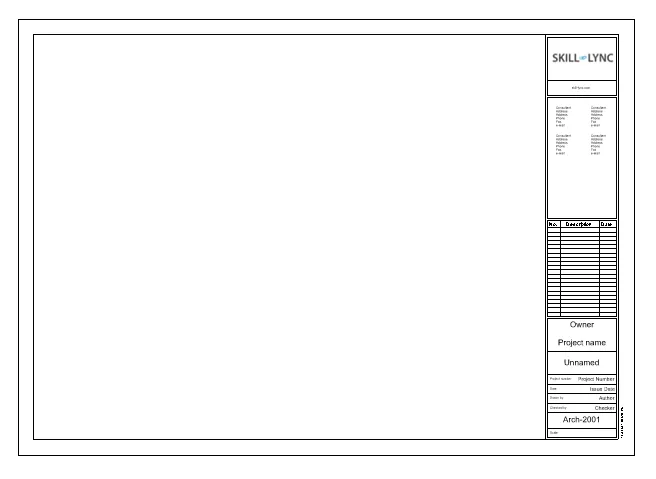

  • In that new tab we select the A1 metric, then the sheet template will be displayed.





    Step:-2

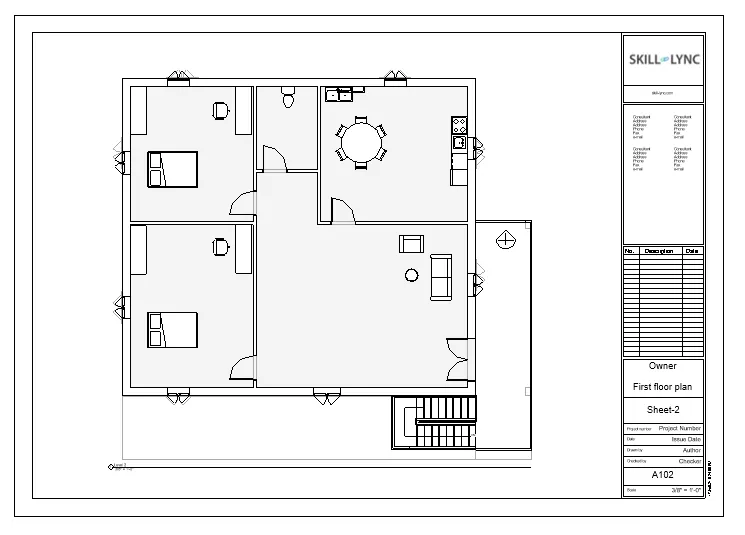

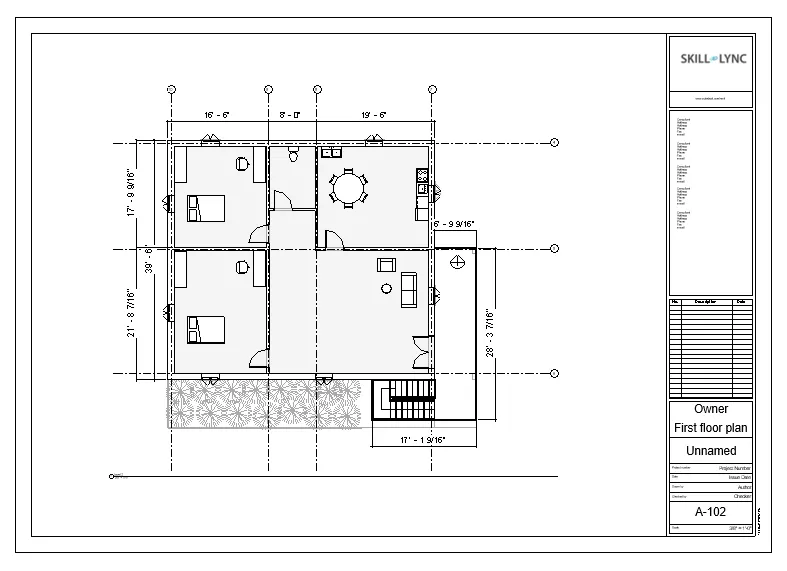

  • In the sheet template we insert the first floor plan and second floor plan separately as shown below.
  • Next edit the Project name and the sheet number as shown in the below figures.





    RESULT:-

  • Created a sheet template from the view tab and adjusted the parameters on the sheet for adding appropriate views.



Ans 6 )

 AIM:- To create the elevation views, looking at your building from East, North, South, and West using the elevation tab.

PROCEDURE:-

    Step:-1

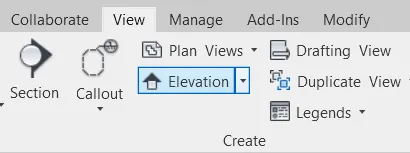

  • First we click on the elevation option from the view toolbar, as shown below.



    Step:-2

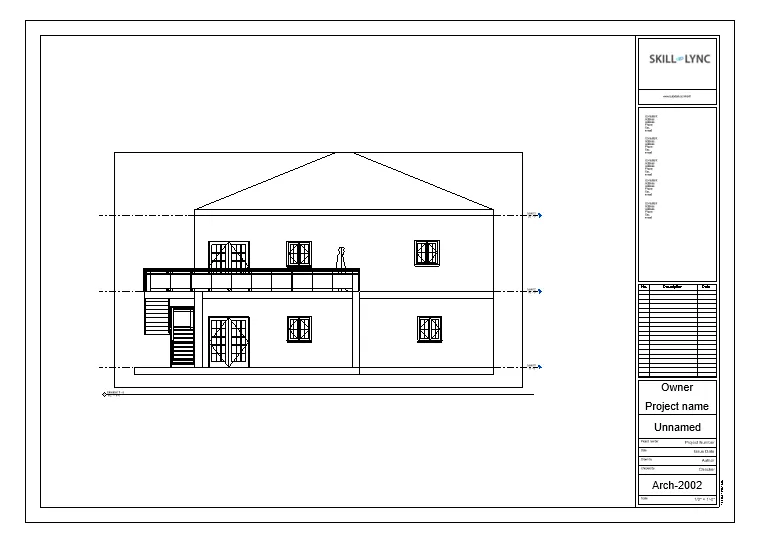

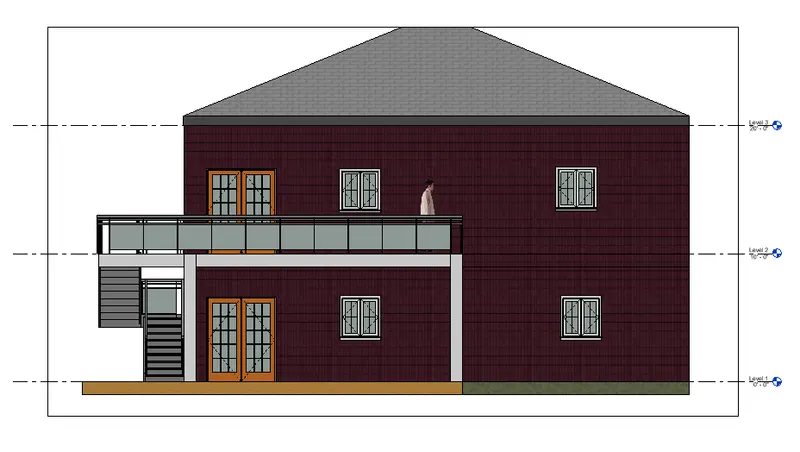

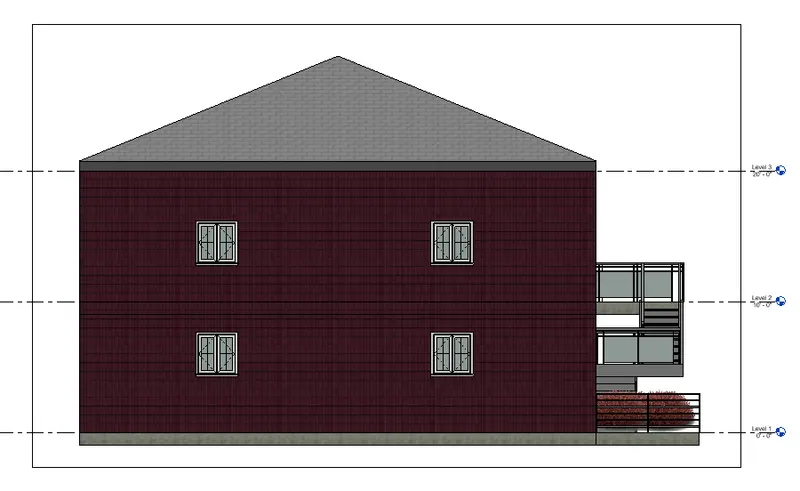

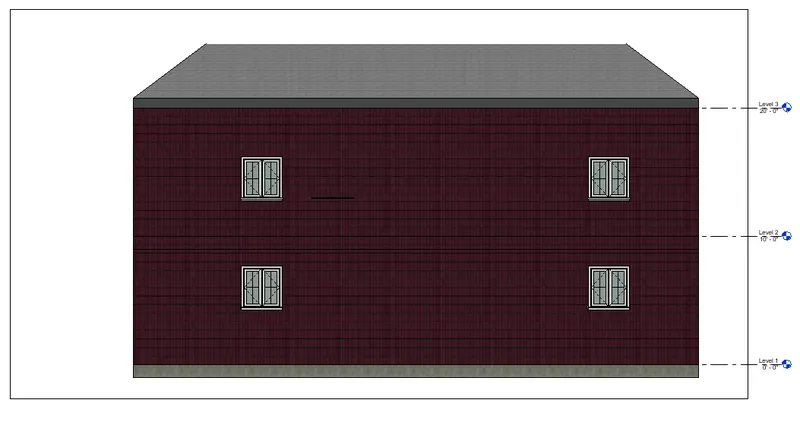

  • Next the elevation from the east will be visible, as shown below.



    Step:-3

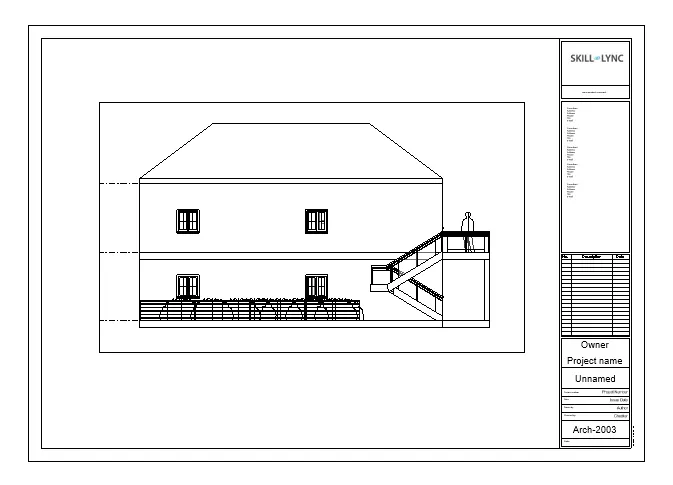

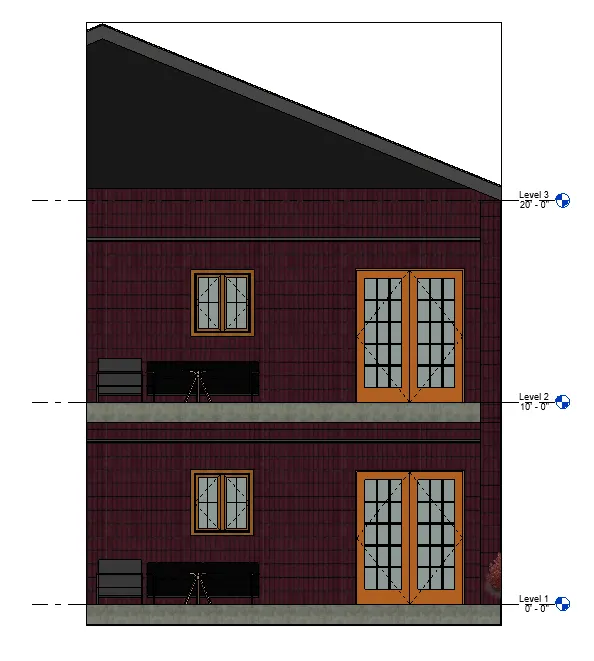

  • Next the elevation from the south will be visible on the screen, as shown below.



    Step:-4

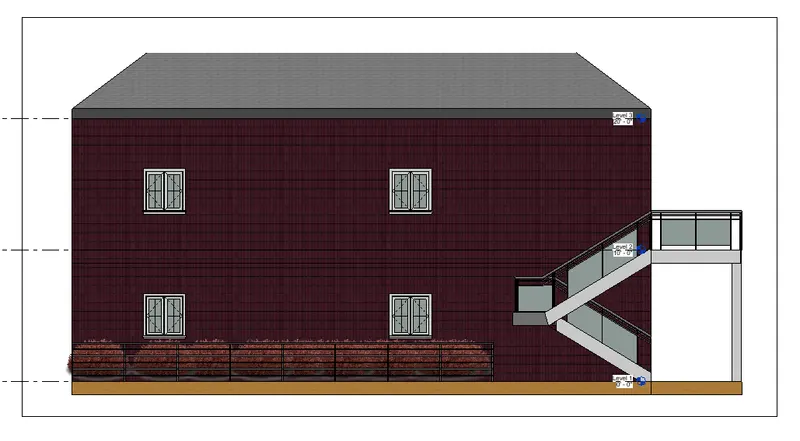

  • Next the elevation from the North will be visible on the screen, as shown below.



    Step:-5

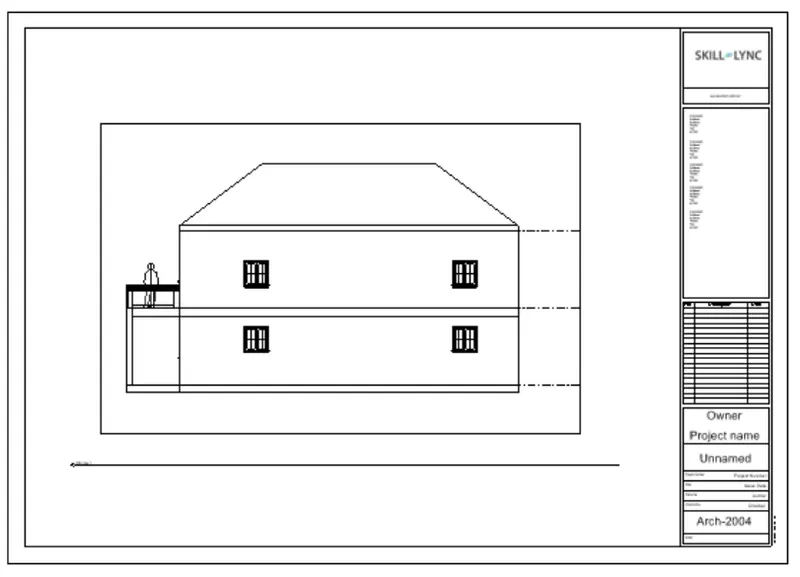

  • Next the elevation from the West will be visible on the screen, as shown below.



 RESULT:- The Elevation views, looking at your building from East, North, South, and West using the elevation tab.



 EAST                                                                                                SOUTH

NORTH                                                                                        WEST

Ans 7 )

 AIM:- To produce section cut through each room either cutting across longitudinally or in a transverse direction.

PROCEDURE:-

    Step:-1

  • First we click on the section option from the view toolbar, as shown below.

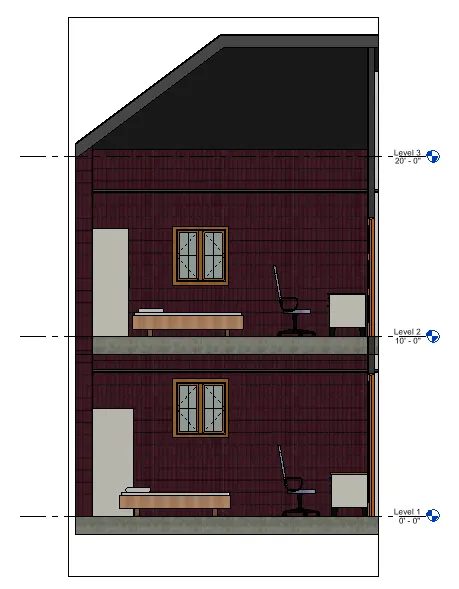

  • Next we produce the section view of the bed room as shown in the below figure.



    Step:-2

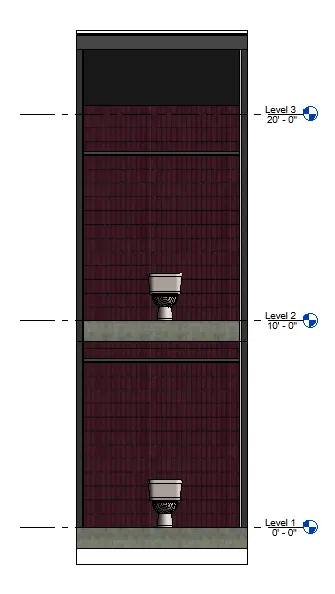

  • Next we produce the section view of the Toilet room as shown in the below figure.

    Step:-3

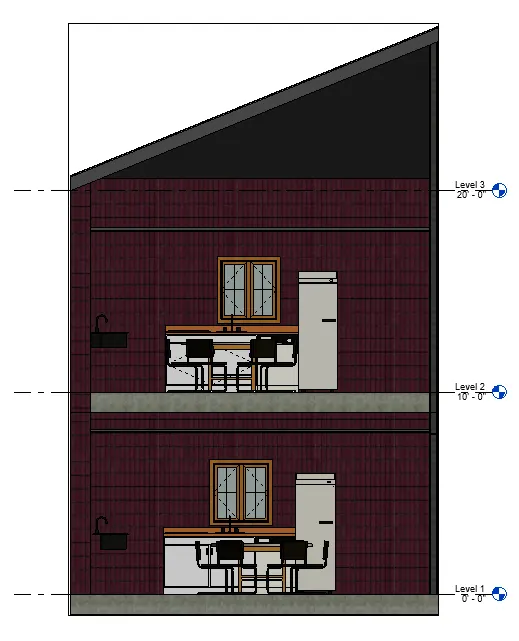

  • Next we produce the section view of the kitchen room as shown in the below figure.



    Step:-4

  • Next we produce the section view of the Living room as shown in the below figure.



    RESULT:-

  • Created the section views of a model in the revit in detailed manner.



Ans 8 )

AIM:- To classify the views, Plan Views, Section Views, and Elevation views to either Design or Documentation category using Properties browser.

ROCEDURE:-

    Step:-1

  • First we open the project browser, the views, Plan Views, Section Views, and Elevation views are visible in that project browser as shown below.
  • Next we insert these plans one by one in the sheets separately.



    Step:-2

  • First we insert the front elevation in the sheet template, as shown in the below figure.



    Step:-3

  • Next we insert the left side elevation in the sheet template, as shown in the below figure.



    Step:-4

  • Next we insert the right side elevation in the sheet template, as shown in the below figure.



    Step:-5

  • Next we insert the back side elevation in the sheet template, as shown in the below figure.



    Step:-6

  • Next we insert the ground floor plan in the sheet template, as shown in the below figure.



    Step:-7

  • Next we insert the first floor plan in the sheet template, as shown in the below figure.



    Step:-8

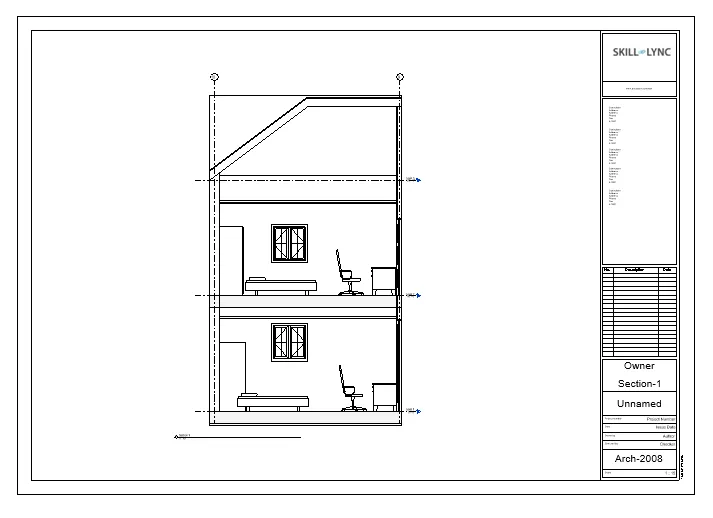

  • Next we insert the section-1 in the sheet template, as shown in the below figure.



    Step:-9

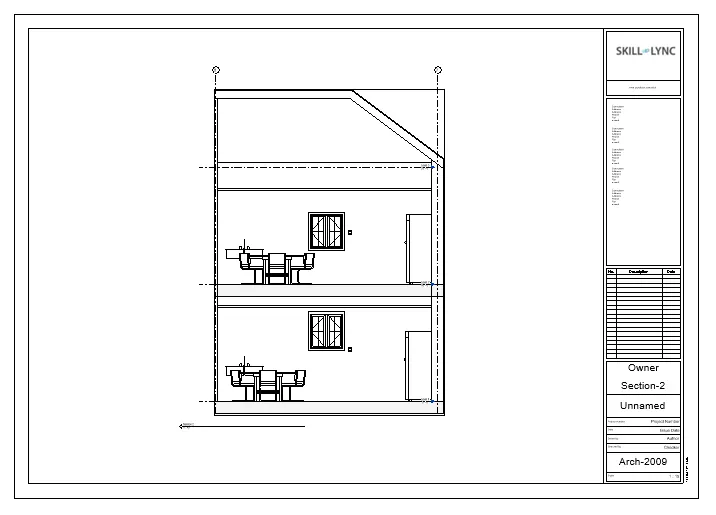

  • Next we insert the section-2 in the sheet template, as shown in the below figure.



    Step:-10

  • Next we insert the section-1 in the sheet template, as shown in the below figure.



    RESULT:-

  •  Views, Plan Views, Section Views, and Elevation views are classified to Design category using Properties browser.











Ans 9 )

 AIM:- To create the multiple sheets and produce the drawings in the sheets, from the given drawing list.

PROCEDURE:-

    Step:-1

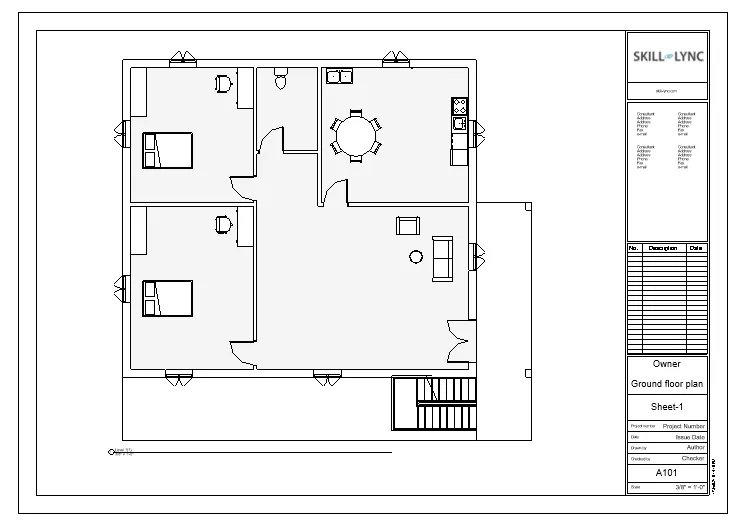

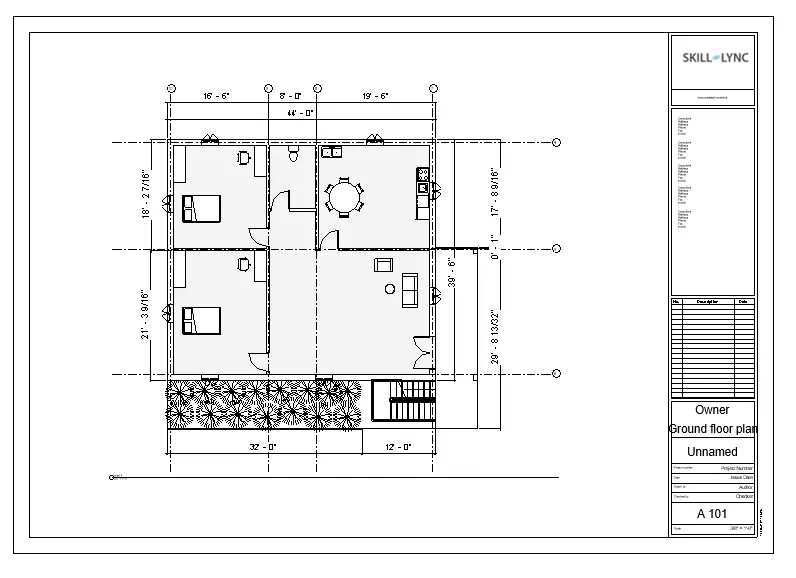

  • First we produce the Ground floor architectural plan in the sheet template A-101, as shown in the below figure.



    Step:-2

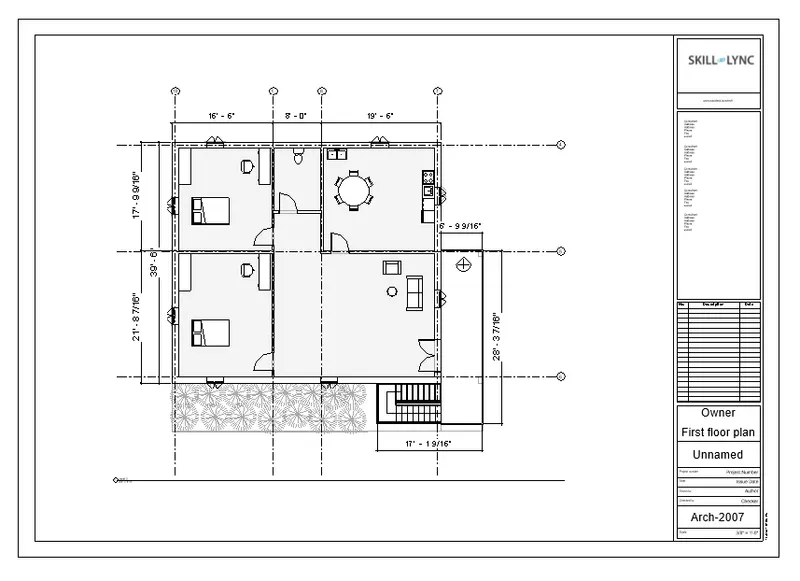

  • Next we produce the First floor architectural plan in the sheet template A-102, as shown in the below figure.



    Step:-3

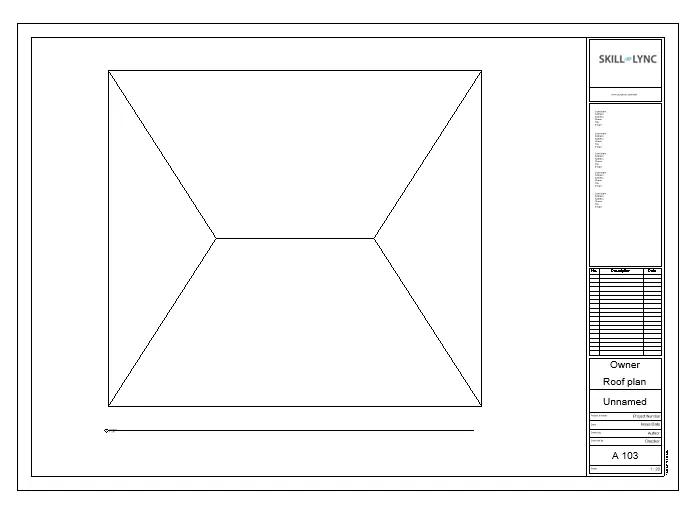

  • Next we produce the Roof plan in the sheet template A-103, as shown in the below figure



    Step:-4

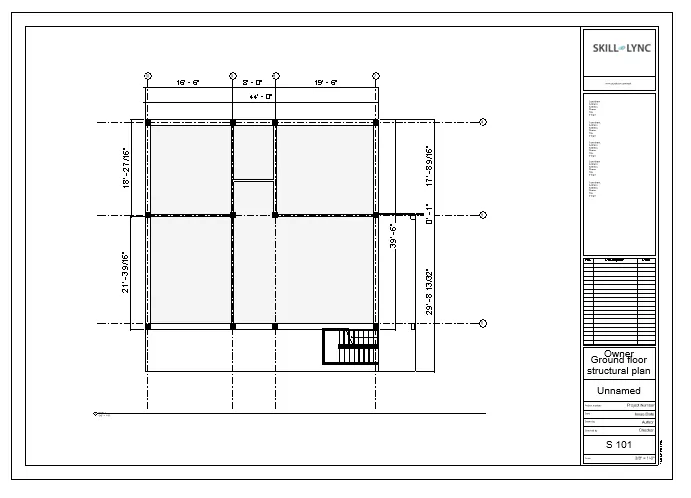

  • Next we produce the Ground floor structural plan in the sheet template S-101, as shown in the below figure



    Step:-5

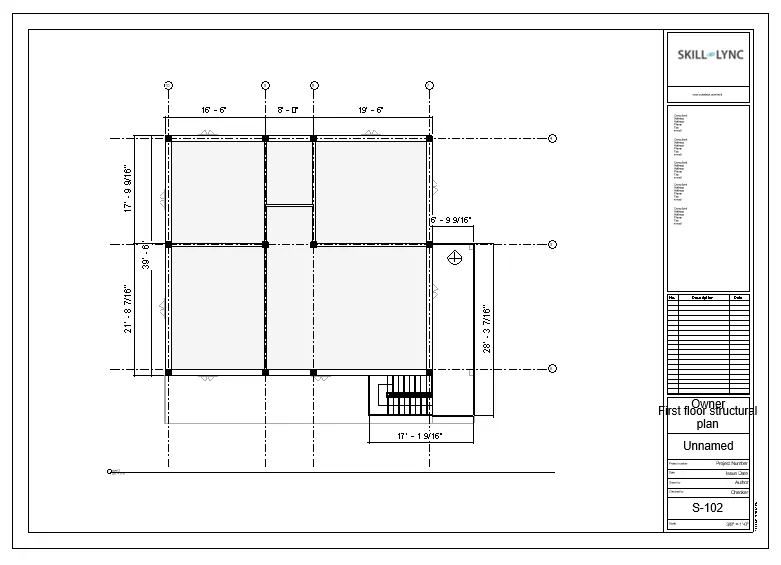

  • Next we produce the First floor structural plan in the sheet template S-102, as shown in the below figure



    Step:-6

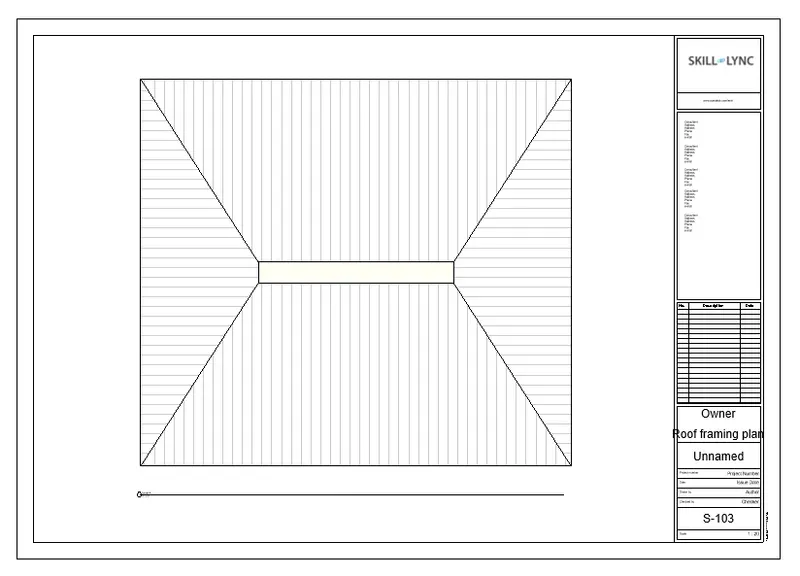

  • Next we produce the Roof framing plan in the sheet template S-103, as shown in the below figure



    Step:-7

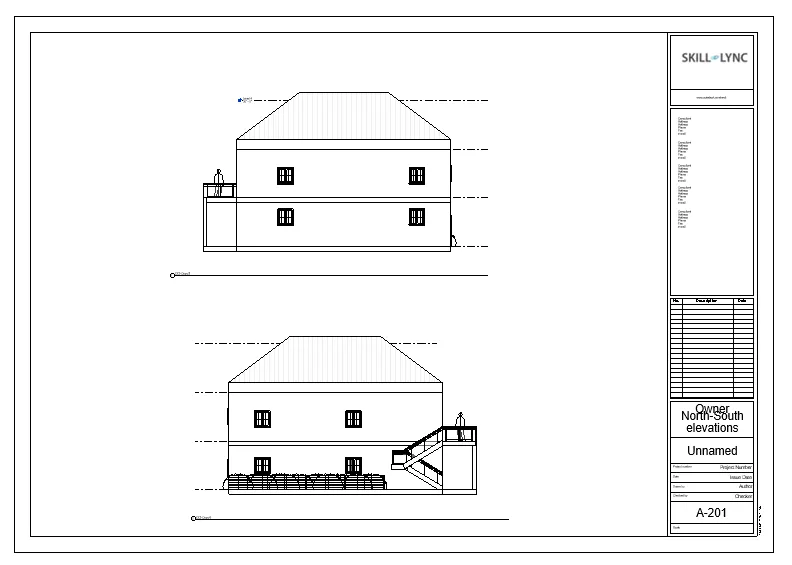

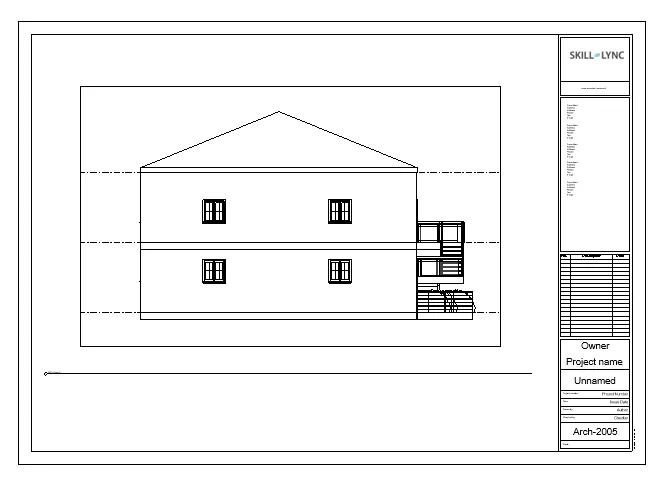

  • Next we produce the North and south elevation views in the sheet template A-201, as shown in the below figure



   Step:-8

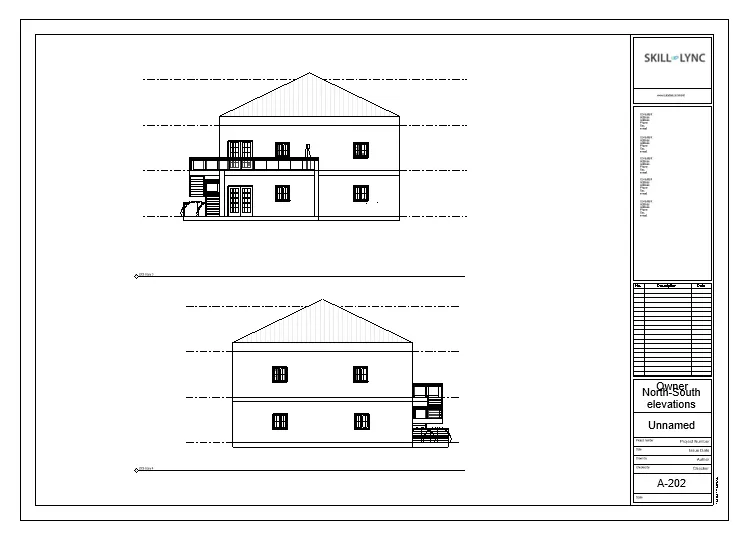

  • Next we produce the East and West elevation views in the sheet template A-202, as shown in the below figure



    RESULT:-

  • Created the multiple sheets and produced the drawings in the sheets, from the given drawing list.









Ans 10 )

AIM:- To create a camera-specific view or a 3D view in living room, dining room and bedroom in the sheets separately.

PROCEDURE:-

    Step:-1

  • First we take the sheet and name it as A-501.

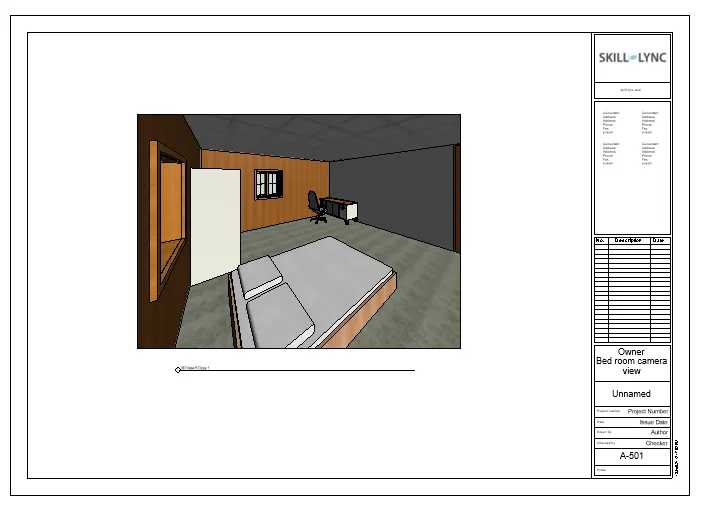

  • Next go to the floor plan and place the camara in the bed room, and the camera view of bed room will be shown below.



    Step:-2

  • Next we take the sheet and name it as A-502.

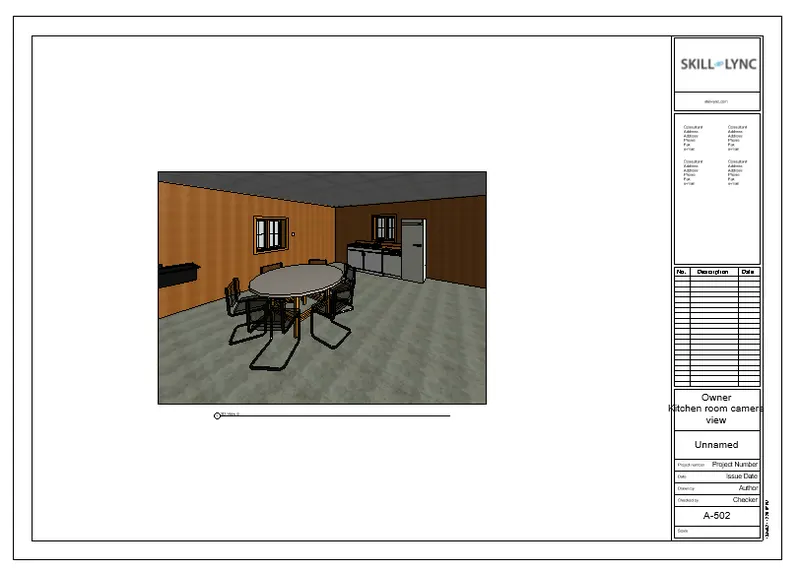

  • Next go to the floor plan and place the camara in the Kitchen room, and the camera view of kitchen room will be shown below.



    Step:-3

  • Next we take the sheet and name it as A-503.

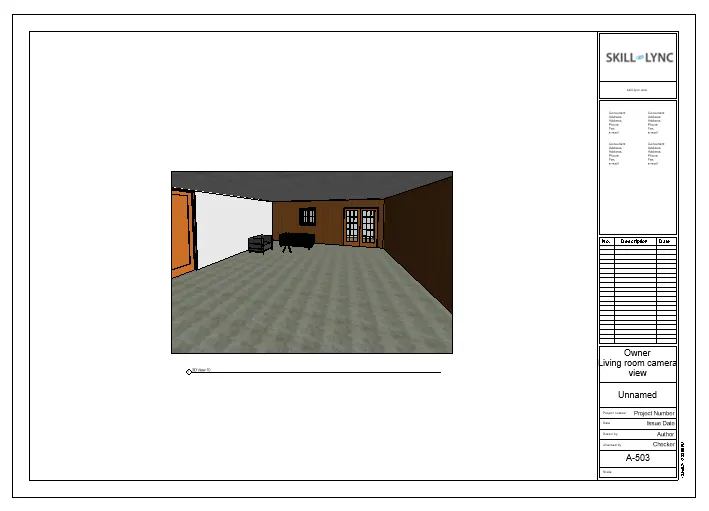

  • Next go to the floor plan and place the camara in the Living room, and the camera view of Living room will be shown below.



    RESULT:-

  • Created a camera-specific view or a 3D view in living room, dining room and bedroom in the sheets separately.
