Creating Architectural and Structural model with 3D rendering using REVIT

Q.1 Choose the type of structure you want to build from one of the three below:
a. Multi-Unit Residential Apartment
b. Office Buildings
c. School.

Answer-

From the above the options of type of structure to build a building,

I require picking a multi-unit residential Apartment.

Q.2 Suppose reasonable assumptions for geographic and location details for your project modelling.

Depend on assumptions and type of structure Chooses recoznise the modelling needs from NBC

ANSWER-

The geographical and location details for my project modelling depend on assumptions of multi-unit residential Apartment.

Chooses recognise the modelling needs from NBC.

1. As above mentioned by the building comes under the residential category and it can be situated in centre of

The city.

2. The project is located in the highway nearest.
3. The road width of this project is 60 Feet.
4. The height, area limitation and safety measure are followed by the NBC.2005.
5. The height of project is 42'.
6. This project height in meter is 12.8 m and the road width is18.2m, the height of the building should not exceed 1.5 times the width of the road.
7. In case of building height is not exceeding, so it is suitable for construction.

3) Utilizing the structural model, contains the following parts depend on the type of structure Chooses
a. Foundation – Isolated / Wall/Matt Foundation
b. Columns
c. Beams Jointed to Columns
d. Roof Framing/ Truss
e. Floor / Decks
f. Floor Openings for Elevators and Stairs.

ANSWER-

AIM:

To utilizing the structural model, contains the following parts depend on the type of structure like wall, windows doors foundations, beams etc.

Commands used:

• Architectural template.
• Structural template.
• Grids.
• Columns.
• Beams.
• Foundations.
• Stairs.
• Shafts.
• Floors.

• PROCEDURE:
• 1). Open an architectural template in Revit software and save it as residential building-arch001.

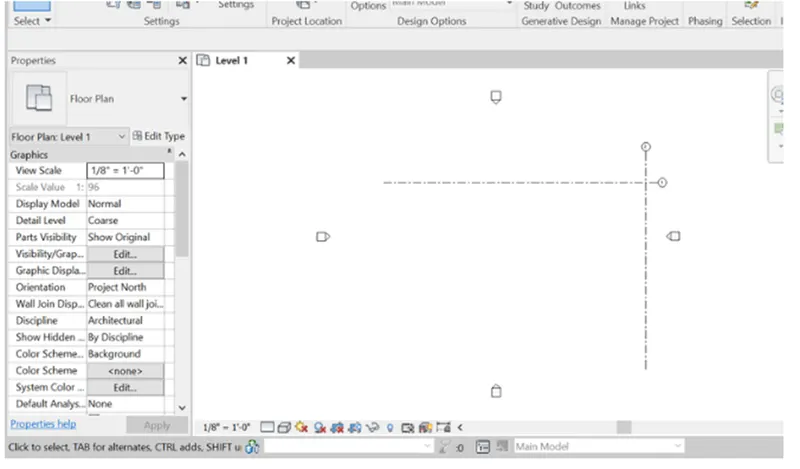

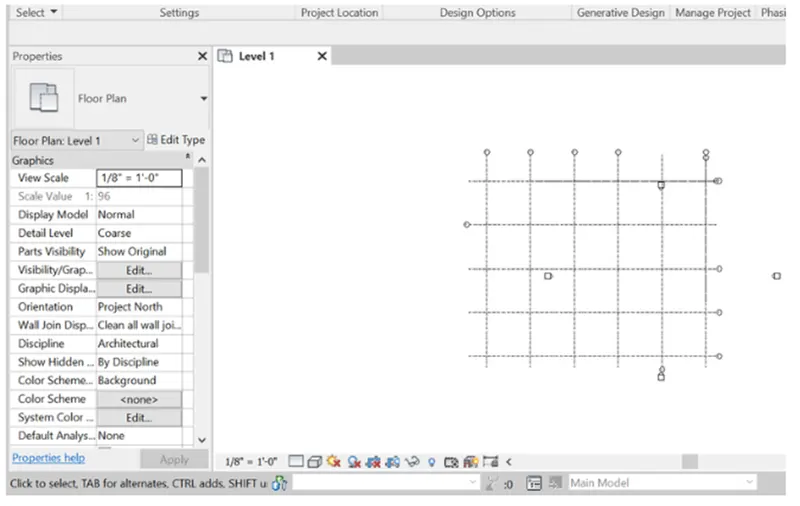

• 2). Then draw the grid lines and specify coordinates as 0'0" for both horizontal and vertical grids lines.

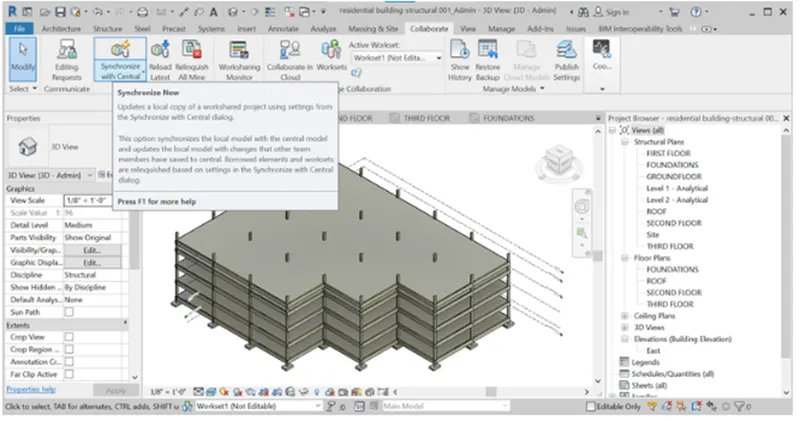

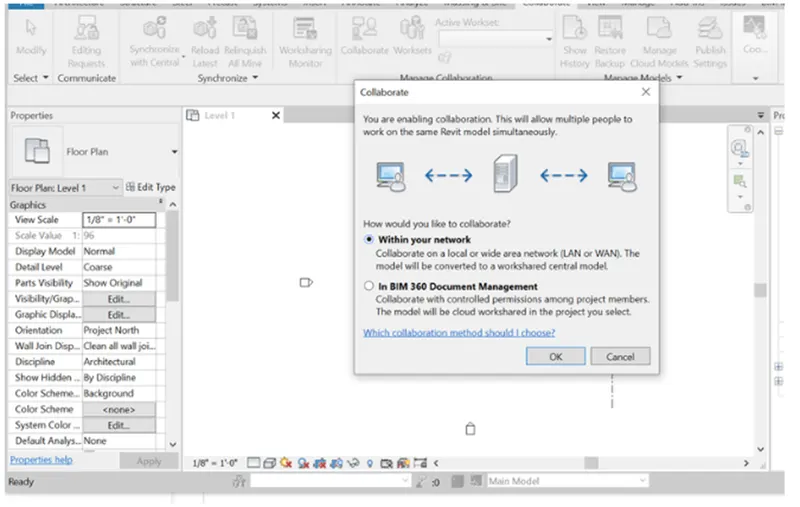

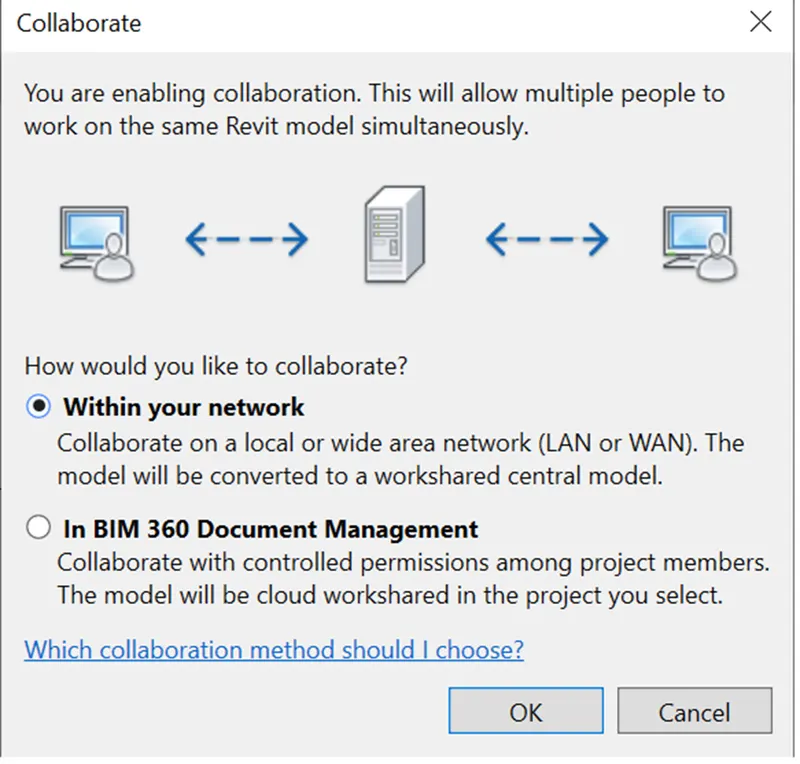

3). Click the collaborate and save the project

4). Next open a new structure template, save it as residential building -structural 001.

5). Repeat step 2 and 3, same method and save the file.

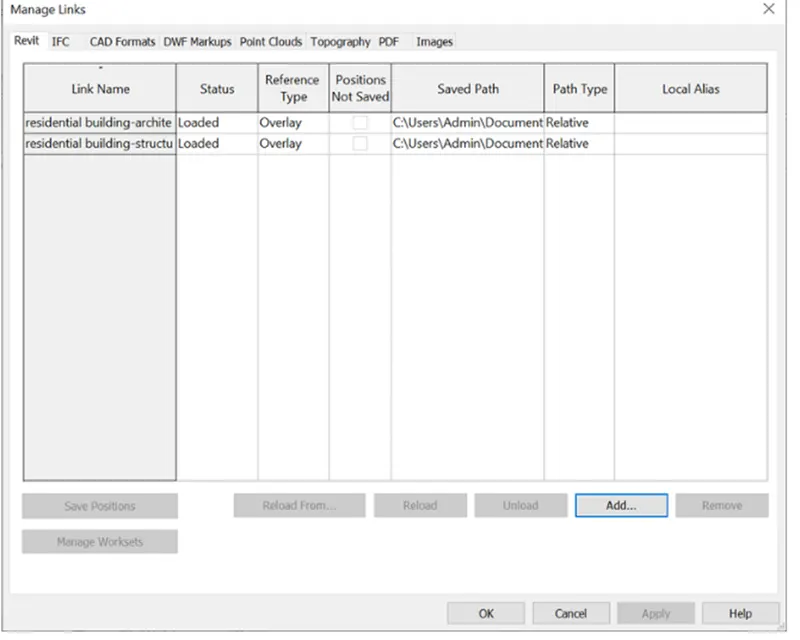

6). Generate a new architectural template and add the the architectural and structural links utilizing manage the links options.

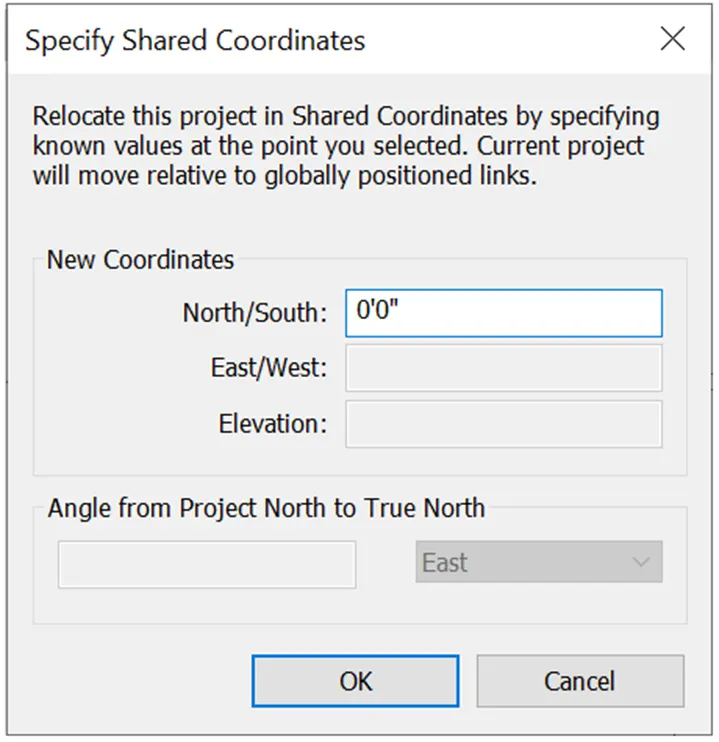

7). Choose the acquired coordinates and set the links to the current coordinates.

8). Now initiate drawing the structural parts of the project in structural template.

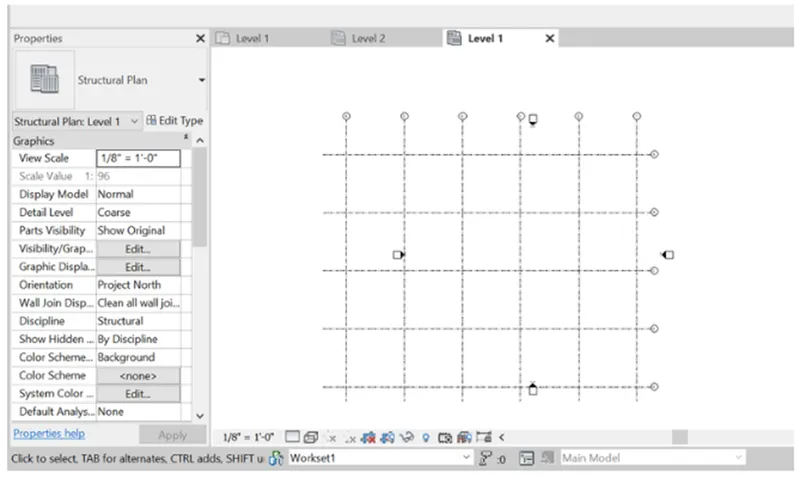

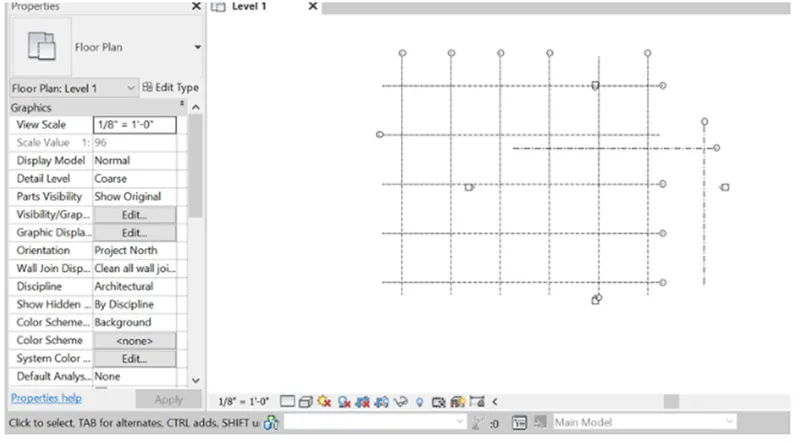

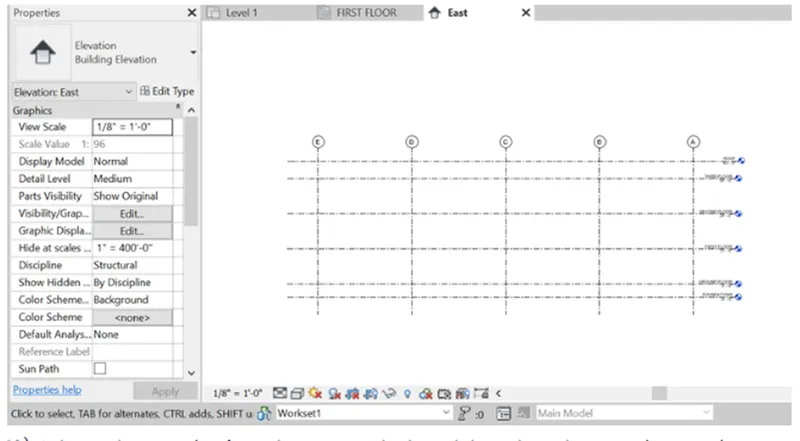

9). Draw the vertical and horizontal grid lines, and also set the levels.

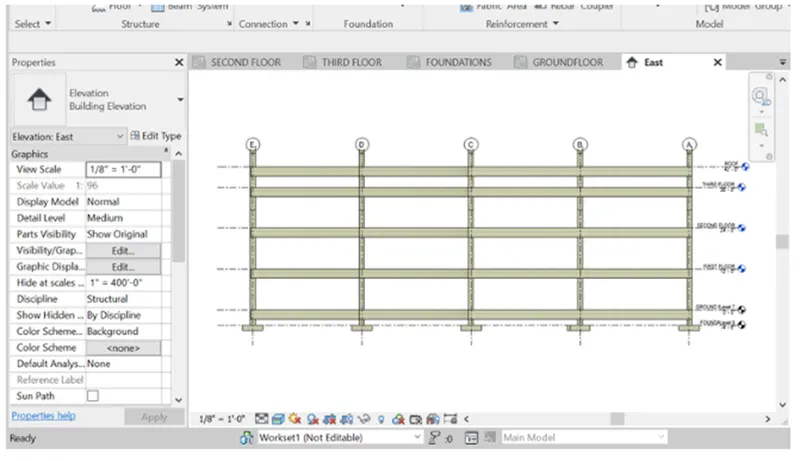

Foundations, ground floor, first floor, second floor, third floor and roof levels are generated.

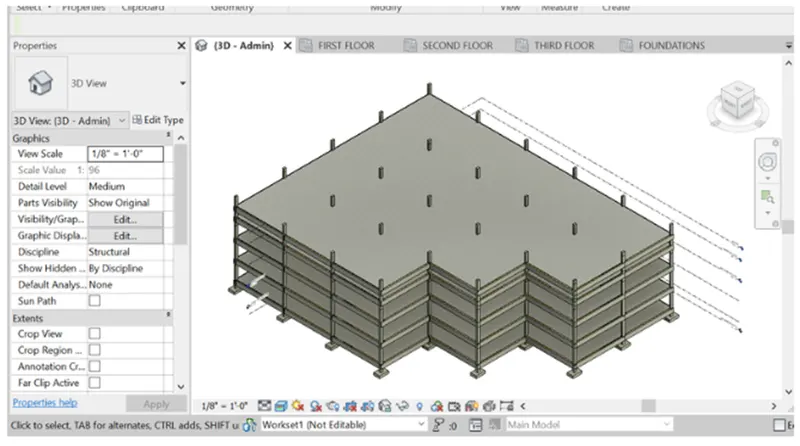

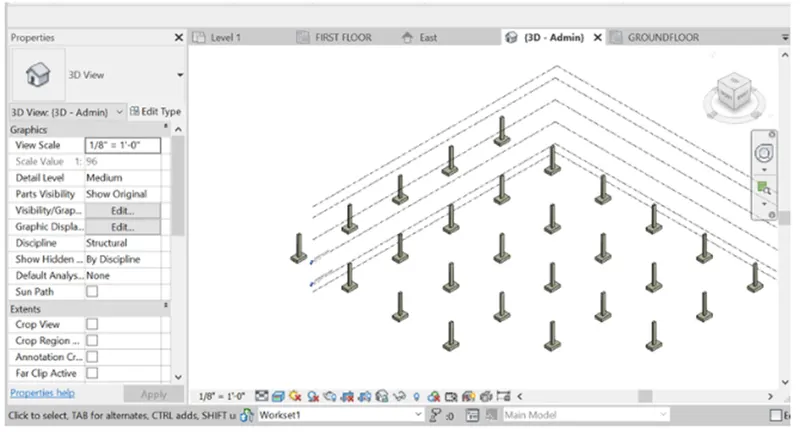

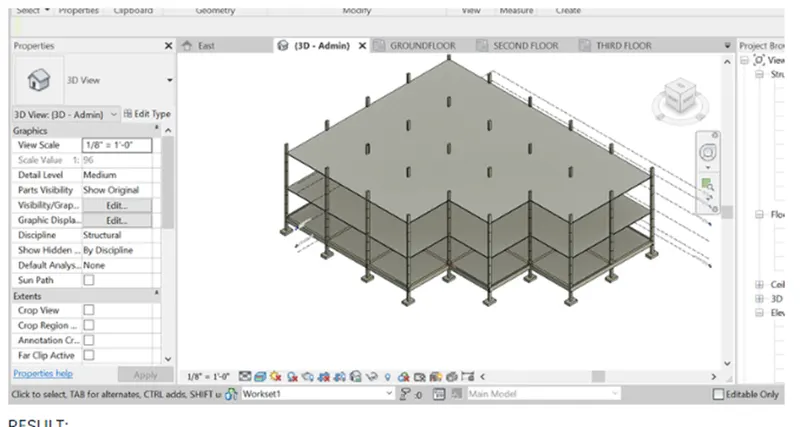

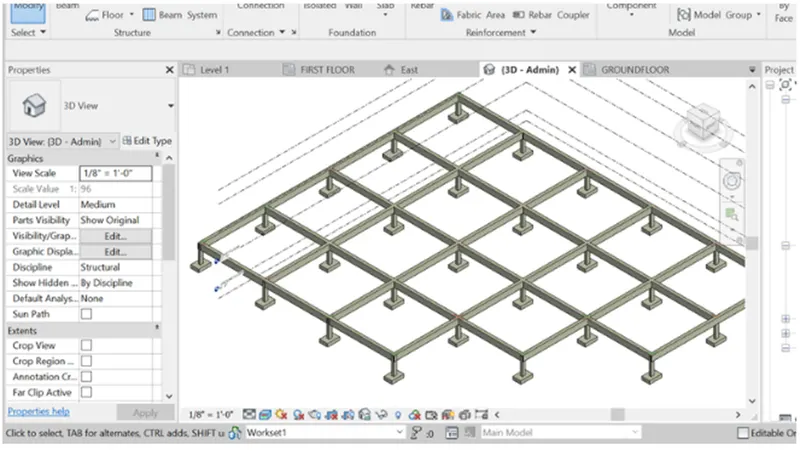

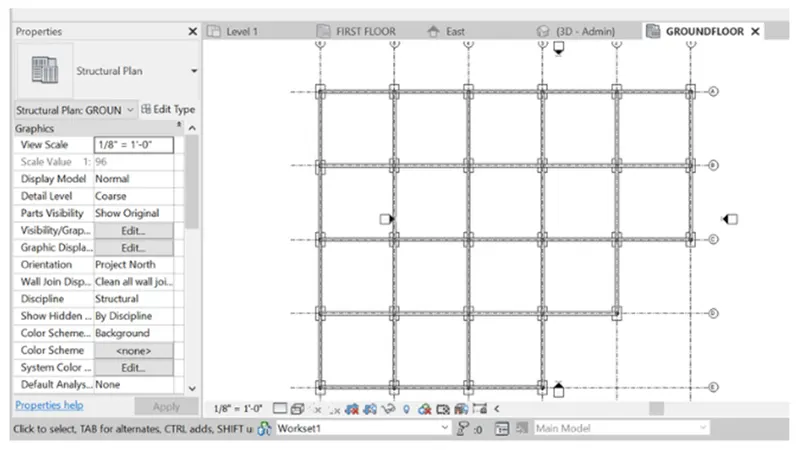

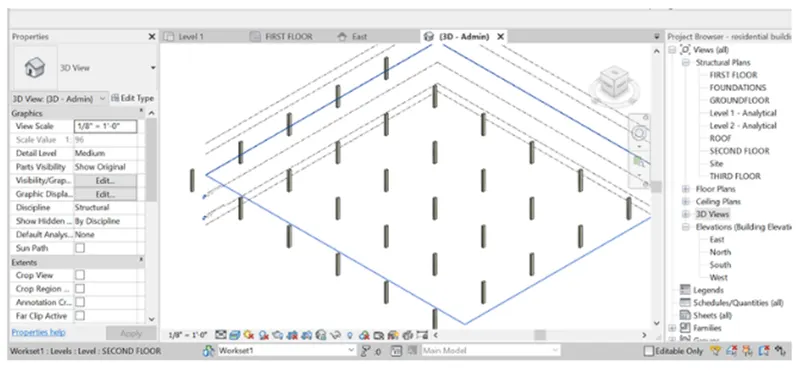

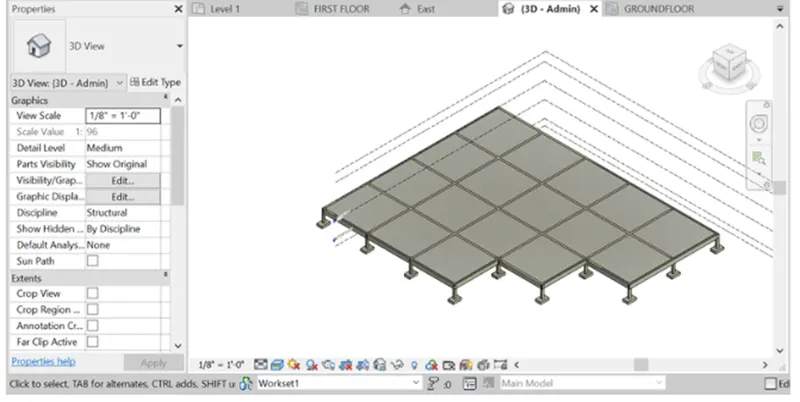

10). Choose column option from the structural tab and draw the columns at intersection points of the grids. 11). Repeat the same method, draw the structural parts foundation, beam, floor, and save the project to central file.

RESULT:

In this project utilizing structural model and save it as a collaborate as central file.

4) Utilizing the architectural model, contains the following parts depend on the type of structure Chooses
a. Wall Layout with proper material and finishing
b. Exterior façade with fancy finish
c. Interior partition walls to size rooms
d. Parts to add details to a room (Desk, Chair, Lighting, Plumbing fixtures)
e. Add parts such as stairs Elevators
f. Have at-least one side of the building with curtain walls and glass panel’s
g. Contains interior and exterior lighting fixtures
h. Place proper topographic parts from outside (Trees, Parking, and Plants) to add details to the model.

ANSWER-

AIM:

To Utilizing the architectural model, contains the following parts depend on the type of structure Chooses above.

Command is used:

• Architecture.
• Walls.
• Parts.
• Load family.
• Ceiling.
• Floor.
• Doors.
• Windows.
• Staircase.
• Railings.

PROCEDURE:

1. Now go to the architectural template which has generated before in this file.
2. Copy the grids which were generated in the previous structure template and copy it.
3. With the help of paste from clipboard option paste the grids in the architectural template.
4. Choose the grids and pin it.
5. Click the elevation and generate the levels required from architectural tab.
6. 6. Click virtual graphics setting and Choose custom in annotation off the grids.

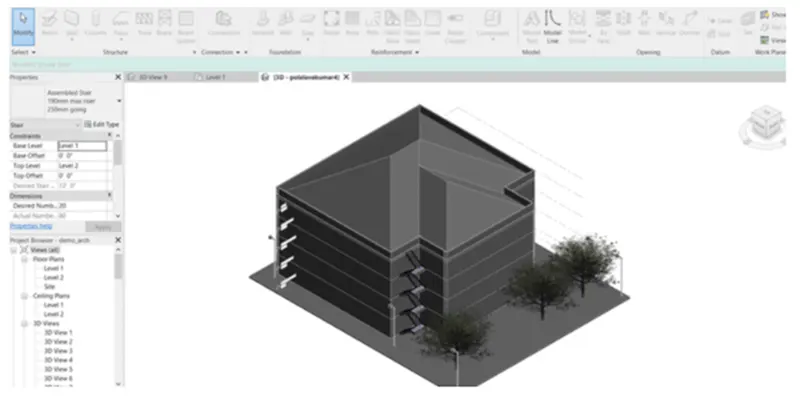

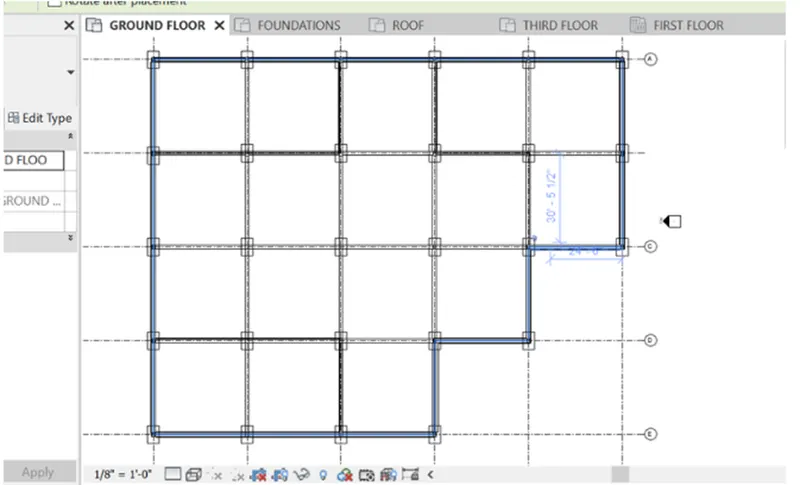

7. Now, initiate generates the exterior wall on grid lines.
8. And then, floor tool add floor to all levels of projects.
9. By the way same doing in walls also,
10. Add stairs to all levels in it.
11. To generate the staircase adds railing system in it.
12. Add windows, doors to the walls.
13. Then, load the load families in the parts required for the project and add them in the drawing them in the load family.

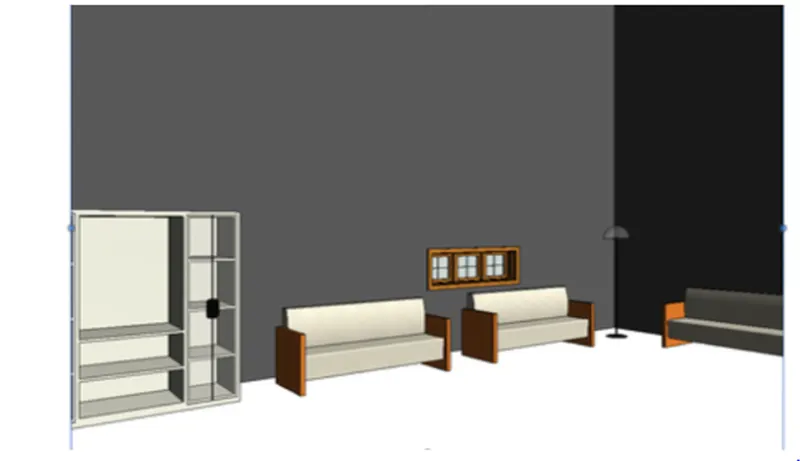

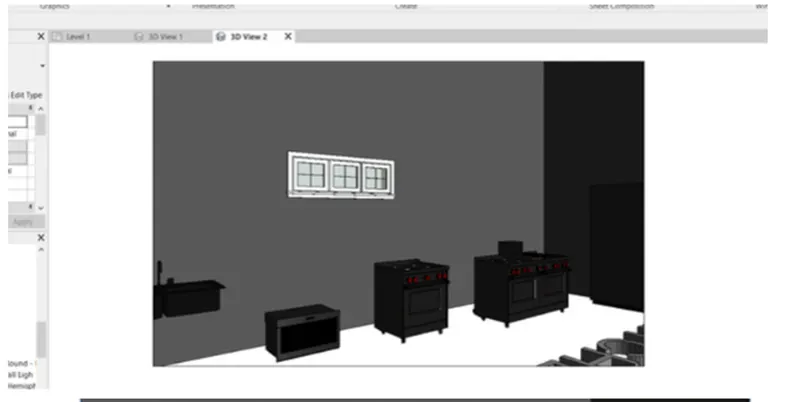

14. Set the camera in all rooms to view the pictures in realistic, of building.
15. Save the project and changes will done in the architectural template will be saving to be centralised files.

RESULT-

5) Give a set of drawings in an architectural and structural model to list the following details with categories and proper sheet templates contains
a. Floor Plans with Annotations
b. Elevations
c. Sections.

ANSWER:

AIM:

To give a set of drawings in an architectural and structural model to list the following details with categories and proper sheet templates floor plans, elevations, and sections.

Commands are used in:

• Insert.
• Sheets.
• Load families.
• Edit sheets.
• Load image.
• View.

PROCEDURE

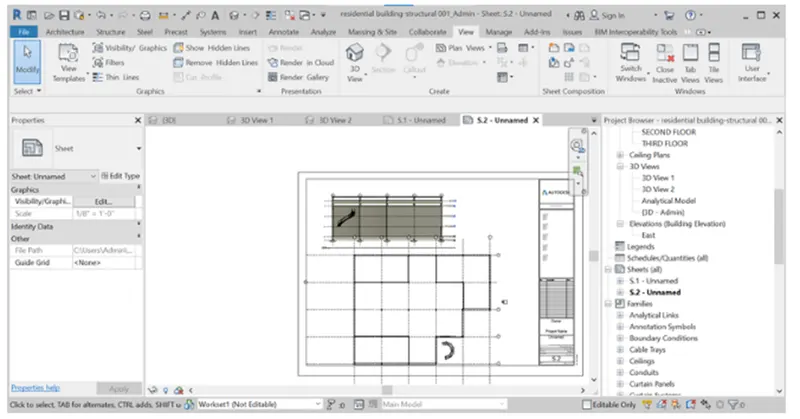

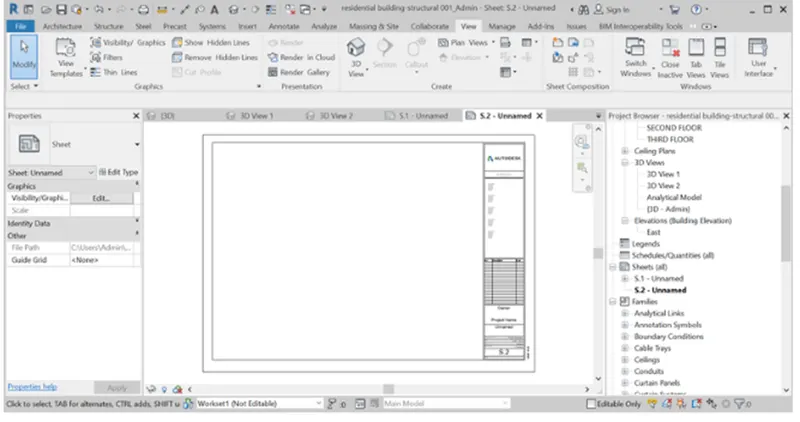

1. Open view tab and Choose sheet tool.
2. Sheet dialog box will appear then, press A1 metric and click ok.
3. Rename the sheets by double clicking on the name and use proper names to the sheet.
4. Go to the insert tab and Choose on load image option.
5. Then, add image into our sheets and then save it.
6. Repeat the same method and add the structural and architectural models into the sheets.

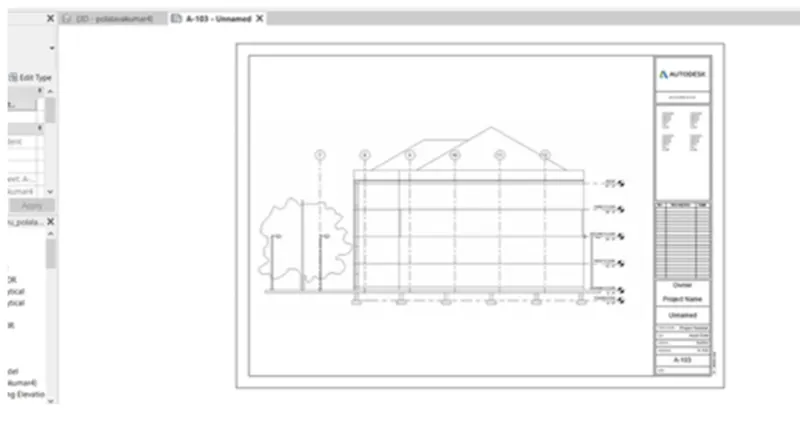

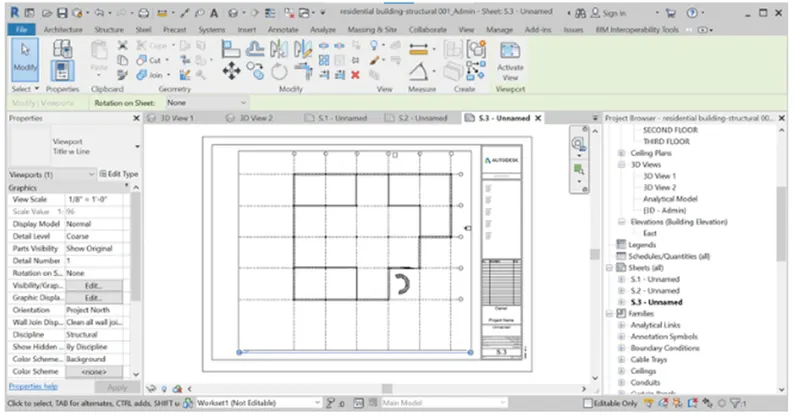

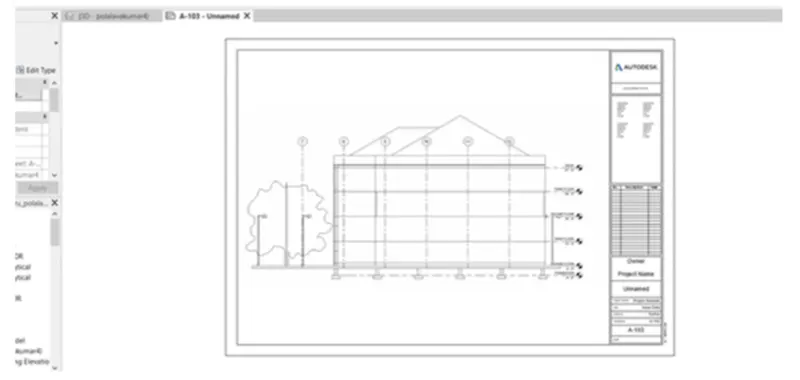

7. Add the floor plans, elevation plans and sections also with the same steps into the sheets.

RESULT:

Finally, we generate the sheets of structural and architectural models including floor plan views, elevations views and section views.

6) Utilizing the Rendering settings, Render images of the 3D model produced and contains the rendered images to the drawing sheets

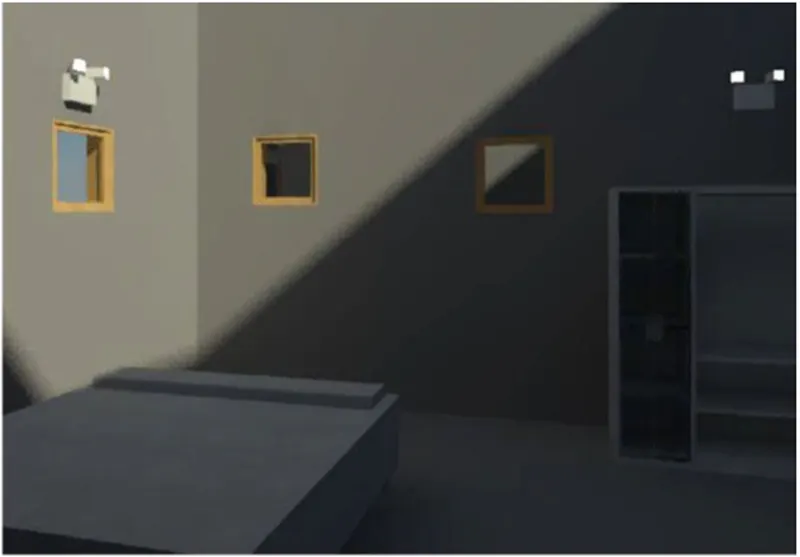

a. rendering from interior rooms
b. rendering from out showing topographic features
c. rendering through structural framing.

ANSWER-

AIM:

To utilizing the Rendering settings, Render images of the 3D model produced and contain the rendered images to the drawing sheets.

Commands are in used:

• Render.
• Region.
• Style.
• Scheme.
• Sheet.

PROCEDURE:

1). Open 3D view and set the view to take the picture where, we want to render the area.

2). then, click view menu and click render option.

3). Render dialog box are appears.

4). Choose region option and crop the image in region.

5). Then, we can change the style of render images, schemes, lighting options and finally, click render in it.

6). Then the render image will be appears into more realistic than other and it can used to better presentation of our clients also.

RESULT:

7) Print the set of drawing sheets generated and submits the drawings from the architecture and structure model.

ANSWER-

AIM: To print the set of drawing sheets generated and submit the drawings from the architecture and structure model.

Commands are in used:

• File.
• Print.
• Setup page.
• Choose the plotter.
• Print.

PROCEDURE:

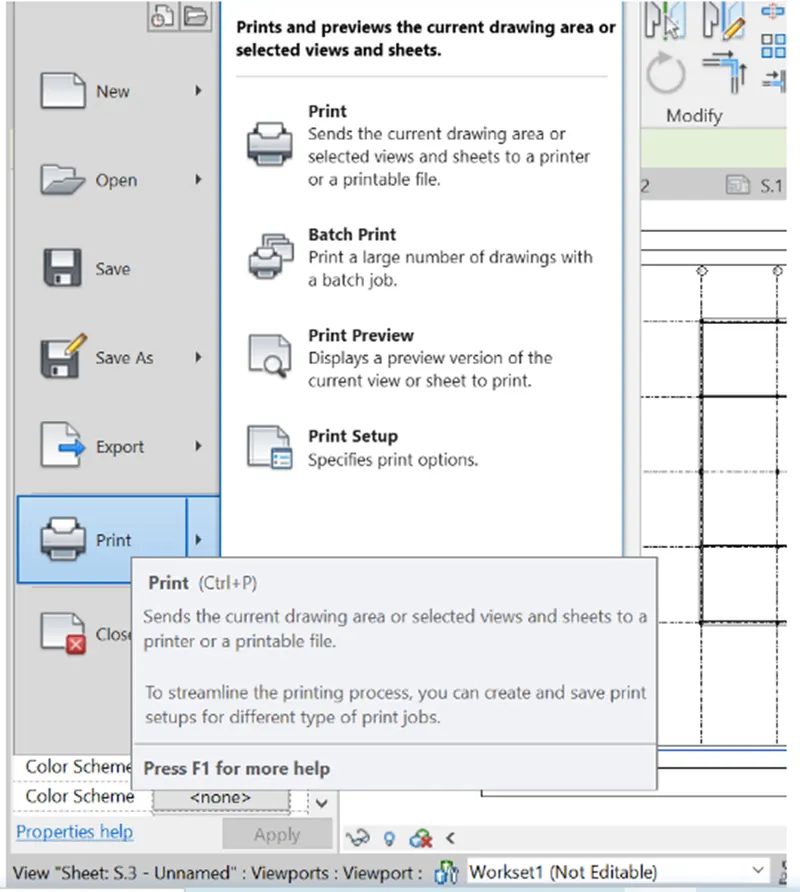

1. 1. Click the views and open file menu and click the print.

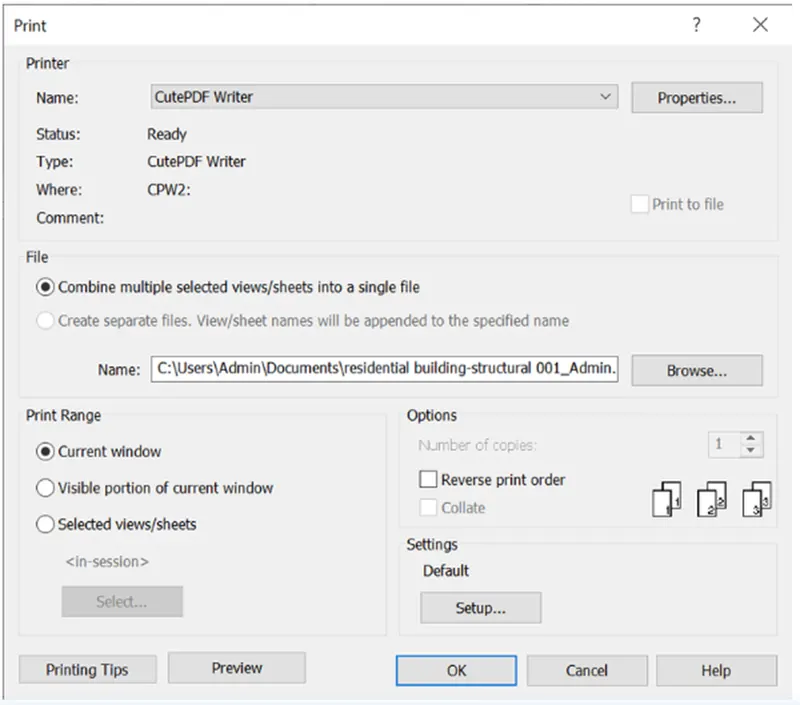

2. Print dialog box is appearing.
3. Then, change the settings of sheets size, texts styles page setup everything.
4. Then click print and press ok.

RESULT-

Finally, set of drawing sheets generated and submit the drawings from the architecture and structure model.
