Creating Architectural and Structural model with 3D rendering using REVIT
Aim
to complete the given challenges
1. am choose the educaional building

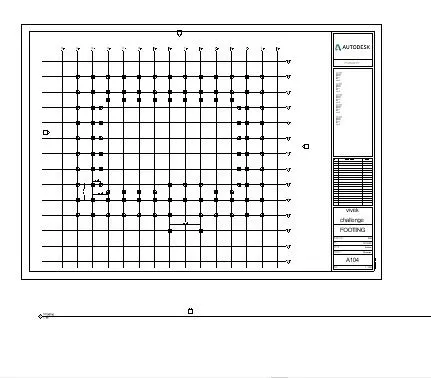

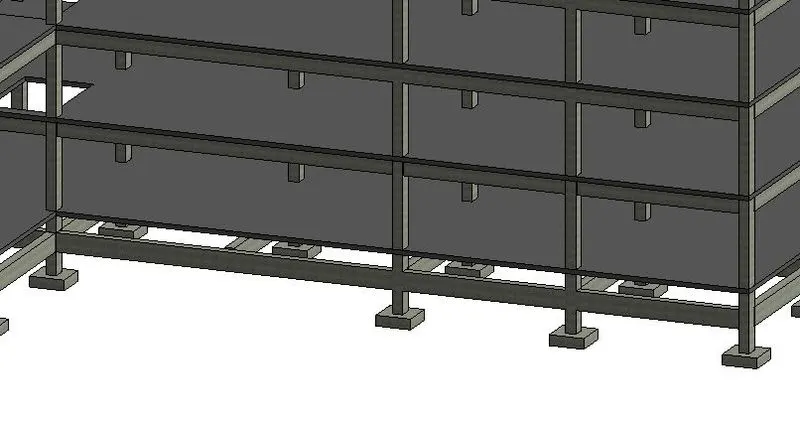

- footing and colum plasing ground level upto roof level

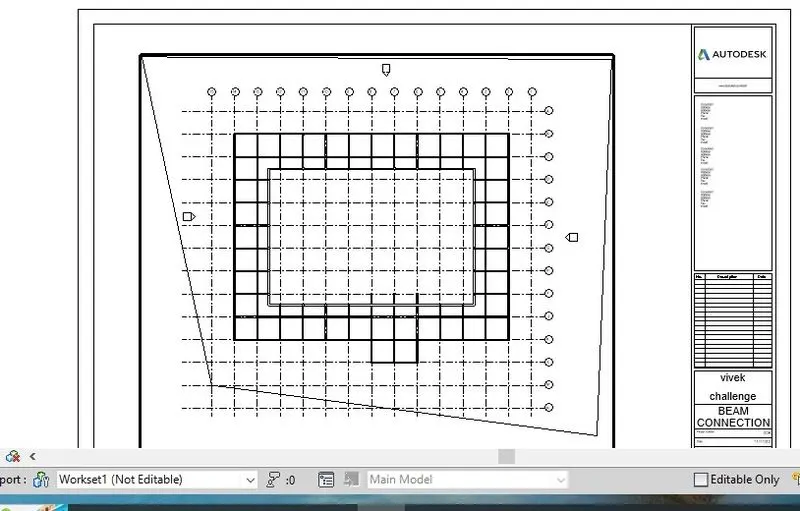

- beam connection in different levels

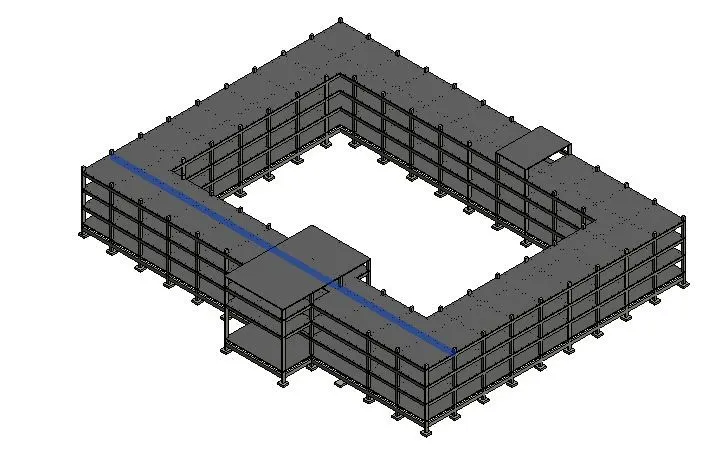

- after placing of column and beam then draw floors
- completion of structural model i have aechitectural work step by step like ceate wall ,palce a door and windows, and other components

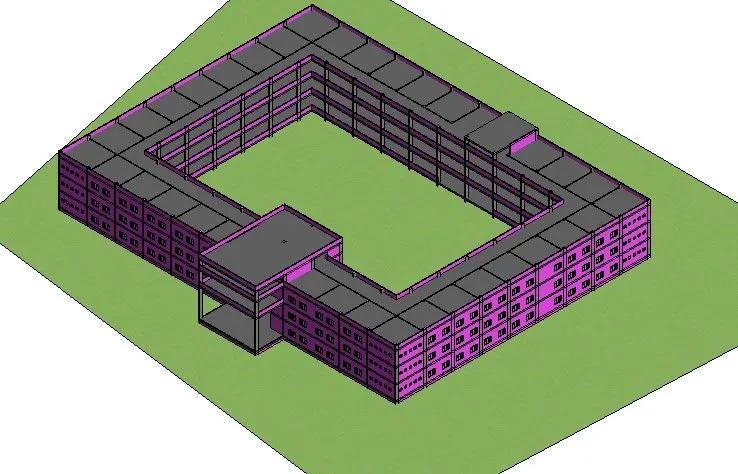

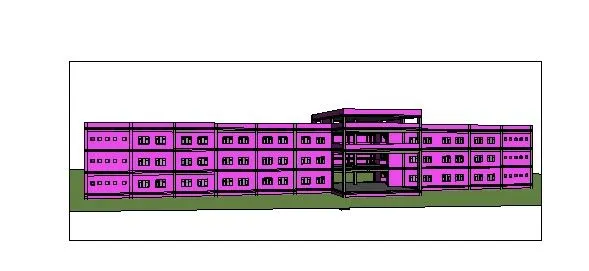

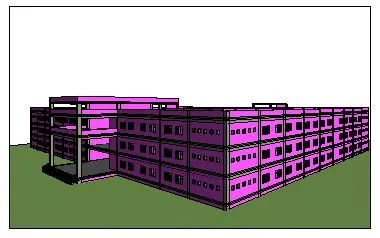

some 3d views
classroom

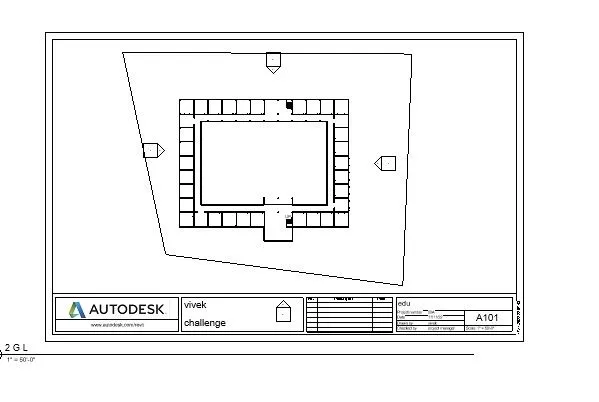

sheets
5

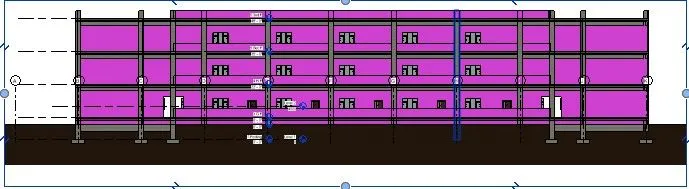

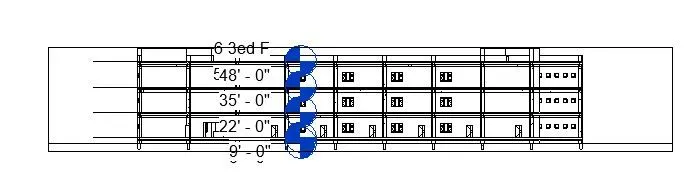

sections

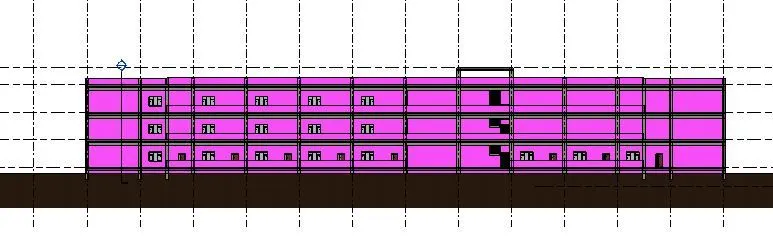

elevation

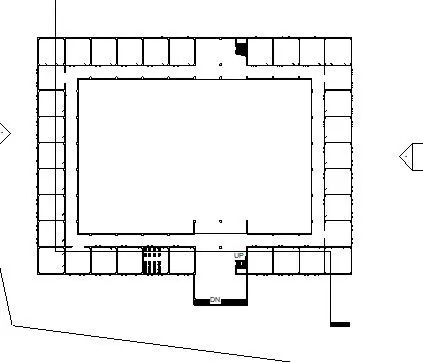

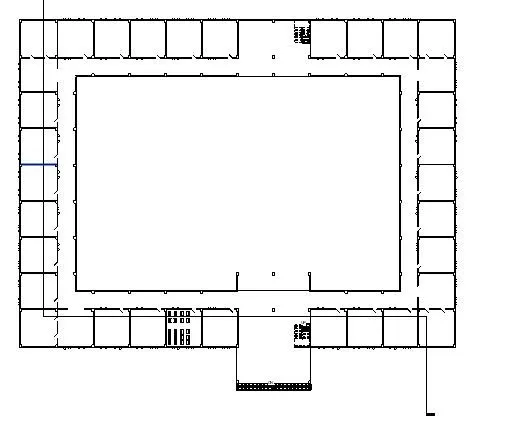

floor plan

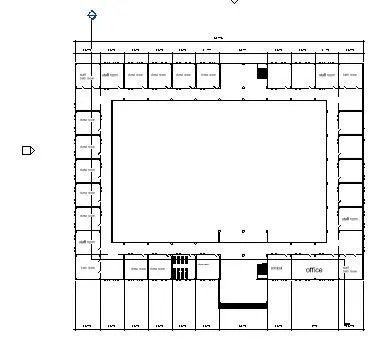

floor plan witth annotation

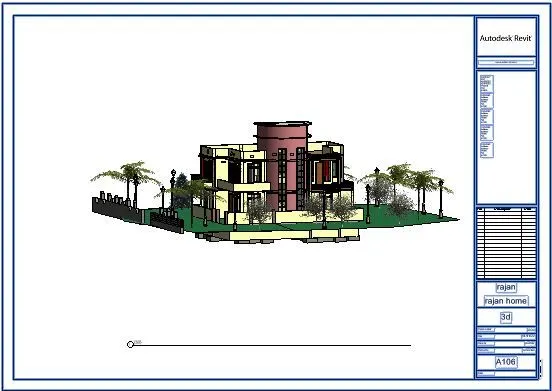

2.residential home

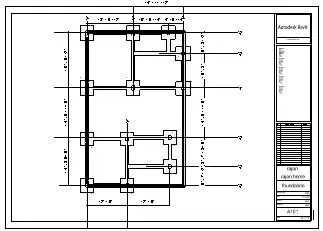

- footing and column ,beam

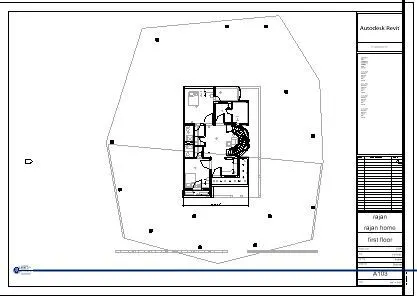

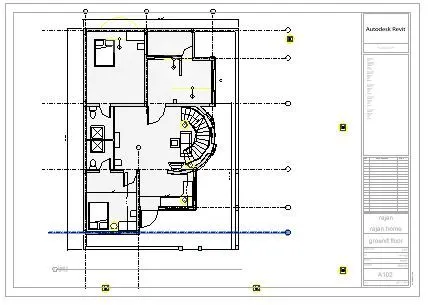

ground floor and sirst floor

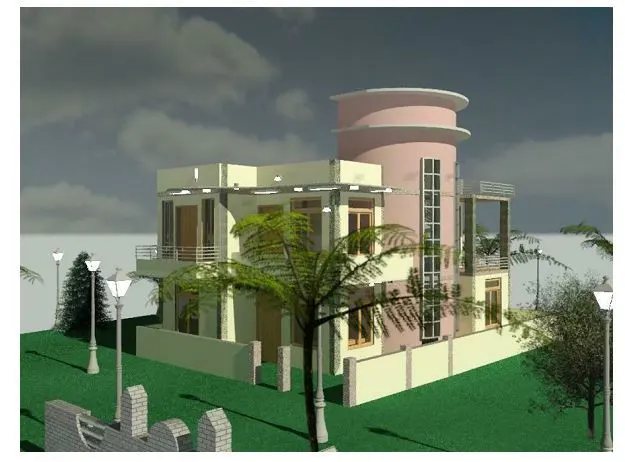

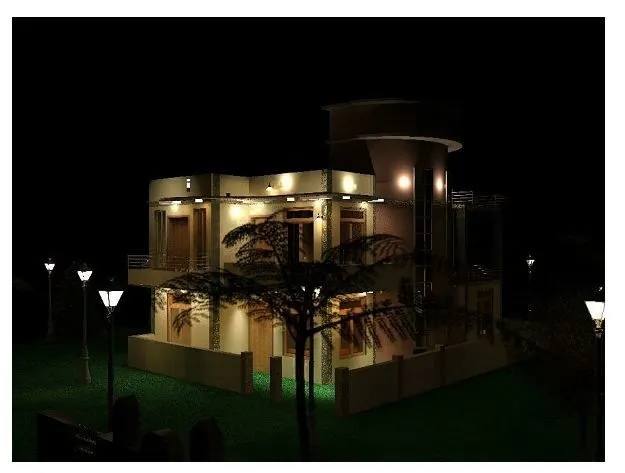

some sample renderings are
result
given challenge is completed
