Creating Architectural and Structural model with 3D rendering using REVIT

Aim : TO DRAW ANY ONE ACCORDING TO ABOVE INFORMATION

I HAVE SELECTED SCHOOL

OPEN THE FILES ARTC,STRURUCTURE TEMPLATES

OPEN THE STRUCTYRES TEMPLATE AND DESIGN THE STRUCTURES AND TO THE PLAN

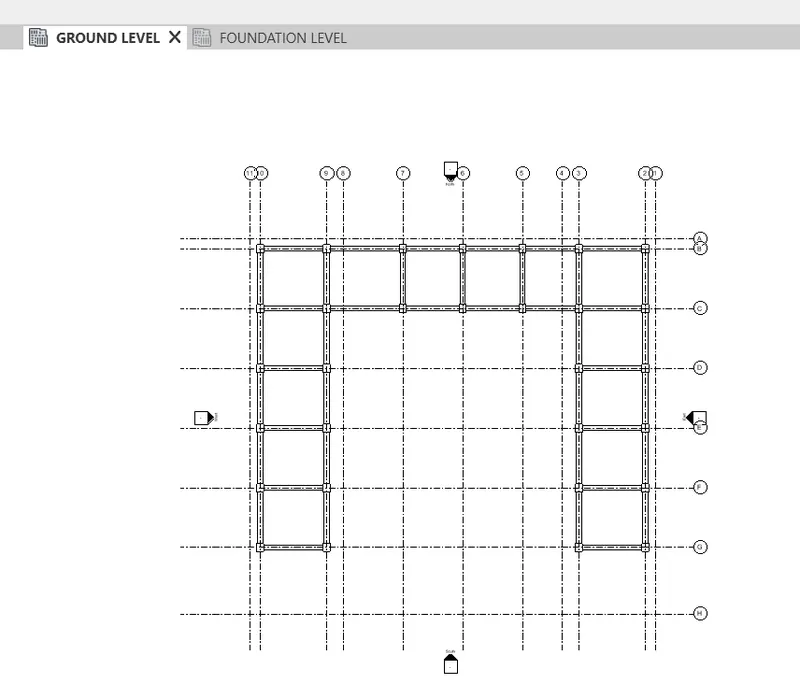

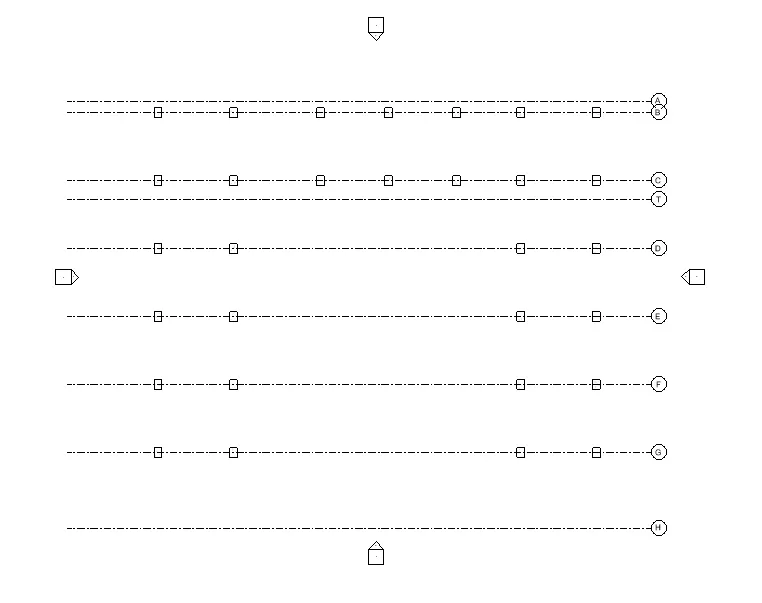

FIRST FORMS THE GIRDS IN BOTH AND SYNCHRINOZE WITH CENTRAL

PLACE COORDINATES AND MATCH BOTH IN ARTC TEMPLATE

AND OPEN STRUCTURE AND FORM THE GRID AND START THE STRUCTURE WORK

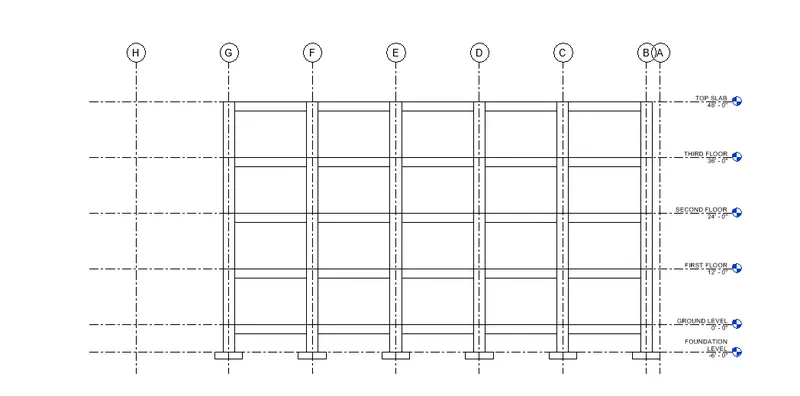

GO TO ELEVATION AND SET THE LEVEL REQUIRED

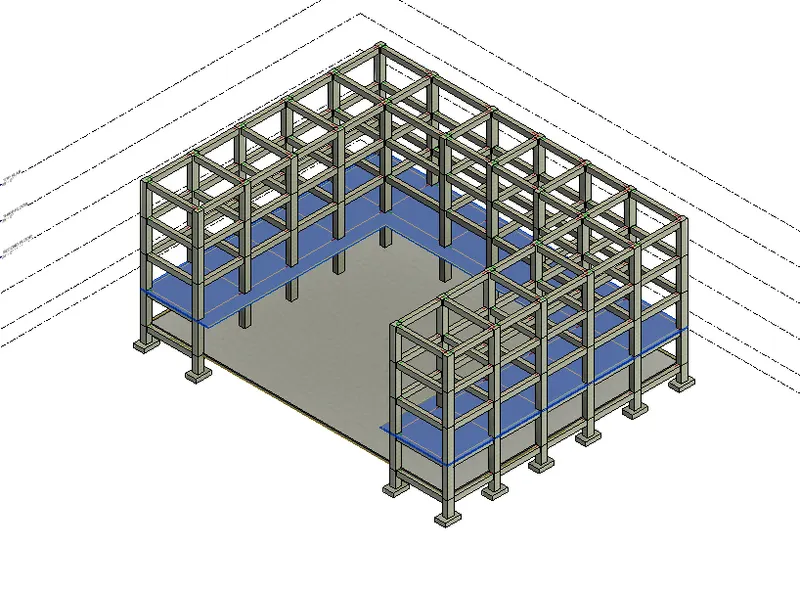

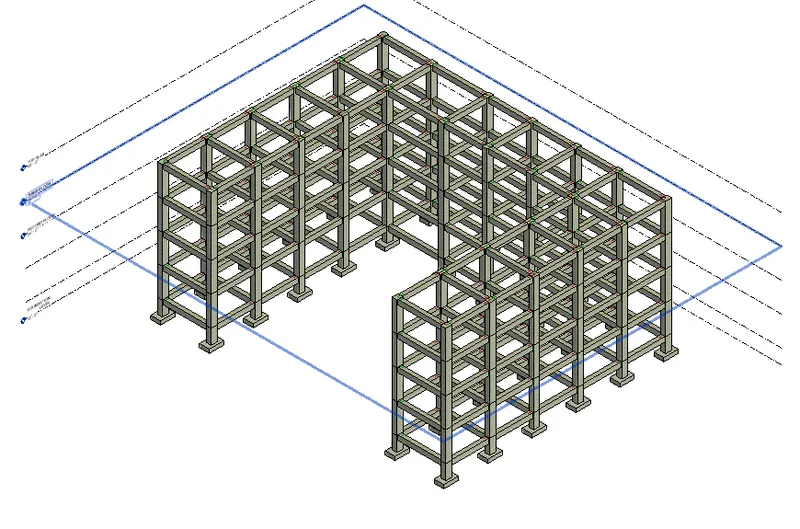

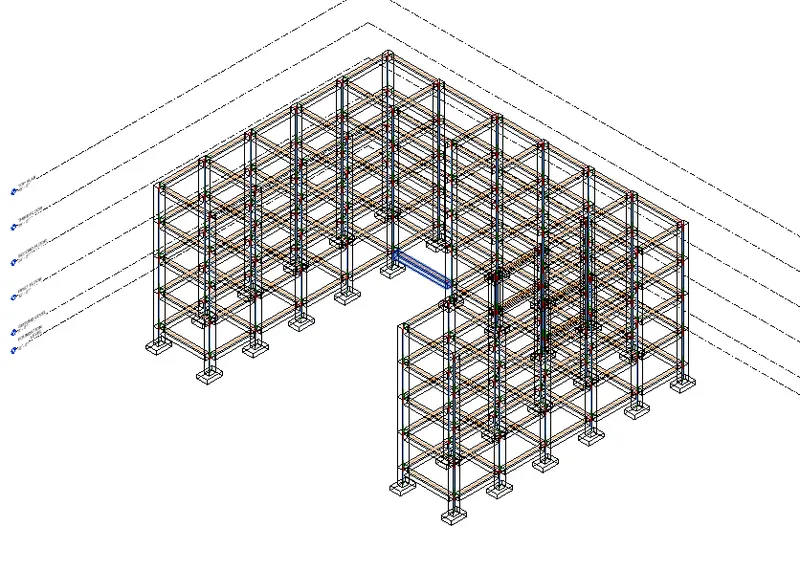

USE COLUMNS,BEAM,FOUNDATION FOR STRUCTURE

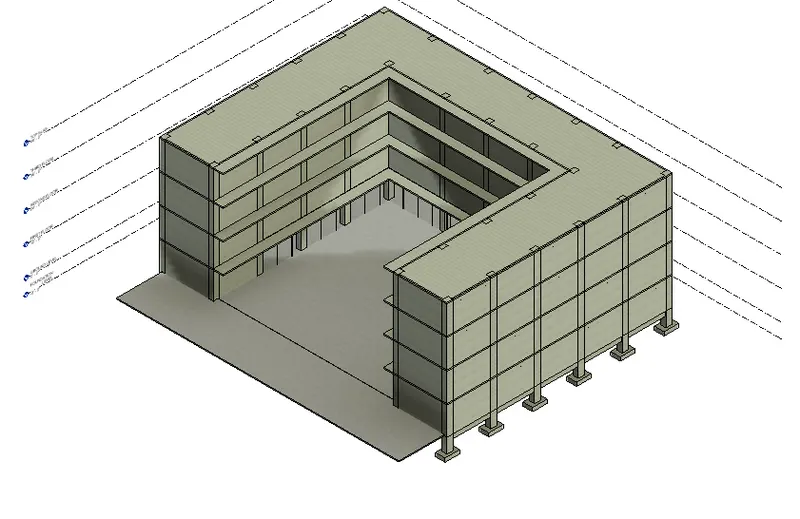

IF STRUCTURE IS DONE MOVE TO FLOOR OR SLAB AND COMPLETE AND PASTE TO SAME IF LEVELS ARE SAME STRUCTURE

NOW STRUCTURE WORK IS ALMOST DONE

OPEN ARCH TEMPLATE AND SYNCHRONIZE AND USE MANAGE AND LINK STRUCTURE AND COPY THE GRIDS TO ARCH TEMPALE BOTH PLAN AND ELEVATION LEVELS

NOW START WITH WALL AND COMPLETE IT

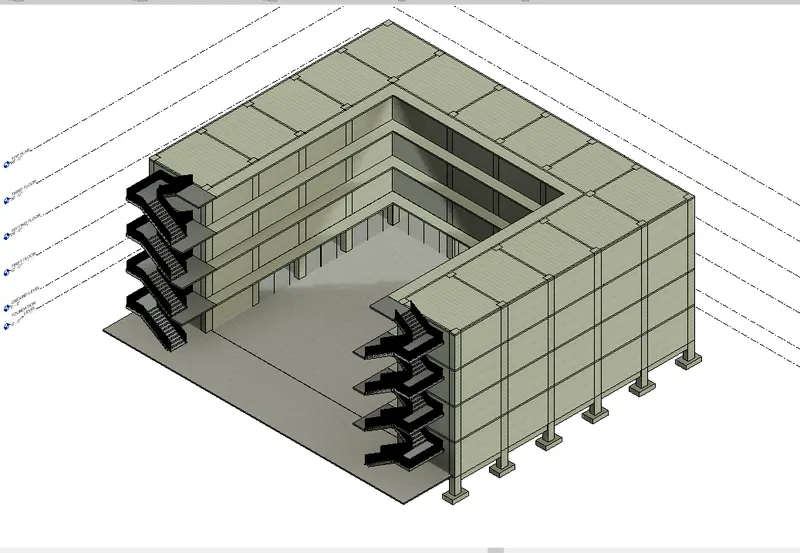

NEXT STEP STAIRS

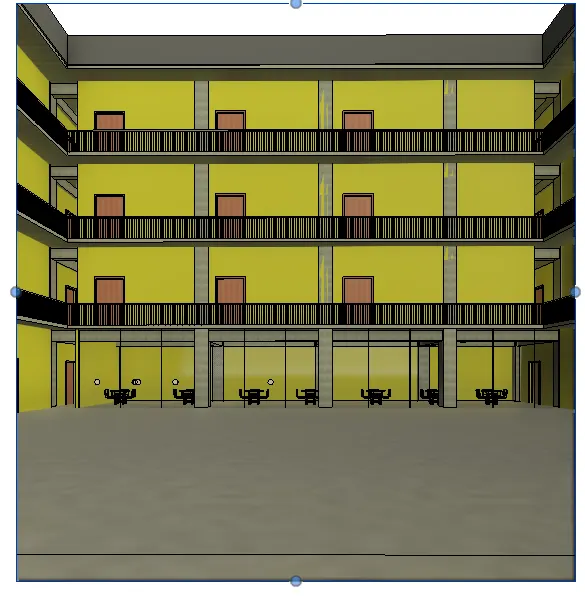

NEXT RAILING

DARW PARAPET WALL AND WALL OPENING AT REQUIRED AREAS

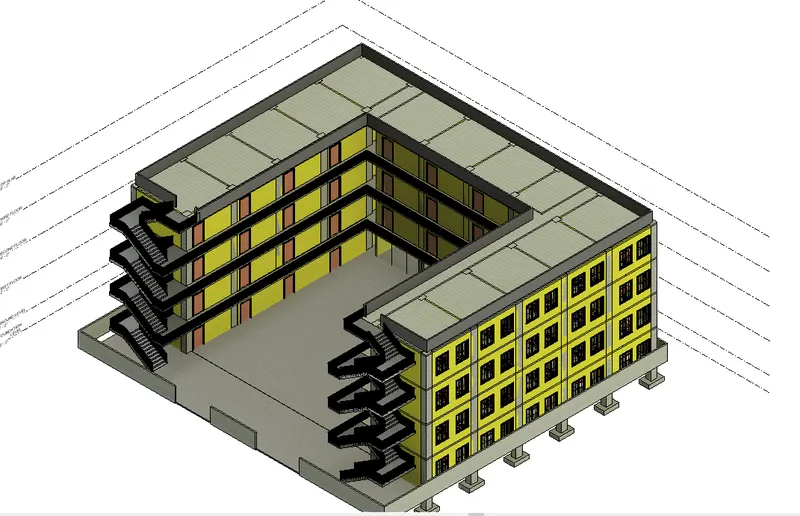

KEEP ALL THE DOORS AND WINDOWS

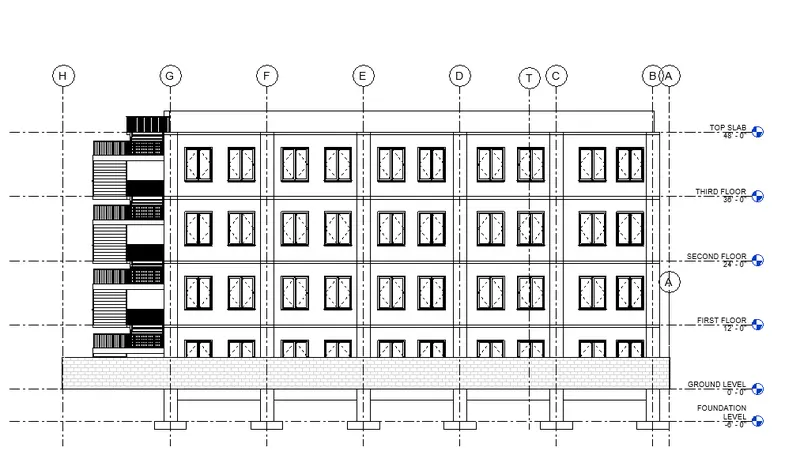

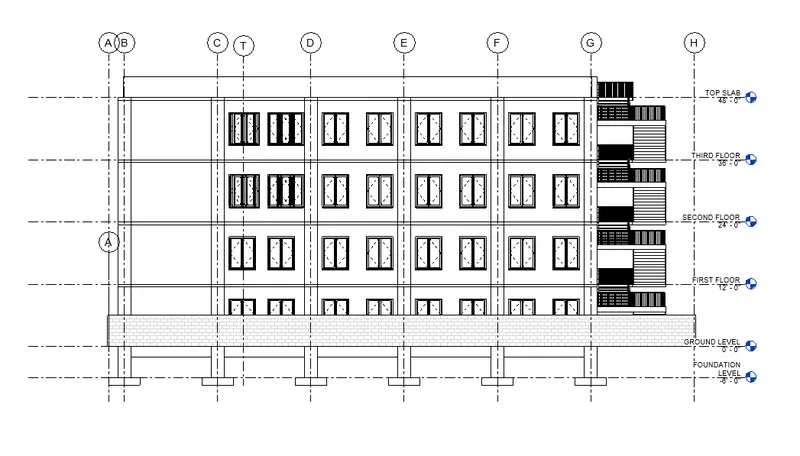

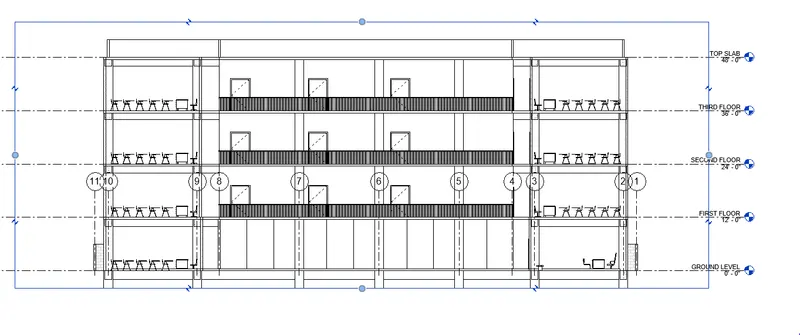

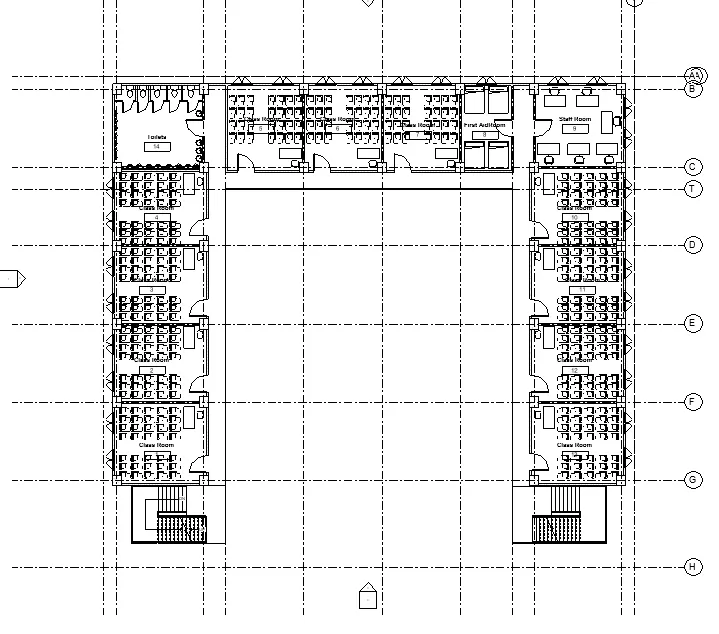

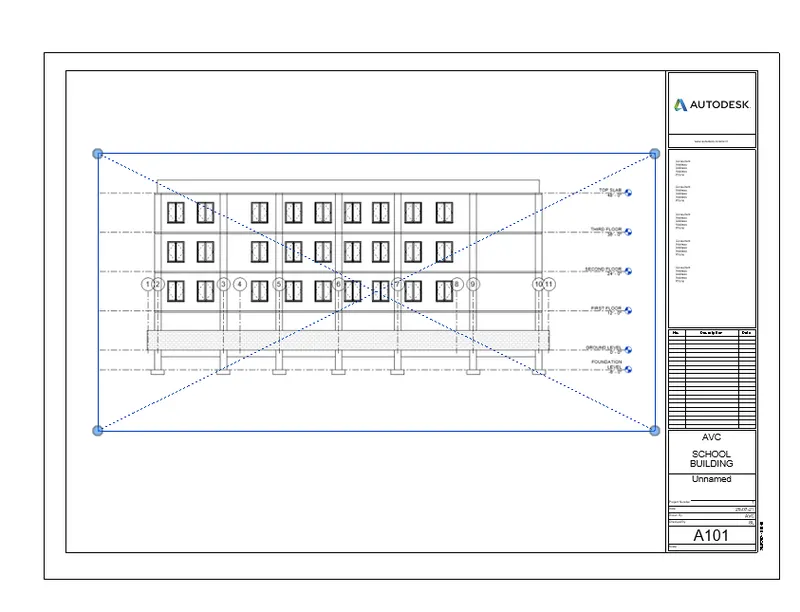

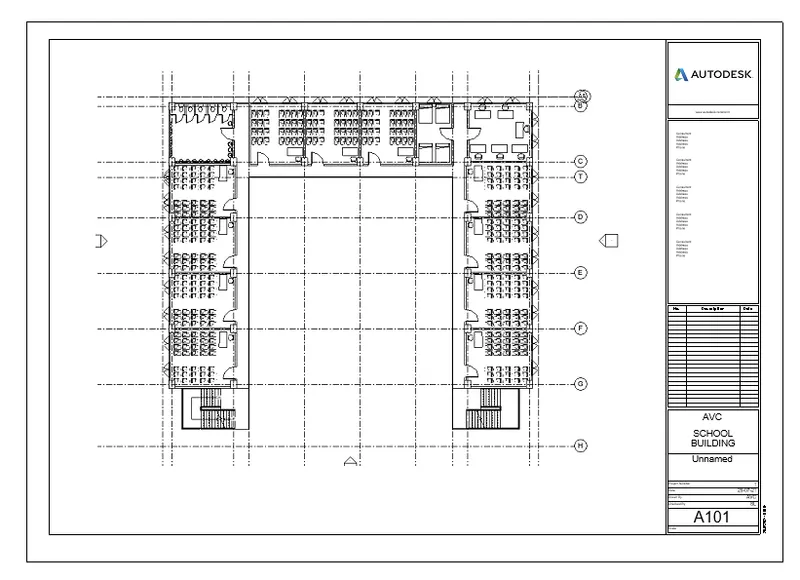

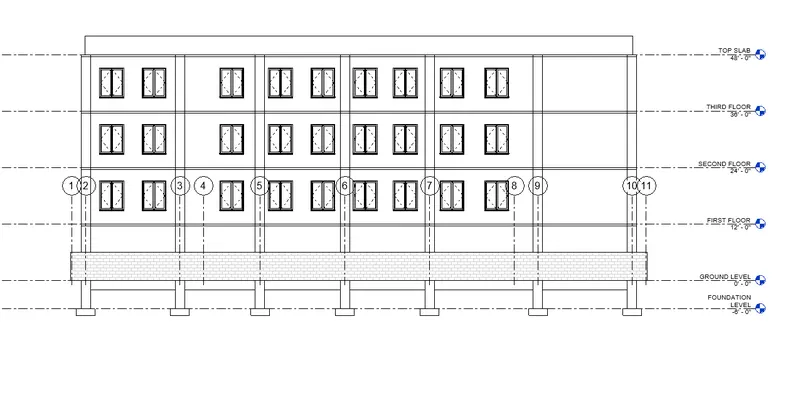

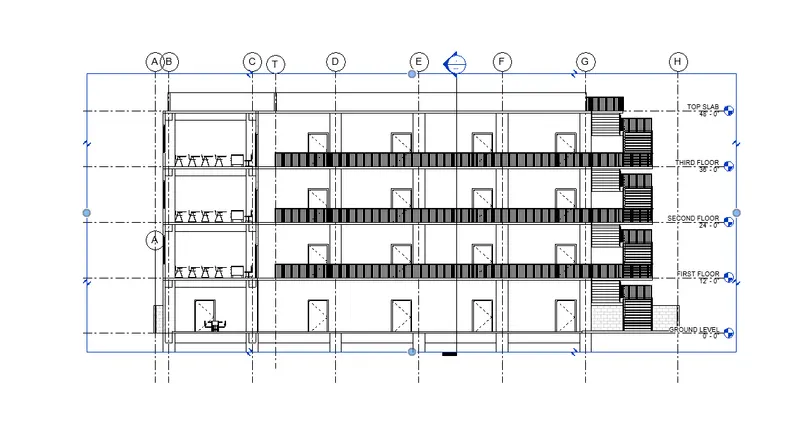

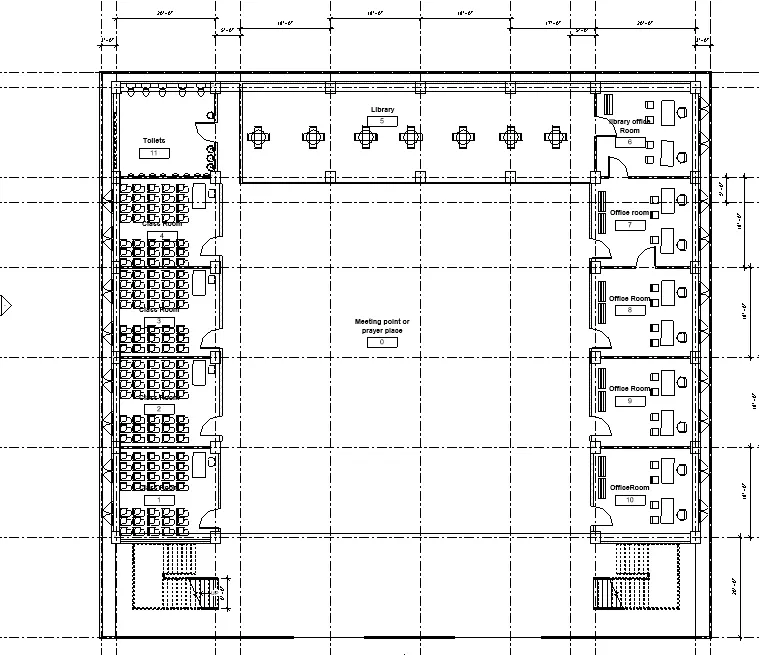

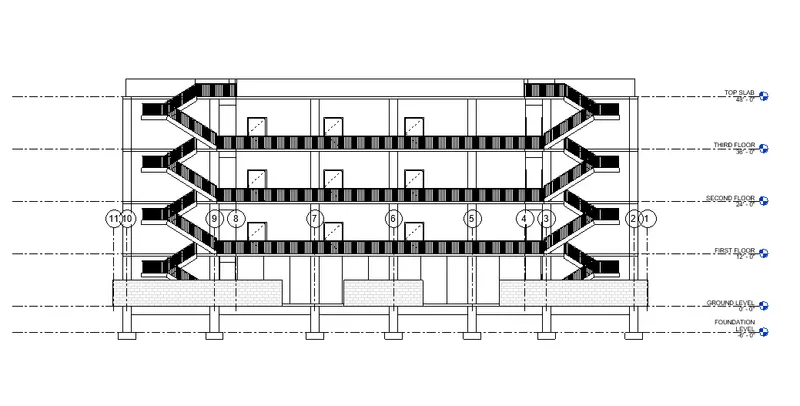

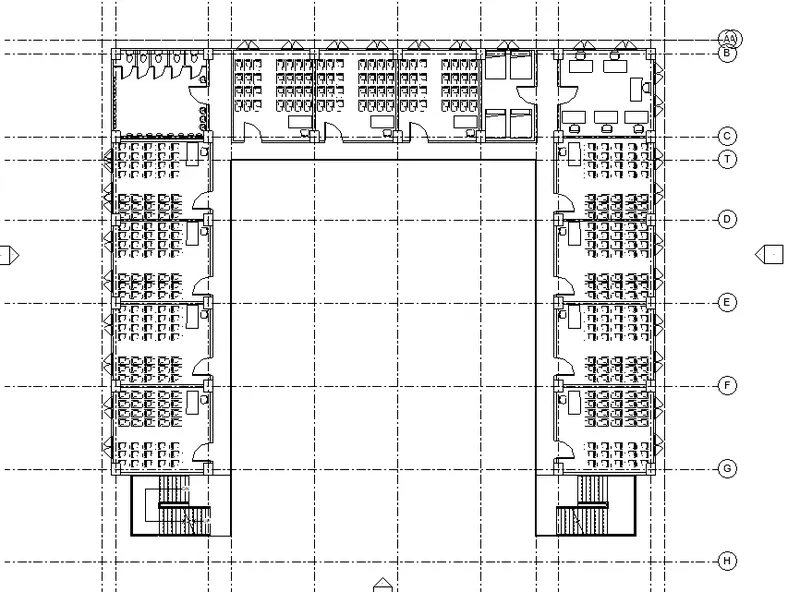

PLANS AND SECTION VIEWS

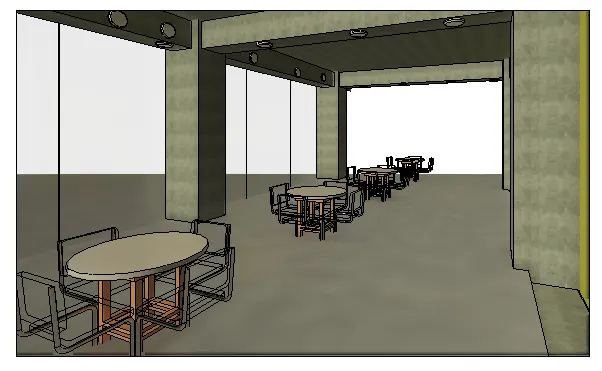

LIBRARY

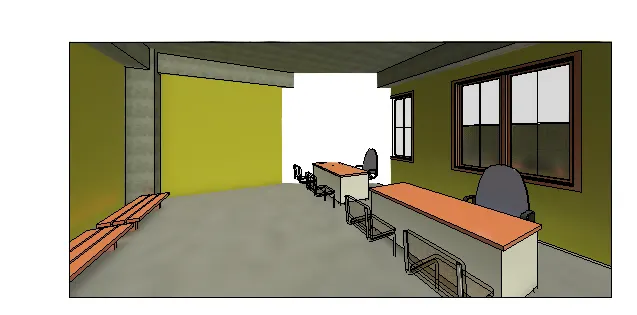

OFFICE ROOM

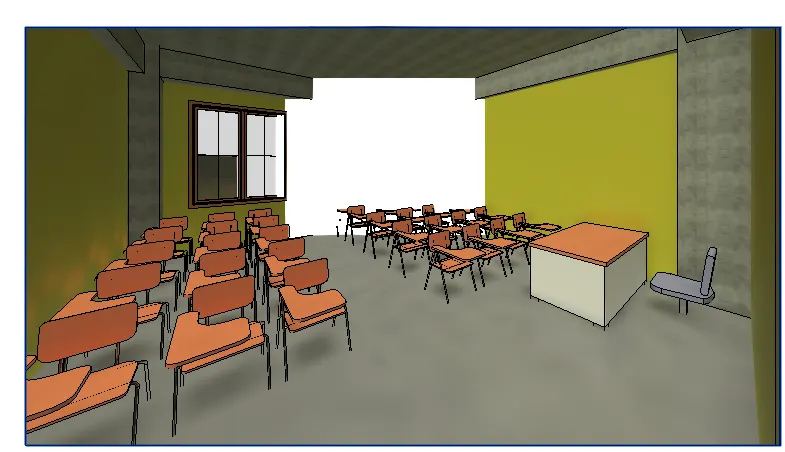

CLASS ROOM

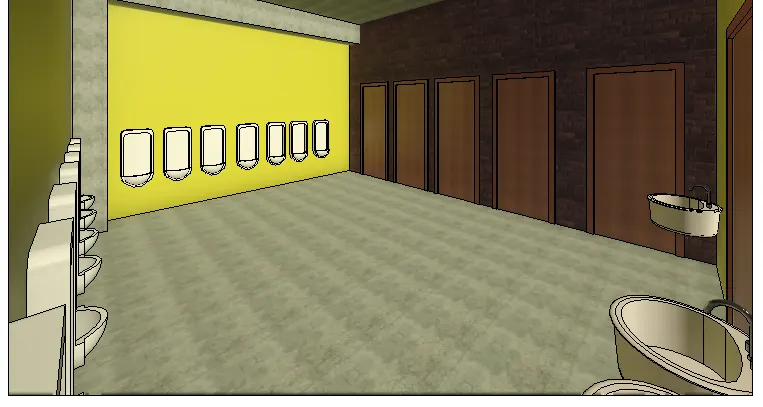

TOILET

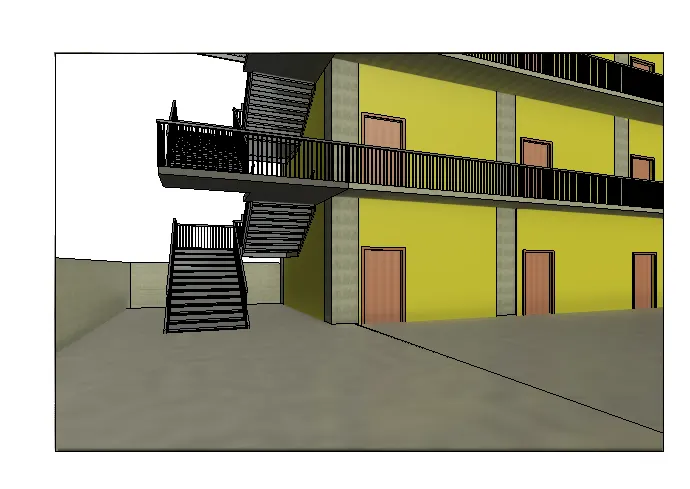

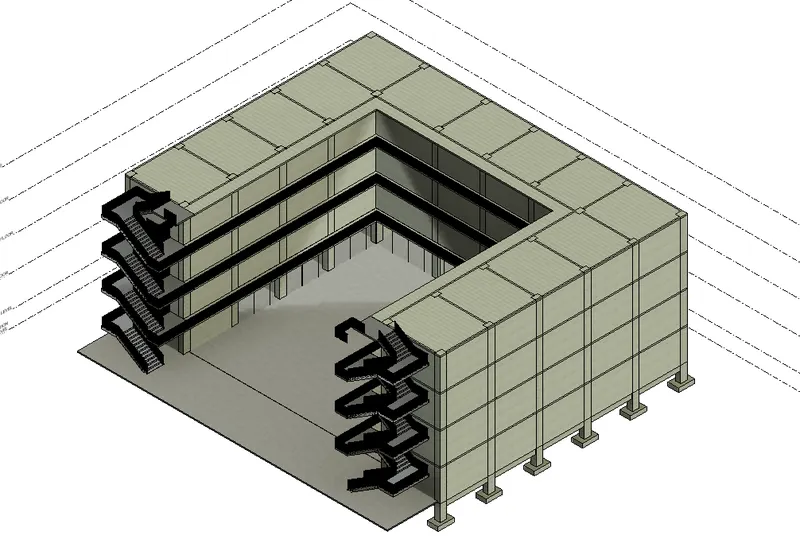

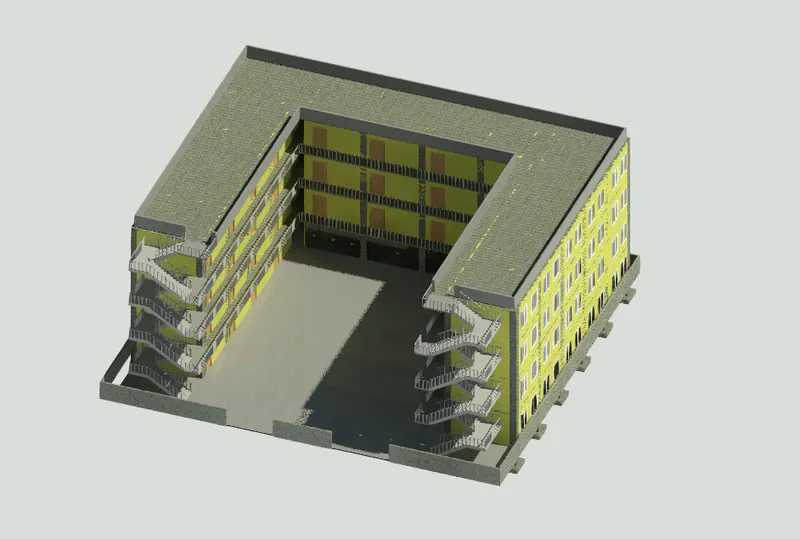

VIEWS
