Creating Architectural and Structural model with 3D rendering using REVIT

1). Select the type of structure you want to build from one of the three below:
a. Multi-Unit Residential Apartment
b. Office Buildings
c. School.

(ANSWER):

From the above the options of type of structure to build a building,

i need to pick a multi-unit commercial school building.

2). Assume reasonable assumptions for geographic and location details for your project modeling.

Based on assumptions and type of structure selected identify the modeling requirements from NBC.

(ANSWER):

The geographical and location details for my project modelling, based on assumptions of multi-unit residential Apartment.

selected identify the modelling requirements from NBC.

1. As above mentioned by the building comes under the Education category and it can be suituated in center of

the city.

2. The project is located in the highway nearest.

3. The road width of this project is 60 Feet.

4. The height, area limitation and safety measure are followed by the NBC.2005.

5. The height of project is 48'.

6. This project height in meter is 14.63 m and the road width is18.2m , the height of the building should not exceed 30 m.

7. In case of building height is not exceed, so it is suitable for construction.

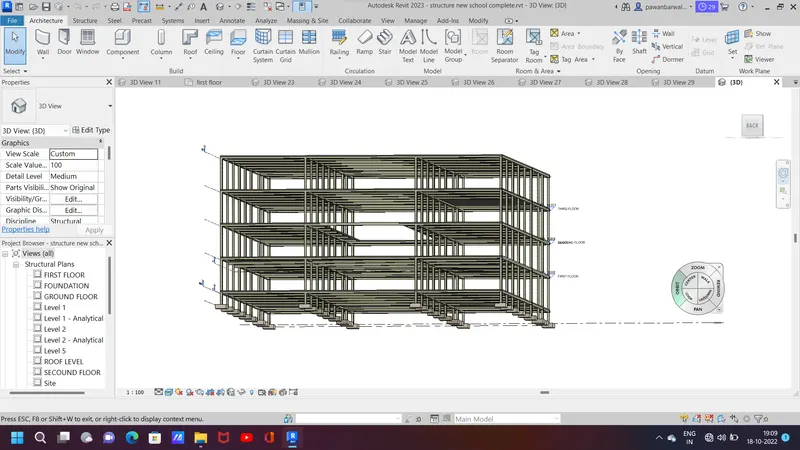

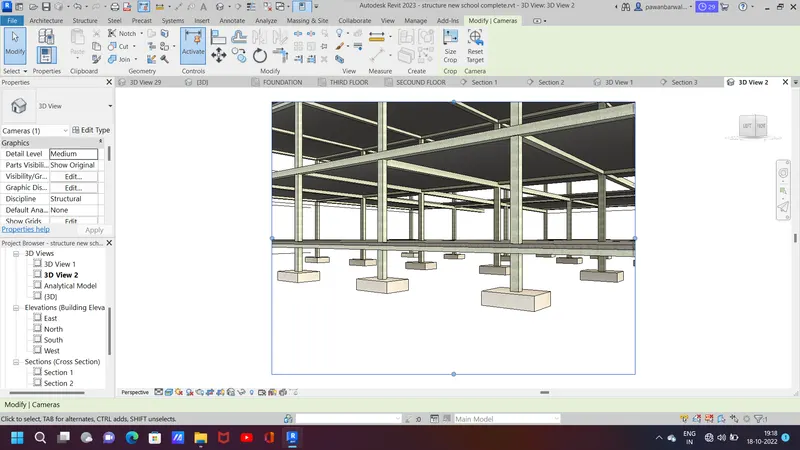

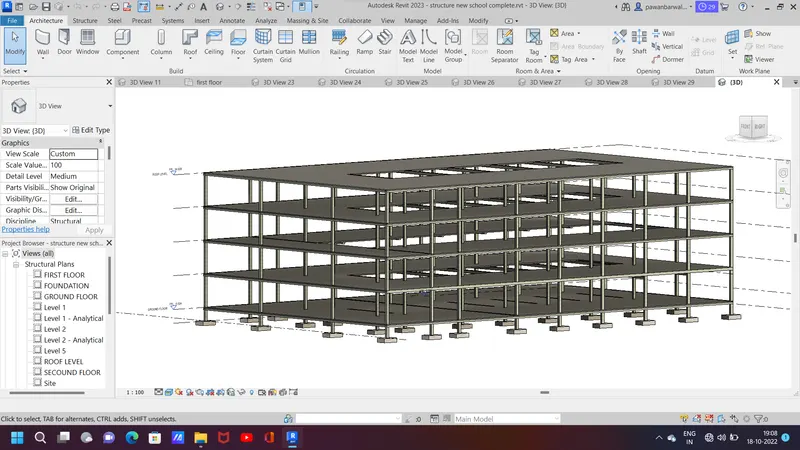

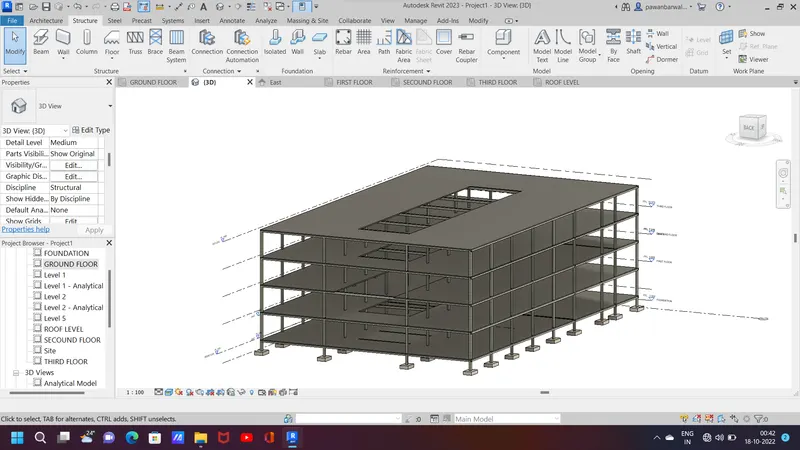

3) Using the structural model, include the following components based on the type of structure selected
a. Foundation – Isolated
b. Columns
c. Beams Connected to Columns
d. Roof flat Rcc
e. Floor / Decks
f. Floor Openings for Elevators and Stairs.

(ANSWER):

AIM:

To using the structural model, include the following components based on the type of structure like wall, windows doors foundations, beams etc.

commands used :

• Architectural template.
• Structural template.
• Grids.

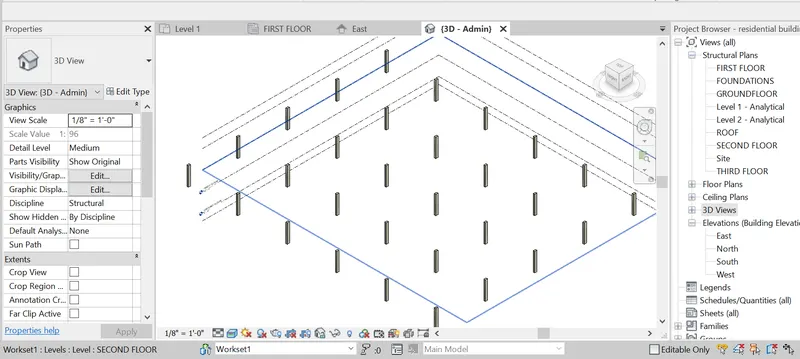

• Columns.
• Beams.
• Foundations.
• Stairs.
• Shafts.
• floors.

PROCEDURE:

1). Open a architectural template in revit software and save it as residential building-arch001.

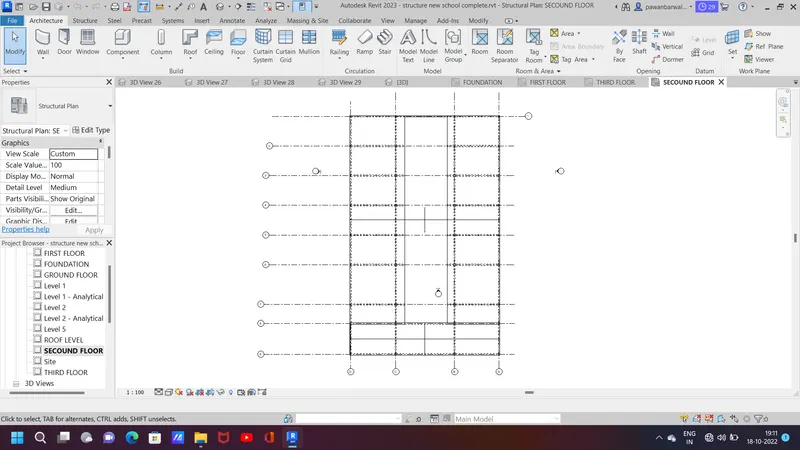

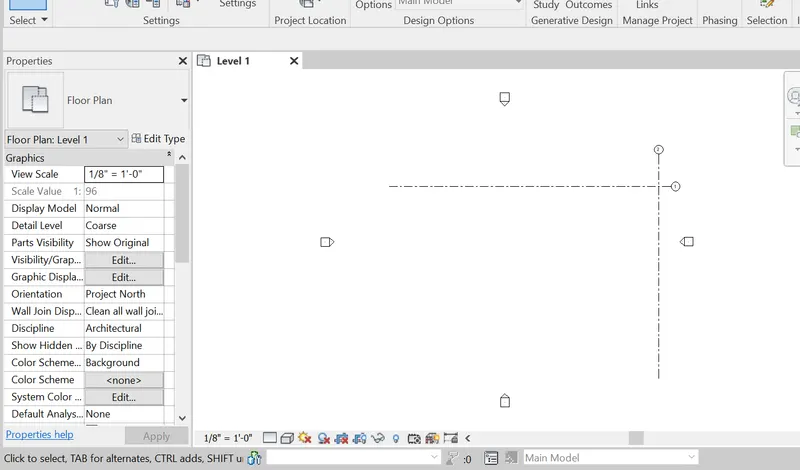

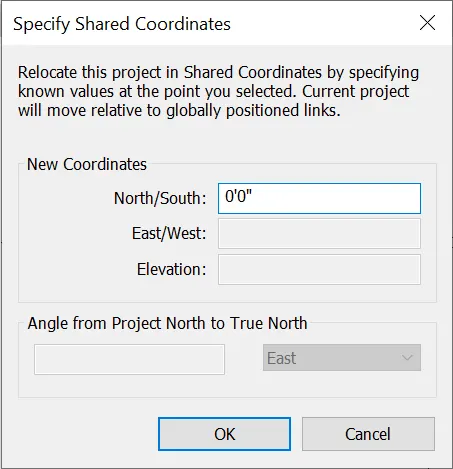

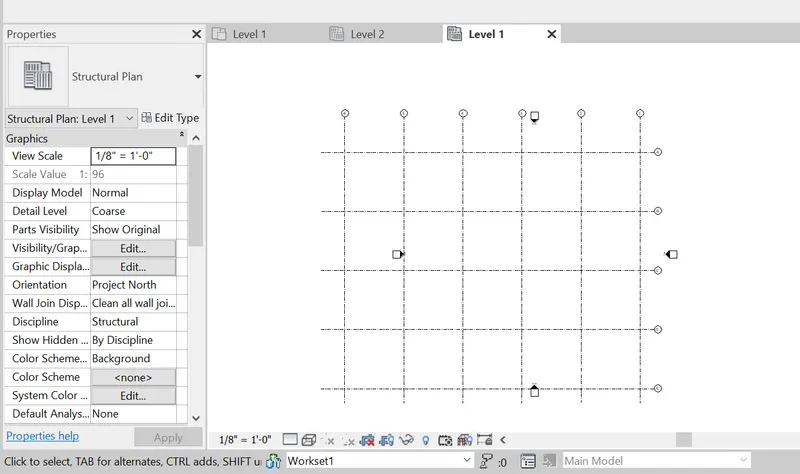

2). Then draw the grid lines and specify coordinates as 0'0" for both horizontal and verital grids lines.

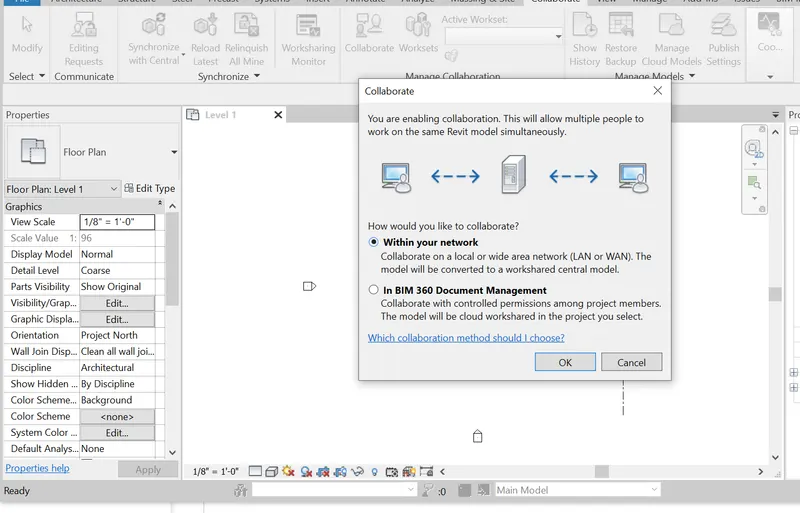

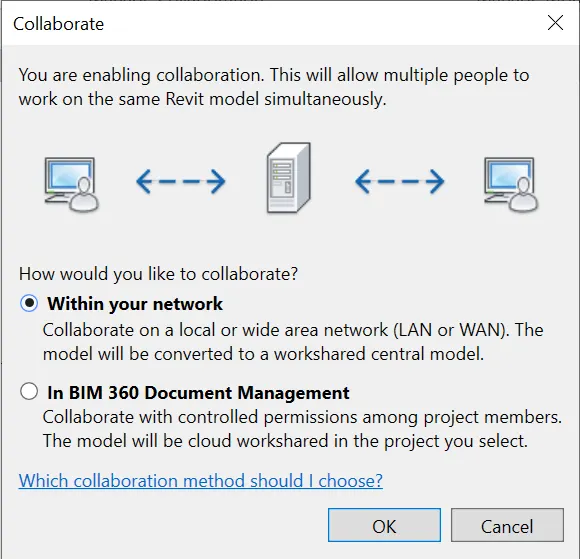

3). Click the collaborate and save the project.

4). Next open a new struture template , save it as residential building -structural 001.

5). Repeat step 2 and 3 ,same proces and save the file.

4) Using the architectural model, include the following components based on the type of structure selected
a. Wall Layout with appropriate material and finishing
b. Exterior façade with fancy finish
c. Interior partition walls to size rooms
d. Components to add details to a room ( Desk, Chair, Lighting, Plumbing fixtures)
e. Add components such as stairs Elevators

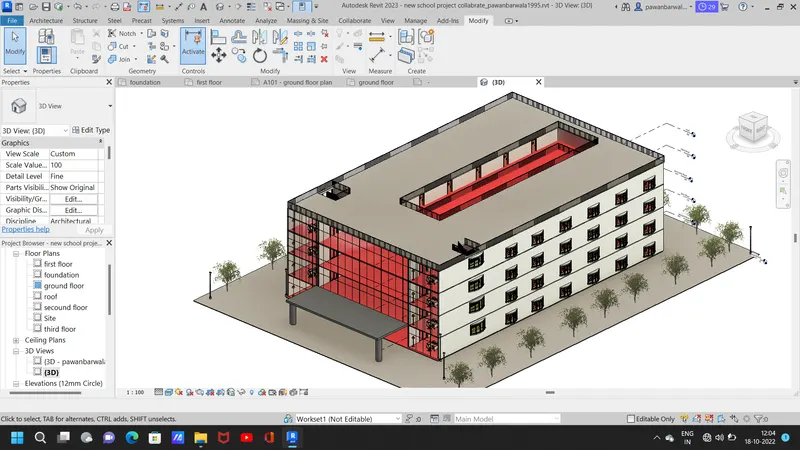

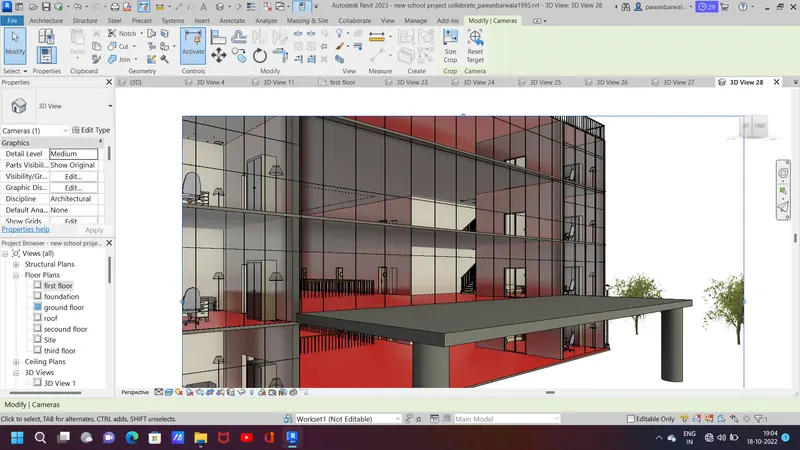

f. Have at-least one side of the building with curtain walls and glass panels
g. Include interior and exterior lighting fixtures

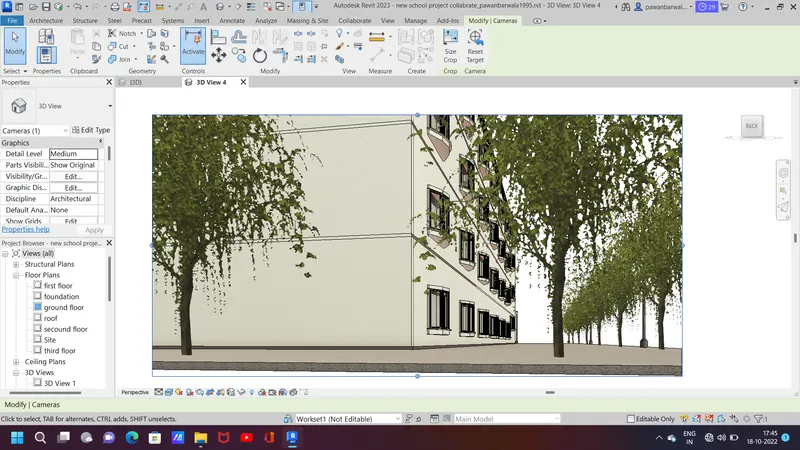

h. Place proper topographic components from outside ( Trees, Parking, Plants) to add details to the model.

(ANSWER):

AIM:

To Using the architectural model, include the following components based on the type of structure selected above.

command are used:

• Architecture.
• walls.
• Components.
• Load family.
• Ceiling.
• Floor.
• Doors.
• Windows.
• Staircase.
• Railings.

PROCEDURE:

1. Now go to the architectural template which has created before in this file.

2. Copy the grids which were created in the previous structure template and copy it.

3. With the help of paste from clipboard option paste the grids in the architectural template.

4. Select the grids and pin it .

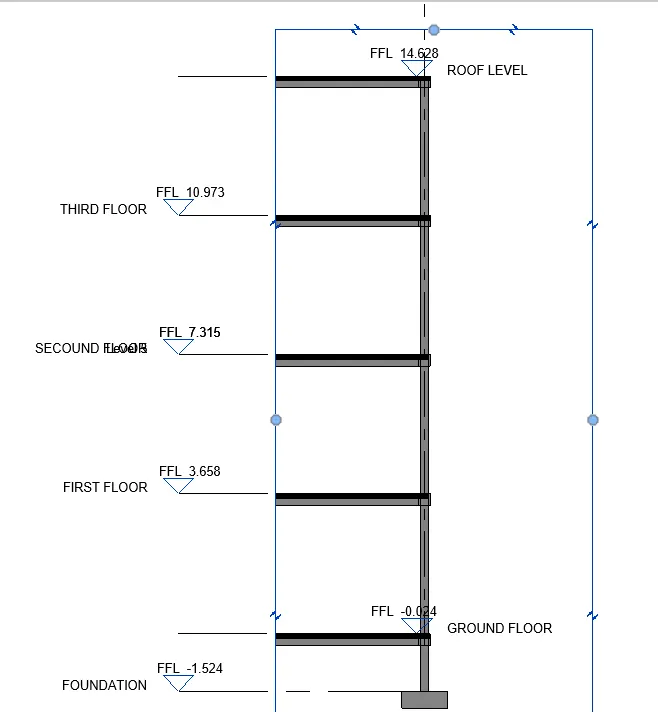

5. click the elevation and create the levels required from architectural tab.

6. Click virtual graphics setting and select custom in annotation off the grids.

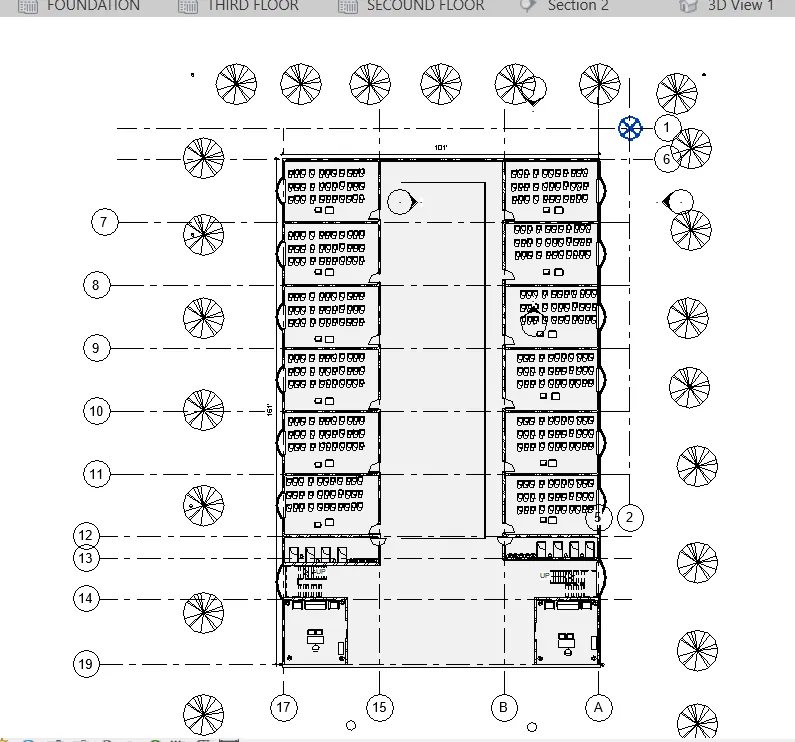

7. now , start create the exterior wall on grid lines .

8. and then, floor tool add floor to all levels of projects.

9. By the way same doing in walls also,

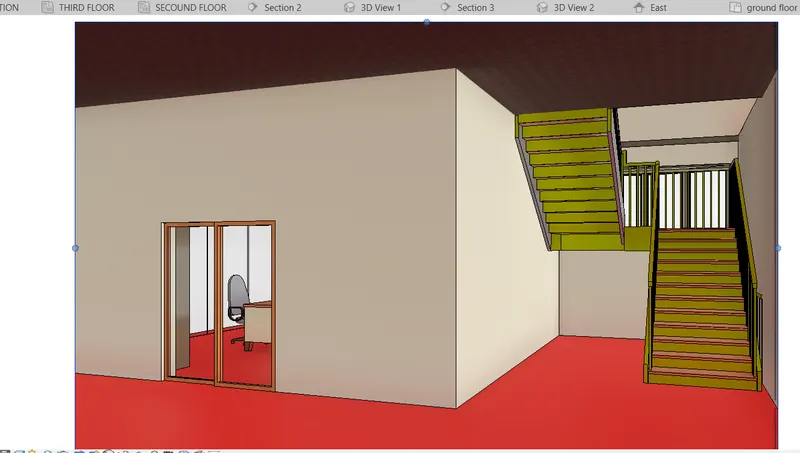

10. Add stairs to all levels in it.

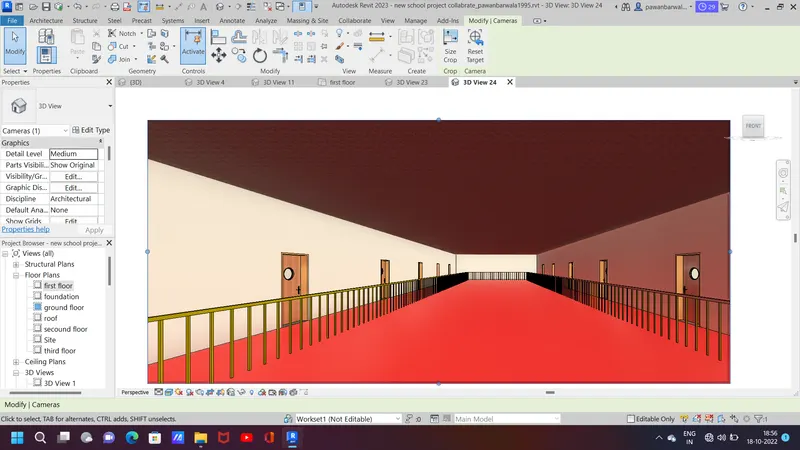

11. To created the staircase add railing system in it.

12. Add windows, doors to the walls.

13. Then, load the load families in the components required for the project and add them in the drawing them in the load family.

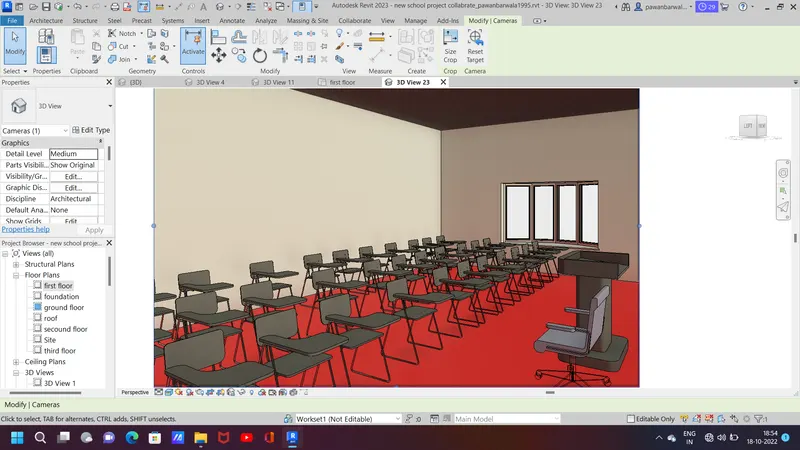

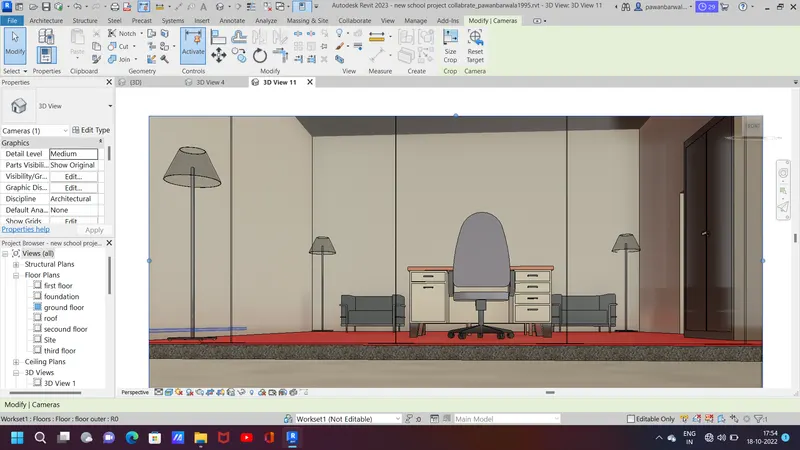

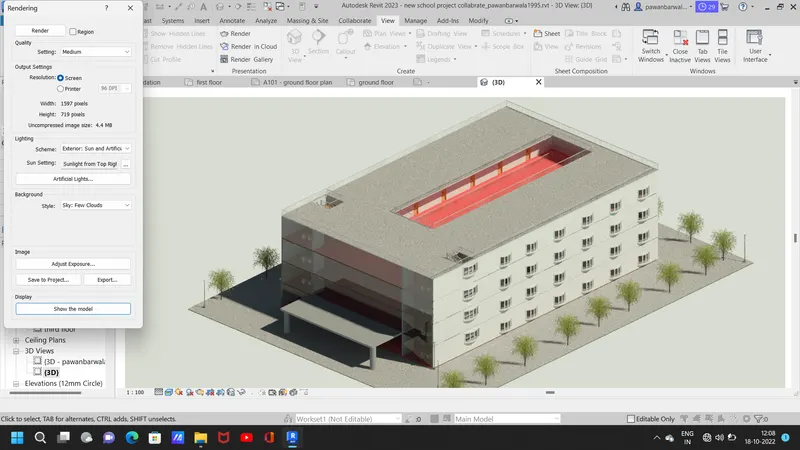

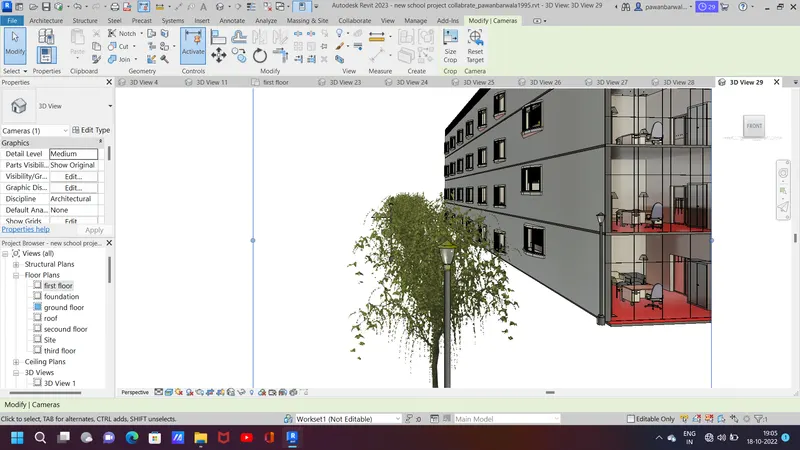

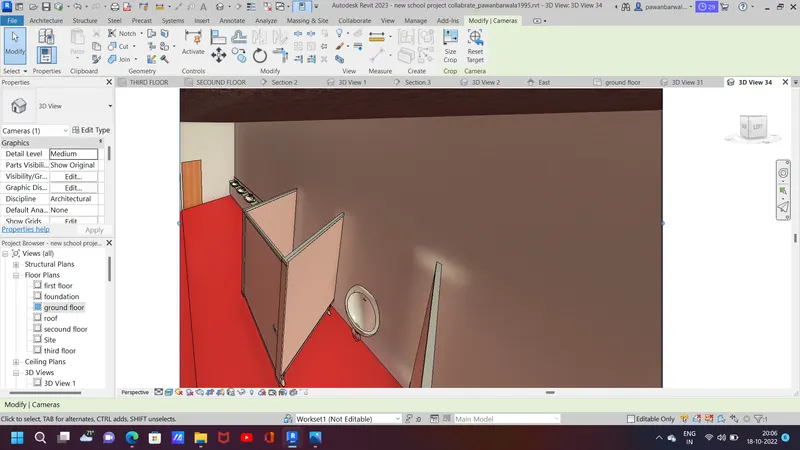

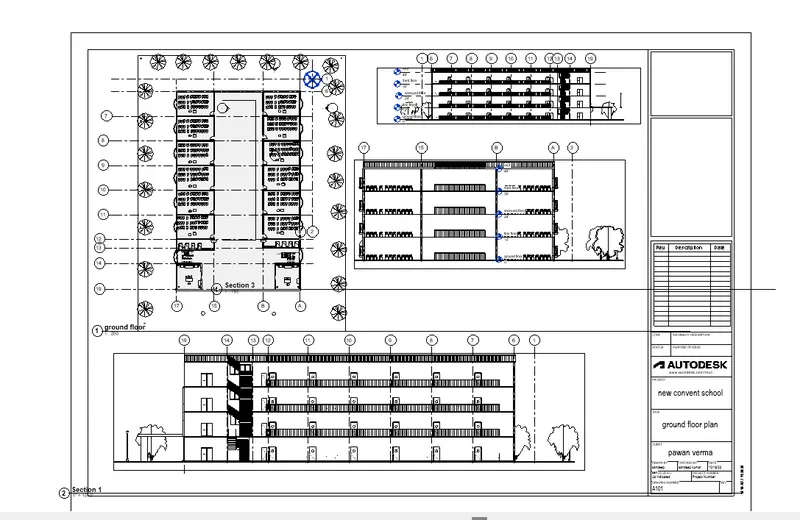

14. set the camera in all rooms to view the pictures in realistics, of building.

15. Save the project and changes will done in the architectural template will be save to be centralised file
