Creating Architectural and Structural model with 3D rendering using REVIT
1)
aim as per question choose one building
i choosen school building
procedure:
in school building the structural componenet consist os foundation etc
in arch consistbof wall door window
ARCHETECHURAL MODEL

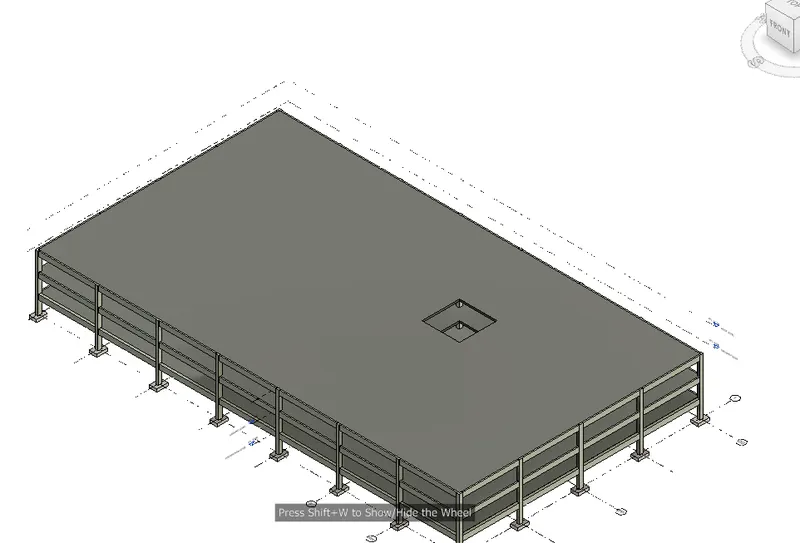

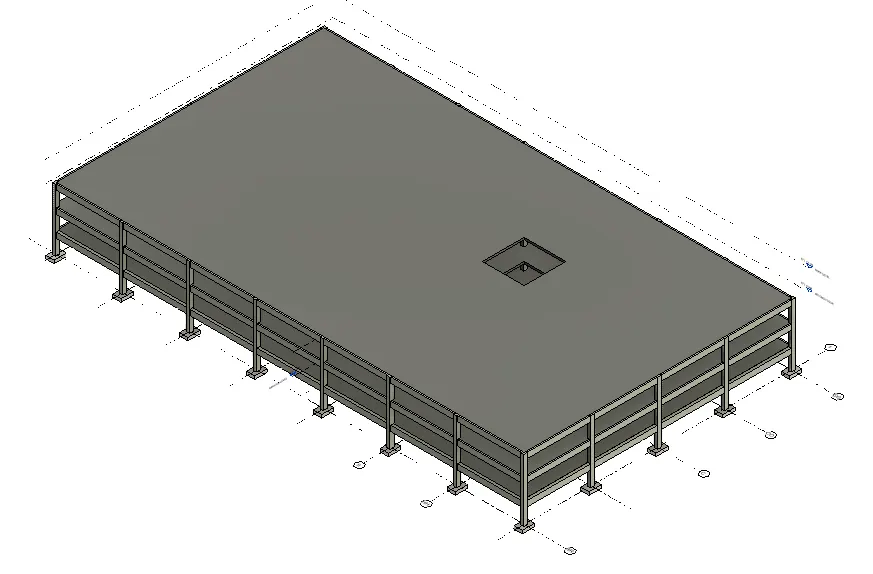

STRCTURAL MODEL
2)
aim: take the site as per nbcTHE OPEN SPACE AROUND THE BUILDING SHALL NOT BE LESS THAN 4,4M
THE TYPE OF CONSTRUCTION AS TYPE 2 CONSTRUCTION THE FAR VALUE FOR BUSING BUILDING SHALL BE TAKEN AS 2.9
THE PLOT DIZE TAKEN AS 40*70Mie 28002m2and indual floor area is 200m 2m2 hence far value is obtained ad2.14which within prepared as nbc
the width of road abutting the building taken as 9m
3)

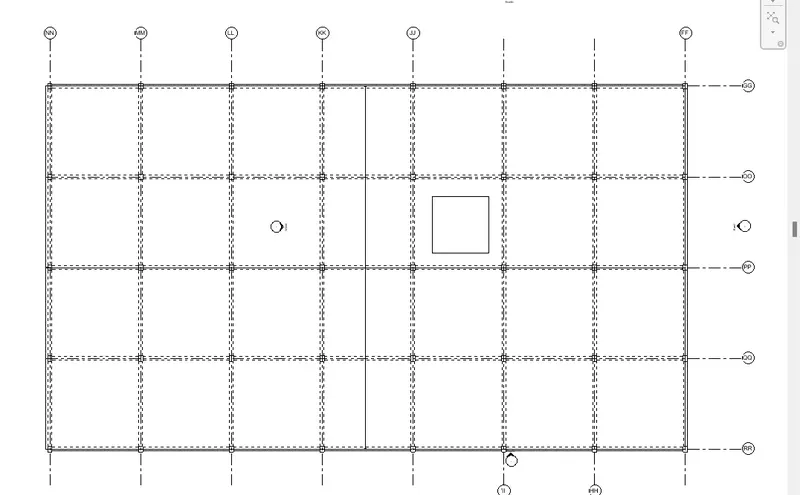

AIM: TO DRAW THE IN STRUCTURAL TEMPLET CREAT GRIDS
PROCEDURE : CREATE GRIDS , LEVELS AS GROUND FLOOR , FFIRST FLOOR ,SECOND FLOOR,ROOF LEVEL
THEN CREATE FOUNDATION AT FOUNDATION LEVEL
THEN COLUMN AT GROUD LEVEL AT THE SECOND LEVEL
BEAM AT GL FL SL
CREAT OPENING FOR SHAFT FOR STAIRS ELEVATOR
RESULT : CRETED COLUMN BEAM FOUNDATION SHAFT OPENING
4) AIM:
TO TAKE THE MODEL IN ARC H AND
PROCEDURE : WALL DRAW INSERT ALL COMPONENT

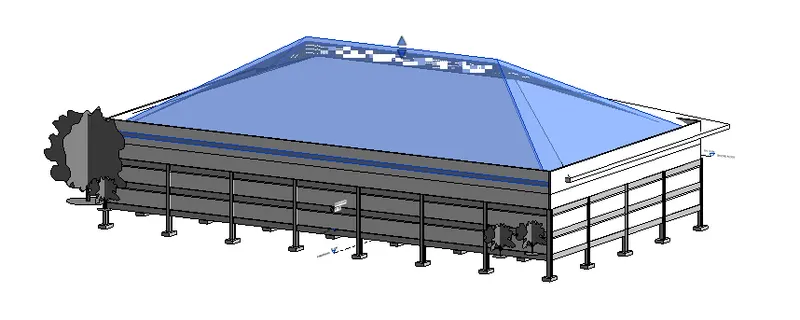

TAKE 3D VIEW
RENDERING TAKE
RESULT: TAKEN 3DVIEW OF ARCH REDERING OF THE VIEW
5)

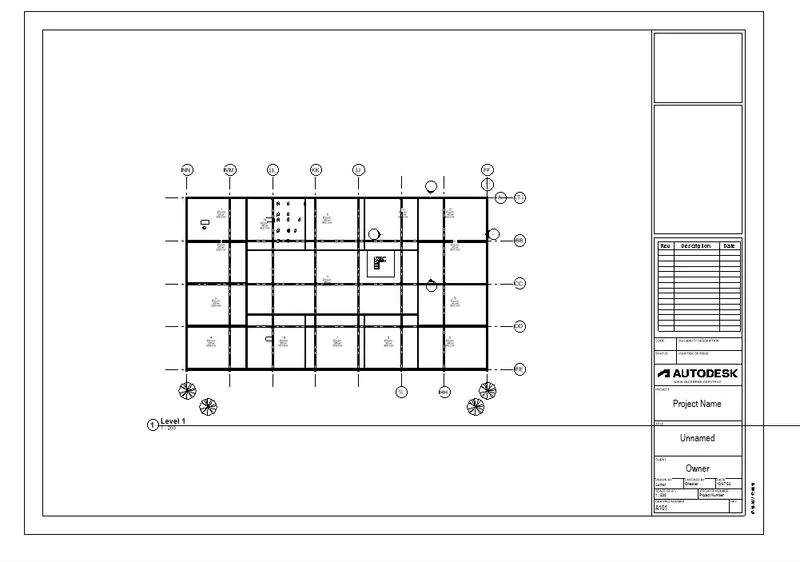

AIM : TO TAKE TE VIEW IN SHEET

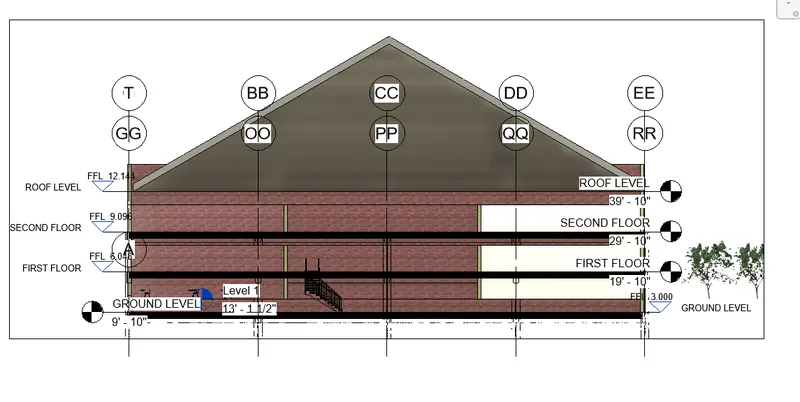

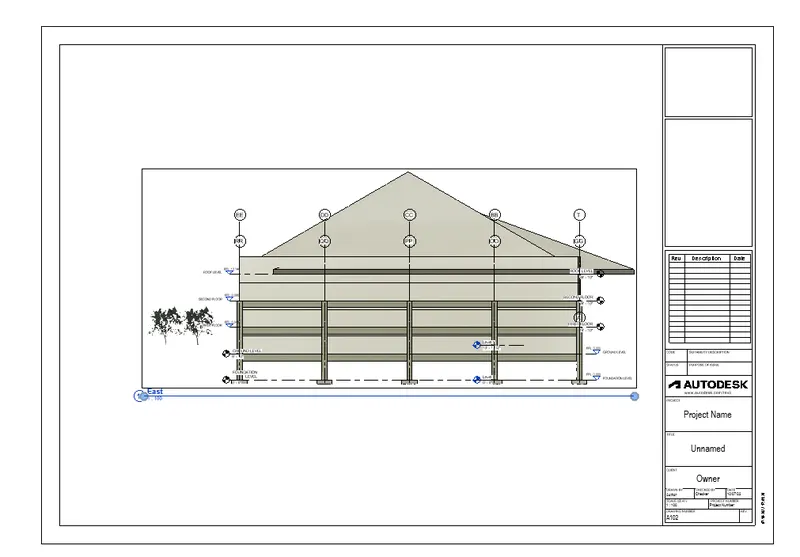

PROCEDURE: TAKE THE VIEW OF FP,ELEVATION SECTION
RESULT : AS PER GIVEN ALL THE VIEW IN SHEET
6)

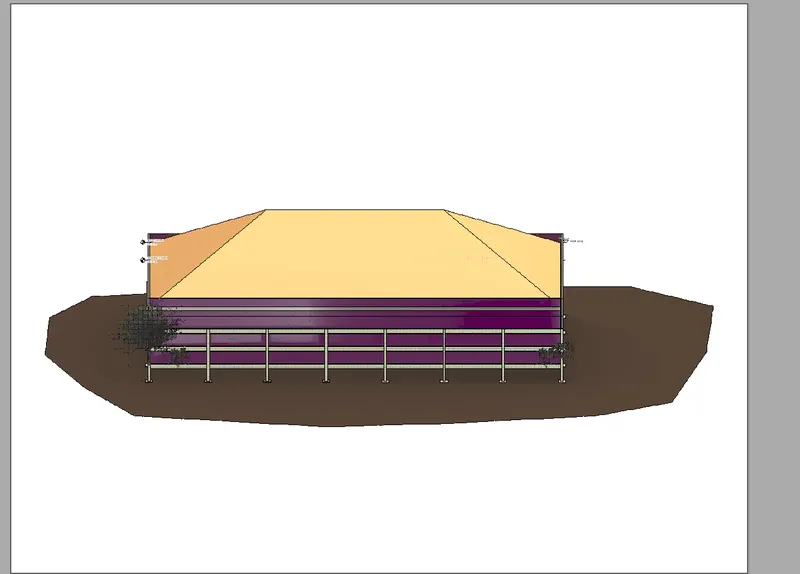

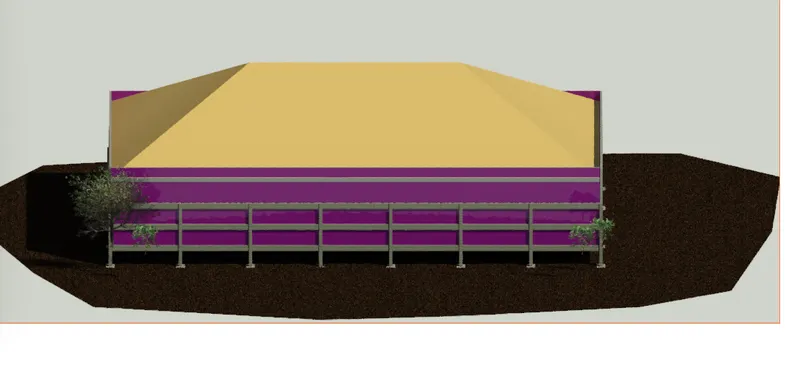

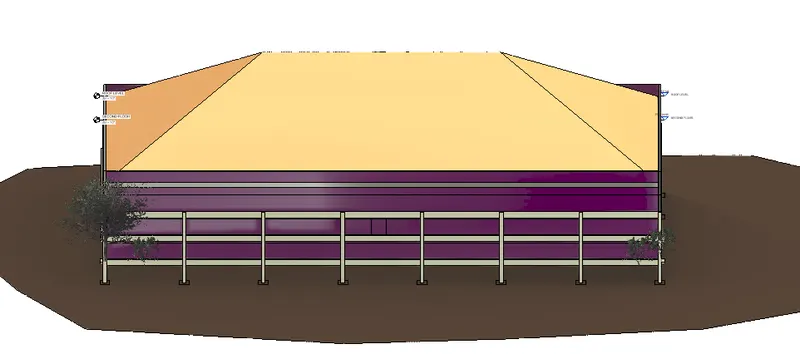

AIM: TAKE RENDERING VIEW

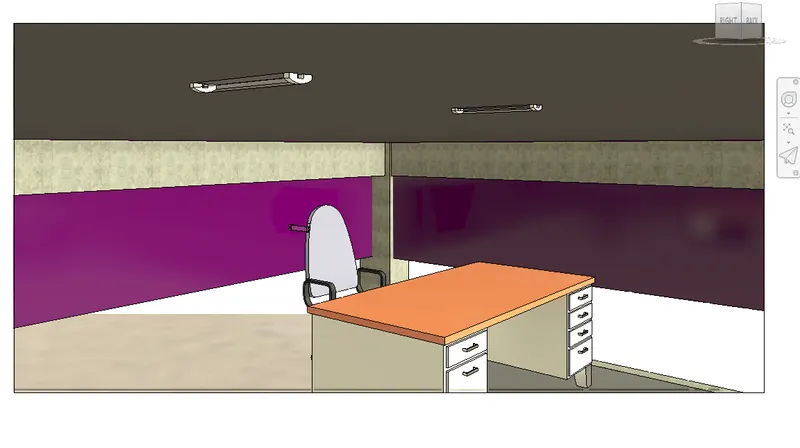

PROCEDURE: TAKE RENDERING VIEW OF OUT SIDE AND INSIDE
RESULT: TAKEN RWNDERING VIEW
7)
AIM: TO TAKE THE PRINT OF VIEW
PPROCEDURE: TAKE THE PRINT OF ANY VIEW
RESULT: TAKEN THE PRINT
