Creating Architectural and Structural model with 3D rendering using REVIT

Ans.1

AIM-: By the given options i want to Buid a mutiunit residential appartment Building as my project in revit

AIM-: By the given options i want to Buid a mutiunit residential appartment Building as my project in revit

Buiding type G+3 Muliunit Residential Appartment

Ans.2

AIM- Assuming the geographical location as the  Indore Madhya Pradesh ,India

Following assumptions and Codel provisions are taking effect in the Project of Multiunit Residential Apppartment as per the national Building Code 2005

A-4 Fire and Life Safety

A-5 part 5 Building Materials

A-6.1 Part 6 Structural design

A-8 Part 8 Building Services and

A-8. Lighiting and ventilation of Building

Height of Building of the Project is

AIM- Create the model of the multiunit residential plan of G+3 Building

My Final View of the project including alll the stuctural memebers and Topograph

To Satisfy the National Building Code

Above Plan drafted in teh Revit and Using the Architectural temaplate and made the file as central File

Using wall of 225mm exterior and 5" for the Inner partition wall

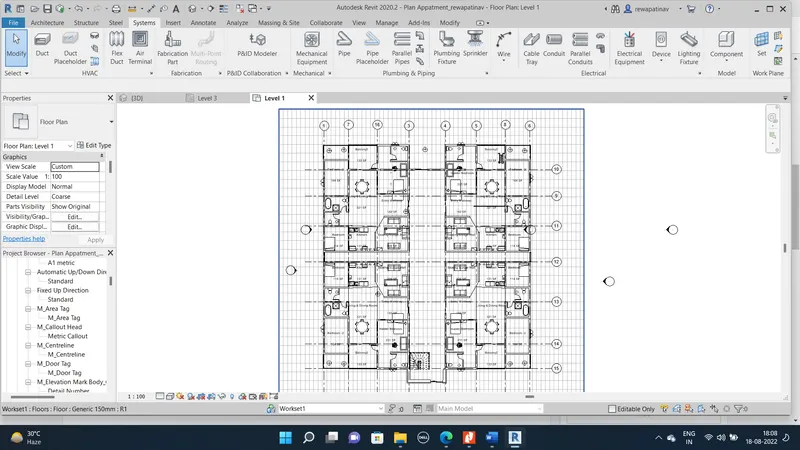

Plan of the Multiunit residential  Appartment G+3

With 4 nos of seprate 2BHK Flats including all essential Models imported form the library

Procedure-:

To create the Above Plan Plot of the Size 137'x153'

plot taken for the Construction as 93'x101'

Ans.:3

AIM-:Providing all the element listed  in the question

Foudation -:

procedure

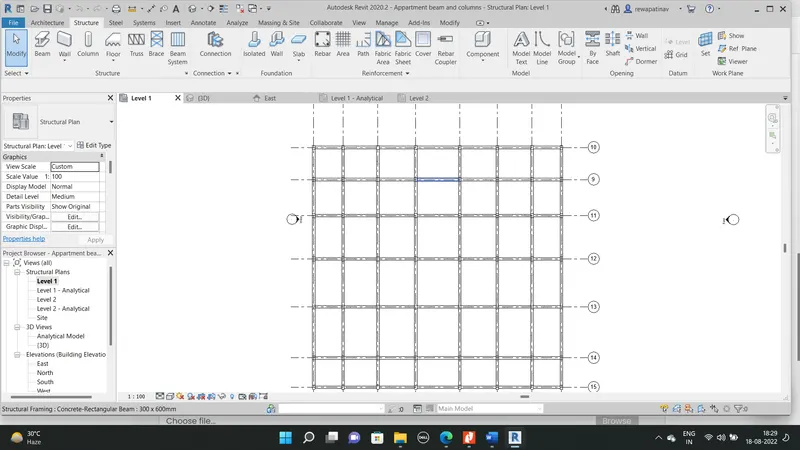

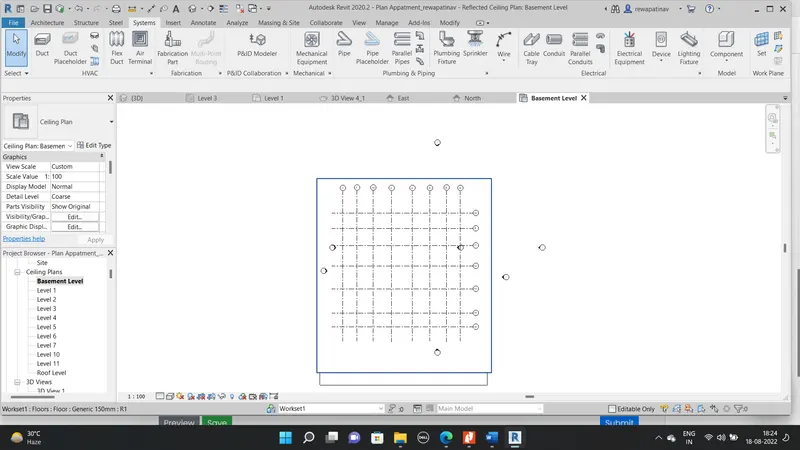

Created the grid at the intersection of wall and created the vertical and horizontal Grids

Than provide Footing using teh AT Grids option

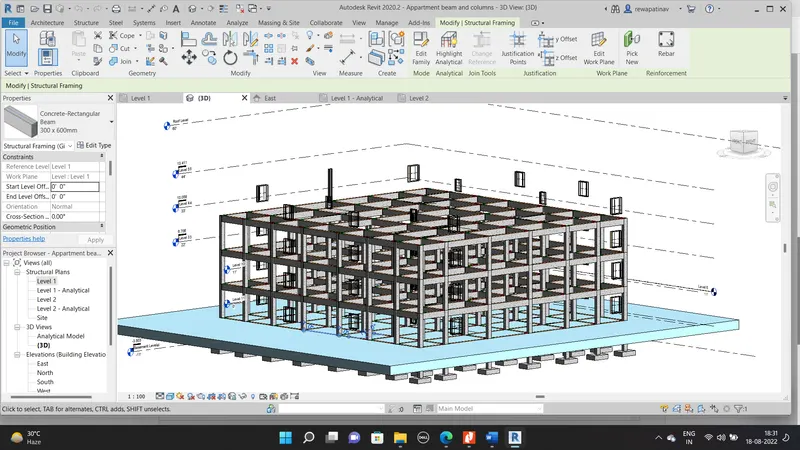

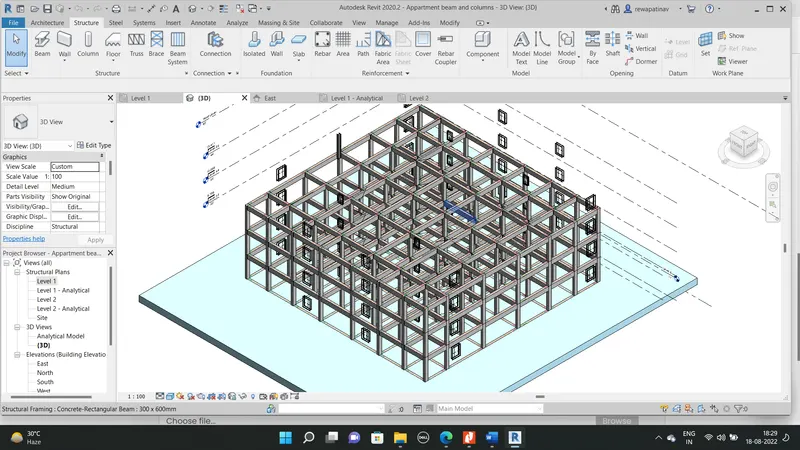

Creation of beams and Columns Using grids at all the levels Copie Clipboard AT the selected Levels

Footings in the View

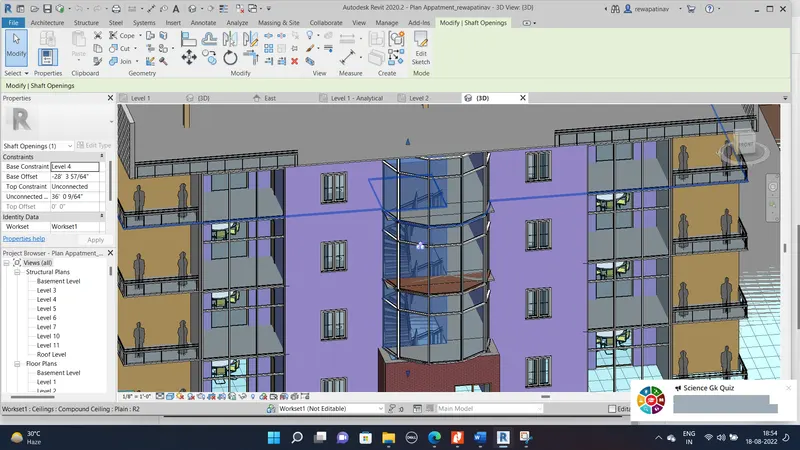

openinng for the stairs are created using the shaft from first floor to teh third Floor

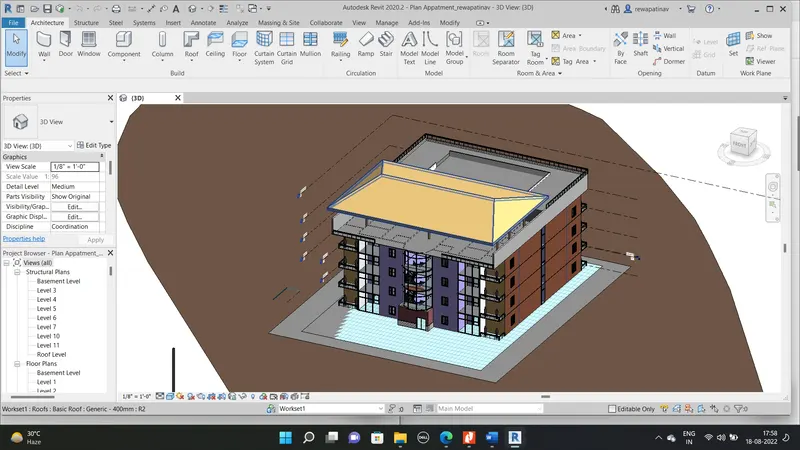

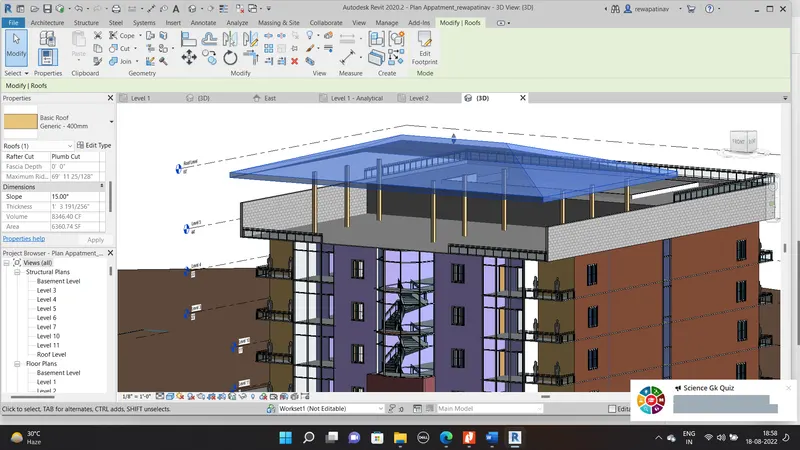

Roof Creation on teh Top of the Building using the footprint option and provided the slope angle 15 degree

The Roof is Supported by the Timber Columns

Ans.4

a. Wall layout

b.Exterior Facade fancy finish with the Curatain walls

• Wall are painted using material library by provided material as paint
• Railing in the balcony with galzing Finish
• and placed mdoels of humans and Cars
• overhead Lights
• Roof material as Timber Finish

c.internal patition walls

d.Component added on the plan

a section of Living room are placed below see all model are placed with the load family option

Interior lighting are also provided can see in nerar the bed

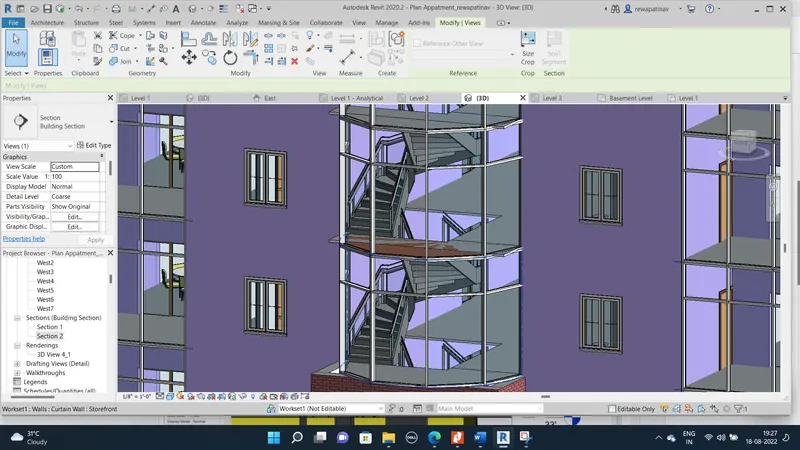

satairs are adeded with connecting all the floors  and Glaze or curtain wall pattern

Ans.5

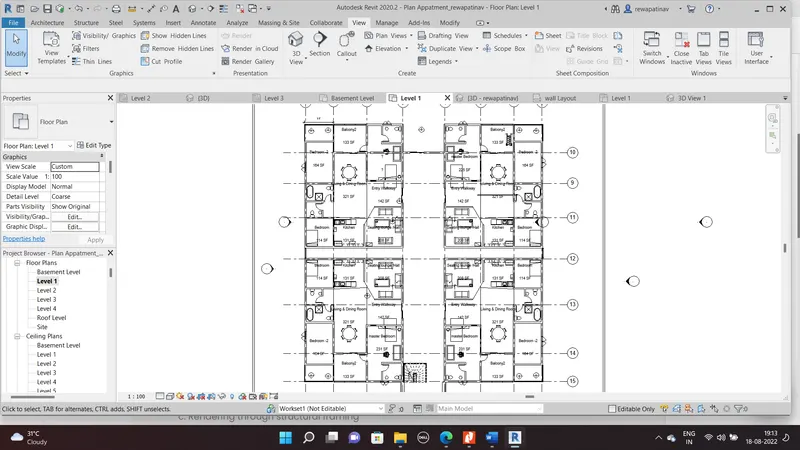

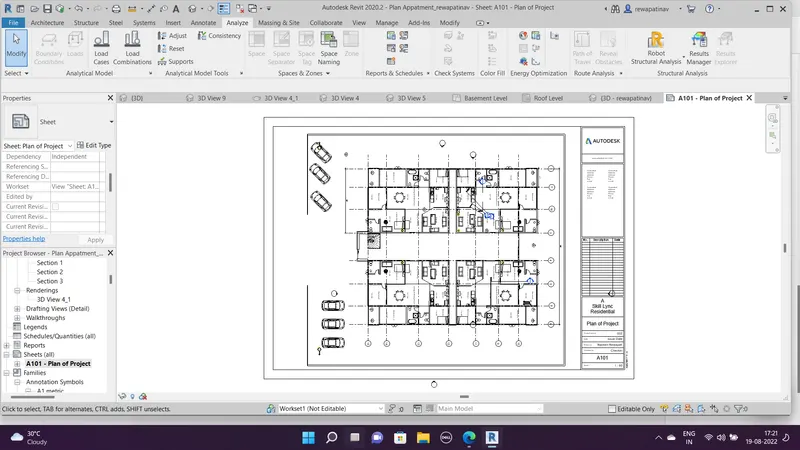

Floor plan is Uploded Above

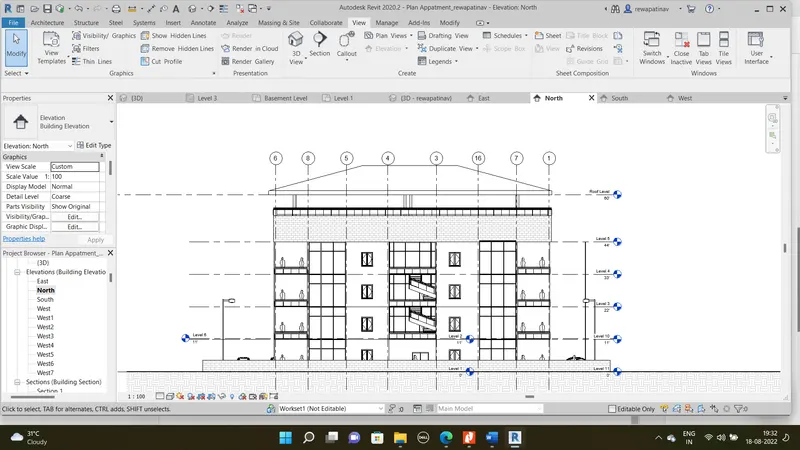

Elevation View of the project from

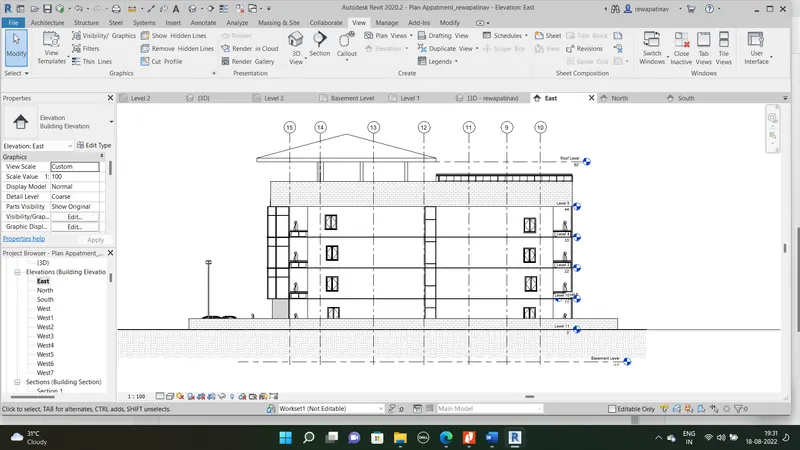

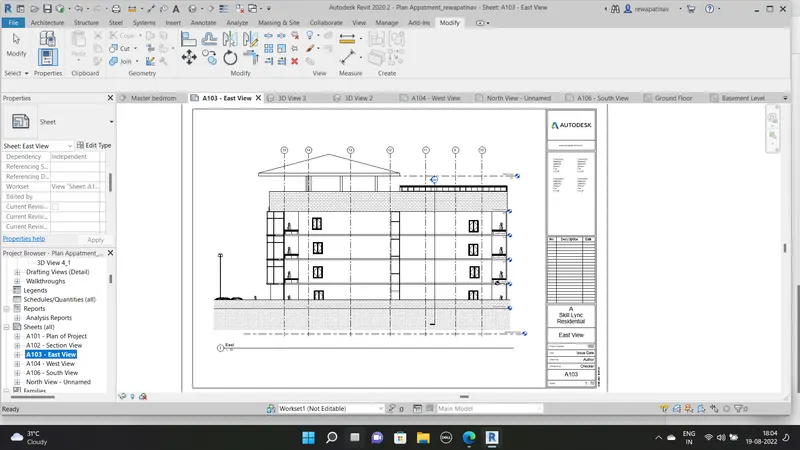

East

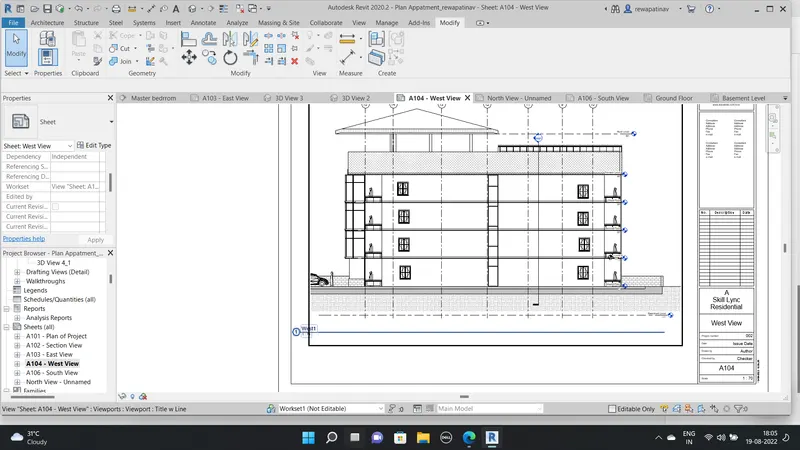

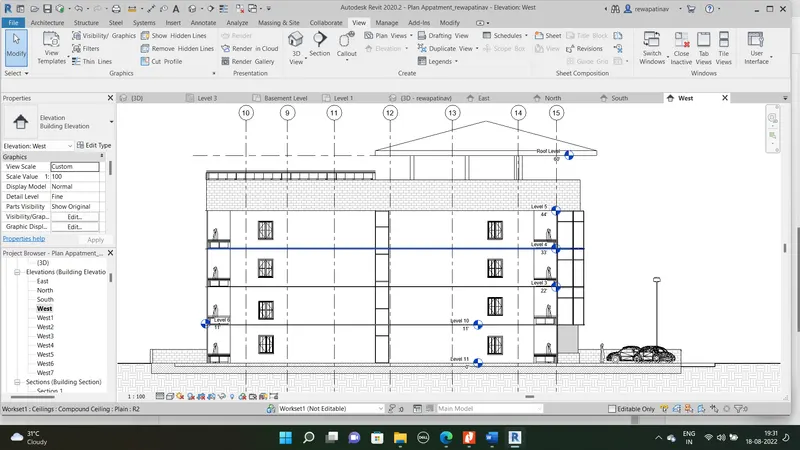

West

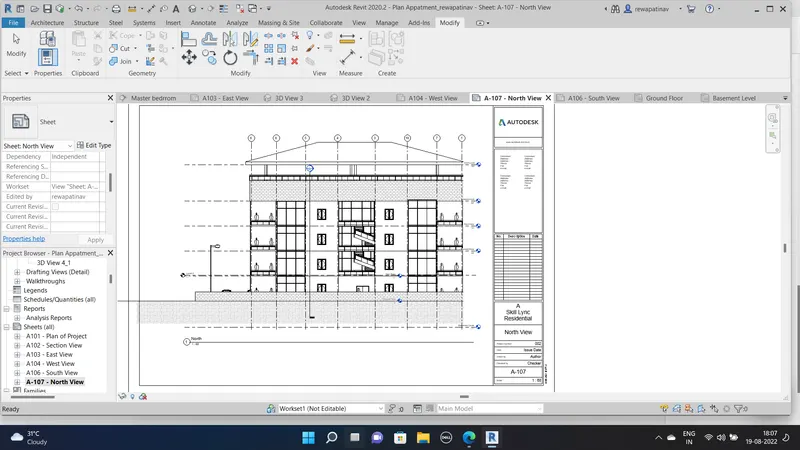

North

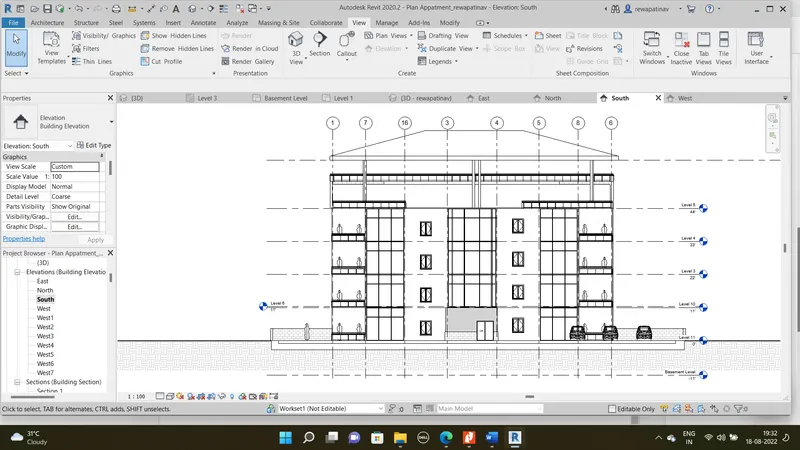

South

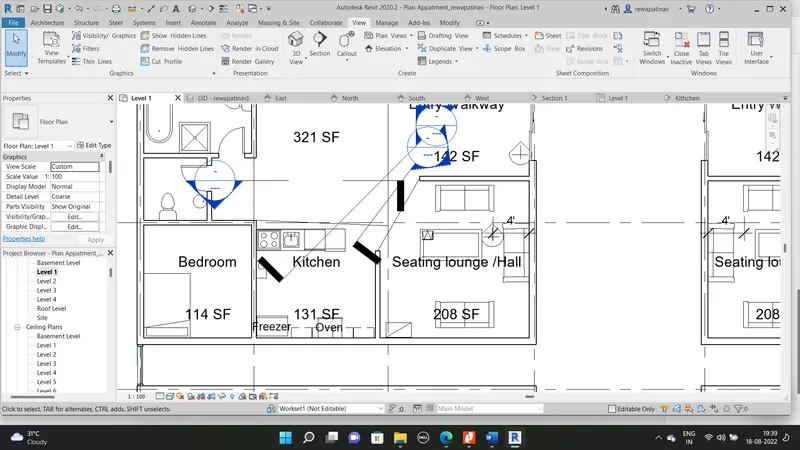

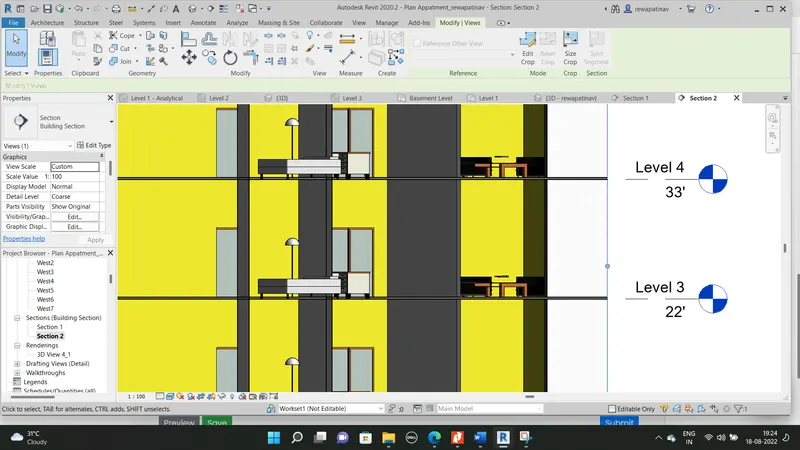

Sections and Plan of the Kitchen

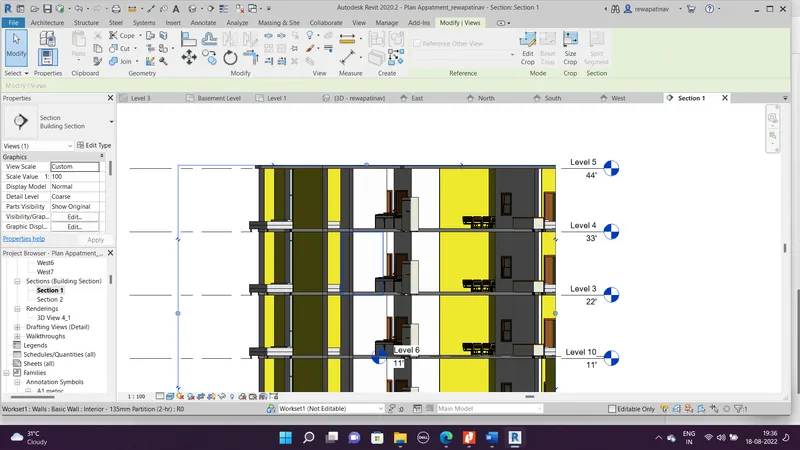

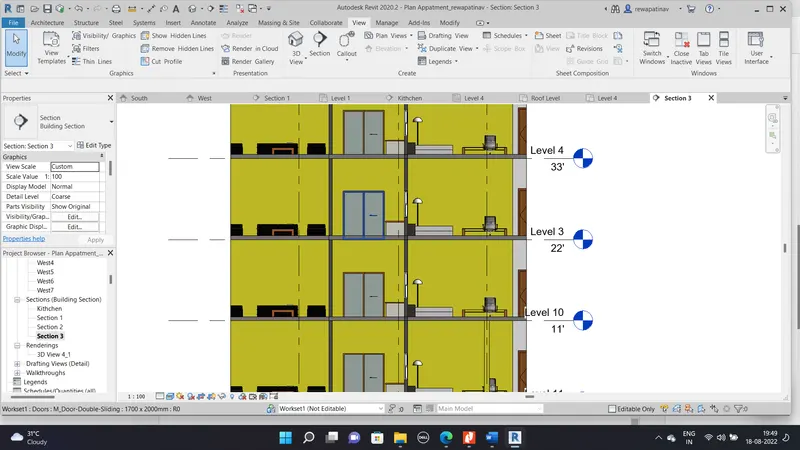

Bedroom section

Ans.6

Aim - Providing the rendering of interior Rooms

 Rendering of Bedroom

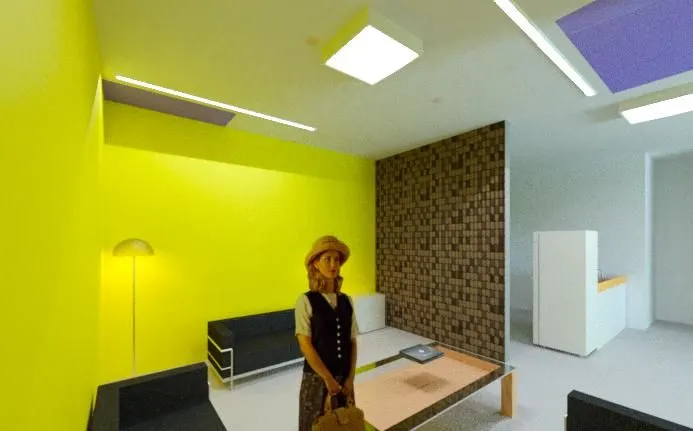

Rendering of Seating Launge

3D Render

Ans.7

Aim - Create all Architectural and Structural Sheets

East Views

west View

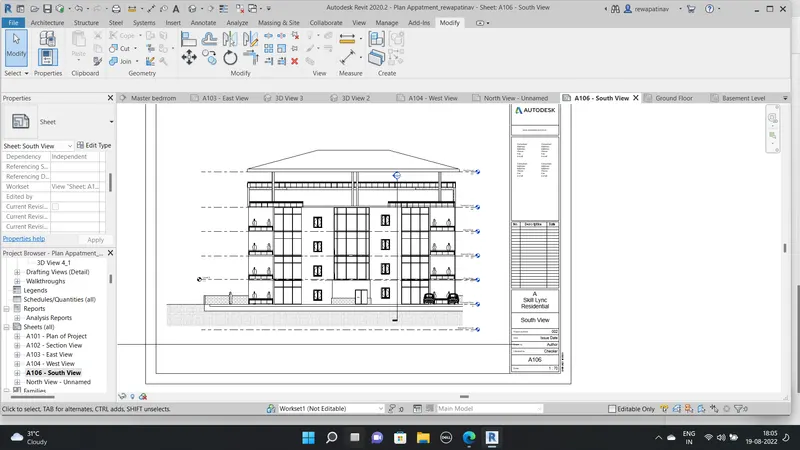

North View

South View

Structural Sheets
