Creating Architectural and Structural model with 3D rendering using REVIT

1)

AIM:

Select the type of structure you want to build from one of the three beloW:
a. Multi-Unit Residential Apartment
b. office Buildings

C. School.

ANS) OFFICE BUILDING

Q2)

AIM :

Assume reasonable assumptions for geographic and location details for your project modeling. Based on
assumptions and type of structure selected identify the modeling requirements from NBC.

PROCEDURE

my project is in plain ared.

it is in commercial area.

road width infront of my structure is 70ft.

MODELLING REQUIREMENTS FROM NCB ARE:

an exit must be provided in every building so as to permit safe escape of employes

in case of earthquake or fire hazards.

the minimum height of basement should be 2.5m and maximum height should be 4.5m.

Q3)

AIM:

Using the structural model, include the following components based on the type of structure selected
a. Foundation - Isolated/ Wall/Matt Foundation
b. Columns
C. Beams Connected to Columns
d. Roof Framing/ Truss
e. Floor/ Decks
f. Floor Openings for Elevators and Stairs

PROCEDURE

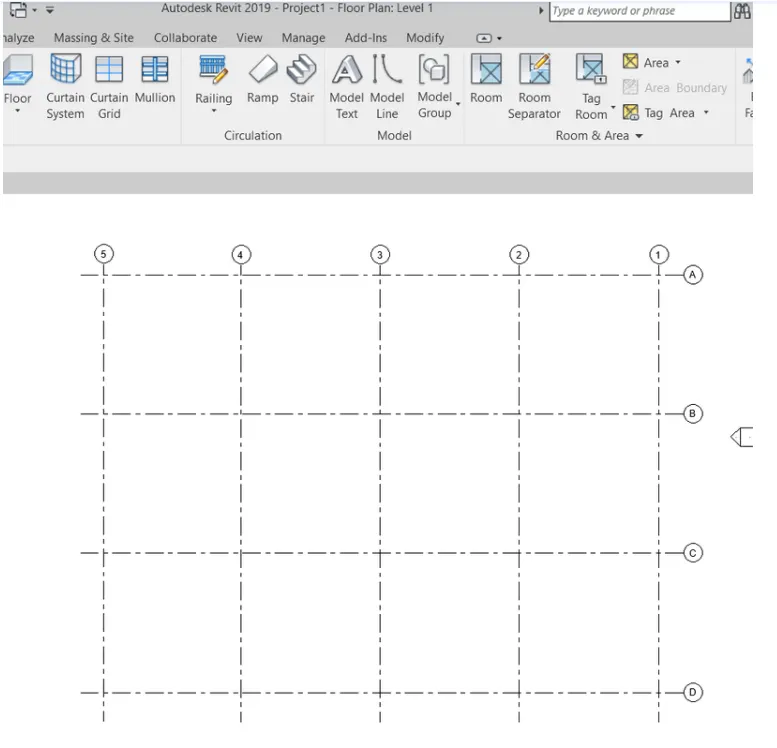

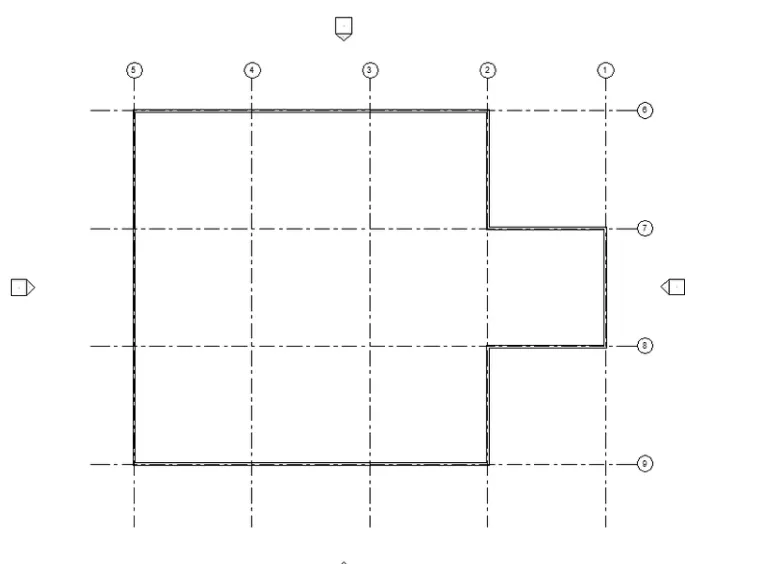

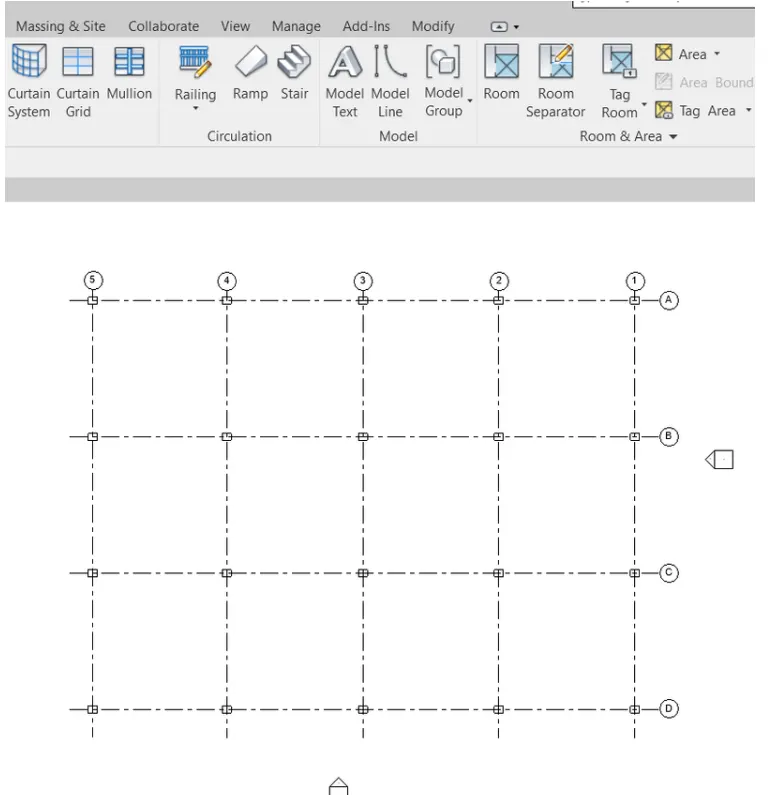

open revit and make horizontal and vertical grids at spacing of 30 as per ncb.

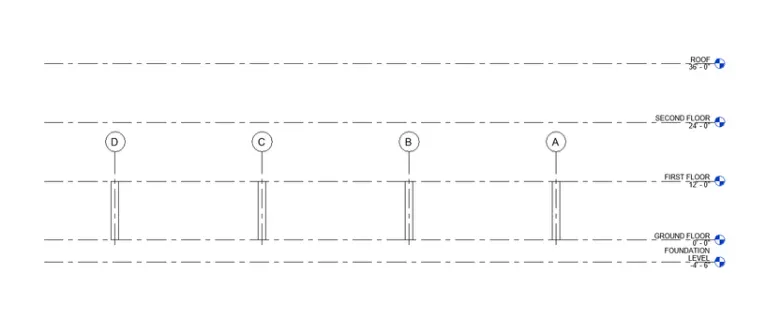

go to the elvation and increse the number of level upto roof and change their names.

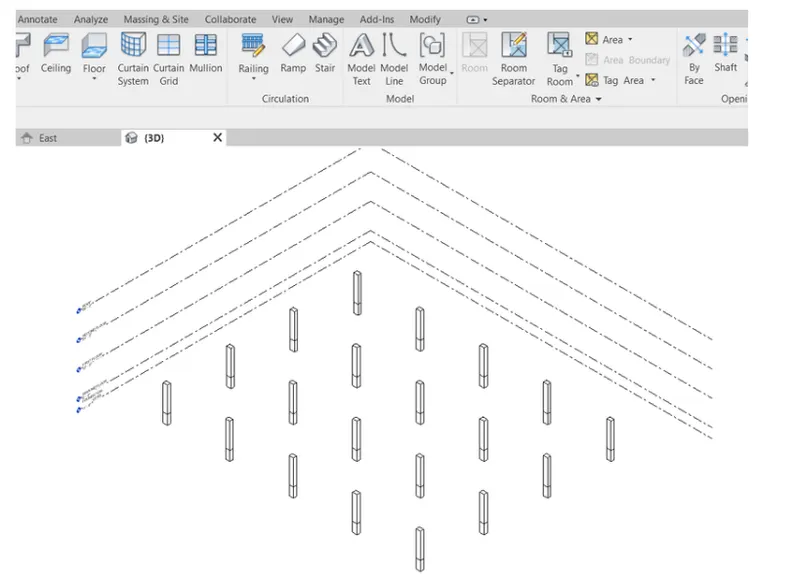

change the 3d view,get a interface on shown below

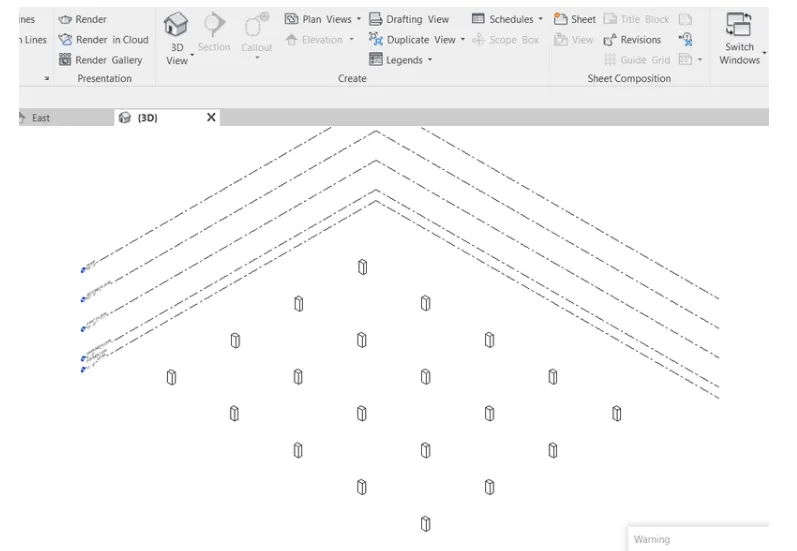

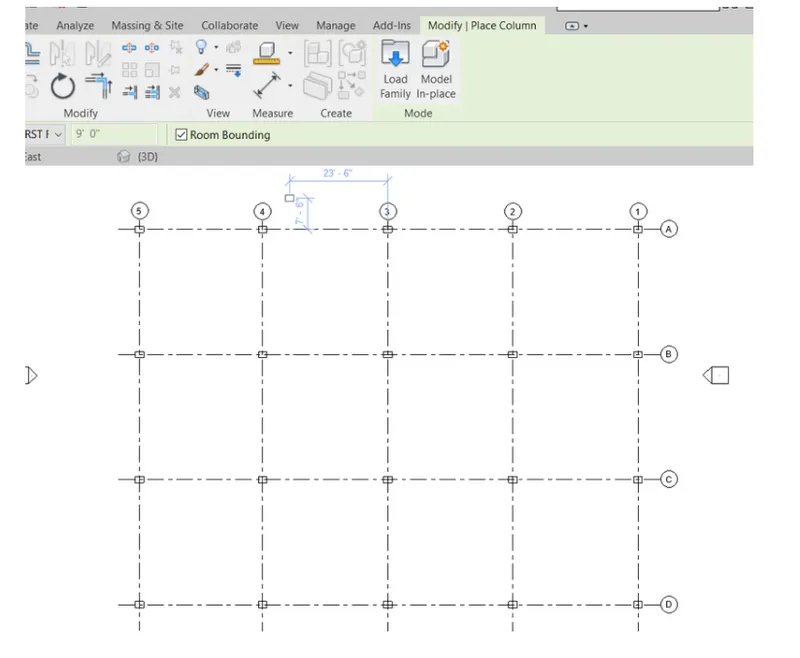

place another coloumn on grid intersection from ground floor to first floor

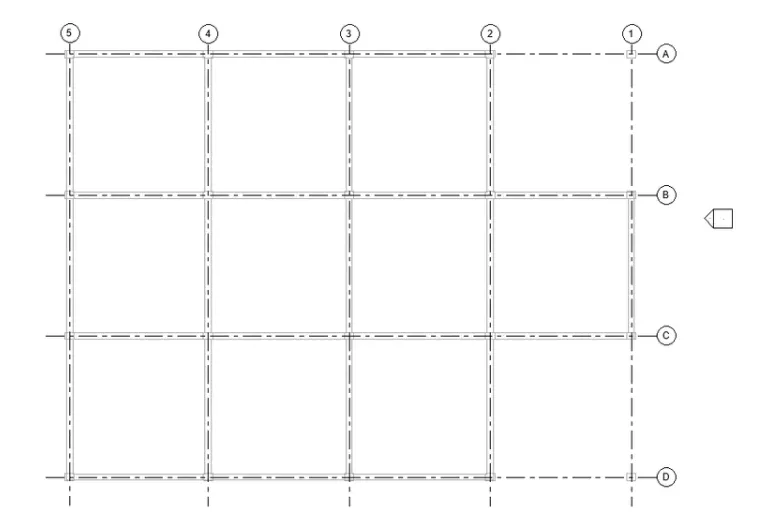

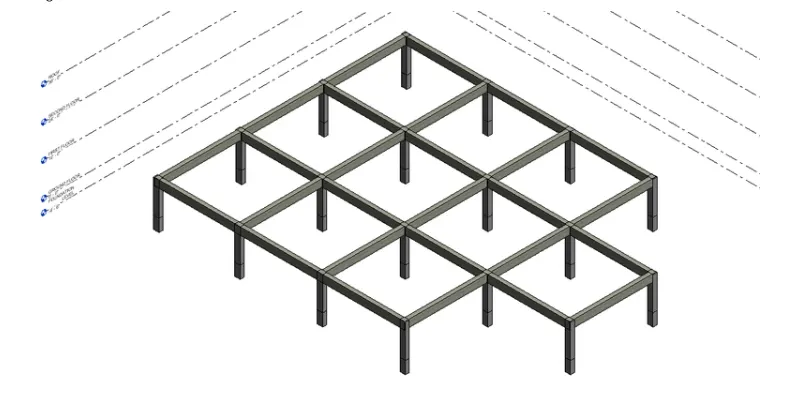

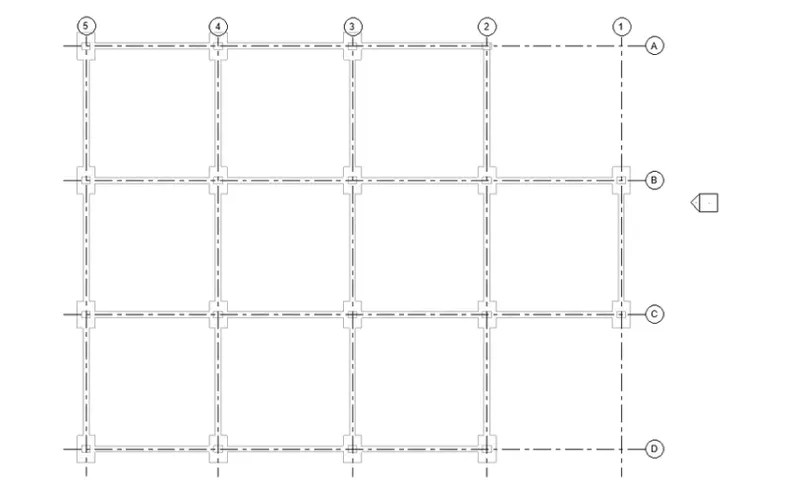

now select beam from the ribbon and connect this to beam different column as shown

change view to 3d

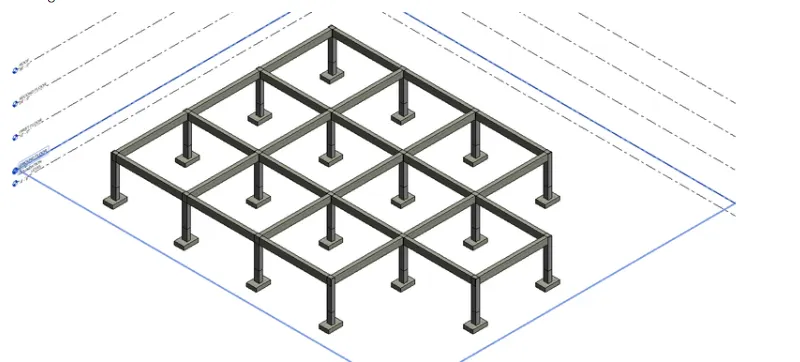

now go to isolated optin from the ribbon and place them on the different column as shown

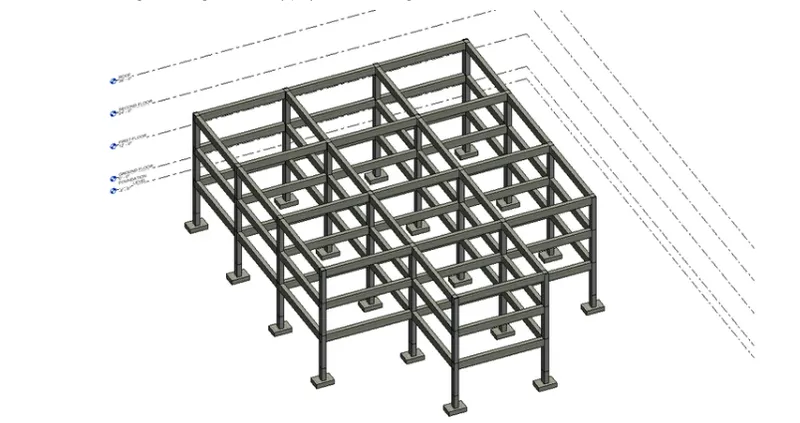

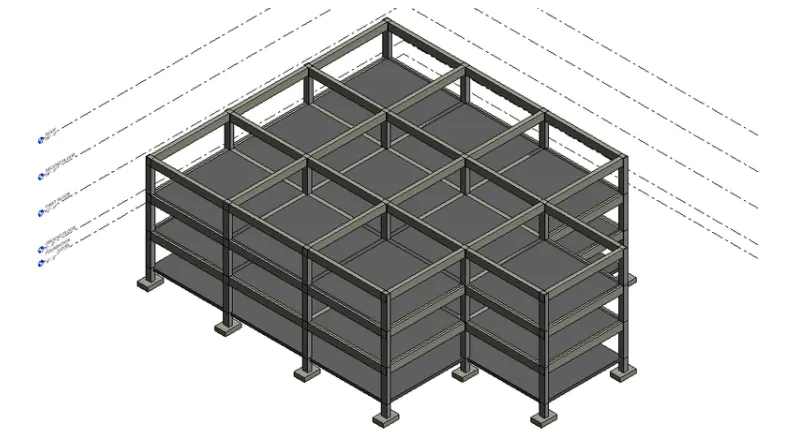

select the entire figure and go to the copy option and assign them to first floor and second floor

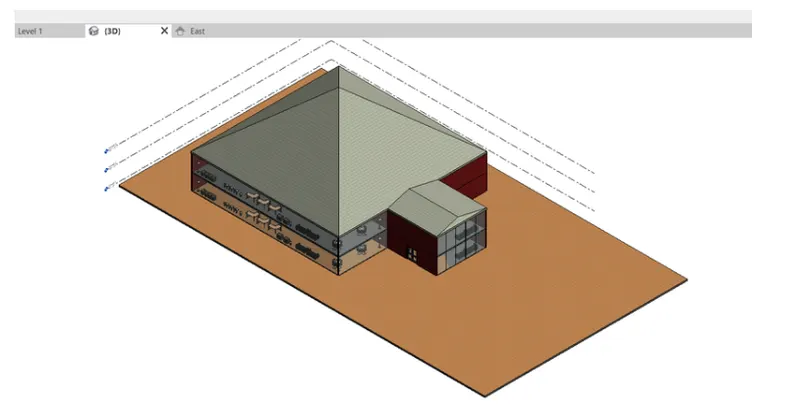

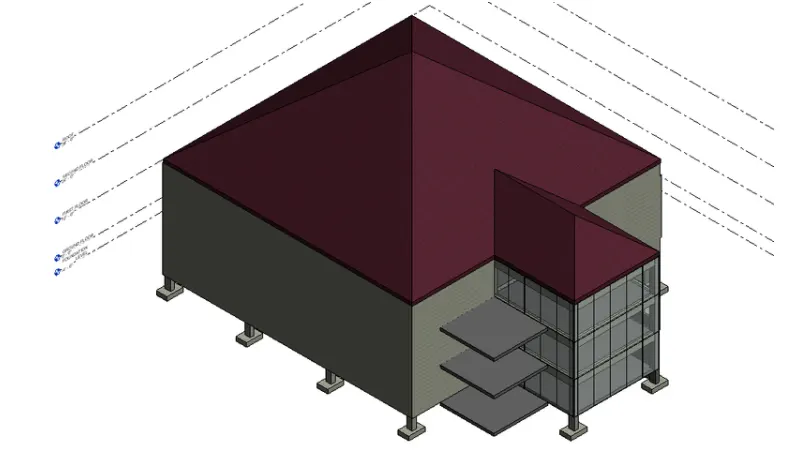

now go to the roof option and change the view to ground floor and select points and make a loop and assign them to first and second floor and change the view to 3D

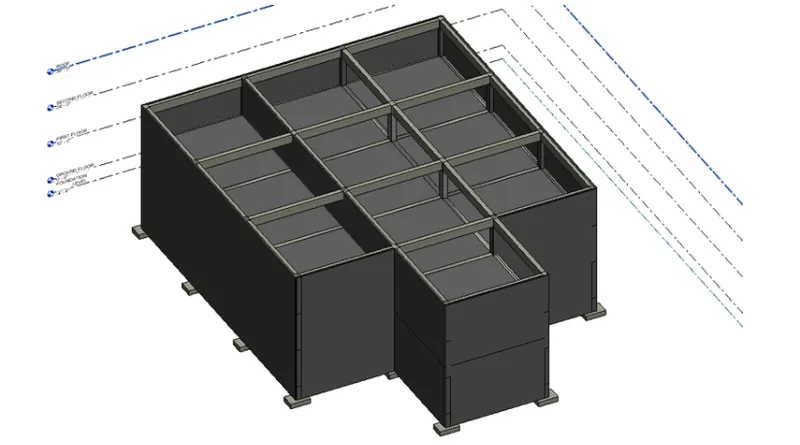

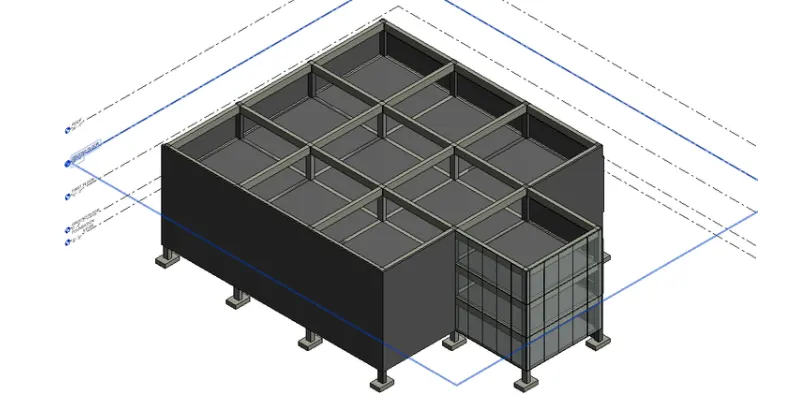

now go to the wall option and select the floor you want to assign the wall, copy it and assign to different levels

from the properties option change the colour and material of roof and walls

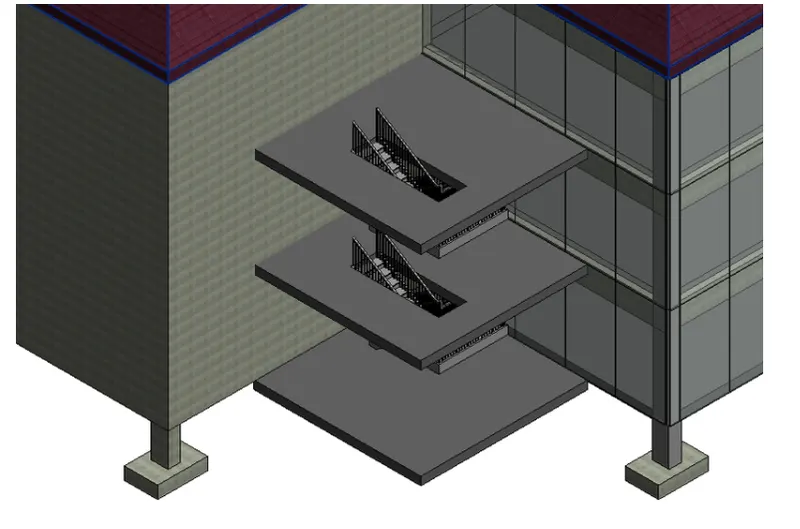

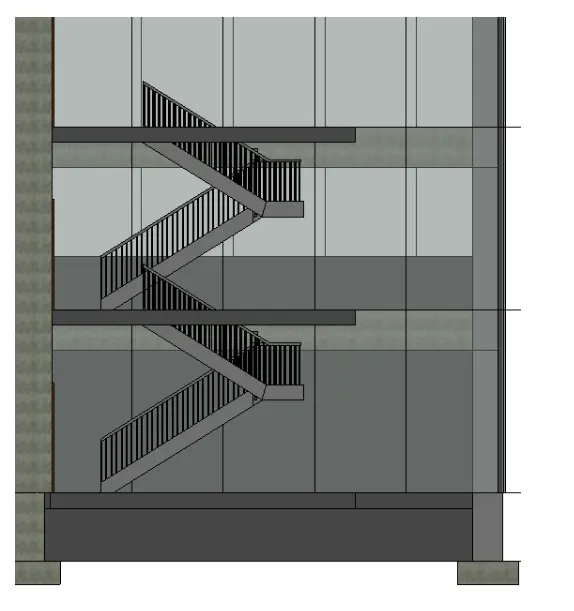

lets make a roof to place a stairs, go to the floor option and draw a rectangle in the plan, change the view to 3d and copy into different levels.

Q4)

AIM:

Using the architectural model, include the following components based on the type of structure selected
a.Wall Layout with appropriate material and finishing
b. Exterior façade with fancy finish
C. Interior partition walls to size rooms

d. Components to add details to a room( Desk, chair, Lighting, Plumbing fixtures)
e. Add components Such as stairs Elevators

. Have at-least one side of the building with curtain walls and glass panels

. Include interior and exterior lighting fixtures

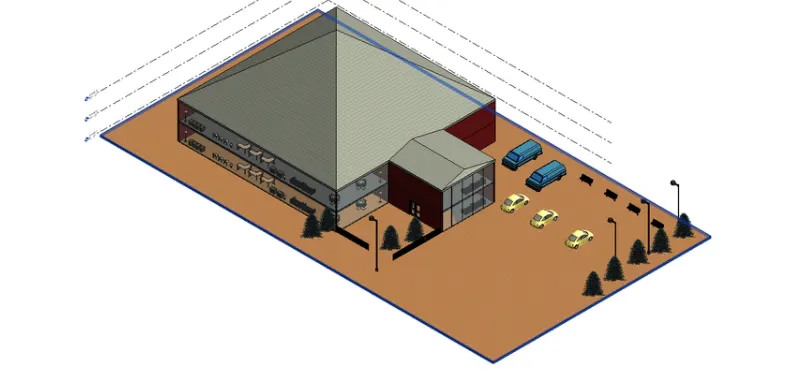

h. Place proper topographic components from outside ( Trees, Parking, Plants) to add details to the mode.

PROCEDURE:

with the same grids drawn in the previous plan draw a wall along the boundary.

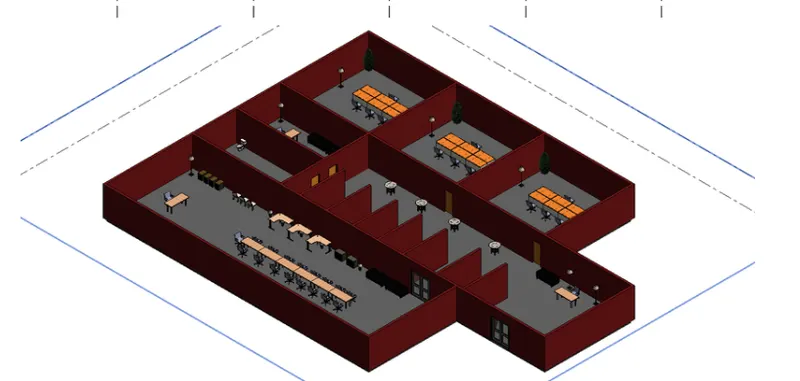

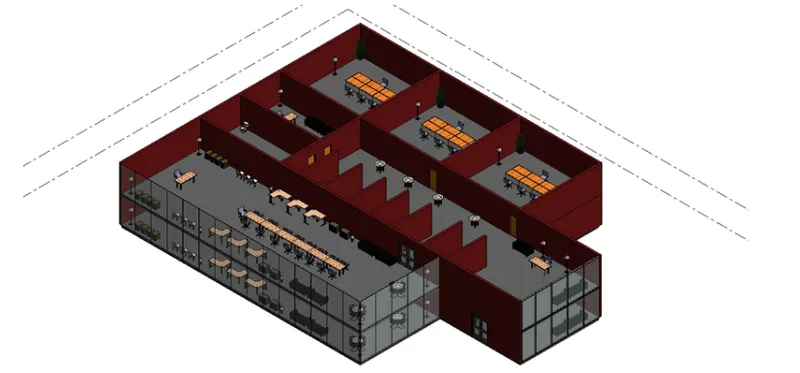

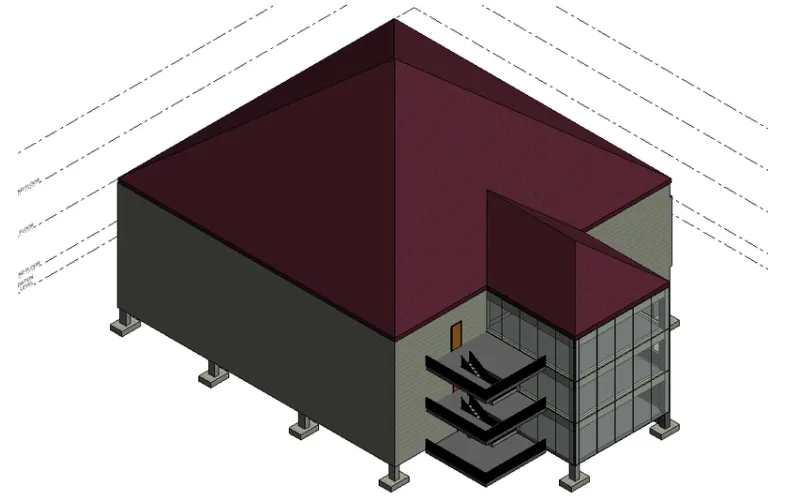

draw the interior portion and place the required furniture and components in the plan and change change the view to 3d.

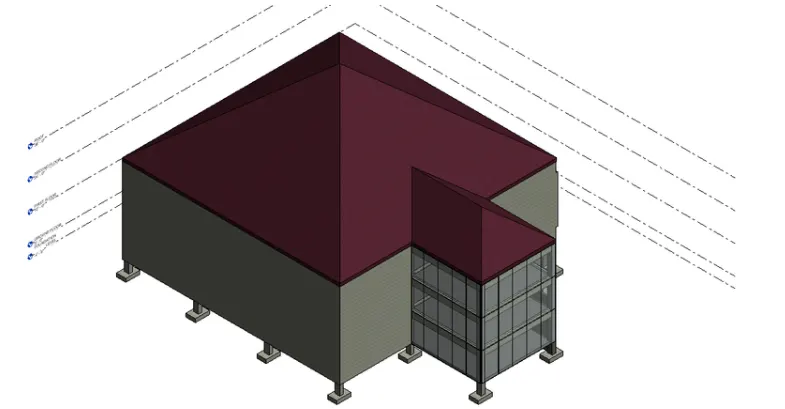

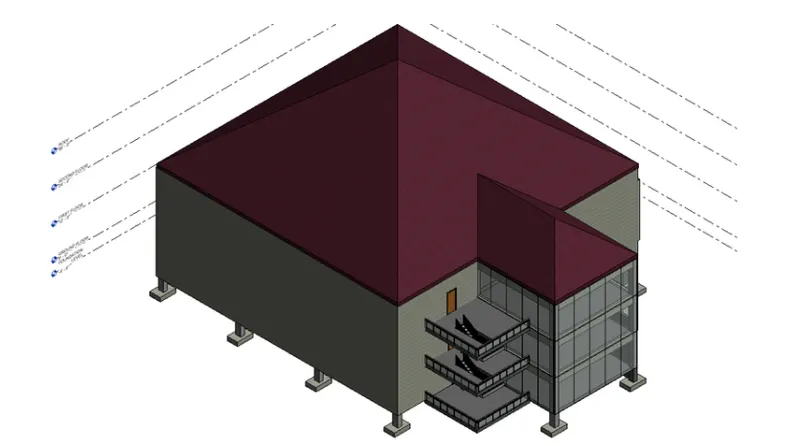

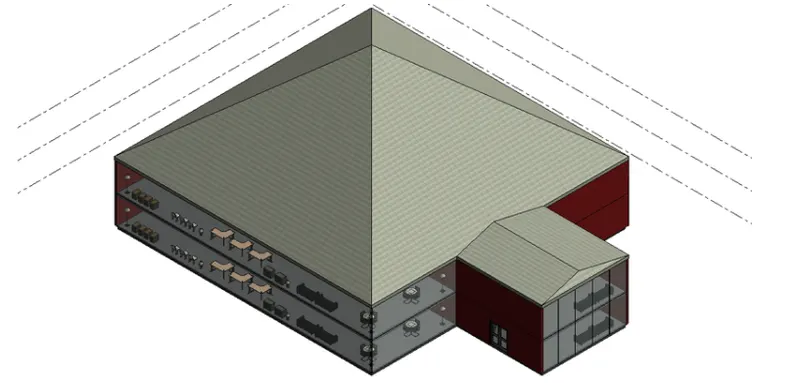

draw the roof by making rectangular along all the sides of second floor

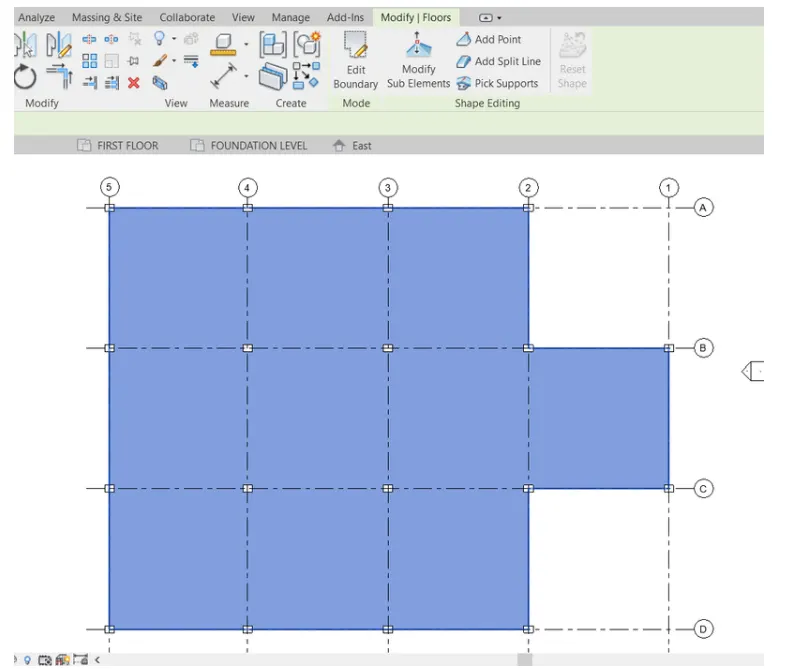

now go to the plan view and draw a rectangular floor and view it 3d

place an component from component option

Q5)

AIM:

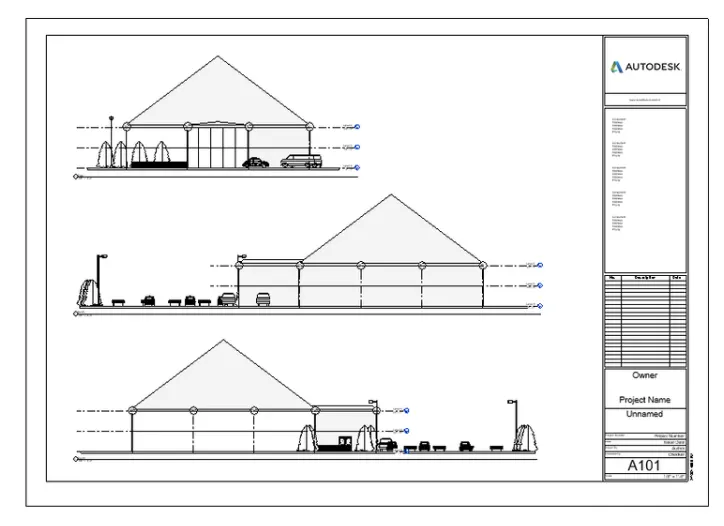

Provide a set of drawings in an architectural and structural model to list the following details with categories and
appropriate sheet templates included

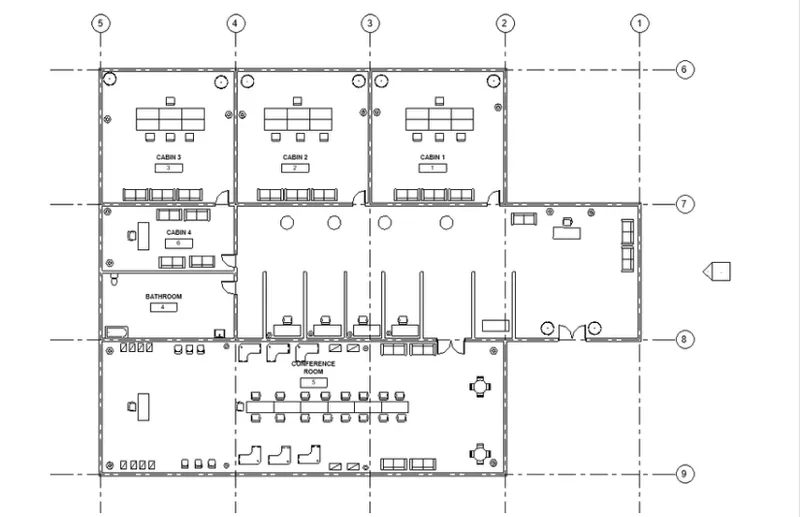

a. Floor Plans with AnnotationsS

b. Elevations
C. Sections

PROCEDURE:

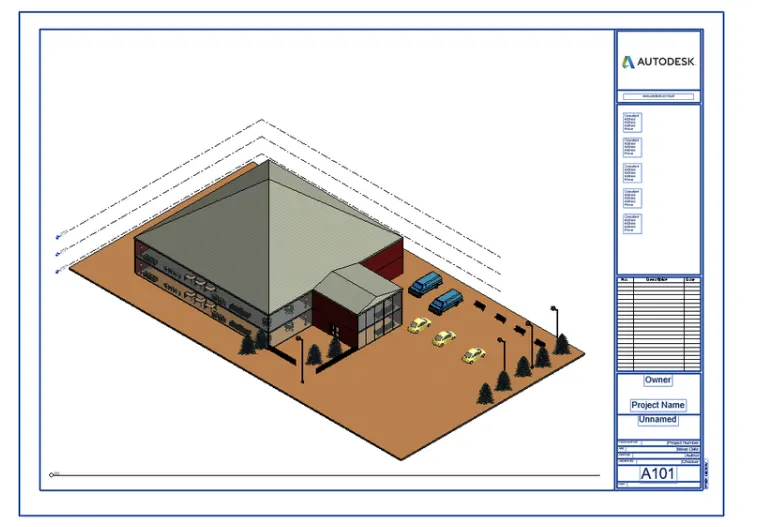

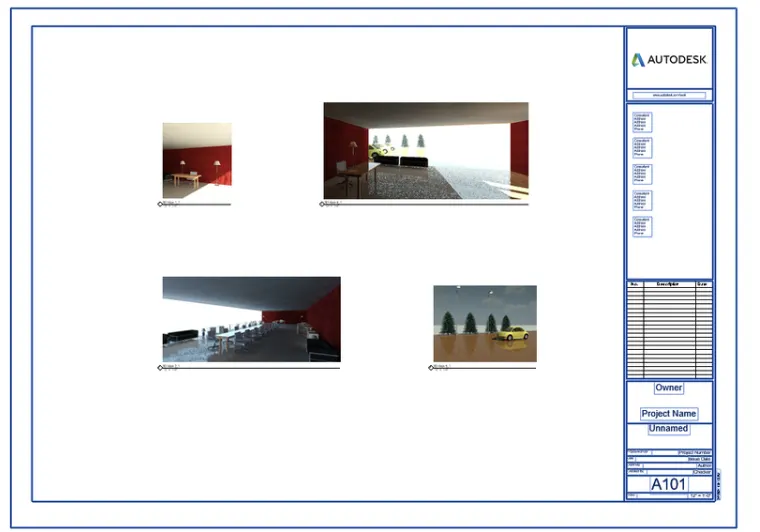

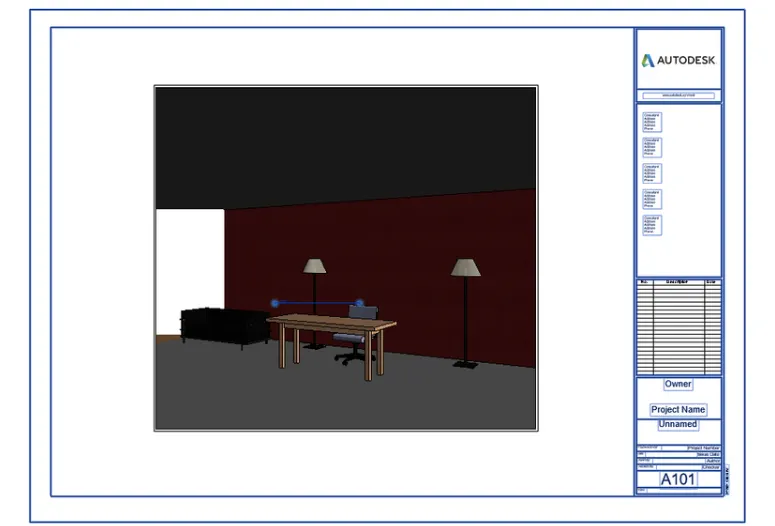

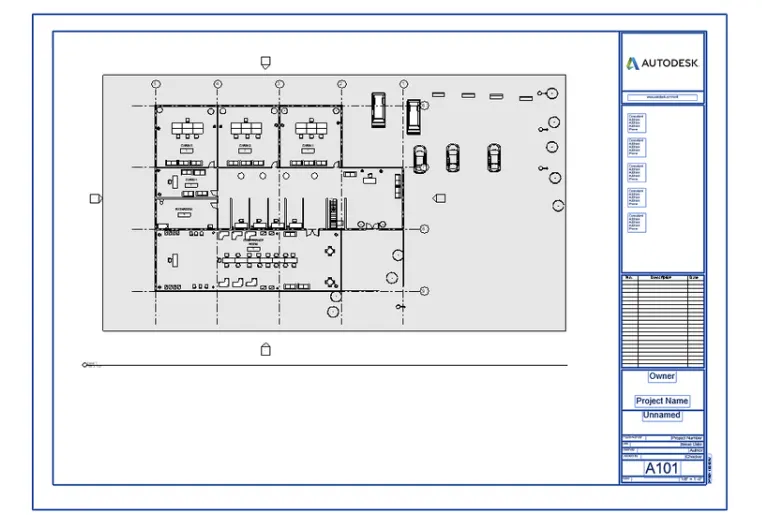

fo to the sheet option ,as the sheet opens there is another option belowit called views

and select the required view you want to place.

Q6)

AlM

Using the Rendering settings, Render images of the 3D model produced and include the rendered images to the
drawing sheets

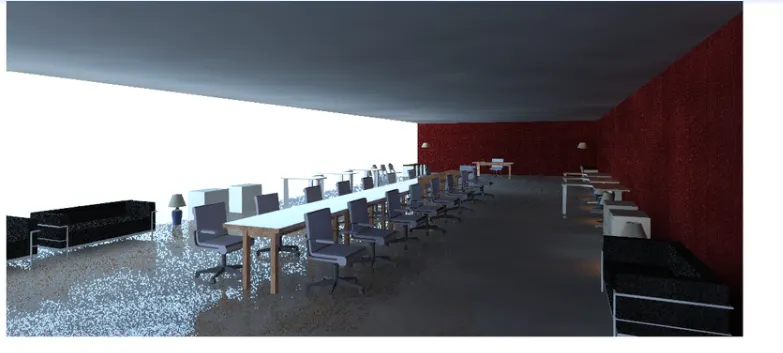

a. Rendering trom interior rooms

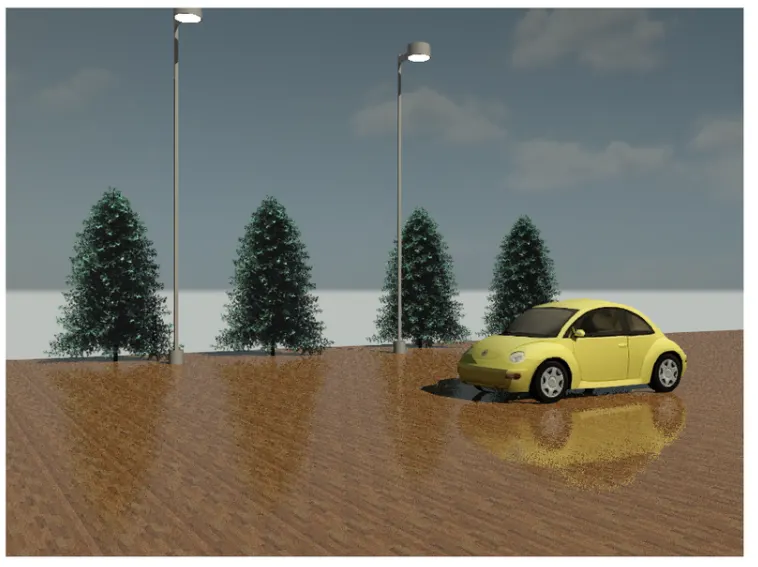

b. Rendering from out showing topographic features
C. Rendering through structural framing.

PROCEDURE:

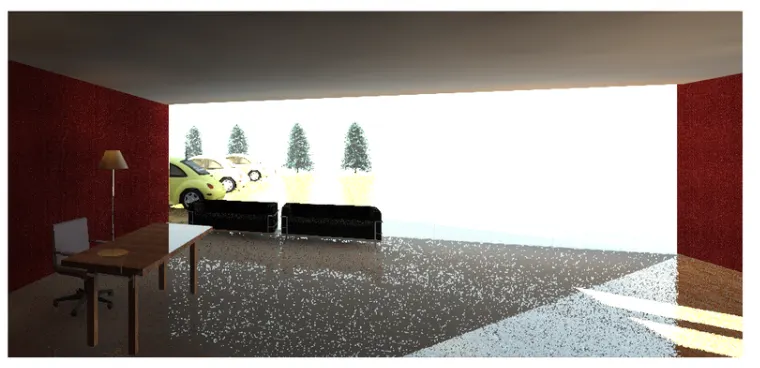

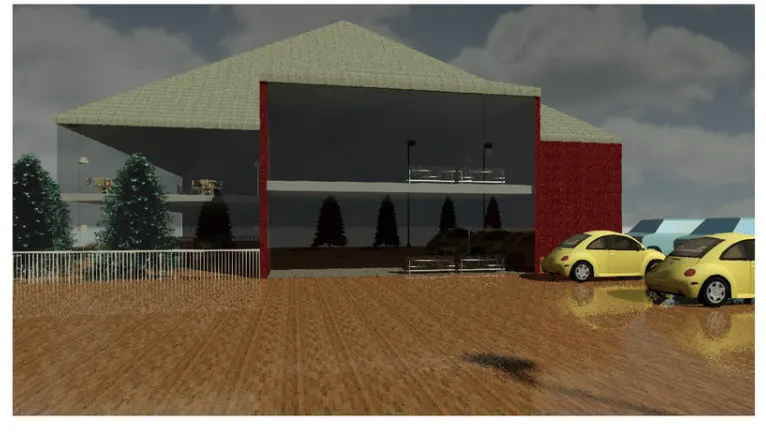

in order to render any figure go to the render option from the ribbon and change the setting you want and click render figure will turn to realistic as shown bellow

7)
