Challenge

Creating an Architectural plan for the provided plot size and develop relevant basic structural drawings

AIM: To Design and Draft a layout of a residential building with plot size (18.3m x 6m)

Commands Used:

Procedure:

step 1:

step 2:

In the command prompt type xl to draft the infinite lines.
In the command prompt type offset, to offset it to the desired lines.
In the command promt type trim to remove the extra lines.
The main entrance of my plan is in the East direction.
Use arc command to complete the doors and Line commands for completing the windows as well as doors from command promt.
The architecture plan is completed.
Use text and dim command to name the rooms and give dimensions respectively.
A table containing the schedule of doors and windows is also provided using text and line command.

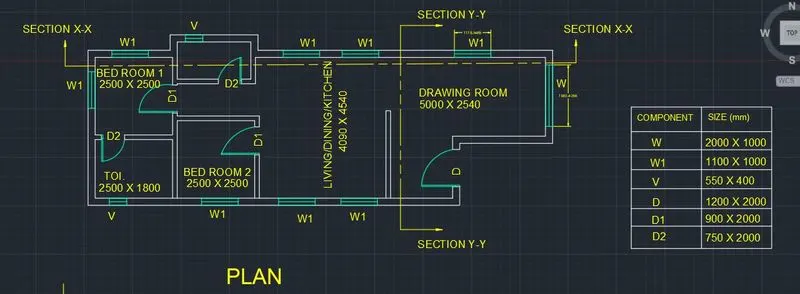

Final result of Architectural Plan:

Step 3: (structural drawings)

In the command prompt type xl to draw the grid lines
In the command prompt type LT(to get the dotted lines ) to get the dotted lines
In the command prompt type rec of dimensions 0.3 x 0.23 and 0.23 x 0.3 for columns C1 and C2.
In the command prompt type rec of dimensions 0.8 x 0.8m for footing for columns.
Using the Line command, the beams are drafted.

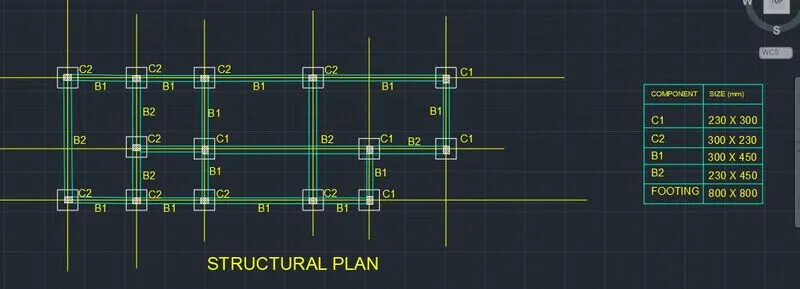

Final result of Structural Plan is as follows:

Step 4 (To create section views and elevation)

Using the dotted lines, section lines are created in the plan.
Draw the section and elevation accordingly with help of line commands as well as offset and trim commands.
Use hatch command to give concrete hatching to the columns and footing.

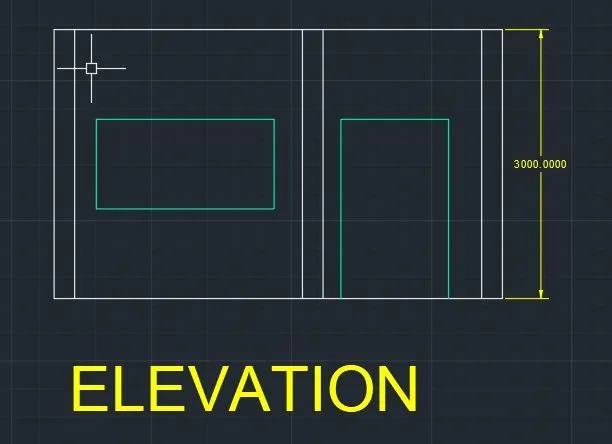

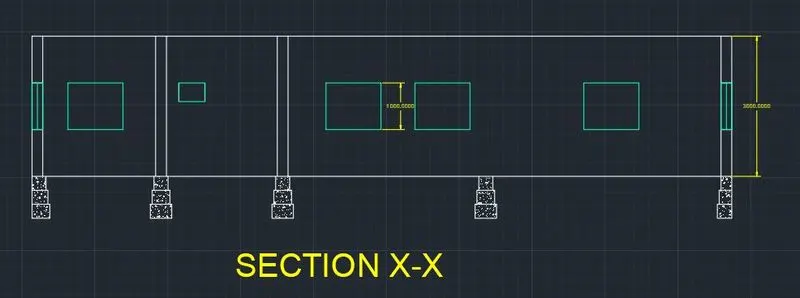

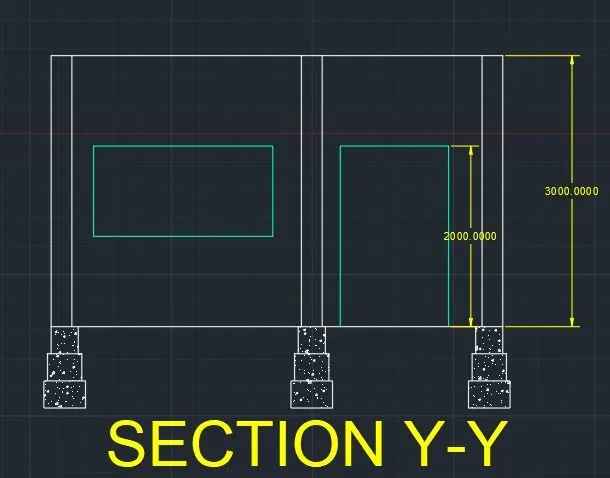

Final result of both the sections and Elevation is as follows:

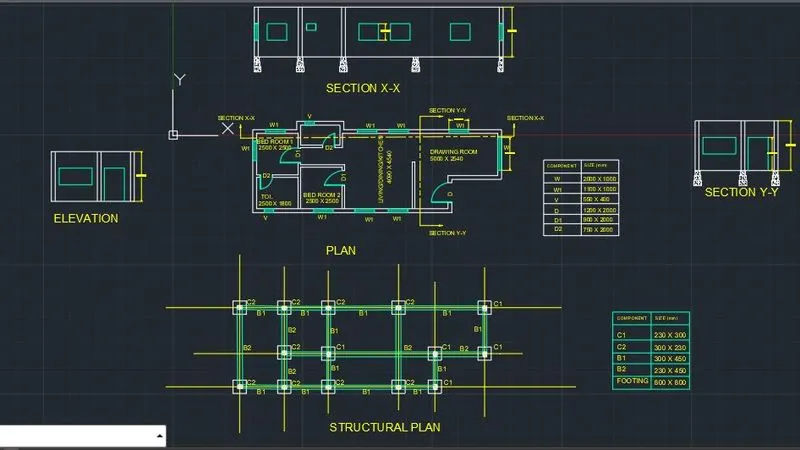

Final Result:
