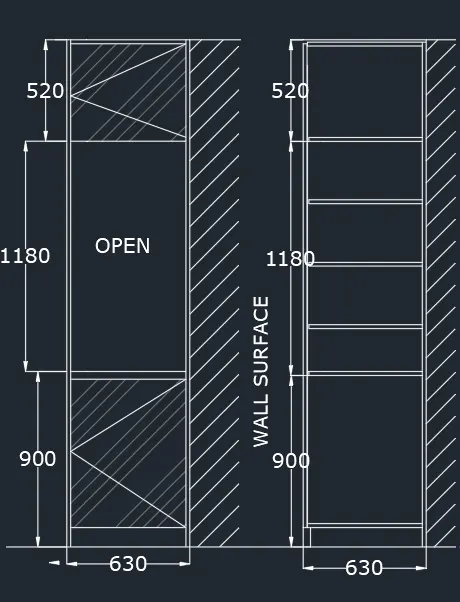

Creating a Wardrobe detailed drawing

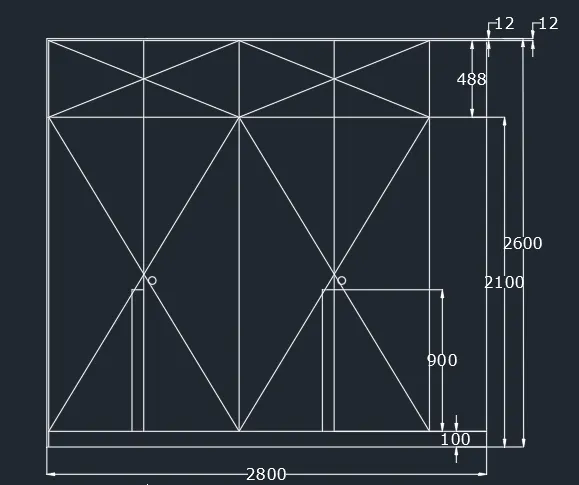

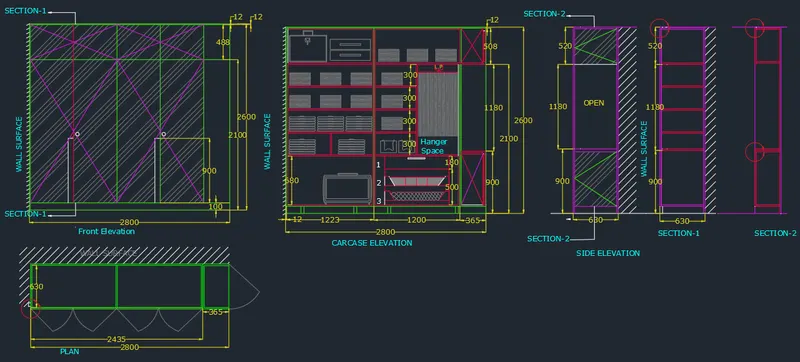

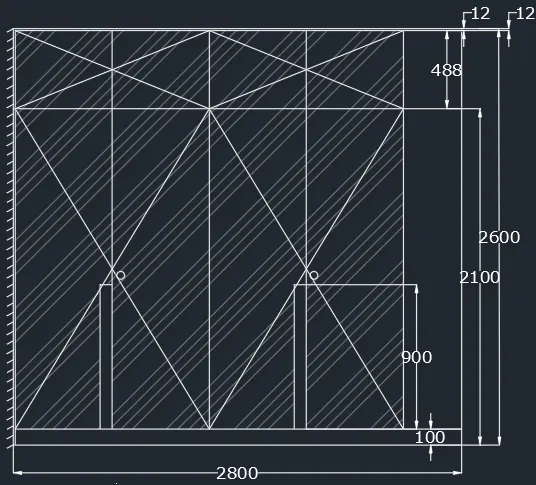

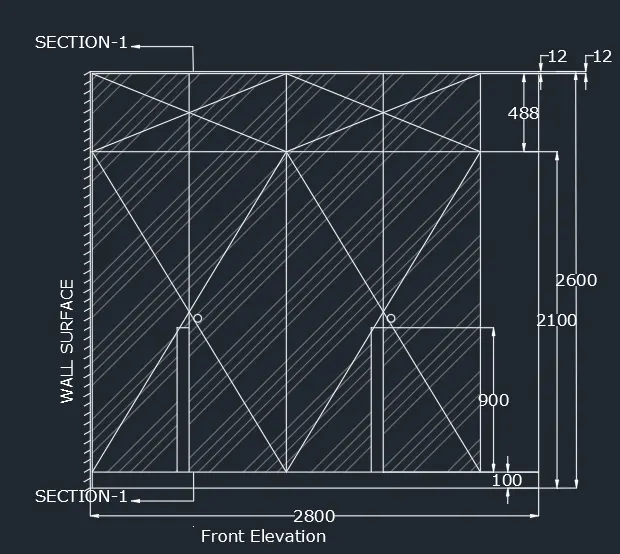

1) Draw the elevation and details of a wardrobe as shown in the Figure below. After sketching, you need to provide the dimensions and text with the use of layers.
AIM:
To Draw the elevation and details of a wardrobe as shown in the Figure below. After sketching and to provide the dimensions and text with the use of layers.
PROCEDURE:
STEP 1:
- Units are set to mm
- Limits and lim-max are also set
- Zoom command is also used
STEP 2:

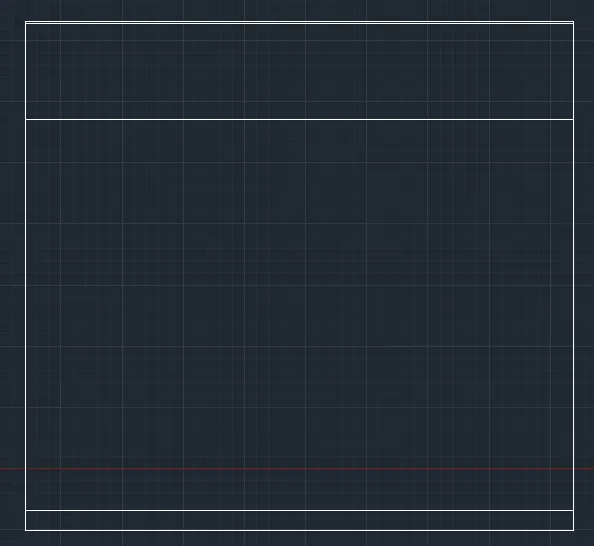

- In the command line type rec>2800, 2600
- In the command line type offset
- Offset from the top of dimensions 12 and 488 mm.
STEP 3:
- In the command line type offset
- create the offset from the side at the distance of 608.75 and 365 .
STEP 4:
- In the command line type L and by increasing the transparency to create wall surface.
- by using hatch give the hatch and give scale 20.
- In the command line type q leader to mention the annotations
STEP 5:

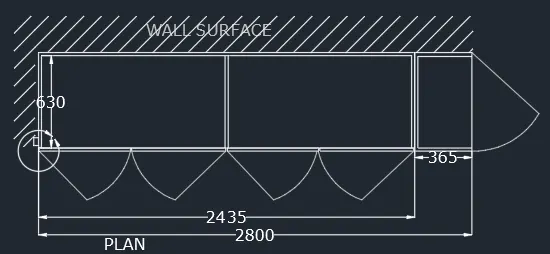

- In the command prompt type rectangle > 630 x2800
- In the command prompt type q leader to give the annotations .
STEP 6:
- In the command prompt type rectangle 2800 X 2600

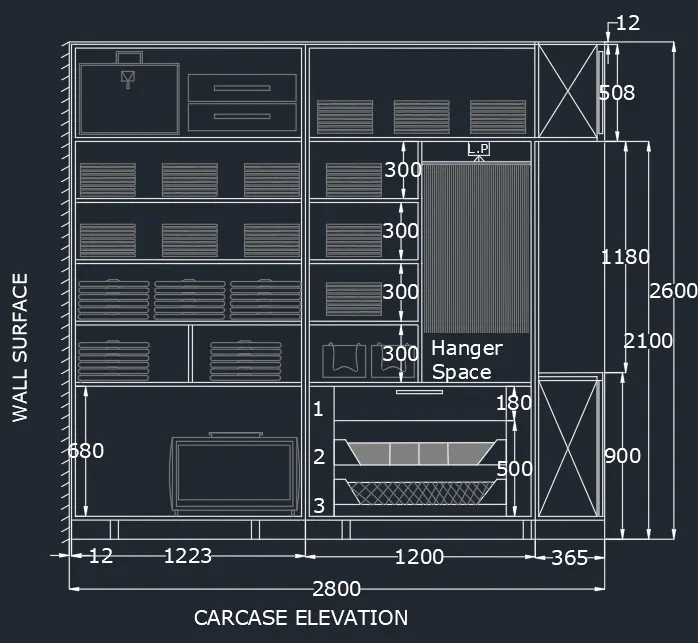

- With the help of line command drawers and cabinets are created .
- For the drawers and cabinets give the grey colour.
- Dimension the drawing.
STEP 7:

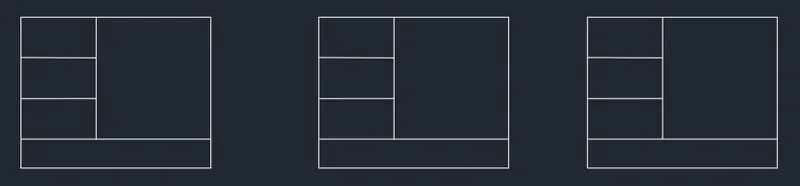

- In the command prompt type rectangle and dimensions of 520 x 630, 1180 x 630 ,900x630 This is repeated 2 times.
- using line commands, the next of the lines are drawn .
Step 8:

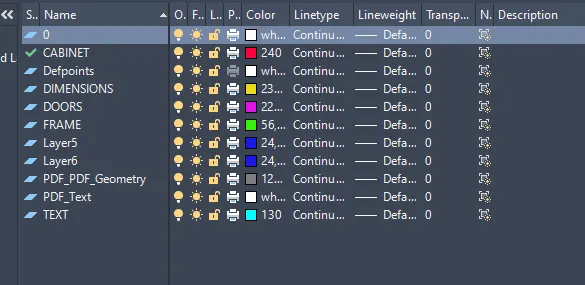

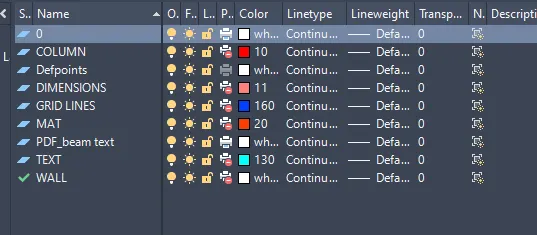

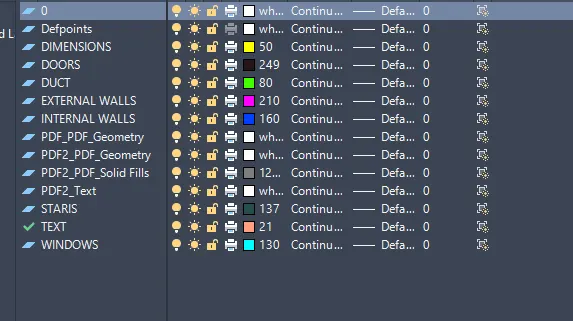

Place the entire drawing in the respective layers.
Result:

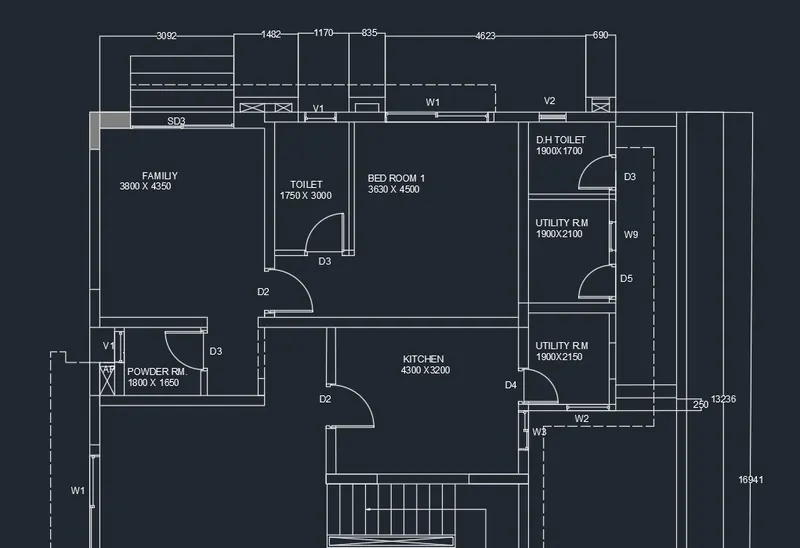

2)
Aim:

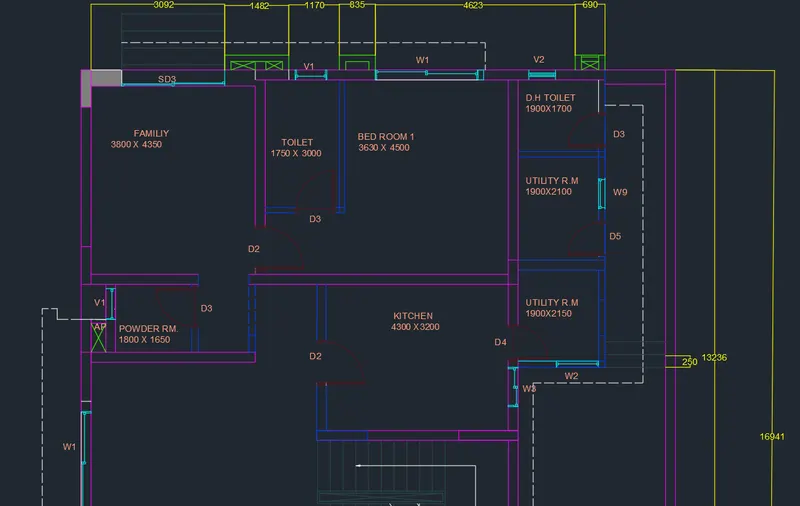

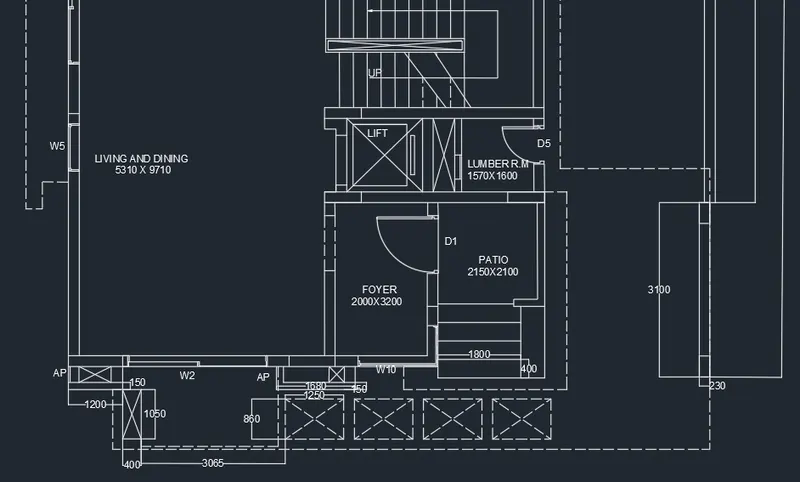

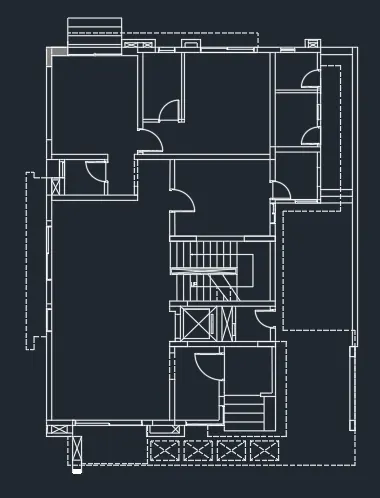

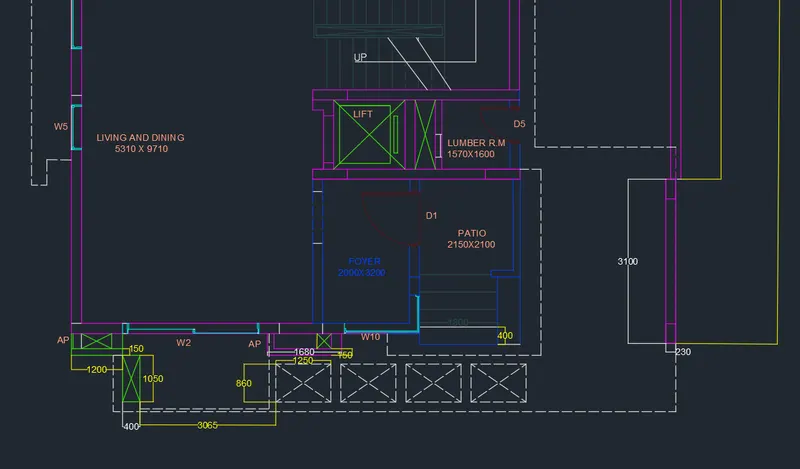

To draw the given floor plan
Procedure:
Step 1:
- Units are set to mm
- Limits and lim-max are also set
- Zoom command is also used
Step 2:
- In the command prompt type XL to draw the infinite lines
- In the command prompt type offset to offset the line for a particular distance
- Using arc command doors are also created .
Doors: Windows: Ventilators:
- D1 - 1000 x 2000 mm 1. W1 - 2700 x 1500 mm 1. V1- 800 x 500 mm
- D2 - 900 x 2100 mm 2. W2 - 2500 x 1500 mm 2. V2 - 750 x 500 mm
- D3 - 800 x 2100 mm 3. W3 - 900x 1500 mm
- D4 - 750 x 2100 mm 4. W5 - 1000 x 1500 mm
- D5 - 700 x 2100 mm 5. W9 - 800 x 1500 mm
- SD - 2256 X2100 mm
Step 3:

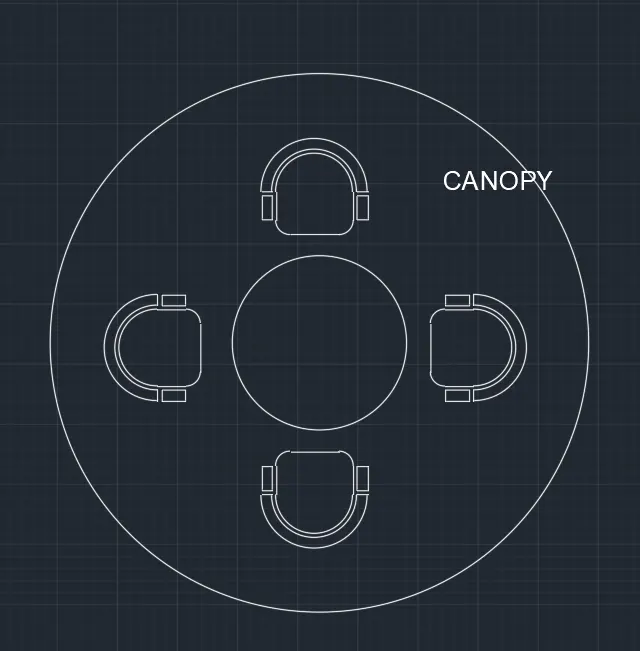

To draw canopy
circle:
In the menu bar click on circle > centre, radius
specify the centre point as 10,10 and radius 452
In the meu bar click on circle > centre, radius
specify the centre point same as the previous circle (10,10) and radius 1398
SEATS:
In the menu bar click on rectangular or In the command prompt type rec
specify the length of the rectangle as 662.3
specify the width of the rectangle as 298 .0
In the command prompt type FILLET > RADIUS > 100 .00 (to get curve edges in the corner)
In the menu bar > circle > 2-point ( 2 points are the end points of the top line )
In the men bar > circle > centre ,diameter
centre is the midpoint of the line , diameter is 719 .0
In the menu bar > circle > centre, diameter
centre is the midpoint of the line , diameter is 777.2
now, extend the centre line and trim the extra's
In the menu bar click fillet> blend curves > and select the arc
In the menu bar click fillet> blend curves > and select the arc
In the menu bar click fillet> blend curves > and select the arc
Step 4:
Give the dimensions and anotation the drawing with the text where ever required.
Step 5:
Place the all elements of the drawing in the respective layers.
Result:

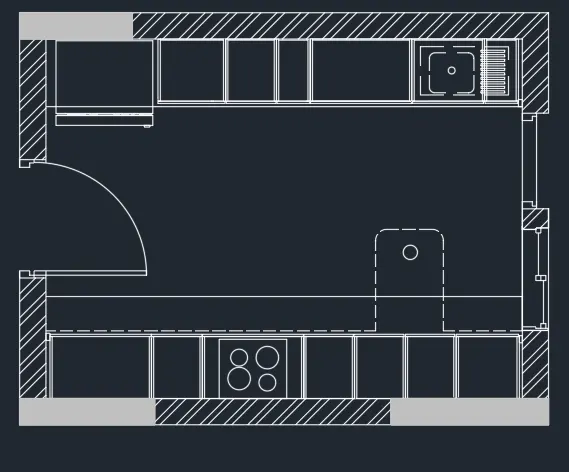

3)
Aim:

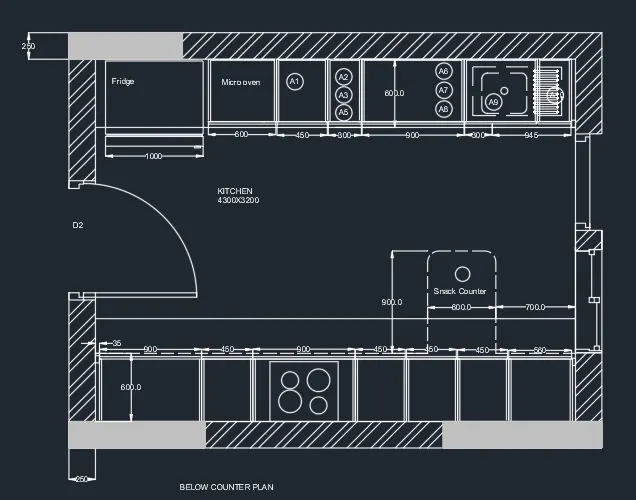

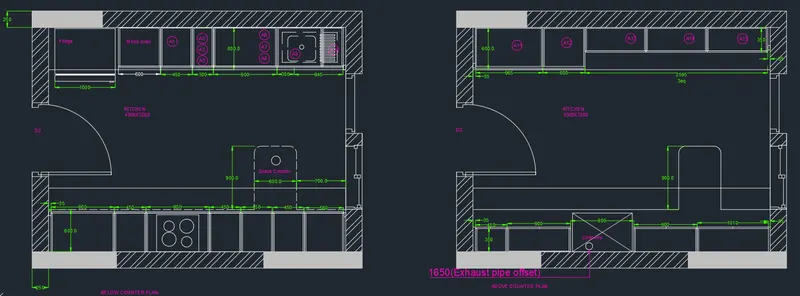

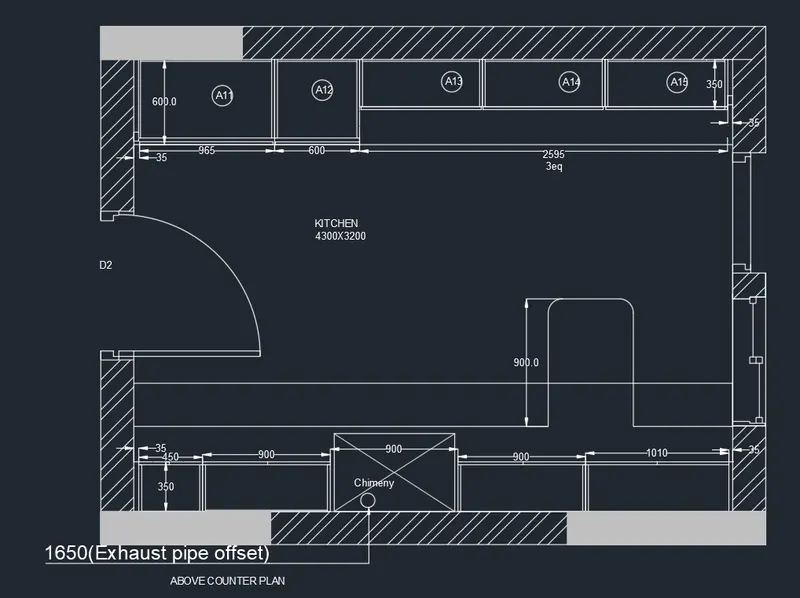

To Create the Kitchen Layout and to Also, use proper dimension techniques to dimension the kitchen layout. Also, insert text wherever required.
Procedure:
step 1:
- Units are set to mm.
- Limits and lim-max are also set .
- Zoom command is also used .

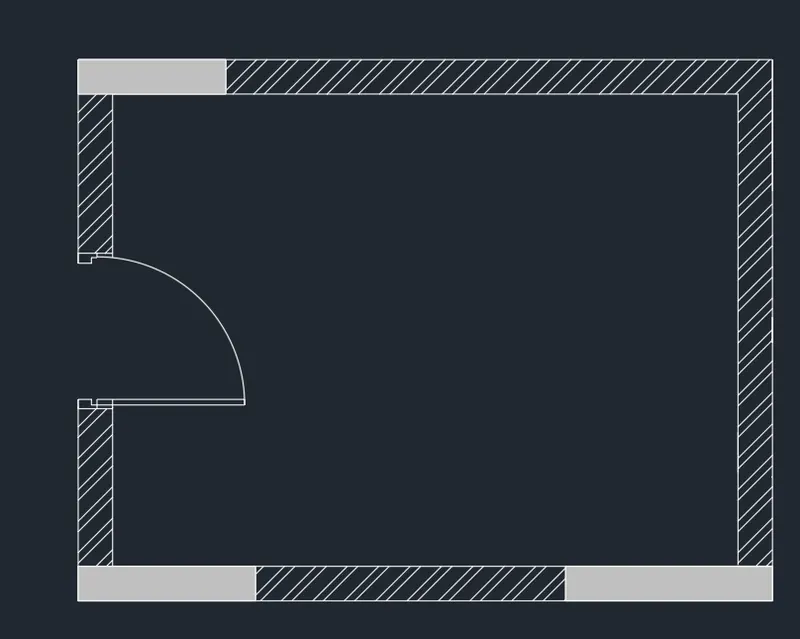

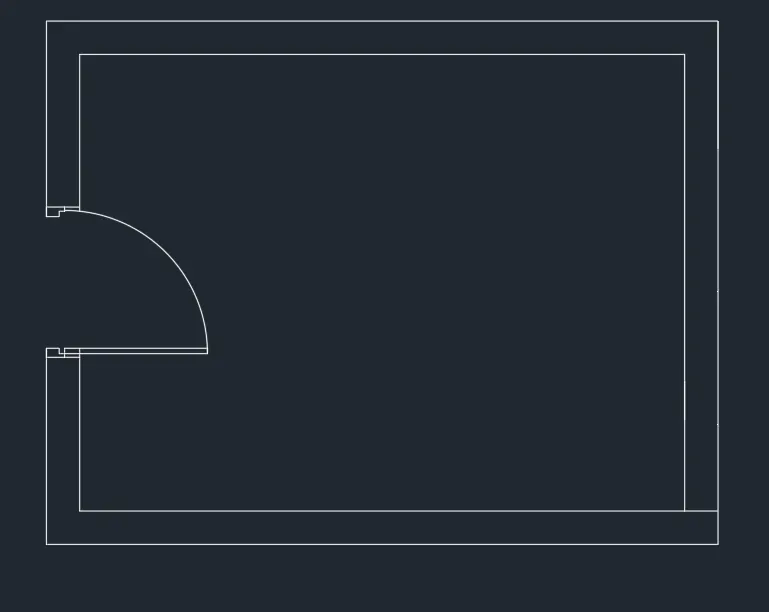

Step 2:

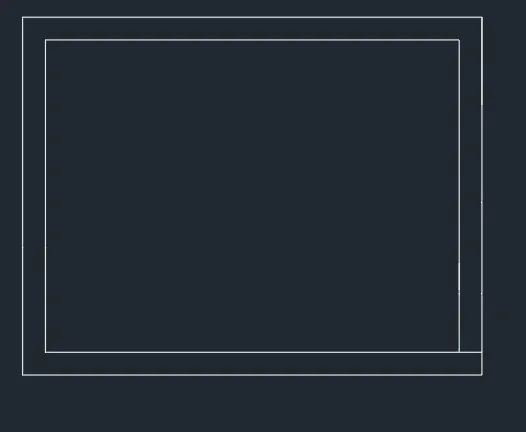

- In the command prompt type rec and the dimensions are 4734 x 3688 mm.
- In the command prompt type offset and offset it to the distance of 250mm.
- Using arc and lines the door is drawn .
- In the command prompt type hatch to hatch the model .
Step 3:
- In the command prompt type rec > dimensions, to do the fridge .
- In the command prompt type offset and offset it to the desired distance to get the Micro Oven .
- In the command prompt type trim to trim the extras.
- In the command prompt type offset and offset it to the horizontal distance of 350,450,900,450,450 and 560 .
- In the command prompt type offset and offset it to the vertical distance of 600 .
- In the command prompt type trim to trim the extras .
- In the command prompt type line type and load the dotted lines .
Step 4:
- In the command prompt type text to text the given annotations .
- In the command prompt type dimensions to given the dimensions to your plan .
- In the command prompt even the leader command is used to name the dimensions .
Step 5:
Place all the elements in the required layers .
Result:

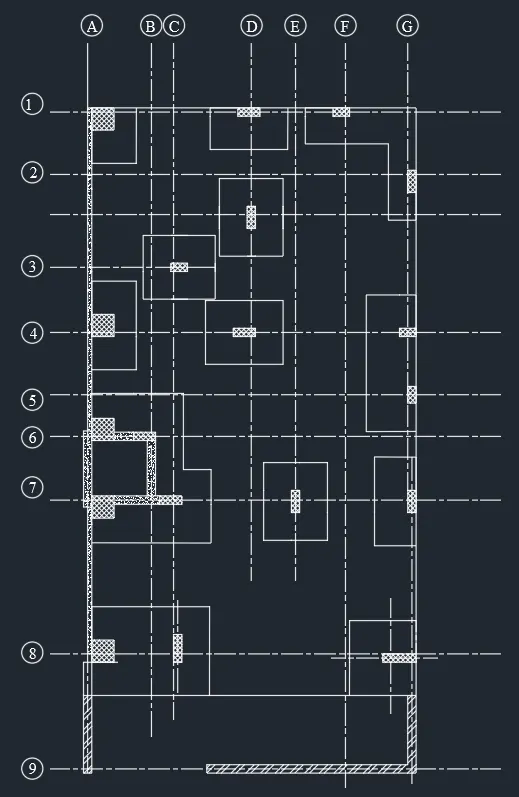

4)
AIM:

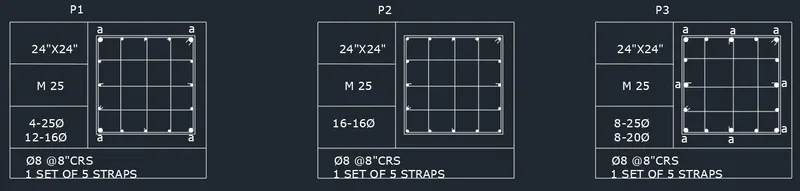

To sketch the column details
PROCEDURE:
Step 1:
- Units are set to mm.
- Limits and lim-max are also set .
- Zoom command is also used .
Step 2:

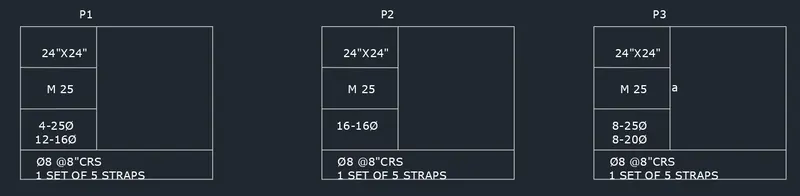

- Using rectangle and line command the tables are drawn .
Step 3:
- Using text command, the text is given .
Step 4:
- In the command prompt type lines to draw the reinforcement .
- In the command prompt type circles to draw the reinforcement .
Result:

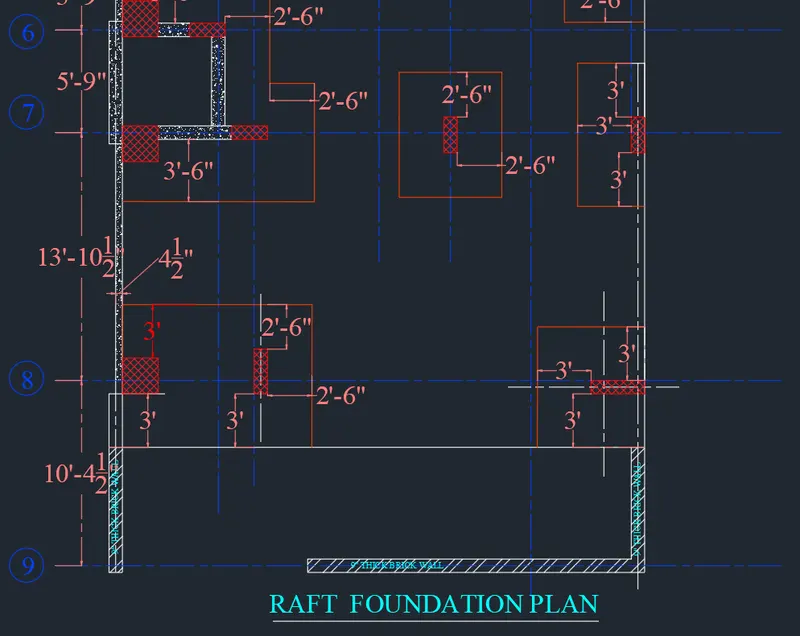

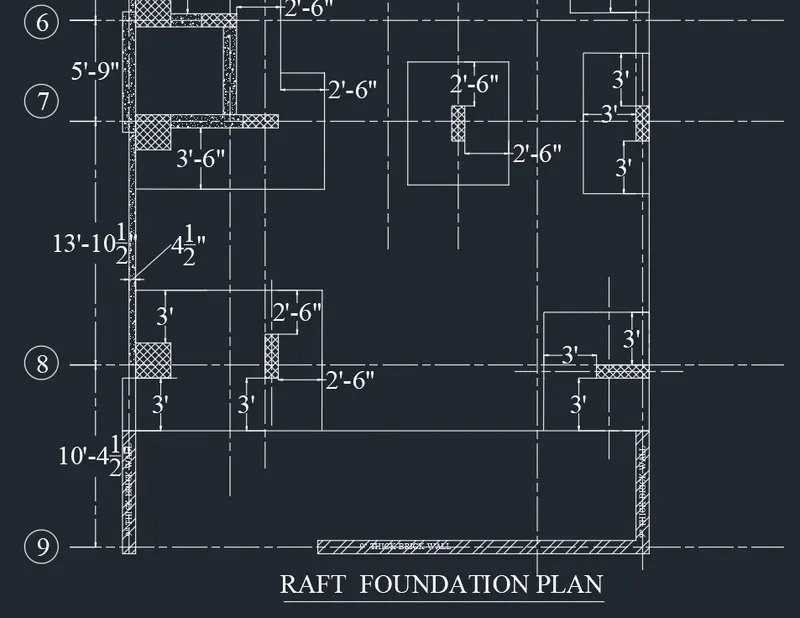

5)
Aim:

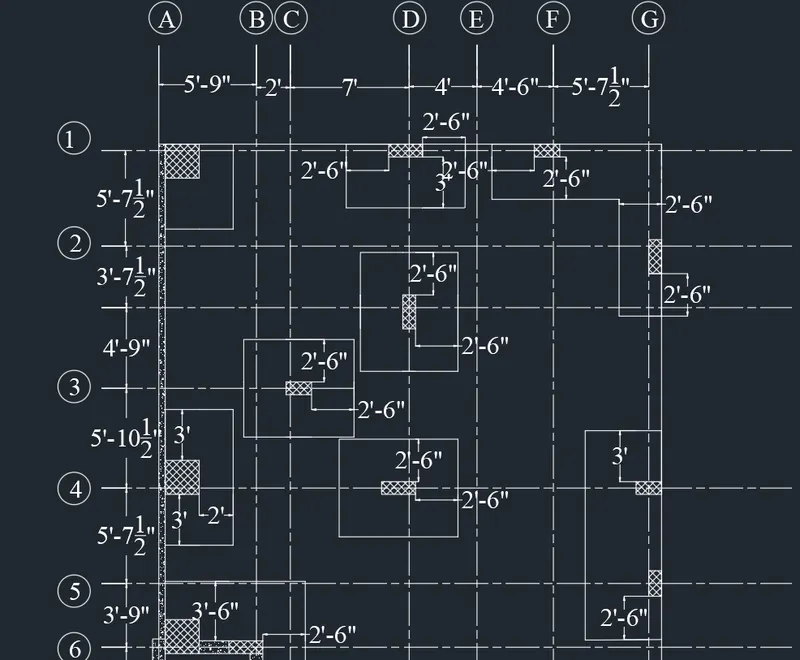

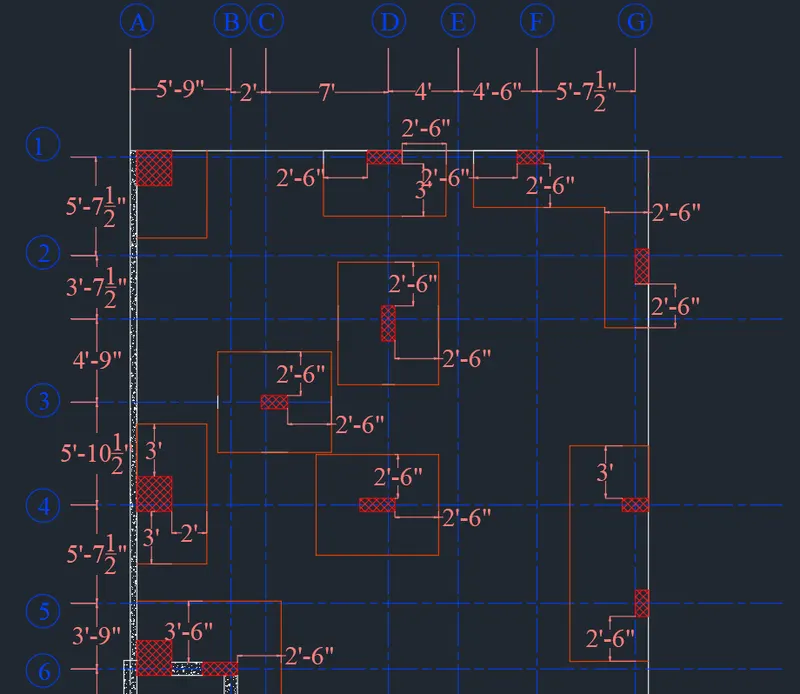

To draw the raft layout
Procedure:
Step 1:
- Units are set to Engineering > inches .
- Limits and lim-max are also set .
- Zoom command is also used .
Step 2:

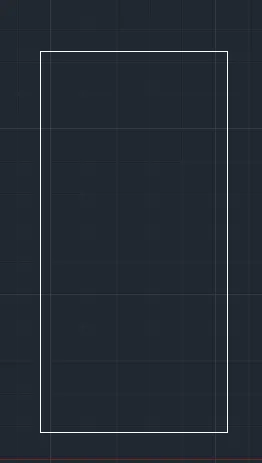

- In the command prompt type rectangle > dimensions are 29'-7" and 60 '

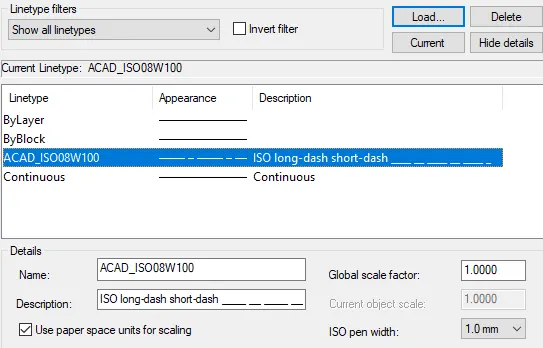

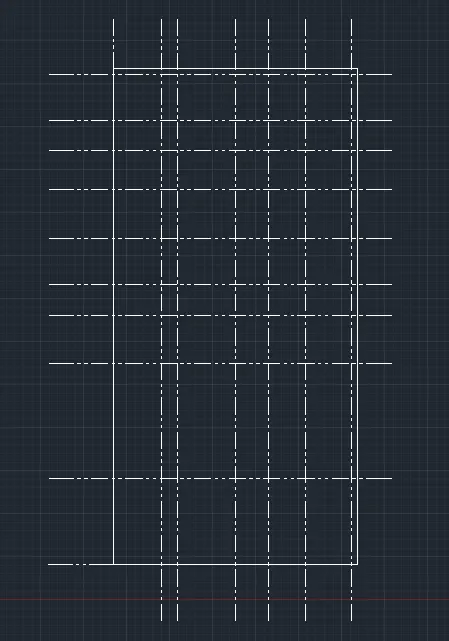

- To get dotted lines click on line type and load the dotted lines > set current .
- With the help of dotted lines and offset command the grids are drawn
Step 3:
- In the command prompt offset the distance to 4"

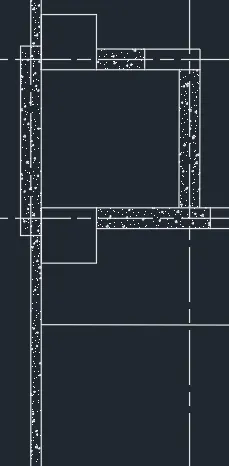

- in the ribbon > hatch > AR-CONC
- In the command prompt type rec > 2' x2'
- In the command prompt type rec to draft the columns.
- In the ribbon bar select hatch > ANSI37 hatch the columns.
- In the ribbon bar select hatch > ANSI33 to hatch the walls.
Step 4:
- In the ribbon tab > Annotate > text > Text to text the given annotations .
- In the ribbon tab > Dimensions > To give the dimensions .
Step 5:

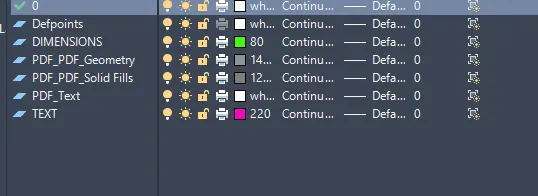

Place the all the elements of the drawings in the required layers .
Result:
