Creating a Wardrobe detailed drawing, Floor Plan, Kitchen Layout and Column Detail using AutoCad

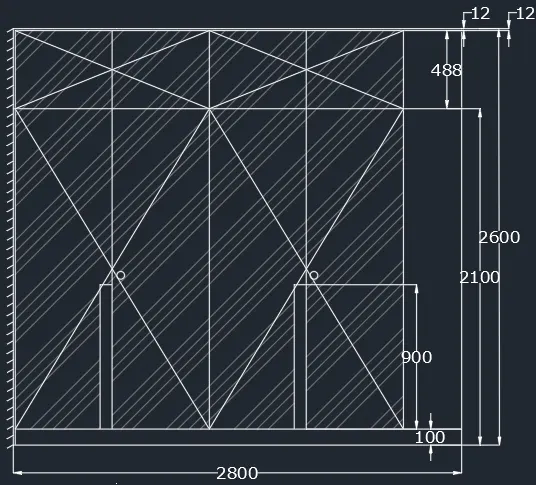

AIM:

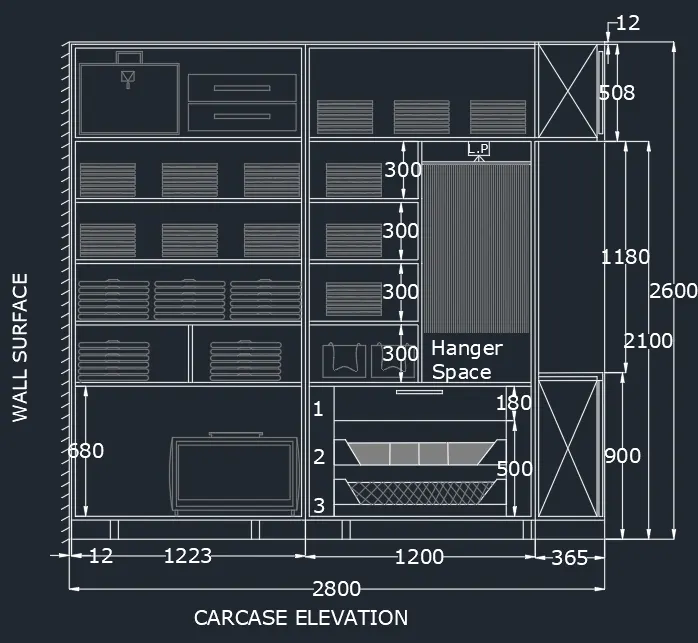

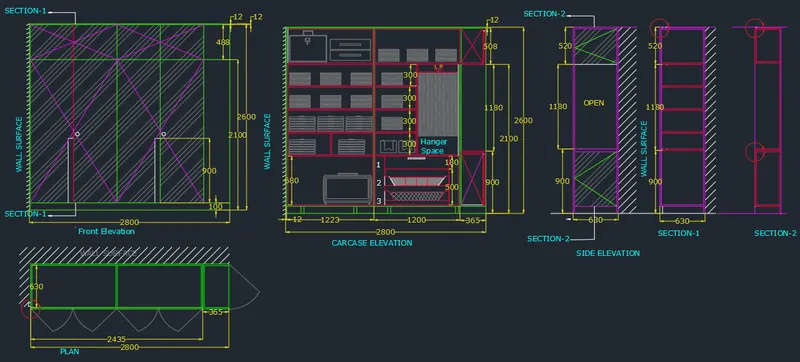

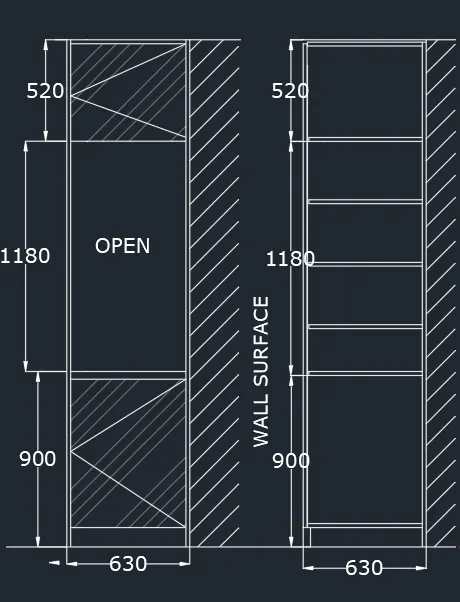

TO DRAW THE VELEVATION AND DETAILS OF A wardobe as shwn in the figur.

after skeching, need to provided the dimensions and text with the ues of layer.

PROCEDUR:

STEP1:

• units are set to mm
• limits and limax are also set
• zoom command is also used

STEP2:

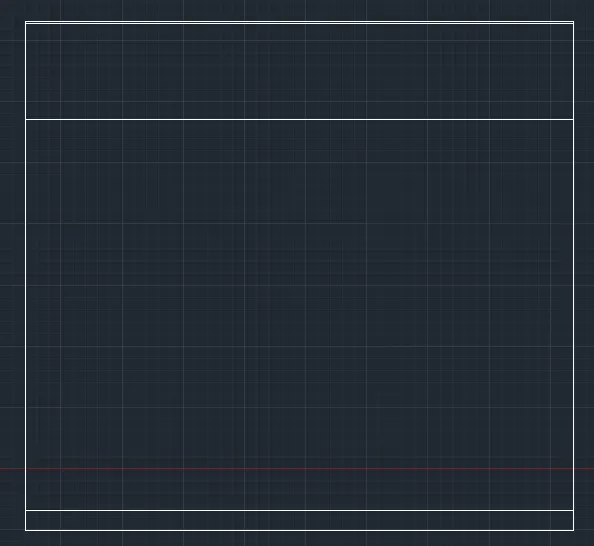

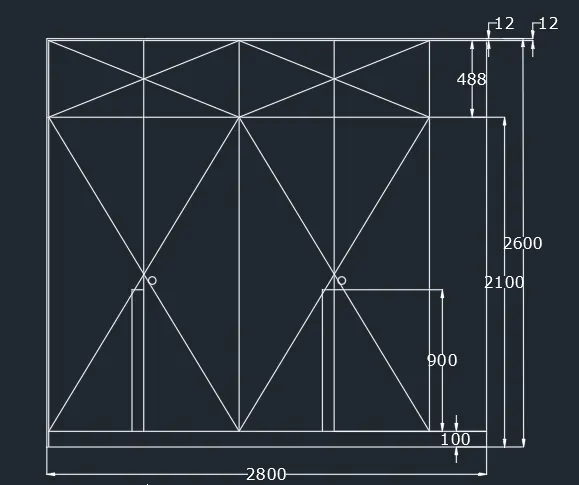

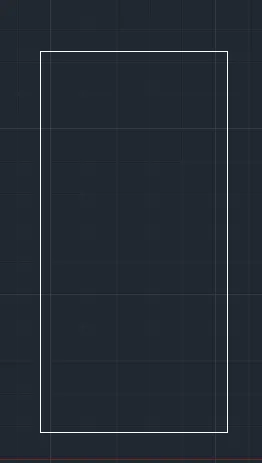

• in the command line type rec>2800,488mm
• in the command line type offset
• offset from the top of the dimensions 12mm annd 4800mm

STEP3:

• IN THE command line type offset
• create the offset from the side at the distance of 608.75 and 365

STEP4:

• IN THE command line type i and by increasing the transperacy to create wall surface
• in the command line type qleader to mention the annotations

STEP5:

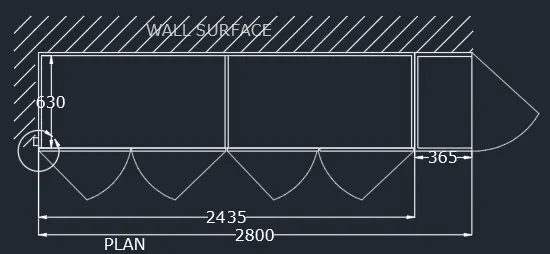

• IN THE command line type rec>630x 2800
• in the command line type qleader to mantion the annotations.
• in the command line type rec>2800.2600
• with the help of line command drawers and cabinet are created

STEP6:

• in the command prompt type rectangle and dimensions of 520.630,1180.630,900.630,repeated two times
• using the command the next of lines are drawn

STEP8:

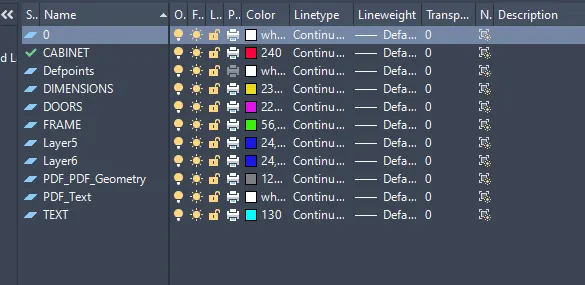

• PLACE the entire drawing in the respetive layers.

RESULT:

2)

AIM:

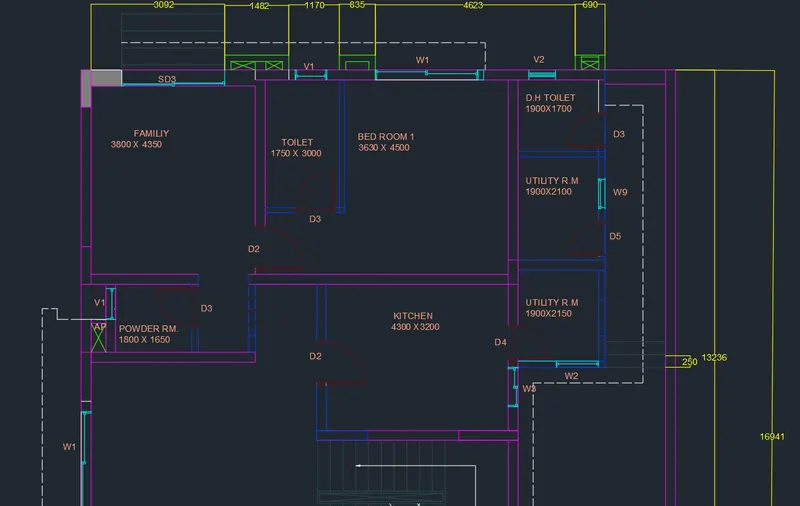

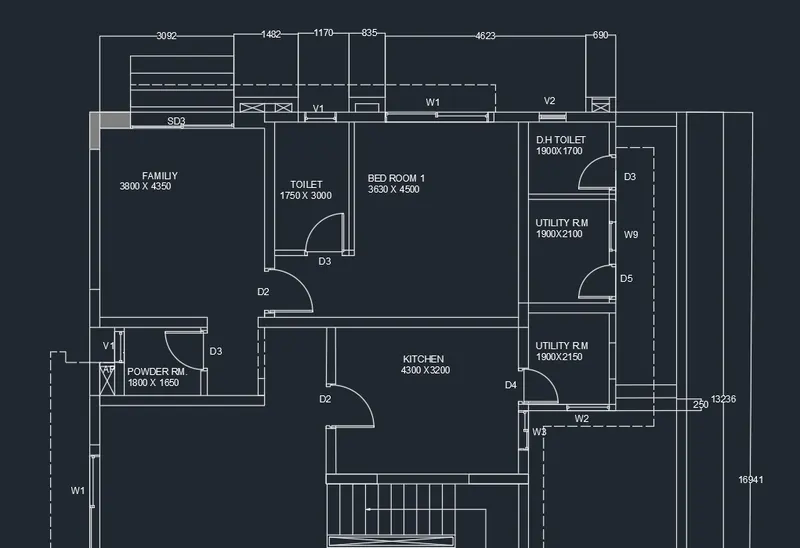

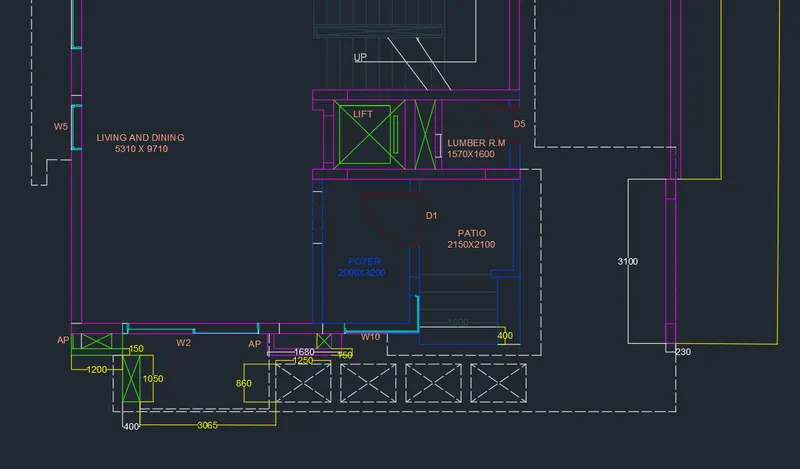

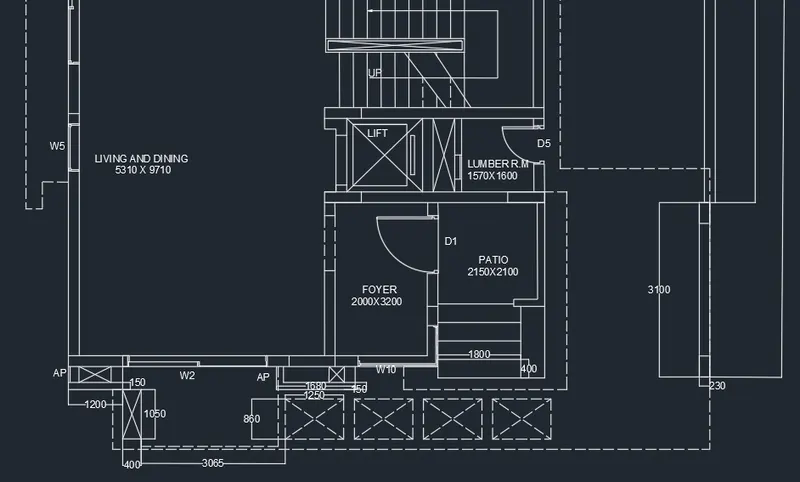

TO draw the given floor plan

procedure:

STEP1:

• UNITS are set to mm
• limits and lim-max are also set
• zoom command prompt type XL to draw the infinite linse

STEP 2:

• in the command prompt type offset to the line for a praticular distance
• using are command doors are also created.

DOORS :

WINDOWS:

VENTILATORS:

1.D1-1000.2000MM 2700.1500 MM 1.W1-1.V1-800.500

2.D2-900.2100 MM -2500.1500 MM 2.W2 2.V2 -750.

3.D3-800.2100 MM-900.1500MM 1500MM 3.W3

4. D4-750.2100MM -1000.1500MM 4.W5

5.D5 - 700.2100 MM -800.1500 MM 5.W9

6.SD -2256.2100 MM

STEP3:

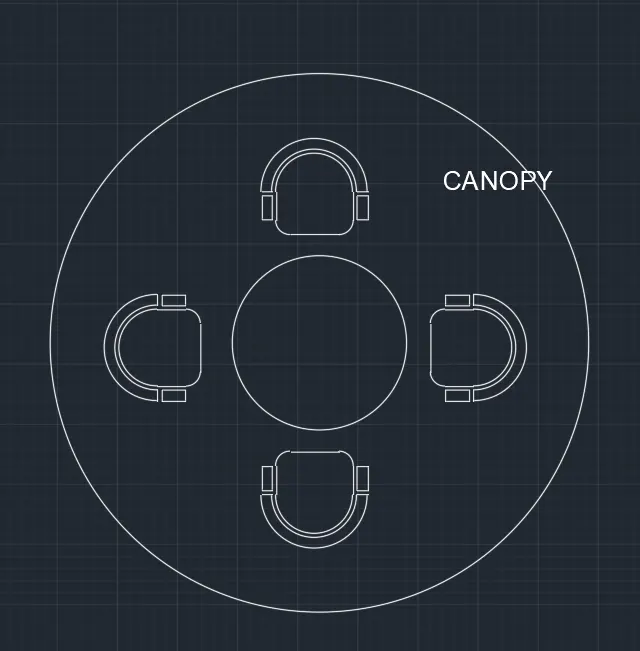

To draw canopy

CIRCLE:

In the menu bar click on circle >centre,radius specify the centre point as 10,10 and radius 452 in the meu bar click on circle >centre radius specify the centre point as the previous circle [10,10] and radius 1398

SEATS:

In the menu bar click on rectangle or in the command prompt type rec

Specify the length of the rectangle as 662.3

Specify the width of the rectangle as 298.0

In the command prompt type FILLET >radius > 100.0

In the menu bar >circle .2-point

In the menu bar >circle >centre ,diameter centre is the midpoint of the line ,diameter is 719.0

In the menu bar >circle >centre ,diameter centre is the midpoint of the line ,diameter is 777.2

Now extend the centre line and trim the Extras

In the menu bar click fillet>blend curves >and select the arc

In the menu bar click fillet>blend curves >and select the arc

STEP4:

Give the dimensions and annotations and anotation the drawing with the text where ever required.

STEP5:

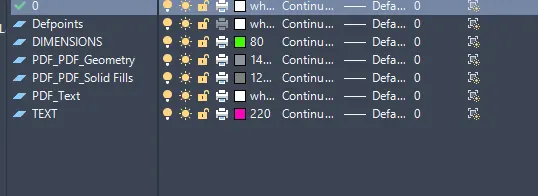

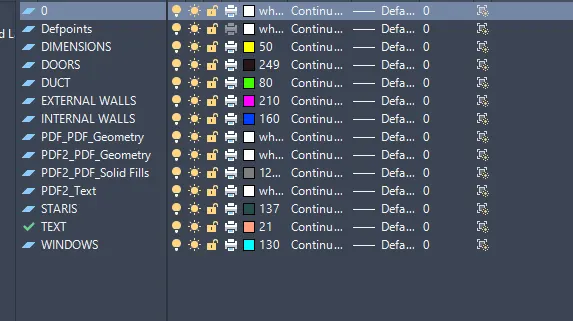

Place the all elements of the drawing in the respective layers.

RESULT:

3}

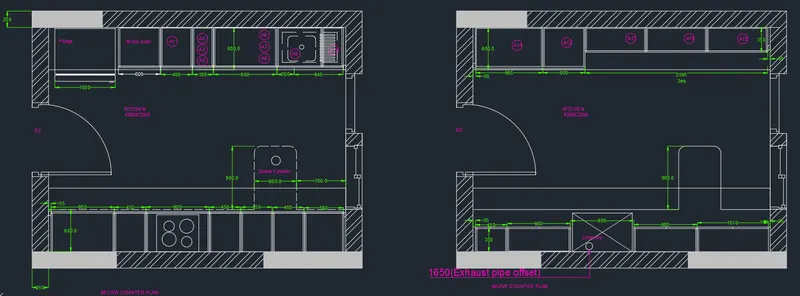

AIM:

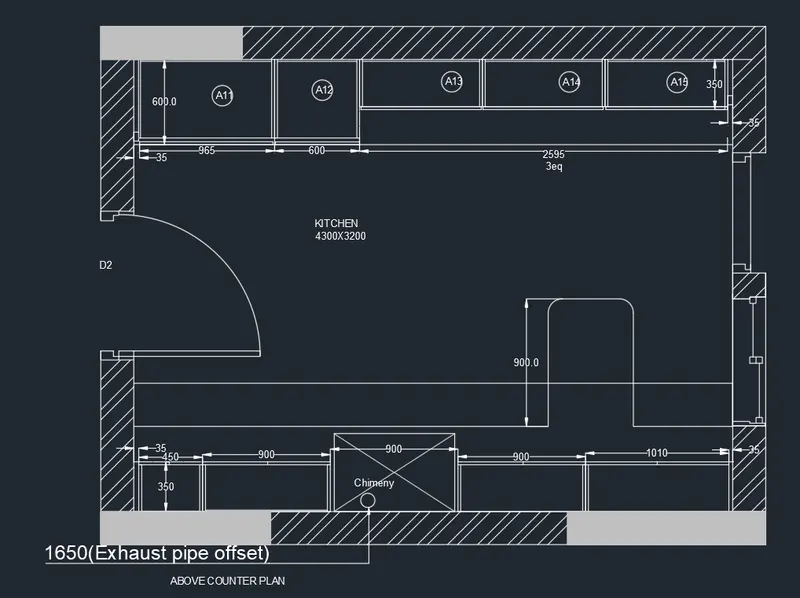

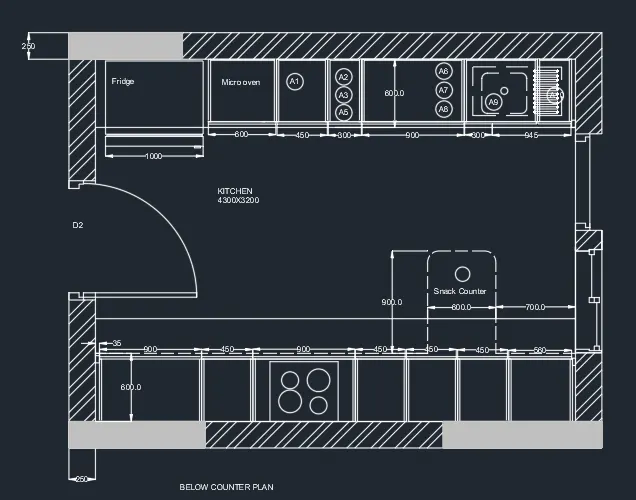

To create the kitchen layout and to also,use proper dimension techniques to dimensions the kitchen layout.also insert text wherever required.

PROCEDURE:

STEP1:

• Units are set to mm
• Limits and lim- max also set
• Zoom command is also used.

STEP2:

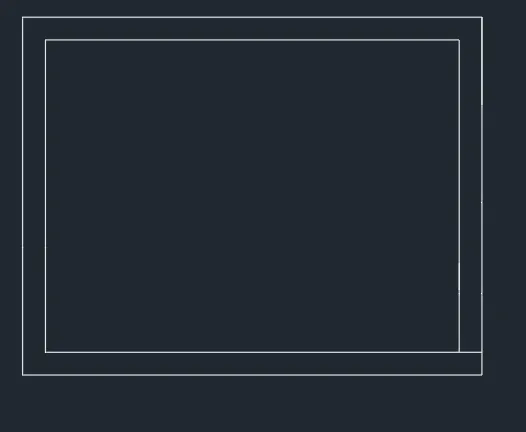

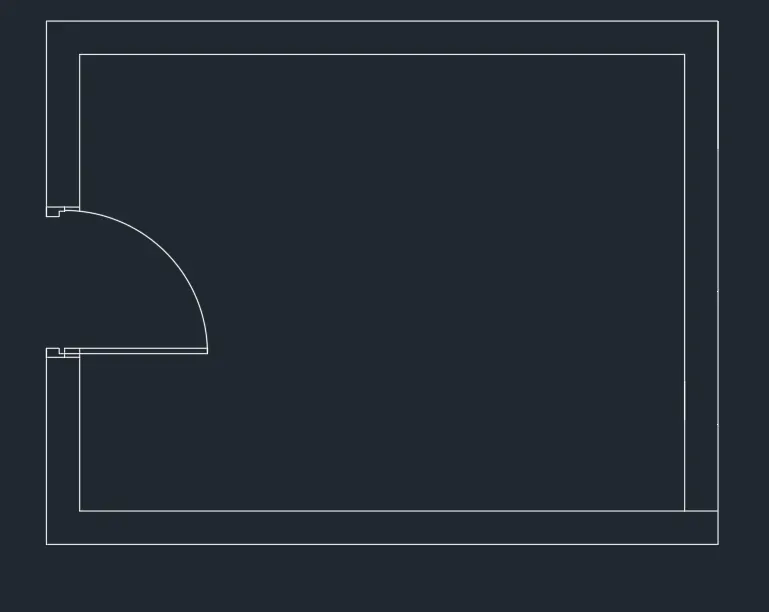

• In the command prompt type rec and the dimensions are 4734x3688mm.
• In the command prompt type offset and offset it to the distance of 250mm.

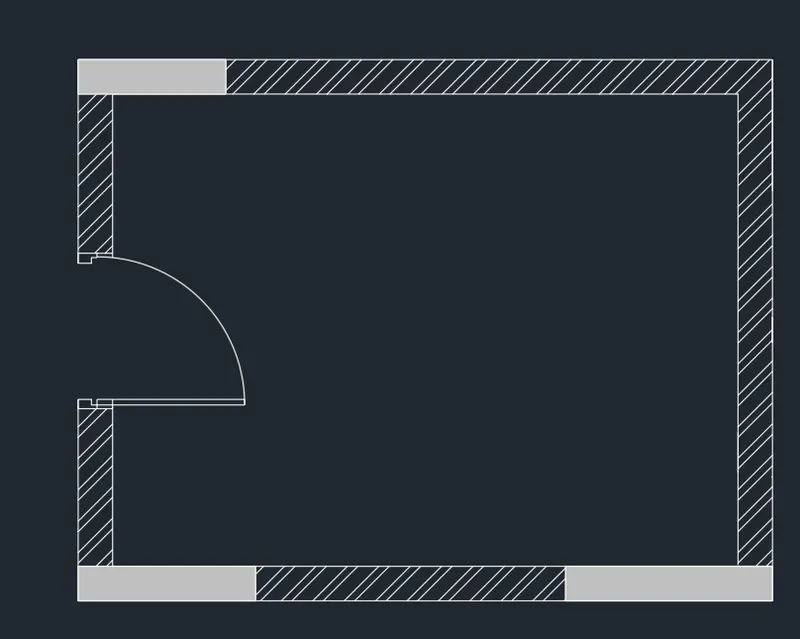

• Using arc and lines the door is drawn.

• In the command prompt type hatch to hatch the model.

STEP3:

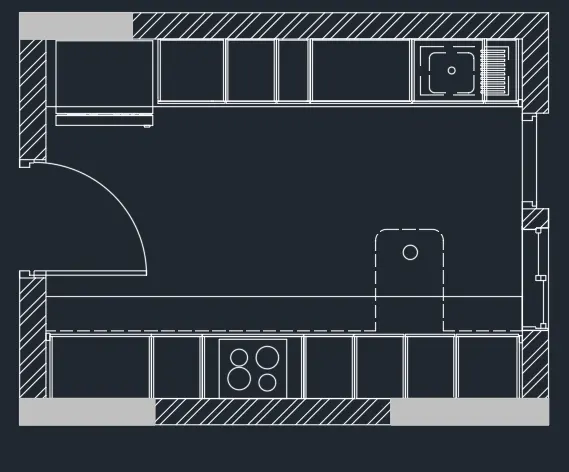

• In the command propmt type rec >dimensions to do the fridge.
• In the command prompt type offset and offset it to the desired distance to get the micro oven
• In the command prompt type trim to trim the extras.
• In the command prompt type offset and offset it to the horizontal distance of 350,450,900,450,450and 560
• In the command prompt type offset and offset it to the vertical distance of 600
• In the command prompt type trim to trim the extras
• In the command prompt type line type and load the dotted lines.

STEP4:

• In the command prompt type text to text the given dimensions.
• In the command prompt type dimensions to given the dimensions to your plan
• In the command prompt type even the leader command used to name the dimensions.

STEP 5:

PLACE all the elements in the required layers.

RESULT:

4)

AIM:

to skech the column details

PROCEDURE:

STEP1:

• UNITS are set to mm.
• limits and lim-max are also set.
• zoom command is also used.

STEP 2:

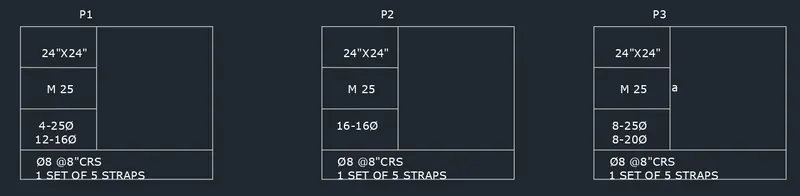

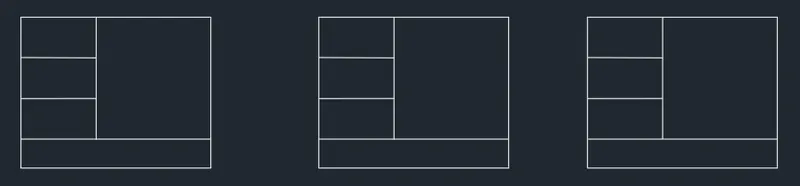

• using rectangle and line command the tables are drawn.

STEP3:

• USING text command, the text is given.

STEP4:

• in the command prompt type lines to draw the reinforcement.
• in the command proompt type circeles to draw the reinforcemennt .

RESULT:

5)

AIM:

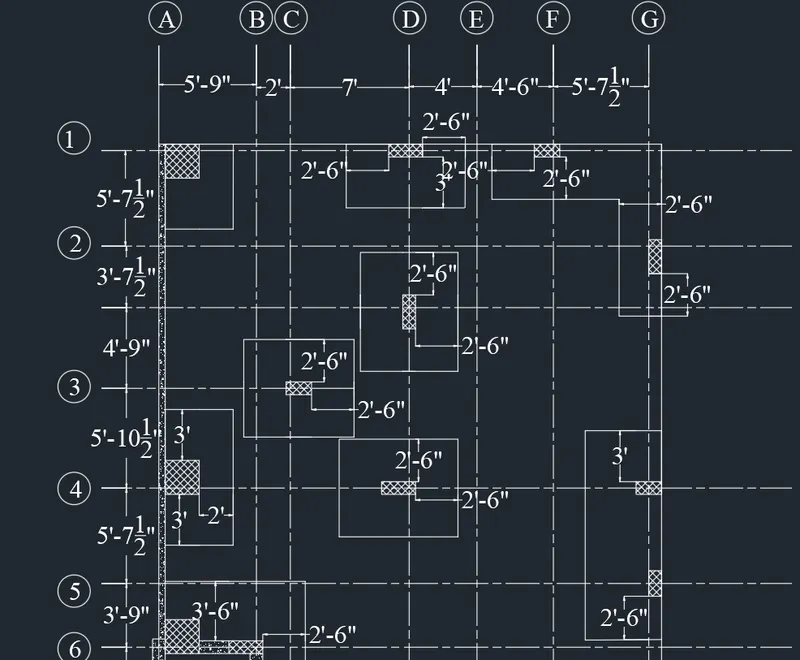

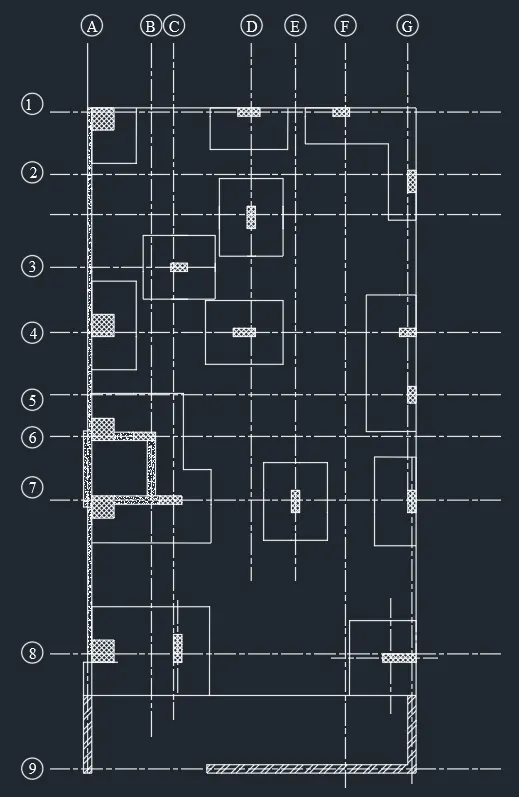

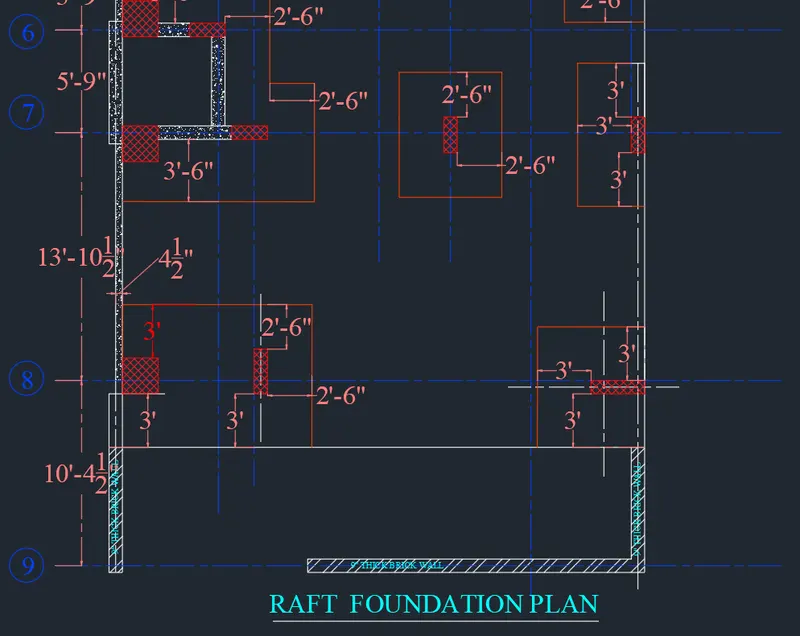

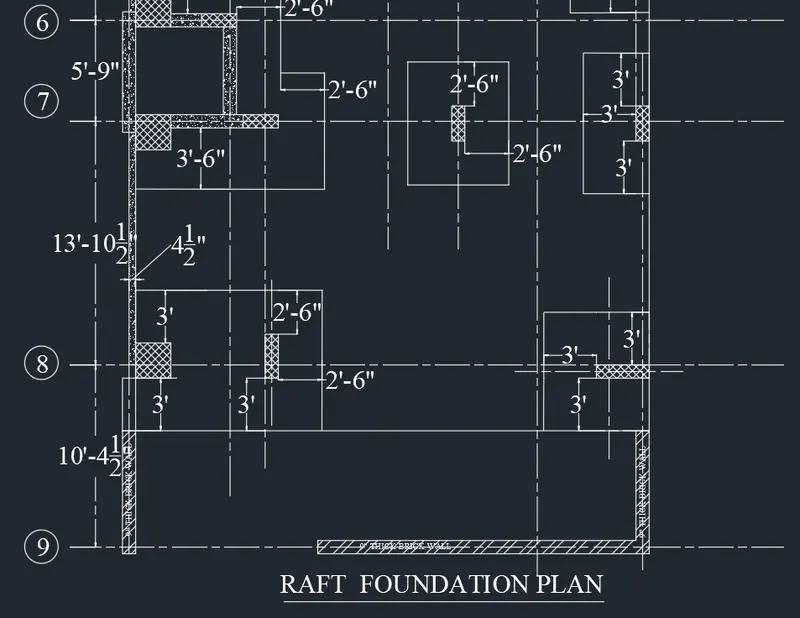

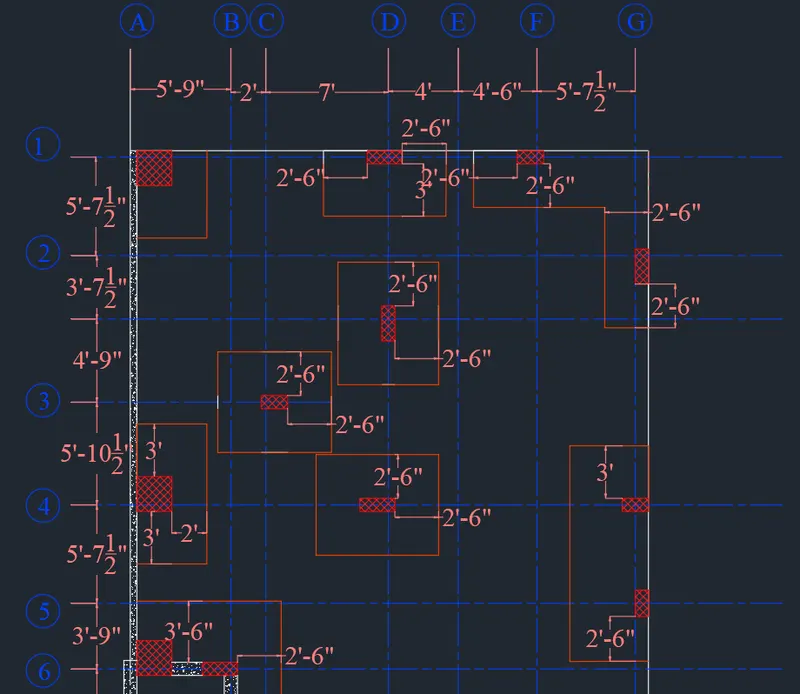

to draw thee raft layout

PROCEDURE :

STEP 1:

• units are set engineering > inches.
• limits and lim-max are also set.
• zoom command is also used .

STEP2:

• IN THE COMMAND prompt type rectangle > dimensions are 29'-7" and 60'.

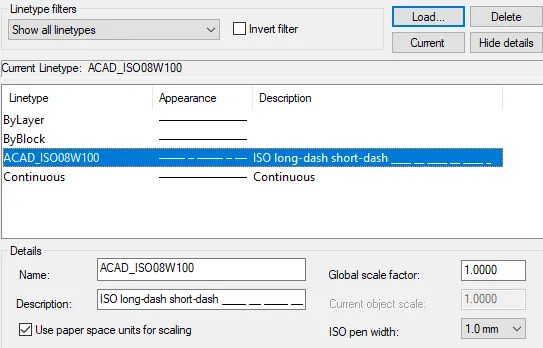

• to get dotted lines click on line type and load the dotted line > set current

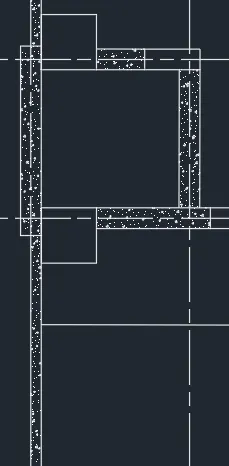

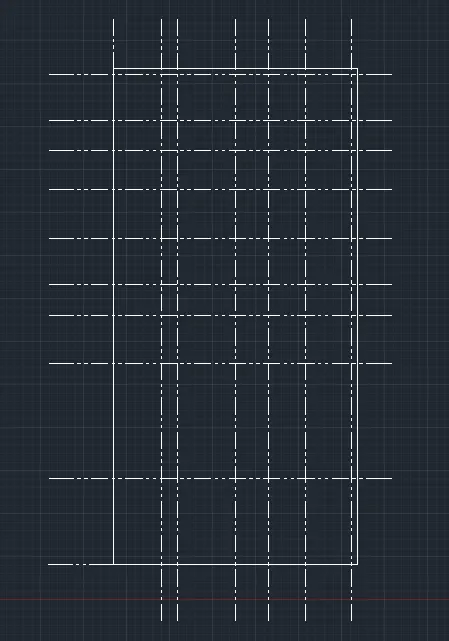

• with the help of dotted lines and offset commannd the grids are drawn

STEP3:

• in the command prompt offset the ddistance to 4"
• in the ribbon > hactch > AR -CONC

• in the command prompt type rec > 2' x2'
• in the command prompt type rec to draft the columns.
• in the ribbon bar select hatch >ANSI33 to hatch the walls.

STEP 4:

• IN THE ribbon tab> annotate > text > text to text the given annotations.
• in the ribbon tab > dimesions> to give the diamensions.

STEP 5:

• PLACE the all the elemets of the drawings in the required layers.

RESULT:
