Creating a Wardrobe detailed drawing, Floor Plan, Kitchen Layout and Column Detail using AutoCad

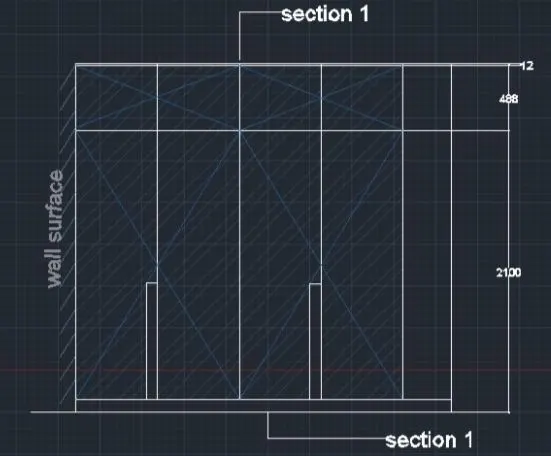

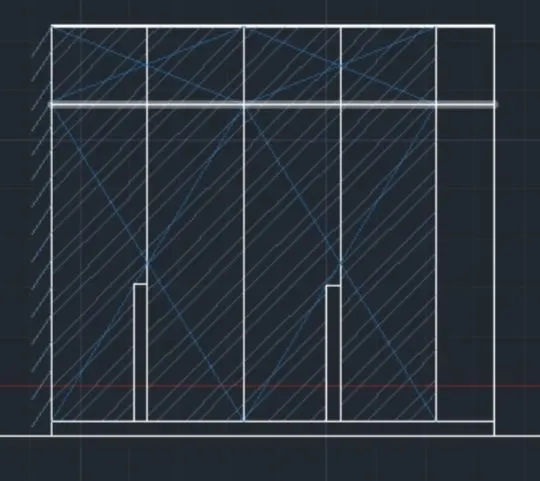

1) Draw the elevation and details of a wardrobe as shown in the Figure below. After sketching, you need to provide the dimensions and text with the use of layers.

AIM:

To Draw the elevation and details of a wardrobe as shown in the Figure below. After sketching, you need to provide the dimensions and text with the use of layers.

PROCEDURE:

STEP 1:

• units are set to mm limits and limax are also set

• zoom comand is also used

STEP 2:

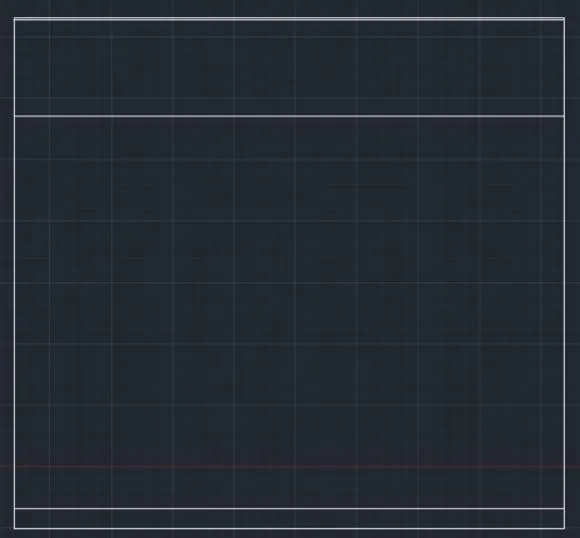

• In the command line type rec>2800 , 2600
• In the command line type offset
• Offset from the top of dimensions 12 and 488 mm:

STEP 3:

• In the command line type offset

• create the offset from the side at the distance of 608.75 and 365

STEP 4:

• In the command line type L and t increasing the transparency to create wall surface.

• In the command line type qleade to mention the annotations

STEP 4:

CALL US Courses

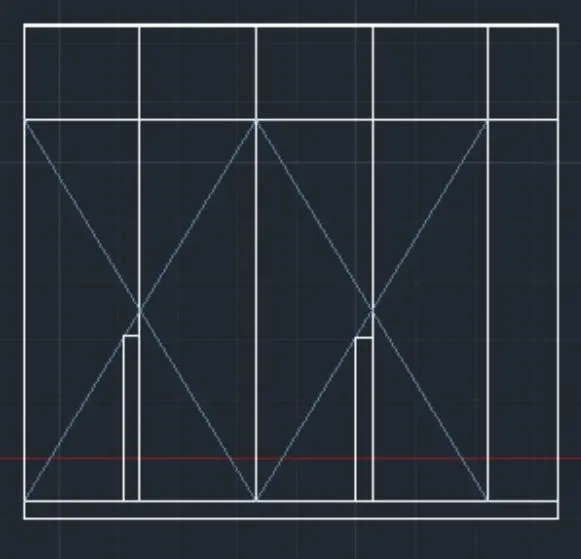

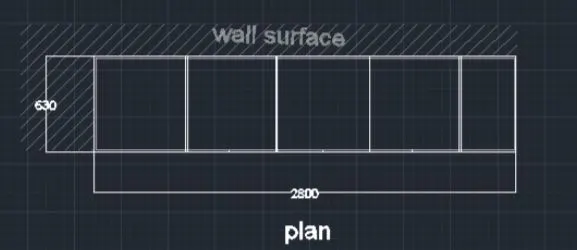

• In the command prompt type rectangle > 630 x2800
• In the command prompt type qleader to give the annotations

STEP 5:

• In the command prompt type rectangle 2800 X 2600

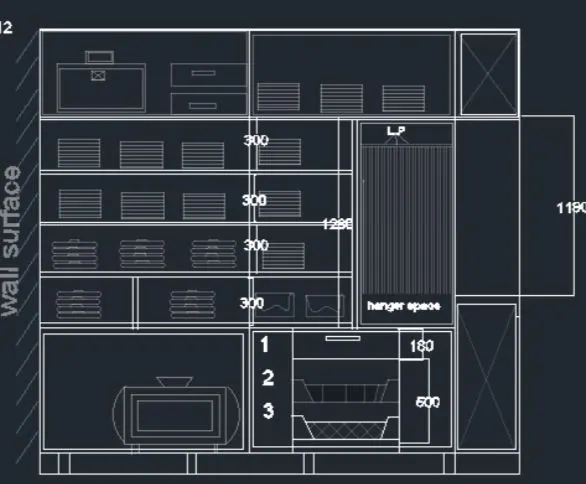

• With the help of line command drawers and cabinets are created

STEP 6:

• In the command prompt type rectangle and dimensions of 520 x 630, 1180 x 630,900x630 This is repeated 2 times.
• using line commands the next of the lines are drawn

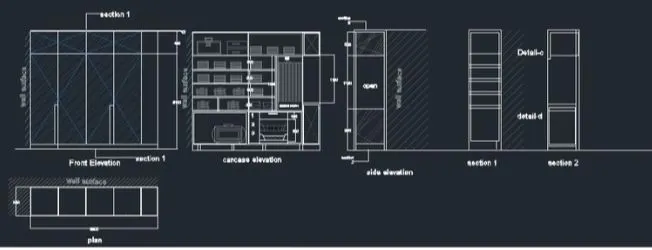

FINAL RESULT:

2)

Aim:

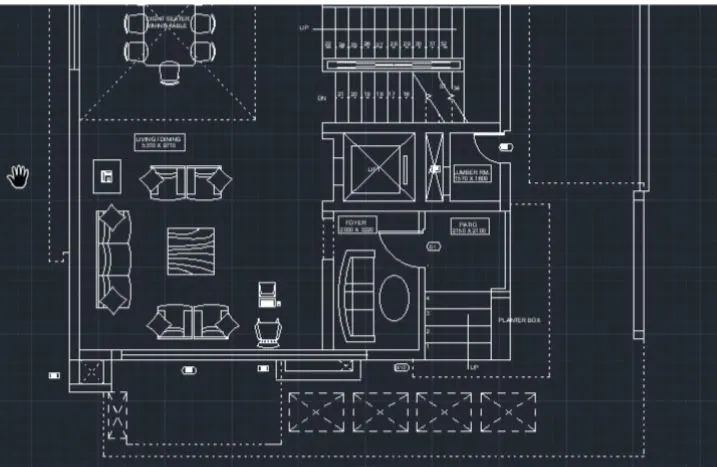

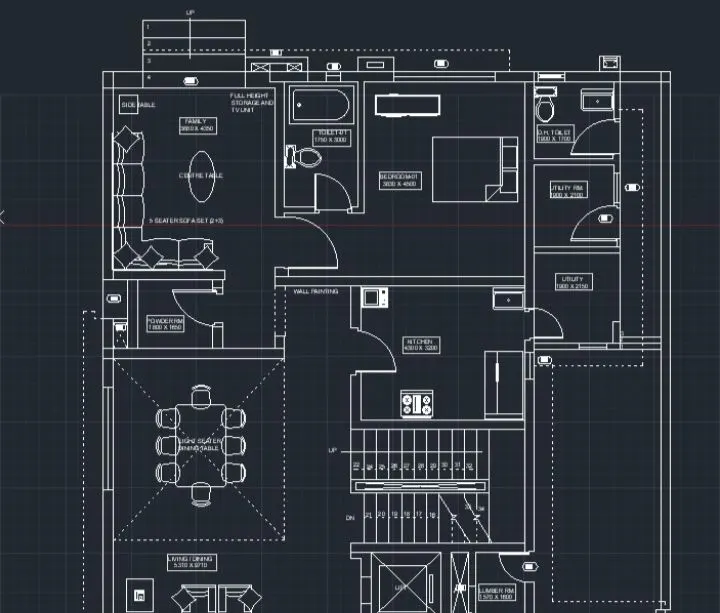

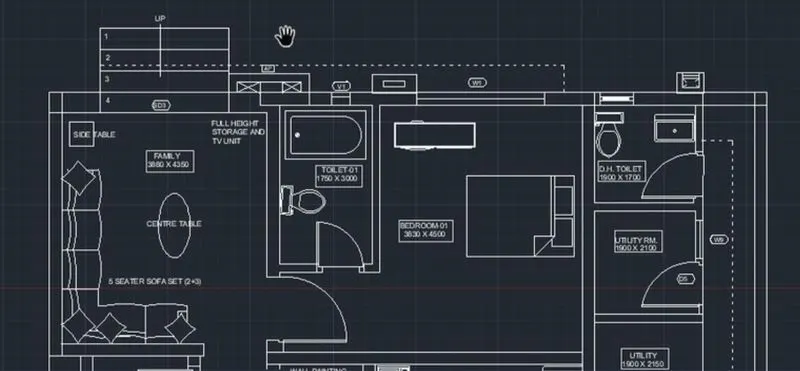

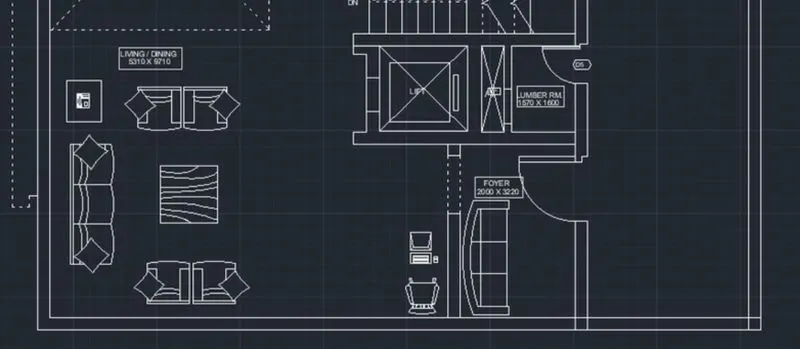

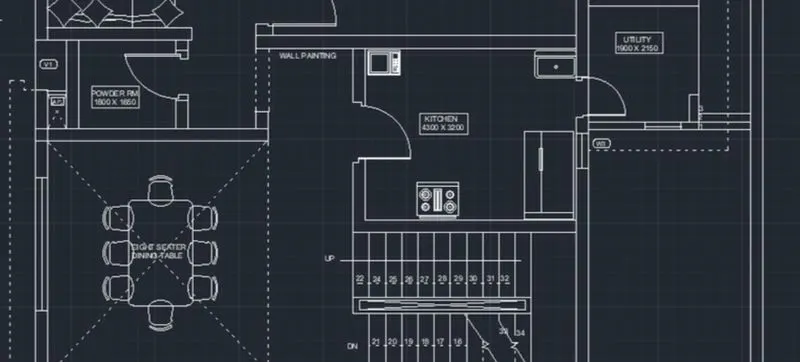

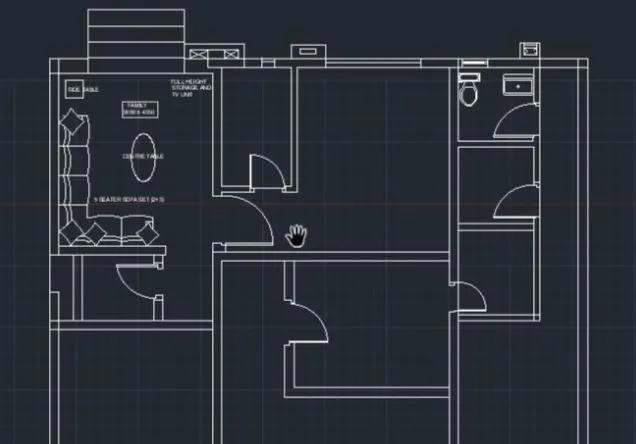

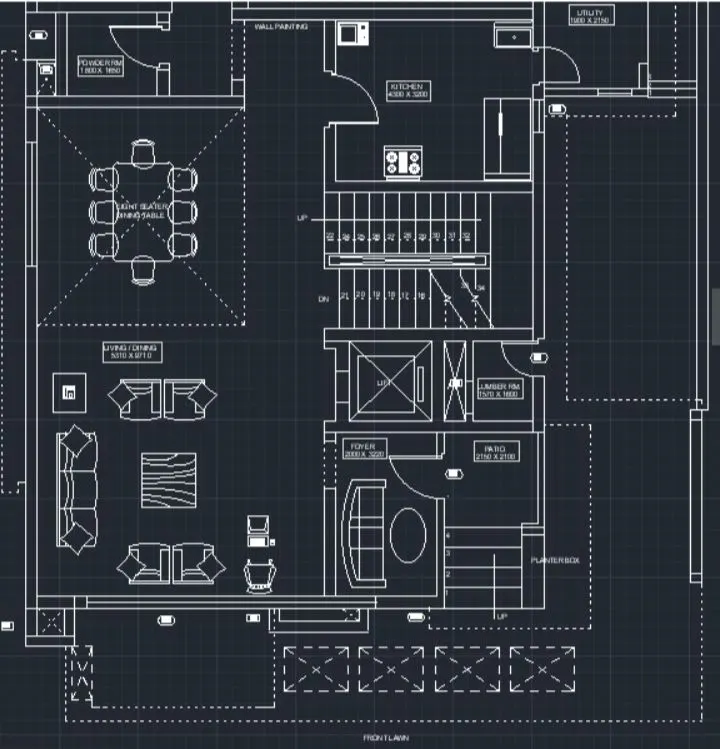

To draw the given floor plan

Procedure:

step 1:

• units are set to mm
• limits and limax are also set
• zoom comand is also used

step 2:

• In the command prompt type XI to draw the infinite lines
• In the command prompt type offset to offset the line for a particular distance
• Using arc command doors are also created

step 3:

• In the command line "adc" (design centre) is typed to get the components of the plan

• In the command line "Linetype "is typed to get the dotted lines

• In the command line "Text" is typ to get the dimensions and annotations of the plan B

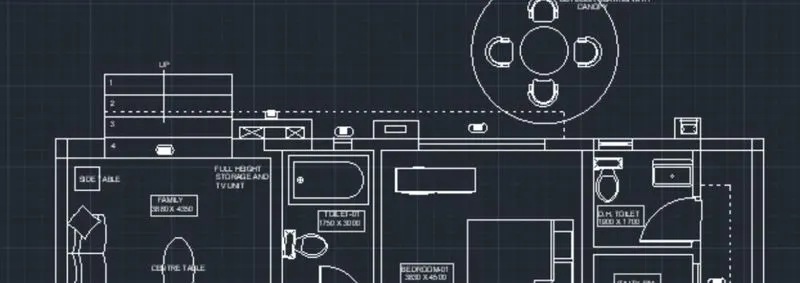

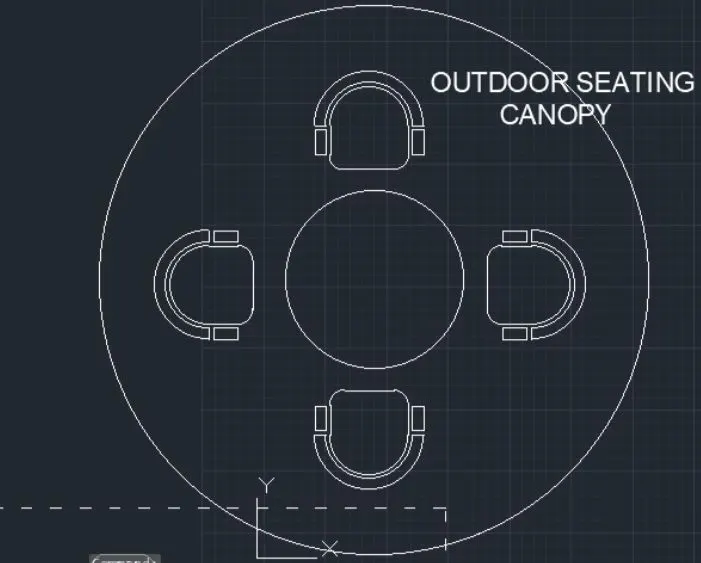

• To draw cannopy

circle:

In the menu bar click on circle > centre

radius

specify the centre point as 10,10 and radius 452 In the meu bar click on circle > centre,

radius specify the centre point same as the

previous circle (10,10) and radius 1398 SEATS: In the menu bar click on rectangular or In

the command prompt type rec

specify the length of the rectangle as 662.3 specify the width of the rectangle as 298 .0

In the command prompt type FILLET > RADIUS 100.00 (to get curve egdes in In the menu bar> circle > 2-point ( 2

the corner)

points ar the end points of the top line)

In the men bar> circle > centre,diameter

centre is the mid point of the line, diameter is 719.0 In the menu bar > circle >

centre,diameter

centre is the midpoint of the line,

diameter is 777.2 now, extend the centre line and trim the

extra's

In the menu bar click fillet> blend curves

> and select the arc In the menu bar click fillet> blend curve > and select the arc

In the menu bar click fillet> blend curves

> and select the arc

Final Result

..

3)

Aim:

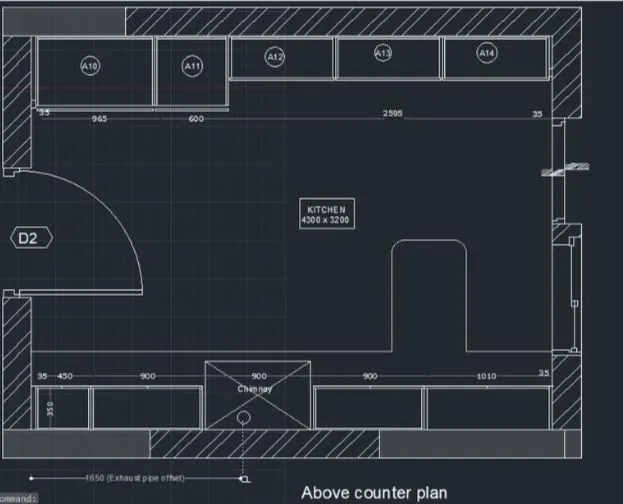

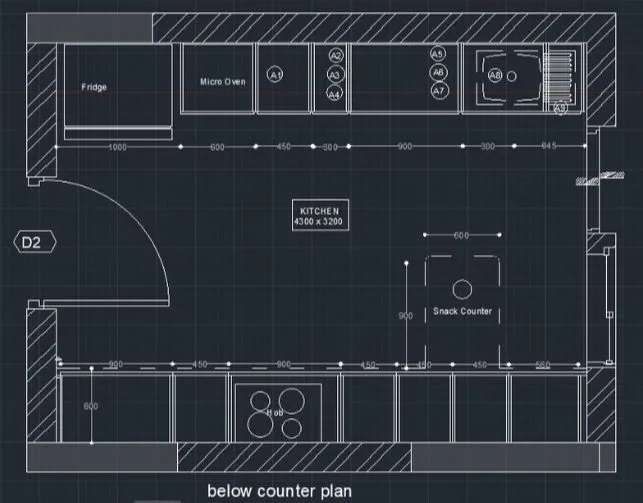

To create the kitchen layout and to Also use proper dimension the kitchen layout.Also, insert text whereever required.All dimensions are in mm

Procedure

Step1 :

• Units are set to mm
• Limits and limax are also set
• Zoom command is also used

Step2:

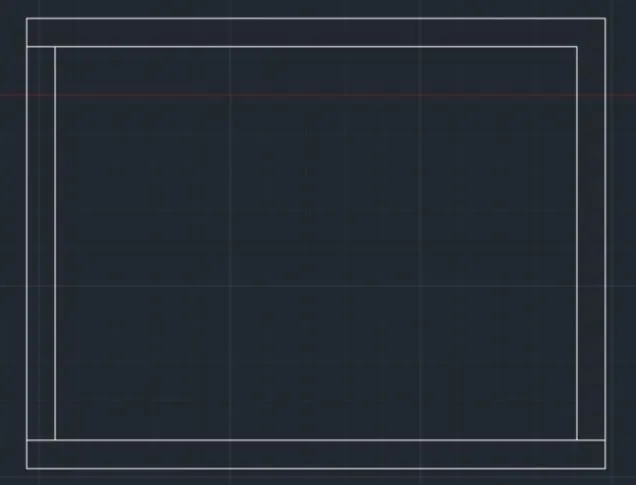

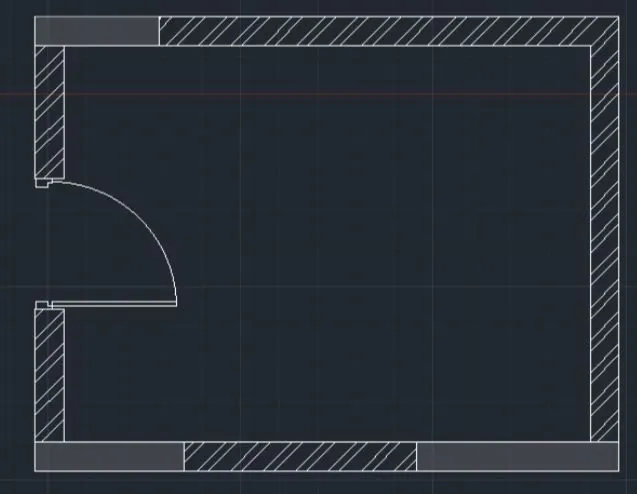

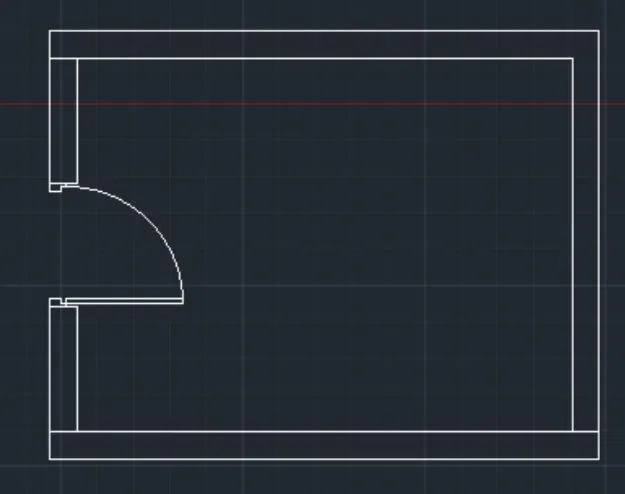

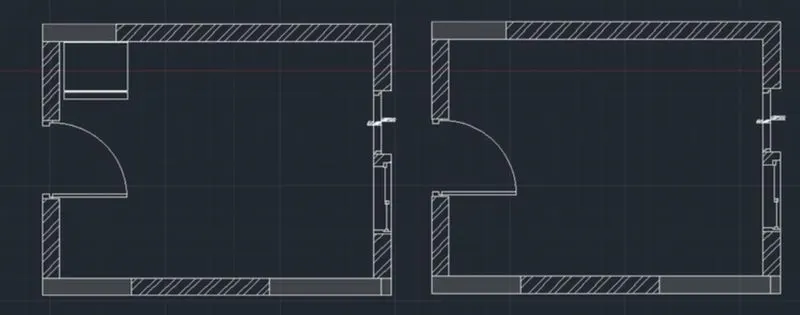

• In the command prompt type rec and the dimenssion are 4734x3688 mm
• In the command prompt type offset and offset it to the distance of 230mm

• Using arc and lines the door is drawn

• In the command prompt type hatch to hatch the model

• In the command prompt type rec>dimensions,to do the bridge

• In the command prompt type offset and offset it to the desired distance to get the Micro Oven
• In the command prompt type trim to trim the extras

• In the command prompt type offset and it to the horizontal distance of350,450,900,450,450 and 560
• In the command prompt type offset and offset it to the vertical distance of 600
• In the command prompt type trim to trim the extras
• In the command prompt type line type and load dotted lines

• In the command prompt type text to text the given annotations
• In the command prompt type dimensions to your plan
• In the command prompt even the leader command is used to name the dimensions

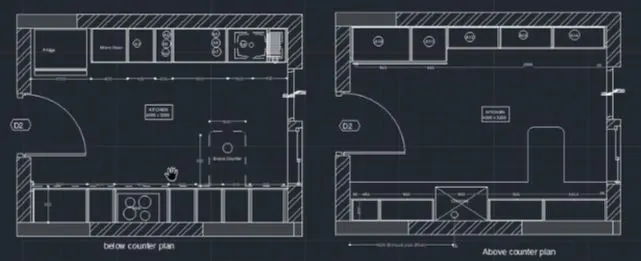

Final Result

4)

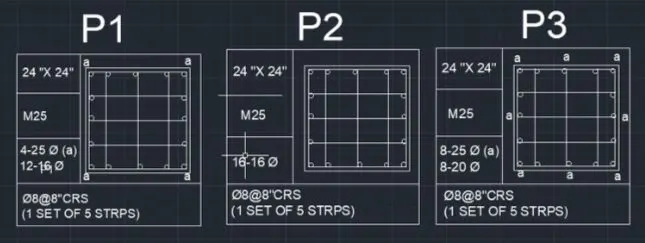

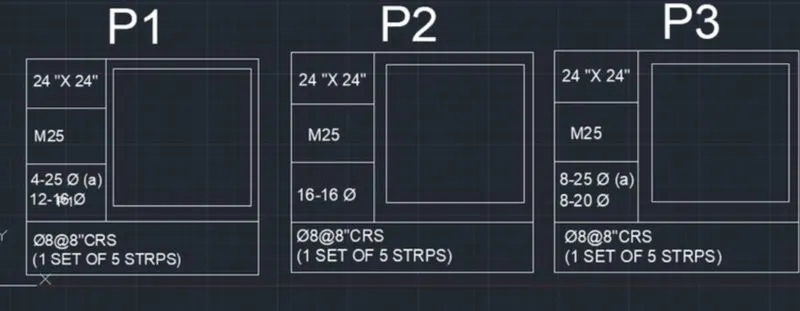

Sketch the column details as shown in figure.Insert dimensions and text in the figure.Refer to the bar sizes from the schedule.

8mm--------0.31 Inches

25mm-------1Inches

16mm-------0.62Inches

Aim:

To sketch the column details

PROCEDURE

Step 1:

• Units are set to mm
• Limits and limax are also set
• Zoom command is also used

Step2:

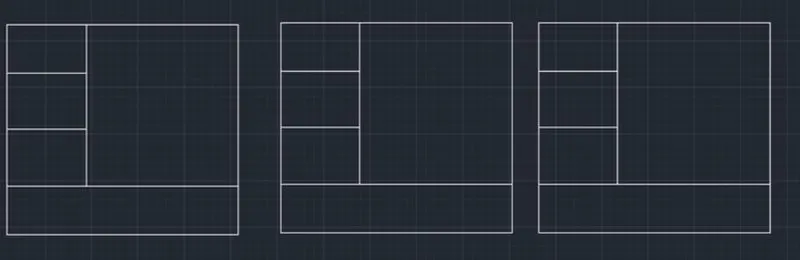

• Using rectangle and line command the tables are drawn

Step3:

• Using text command the text are given

Step4:

• In the command prompt type lines to draw the reinforcement
• In the command prompt type circles to draw the reinforcement

Final Result

5)

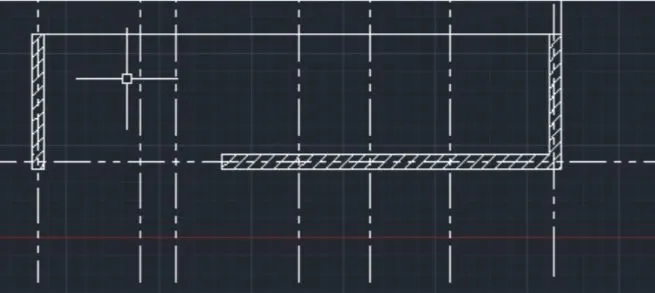

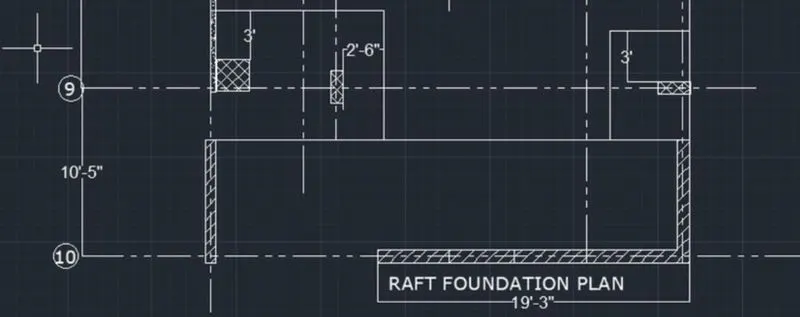

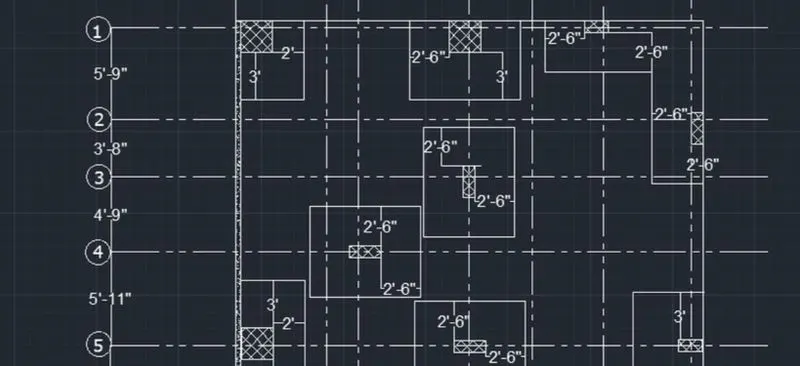

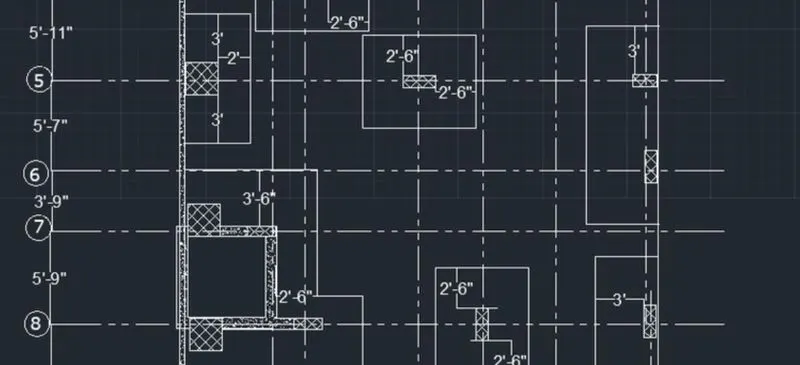

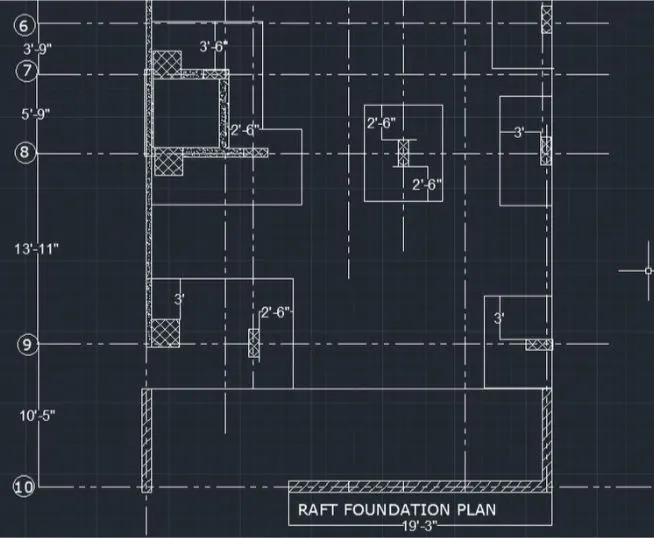

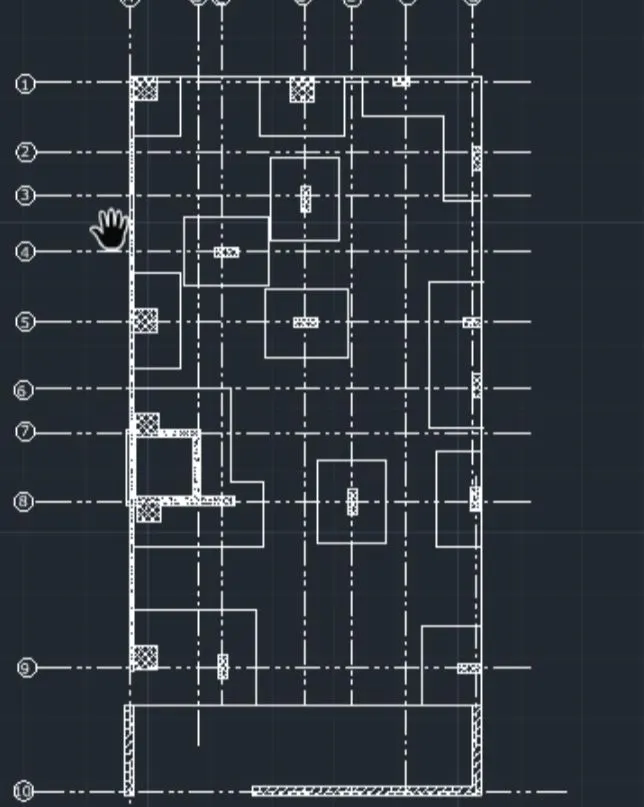

Draw the raft layout as shown in the figure Assume the column site as per your knowledge.You can takea:24"x24" , 9"x24" , 9"x18" , 9"x24" you can import the raft-foundation pdf to ensure missing dimension

Aim:

To draw the raft layout

procedure:

Step1:

• Unita are set to Engineering >inches
• Limits and limax are also set
• Zoom command is also used

step2:

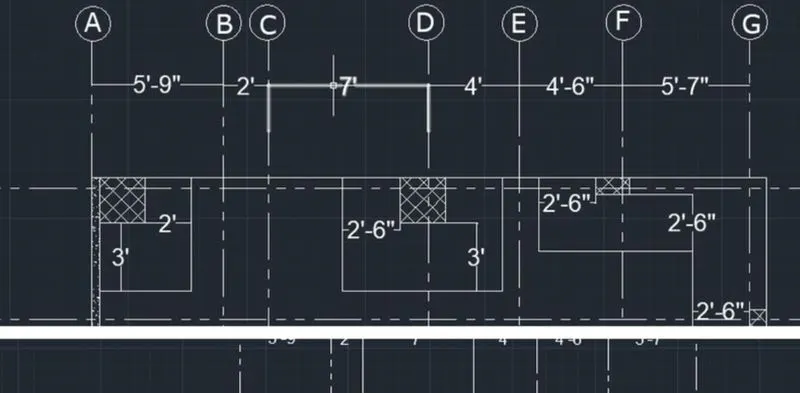

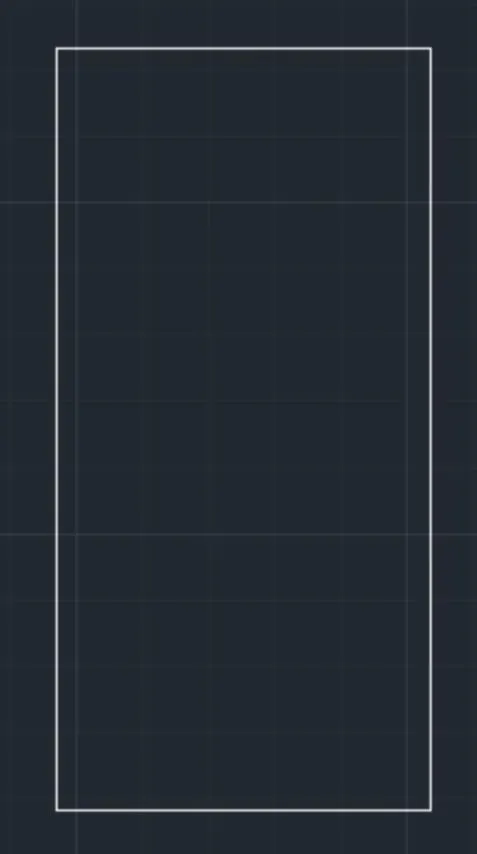

• In the command prompt type rectangle> dimension are29'-7" and 60'

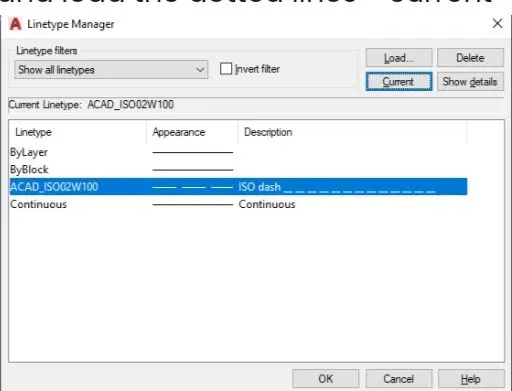

• To get dotted lines click on line type and load the dotted lines>Current

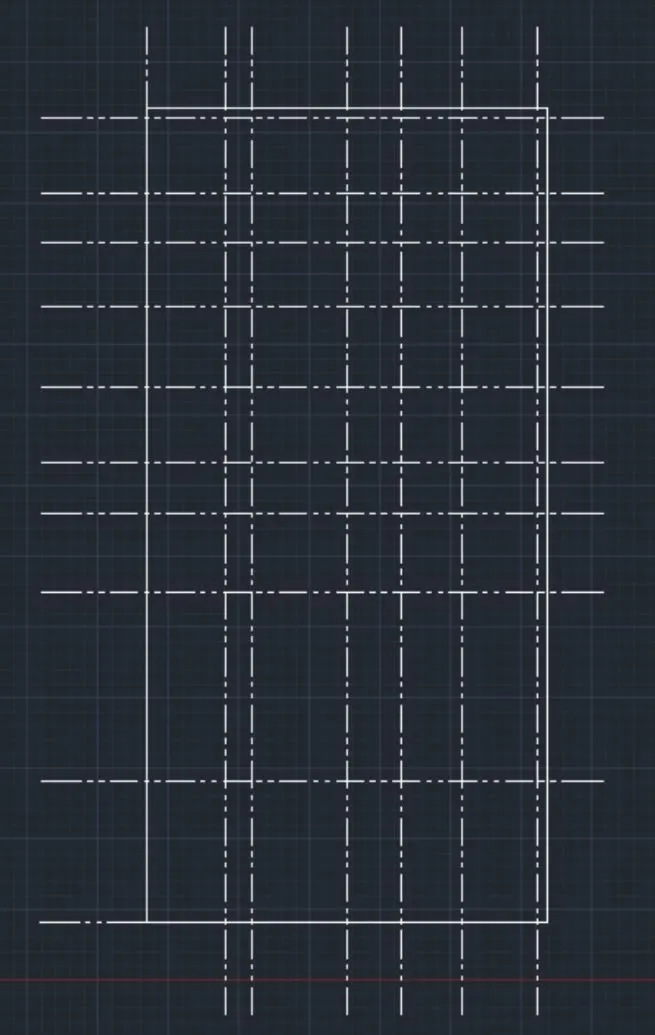

• With the helps of dotted lines and offset command the grids are drawn

• In the command prompt offset the distance to 4"

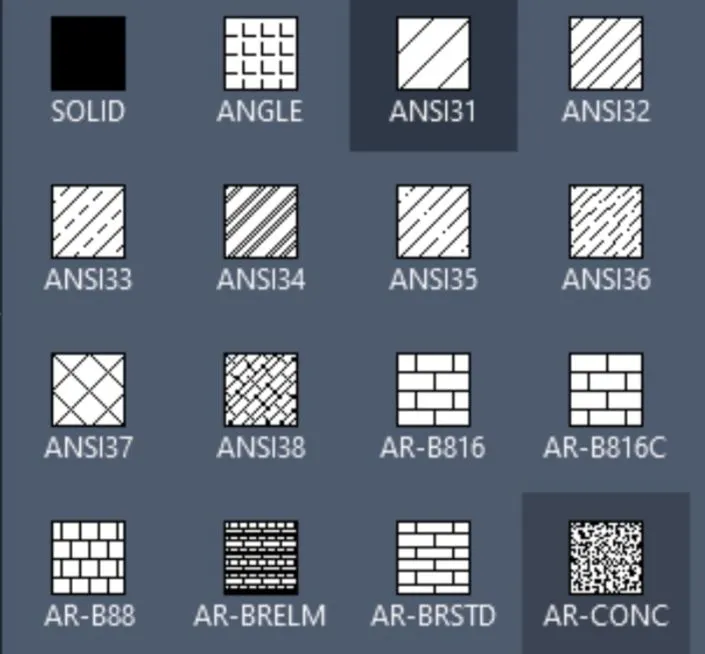

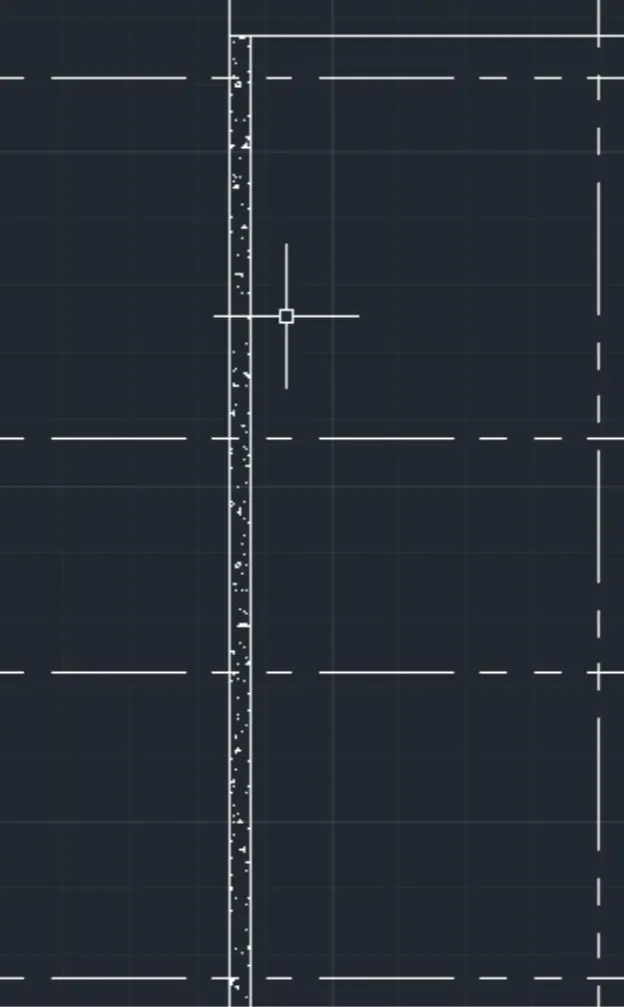

• In the ribbon>hatch>AR-CONC

• In the command prompt type rec>2'x2'
• In the ribbon bas select hatch>ANSI37
• In the command prompt type rec to draft the columns

In the ribbon tab >Annotate>text>Mtext to text the given annotations

• In the ribbon tab.dimension>to give the dimensions

Final Result
