Creating a Wardrobe detailed drawing, Floor Plan, Kitchen Layout and Column Detail using AutoCad

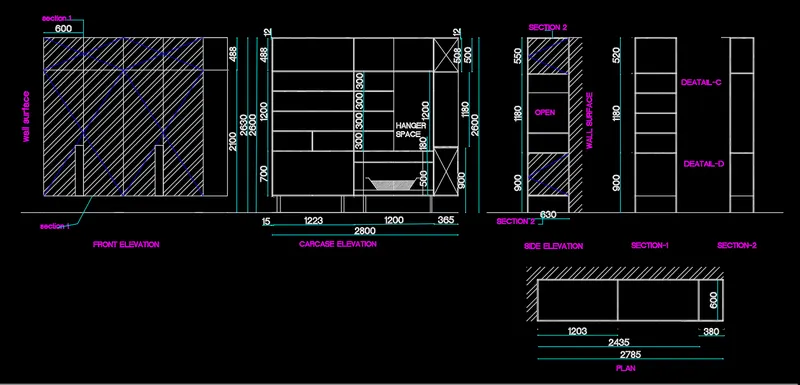

QUE 1 - DRAW THE ELEVATION OF A WARDROBE.

ANS -

THE FOLLOWING STEPS WERE USE TO CREATE CARCASE ELEVATION

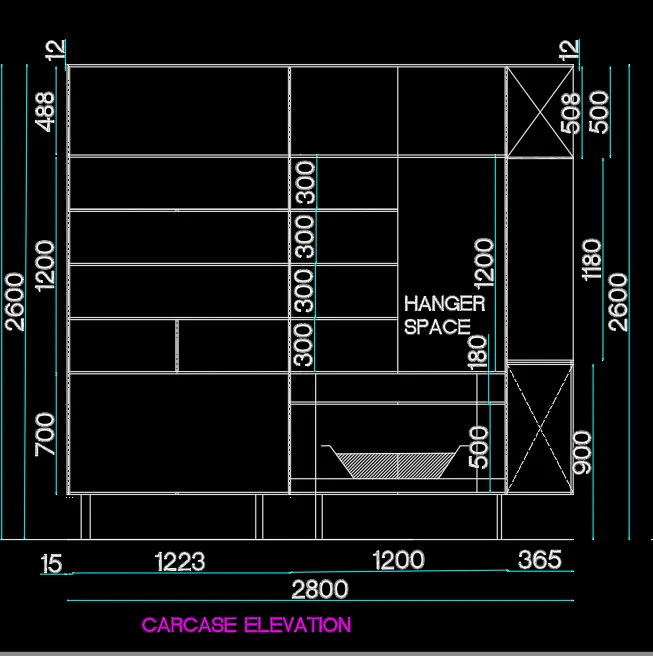

CARCASE ELEVATION :

1. create x line with respect to horizontal and verticle direction.

2. getting a offset 680 and continued offset 300mm 4 times.

3. getting another offset 480

4. all inner wall considering 15mm and external wall cosidering 12mm

5. making hanger space 1200mm

6. provide proper dimensions to carcase elevation.

7. make a tub from creating center offset.

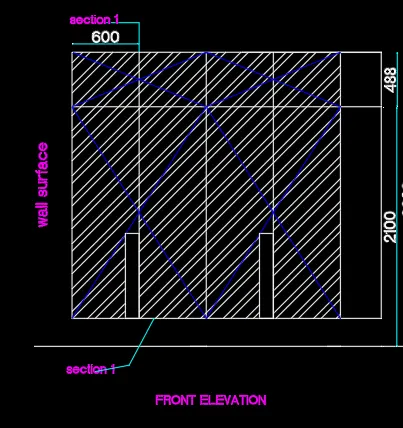

THE following steps are use to create front elevation

FRONT ELEVATION:

1. getting refrence line from carcase elevation and make 2100mm from offset.

2. take offset 488mm and make another line.

3. in horizontal direction taking 1200mm offset.

2. and draw a crosssection line and make rectangle to bottom of the center in both side.

3. use q leader to write a section name of the elevation that is front elevation.

4. use 600 mm offset to locate a center point .

5. and provide proper dimension to the front elevation.

the following steps were use to create plan

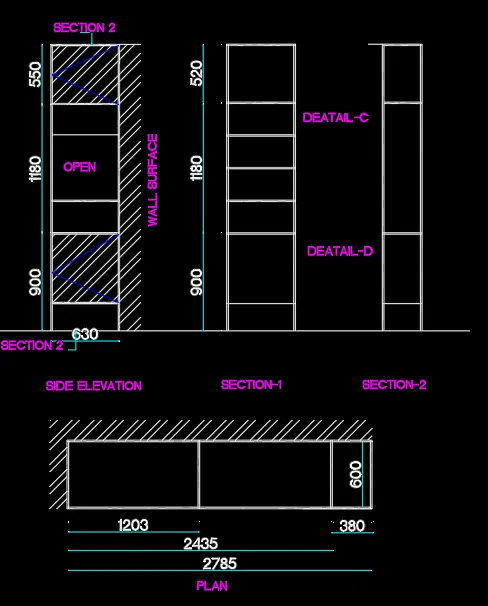

SIDE ELEVATION:

1. use verticle x line to create section 2, side elevation, section-1 , and section-2,

2. take 630 horizontaly and 900mm in verticale to create a side elevation and hatch it inside the box

3.take 1180 and 550 offset upside. and take offset of 15mm inside of the elevation

4. after that hatch it to create wall surface and top section

DEATAIL -C:

5. for section -1 also use the vartical x line and take 900,1180,520 continue offset from horizontal xline.

6. in the centar 1180mm we divide 1180 in to four part which is 295 and taking offse three time.

7. and take offset 15 to inside the section and create section - 1, or c.

8. for section-2 or detail-D we also usle verticle x line and take 900,1180,520 offsets from horizontal line.

9. and taking 15mm offset inside the section-2

PLAN :

10. to create a plan takeing a line to and make 1203,1232,380 in x direction.

11. taking a offset 600 in y direction and join all the line to create a plan.

12. for creating inside line we taking 15 mm offset.

13. after that hatching a outside of the plan.

I AM SUBMITTED THIS WHOLE ELEVATION IN PART BECAUSE BY SNAPPING IT IS NOT SHOWN PROPERLY.

AND AFTER DESCRIBING ALL ELEVATION I AM SUBMITTING THE TOTAL ELEVATIONS.

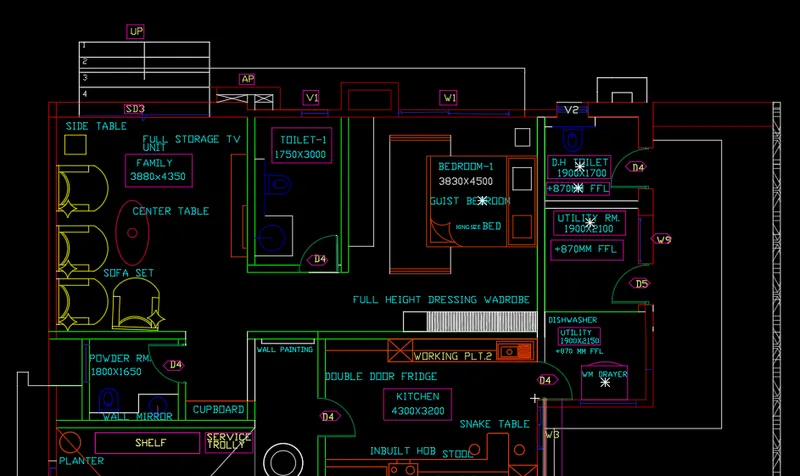

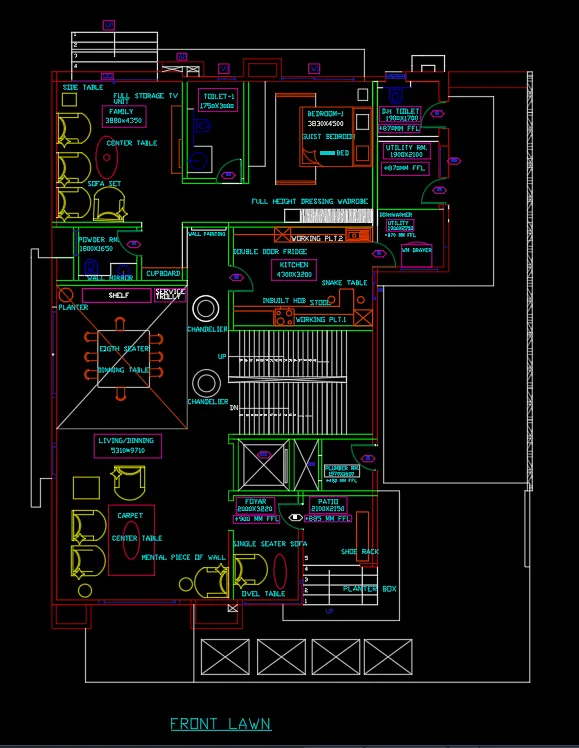

QUE -2 DRAW THE FLOOR PLAN AS SHOWN IN FIGURE.

ANS. -

PROCEDURE -

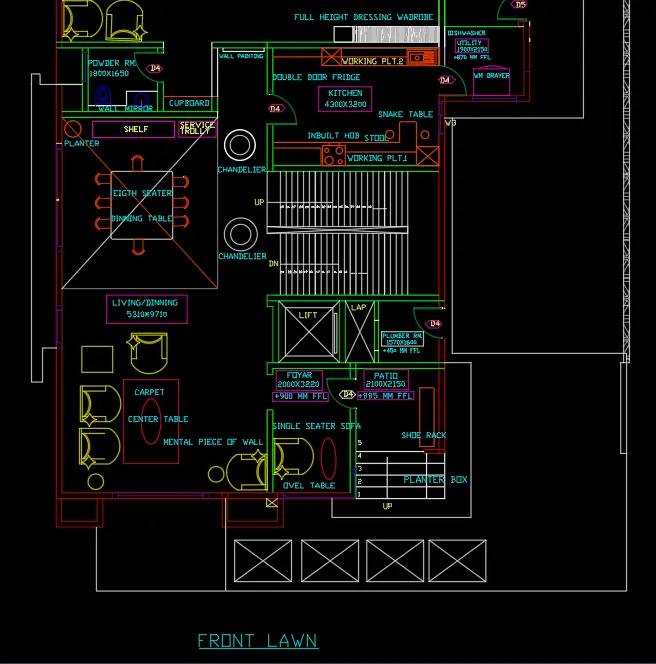

the following steps were use to create floor plan. described in following parts.

in first part described about dinning and living room,chanddler, staircase,

plumber room, patio, floyer,exterior and entirior wall. etc.

1. EXTERIOR WALL - FOR making exterior wall taking verticle and horizontal x line to construct the exterior wall. taking offset of 230mm for exterior wall. with respect to verticle and horizontal.

2. LIVING AND DINNING ROOM - FOR Making living and dinning room taking offset 5310mm in x direction. and 9710mm in y direction .and editing name by multiline text. and also showing there size. inside the room i taking my own measurment to create sofa and center carpet table.

3. FOYER - MAKING FLOYER taking offset 200x3200 respect to x and y direction. and copiying sofa and making a ovel table inside the foyer.

4. PATIO - Making patio who besides the floyer taking offset 2100x2150 respect to x and y direction. and insatalling shoe rack there. and installing planter box below the patio and taking center point and create a horizontal line and taking 305mm offset to create steps.

5. PLUMBER ROOM - Above the patio and floyer created a plumber room. having 1570x1600 size and make by taking offset respect to x and y direction. also create a lift having same size which is 1570x1600. and remaining space

6. ENTERIOR WALL - FOR MAKING ALL enteriorvwall providing a 150mm offset to make a interior wall.

7. CHANDELER - TO MAKING A CHANDLER we create on its own dimension who suitable in wall pointing.

8. STAIRCASE - FOR MAKING staircase create a centerline and taking a offset 114mm in x direction. provide partition to staircase from center to 174mm.

9. KITCHEN - KITCHEN IS BESIDE TO STAIRCASE having a size 4300x3200 taking proper offset to make a kitchen. inside the kitchen. inbuilt hop working platform, stool, snake table, double door fridge, working platform-2. and providing two doors in bothwayn to kitchen.

10. UTILITY ROOM - BESIDE THE kitchen providing a small utility room having a size 1900x2150 it is created by taking offset. inside the utility room provide wm dryer and dishwasher and window.

TAKING ANOTHER PART OF THIS DRAWING TO PROVIDE A DETAILS.

11. UTILITY OR POWER ROOM - IT is besides in the living and dinning room having a size 1800x1650 respect to x and y direction. and prowiding a d4 window and provide a commode and mirror inside the room.

12. FAMILLY ROOM - FAmily room is beside in y direction from utility room. having a size 3880x4350 respect to x and y direction. and provide a sd3 door to the familiy room and create a staircase.

13. TOILET -1 - IT is besides to a familly room having size of 1750x3000 respect to x and y direction. and place a commod and mirror inside the the utility -1.

14. GUIST ROOM - IT DRAW NEAR TO UTILITY -1 having a size is 3830x4500 respect to x and y direction.and creating a king size bed to its own dimension inside the guist room. and provide a color to it by creating a layer. also provide a design of full height dressing wadrobe inside the guist room.

15. TWO UTILITY ROOM - IT is having 1900x1700, 1900x2100 area respect to its x and y direction. and providing d4 and d5 door and provide D.H. toilet inside the utility room.

16. LAYERS - AFTER creating floor plan creating a layers by layer manager and provide proper color to various items like enterior wall exterior wall , furniture , sanitry , text.etc.

QUE 3 - CREATE THE KITCHEN LAYOUT AS SHOWN IN FIGURE.

ANS -

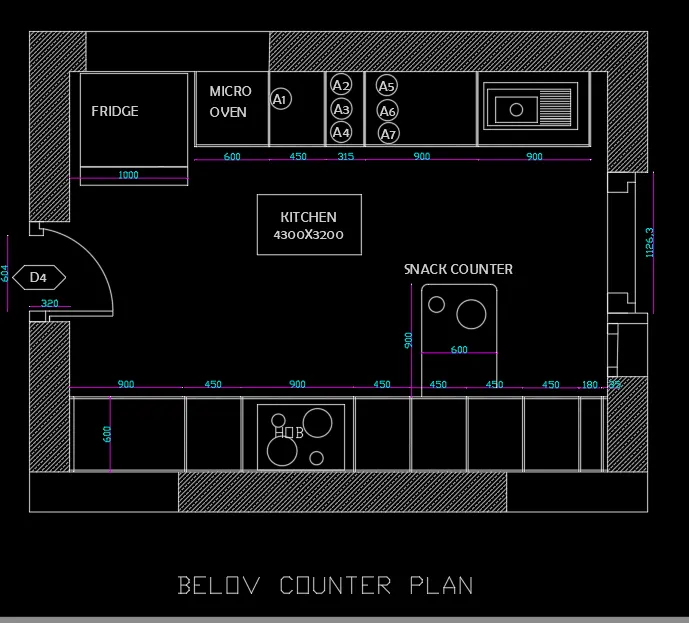

THE FOLLOWING STEPS WERE USE TP CRETE BELOV COUNTER PLAN.

1. create twho x line with respect to x and y direction and take 4300x3200 230mm offset both side.

2. in bottom side of the kitchen creating a kitche platform and hob and taking continusely offset 900,450,900,450,450,450,180,35 in second 900 offset creating hob inside the box. and create a small circle inside the hob.

3. taking 15mm offset to create a line and above the hob create a small snacks counyter having 600x900 area respect to x and y direction. and make small circle inside the snack counter.

4. in above side of the kitchen create a 1000mm in y direction and make a fridge there.

5. side of the kitchen creating a micro oven 600mm by taking a offset. and continusely taking a offset450, and continuesly taking a offset 315,900,900 to create a platform.

6. and making a small oven boxe with its own dimension.

7. providing a 600mm door and 1126mm windows to the kitchen. and providing a hatch in suitable portion.

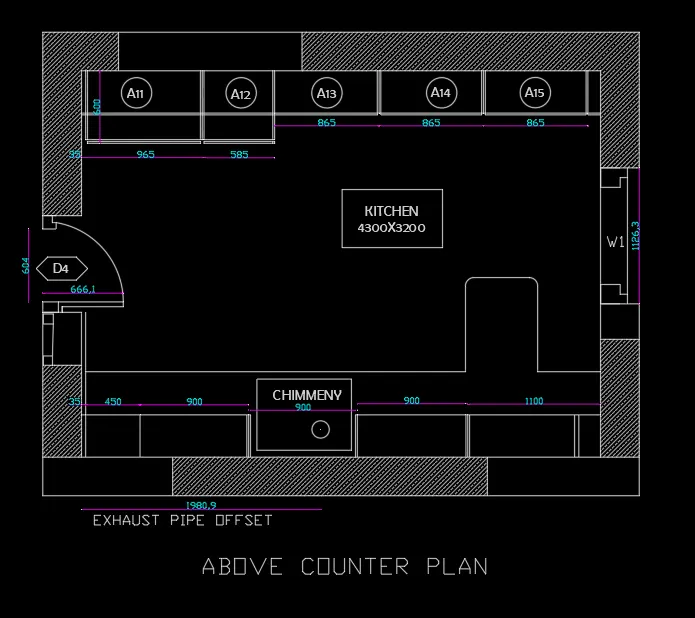

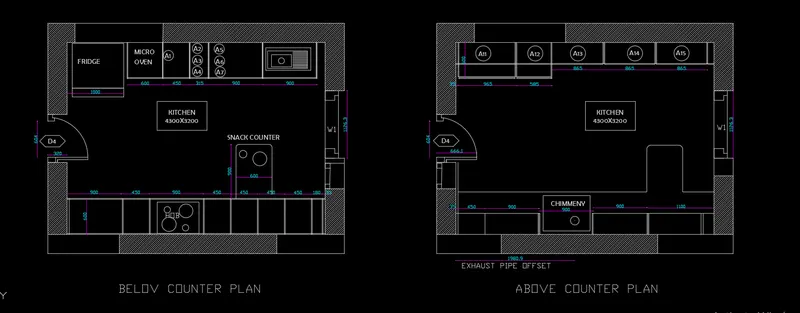

THE FOLLOWING STEPS WERE USE TO CRETE ABOVE COUNTER PLAN OF THE KITCHEN.

1. TAKING TWO X LINE VERTICLE AND HORIZONTAL DIRECTION. AFTER THAT TAKING 230MM OFSET TO CREATE A WALL

BOTH X AND Y DIRECTION.

2. KITCHEN HAVING 4300X3200 FOR KITCHEN WEW TAKE OFFSET RESPECT TO X AND Y DIRTECTION.

3. FROM INSIDE OF THE WALL TAKE CONTINUSELY 35,450,900,900,900,1100 IN X DIRECTION TO MAKING PLATFORM.

4. IN SECOND OFFSET HAVING 900MM DISTANCE MAKING CHIMNEY INSIDE THE OFFSET LINE AND CRETE SMALL CIRCLR INSIDE IT.

5. FROM THAT CIRCLE TAKING OFFSET 1980MM EXHAUST PIPE.

6. IN Y DIRECTION TOP SIDE TAKING OFFSET TO CREATE ANOTHER PLATFORM ACCORDING TO DRAWING.

7. FOR MAKING ANOTHER PLATFORM TAKING CONTINUESLY 35,965,585,868,865,865 AND CREATE A BLOCKS A11,A12,A13,A14,A15.

8. PROVIDE DOOR HAVING 604 WIDTH AD ALSO PROVIDE 1126W1, WINDOW INTO THE KITCHEN.

QUE 3.-DRAW THR COLUMN DETAILAS SHOWN IN THE FIGURE.

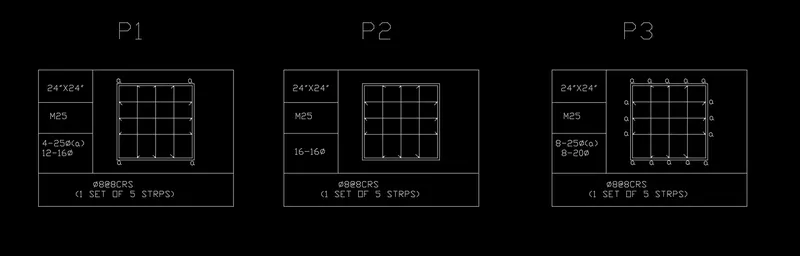

ANS - SHOWING A PI COLUMN DETAILS.

1.

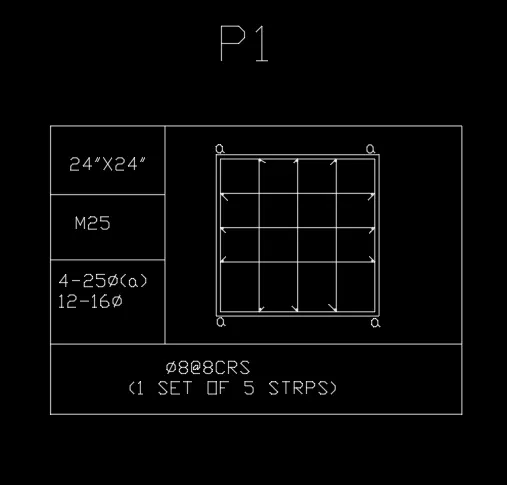

FOLLOWING STEPS USE TO CREATE P-1 DERTAILS.

1. CREATE A OWN DIMENSIONAL RECTANGLE AND DRAW A COLUMNS INTO IT BY USING LINE TOOL.

2. TAKING OFFSET OF 50MM OF RECTANGLE.

3. DRAW A STEEL RODS USING LINE TOOL AND ITS BOTTOM AT 45 ANGLE DRAW A SMALL LINE.

4. IN CORNER OF THE SMALL LINE DRAW A SMALL CIRCLE INSIDE THE LINE AND HATCHING INSIDE THE CIRCLE.

5. BY MULTILINE TEXT DESCRIBED A DETAILS ABOUT IT. AND MENSION A (a) ITS CORNER.

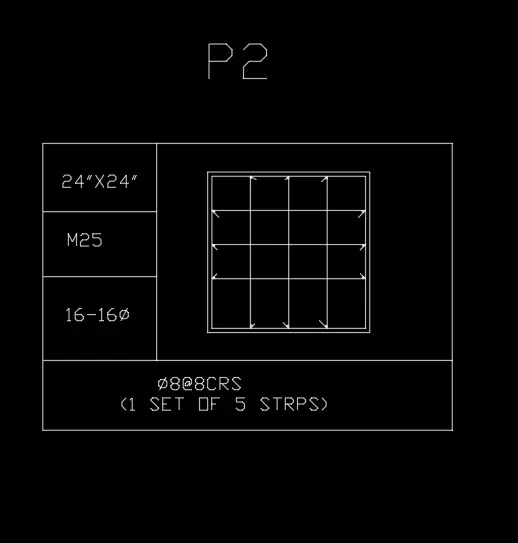

FOLLOWING STEPS USE TO CREATE P-2 DERTAILS.

1. CREATE A OWN DIMENSIONAL RECTANGLE AND DRAW A COLUMNS INTO IT BY USING LINE TOOL.

2. TAKING OFFSET OF 50MM OF RECTANGLE.

3. DRAW A STEEL RODS USING LINE TOOL AND ITS BOTTOM AT 45 ANGLE DRAW A SMALL LINE.

4. IN CORNER OF THE SMALL LINE DRAW A SMALL CIRCLE INSIDE THE LINE AND HATCHING INSIDE THE CIRCLE.

5. BY MULTILINE TEXT DESCRIBED A DETAILS ABOUT IT.

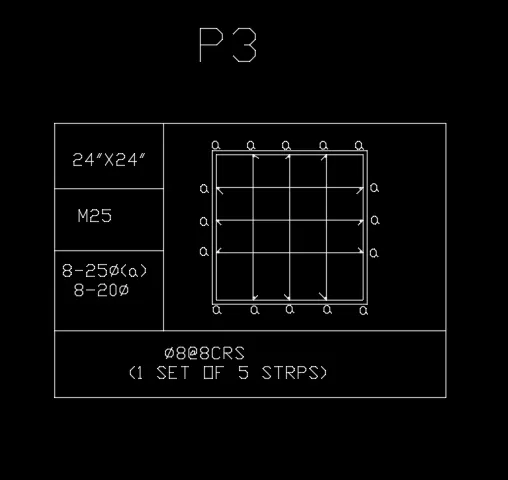

FOLLOWING STEPS USE TO CREATE P-3 DERTAILS.

1. CREATE A OWN DIMENSIONAL RECTANGLE AND DRAW A COLUMNS INTO IT BY USING LINE TOOL.

2. TAKING OFFSET OF 50MM OF RECTANGLE.

3. DRAW A STEEL RODS USING LINE TOOL AND ITS BOTTOM AT 45 ANGLE DRAW A SMALL LINE.

4. IN CORNER OF THE SMALL LINE DRAW A SMALL CIRCLE INSIDE THE LINE AND HATCHING INSIDE THE CIRCLE.

5. BY MULTILINE TEXT DESCRIBED A DETAILS ABOUT IT.B MENSION A (a) ON RODS CORNER SIDE.

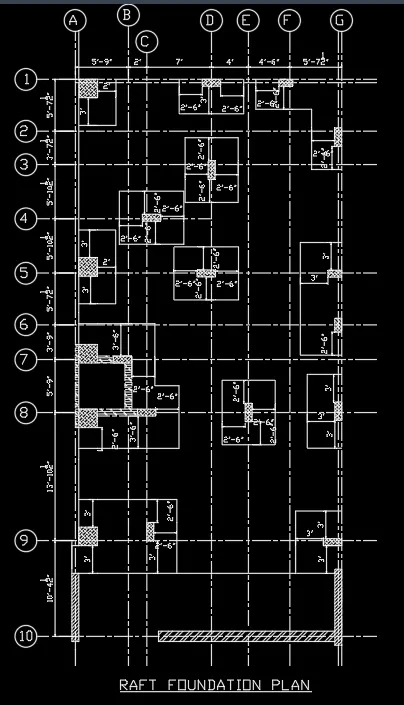

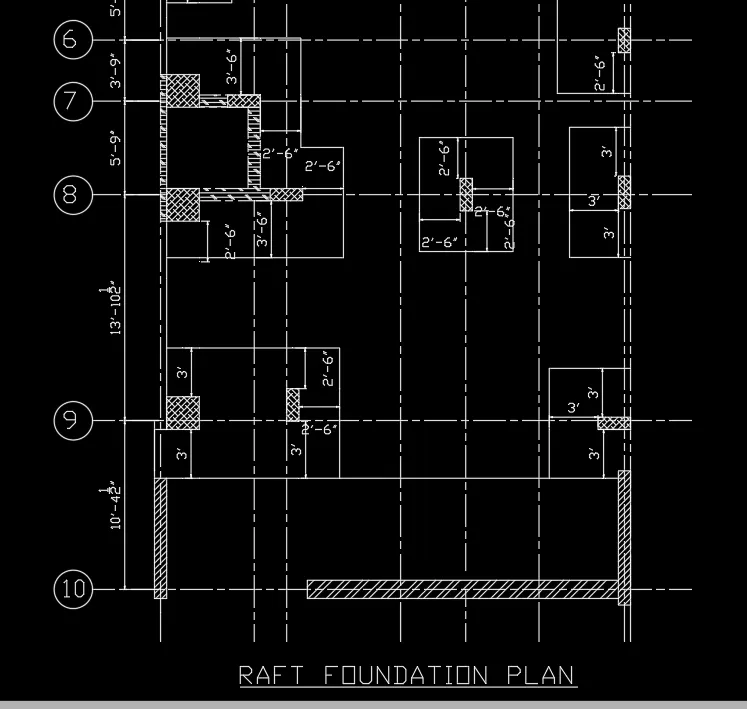

QUE 4. - DRAW THE RAFT LAYPOUT AS SHON IN THE FIGURE AND ASSUME 24"X24" ,9"X24", 9"X18" FOR COLUMNS.

ANS - FOR PERFECT VIEW BY SNAPPING DESCRIBING A RAFT FOUNDATION DETAILS IN PARTS.

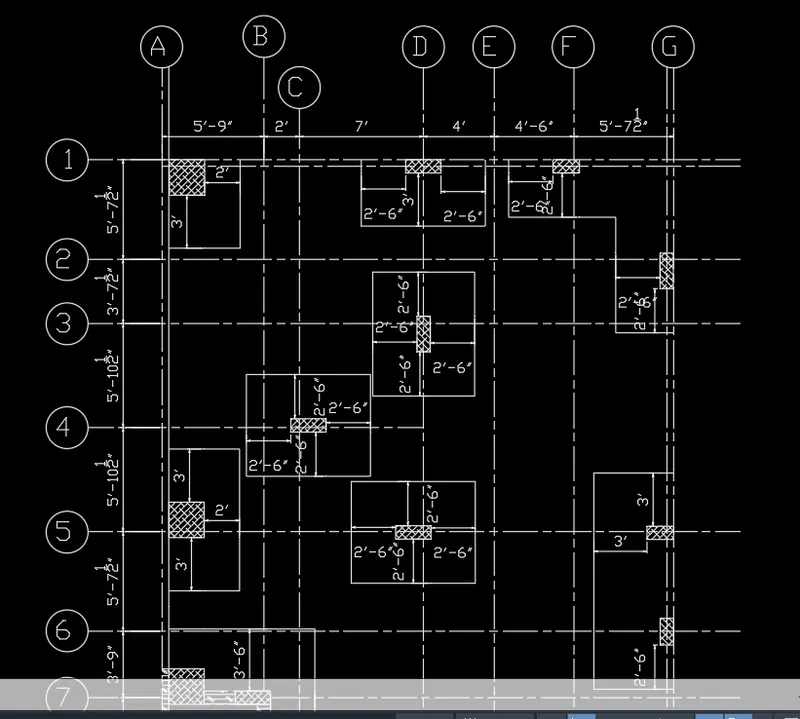

FOLLWING STEPS USE TO CREATE RAFTB FOUNDATION PLAN.

1.TAKING X LINE VERTICALY AND HORIZNTALY AND BY LAYER SELECT A A CAD DASH LINE FOR MAKING A GRID LINE.

2. FROM BOTTOM TO TOP HAVING 10 GRID LINE IN VERTICAL OR Y DIRECTION. FROM TOP IN X DIRECTION OR HORIZONTAL DIRECTION HAVING 7 GRID LINES. FOR MAKING VERTICAL AND HORIOZONTAL GRID LINE USE OFFSET TOOL.

3. TAKING 10'4.5" OFFSET FROM GRID 10 IN Y DIRECTION AND CREATE 9 GRID. TAKING 4.5" IN Y DIRECTION INSIDE THE VERTICLE X LINE.

4. IN 9 NO. GRID SET 24"X24" COLUMN IN TO CENTER AND TAKING 3' OFFSET IN BOTH X, N Y DIRECTION. IN NEGATIVE Y DIRECTION CREATE A STRIGHT HORIZONTAL LINE IN X DIRECTION.

5. BETWEEN 10 AND 9 GRID TAKING A 4.5" OFFSET IN BOTH X AND Y DIRECTION FROM CENTER LINE AND MAKING A WALL AND HATCHING INSIDE THE WALL. AND CREATE ANOTHER WALL ANOTHER SIDE IN (G) GRID. ALSO MAKE A WALL HAVING 9" WIDTH TOWARD NEGATIVE X DIRECTION.

6. TAKING 13'10.5" OFFSET FROM 9 NO. GRID LINE TOWARDS 8 NO. GRID LINE.FROM GRID 8 TAKING 5'9" OFFSET TOWARDS 7 NO. GRID.

7. COPYING 24"X24" COLUMN FROM GRID 9 AND COPY AT 8 AND 7 NO. GRID CORNERPOINT.

8. TAKING 3'9" OFFSET FROM 7 TO 6 NO. GRID AND MAKE 6 NO. GRID.

SHOWING ANOTHER PART OF GRID LINE.

IN FIRST PART SHOVING FROM 10 TO 6 GRID.

9. FROM GRID 6 TAKING 5'10.5" OFFSET AND GET 5 NO. GRID. AND COPYING 24"X24" COLUMN IN 5 NO. GRID. AND TAKE 3' OFFSET FROM COLUMN IN BOTH YPOSITIVE OR NEGATIVE DIRECTION AND TAKING 2' OFFSET IN X DIRECTION.AND CLOSING BOUNDRY BY USING FILLET.

10.FROM GRID 5 TAKING 5'10.5" OFFSET TOWARDS GRID 4. AND SET A 24"X24" COLUMN IN TO GRID 5 TO ITS CORNER AND TAKE 3' OFFSET +Y,-Y DIRECTION AND ALSO TAKING 2' OFFSET TO X DIRECTION AND USE FILLE TO COMBINE THE FOUNDATION.

11.FROM GRID 4 TAKING 5'10.5" OFFSET AND GET GRID 3.

12. FROM GRID 3 TAKING 3'7.5" OFFSET AND GET GRID 2.

13. FROM GRID 2 TAKING 5'7.5" OFFSET AND GET GRID 1. AND AFTER THAT CREATING A TO G GRIDS BY TAKING OFFSETS FROM VERTICLE X LINE.

14. FROM GRID 1 ALSO TAKING 4.5" OFFSET INSIDE THE RAFT LAYOUIT.

15. TO THE VERTICLE X LINE PROVIDING A (A) GRID LINE.

16. FROM GRID A TAKING TAKING 5'9" OFFSET TOWARDS B GRID. IN A GRID CORNER PROVIDING A 24"X24"X COLUMN TO

AND TAKING 2' OFFSET IN X DIRECTION AND 3' OFFSET IN -Y DIRECTION.

17. FROM GRID A TAKING 5'" OFFSET TOWARDS B GRID. IN B GRID WHO CROSSING THE 7 GRID SET A 9"X24" COLUMN TO AND CREATRE A SHEAR WALL THERE. -X AND -Y DIRECTION.

18. FROM GRID B TAKING 2' OFFSET TOWARDS C GRID.AND SETTING 9"X24" COLUMN IN GRID 4 WHO CROOSING THE GRID C. AND TAKE 2'6" OFFSET IN ALL 4 SIDE ANND USE FILLET TO COMBINE THEM. AND ALSO SET ANOTHER COLUMN HAVING 9"X18" SIZE. AND SETTING IN GRID 9 WHO CROOSING THE C GRID. AND TAKING 2'6" IN Y DIRECION AND 3' IN -Y DIRECTON AND 2'6" IN X DIRECTION AND USE FILLET TO COMBINE LINE.

19. FROM C GRID TAKING 7' OFFSET TOWARDS D GRID.SET 9"X24" COLUMN IN GRID 1 AND TAKING 2'6" IN BOT X,-X DIRECTION 3' IN -YB DIRECTION AND USING FILLET TO COMBINE IT. AND SET SAME SIZE COLUMN IN GRID 3 AND TAKING 2'6" OFFSET IN ALL 4 DIRECTION. AND AND ALSO SET SAME SIZE COLUMN IN GRID 5 AND TAKING 2'6" OFFSET IN ALL 4 DIRECTION USING FILLET TO COMBINE THE LINE.

20. FROM GRID D TAKING 4' OFFSET TOWARDS GRID E. AND SET A 9"X24" COLUMN IN GRID 8 AND TAKING 2'6" OFFSET IN ALL 4 DIRECTION AND USING FILLET TO COMBINE THE LINES.

21. FROM GRID E TAKING 4'6" OFFSET AND GET GRID F. AND SET 9"X18" COLUMN IN GRID 1. TAKE 2'6" OFFSET IN -Y AND -X DIRECTION AND BOMBINE THE LINE BY FILLET.

22. FROM GIRD F TAKING 5'7.5" AND SETTING A 9"X24" COLUMN IN GRID 2 AND TEKING 2'6" -X AND -Y DIRECTION AND USE FILLET TO COMBINE WITH F GRID COLUMN LINE.

23. CONTINUE FROM GRID G IN GRID 5 SETTING A 9"X18" COLUMN AND TAKING 3' OFFSET Y AND -X DIRECTION

24. CONTINUE FROM GRID G CROOSING GRID 6 SETTING A 9"X18" COLUMN AND TEKING 2'6" IN -Y DIRECTION AND COMBINE A 5 GRID AND 6 GRID COLUMN BY FILLET

25. IN GRID 8 SETTING 9"X24" COLUMN AND TAKING 3' OFFSET IN ALL SIDE.

26. IN 9 GRID WHO CROSSING G GRID SETTING A 9"X24" COLUMN AND TEKINGB A OFFSET 3' IN ALL SIDE.

IT ALL STEPS WHO INVOLVE TO CREATE A RAFT FOUNDATION PLAN.
