Creating a Wardrobe detailed drawing, Floor Plan, Kitchen Layout and Column Detail using AutoCad

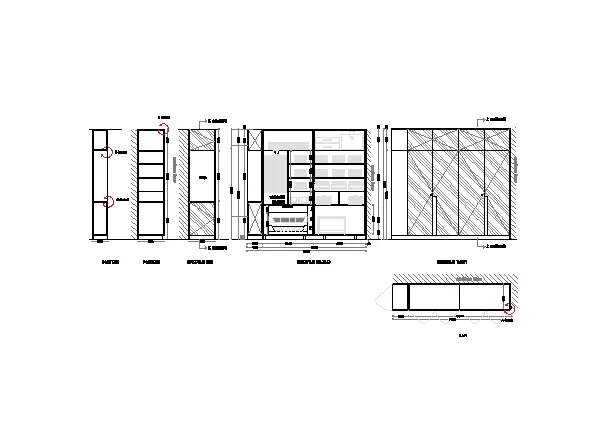

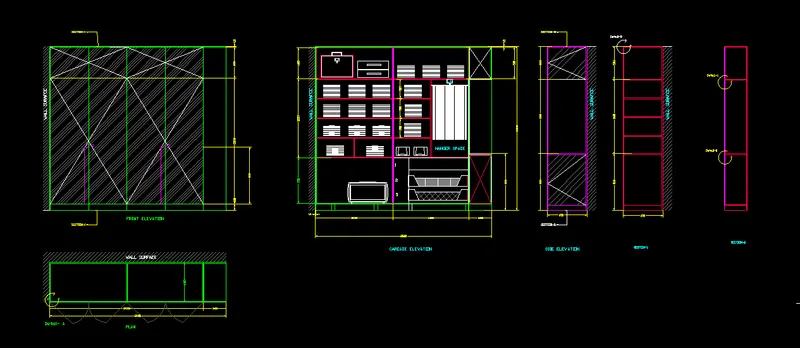

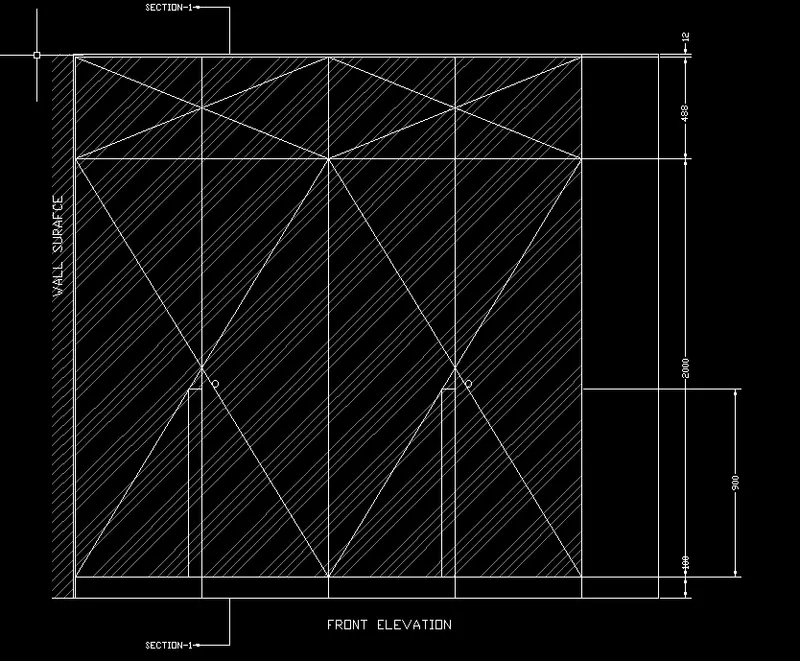

1. Draw the elevation and details of a wardrobe as shown in the Figure below. After sketching, you need to provide the dimensions and text with the use of layers. Use proper text styles and dimension methods to document it. Also, assume dimensions, wherever needed.

Note: All dimensions are in mm.

Answer:

AIM: To Draw the elevation and details of a wardrobe as shown in the Figure below. After sketching, you need to provide the dimensions and text with the use of layers.

PROCEDURE:

STEP1:

• Units are set to mm
• limits are lim-max are also set
• zoom command is also used.

STEP-2

• In the command line type rec> 2800,2600
• In the command line type offset
• Offset from top of dimension 12 and 488 mm.

STEP-3:

• In the command line type offset
• Create the offset from the side at the distance of 608.75 and 365.

STEP-4:

• In the command line type L and by increasing the transparnecy to create wall surface.
• by using hatch command and give scale 20.
• In the command line type Q leader to mention the annotations.

STEp-5:

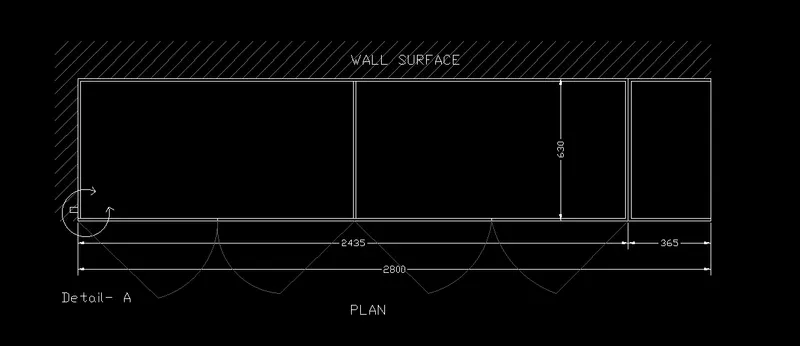

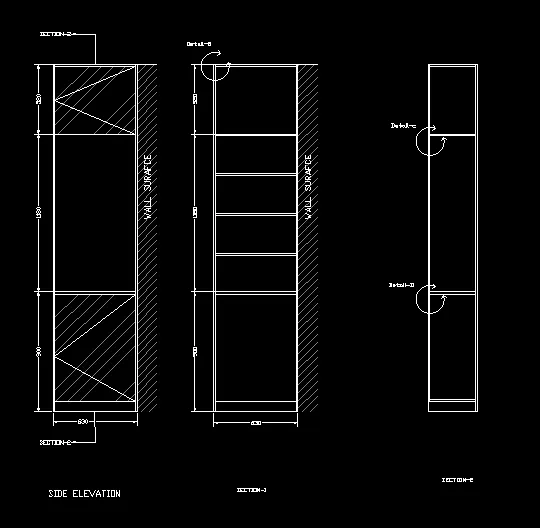

• In the command Prompt type rectangle > 630*2800
• In the command Prompt type q leader to give the annotations.

STEP-6:

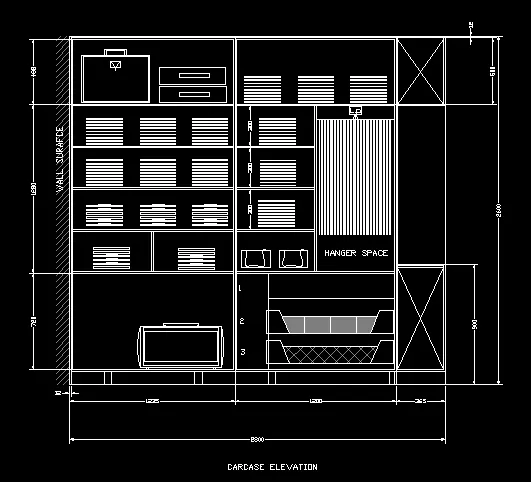

• In the command Prompt type rectangle 2800x2600.
• with the help of line command drawers and cabinets are created.
• For the drawers and cabinets give the gray colour
• Dimensions the drawing

STEP-7:

• In the command Prompt type rectangle and dimensions of 520*630, 1180*630, 900*630 this is repeated 2 times.
• using line command, the next of the lines are drawn.

STEP-8:

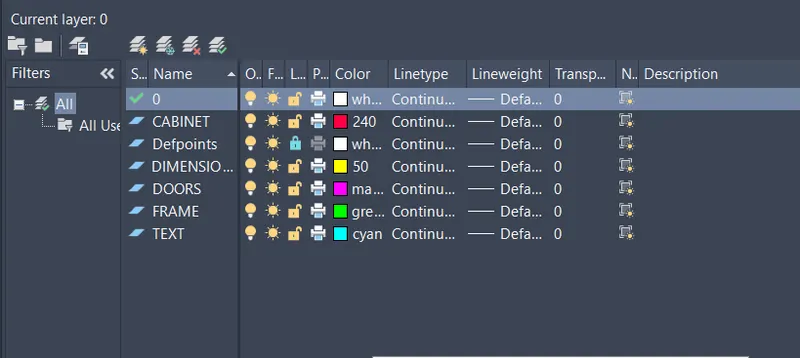

• Place the entire drawing in the respective layers.

RESULT:

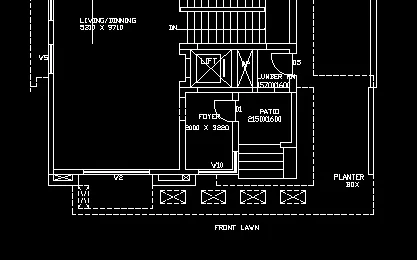

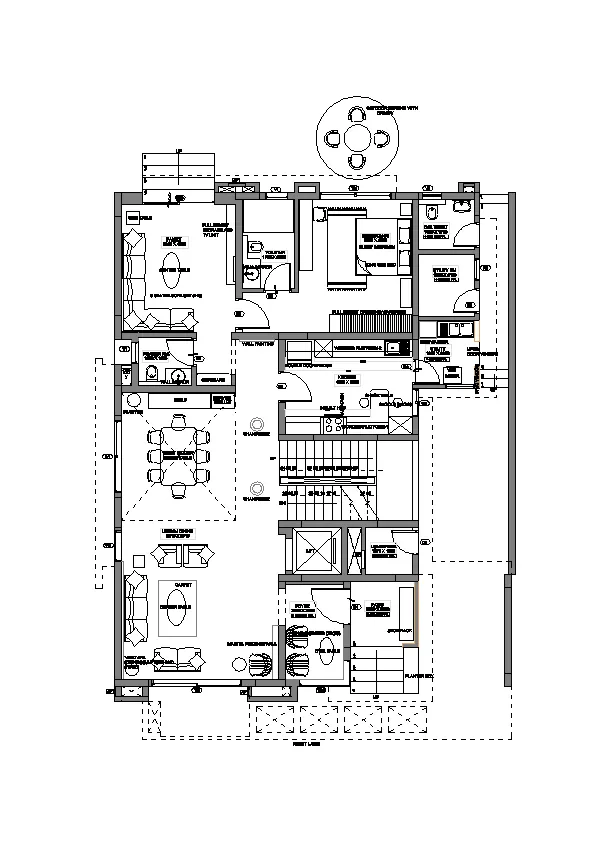

Q2. Draw the floor plan as shown in the Figure. Use the proper drafting tools to sketch the plan. Do not hatch or draw the furniture. You need to draw the floor plan with the following:

Note: You can also import the Floor_Plan.pdf into your current drawing and start working on the project. You need to scale the imported pdf file using reference option. All dimensions are in mm.

1. Walls (Exterior and Interior)

Wall Thickness: Exterior Wall- 230mm, Interior Wall: 150 mm (Wherever Required)

2. Doors and Windows: Assume the size of the doors and window.

2.1 Stairs: Tread-300mm, Riser-150mm

3. Insert Text wherever required
4. Insert the dimensions using proper dimension techniques

ANSWER:

AIM: To draw the given floor.

PROCEDURE:

STEP-1:

• Units are set to mm
• limits are lim-max are also set
• zoom command is also used.

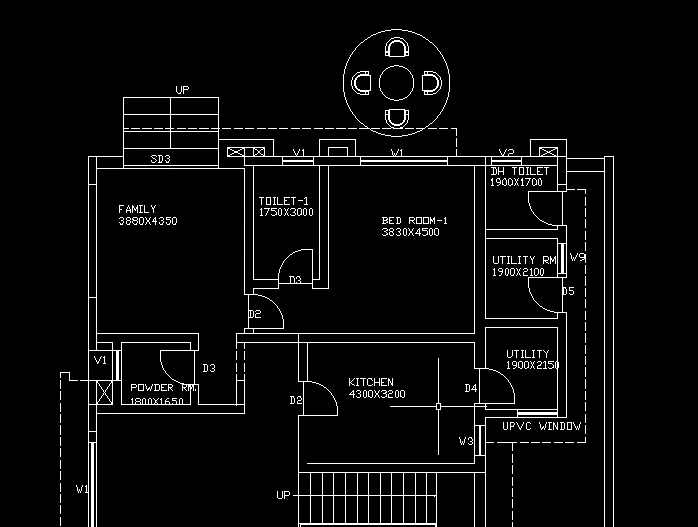

STEP-2:

• In the command Prompt type XL to draw the infinite lines.
• In the command Prompt type offset to offset the line for a particular distance.
• Using arc command doors are also created.

Doors:

D1-1000X2000MM

D2-900X2100MM

D3-800X2100MM

D4-750X2100MM

D5-700X2100MM

SD-2256X2100MM

Windows:

W1-2700X1500MM

W2-2500X1500MM

W3-900X1500MM

W5-1000X1500MM

W9-800X1500MM

Ventilators:

V1-800X500MM

V2-750X500MM

STEP-3:

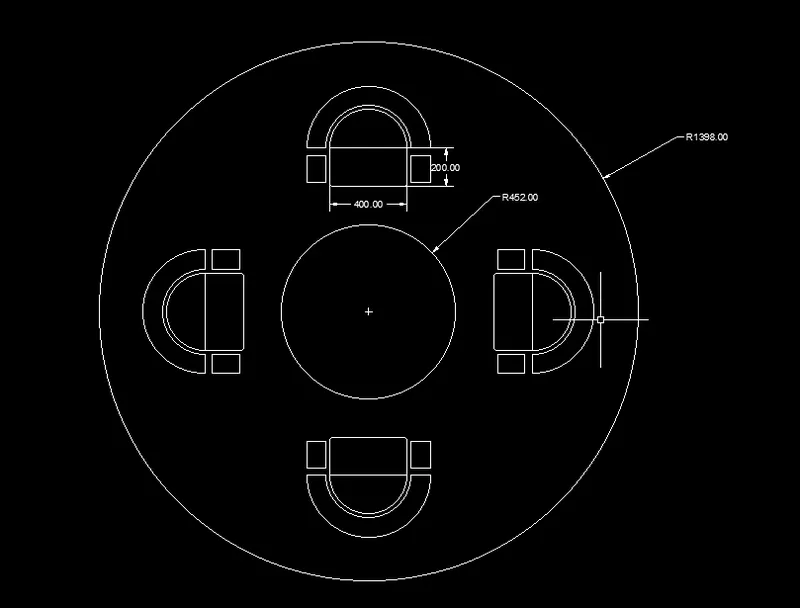

To draw a canopy.

STEPWISE PROCEDURE:

command: UN

units

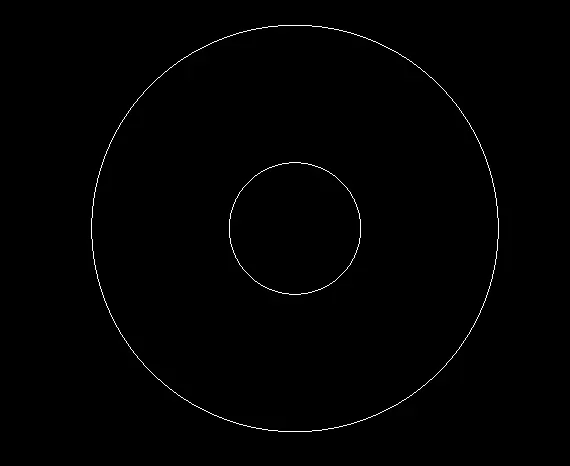

command: C

CIRCLE

specify center point for circle or [3p/2p/ttr(tan tan radius)]:

specify radius of circle or diameter:1398

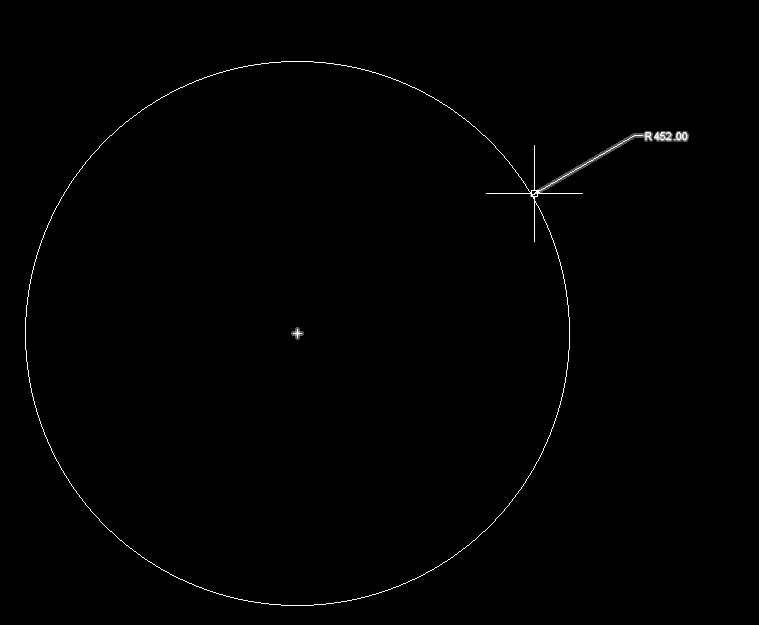

command: C

CIRCLE

specify center point for circle or [3p/2p/ttr(tan tan radius)]:

specify radius of circle or diameter<1398>: 452

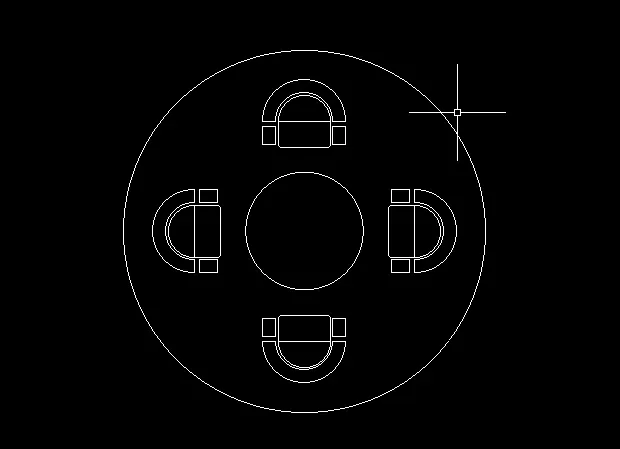

• next here we have to drawthe rectangle inside the first circle,then we have to enter the fillet command and select the rectangle corner to fill it.
• next we select the arc command to create arc left side of the rectangle.

• copy the created chair and use array command.
• by using polar array and providing the number of items as 4 the chairs are createdas shown below.

An outdoor conopy is created as per the details given using autocad.

STEP-4:

• Give the dimensions and anotation the drawing with the text where ever required.

STEP5:

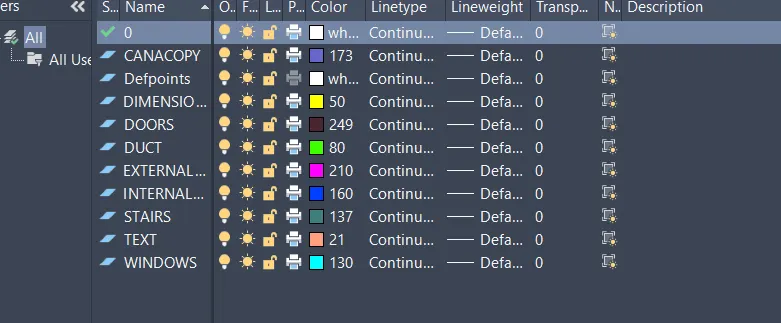

• place the elements of the drawing in the respective layers.

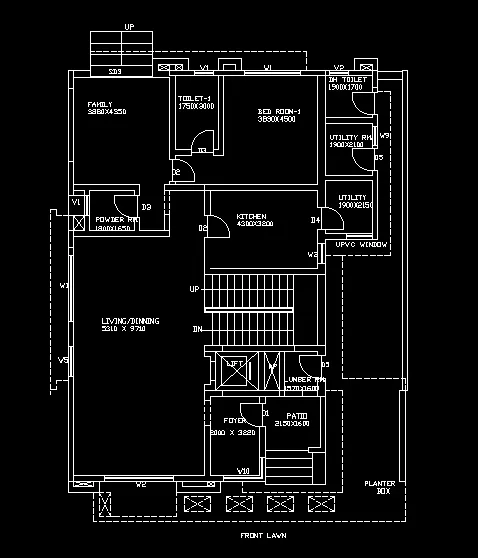

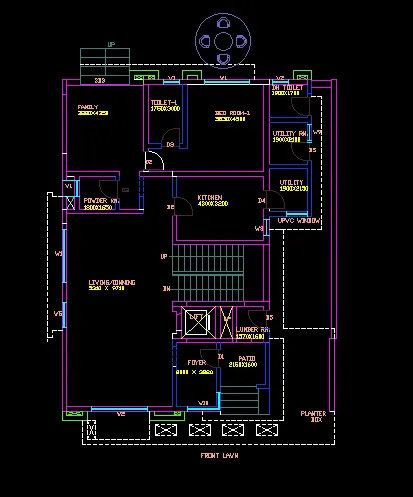

RESULT:

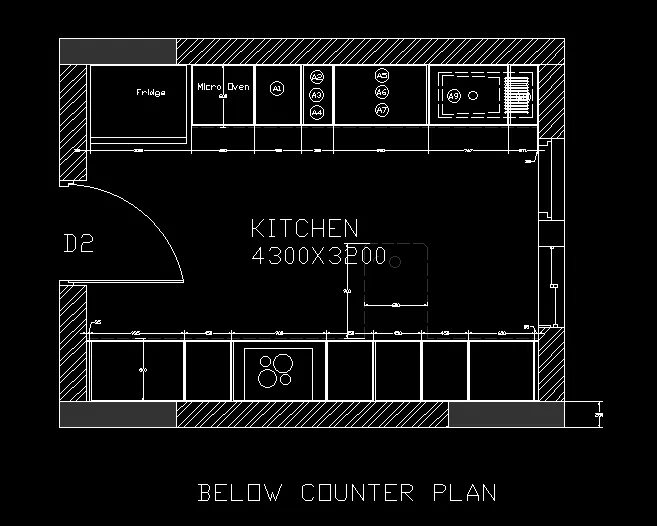

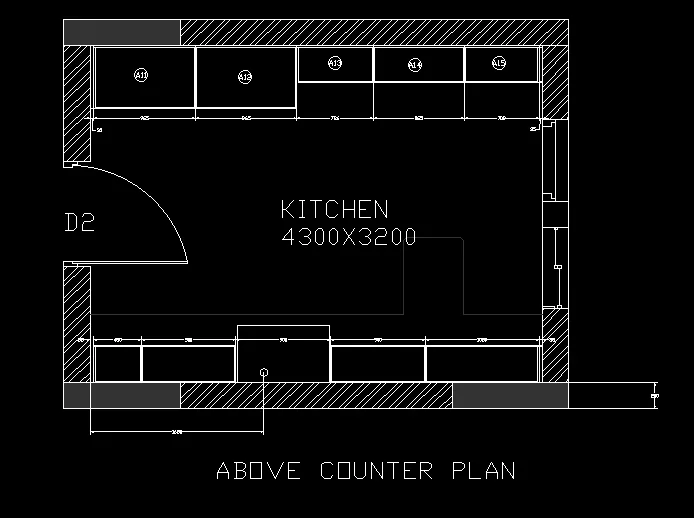

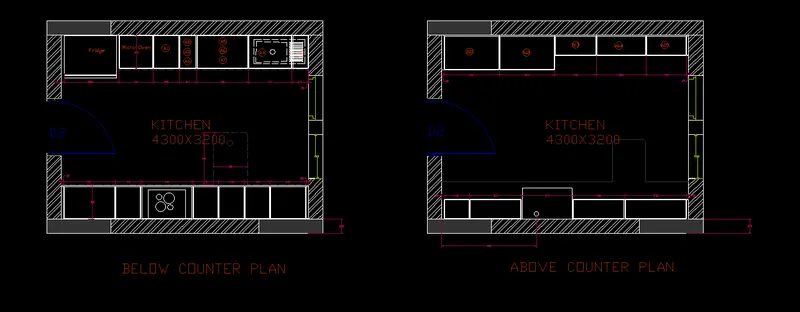

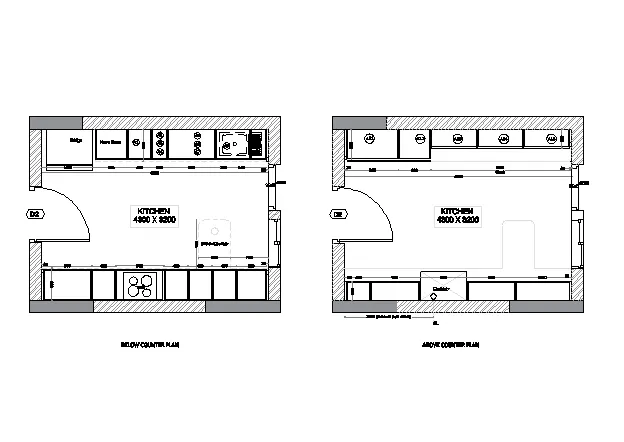

Q3. Create the Kitchen Layout as shown in the Figure below. Also, use proper dimension techniques to dimension the kitchen layout. Also, insert text wherever required. All dimensions are in mm.

ANSWER:

AIM: To Create the Kitchen Layout as shown in the Figure below. Also, use proper dimension techniques to dimension the kitchen layout. Also, insert text wherever required. All dimensions are in mm.

PROCEDURE:

STEP-1:

• Units are set to mm
• limits are lim-max are also set
• zoom command is also used.

STEP-2:

• In the command Prompt type rec and the dimensions are 4734 x 3688mm.
• In the command Prompt type offset and offset it to the distanceof 250mm.
• Using arc and lines the door is drawn.
• in the command prompt type hatch to hatch the model.

STEP-3:

• In the command Prompt type rec> dimensions, to do the fridge.
• In the command Prompt type offset and offset it to the desired distance to get the micro oven.
• In the command Prompt type trim to trim the extras.
• In the command Prompt type offset and offset it to the horizontal distance of 350,450,900,450,450,and 560.
• In the command Prompt type trim to trim the extras.
• In the command Prompt type line type and load the dotted lines.

STEP-4:

• In the command Prompt type text to text the given anotations.
• In the command Prompt type dimensions to given the dimensions to your plan.
• In the command Prompt type even the leader command is used to name the dimensions.

STEP-5

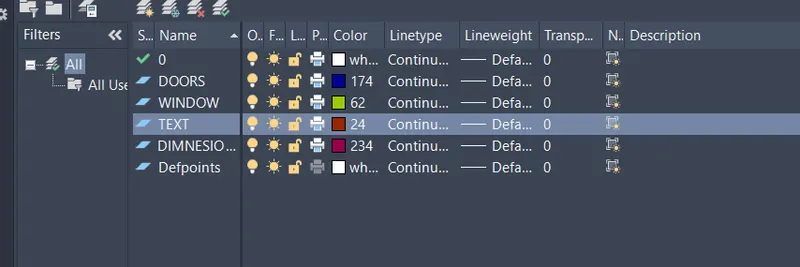

• place all the elements in the required layers.

RESULT:

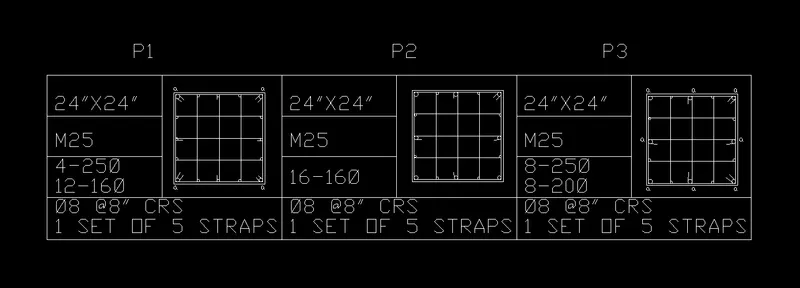

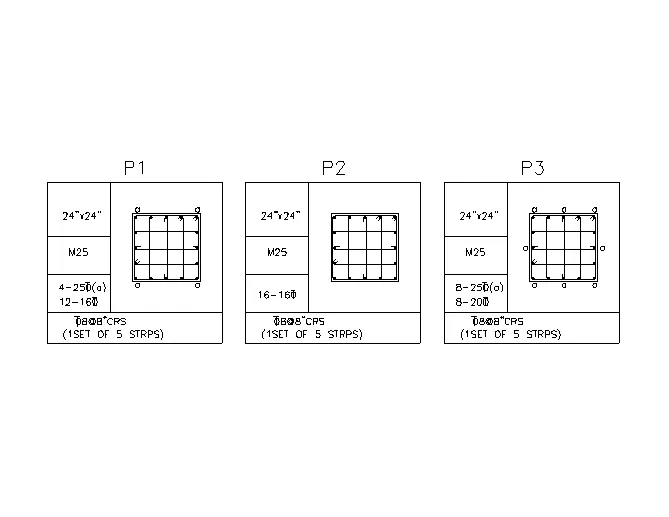

Q4. Sketch the column details as shown in Figure. Insert dimensions and text in the figure. Refer to the bar sizes from the schedule.

8mm ---- 0.31 Inches

25mm--- 1 inches

16mm—0.62 inches

ANSWER:

AIM: To sketch the column deatails.

PROCEDURE:

STEP-1:

• Units are set to mm
• limits are lim-max are also set
• zoom command is also used.

STEP-2:

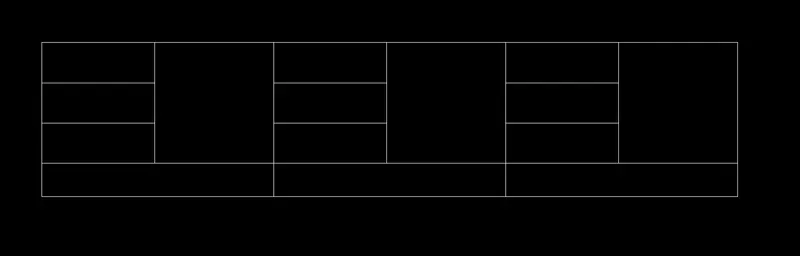

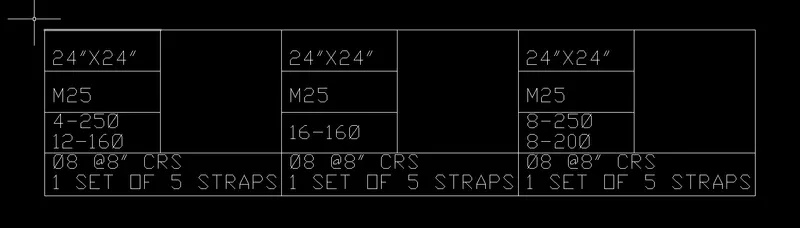

• using rectangle and line command and the tables are drawn.

STEP-3:

• Using text command, the text is given.

STEP-4:

• In the command Prompt type lines to draw the reinforcement.
• In the command Prompt type circles to draw the reinforcement.

RESULT:

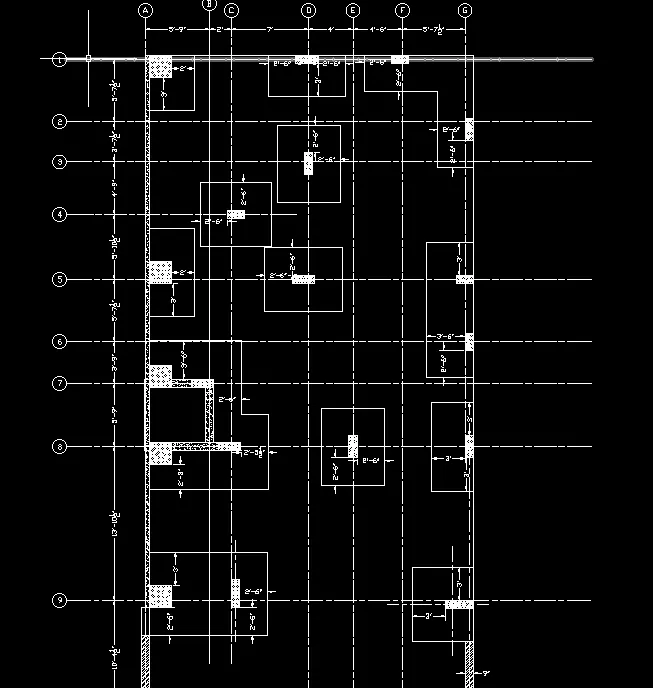

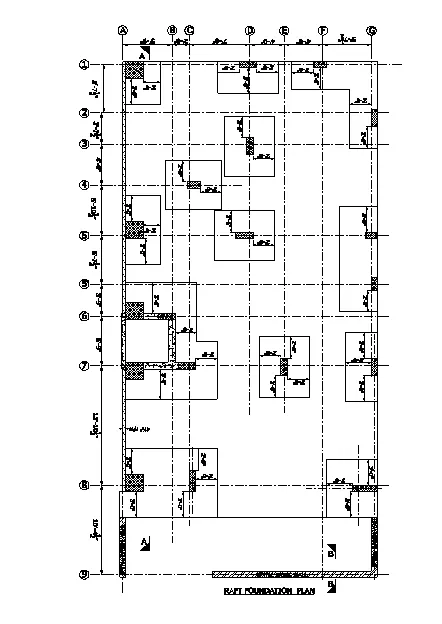

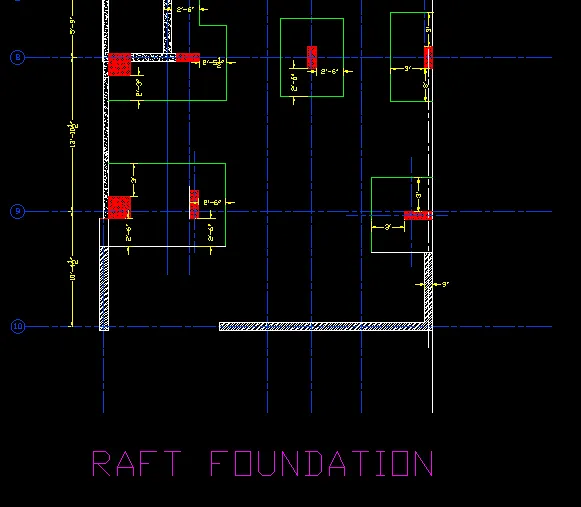

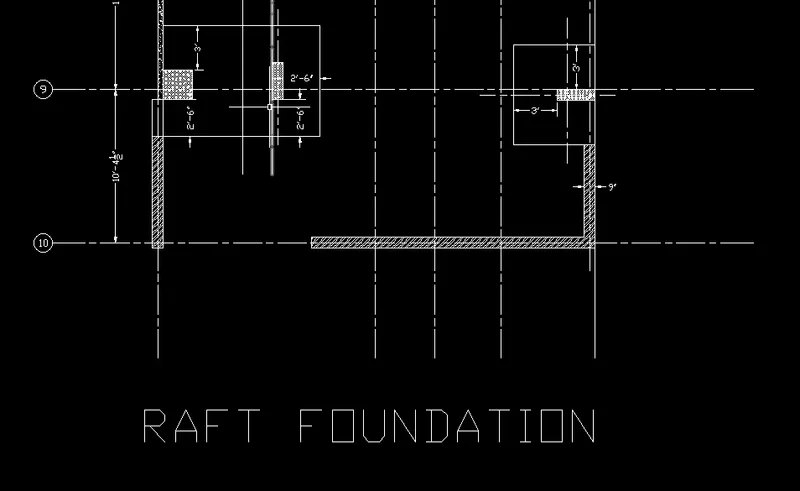

Q 5. Draw the Raft Layout as shown in the Figure. Assume the column size as per your knowledge. You can take the sizes as: 24”x24”, 9” x 24”, 9” x 18”, and 9’ x 24”. You can import the raft_foundation.pdf to ensure the missing dimensions.

ANSWER:

AIM: To draw the raft layout.

PROCEDURE:

STEP-1:

• Units are set to engineering > inches.
• limits are lim-max are also set
• zoom command is also used.

STEP-2:

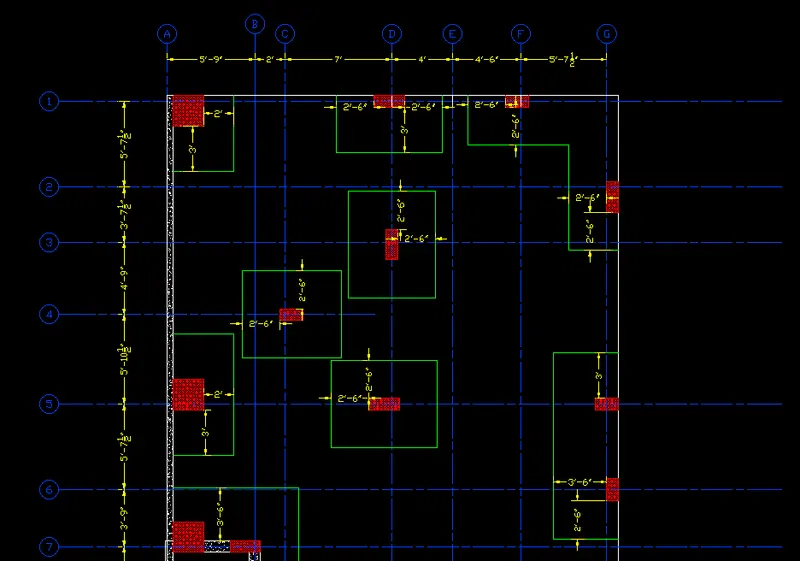

• In the command Prompt type rec> dimensions are 29'7" and 60'
• To get the dotted lines click on line type and load the dotted lines> set current.
• with the help of dotted lines and offset command the grids are drawn.

STEP-3:

• In the command Prompt type offset the distance to 4"
• in the ribbon > hatch > AR-conc
• In the command Prompt type rec> 2'x2'
• In the command Prompt type rec to draft the columns.
• in the ribbon bar select hatch > ANS137 hatch the column.
• in the ribbon bar select hatch > ANS133 hatch the column.

STEP-4:

• in the ribbon tab> anootate> text> text to text the given annotations.
• In the ribbon tab> dimensions > to give the dimensions.

STEP-5:

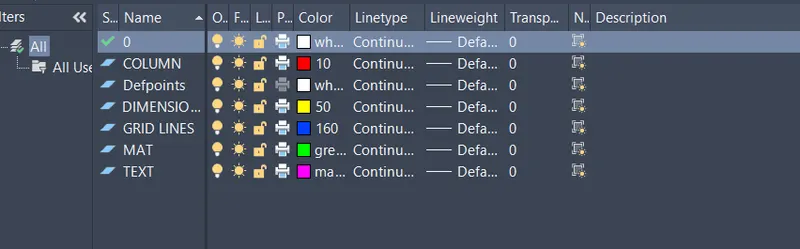

• place the all the elements of the drawing in the required layers.

RESULT:
