Creating a Wardrobe detailed drawing, Floor Plan, Kitchen Layout and Column Detail using AutoCad

QUE 1]

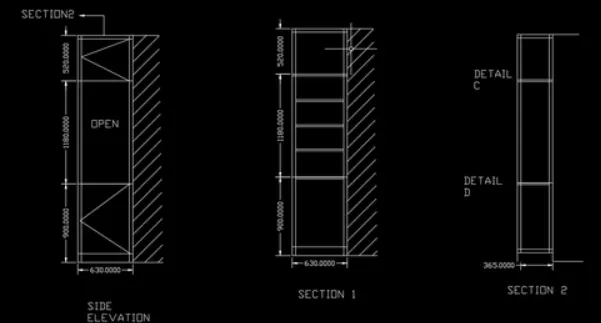

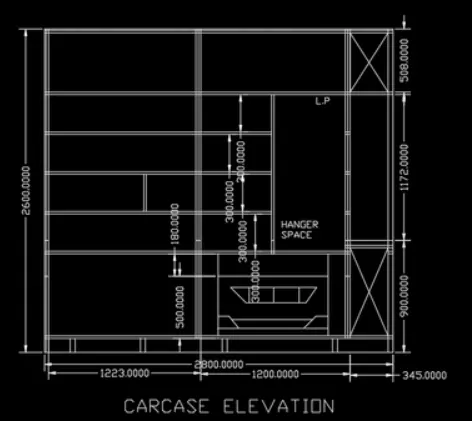

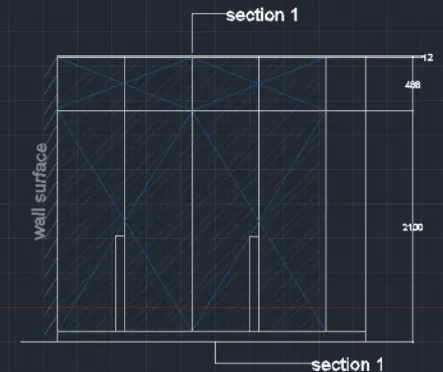

AIM - To drow the elevation and detiles of a wardrobe as shown in the given figure

PROCEDURE

STEP 1

• set the unit in mm
• set the limites and limax
• also set the zoom command

STEP 2

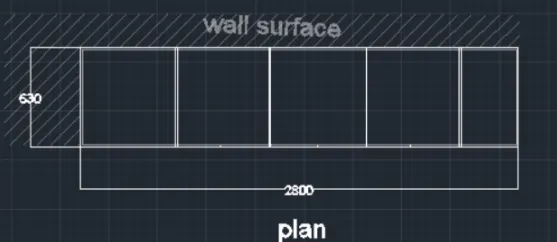

• in the command line type rec and creat a 2800x2600 rec
• then command offset and the offset from top 12' and 488mm

STEP 3

• in the command type offset once agan take the offset from the left side 608.75

STEP 4

• in the command line type L and by increasing the transparancy to cteate wall surface

in the command line type qleader to mension the annotation

STAPE 5

• in the command prompt type rectangle 630x 2800
• in the command prompt type qleader to give the annotations

STAPE 6

• in the command prompt type rectangle 2800x2600
• with the help of line command drawers and cabinets are created

STEP 7 A

• in the command prompt type rectangle 520x630.1180x 630.900x630 this is repeated 2 times
• using line command the next of the lines are drawn

QUE 2 ]

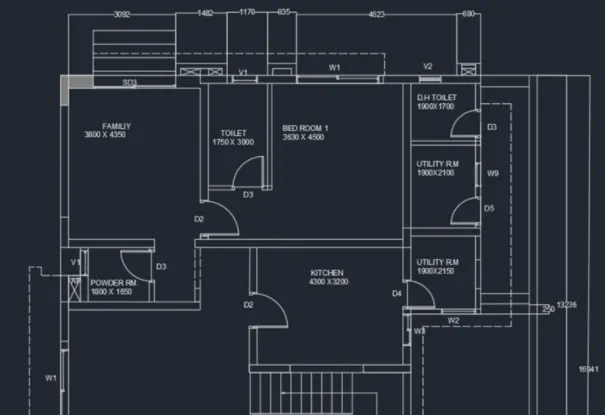

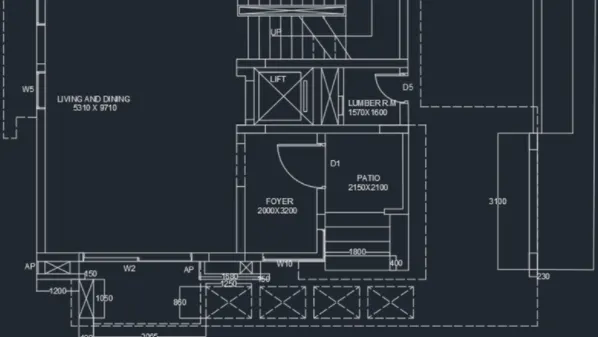

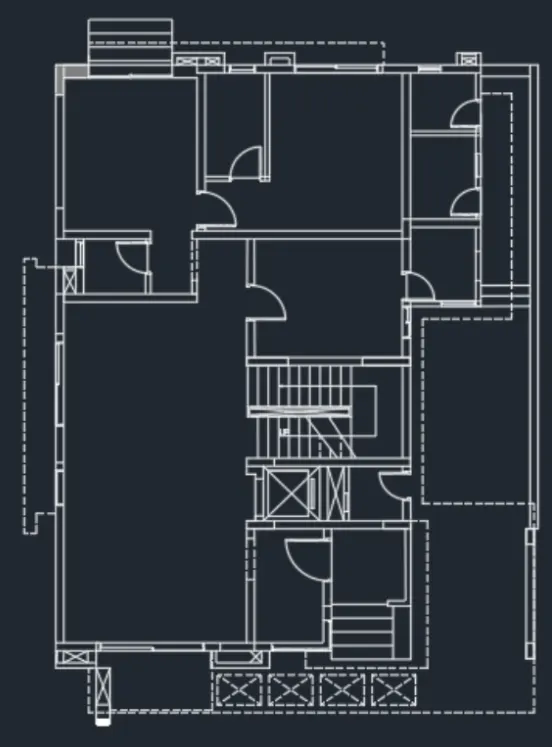

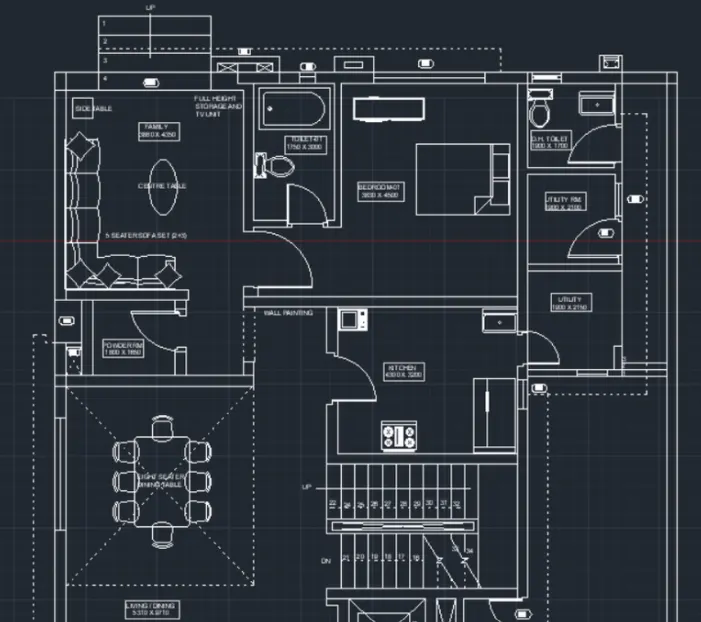

AIM- to draw the given floor plan procedure

STEP 1 -

• units are set to mm
• limits and limax are also set
• zoom command id also used

STEP 2

• take xl command and drow the infinite line horizontal and vertical
• take offset saimmaltiniusly as per wall diminstion
• then trim the unwanted lines
• using arc command doors are also created

STEP 3]

• in the command [adc] is typed to get the componets of the plan
• in the command line linetype is typed to get the dotted lines
• the the command line text is typed to get the dimesion and annotation the plan
•

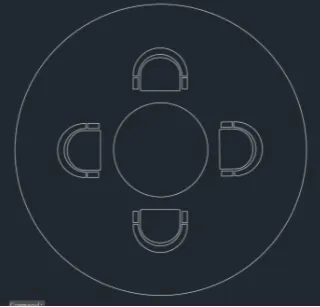

TO drow cannopy

• in the menu bar click circle
• center point fo circle 10,10 and radius 452
• and the second circale is 1398

SEATS

• in the menu bar click on rec
• specify the length 662.3
• specify the width 298
• in the command prompt type fillet radius 100
• in the menu bar circle 2 point arc the end points of the top of the line
• in main bar center diameter
• center is the mmid point of the line dimeter is 719.0
• in the menu bar circle dimeter
• center is the midpoint of the line 777.2
• now extend the center line and trim the extras
• in the menu bar cilck fillet blend curves
•

RESULT

QUE 3]

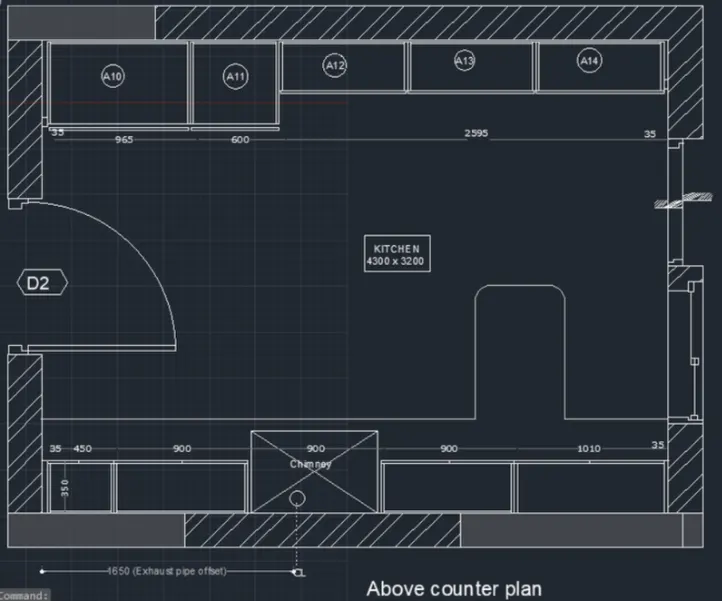

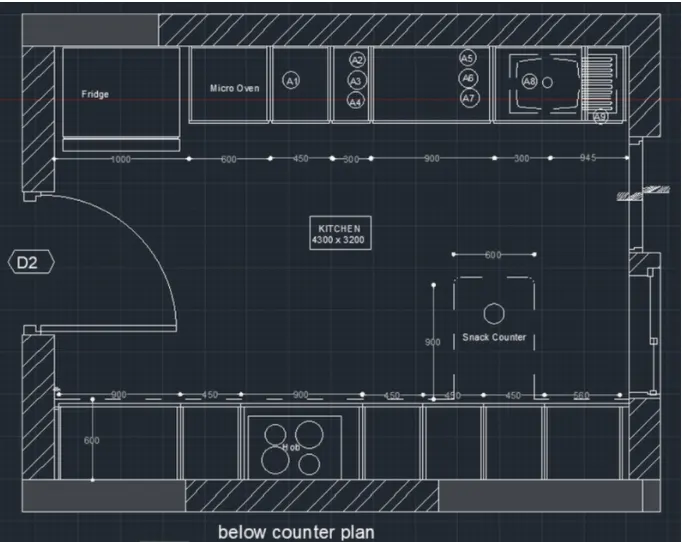

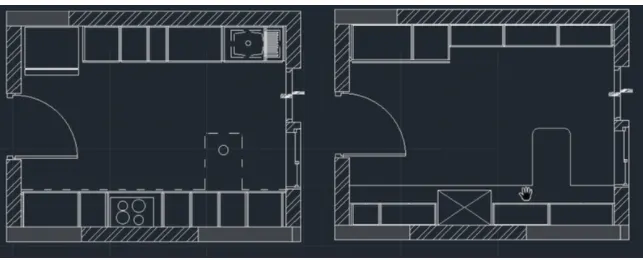

AIM - to create the kitchen layout and to also use proper dimesion techiniques to dimesion the kitchen lyout

PROCEDURE

STEP 1]

• units are set to mm
• limits and limax are also set
• zoom command is also used

STEP 2]

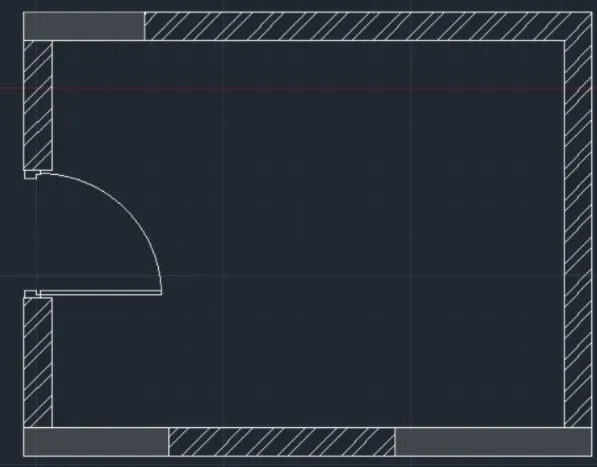

• in the command promt type rec dim 4734x 3688mm
• then take offset at the distance of 230
• using arc and lines the door is drawn
• in the command prompt type hatch to hatch the model

STEP 2 ]

in the command prompt type offset and offset itv to the desired distance to get the microwave

in the command prompt type trim to trim the extra

• in the command prompt type and offset it to the horizontal distance of 350, 450,900,450,and 560
• in the command prompt type offset and offset it to the vertical disatncee of 600
• in the command prompt type trim to trim the extrs
• in th command prompt type line and load the dotted lines

STEP 4]

• in the command prompt type text to annotation
• in the command prompt type dimesion
• in the command prompt type leder to used dimensin

and then save

RESULT ]

QUE 4 ]

AIM - to sketch the column details

PROCEDURE

STEP 1]

• units are set to mm
• limits and limax are also set
• zoom command is also used

STEP 2]

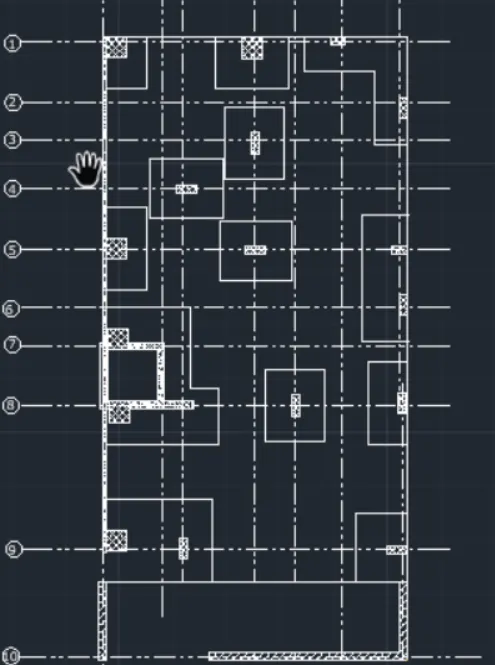

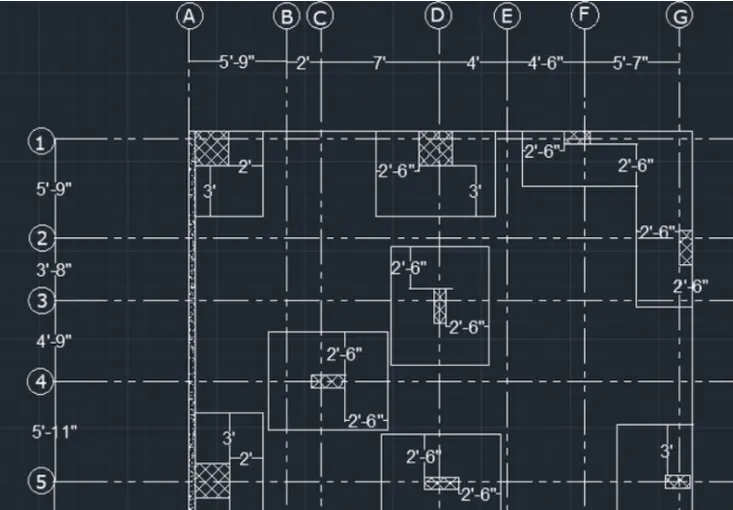

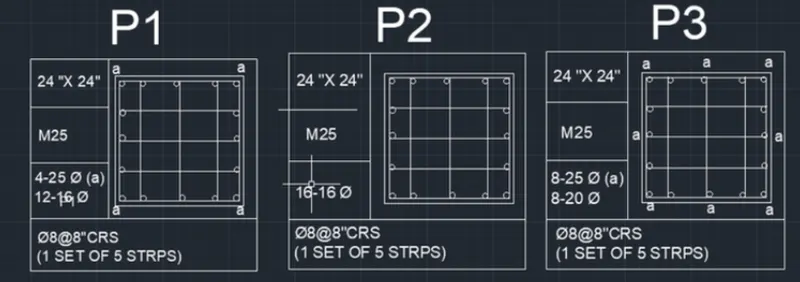

• using rec line command tablus are drawn
• using text command for giving text
• in the command prompt type line drow the reinforcement
• in the commnad prompt type cicle to drow the reinforcement

RESULT

QUE 5]

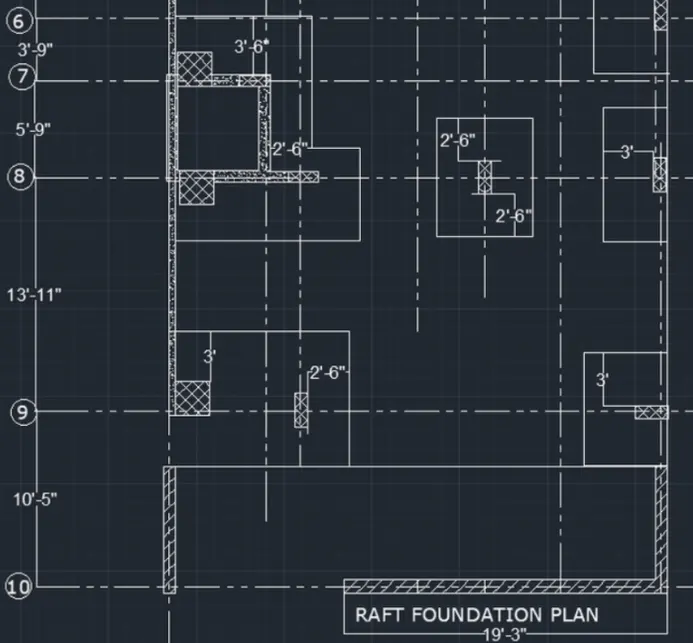

AIM]

PROCEDURE

STEP 1]

• units are set to mm
• limits and limax are also set
• zoom command is also used

STEP 2]

• command prompt typpe rec distance 29'-7" and 60'
• get dotted and type load
• take offset of dotted line
• the offset distance is 4"
• take hatch AR-CONC
• in the command prompt type rec 2'x2'
• in the ribbon prompt bar select hatch ANSI37

STEP 3

• in the ribbon tab annotate mtext
• give the dimension

RESUT ]
