Creating a Wardrobe detailed drawing, Floor Plan, Kitchen Layout and Column Detail using AutoCad

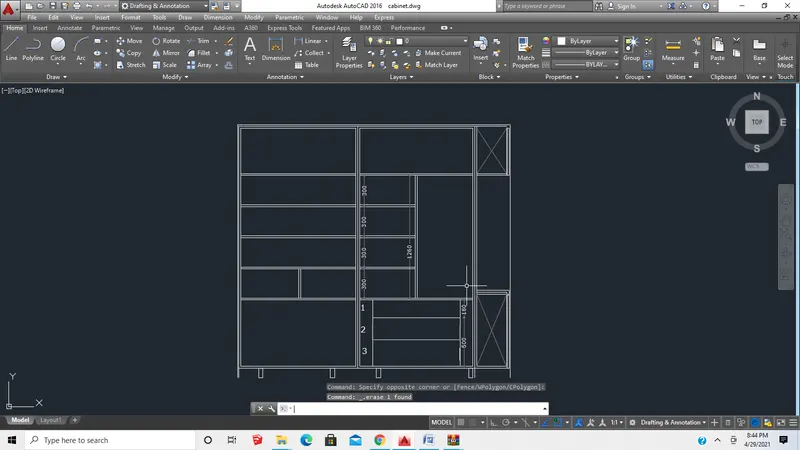

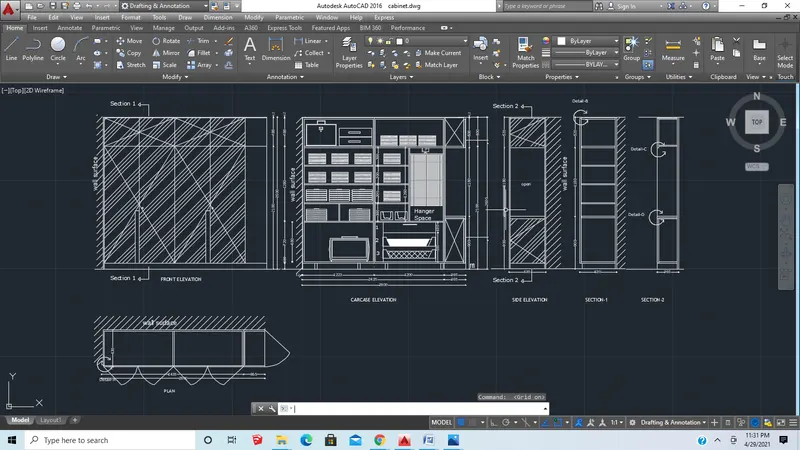

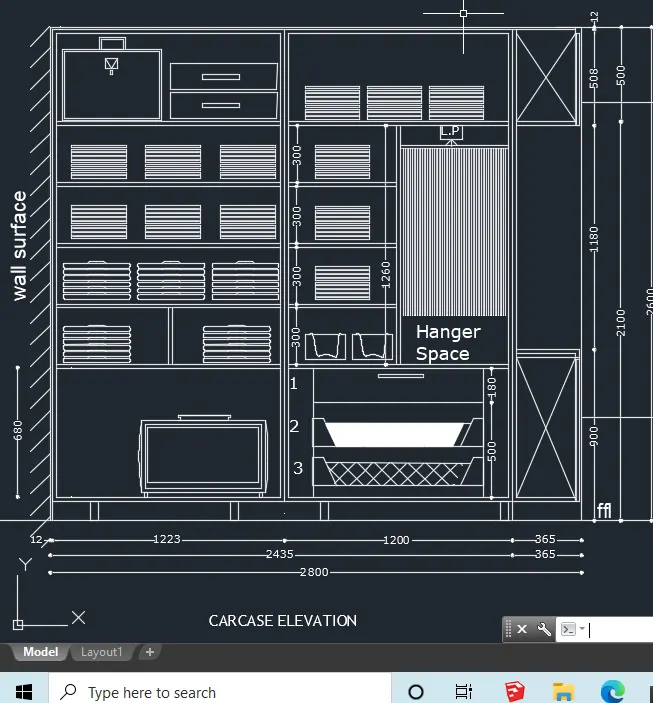

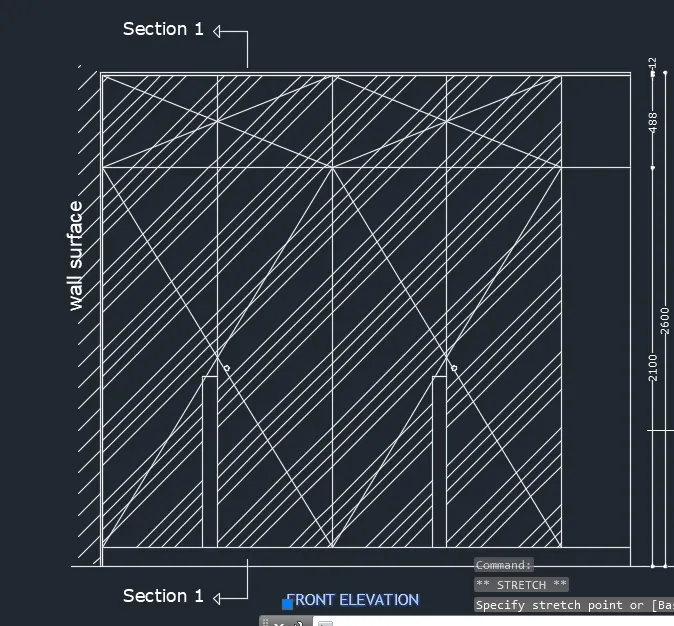

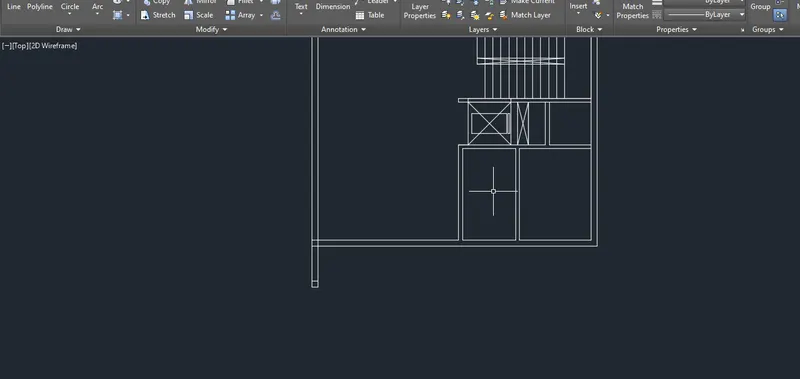

Aim: To draw the elevation and details of the wardrobe

PROCEDURE:

• First set the units to Decimals and mm
• limits to 0,0 and 1000,1000
• Now use command rec with dimensions -2800, 2600 to draw a rectangle
• Now use command offset and make offset from the top of dimensions 12 and 488 mm.
• Now use command offset and make offset from the side at the distance of 608.75 and 365
• Now use line command L and by increasing the transparency to create wall surface.
• Now type qleader in the command bar to mention the annotations

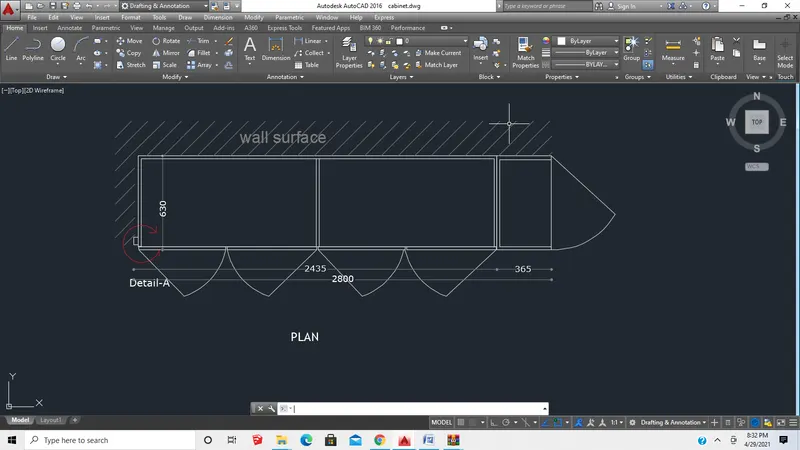

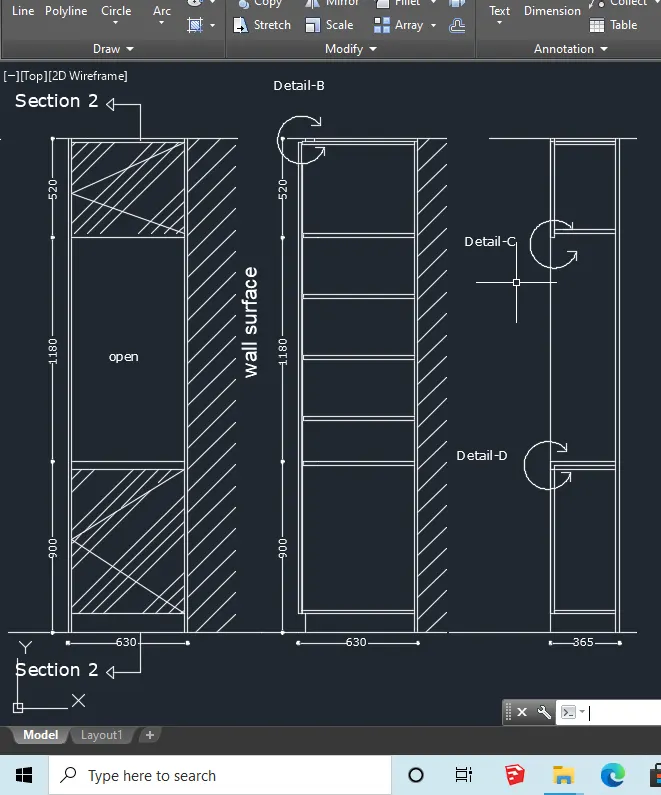

• Now use rec and give dimensions 630 x 2800
• In the command prompt type qleader to give the annotations.

• In the command prompt type rectangle 2800 x 2600

• With the help of line command drawers and cabinets are created.

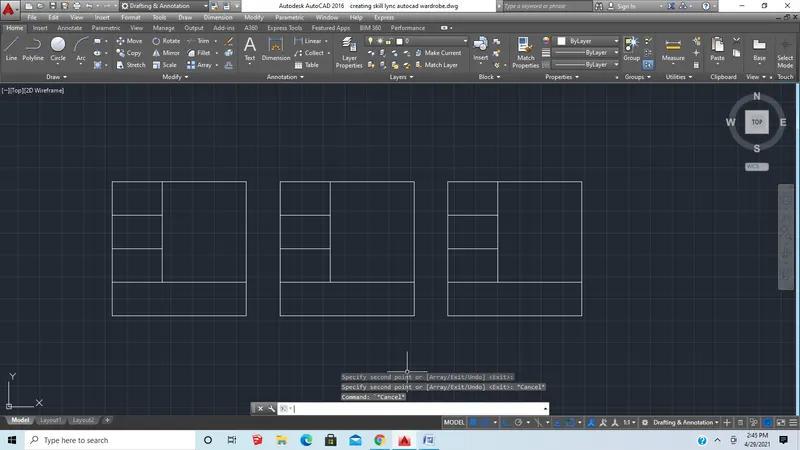

• Now by using rec in the command prompt draw rectangles of dimensions of 520 x 630, 1180 x 630, 900 x This is repeated 2 times.
• using line commands the next all the lines are draw.

Result:

2 ans:

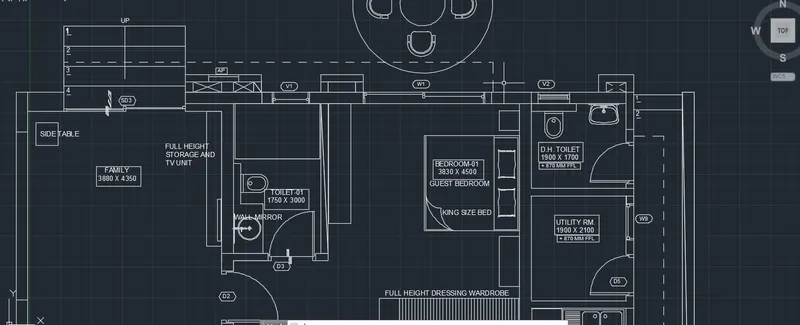

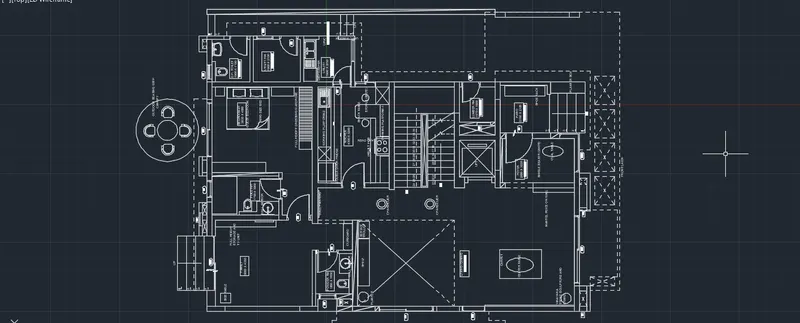

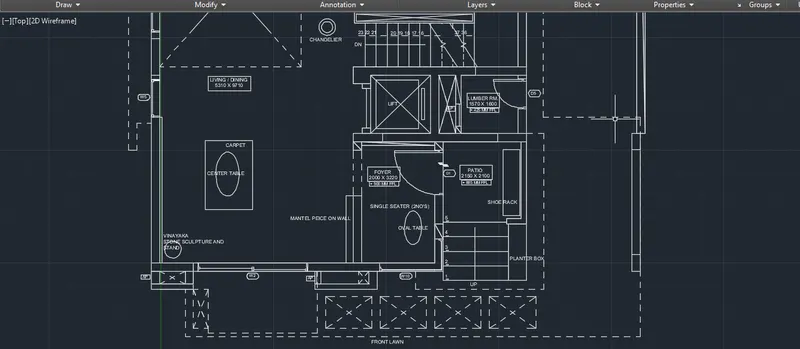

Aim:To draw the given floor:

Procedure:

• First set the units to Decimals and mm
• limits to 0,0 and 1000,1000
• In the command prompt type Xl to draw the infinite line
• In the command prompt type offset to offset the line for a particular distance
• By using the data given draw the floor plan and assumed where ever necessary

• Using arc command doors are also created .
• In the command line "Linetype" is typed to get the dotted lines.
• In the command line "Text" is typed to get the dimensions and annotations of the plan.

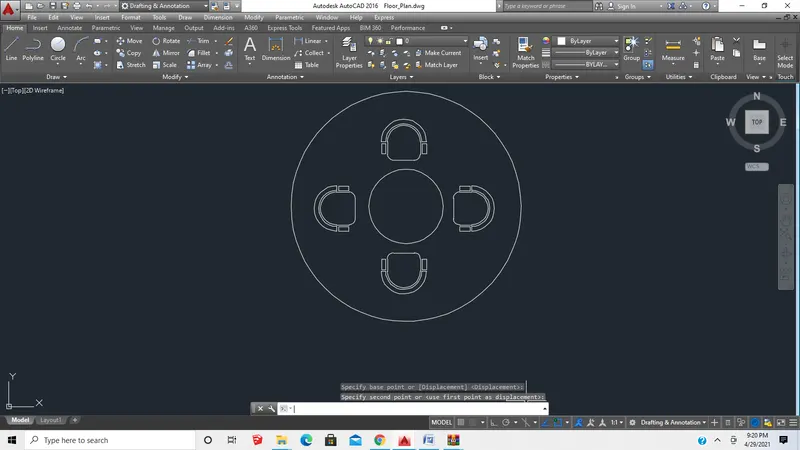

• By using Circle , Arc ,Line ,and Array command outdoor seating with canopy is drawn.

Result:

3 ans:

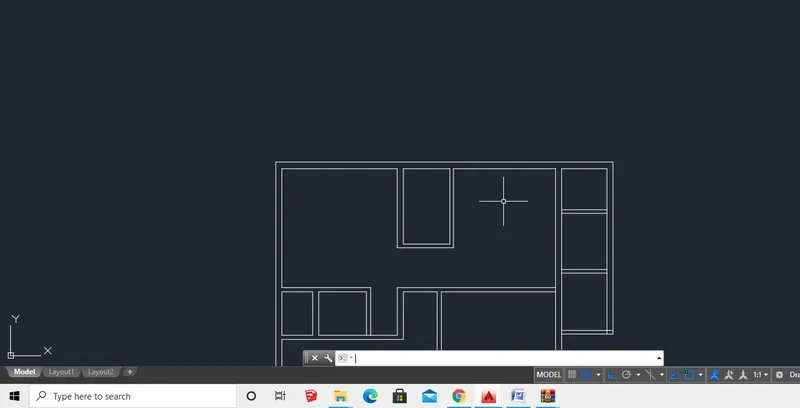

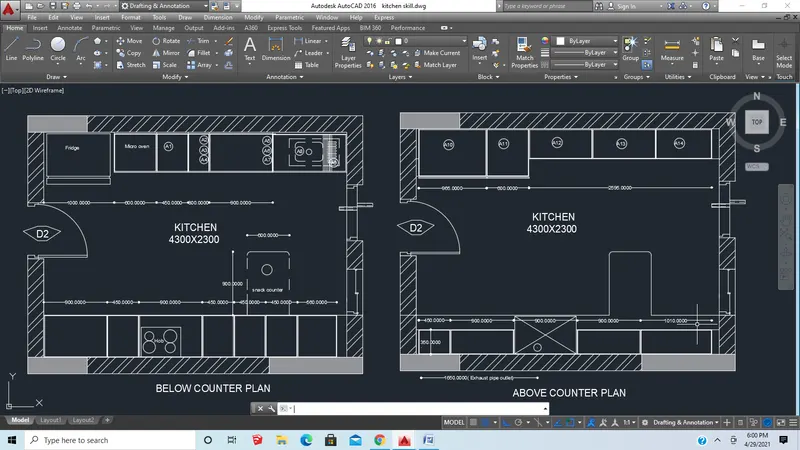

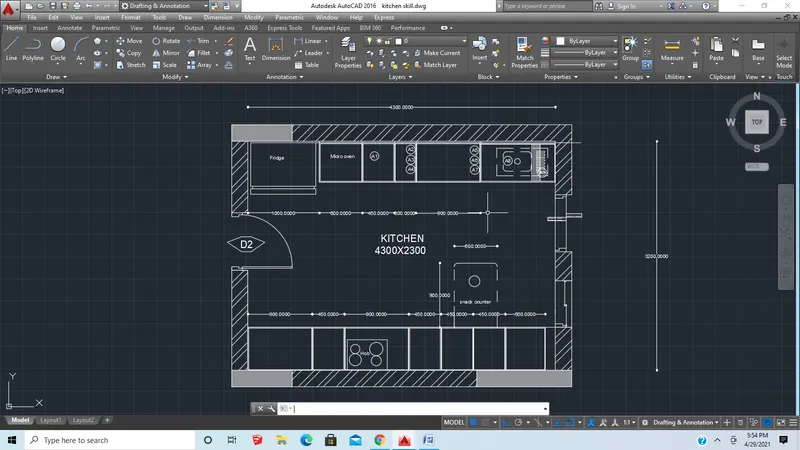

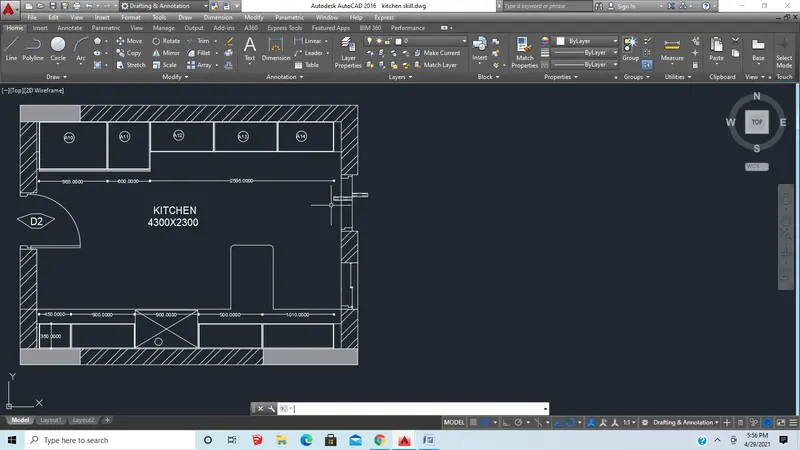

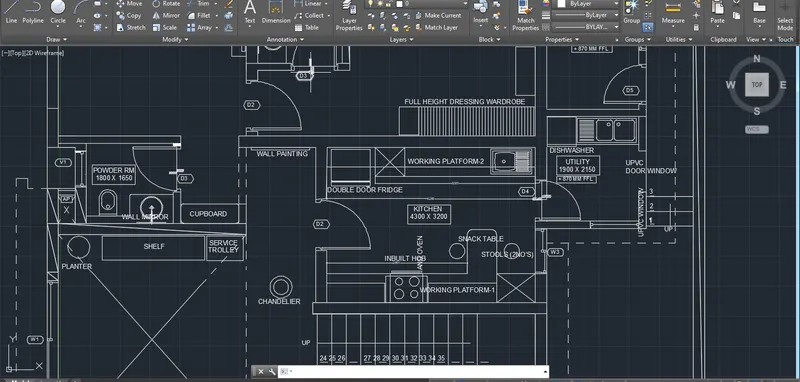

Aim:To create kitchen layout

Procedure:

• First set the units to Decimals and mm
• limits to 0,0 and 1000,1000

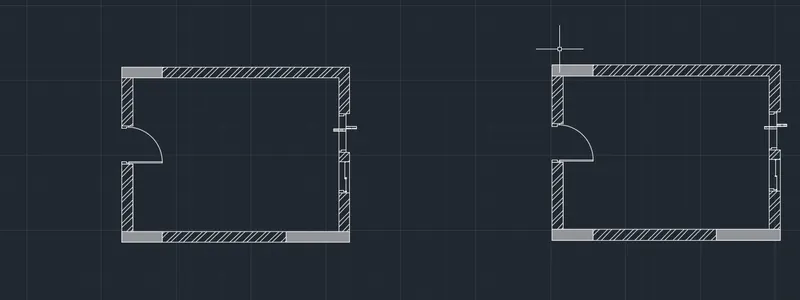

• Now use rec command and draw a rectangle with the dimensions are 4300 X 3200mm.
• Now use the offset command and offset it to the distance of 230mm outside.
• Using arc and line command, doors are drawn.
• Hatch command is used to Hatch the model.
• Now select the total figure drawn and make a copy by using copy command.

• Rectangle command is used to model the refrigerator.
• Now use the offset command and offset it to the horizontal distance of 350,450,900,450,450 and 560.
• Now use the offset command and offset it to the vertical distance of 600
• Now use the trim command to trim the extras.

• Now use the line type command and load the dotted lines.
• Now use the text command to text the given annotations.
• Now use the dimensions command to give the dimensions to the plan.
• Now use the leader command for naming the dimensions.

Result:

4 ans:

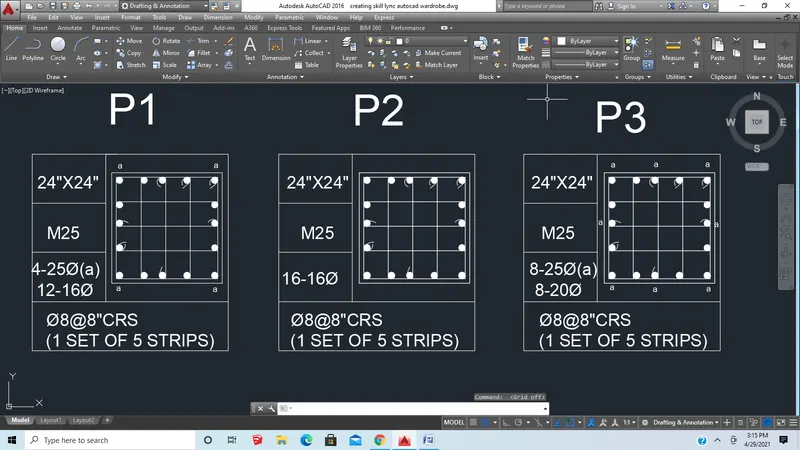

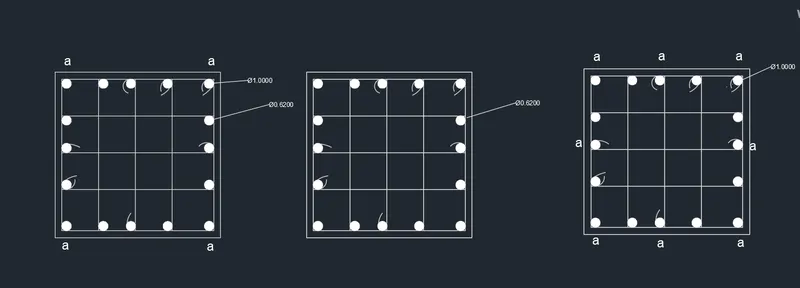

Aim: To sketch the column details

Procedure:

• First set the units to Decimals and mm
• limits to 0,0 and 1000,1000

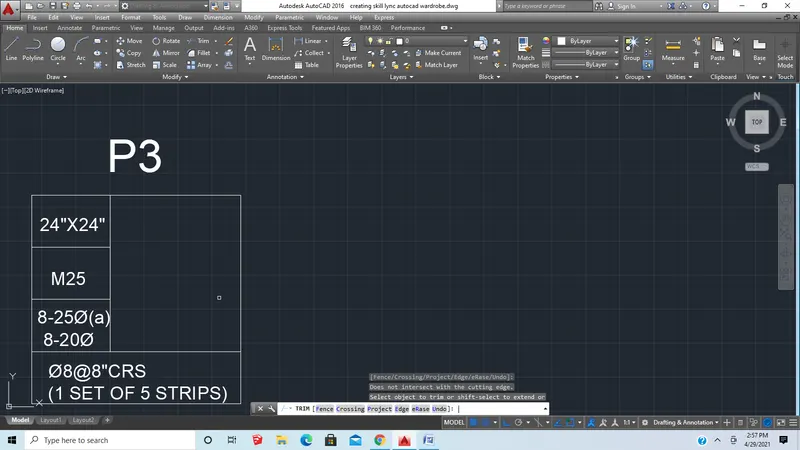

• By using rec and line command the tables shown below are drawn

• Using text command give text

• By using line command and circle command draw the top view of a reinforcement

• Now place it in the tables drawn and use the scale command to fix it in the table

Result:

5 ans:

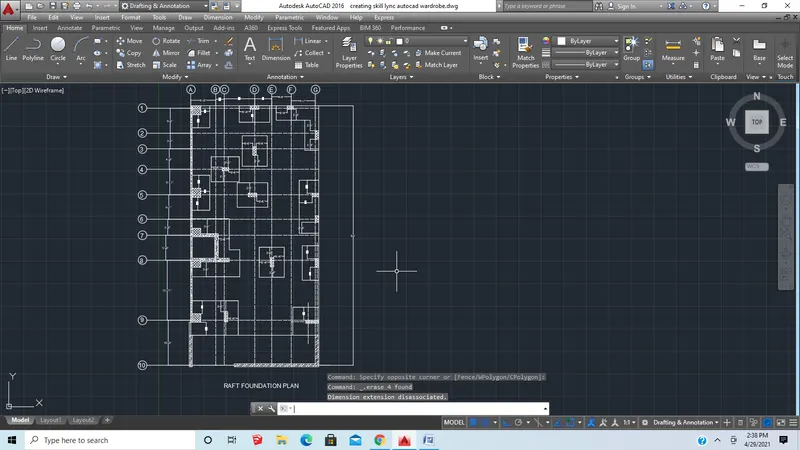

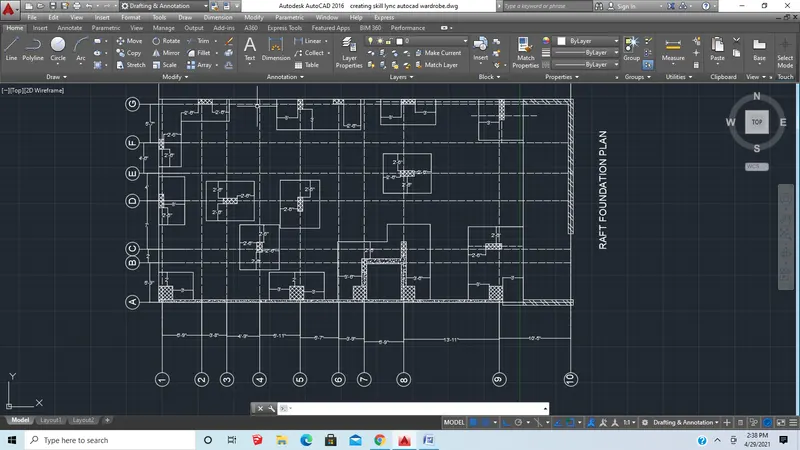

Aim: To draw the raft layout

Procedure:

• First set the units to Engineering and Inches
• limits to 0',0' and 100',100'

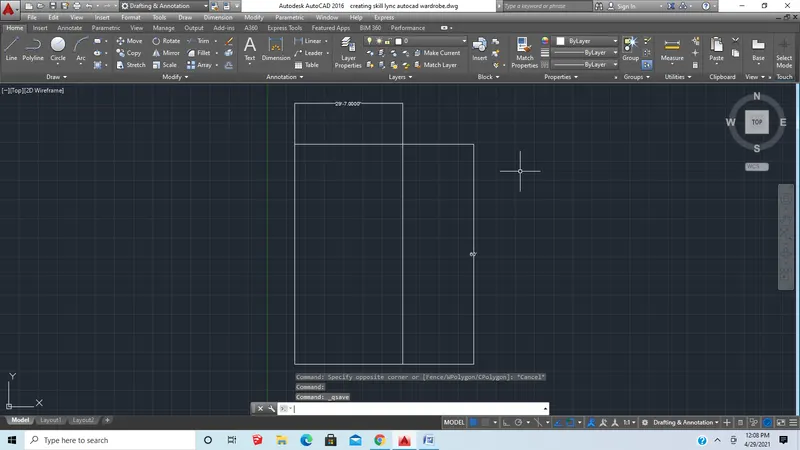

• Now by using the rectangle command draw a rectangle of dimensions 29'7" and 60'

• Now to get dotted lines click on line type and load the dotted lines and select ACAD_ISO2W100 and set current ok.

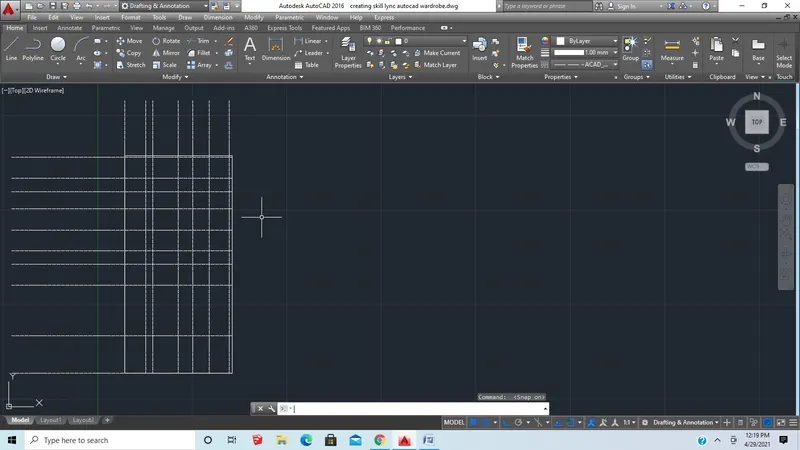

• By the help of dotted lines and offsets the grid is drawn

• Now use the offset command to draw offset

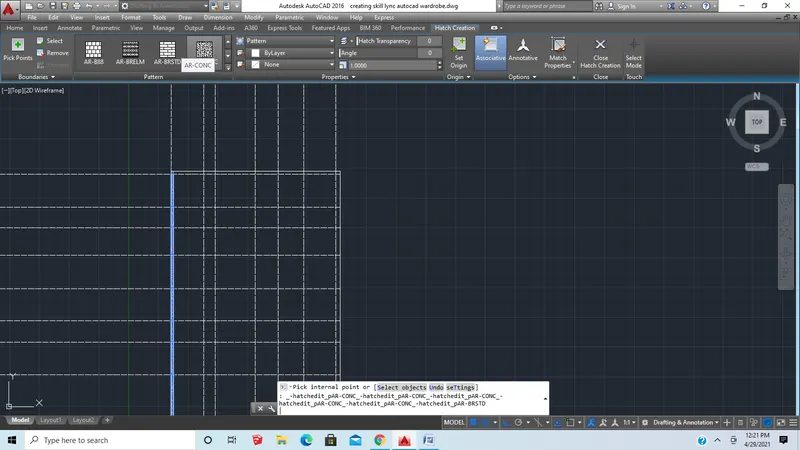

• Now use the hatch command to hatching (AR-CONC) where ever required

• Now use rec command to draw the rectangles of size 2'x2'

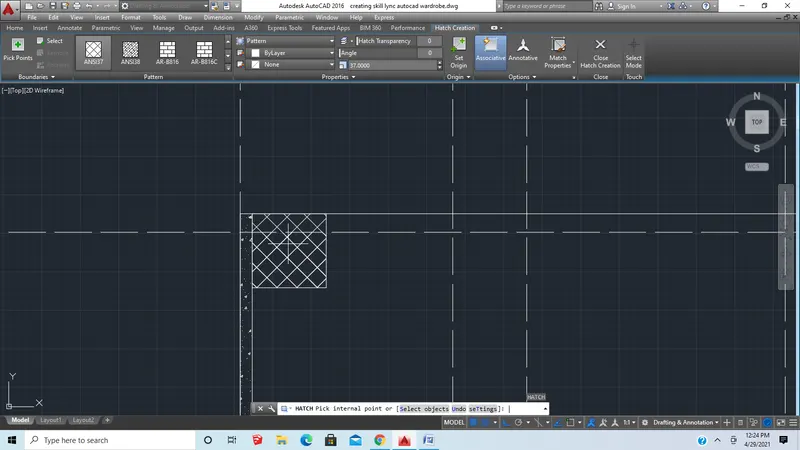

• And Hatch(ANS/37) these rectangles using hatch command

• Now use Mtext to give text
• Now select a dimension in the ribbon tab to give dimensions

Result:
