Creating a Wardrobe detailed drawing, Floor Plan, Kitchen Layout and Column Detail using AutoCad

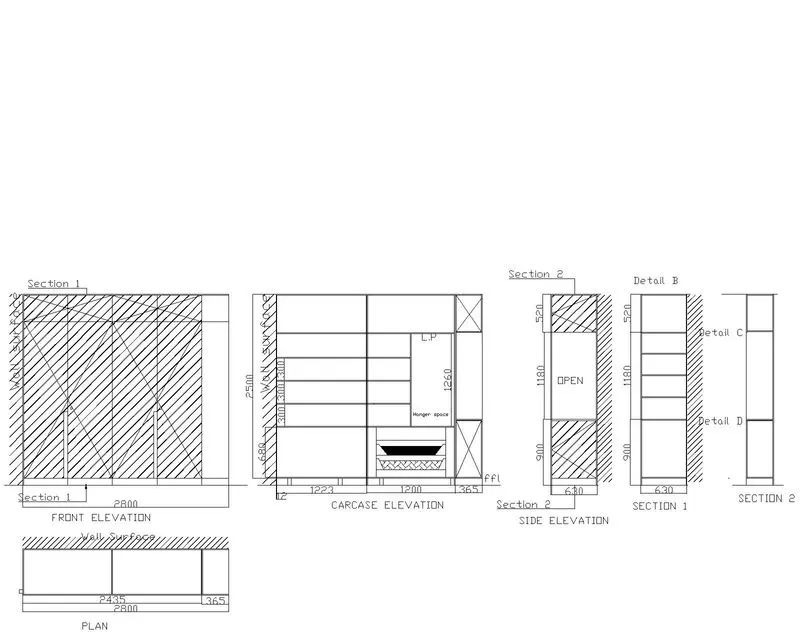

1. Draw the elevation and details of a wardrobe as shown in the Figure below. After sketching, you need to provide the dimensions and text with the use of layers. Use proper text styles and dimension methods to document it. Also, assume dimensions, wherever needed.

AIM :

To draw the elevation and details of a wardrobe as shown in figure below.After sketching and to provide the dimensions and text with the use of layers.

PROCEDURE :

STEP 1:

- Units are set to mm.

- Limits and lim-max are also set

- Zoom command is also used

STEP 2:

- In the command line type rec 2800,2600

- In the command line type offset

- Offset from the top of dimensions 12 and 488 mm

STEP 3:

- In the command line type offset

- Create the offset from the side at the distance of 608.75 and 365.

STEP 4:

- In the command line type L and by increasing the transparency to create wall surface.

- By using hatch give the hatch and give scale 20.

- In the command line type q leader to mention the annotations.

STEP 5:

- In the command prompt type rec 630,2800

- In the command prompt type q leader to give the annotations.

STEP 6:

- In the command prompt type rec 2800,2600

- With the help of line command drawers and cabinets are created.

- Dimensions the drawing

STEP 7:

- In the command prompt type rec and dimensions of 520,630 and 1180,630.

- Using line commands the next of the lines are drawn.

RESULT

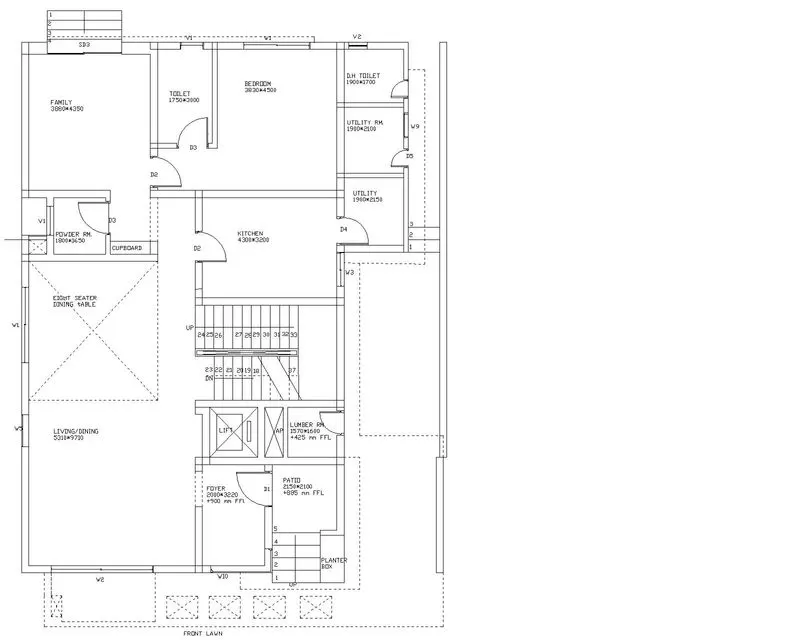

Q2. Draw the floor plan as shown in the Figure. Use the proper drafting tools to sketch the plan. Do not hatch or draw the furniture. You need to draw the floor plan with the following:

AIM :

To draw the given floor plan

PROCEDURE :

STEP 1:

- Units are set to mm.

- Limits and lim-max are also set

- Zoom command is also used

STEP 2:

- In the command prompt type xl to draw the infinite lines.

- In the command prompt type offset to offset the line for a particular distance.

- Using arc command doors are also created.

- Doors Windows Ventilators

1] D1 - 1000*2000 mm W1 - 2700*1500 mm V1 - 800*500 mm

2] D2 - 900*2100 mm W2 - 2500*1500 mm V2 - 750*500 mm

3] D3 - 800*2100 mm W3 - 900*1500 mm

4] D4 - 750*2100 mm W5 - 1000*1500 mm

5] D5 - 700*2100 mm W9 - 800*1500 mm

6] SD - 2256*2100 mm

STEP 3:

Give the dimensions and anotation the drawing with the text wherever required.

RESULT :

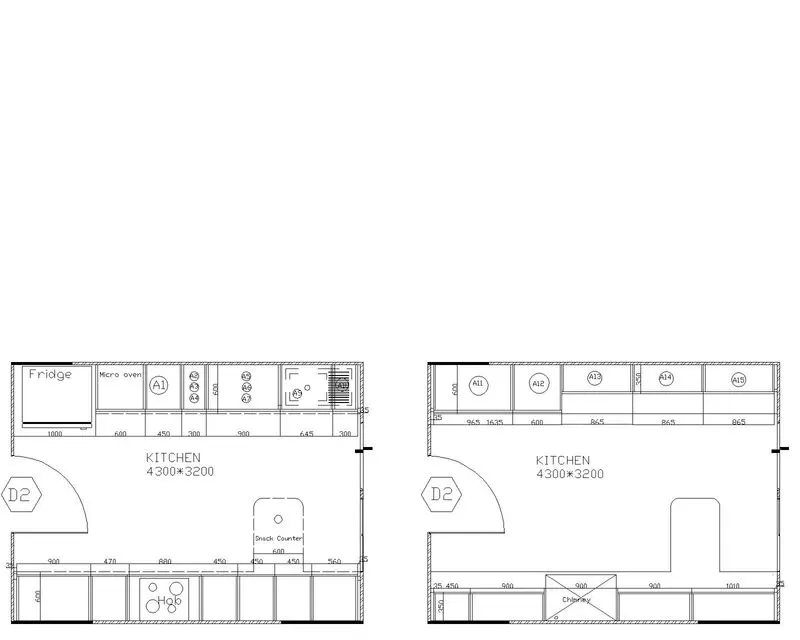

Q3. Create the Kitchen Layout as shown in the Figure below. Also, use proper dimension techniques to dimension the kitchen layout. Also, insert text wherever required.

Ans.

AIM :

Create the Kitchen Layout as shown in the Figure below. Also, use proper dimension techniques to dimension the kitchen layout. Also, insert text wherever required.

STEP 1:

- Units are set to mm.

- Limits and lim-max are also set

- Zoom command is also used

STEP 2:

- In the command prompt type rec and the dimensions are 4734*3668 mm.

- In the command prompt type offset to offset by distance of 250 mm.

- Using arc and lines the door is drawn.

- In the command prompt type hatch to hatch the model.

STEP 3:

- In the command prompt type rec>dimensions,to do the fridge.

- In the command prompt type offset and offset it to the desired distance to get the micro oven.

- In the command prompt type trim to trim the extras.

- In the command prompt type offset and offset it to the horizontal distance of 350,450,900,450,450 and 560.

- In the command prompt type offset and offset it to the vertical distance of 600.

- In the command prompt type line type and load the dotted lines.

STEP 4:

- In the command prompt type text to text the given annotations.

- In the command prompt type dimensions to give the dimensions to your plan.

- In the command prompt even the leader command is used to name the dimensions.

RESULT:

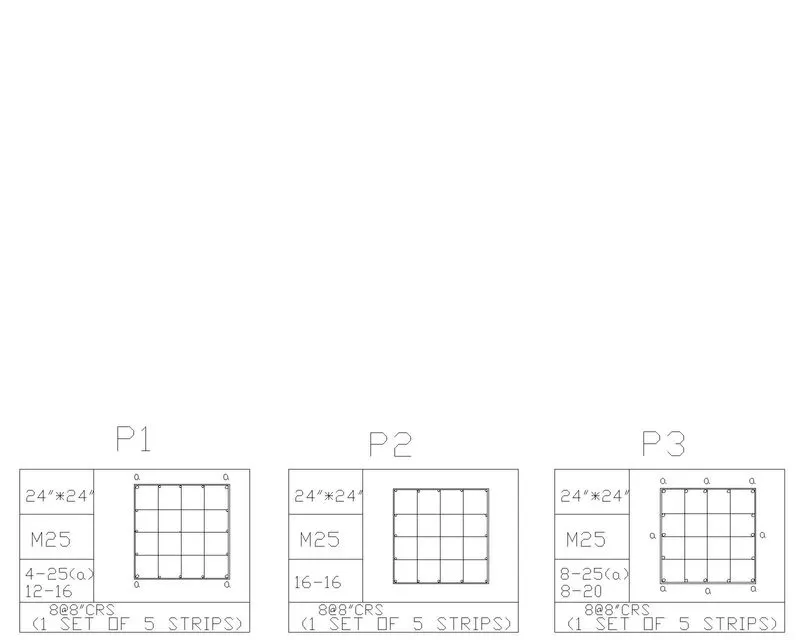

Q4. Sketch the column details as shown in Figure. Insert dimensions and text in the figure. Refer to the bar sizes from the schedule.

Ans.

AIM :

To sketch the column details

PROCEDURE :

STEP 1:

- Units are set to mm.

- Limits and lim-max are also set

- Zoom command is also used

STEP 2:

- Using rectangle and line command the tables are drawn.

STEP 3:

- Using text command,the text is given.

STEP 4:

- In the command prompt type lines to draw the reinforcement

- In the command prompt type circles to draw the reinforcement.

RESULT :

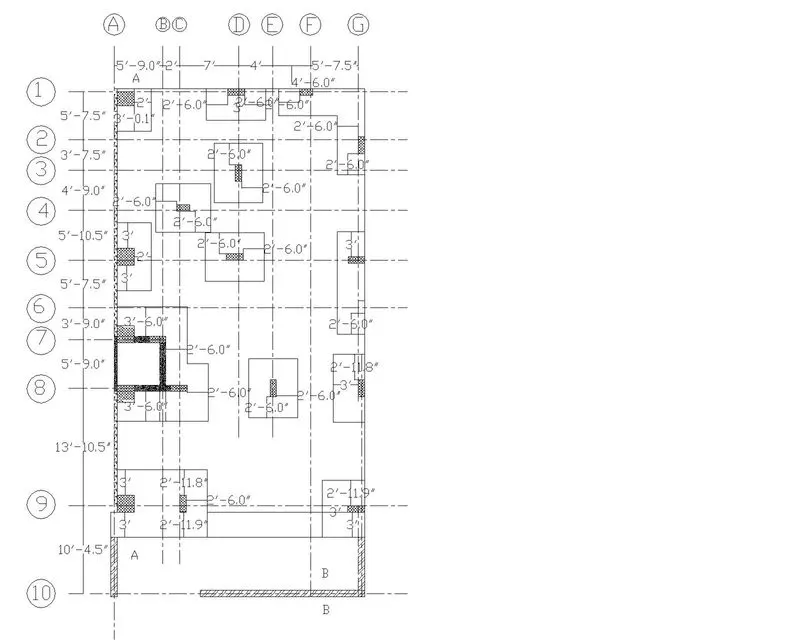

Q 5. Draw the Raft Layout as shown in the Figure. Assume the column size as per your knowledge. You can take the sizes as: 24”x24”, 9” x 24”, 9” x 18”, and 9’ x 24”. You can import the raft_foundation.pdf to ensure the missing dimensions.

Ans.

AIM :

To draw the raft layout

PROCEDURE

STEP 1:

- Units are set to mm.

- Limits and lim-max are also set

- Zoom command is also used

STEP 2:

- In the command prompt type rec>dimensions are 29'-7" and 60'.

- To get the dotted lines click on line type and load the dotted lines>set current.

- With the help of dotted lines and offset command the grids are drawn

STEP 3:

- In the command prompt offset the distance to 4"

- In the ribbon>hatch>AR-CONC

- In the command prompt type rec>2'*2'

- In the command prompt type rec to draft the columns.

- In the ribbon bars select hatch>ANSI37 hatch the columns.

- In the ribbon bar select hatch>ANSI33 to hatch the walls.

STEP 4:

- In the ribbon tab>annotate>text>text to text the given annotations.

- In the ribbon tab>Dimensions>to give the dimensions

RESULT:
