Creating a Wardrobe detailed drawing, Floor Plan, Kitchen Layout and Column Detail using AutoCad

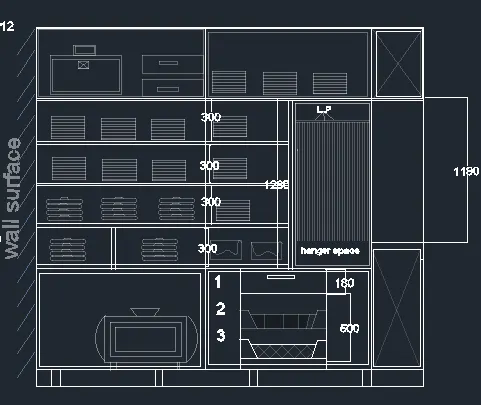

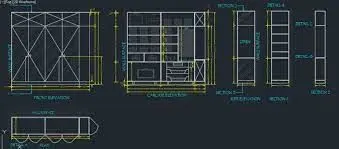

AIM 1 :

To draw the elevation and details of a wardrobe as shown in the figure. after sketching,you need to provide the dimentions and text with the use of layers

PROCEDURE:

Step 1:

• units are set to mm
• limits and limax are also set
• zoom all

Step 2:

• in the command line type rec>2800,2600
• in the command bar enter offset
• offset from the top of the dimentions 12mm and488mm

Srep 3:

• in the command bar type off set
• create the offset from the side at a distance of 680.75 and 365

Step 5:

• in the commabd bar type 'rec' >630x2800
• in the command bar type qleader to mention the annotations
• in command bar type rec>2800x2600
• with the help of line command drawers and cabinatesare creted

Step 6:

• in the command bar type rectangle and dimentions of 520x630,1180x630,900x630 repeated two times
• using the command the next of lines are draw

FINAL RESULT

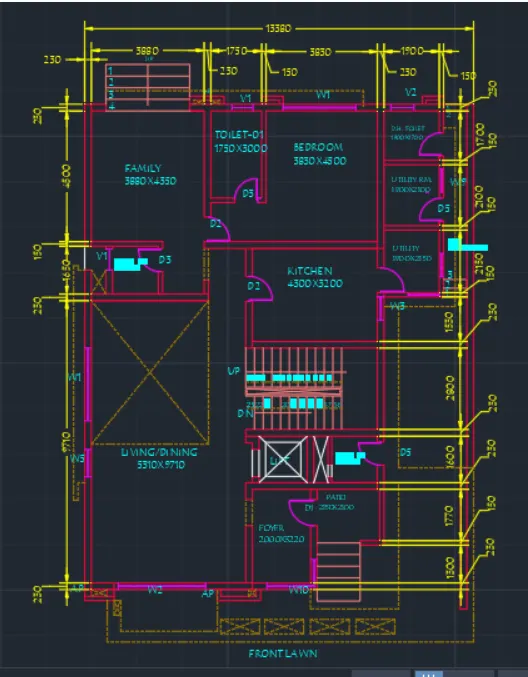

AIM 2:

To draw the given floor plane

PROCEDURE:

Step 1:

• units are set to mm
• limits and limax are also set
• zoom all

Step 2:

• in the command box prompt type XL to draw the infinete lines
• in the command box type offset the line for a particular distance
• using arc command doors are also created

Step 3:

• in the command line "abc" is typed to get components of plan
• in the command line "line type" is typed to get the dotted lines
• in command line "tex" is typed to get the dimensions and annotations of the plane

To draw canopy:

Circle :

1. in the menu bar click on circle >centr,radius
2. spacify the center point as 10,10 and radius as452
3. in menu bar click on circle> center, radius
4. spacify the center point as same as the previous circle and radius 1398

Seats

1. in the menu bar click on rectangle r in the command prompt type rec specify the length of the rectangle as 662.3
2. specify the width of the rectangle as 298.0
3. in command bar prompt type 'filltr'>radius>100
4. in menu bar > circle>2points
5. in menu bar>circle center ,diametr is 777.2
6. now extend the center line and trim the extras
7. in menu bar click filltr>blend curves>and select the arc

FINAL RESULT:

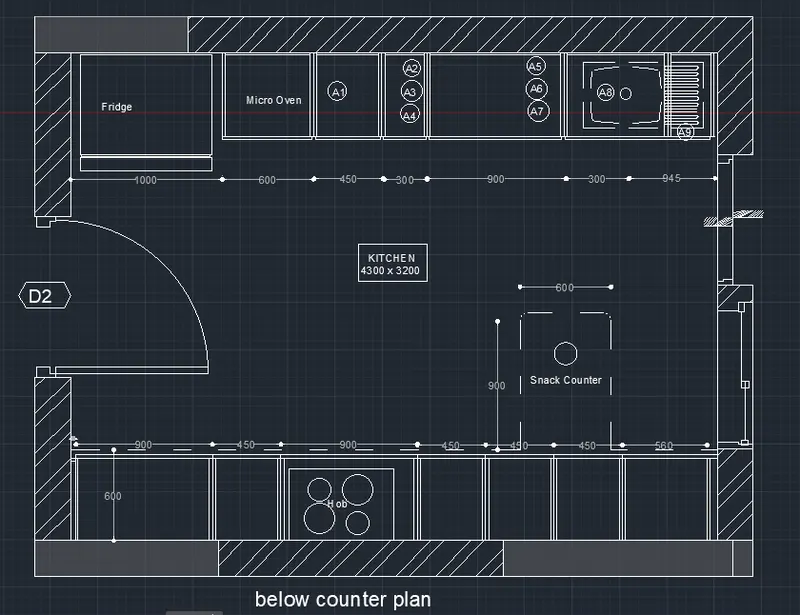

AIM 3:

To create the kitchen latout and also use proper dimention techniques the kitchen layout .Also insert the text where ever required. All dimentions are in mm

PROCEDURE:

Step 1:

• units are set to mm
• limits and limax are also set
• zoom all

Step 2:

• in the command prompt type rec and dimensions are 473x3668mm
• in the command prompt type offset and offset it to the distance of 230mm
• using the arc and lines the door is drawn
• in the command prompt type hatch the model
• in command linr prompt type rec>dimensions to do the firdge
• in the command line prompt type the offset and offset it to desired distance to get the micro oven
• in the coomand line prompt thr trim to trim extra lines
• in command line prompt type offset it to the horizontal distance of 350,450,900,450,450,&560
• in the coomand line prompt thr trim to trim extra lines
• in the command line prompt type even the leader command is used to name the dimentions

FINAL RESULTS

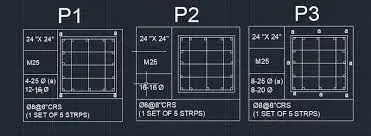

AIM 4:

Sketch the column details as shown in the figure. Insert dimentions and text in the figure.Refer to the bar size from the schedule.

8mm-------0.31 inches

25mm------1 inches

16mm-----0.62 inches

PROCEDURE:

Step 1:

• units are set to mm
• limits and limax are also set
• zoom all

Step 2:

• using the rectangle and line command the tables are drawn
• using the text command the text are given
• using the command texts are given
• in the command bar type line to draw the rinforcement
• type circle in the command bar and press enter to draw the reinforcementdraw the raft latout as shown in the figure. assume the column size as per requirqment.
• remaining P2 and P3 columns are draw same as P1 column

FINAL RESULT

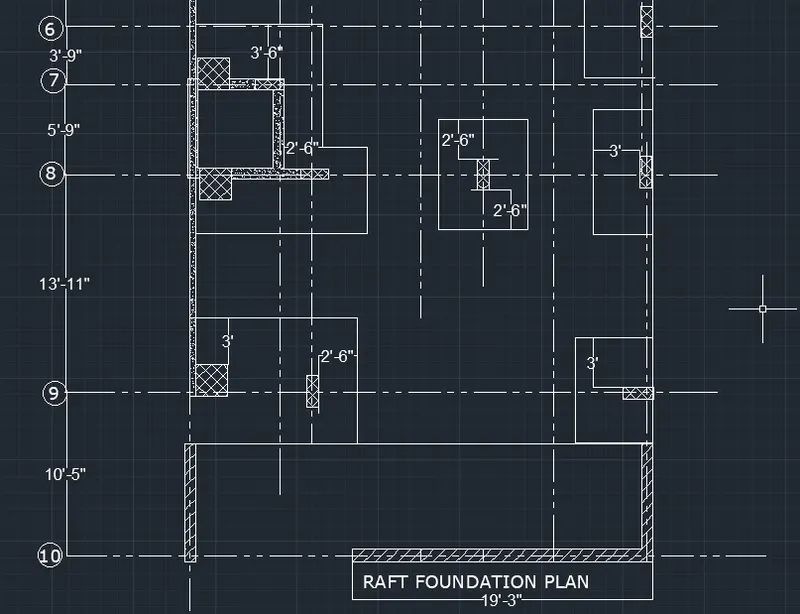

AIM 5:

To draw the raft layout

PROCEDURE

Step 1:

• units are set to mm
• limits and limax are also set
• zoom all

Step 2:

• in the command bar prompt type rec> dimensionsare 29'-7''and 60'
• to get dotted lines click on the line type and load the dotted lines>current
• with the help of dotted lines and offset commands the grids should be drawn
• in the command bar prompt type offset the dimention to 4''
• in the command bar line type rec>2'x2'
• in the ribbon tab> annotate> text>m text to tex the given annotations.in the ribbon tab> dimentions> to get the dimentions

FINAL RESULT
