Creating a Residence Layout, Seating plan, Toilet and Utility room plan using AutoCad
Q.NO.1
ANS.1

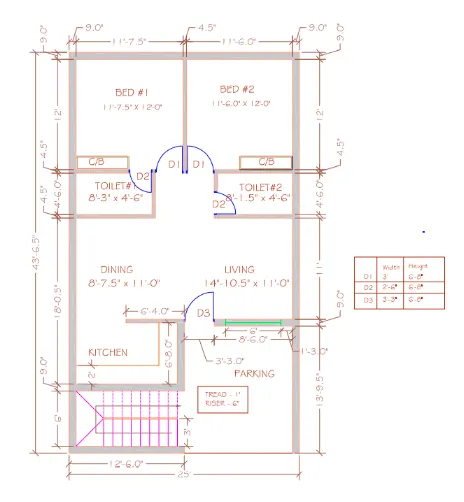

AIM To draw the given layout
Procedure The command used to draw the given layout are Layer command,Line command, offset command,trim command,Dimension command and Erase command

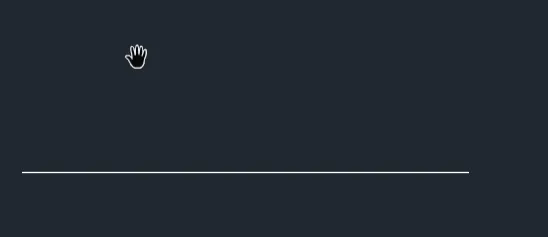

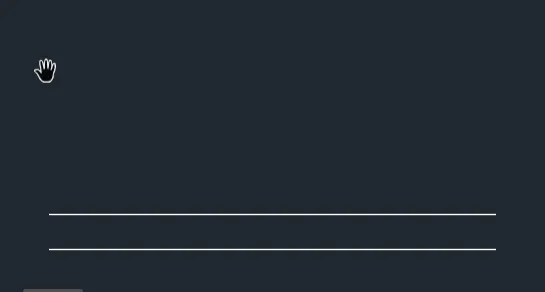

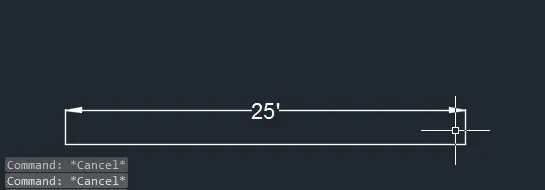

STEP 1 Line length 25' drawn first

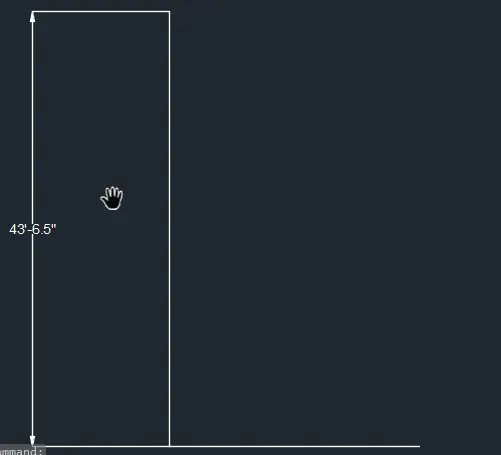

STEP 2 Line 43'-6.5" drawn

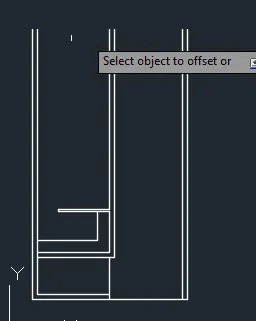

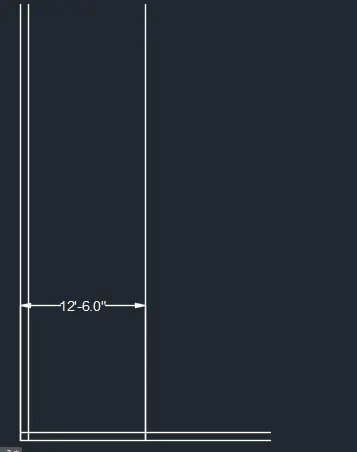

STEP 3 Offset of 12'-6" taken

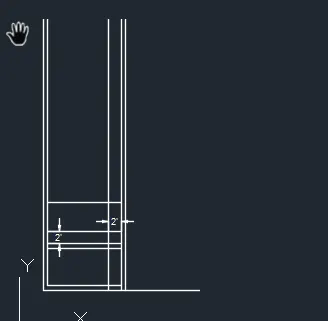

STEP 4 For kitchen area 2' offset is taken
STEP 5 Extra line is trimed

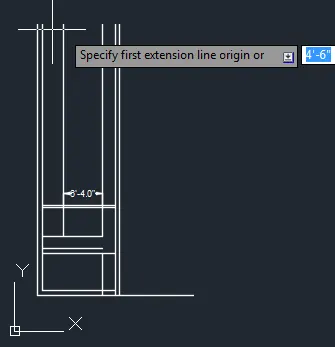

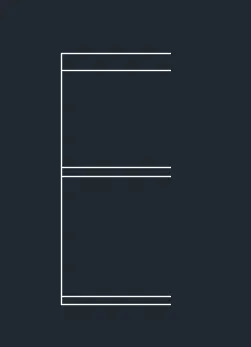

STEP 6 Offset 6'4.0" is taken
STEP 7 Extra line is trimed

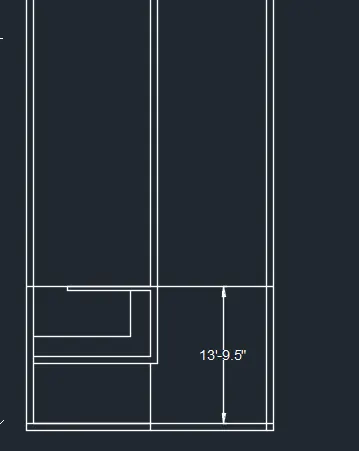

STEP 8 Offset 13'-9.5" is taken

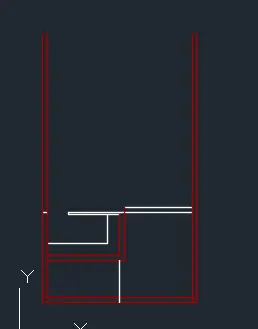

STEP 9 Layer command is used for wall and other items

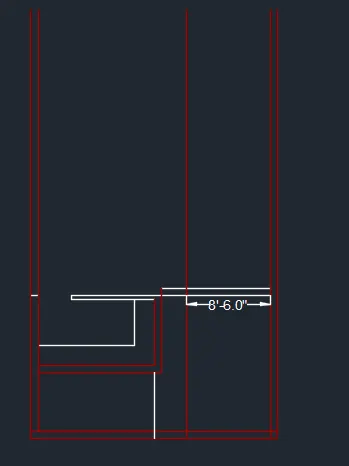

STEP 10 Offset 8'6.0" is taken

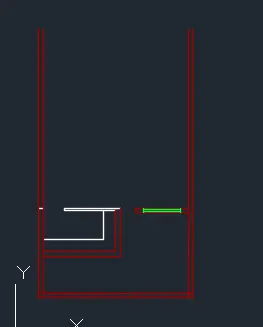

STEP 11 Green layer is used for window and 6' window is constructed

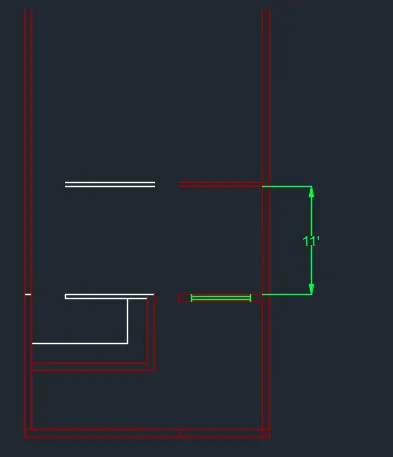

STEP 12 Offset 11' is used for wall constructed

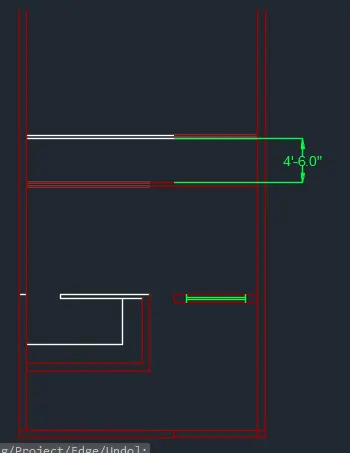

STEP 13 Offset 4'-6.0" is used

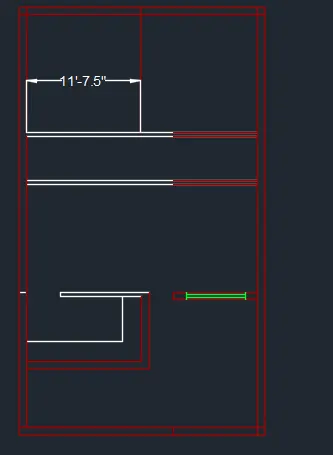

STEP 14 Offset of 11'-7.5" is used for room wall
STEP 15 Offset 8'3.0" is used for toilet wall

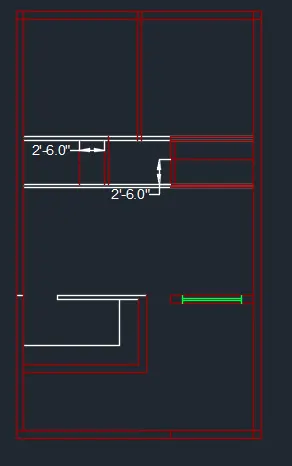

STEP 16 Offset 2'-6" is used for tailet door
STEP 17

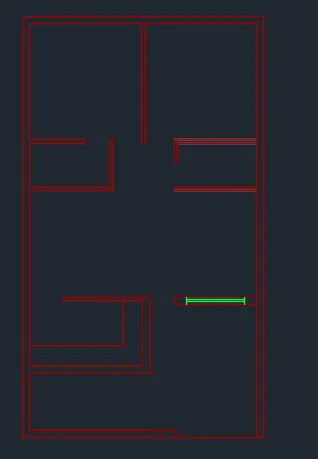

STEP 18 Extra line is trimed and erase

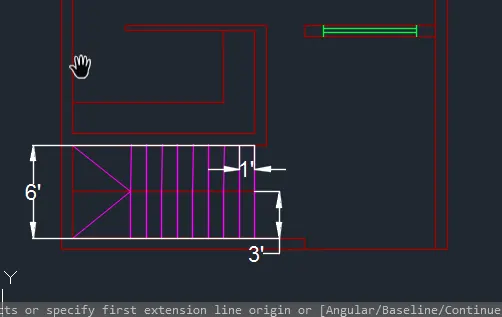

STEP 19 For stair 1' offset and 3' offset used
STEP 20 For door Circle radius command is used
STEP 21 All dimension is shown by dimension command
STEP 22 Dimension Continue is used for dimensioning

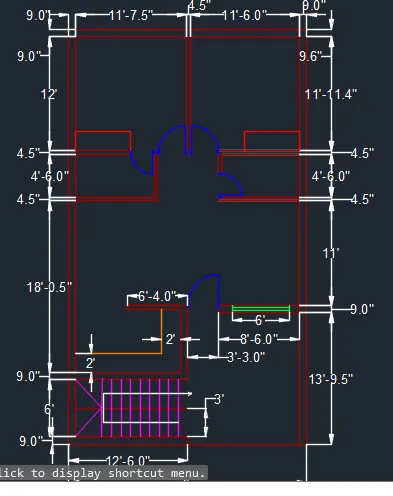

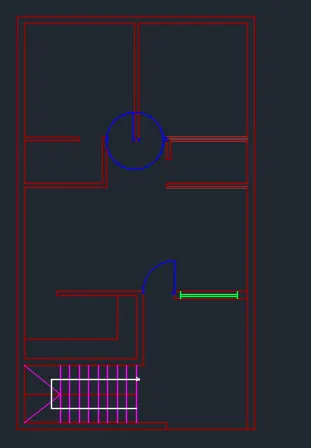

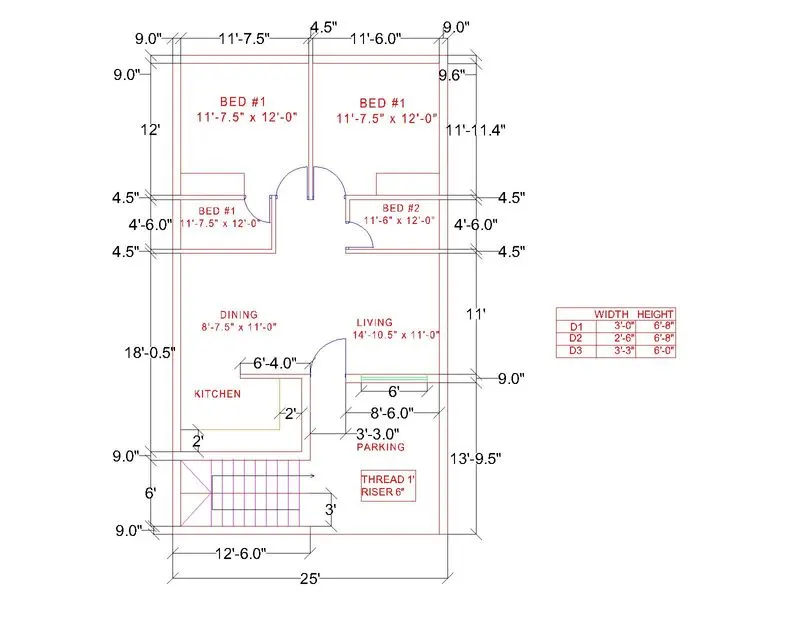

FINAL RESULT
Q.2
Answer 2
AIM To draw the given object
Procedure To draw the given image commands used are circle radius , line, array ,trim and erase command

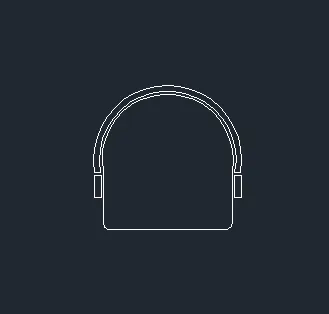

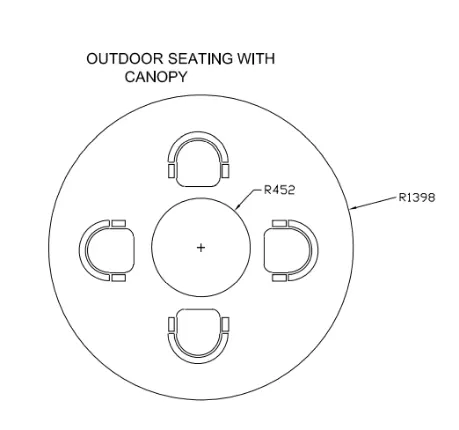

STEP 1 Sofa (chair) is constructed first by using circle command and line command and at edge fillet command

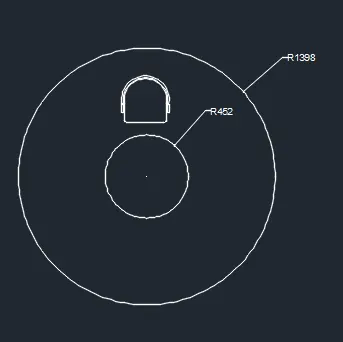

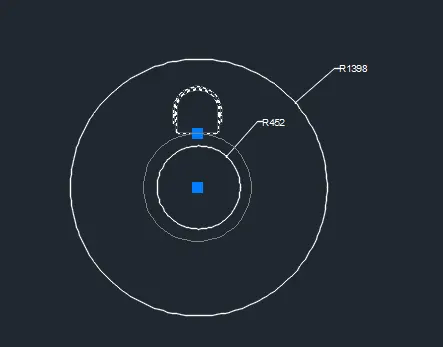

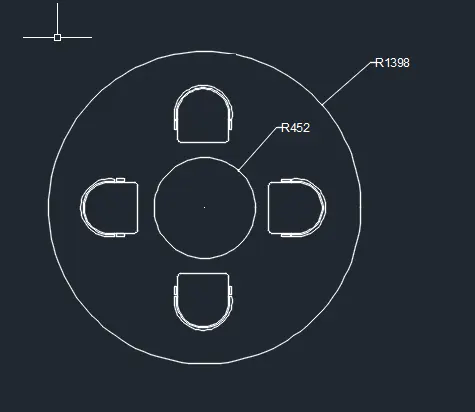

Step 2 Circle of radius 452 nad 1398 is constructed
Step 3 Array command is used to fix 4 sofa around the dining circle radius 452
Step 4 Array is used base at centre with 4 object

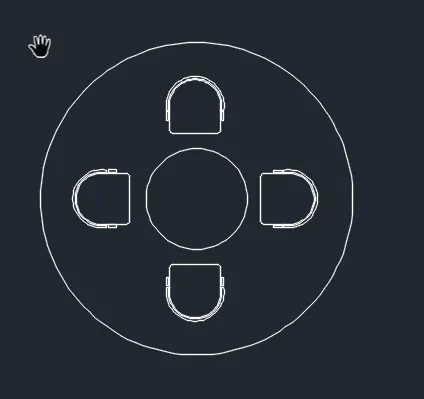

RESULT
Q.3
Ans. 3

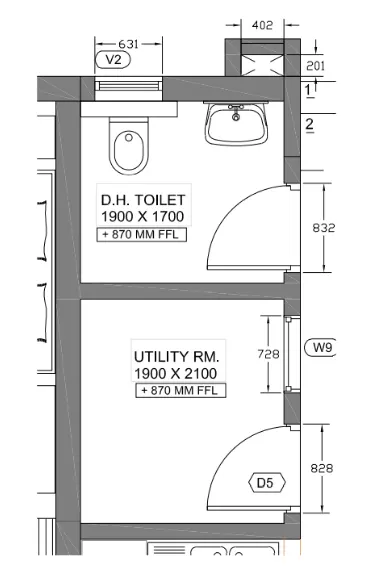

AIM TO draw the given layout
STEP 1 Line command is used
STEP 2 Offset of 300 is used as outer wall
STEP 3 Offset of 150 is used as inner wall , and
Offset of 300 is used as outer wall
STEP 4 Line command used to close the boundary

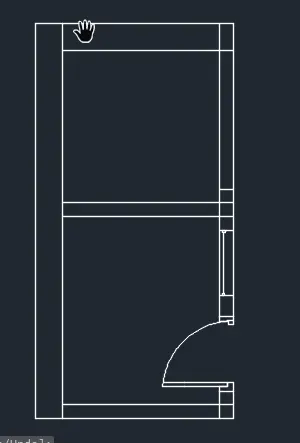

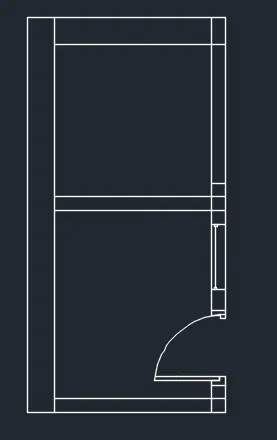

STEP 5 Window and door is constructed with offset command
STEP 6 Circle commnad is used to construct the door
STEP 7

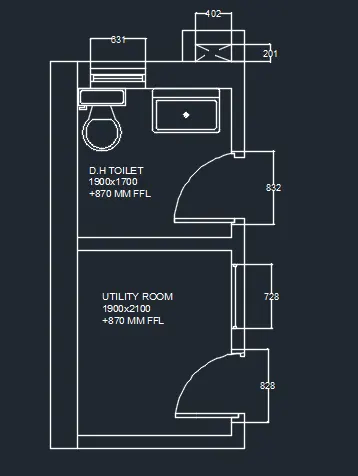

STEP 8 ADC (Additional design centre)command is used to insert the W/C and wash basin
STEP 9 All dimension is drawn by dimension command

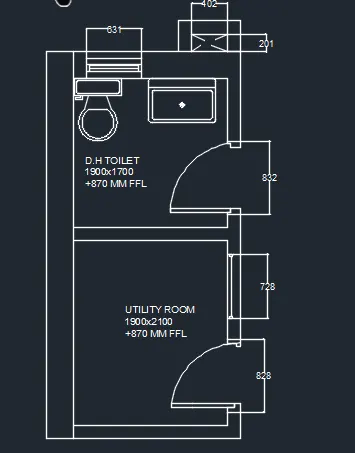

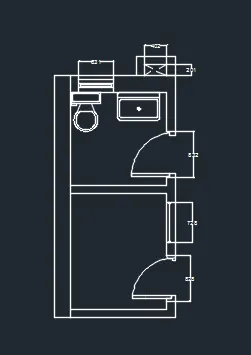

RESULT
