Creating a Residence Layout, Seating plan, Toilet and Utility room plan using AutoCad

AIM : To create a residence layout, Seating plan, Toilet and Utility room plan using AutoCad

Introduction and Prerequisite :

• Open autocad application
• Type Qnew and open new drawing
• Set units according to drawing
• Switch on object snap and object snap modes : Endpoint, Midpoint, Center, Nearest, Intersection, Perpendicular and Node
• Ortho mode is ON

Problem 1:

Aim : To create a residential layout using AutoCad

Procedure :

• Set units to engineering and precision to 0'-0.0"
• Set dimstyle units to engineering and precision to 0'-0.0"
• Draw a line of length 43'6.5" vertically from origin and create an offset of distance 9" to it
• Similarly draw a line of length 25' horizontally from origin and create an offset of distance 9" to it
• Draw a line 12'6" horizontally and from that take an offset at a distance 6'
• Again draw a line using offset at a distance 9" from the last line
• Now create L shape 6'8" (thickness 9") and 6'4" (thickness 4.5")
• After that draw L shape kitchen slab with thickness 2'
• Draw stair case of riser 6' and tread 1' using offset tool at the entrance of layout
• Draw a line at point 9",25'6.5" of length 8'3" and draw offset line at a distance 4.5"
• Another line is drawn vertical to previous line of length 4'6" and thickness 4.5"
• Door D2 is drawn using arc and width of door is 2'6" with a gap of 0.5" between wall and door
• Internal wall is drawn by continuing from door and extended to exterior wall so that to get a toilet room #1
• After that cupboard is drawn 5'7" X 7" with thickness 1"
• Draw a line of 25' horizontally from the end of line 43'6.5"
• Create an offset line of distance 9" from previous line
• Draw internal wall of thickness 4.5" and length 12' vertically downward at distance 11'7.5" measured internally from left side to get two rooms of size 11'7.5" x 12' and 11'6" x 12'
• Draw two doors D2 using arc and width of doors is 3' with gap of 0.5" is between wall and door
• From the end of 25' line draw a line of 43'6.5" vertically downwards and create offset line of thickness 9" towards inside
• Toilet #2 is drawn (at a distance of 12'9" from top) of size 8'1.5" x 4'6" with thickness of 4.5"
• Door D2 for toilet #2 is drawn using arc and width of door is 2'6" with a gap of 0.5" between wall and door
• Draw cupboard beside toilet #2 of size 5'7" X 7" with thickness 1"
• Draw a wall of thickness 4.5" and length of 8'6" (towards left) at a distance of 13'9.5" from the end of first 25' line
• Inside wall draw a window of length 6' at a distance of 1'3" from the exterior wall
• After that draw a door D3 using arc and width of doors is 3'3" with gap of 0.5" is between wall and door
• Using trim tool, trimoff the unnecessary lines
• Using text command mention living, dining, kitchen, bedrooms, toilets, door numbers, window numbers and staircase along with its dimensions
• Draw a table mentioning doors dimensions
• Using dimlinear mark the dimensions according to diagram
• Now create various layers such as doors, windows, internal walls, external walls, text, dimension, furniture and staircase and assign them accordingly with various colours.

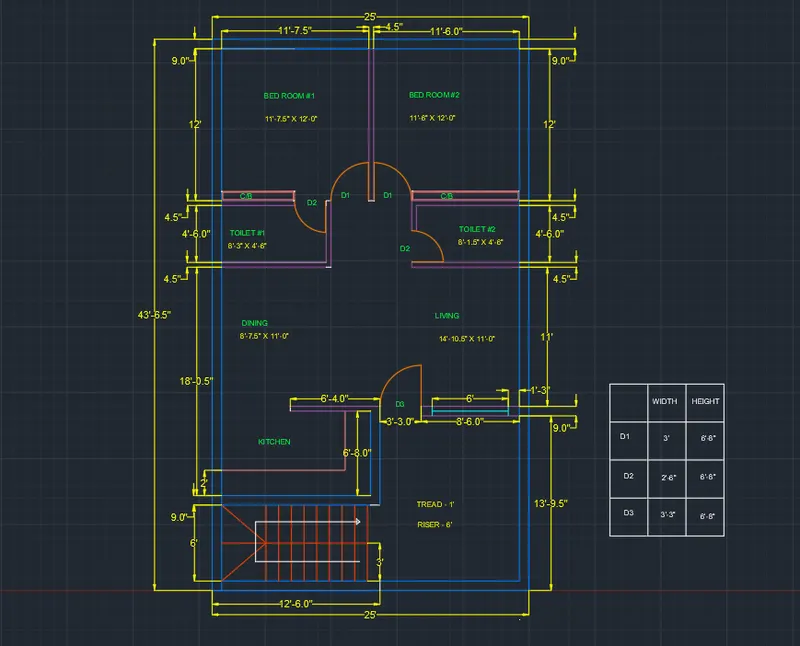

Result :

Problem 2

Aim : To create outdoor seating with canopy using AutoCad

(Some dimensions are assumed)

Procedure :

• Set units to decimal, scale as mm and precision to 0
• Set dimstyle units to decimal and precision to 0
• Draw a circle of radius 452 and 1398 taking origin as a center
• Draw a line of length 800mm vertically, horizontally, leftward and rightward from origin
• Draw a 4 sided polygon (circumscribed) with radius 250mm by taking center as end of 800 mm line which is drawn vertically
• Draw a midline horizontally to the rectangle
• Now draw an arc by taking midline of rectangle as start center and end
• Draw fillets of radius 50mm at bottom of rectangle
• Trim off the extra rectangle shape and midline of rectangle
• Now create an arc by taking offset of previous arc at a distance 50
• Similarly create another arc by taking offset of previous arc at a distance 100
• Draw rectangles on both sides of the arch of size 100 x 200
• Mirror the seating exactly below the origin
• Draw another 4 sided polygon (circumscribed) with radius 250mm by taking center as end of 800 mm line which is drawn leftside of origin
• Draw a midline horizontally to the rectangle
• Now draw an arc by taking midline of rectangle as start center and end
• Draw fillets of radius 50mm at bottom of rectangle
• Trim off the extra rectangle shape and midline of rectangle
• Now create an arc by taking offset of previous arc at a distance 50
• Similarly create another arc by taking offset of previous arc at a distance 100
• Draw rectangles on both sides of the arch of size 100 x 200
• Mirror the seating exactly on right side of the origin (that is on positive X axis)
• Erase 800 mm lines
• Using dimradius mark the dimensions

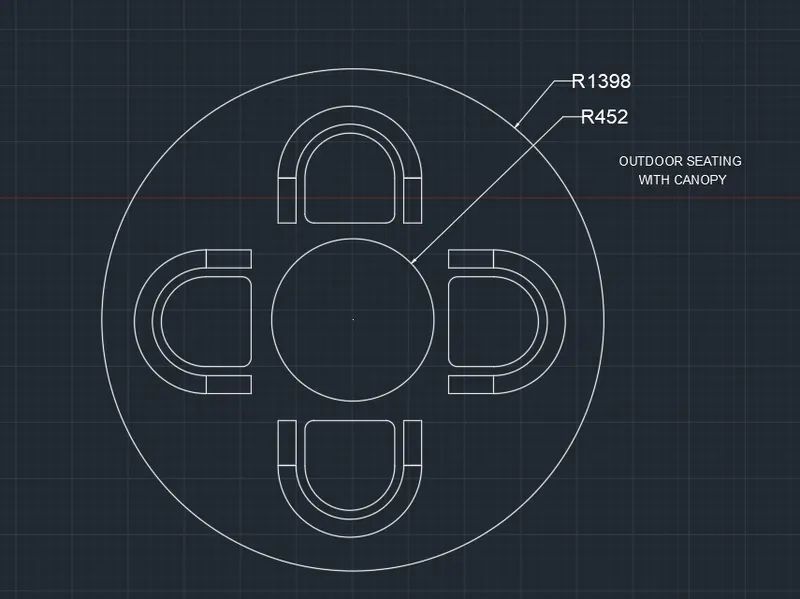

Result :

Problem 3

Aim : To create toilet room and utilities room using AutoCad

(Some dimensions are assumed)

Procedure :

• Set units to decimal, scale as mm and precision to 0
• Set dimstyle units to decimal and precision to 0
• Draw a line of 4400mm vertically from origin and create offset of that line with distance as 300mm (inward)
• Draw a line of 2350mm toward rightside from origin and create offset of that line with distance as 150mm (inward)
• Draw a line of 4400mm vertically (at point 2350,0) and create offset of that line with distance as 150mm (inward)
• Draw a line of 2350mm (at point 0,4400) and create offset of that line with distance as 150mm (inward)
• Now draw a internal wall off 150 X 200 mm (at point 2350,150)
• Then take offset of distance of 25 downward for 2 times
• Trim off to create L shape (2 times)
• Now draw door of length 828mm from first L shape as base (25mm)
• Draw a line of length 828mm vertically (at a point 2350,300)
• Take offset of 828mm line of distance 150mm
• Draw a horizontal line of 150mm and then 25mm downward (1st)
• From there continue drawing a line of 100mm and then again 25mm downward
• End the line perpendicular to internal wall
• Now draw an arc connecting end of door to 25mm line (1st)
• Draw a window of opening 728mm (at a point 2350,1378)
• Draw a internal wall of thickness 150mm (at a point 300, 2250)
• Draw a line of length 832mm vertically (at a point 2350,2550)
• Now draw similar door (length of 832mm and thickness 25mm) and internal walls as before
• Complete the walls by joining on
• Draw sanitary ware of any assumed dimensions which is fit to the toilet room
• Draw ventilator of opening 631mm at top of the layout
• Draw a rectangle of 402 x 201 at top right of the layout and create an offset of it with distance 150
• Using text command mention toilet room, utility room, door numbers, window numbers and ventilator number along with its dimensions
• Trom off the unnecessary lines
• Using dimlinear mark the dimensions according to diagram
• Now create various layers such as door, window, ventilator, text, dimension, internal walls, external walls and sanitary ware number assign them accordingly with various colours.

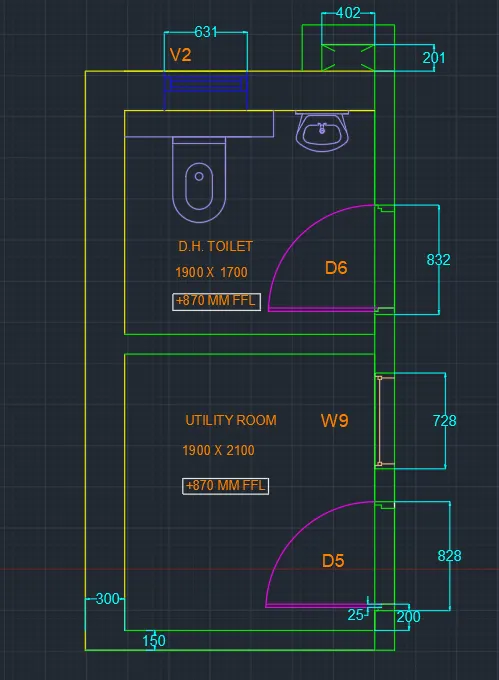

Result :
