Creating a Residence Layout, Seating plan, Toilet and Utility room plan using AutoCad

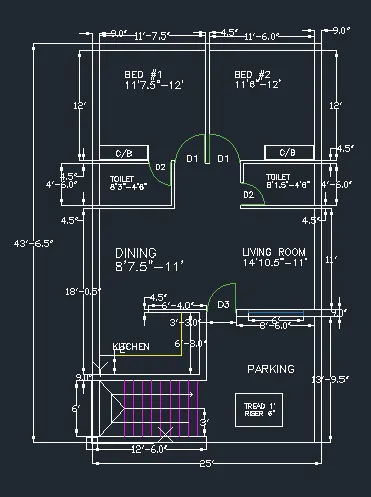

1. RESIDENCE PLAN
AIM
TO SKETCH THE GIVEN RESIDENCE PLAN
PROCEDURE
- DRAW THE OUTLINE OF THE PLAN INNER WALL GIVEN
- USING LAYER PROPERTIES GIVE DIFFERENT COLOURS FOR DIFFERENT ELEMENTS
- THEN USING OFFSET DRAW 9.0' DISTANCE ANOTHER OUTLINE. SHOWING THE WALL THICKNESS
- GIVE WALL THICKNESS 4.5' WHEREVER NECESSARY
- USING ARC AND POLYLINE MAKE DOORS D1 , D2, D3, AFTER MIRRORING ALLIGN IT TO THE CORRECT POSTION AS IN THE PLAN.
- USING THE ANNOTATION GIVE THE DIMENSION OF THE ROOMS
- USE THE COMMAND TEXT TO GIVE NAMES
- USE DIMLINEAR TO MARK DIMENSIONS ON THE OUTER
RESULT
THUS THE GIVEN PLAN IS SKETCHED IN AUTOCAD

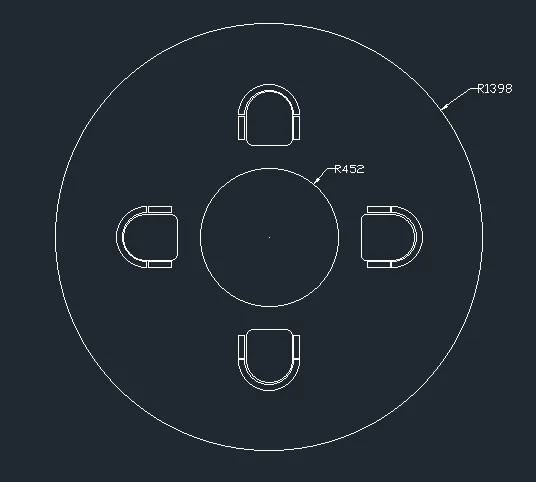

2. SEATING
AIM
TO SKETCH THE OUTDOOR SEATING WITH CANOPY
PROCEDURE
- DRAW TWO CIRCLES WITH RADIUS 452 AND 1398
- DRAW A RECATNGLE 600X200
- THEN DRAW A CIRCLE OF RADIUS 300.
- TRIM OFF UNWANTED LINES. DRAW OFFSET OF 0.5, 30 MM DISTANCES.
- USING POLYLINE ATTACH THE SEMI CIRCLES
- DRAW SMALL RECTANGULAR BOXES AT BOTH END OF THE SEMICIRCLE.
- USE DIMDIAMETER COMMAND TO MARK THE RADIUS OF CIRCLE
RESULT
THUS THE OUTDOOR SEATING WITH CANOPY IS SKETCHED

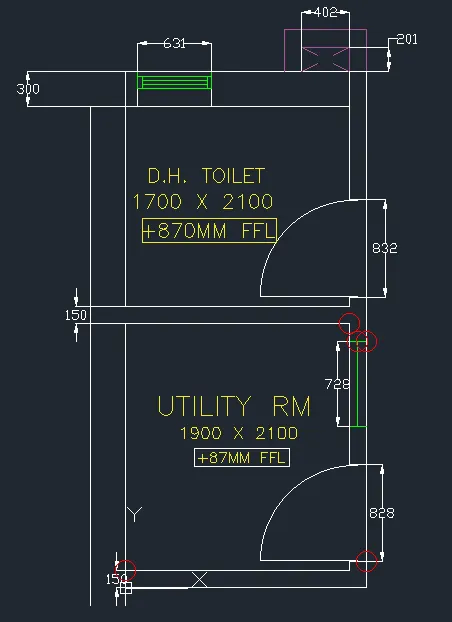

3.TOILET AND UTILITY ROOM
AIM
TO SKETCH THE PARTS OF TOILET AND UTILITY ROOM
PROCEDURE
- DRAW THE INNER WALL END OUTLINE OF THE SKETCH
- GIVE OFFSET DISTANCE 300 MM AND GIVE WALL THICKNESS
- USING POLYLINE MAKE VENTILATERS OF LENGTH 631MM
- ALLIGN IT ON THE CORRECT WALL POSTION
- GIVE SEPERATING WALL INSIDE WITH OFFSET DISTANCE 150MM
- DRAW A DUCT OF 402MM AT THE CORNER USING POLYLINE AS GIVEN
- USING ARC AND POLYLINE, MAKE DOORS OF LENGTH 832MM, 828MM AND PLACE IT CORRECTLY USING MOVE OPTION
- USE TEXT TO GIVE NAMES
- USE DIMLINEAR TO GIVE DIMEMNSIONS OF ROOM
RESULT
THUS THE GIVEN PLAN IS SKETCHED IN AUTOCAD
