Creating a Residence Layout, Seating plan, Toilet and Utility room plan using AutoCad
1. Residence Plan:

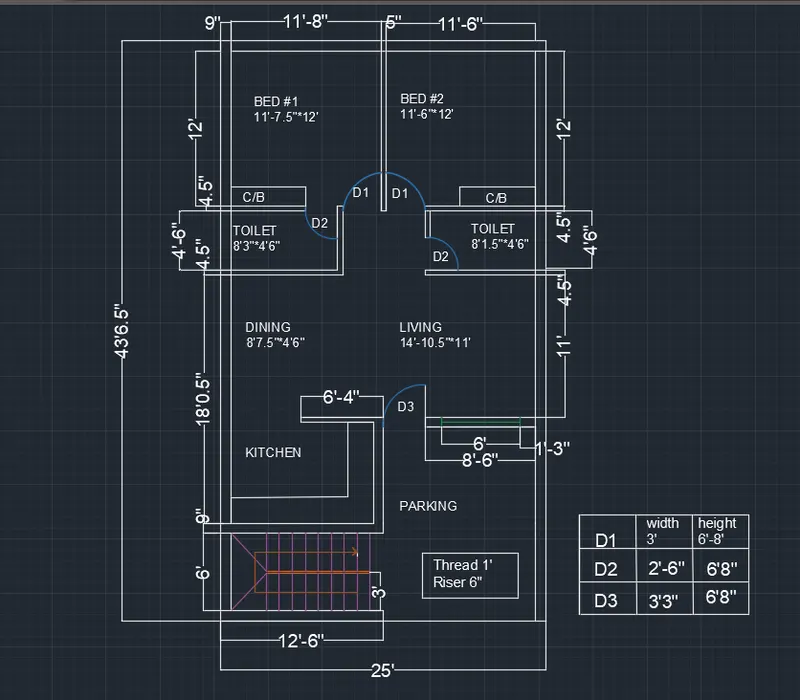

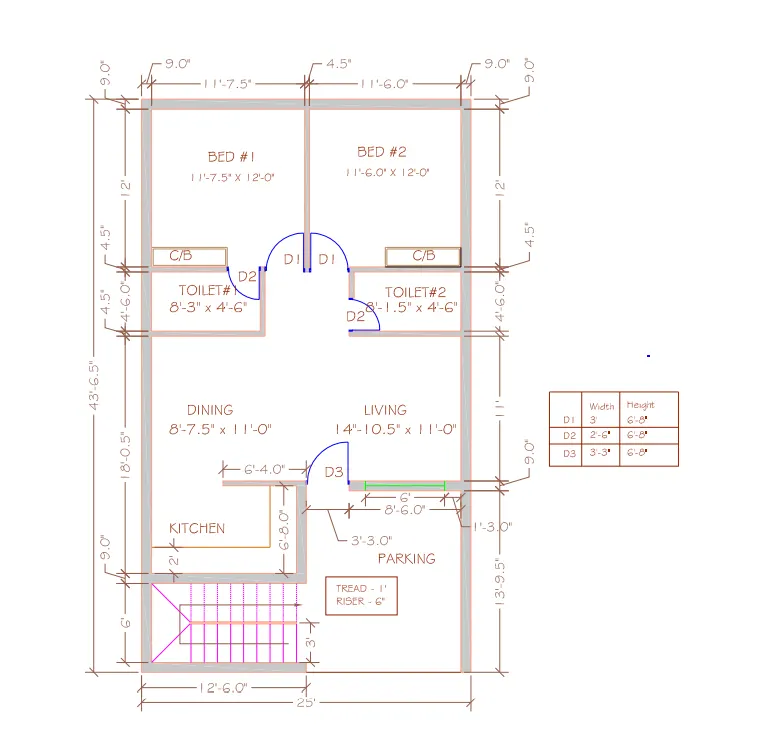

Sketch the layout of a residence as shown in the Figure 1. Consider all dimensions as reference to sketch the unit plan. Also the text in the layout are only for reference. Assume the missing dimensions. Also, refer the schedule for size of the doors.
AIM:
To draw the given residential plan with the details given
INTRODUCTION:
Introduction to Residential Layout is ideal for students and practitioners of urban design, planning, engineering, architecture and landscape seeking a comprehensive guide to the theory and practice of designing and laying out residential areas.
COMMAND USED:
- Limmax command
- Limits command
- Zoom command
- Xline command
- Line command
- Dimlinear command
- Dimstyle command
- Units command
- Text command
- LW command
- Extend command
- Trim command
PROCEDURE:

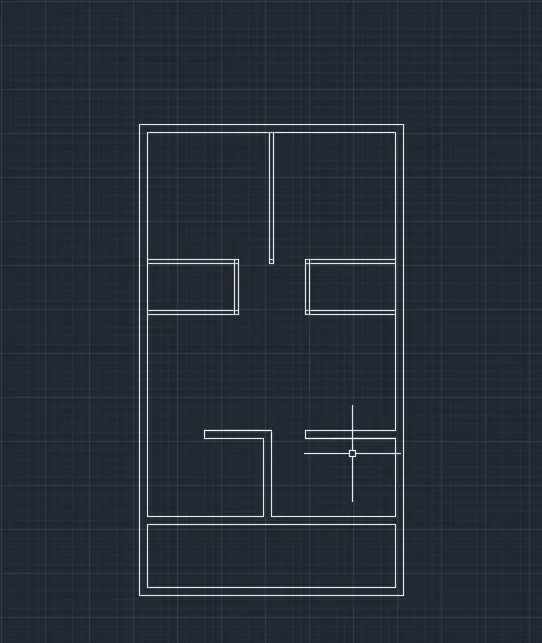

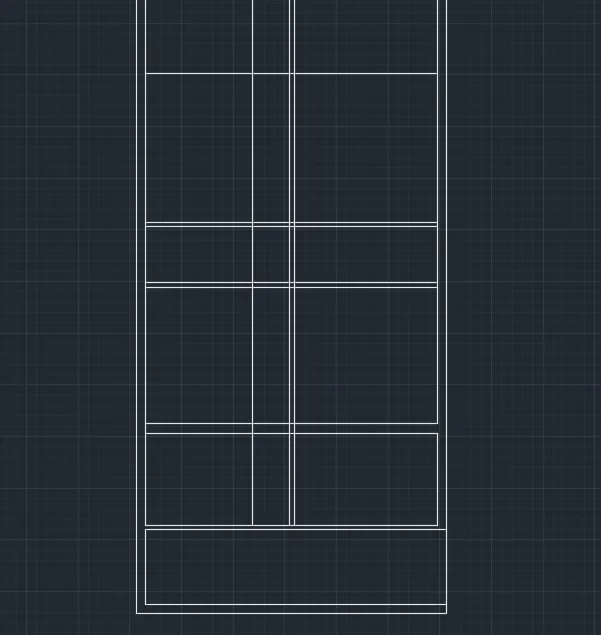

- Enter the xline command and draw the line in both x axis and y axis.
- Make offset of 9” and make the wall
- The main wall is made of thickness 9”
- Partition walls are made of 4.5” thickness
- Next enter the offset command in the command box, then press enter. And select the lines which we have drawn previously and offset the lines to 9.0"
- After providing walls, remove the extra lines using the trim command

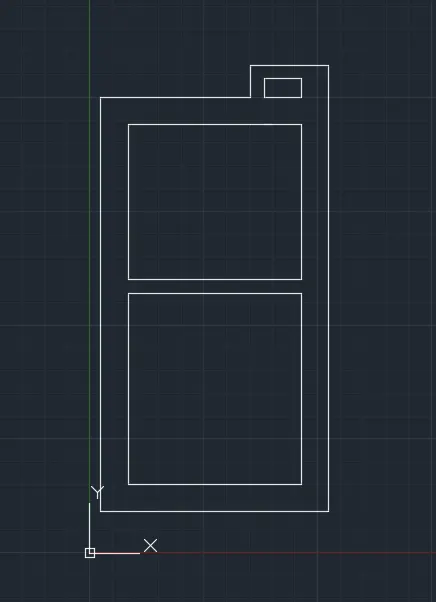

- In the same way offset command is used to partition the rooms, toilets, living and dinning hall as per the dimensions.

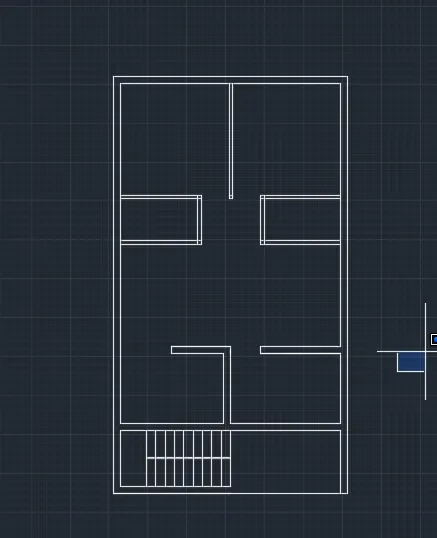

- Staircase provided is a dog legged stair.
- Draw the stairs left side of parking with 1' tread and 6' riser, that is shown in figure clearly.
- Next we have to draw the doors with the given dimensions for D1, D2, D3.

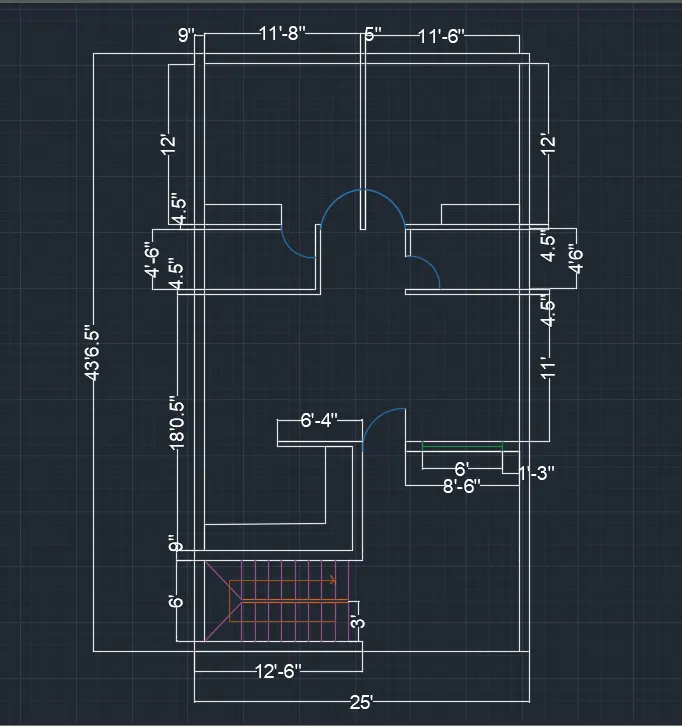

- provide the dimensions
- differentiate the doors and staircase using different colours.
- And also give the names for the rooms in the residential building.
- To provide the names mtext command is used.
RESULT:
The Reidential plan is drawed

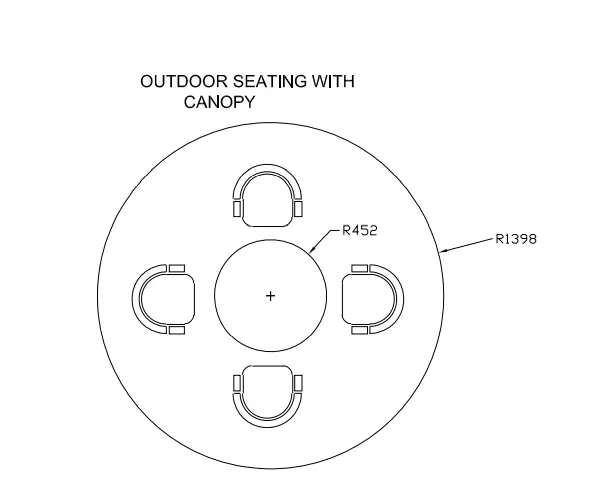

2. Sketch the seating plan for an outdoor canopy. Assume the dimensions for the seating. Also, consider the dimensions in mm.
AIM:
To draw the given seating plan for an outdoor conopy in detail
INTRODUCTION:
Seating plans in Spektrix are highly configurable using Overlays. These allow you to take seats entirely off sale, assign Price Bands to specific areas, hold back an allocation of seats from general sale, offer additional information on a seat-by-seat basis, and denote the best seats in the house for use with the Best Available functionality – all without having to make numerous versions of the same seating plan.
- COMMANDS USED:
- Limmax command
- Limits command
- Zoom command
- Circle command
- Arc command
- array
- Dimstyle commands
- Units command
- Text command
- LW command
PROCEDURE:
- First we have do the unit command for set of the unit in engineering or architectural method

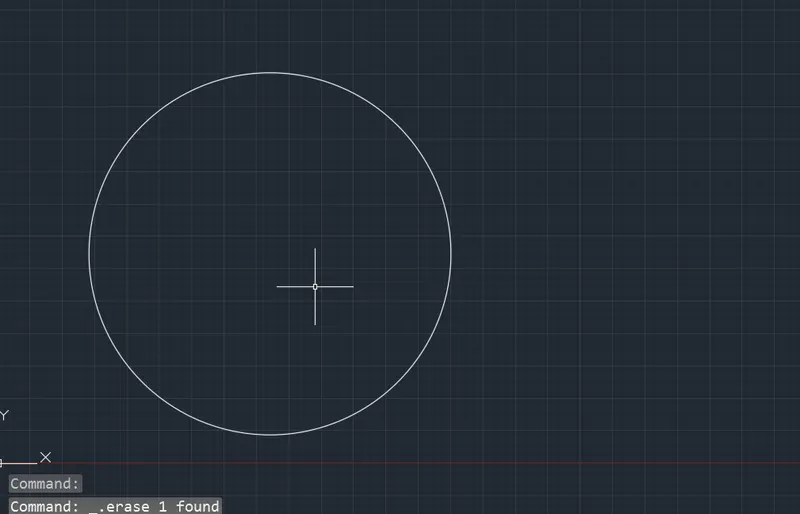

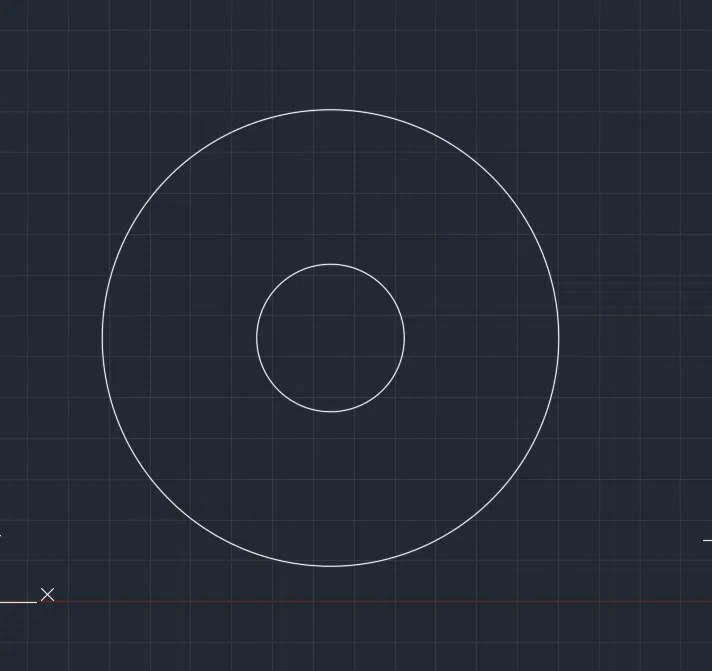

- Next draw the circle for radius Specify center point for circle or [3P/2P/Ttr (tan tan radius)], Specify radius of circle or [Diameter]: 1398mm
- Again we draw the circle at the radius 452mm
- Next here we have to draw the rectangle inside the first circle, then we have to enter the fillet command and select the rectangle coner to fillet it.
- Next we select the arc command to create are left side of the rectangle

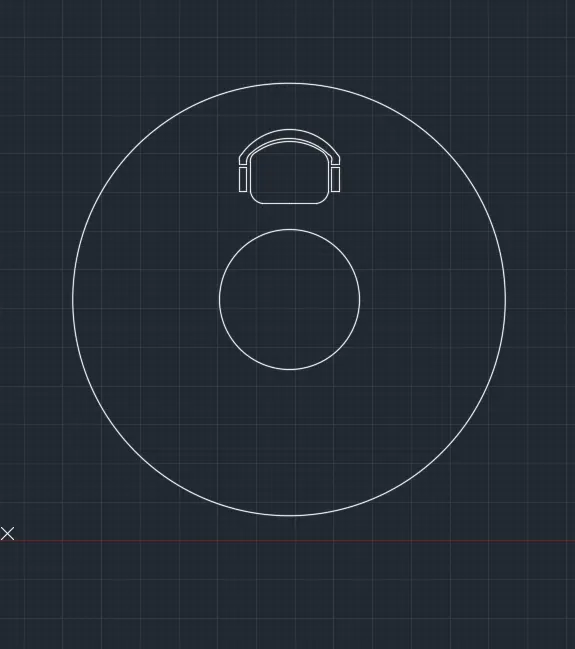

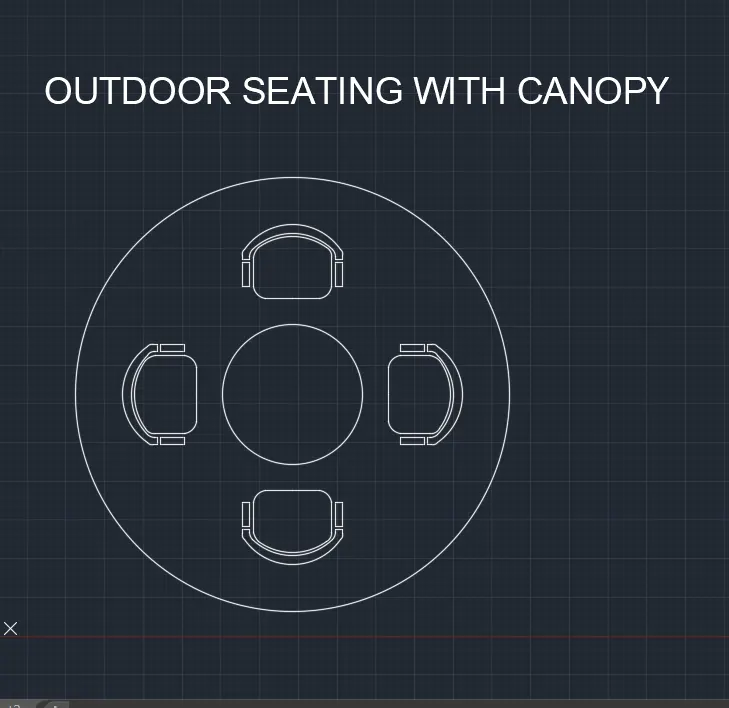

- Copy the created chair and use array command
- By using polar array and providing the number of items as 4 the chairs
RESULT:
Drawed the seating plan as per specific dimension.
3. Sketch the part plan for the toilers and utilities room. Consider the outer wall thickness as 300mm and inner wall thickness as 150mm. Also, assume the missing dimension, Texts, dimensions, and hatches are only for references. Also, symbols for toilets and w/c are also for references.
AIM:
To draw the part plan for the toilets and utilities in detail
INTRODUCTION:
The utility room has several uses but typically functions as an area to do laundry. This room contains laundry equipment such as a washing machine, tumble dryer, ironing boards and clothes iron. The room is also used for closet organization and storage. The room would normally contain a second coat closet which is used to store seasonal clothing such as winter coats or clothing which are no longer used daily. Storage spaces would contain other appliances which would generally be in the kitchen if it was in usage daily.
COMMANDS USED:
- Limmax command
- Limits command
- Zoom command
- Line command
- Dimlinear command
PROCEDURE:
- First we start with an unit commend , limmax and limits
- The lines are drawn using xline command in both x and y direction.
- The wall thickness is provided as 300mm for the outer walls
- To the offset at 300mm
- The wall thickness for the inside walls are provided as 150mm and similarly take offset 150mm.

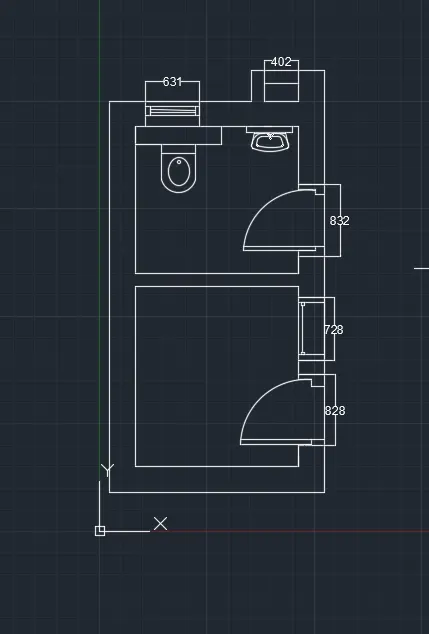

- The walls are provided as per the dimensions given
- To use fillet for an delete un wanted lines

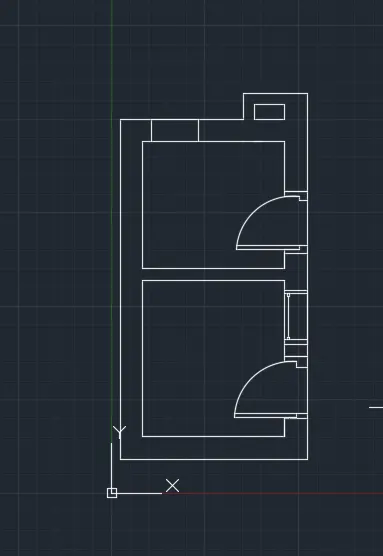

- The doors are provided using line and arc command and created as per dimension.

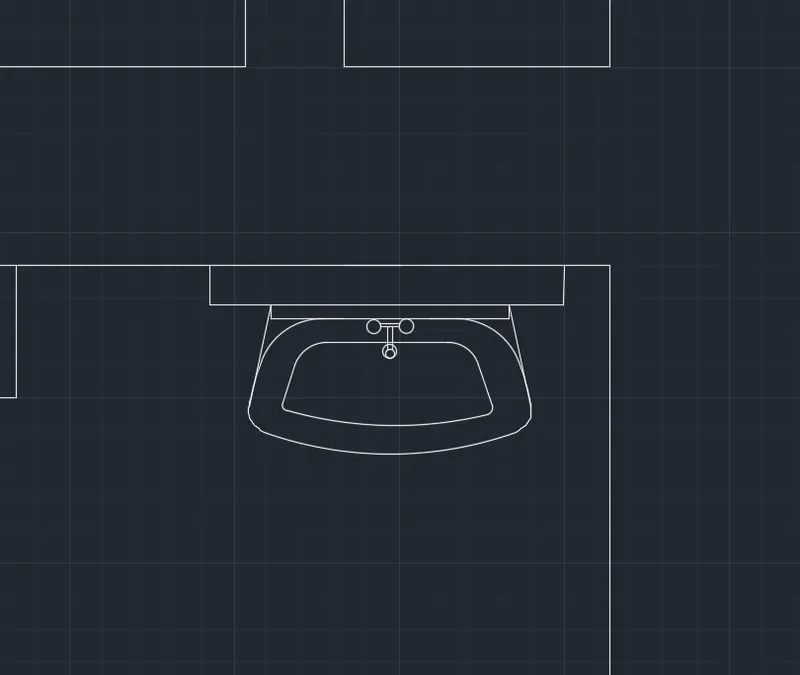

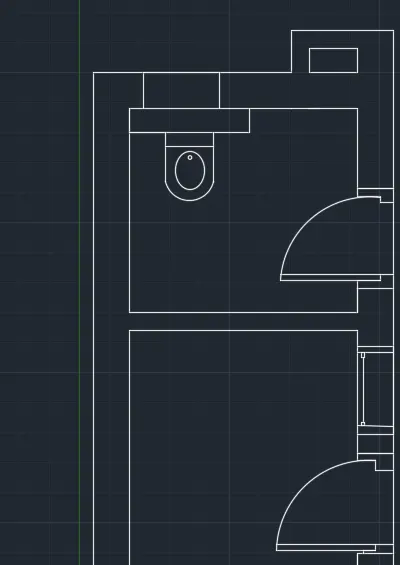

- The toilet basin is created
- Commands used to create the basin are line, arc, ellipse and circle
- Trim and extend command wherever required.
- Ventilation for the bathroom is created.
- Commands used were line, trim
- Text is added to the drawing using mt command.

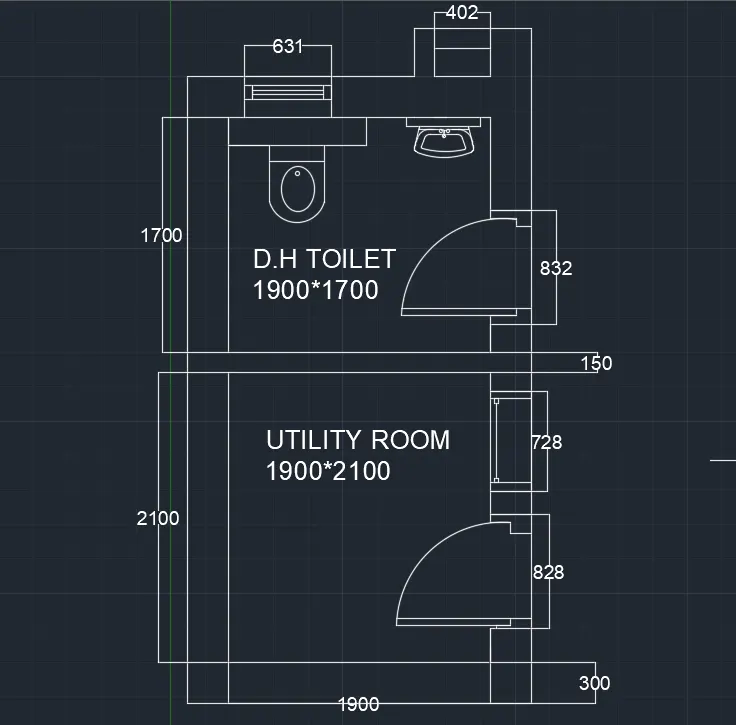

- Dimensions of the washroom is provided.
RESULT:
The given toilet and utility room are drawed.
