Creating a Residence Layout, Seating plan, Toilet and Utility room plan using AutoCad

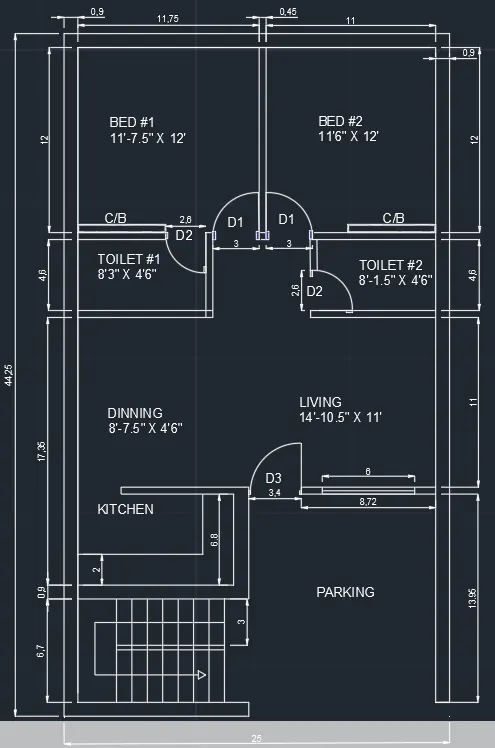

Q1- AIM - SKETCH THE GIVEN LAYOUT IN AUTOCAD BY REFEREING ABOVE GIVEN PLAN AND VALIDATE THE DIMENSIONS.
PROCEDURE-
1.SET THE AUTOCAD SETTINGS LIKE UNITS AND LIMITS IN FEETS.
2. USE THE LINE TOOLS FOR DRAWING OUTER WALL ALONG LENGTH AND BREADTH.
3. USING OFFSET TOOLS PROVIDE OFFSET THICKNESS FOR INNER WALLS AND OUTER WALLS CONSIDERING ALONG WITH ROOM DIMENSIONS.
4. USE TEXT TOOLS FOR LABELLING THE INNER SPACES OF PLAN.
5.AFTER LABELLING , USING TRIM TOOL TRIM OUT UNWANTED LINES TO GIVE SPACE FOR DOORS AND OPENING WITH IN ROOM AND FINISHING SHOW OF PLAN WITH CONTINOUS WALL.
6. CREAT DOORS USING LINE AND ARC TOOLS AND THEN GROUPING THEM AS ONE BLOCK THEN ,SIMILARLY CREATING SUCH DOORS FOR OTHER DOORS IN PLAN.
7. PLACE DOORS BLOCK AT RESPECTIVE PLACES USING MOVE OR COPY TOOL AND SELECTING POINT OF COPY.
8.AT LAST USE DINLINEAR COMMAND FOR GIVING DIMENSION MEASURE AT OUTTER SIDE OF PLAN.
RESULT- THIS EXCERSIE GIVE AN IDEA ABOUT PLAN CREATION AND NECESSARY OPENING FOR ROOMS AND DIMENSIONS.

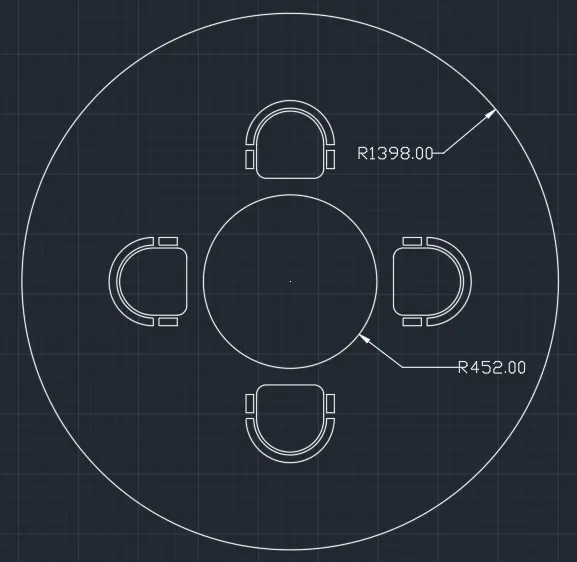

Q2 -AIM - TO CREAT AUTOCAD DRAWING FOR SEATING PLAN IN OUTDOOR OF CANOPY.
PROCEDURE-
1. CREAT TWO CONCENTRIC CIRCLES WITH GIVEN REFERENCE RADIUS.
2. DRAW A CHAIR USING TOOLS LIKE LINE, FILLET, ARC, OFFSET , TRIM.
3. THE DIMENSIONS OF CHAIR ARE ASSUMED AS PER AVERAGE PERSON SPACE AREA AND ALSO CREATING BLOCK OF INDIVIDUAL CHAIR.
4. USING ARRAY TOOLS AND SELECTING USING PATH AND EDITING THE NUMBERS AND AUTO ADJUSTING THE SPACE BETWEEN THEM.
5. LABEL THE DIMENSION OF CIRCLES USING DIMRADIUS.
RESULT- SUCH PRACTICE LEADS TO LEARNING SOME OF THE ARTITECHTURAL DRAWING FOR DETAILING IN PLAN.

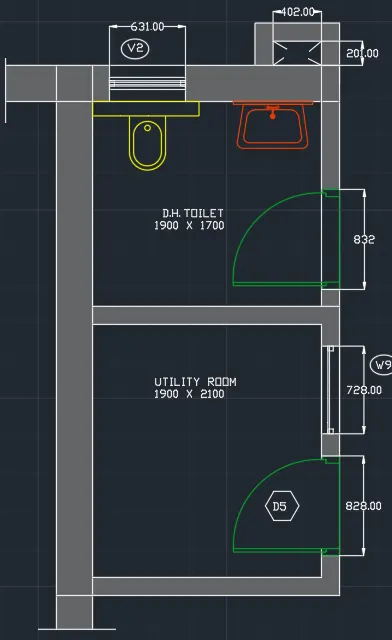

Q3- AIM -TO CREAT AUTOCAD DRAWING FROM THE GIVEN REFERENCE IMAGE FOR TOILET UTILITES.
PROCEDURE-
1.
1.SET THE AUTOCAD SETTINGS LIKE UNITS AND LIMITS IN FEETS.
2. USE THE LINE TOOLS FOR DRAWING OUTER WALL ALONG LENGTH AND BREADTH.
3. USING OFFSET TOOLS PROVIDE OFFSET THICKNESS FOR INNER WALLS AND OUTER WALLS CONSIDERING ALONG WITH ROOM DIMENSIONS.
4. USE TEXT TOOLS FOR LABELLING THE INNER SPACES OF PLAN.
5.AFTER LABELLING , USING TRIM TOOL TRIM OUT UNWANTED LINES TO GIVE SPACE FOR DOORS AND OPENING WITH IN ROOM AND FINISHING SHOW OF PLAN WITH CONTINOUS WALL.
6. CREAT DOORS USING LINE AND ARC TOOLS AND THEN GROUPING THEM AS ONE BLOCK THEN ,SIMILARLY CREATING SUCH DOORS FOR OTHER DOORS IN PLAN.
7. PLACE DOORS BLOCK AT RESPECTIVE PLACES USING MOVE OR COPY TOOL AND SELECTING POINT OF COPY.
8.AT LAST USE DINLINEAR COMMAND FOR GIVING DIMENSION MEASURE AT OUTTER SIDE OF PLAN.
RESULT- THIS EXCERSIE GIVE AN IDEA ABOUT PLAN CREATION AND NECESSARY OPENING FOR ROOMS AND DIMENSIONS.SUCH PRACTICE LEADS TO LEARNING SOME OF THE ARTITECHTURAL DRAWING FOR DETAILING IN PLAN.
