Creating a Residence Layout, Seating plan, Toilet and Utility room plan using AutoCad
CHALLENGE 1
AIM:

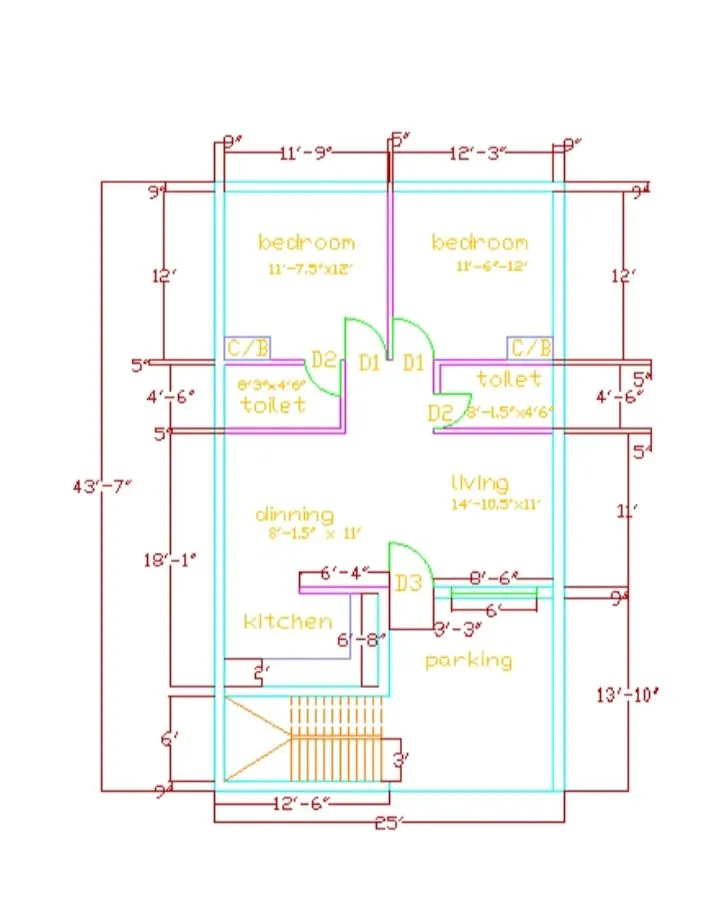

- To Sketch the layout of a residence as shown in the Figure 1.
PROCEDURE:
STEP1:
- In the command prompt type QNEW > IMPERIAL TEMPLATE
- In the command prompt type UNITS
- > ENGINEERING > PRECISION > 0'-0"
- In the command pompt type LIMMAX > 100',100'
- In the command prompt type LIMITS > 0,0' > UPPER RIGHT CORNER > 70',70'
- In the command prompt type ZOOM> A
STEP 2:
EXTERIOR AND INTERIOR WALLS

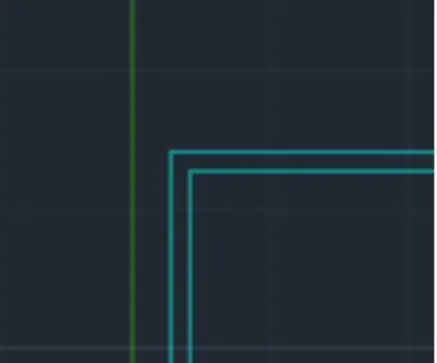

- In the command prompt type XL > horizontal
- In the command prompt type XL > vertical
- In the command prompt type TRIM to trim the excess line and to get the corner of the building
-
In the command prompt type

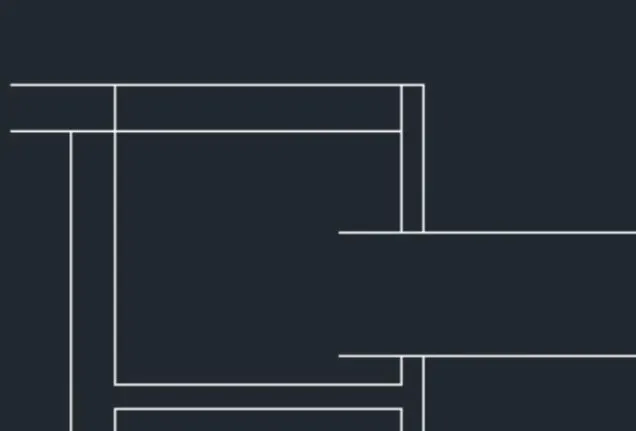

offset > distance 9.0" and offset the horizontal and vertical lines (to get the thickness of the wall)
-
In the command prompt type TRIM to trim the excess lines
• In the command prompt type offset type distance (11-7.5",0) > offset
- In the command prompt type offset type distance (4.5", 0) > offset
-
In the command prompt type offset type distance (12-3", 0) > offset
-
In the command prompt type offset type distance (9.0", 0) > offset
-
In the command prompt type TRIM to trim the excess line:
-
In the command prompt type offset type distance (0,9.0") > offset
-
In the command prompt type offset type distance (0,12¹) > offset
-
In the command prompt type offset type distance (0,4.5") > offset
-
In the command prompt type offset > type distance (0,4'-6") > offset
-
In the command prompt type offset type distance (0,4.5") > offset
-
In the command prompt type offset type distance (0,18'-0.5') > offset
-
In the command prompt type offset > type distance (9.0", 0) > offset
-
In the command prompt type offset > type distance (0,6¹) > offset .
-
In the command prompt type offset > type distance (9.0", 0) > offset
-
In the command prompt type TRIM to trim the excess line
STEP 2:

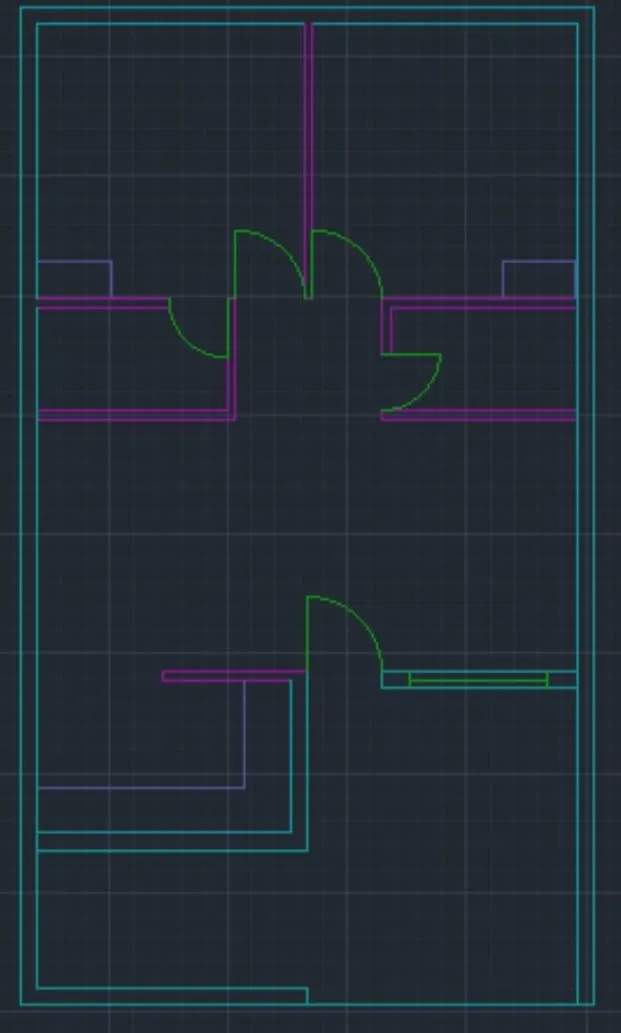

DOORS, WINDOW, SLABS

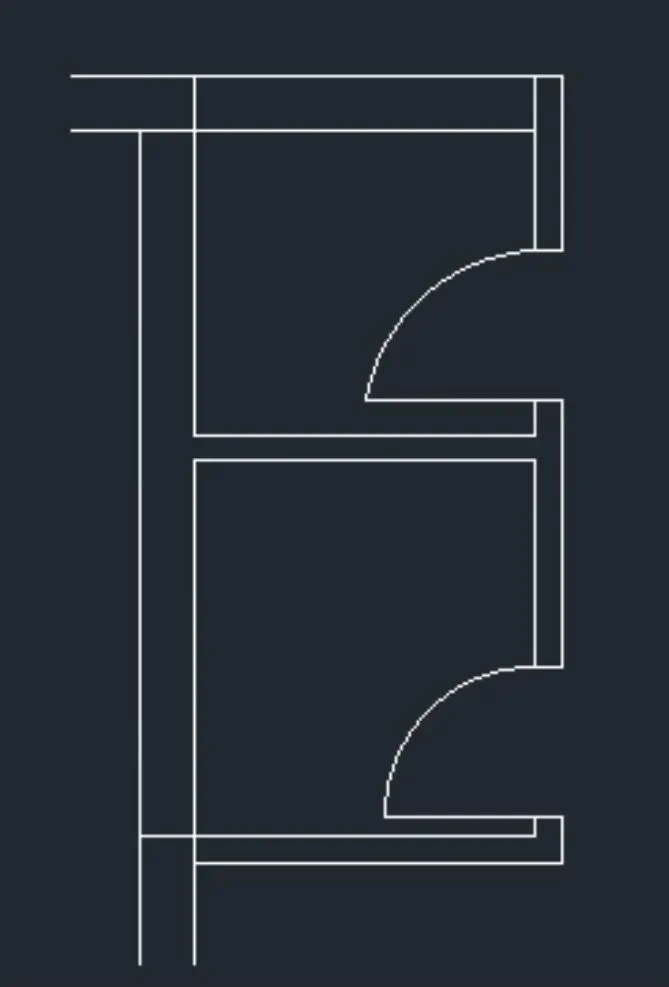

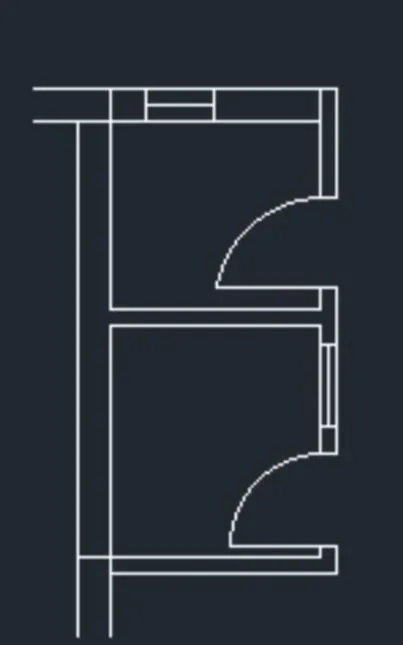

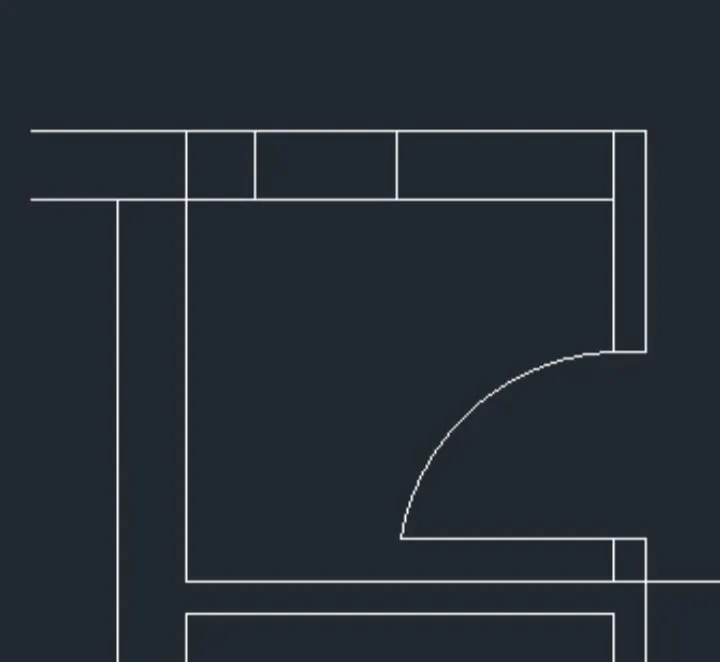

- For doors offset the required distance and draw doors using ARC COMMAND > START, CENTRE, LENGTH
- For doors offset the required distance and trim the extras

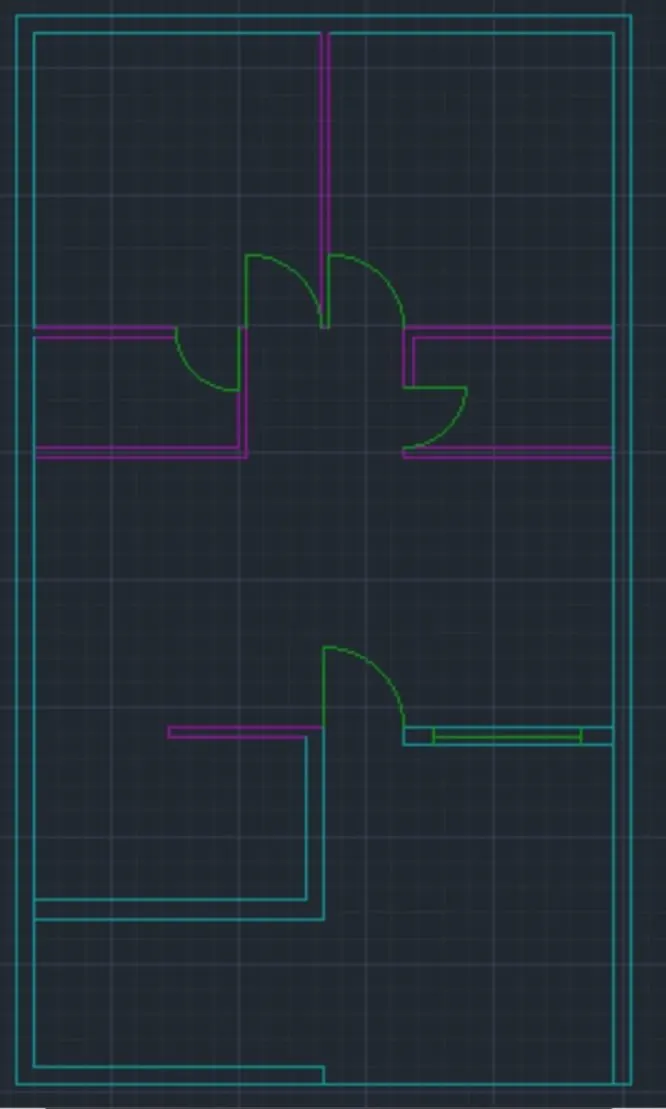

RESULT:
STEP 3:

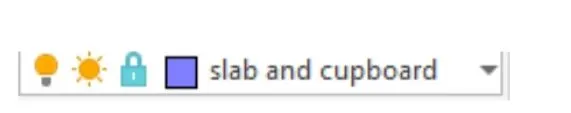

SLABS AND CUPBOARDS

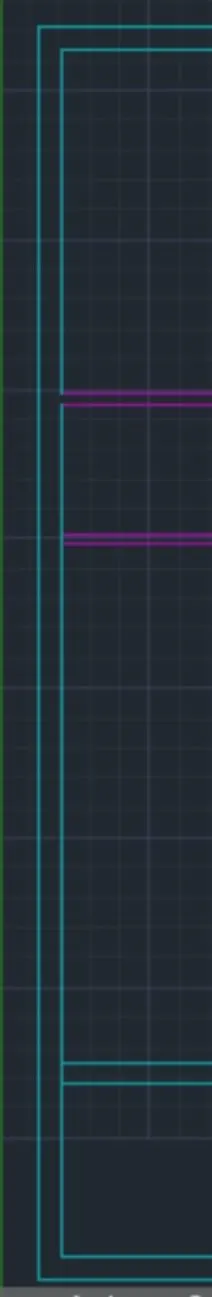

- for slabs the offset comand is used of distance (0,2') and (2,0)
- for cupboards rectangular (REC) command is used of distance 2 and 1'.
RESULT:
STEP 4:

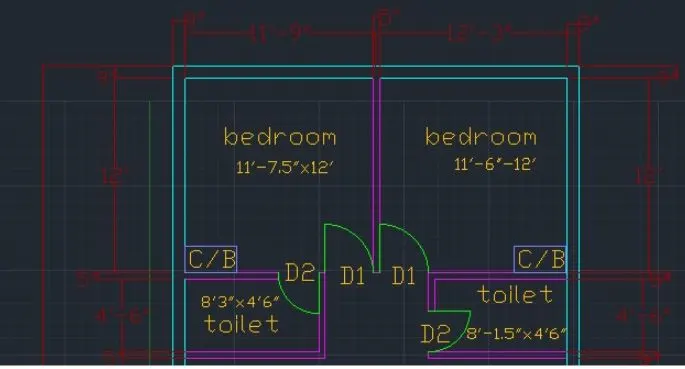

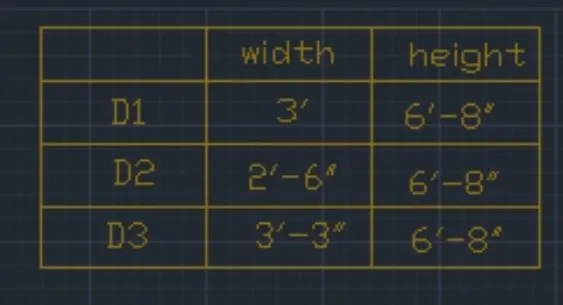

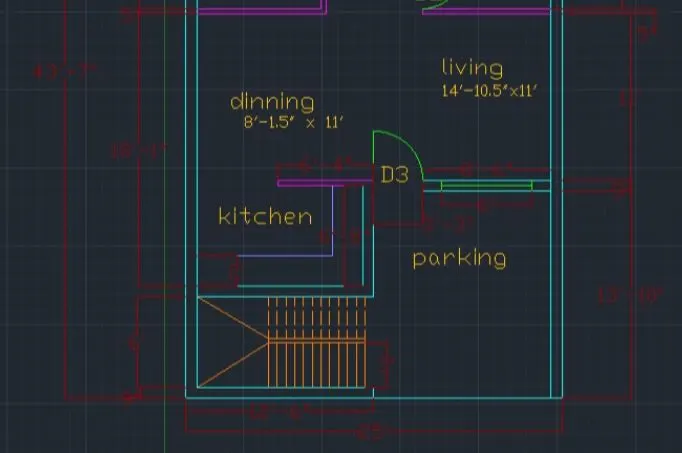

DIMENSIONS AND TEXT
- Dimensions and text are done using DIM AND TEXT COMMAND.

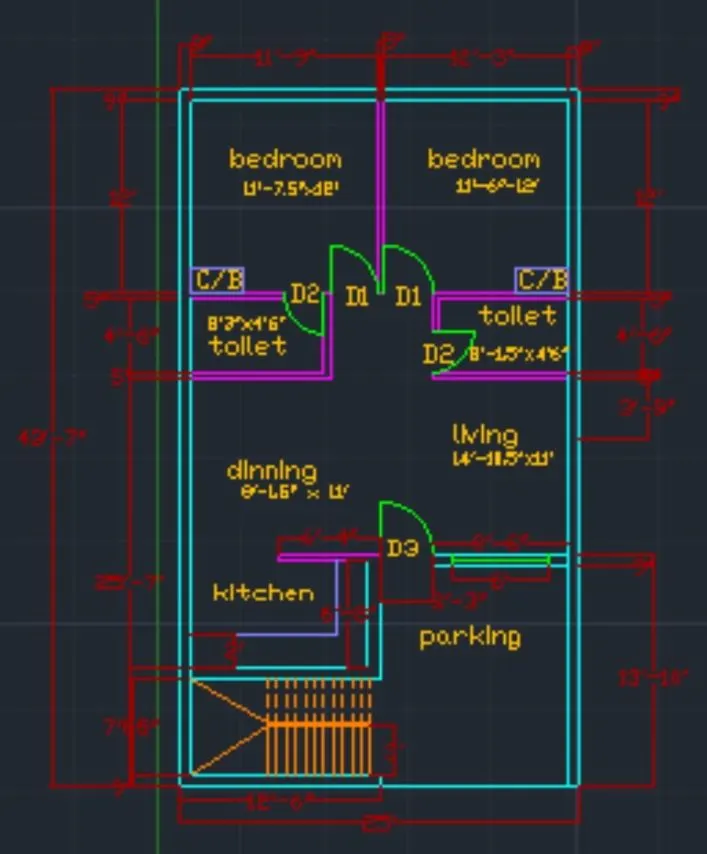

RESULT:
CHALLENGE 2
AIM:
- To Sketch the seating plan for an outdoor canopy.
PROCEDURE:
STEP1 :
- In the command prompt type ONEW > METRIC>Acad.dwt>decimal >0.0
- In the command prompt type UNITS >mm > PRECISION >0.0
- In the command pompt type LIMMAX > 100,100
- In the command prompt type LIMITS > 0,0> UPPER RIGHT CORNER > 70,70
- In the command prompt type ZOOM> A
STEP 2:

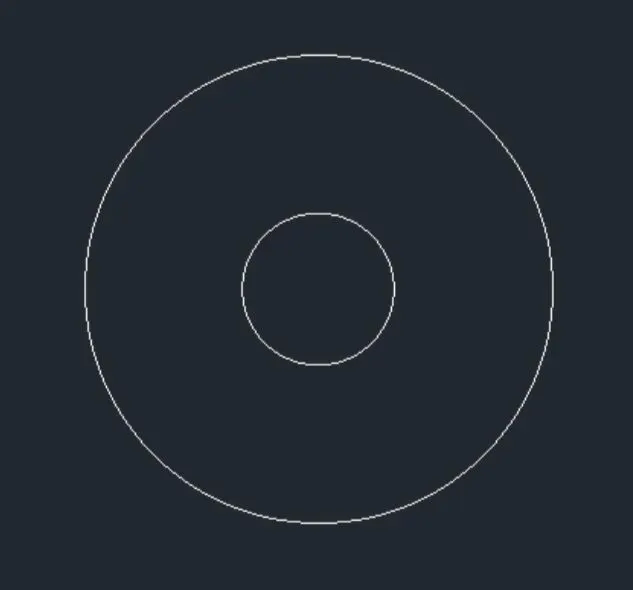

CIRCLES:
- In the menu bar click on circle > centre, radius
- specify the centre point as 10,10 and radius 452
- In the meu bar click on circle > centre, radius
- specify the centre point same as the previous circle (10,10) and radius 1398
RESULT:
STEP 3:
DOORS

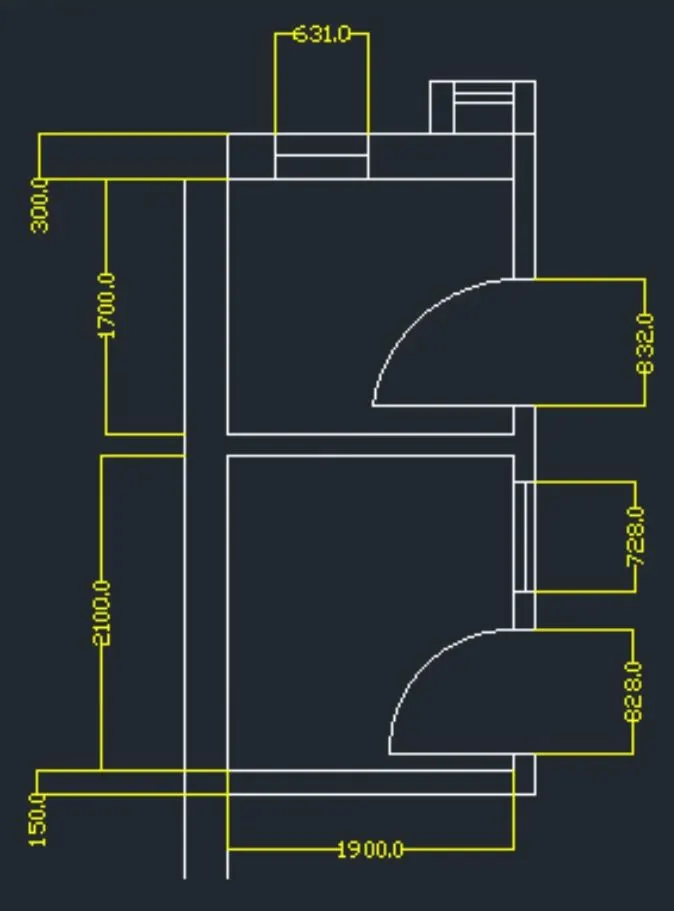

- for doors give offset command of distance 823 and trim the extra line

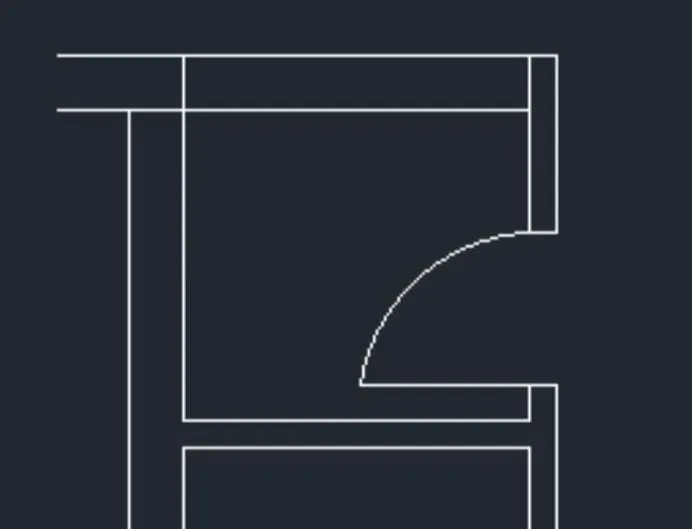

- In the menu bar click arc> start, end , length (to gt the door symbol)
- trim the unwanted lines using trim command
- for doors give offset command of distance 828 and trim the extra line
- In the menu bar click arc> start, end , length (to gt the door symbol)
- trim the unwanted lines using trim command
STEP 4:
WINDOWS

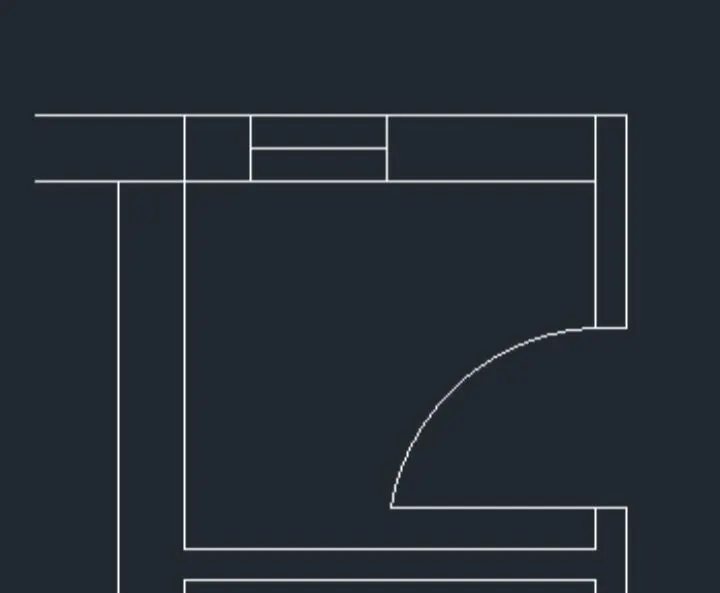

- for window give offset command of distance 631 and trim the extra line
- Using line command draw a line in the centre
- for window give offset command of distance 728 and trim the extra line
- Using line command draw a line in the centre
FINAL RESULT :
