Creating a Residence Layout, Seating plan, Toilet and Utility room plan using AutoCad

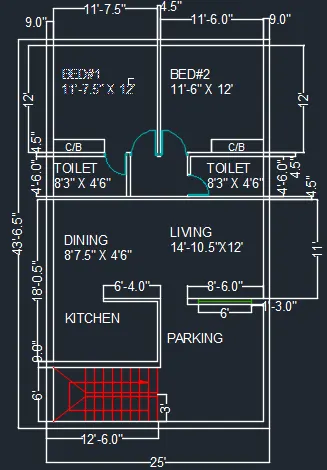

1.RESIDENCE PLAN:
AIM: To draw tghe given residential plan with the details given below.
INTRODUCTION:Residential layout is ideal drawing of urban designing,planning engineering,architecture and landscape learning a comprehensive guide by practice of designing and layingout the residential areas.
The common commands used are :
Limmax command
Limits command
Zoom command
Xline command
Line command
Dimlinear command
Units command
Text command
Extend command
Trim command
STEP WISE PROCEDURE:

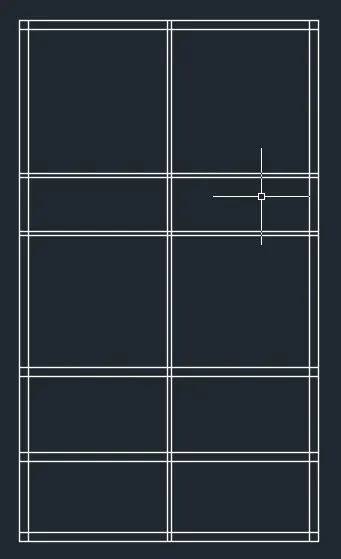

* Enter the xline command and draw the line in both x axis and y axis.
*Make offset of 9" and make the wall
*Portion walls are made of 4.5" thikckness.
*Next enter the offset command in the command box, then press enter and select the lines which we have drawn previously and offset the lines to 9.0".
*After providing walls remove the extrta lines using the trim command.

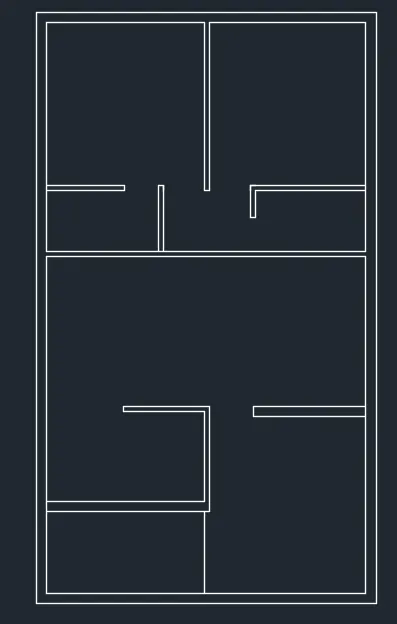

In the same way offset command is used to partition the rooms, toilets, living and dinning hall as per the required dimentions.

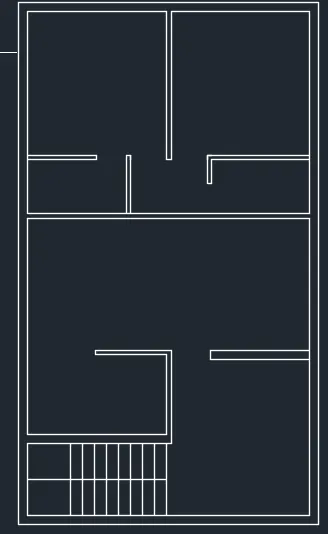

*Staircase provided is a dog legged stair.
*Draw the stairs left side of parking with 1' tread and 6' riser, that is shown in figure clearly.
*Next we have to draw the doors with the given dimensions of D1,D2,D3.

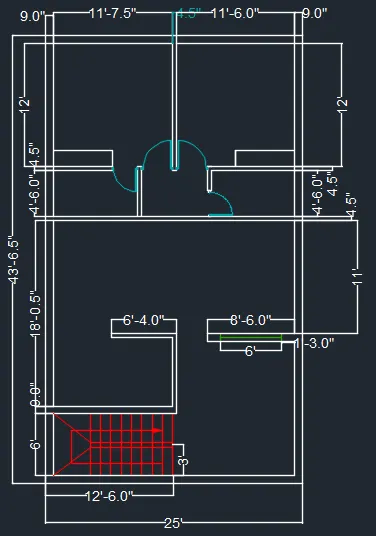

*Provide the dimensions.
*Differentiate the doors and staircase using different colours.
*And also give names for the rooms in the residential building.
*To provide the names mtext command is used.
RESULT:
The given residential plan is drawn using autocad.
2.SKETCH OF SEATING PLAN FOR AN OUTDOOR CANOPY.given seating plan for an outdoor conopy in detail.
AIM:
To draw the given seating plan for an outdoor conopy in detail.
Introduction:
* A canopy is an overhead roof or else a structure over which a fabric or metal covering is attached,able to provide shade or shelter from weather conditions such as sun, hail, snow and rain.
*Canopy can also be tent,generally without a floor.
*The seating plan of outdoor canopy is places in many places like receptipons ,restaurants etc.
COMMANDS USED:
Limmax command
Limits command
Zoom command
Xline command
Line command
Dimlinear command
Units command
Text command
Extend command
Trim command
STEP WISE PROCEDURE:
Command:UN
UNITS

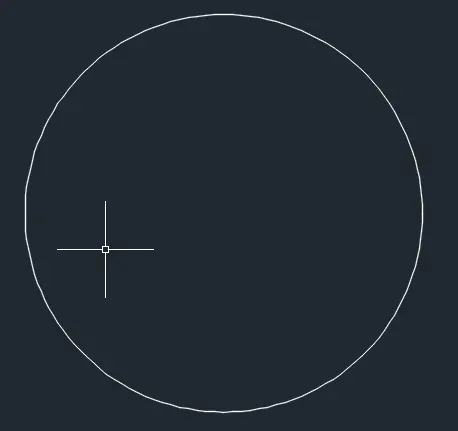

Command:C
CIRCLE
Specify center point fotr circle or [3p/2p/Ttr(tan tan radius)]:
specify radius of the circle or [Diameter]:1398

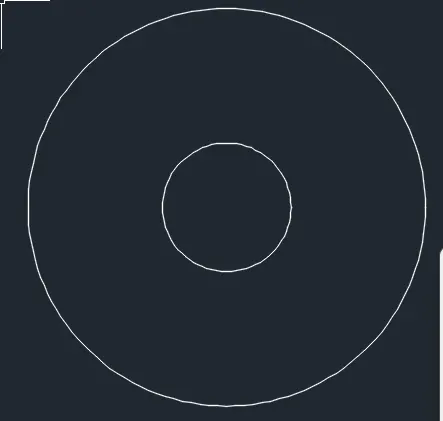

Command:C
CIRCLE
Specify center point fotr circle or [3p/2p/Ttr(tan tan radius)]:
specify radius of the circle or [Diameter]<1398>:452

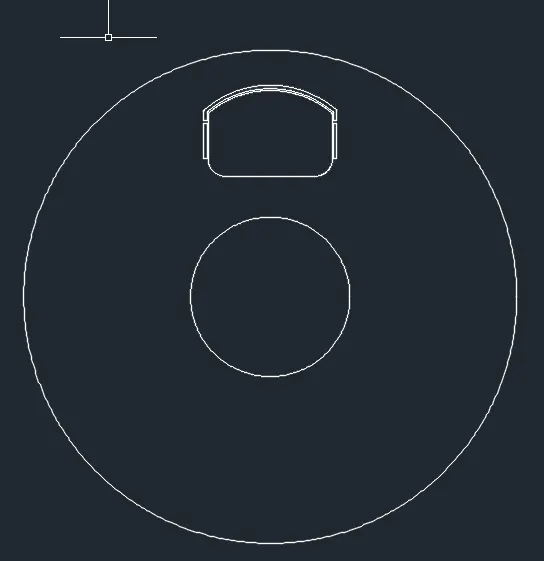

*Next here we have to draw the rectangle inside the first circle , then we have to enter the fillet command and select the rectangle corner to fillet it.
*Next we select arc command to create are left side of the rectangle.
*Copy the created chair and use array command.

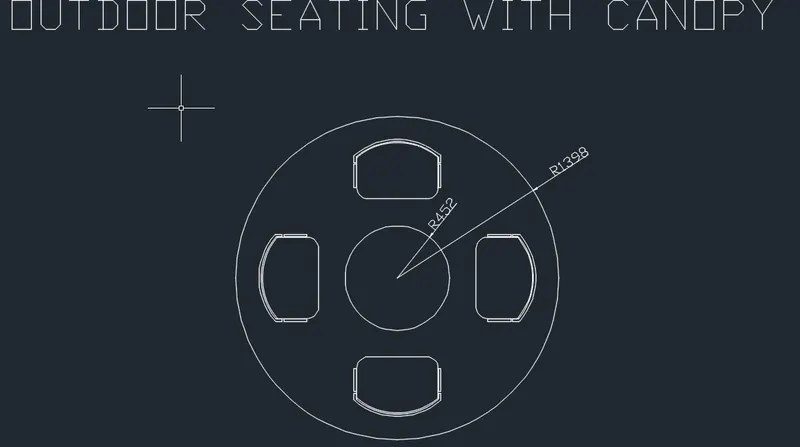

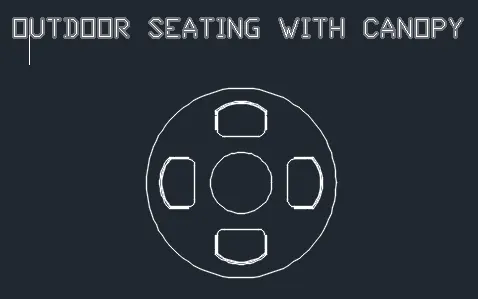

*By using polar array and providing the number of items as 4 the chairs are created as shown below.
RESULT:
An outdoor canopy is created as per the details given using AUTOCAD.
3.Sketch the part plan for the toilets and utilities room.
AIM:
To draw the part plan for the toilets and utilities in detail.
INTRODUCTION:
*A toilet room usually consists of obviously a toilet, Lavatory and all of the accessones ,such as grab bars and dispensers
*There are many layouts of this type but we will esplore one very simple design and the code requirements for each.
*The utility room has several uses but typically functions as an area to do laundry.
*This room contains laundry equipment such as a washing machine, tumble dryer ironing board and clothes iron.
*The room is also used for closet organization and storage.
*The room would normally contain a second coat closet which is used to store seasonal clothing such as winter costs or clothing which are no longer used daily.
COMMANDS USED:
Limmax command
Limits command
Zoom command
Xline command
Line command
Dimlinear command
STEP WISE PROCEDURE:
Command:UN
UNITS

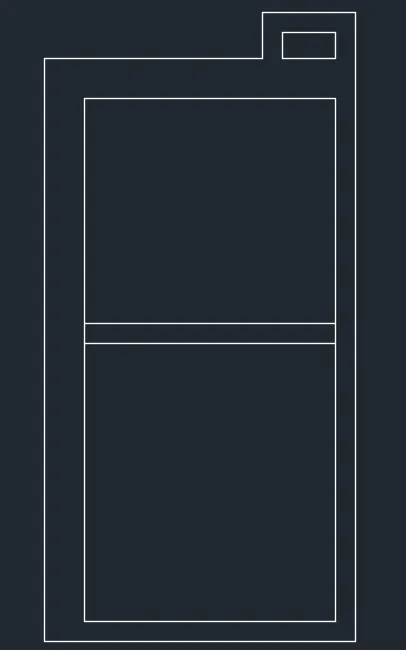

*The lines are drawn using xline command in both x and y directions .
command: xline
*The outerwall thickness is provided 300mm.
command: offset
offset distance : 300
*The outerwall thickness is provided 150mm.
command: offset
offset distance : 150

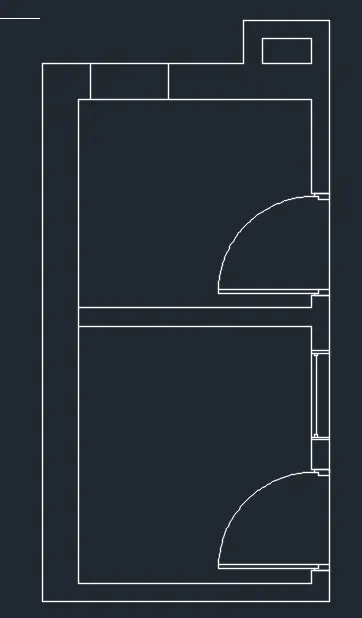

*The walls are provided as per the dimensions given
*The extra unwanted lines are deleted using trim command.

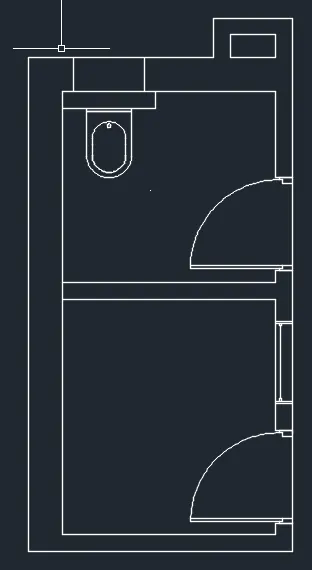

*The doors are provided using the line and arc command.
*Doors are created as per the dimentions.

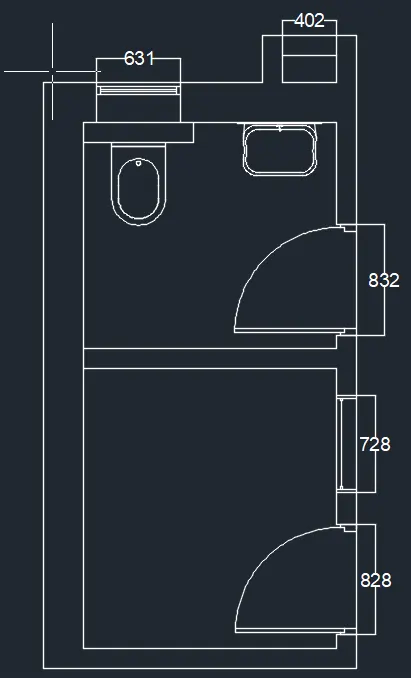

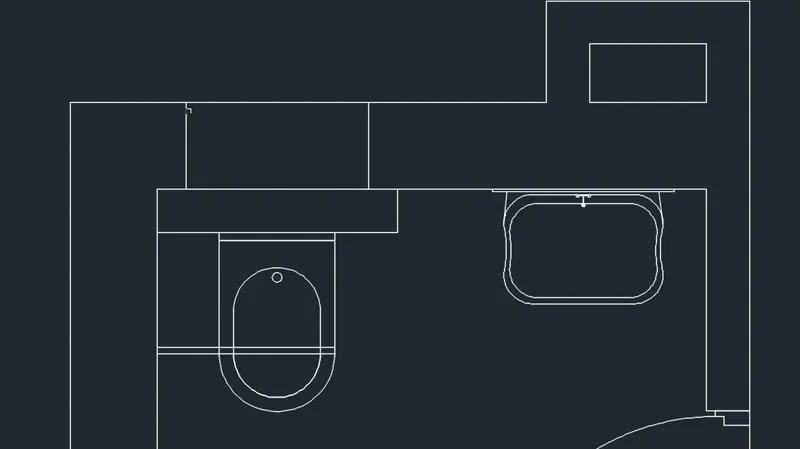

*The toilet basin is created
*commands used to create the basin are line, arc,ellipse and circle.
*Trim and extend command wherever required.
*The wash basin is created.
*command used are line, arc fillet.
*Ventilation for the bathroom is created.
*Commands used were line trim.

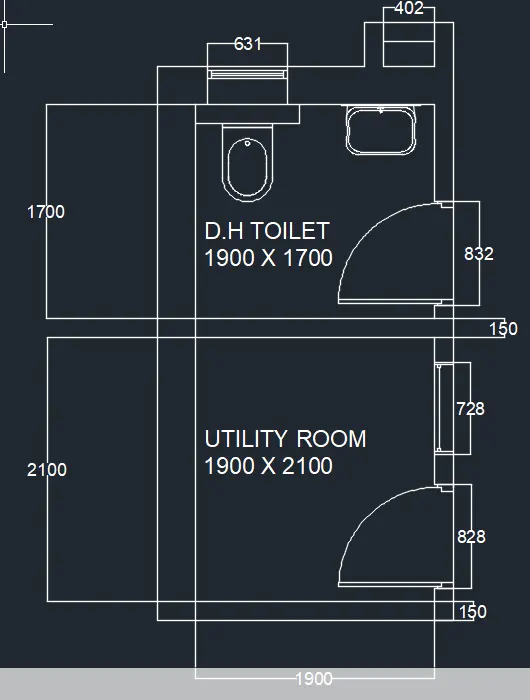

*Text is added to the drawing using mt command.
*Dimensions of the washroom is provided.
RESULT:
The given plan of the toilet and utilities are created successfully using autocad.
